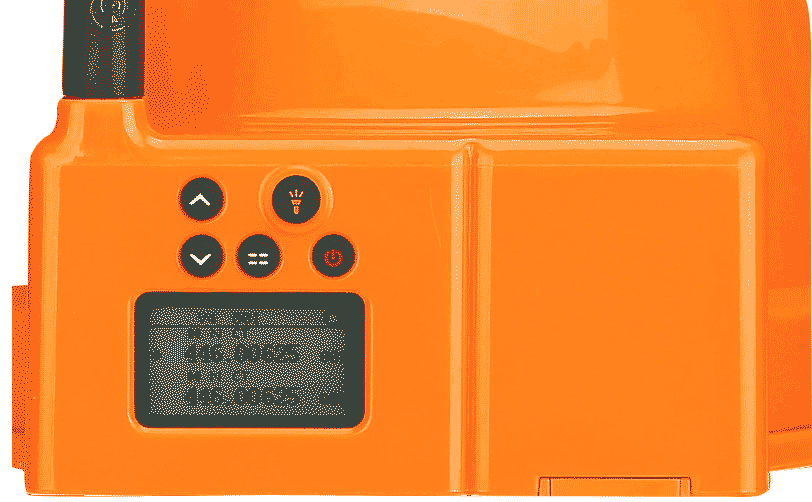

RA616 helmet license-free Walkie Talkies Radio
Hidden intercom system, long standby time up to 130h.
Safety first, prevention first
Outdoor ultra-high temperature operation warning.
One key press emergency signal
The built-in radio alarm function can quickly send out a remote alarm.
Family Radio Service (FRS)
The Family Radio Service (FRS) is a private, two-way, short-distance voice and data communications service for facilitating family and group activities. The most common use for FRS channels is short-distance, two-way voice communications using small hand-held radios that are similar to walkie-talkies.
Safe and reliable, comfortable to wear
The Suspension system disperses the pressure and protects the head. And it has good ventilation and heat dissipation capabilities.
Other functions
- High-fidelity speakers, clear sound quality.
- Touch control launch button（PTT）.
- Noise-cancelling microphone, reject noise.
- Double LED light flashlight.
- Outdoor ultra-high temperature operation warning.
- The helmet is lined with webbing, fixed at four points, rotating to adjust the diameter of the cap, easy to fix with straps, and comfortable.
- The helmet is made of high-strength ABS engineering plastic shell, which has good impact resistance and protects the head from injury.
Built-in RFID chip, can be used with non-contact intelligence, real-name attendance and other multi-function applications (need to purchase additional active identification equipment for supporting use). - Double bright flashlight
- Alarm function
- VOX
- Scan
- TOT
- SQL
- Dual-Band Frequency Standby
- Compand
- FM Radio
- Quick team formation
|
Frequency Range |
PMR |
|
|
Channel number |
16 |
|
|
Frequency Stability |
±2.5ppm |
|
|
Working Voltage |
3.7V DC |
|
|
Antenna Impedance |
50Ω |
|
|
Operation Temperature Range |
-30℃~+60℃ |
|
|
Storage Temperature Range |
-45℃~+85℃ |
|
|
Battery capacity |
3800mAh |
|
|
Transmitter： |
||
|
Output Power |
＜2W |
|
|
Current |
≤1.4A |
|
|
Modulation Sensitivity |
12mV@3KHz |
|
|
Modulation Deviation |
≤5% |
|
|
Maximum Frequency Deviation |
≤5KHz |
|
|
Remanent Radiation |
≤-36dBm |
|
|
Modulation Mode |
FM |
|
|
Remanent Modulation |
≤-35dB |
|
|
Receiver: |
||
|
RF Sensitivity |
≤-120dBm |
|
|
Silent Sensitivity |
≤0.15uV |
|
|
Audio Frequency Power |
500mW |
|
|
Audio Distortion |
≤5% |
|
|
Spurious Rejection |
≥55dB |
|
|
Selectivity |
≥65dB |
|
|
Intermodulation |
≥60dB |
|
|
Blocking |
≥85dB |
|
Brochures
Firmware/Software
Manuals
Accreditations
- Outdoor ultra-high temperature operation warning.
- Optional transparent protective mask, shawl, windproof, dustproof and fireproof (need to be purchased separately).
