Solid quality, well-made, two-color injection molding process
Companding technology to make the call clearer
License-free use, MURS spreads more widely in open areas
Large capacity and long standby time (4400mAh)
|
General Specifications |
|
|
Frequency Range |
MURS |
|
Channel Capacity |
5 CH |
|
Channel Spacing |
12.5KHz |
|
Antenna Impedence |
50Ω |
|
MIC Impedence |
2.2kΩ |
|
Working Voltage |
3.7V DC |
|
Operating temperature |
-30~+60°C |
|
Frequency Stability |
±2.5×10-6 |
|
net weight |
260g |
|
Transmitter |
|
|
Carrier Frequency Tolerance |
±2.5×10-6 |
|
Output Power |
≤2W |
|
Modulation Sensitivity |
11±2mV |
|
Modulation Distortion |
≤5% |
|
Modulation Limit |
≤5 kHz |
|
Occupied Bandwidth |
≤16 kHz |
|
Modulation Characteristic |
±3dB |
|
Spurious Radiation |
≤7.5μW |
|
Adjacent Channel Selectivity |
≤-65 dB |
|
Transmitting SNR |
≥40 dB |
|
Receiver |
|
|
Reference Sensitivity |
-121dBm |
|
Squelch Sensitivity |
≤0.22μV |
|
Audio Power |
1W |
|
Audio Distortion |
≤5% |
|
Modulation RX Bandwidth |
≥∣±7kHz∣ |
|
Audio Response |
≥+2dB, ≤-10dB |
|
Co-channel Injection |
≥-8 dB |
|
Block |
≥85 dB |
|
Channel Selectivity |
≥65 dB |
|
Receiving SNR |
≥45 dB |

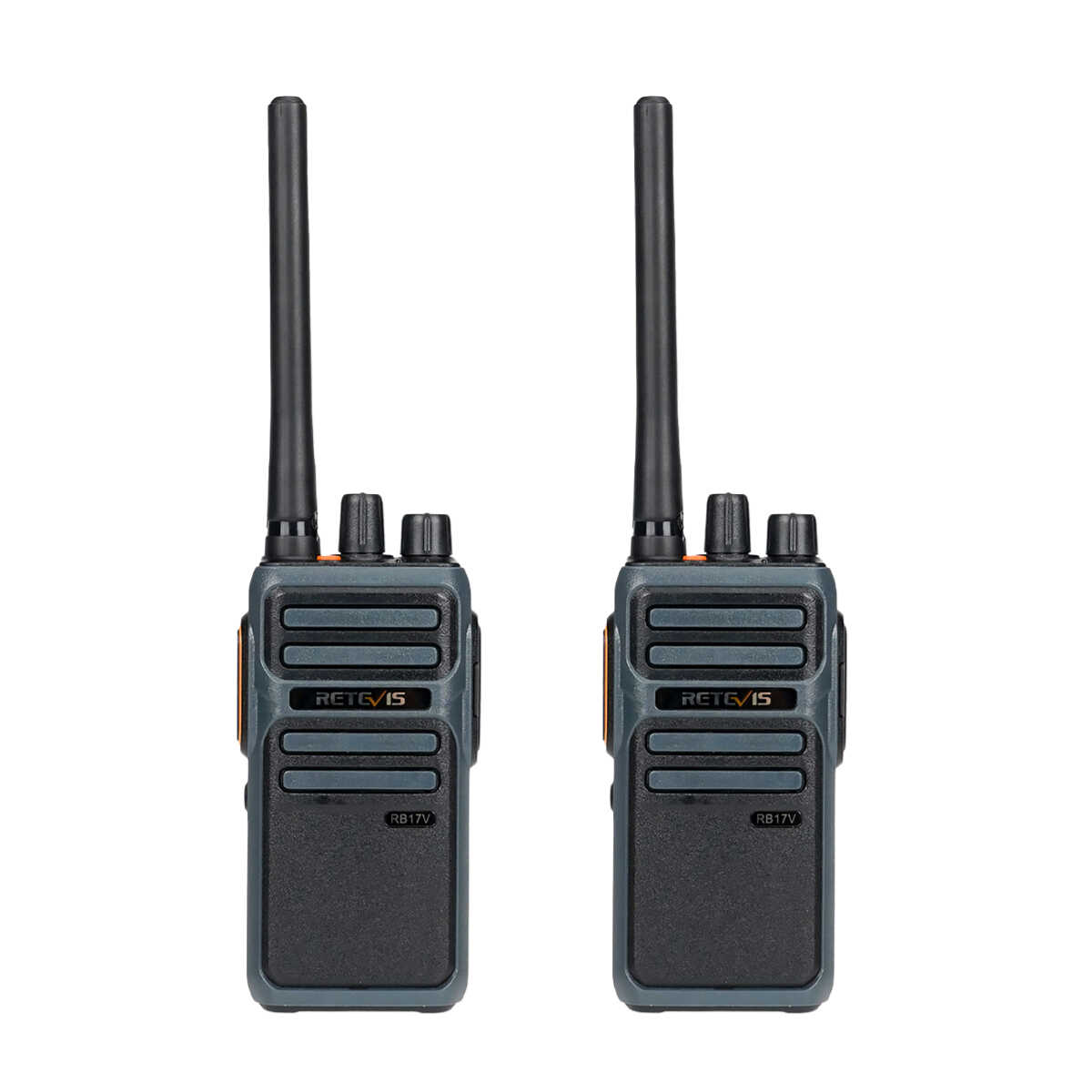

- Brand: Retevis
- Model: RB17V

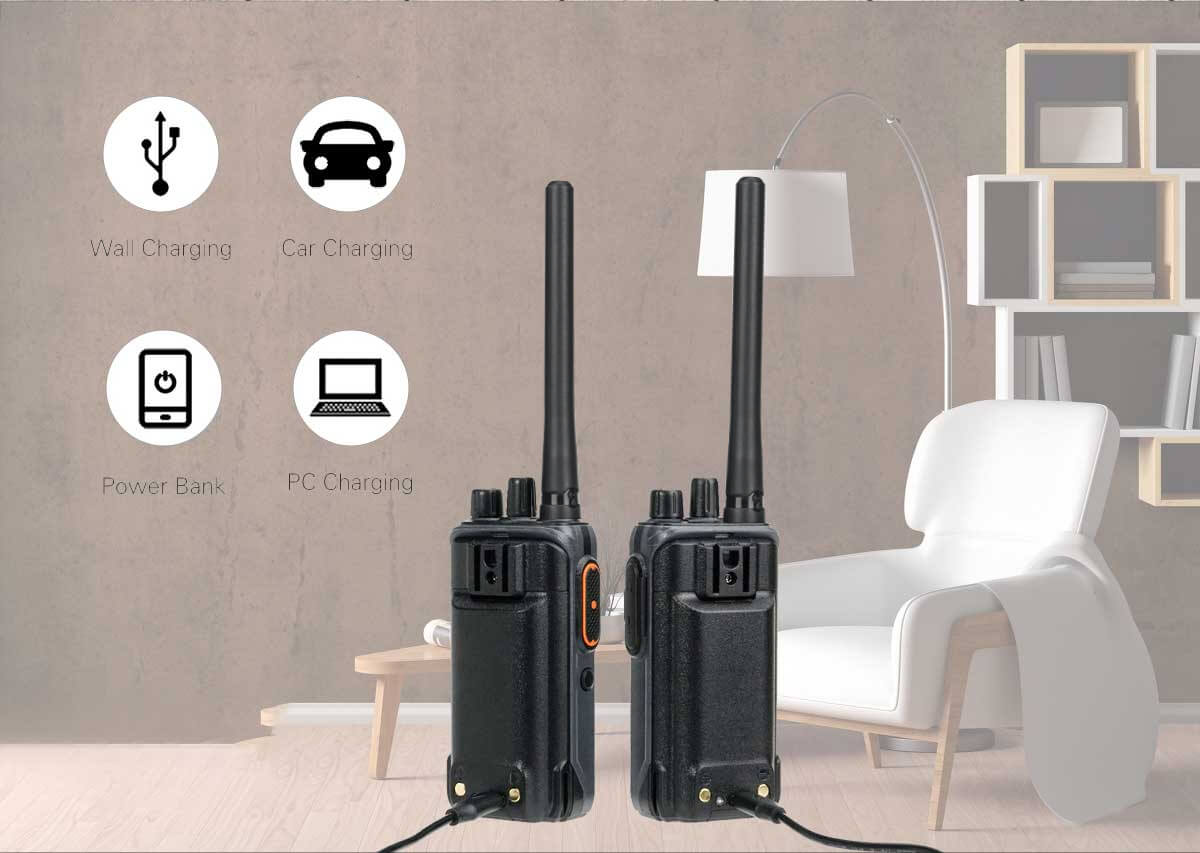

- Large capacity and long standby time (4400mAh)
- Solid quality, well-made, two-color injection molding process
- Companding technology to make the call clearer
- 9 levels of squelch, to achieve an ideal call
- License-free use, MURS spreads more widely in open areas
- There is no interference from ordinary walkie-talkies, which is very suitable for commercial applications (or users who need more privacy)
- One-key remote alarm, one-key open VOX
- Indicator
- Channel Switch
- Power Switch
- PTT
- Monitor
- Squelch Level
- TOT
- Voice Annunciation
- Power Saving Function
- Battery Voltage Alert
- Busy Channel Lockout
- High /Low Power Switch
- VOX
- OT/DQT
- Remote Alarm Function
- Compandor
