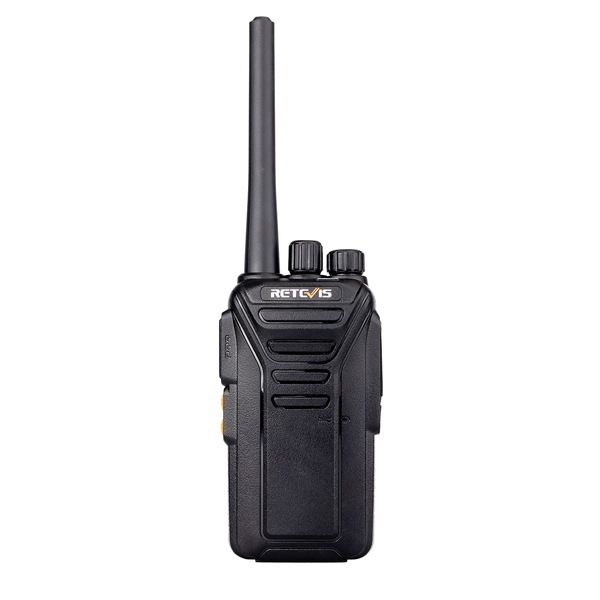

New Retevis RT27/RT27V license-free 12.5KHz Handheld Two Way Radio
Description:
- RT27 is a license-free analog handheld two way radio.
- With a compact, ergonomics design.
- 50 CTCSS 210 DCS avoid hearing on the same channel extra call.
- RT27 features a time-out timer (TOT) to avoid inadvertent continuous operation.
- Programmable via PC, you are able to customize the feature of each radio.
Feature：
- VOX function
- Scan function
- CTCSS and DCS
- DCS encrypt
- Busy Channel lockout(BCL)
- Adjust squelch level
- Monitor
- Time-out timer (TOT)
- Battery save
- Voice companding function
Package includes:
- 1 x Radio
- 1 x Battery
- 1 x Adapter
- 1 x USB Charger
- 1 x Belt Clip
- 1 x Hand Strap
- 1 x User’s Manual
Technical Specification |
|
| Frequency range |
FRS:462.5500MHz-467.7125MHz PMR446:446.00625MHz-446.09375MHz MURS:151.820MHz-154.600MHz |
| Channel |
FRS:22 PMR446:16 MURS:5 |
| Channel spacing | 12.5KHz |
| Operation voltage | 3.7V |
| Battery | 1100mAh(Li-ion) |
| Frequency stability | ±2.5ppm |
| Operating temperature range | -20℃~+55℃ |
| Dimensions | 105 x 59 x 34mm(without antenna) |
| Weight(with antenna and battery) | 185g |
| Transmitter | |
| Output power | 2W/0.5W |
| Modulation | F3E |
| Current | ≤1.2A |
| Modulation distortion | ≤5%(300-3000Hz) |
| Maximum frequency deviation | ≤2.5KHz |
| Remanent modulation | ≤-35dB |
| Receiver | |
| RF sensitivity | ≤0.3µV |
| Silent sensitivity | ≤0.25µV |
| Audio frequency power | ≥250mW |
| Related audio distortion | ≤5% |
| Modulation receiver bandwidth | ±7KHz |
| Spurious rejection | ≥55dB |
| Selectivity | ≥65dB |
| Inter-modulation | ≥60dB |
Accreditations
- RT27-FCC-Certificate
- RT27-IC-Certificat
