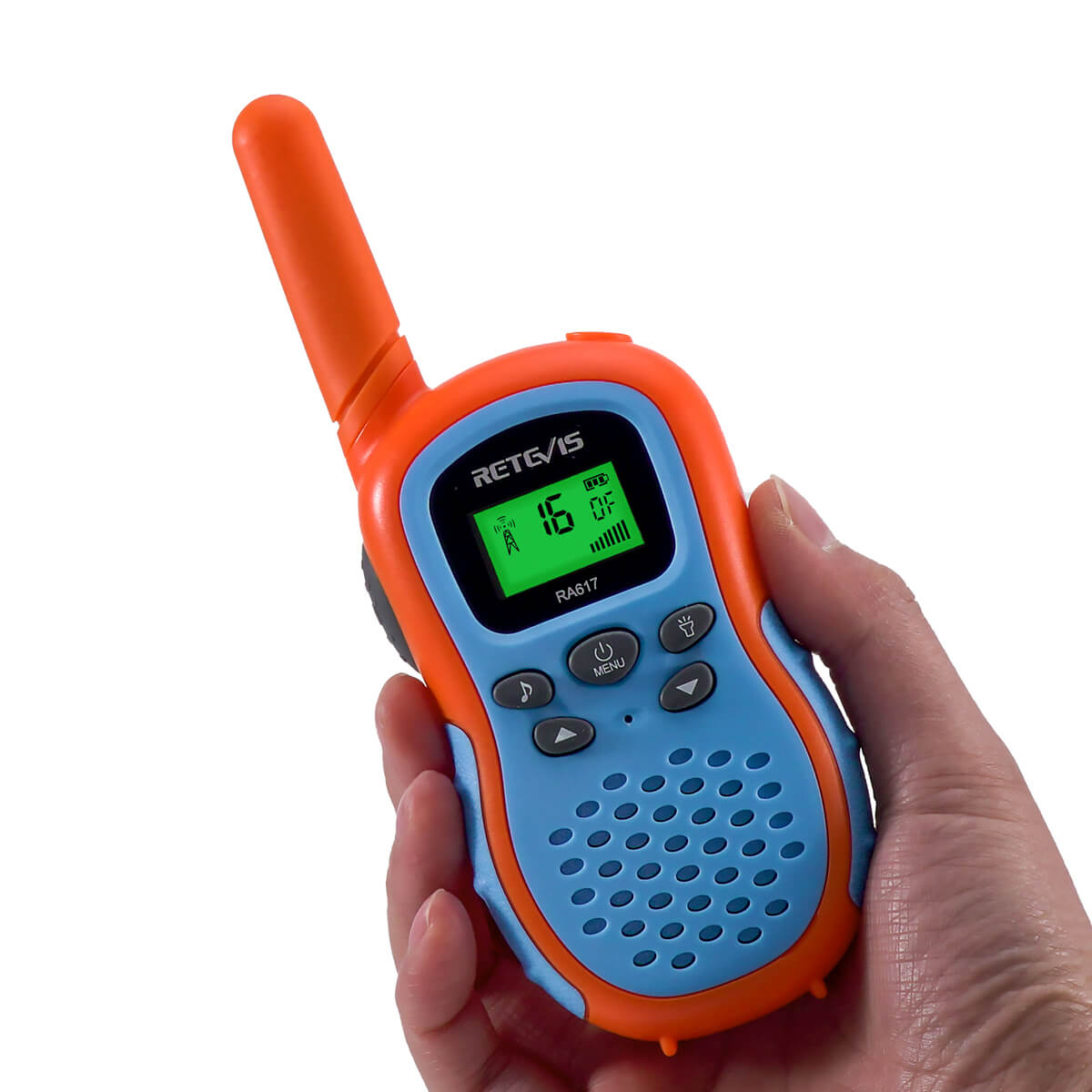

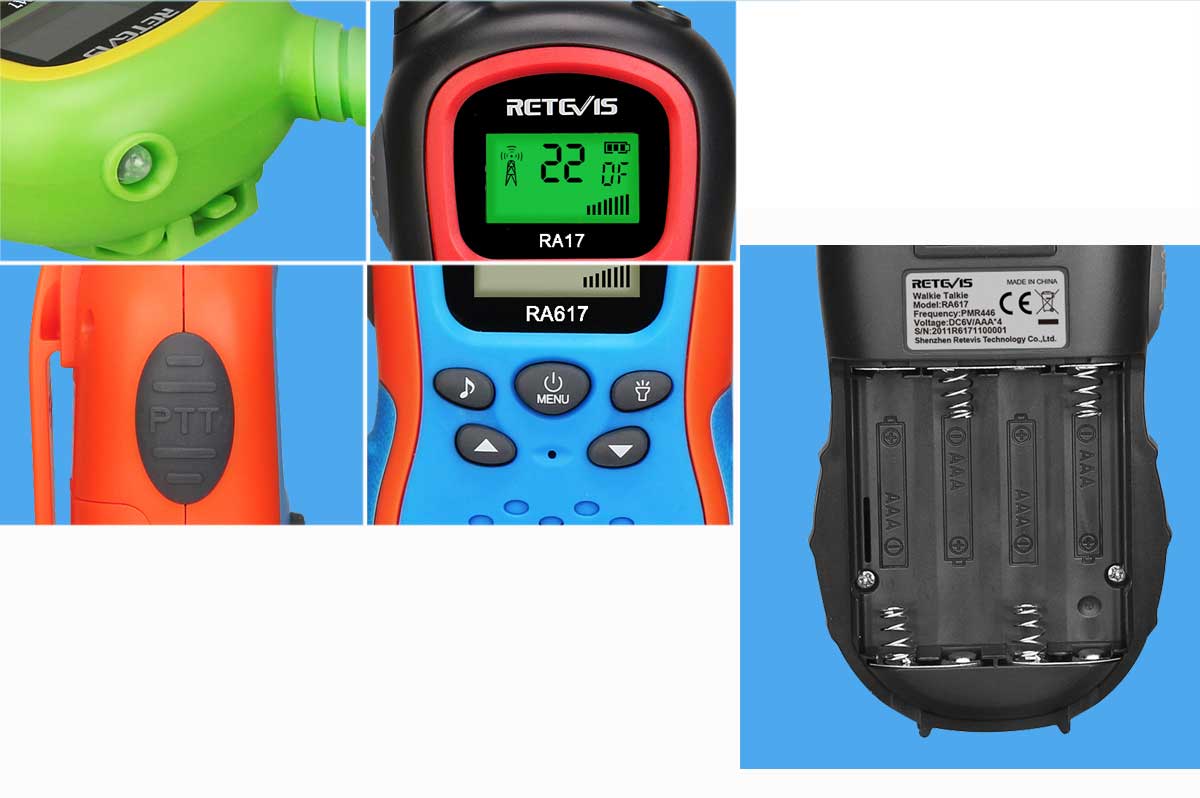

Product number | RA17 |
Frequency range | FRS |
Channel number | 22CH |
Channel spacing | 12.5KHz |
Working voltage | 3.7V |
Operating temperature range | -20℃~+50℃ |
The antenna impedance | 50Ω |
Overall dimensions | 150x54x35mm |
Weight | 75g (Without battery) |
Transmitter | |
Rf power | ≤ 0.5W |
Modulation method | FM-F3E |
Signal to noise ratio | ≥35dB |
Residual Radiation | ≤-35dB |
Emission current | ≤ 300mA |
Maximum deviation | ≤ 2.5KHz |
RECEIVER | |
Receiving sensitivity | ≤ -118dBm |
Adjacent selective | ≥ 55dB |
intermodulation | ≥ 55dB |
Audio output power | ≤ 0.5W |
Audio distortion | ≤ 10% |
Receiving current | ≤ 300mA |
Standby current | ≤ 70mA |
Power saving current | ≤ 100uA |
