Retevis RT97S GMRS Repeater 3M Coaxial Cable and 2PCS RB17P GMRS Handheld Radio Bundle

SKU: US-A9150J-C9082B-LP25021704-C9252A-A9191DX2-C9034A

Category: Up To 60% Off, Repeater Radio Sale, Repeater Radio Sale Main Product, GMRS Radio Repeaters, GMRS Repeaters, Repeater Bundle Sale

Order Status: In Stock


Regular price

  1. With 3M Coaxial Cable: the repeater and antenna are installed in close proximity, minimizing feeder loss and maximizing transmission power.
  2. Portable Repeater Solution for Extending GMRS Handheld Radio Range

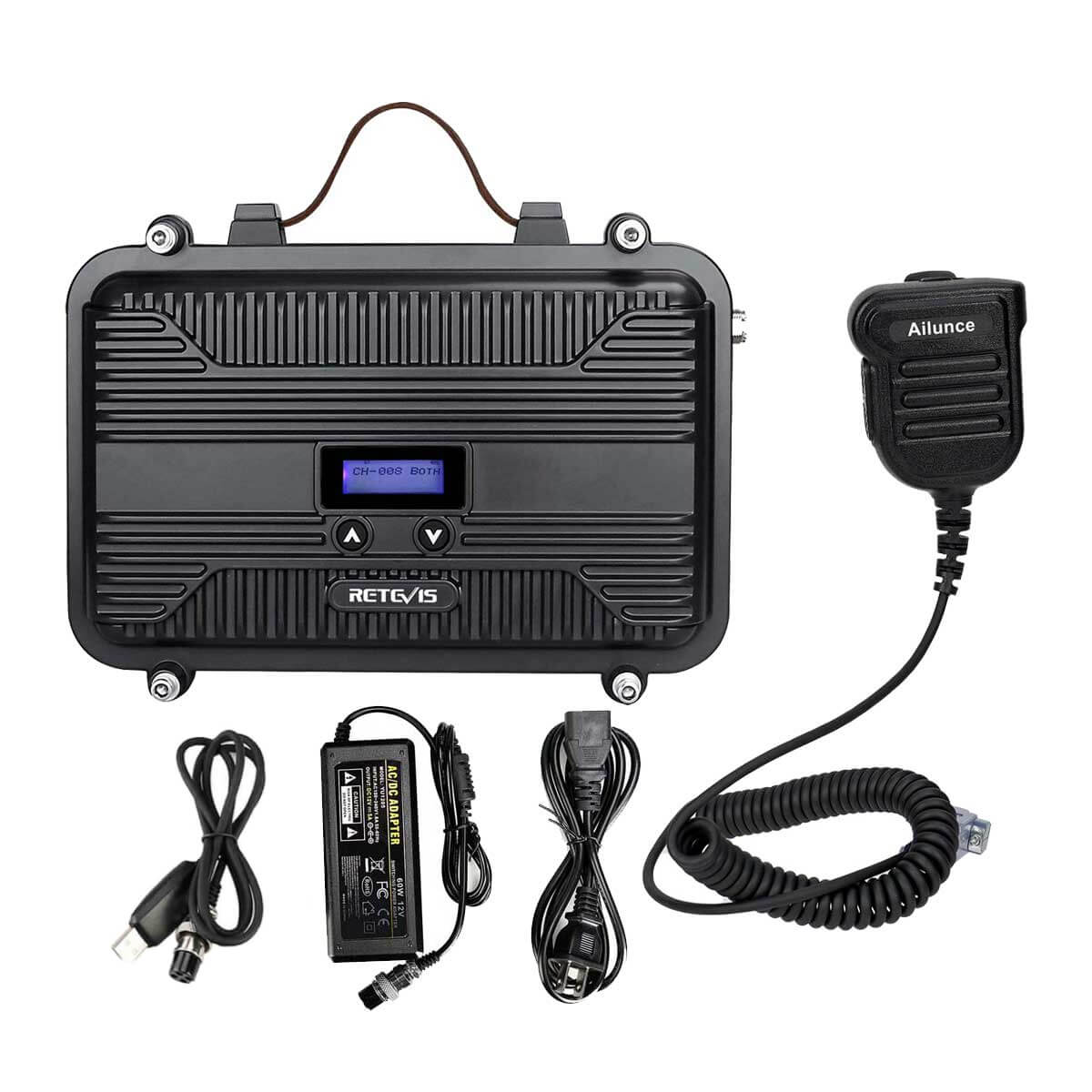

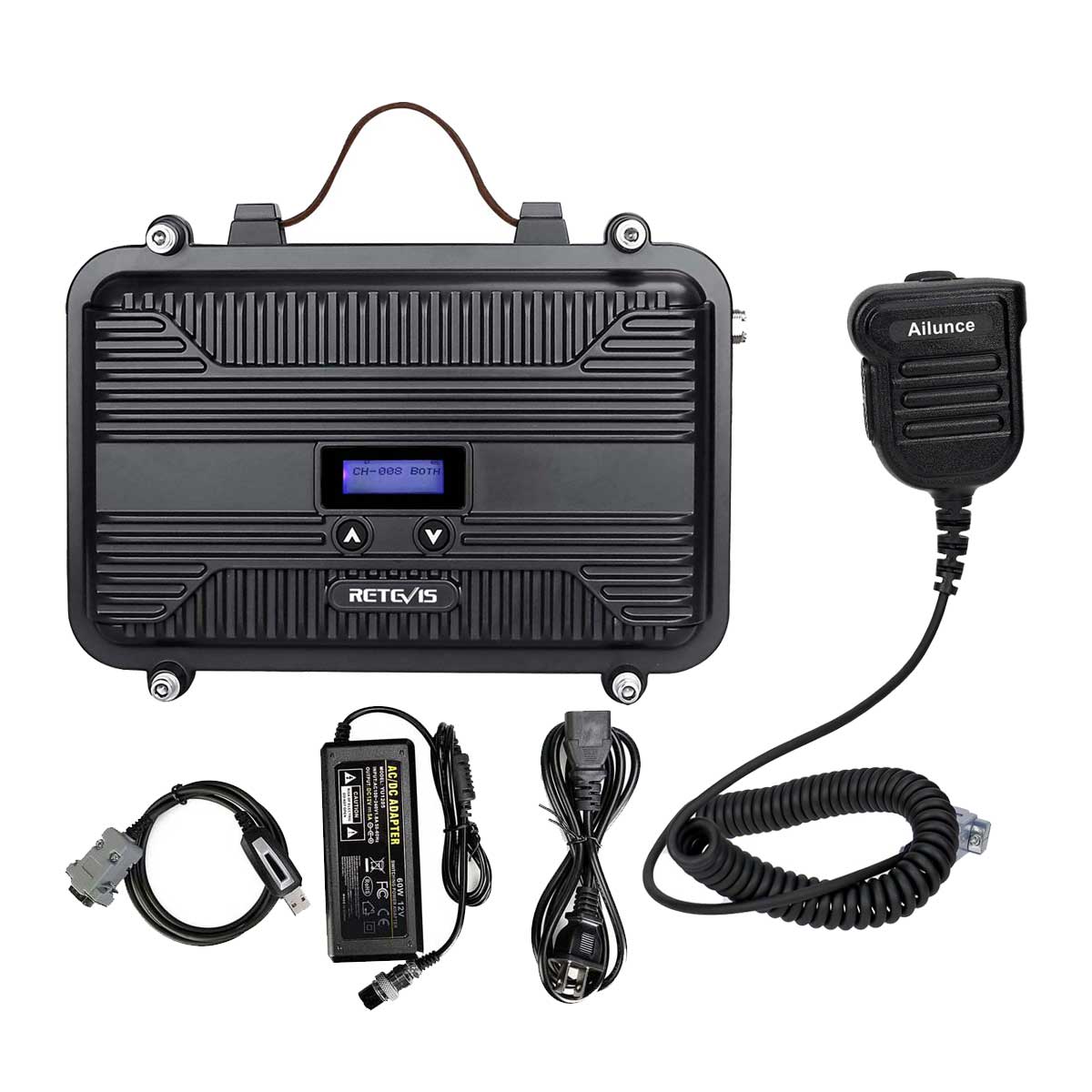

  3. Repeater Comes with Fiberglass Antenna, 3M Coaxial Cable and Speaker Mic

Save $30.00 Orders Over $300
Free shipping
Limited time deal


In Stock Pre-order Now Out of stock Order now, Only 10 left!
<<
Previous
Next >>

Description

Retevis RT97S GMRS Repeater and 2PCS RB17P GMRS Handheld Radio Bundle

Retevis RT97S GMRS repeater can greatly extend the RB17P GMRS handheld radio's communication distance, which can supply up to 10 miles of talking range (the specific call distance depends on the usage environment). This is a perfect long range radio communication solution for farms, construction sites, racing, concerts, schools, churches, rescue, buildings, road trips, etc.

Main Features of RT97S GMRS Repeater:

1. Easy-to-Use GMRS Repeater Bundle

Featuring 8 GMRS repeater channels,  a built-in notch duplexer, all you need to do is add an antenna and feeder cable to get on the air. A USB programming cable is also included to program the repeater to your channel and CTCSS/DCS tones of choice.

2. Small and Portable Repeater

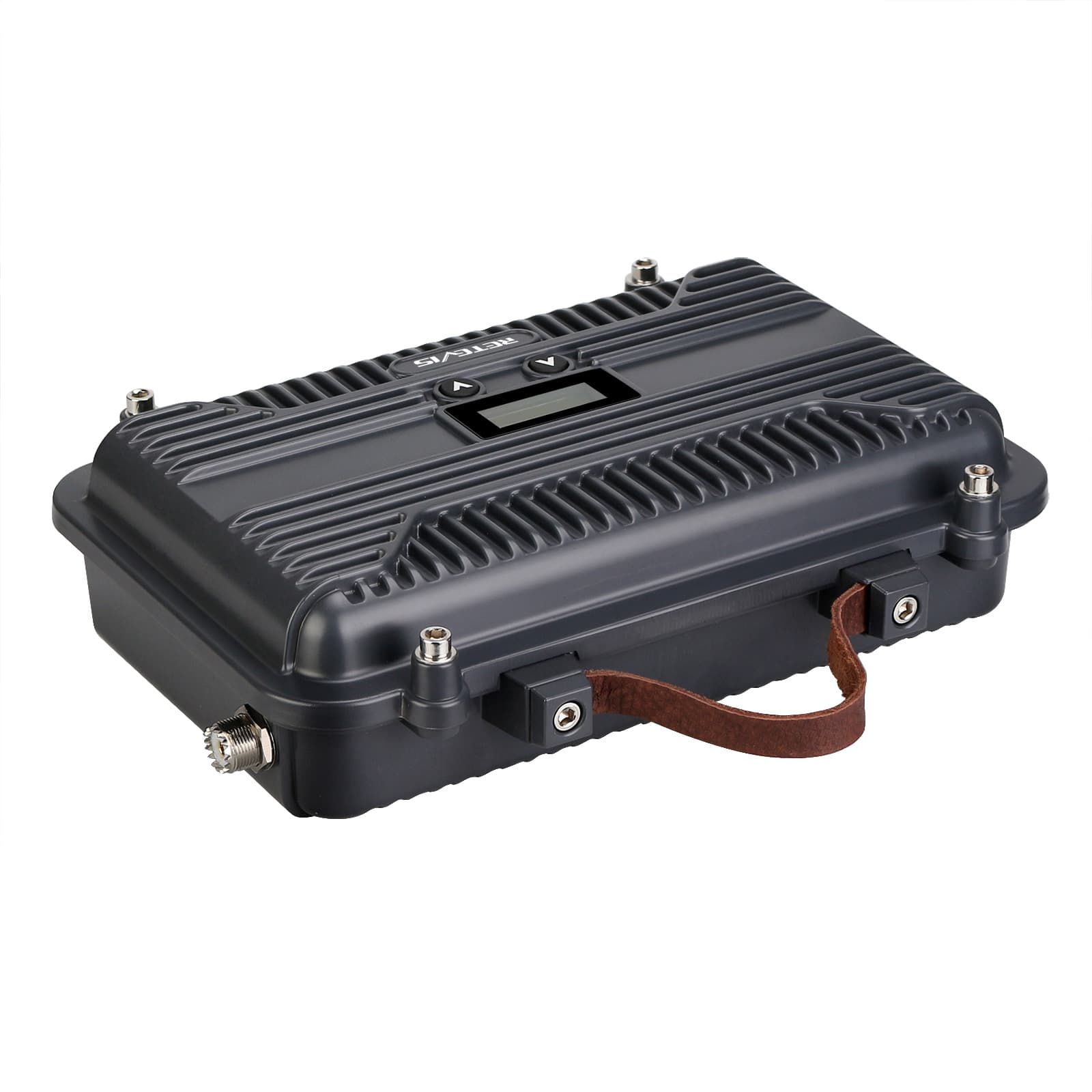

Retevis RT97S repeater size is only 260 x 210 x 70mm. It is very small and compact, convenient to carry, and very useful for outdoor use and for families, individuals, and groups. You can also install it on the top of the mountain to build your own base station.

3. Multiple Charging Options

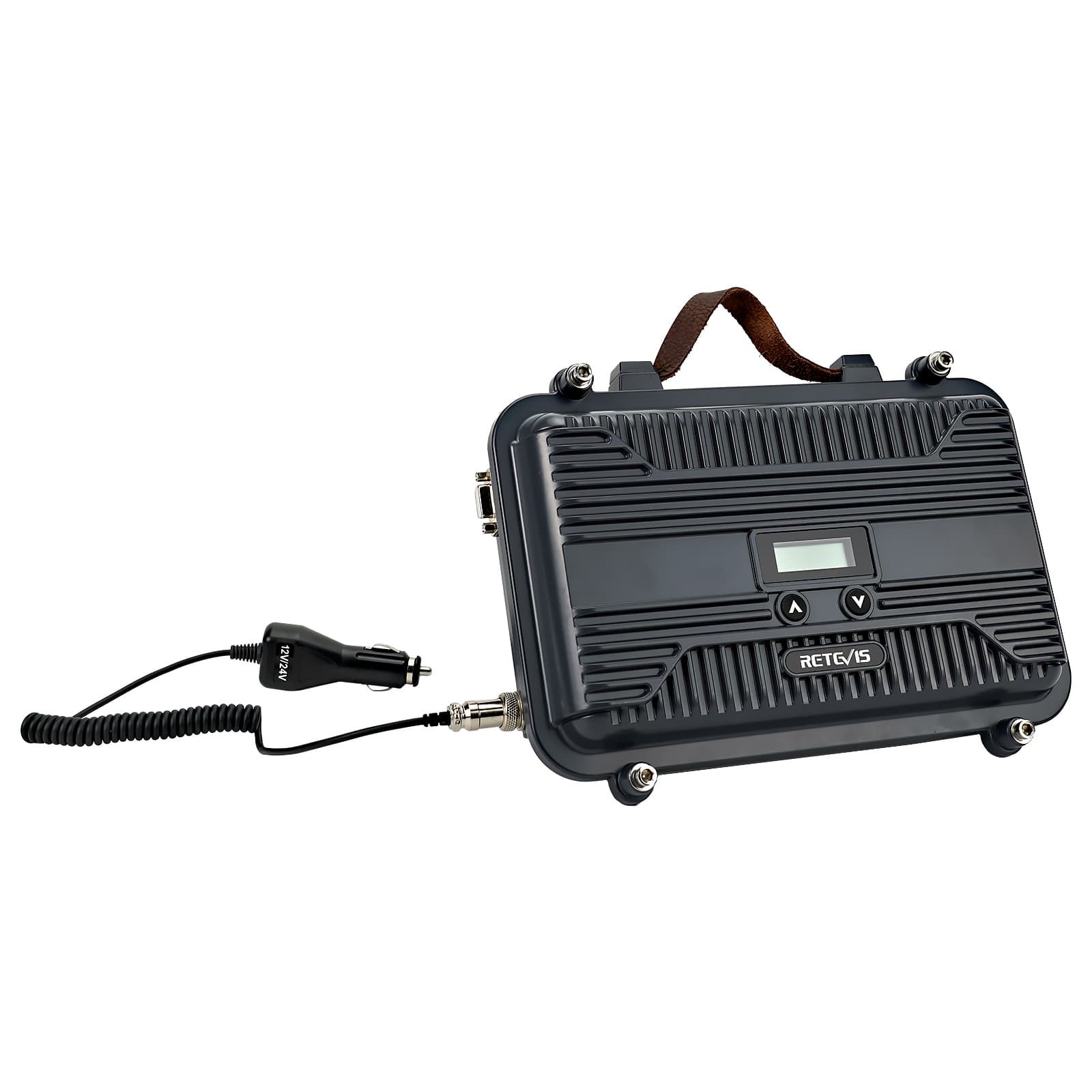

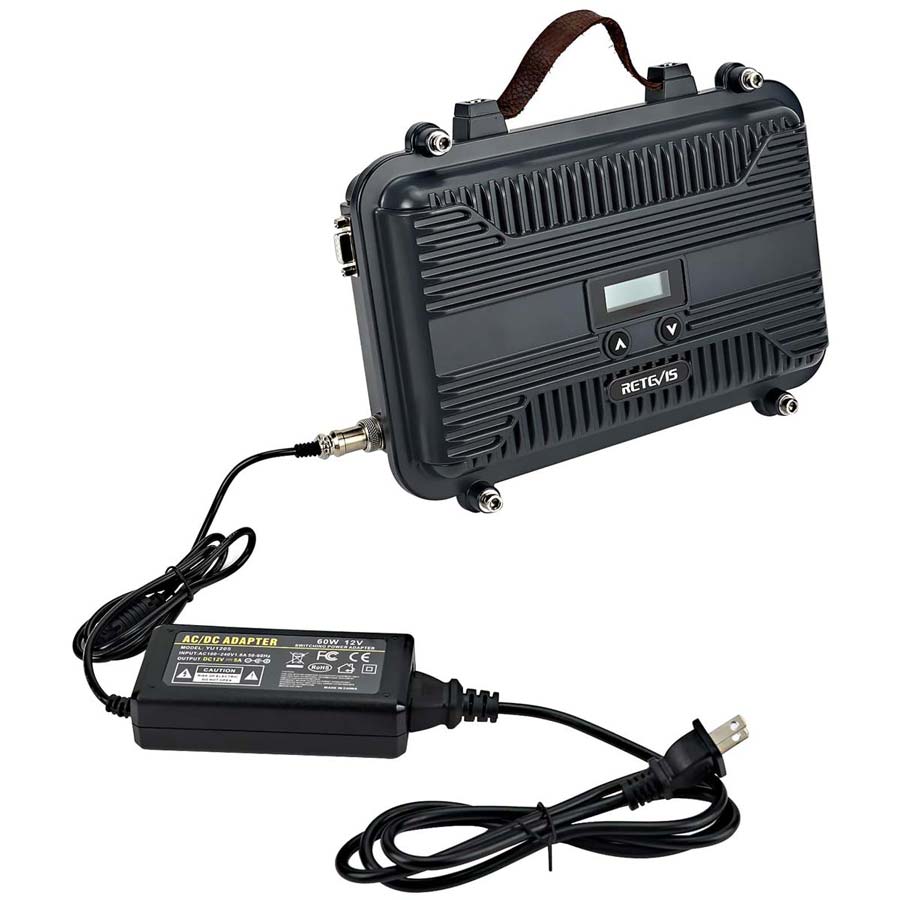

RT97S can be powered by DC12V~24V power, car power, or a solar battery. The RT97S is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a portable size, this repeater is perfect for camping trips or emergency preparedness.

4. Easy-to-Read LCD Display

Retevis RT97S repeater comes with an LCD display. The display can help you know the TX and RX frequencies, CTCSS/DCS code, and bandwidth settings easily. There are also up and down keys, which can help you change channels and CTCSS/DCS tones. You can also use the key to lock/unlock the keypad.

Main Features of RB17P GMRS Handheld Radio:

1. Repeater Capability

RB17P GMRS two way radio has 8 repeater channels, which can be directly connected to the Retevis RT97S GMRS repeater to obtain stronger and longer-distance signals. This will greatly increase your communication range and reliability.

2. Long Battery Life

Equipped with a 2200mAh large-capacity battery, it supports 24 hours of work in the workplace without frequent charging. Long standby time, meet your daily work.

3. NOAA Weather Alerts

The dual-watch function allows you to monitor NOAA while communicating with your partner. NOAA weather channel scans and locks the strongest weather channel to remind you of severe weather updates.

4. Colorful Display and Multiple Background Colors

Retevis RB17P GMRS walkie talkie has a 1.7-inch TFT color screen to easily check the radio information. It also offers 8 different background colors. You can choose the best background color for different lights.

5. One-Key Alarm Function Button

Retevis RB17P has a single orange alarm button at the top of the radio. If you want to send an alarm, just press it. It will send both local and remote alarms.

6. Excellent Audio Quality

With high-quality speaker components, the sound of RB17P 2 way radios is loud but not harsh. RB17P also features 0-9 squelch levels, which can filter out incoming signals that are not strong enough. Users can set the appropriate squelch level according to their needs.

Spec

Specification of RT97S GMRS Repeater:

Specifications
Frequency Range 462.550-462.725 MHz (TX), 467.550-467.725 MHz (RX)
Channel Capacity 8 GMRS Repeater Channels
Channel Spacing ±12.5KHz Narrow/±25kHz Wide
Operating Voltage DC:12V-24V
Operating Temperature -22°F-140° F (-30° C-60° C)
Frequency Stability ±2.5ppm
Antenna Impedance 50 Ω
Dimensions 10.25"x8.3"x2.8" (260x210x70mm)
Weight 3.7 lbs (1.66 kg)
Transmitter
Modulation F3E
Spurious Emission -60dB or less
Maximum Frequency Deviation Wide: ±5kHz Narrow: ±2.5kHz
Audio Distortion 5% or less
FM Noise Wide:≤45dB Narrow :≤40dB
Receiver
Sensitivity(12dB SINAD) 0.2μV (Wide) 0.25μV (Narrow)
Squelch Sensitivity 0.15μV (Wide) 0.2μV (Narrow)
Adjacent Channel Selectivity ≥ 70dB (Wide) / ≥65dB (Narrow)
Intermodulation ≥ 55dB
Spurious Rejection ≥ 55dB
Image Rejection ≥ 55dB
FM Ham and Noise ≤-45dB (Wide) / ≤ -40dB (Narrow)
Modulation Type F3E
Operating Bandwidth ≤±7KHz / ≤±5KHz
Audio Distortion ≤ 5%

Specification of RB17P GMRS Handheld Radio:

General Specifications
Frequency Range GMRS: TX: 462.5500-467.7125MHz; RX:462.5500-467.7250MHz
Channel Capacity 30
Channel Spacing 12.5KHz
Antenna Impedence 50Ω
Frequency tolerance ≤2.5×10-6
Working Voltage 7.4V DC
Battery capacity 2200mAh(Li-ion)
Size 120(H)*58(W)*39(D)mm
Operating temperature -30~+60°C
net weight About 250g
Transmitter
Carrier Frequency Tolerance ≤2.5×10-6
Modulation Mode 11K0F3E
Modulation Limiting ±2.5K
Modulation Distortion ≤5%
Audio Response +1/-3 dB
FM Hum & Noise ≤35 dB
Transmit spurious emission ≤-36dBm@9kHz~1GHz≤-30dBm@1GHz~12.75GHz
Adjacent Channel Power >60dB
Receiver
Squelch Sensitivity ≤0.22 μV
Audio Distortion <5%
FM Hum & Noise ≤38dB
Inter-modulation response immunity ≥65dB
Adjacent channel selectivity ≥60dB
Co-Channel inhibition ≥-12dB
Spurious Response Immunity ≥70dB
Blocking ≥85dB

Features

Functions of RB17P GMRS Radio:

  1. 30 Channels, Including 8 Repeater Channels
  2. 1.7-inch TFT Color Display
  3. 8 Optional Background Colors
  4. NOAA Weather Alerts
  5. One-Key SOS Alarm (Remote+Local)
  6. High /Low Power Switch
  7. Channel Switch
  8. Monitor Function
  9. Squelch Function
  10. TOT (Time Out Timer)
  11. Voice Annunciation
  12. Power Saving Function
  13. Battery Voltage Alert
  14. Busy Channel Lockout
  15. High /Low Power Switch
  16. VOX Hands-Free
  17. Companding
