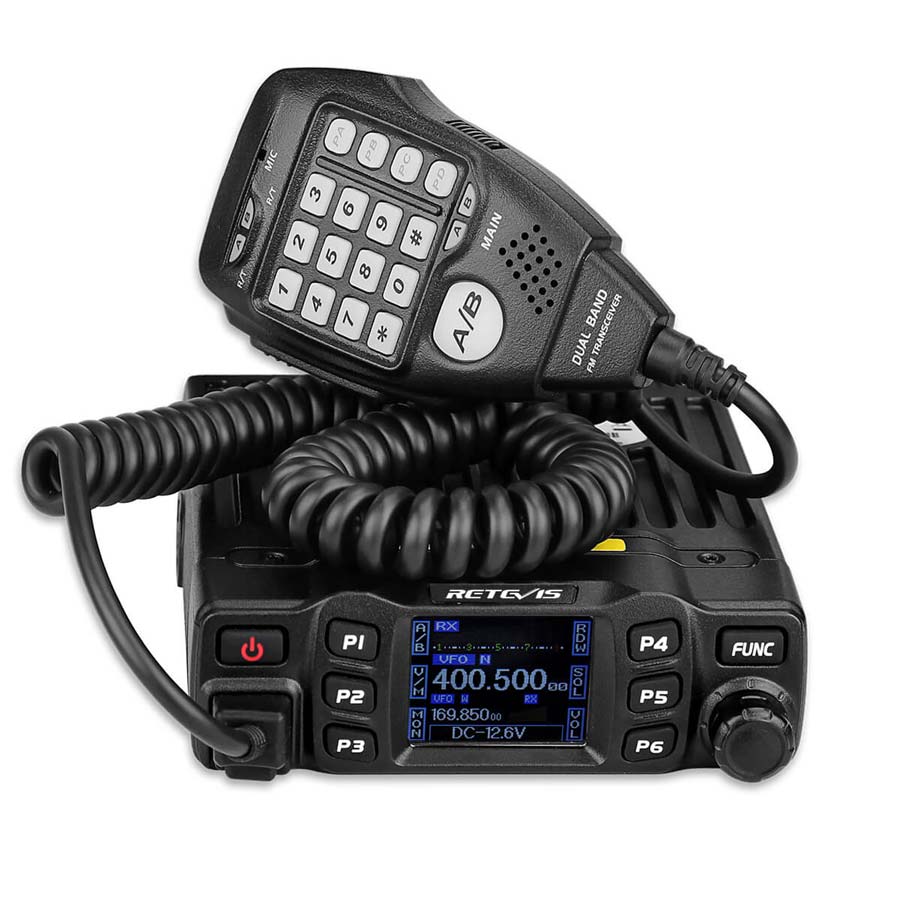

RETEVIS RT95 Dual Band HAM two way radio mobile Radio 180 degree rotatable TFT display alarm ANI remote kill EU version
This amateur mobile radio especially designs for drivers and it pursues philosophy of innovation and practicality.
180 degree rotatable TFT LCD display
Amateur mode and professional mode for different operation requirement
Full alloy body for heat radiation
Specifications
|
Frequency Range |
VHF:144-146MHz UHF: 430~440MHz |
||
|
Number of Channels |
200 channels |
||
|
Channel Spacing |
25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) |
||
|
Phase-locked Step |
2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz |
||
|
Operating Voltage |
13.8V DC ±15% |
||
|
Squelch |
Carrier/CTCSS/DCS |
||
|
Frequency Stability |
±2.5 ppm |
||
|
Operating Temperature |
-20℃~+60℃ |
||
|
Dimensions(mm) |
124 (W) x 163(D) x 39 (H) |
||
|
Weight |
about 0.64Kg |
||
|
RECEIVER |
|||
|
|
Wide band |
Narrow band |
|
|
Sensitivity (12dB Sinad) |
≤0.25μV |
≤0.35μV |
|
|
Adjacent Channel Selectivity |
≥60dB |
≥60dB |
|
|
Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~2.55KHz) |
|
|
Hum & Noise |
≥45dB |
≥40dB |
|
|
Audio distortion |
≤5% |
||
|
Audio power output |
>2W@8 |
||
|
TRANSMITTER |
|||
|
|
Wide band |
Narrow band |
|
|
Power Output |
25W / 15W / 5W |
||
|
Modulation |
16KΦF3E |
11KΦF3E |
|
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
|
Hum & Noise |
≥40dB |
≥36dB |
|
|
Spurious Emission |
≥60dB |
≥60dB |
|
|
Audio Response |
+1~-3dB(0.3~3KHz) |
+1~- dB(0.3~2.55KHz) |
|
|
Audio Distortion |
≤5% |
||
- Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation
- 180 degree rotatable TFT LCD display
- Full alloy body for heat radiation
- Amateur mode and professional mode for different operation requirement
- Distribute buttons reasonably, convenient for operation
- Separate band width setting for each single channel, Wide 25K, Middle band20K, Narrow band 12.5K
- 200 programmable memory channels, identified by editing name
- Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel,rejecting extra calling from other radios
- Various scan functions including CTCSS/DCS scan function
- Smart menu control and PC programming control
- Voltage level protection
- LCD brightless control
- Automatic power on function
- Main unit and microphone key lock function
- 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
- DTMF-ANI or 5Tone-ANI for automatical calling recognition
- Password function
- Dualwatch function
- Talk around function
- Frequency reverse function
- Offset function
