RT3S DMR Radio and Cable Bundle
- Digital/Analog Double Modes
- Compatible with Motorola Tier Ⅰ&Ⅱ
- Support TDMA and Dual Time Slot
- Comes with the Programming Cable
- 2000mAh battery capacity

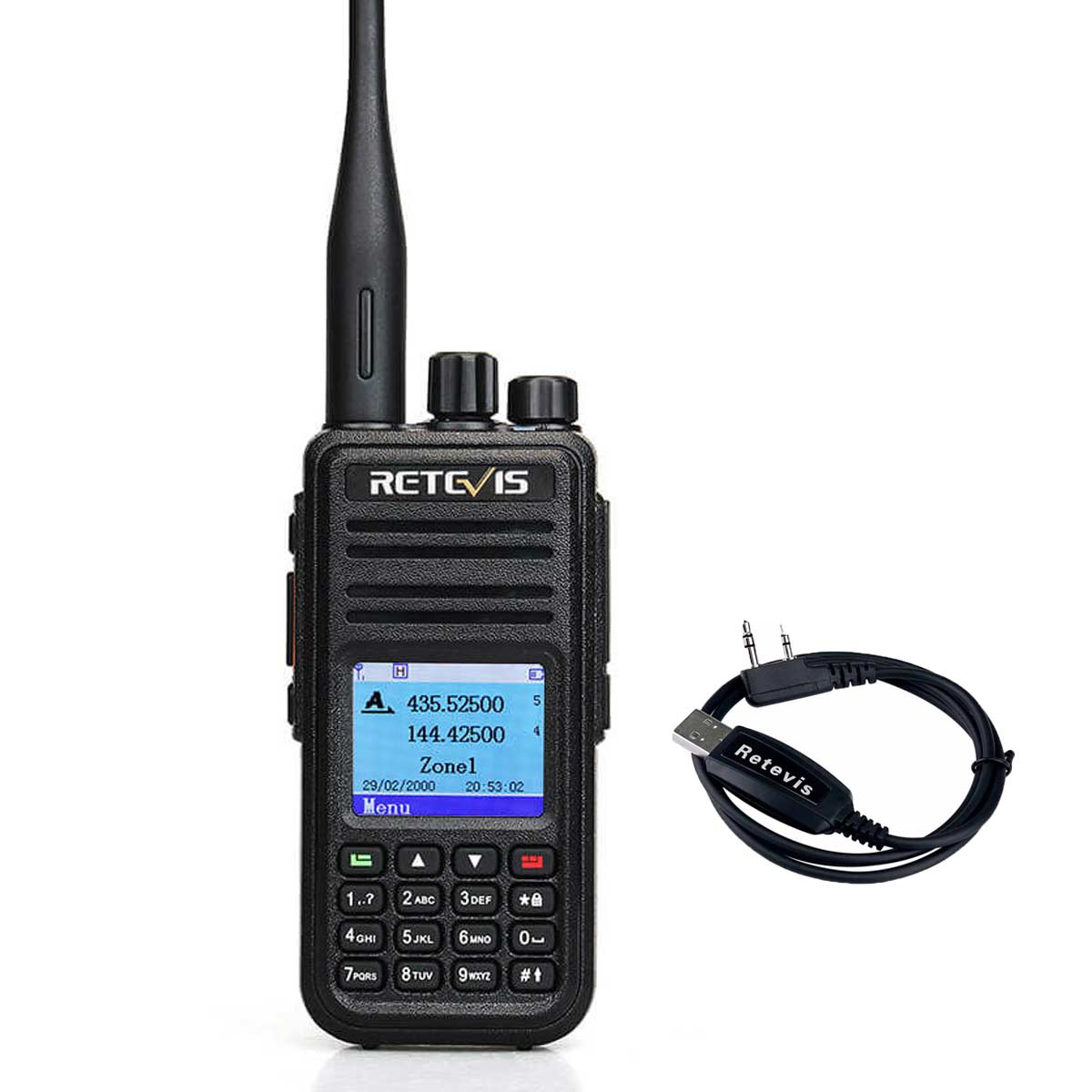

RT3S Dual Band DMR Radio GPS With Programming Cable
This bundle comes with the Retevis RT3S dual-band DMR radio and its programming cable, making it easy to customize the radio settings to your needs.
GPS Function
Retevis RT3S DMR radio has GPS function, you can know the location information when you are outdoors, and more detailed content can be obtained through software.
Long Range
Retevis RT3S two-way radio has 5W power, which ensures long distance and clear signal. It is very suitable for use in remote areas such as mountains and farms, as well as large outdoor activities.
Dual Band
The RT3S two-way radio has UHF and VHF frequencies; covering the frequency range of 2m and 7cm bands. It can also help you connect more repeaters at the same time and monitor two channels at the same time.
Duald Band and 2 Time Slot
RT3S radio can be effectively on standby on two channels at the same time, so you will not miss important information
Use time-division to cut 1 channel to 2 Independent channel; You can get more channel and can have two calls in one channel
2000mAh Battery
Comes with a 2000mAh rechargeable lithium battery, the battery capacity is large and the use time is longer. It can be used with with 16 hours of working time and 48 hours of standby.
VFO Mode
The RT3S two-way walkie-talkie has a VFO mode, which can change parameters such as frequency without a computer, and is equipped with a clear full numeric keyboard. Users can use the keyboard to complete 90% of operations and changes, which is convenient for daily use.
Note:RT3S can switch to VFO mode by long pressing the back button in MR mode.
Promiscuous
Choose Private/Group call match, then you can talk directly with the people in another group without the group restrictions;
Record/DTMF keypad
Recording function support you to record enough important call content and listen to each call content repeatedly; DTMF keypad helps you quickly operate multiple repeaters and rely on this radio as your everyday carry.
Compatible with Mototrbo TierⅠ&Ⅱ
This ham radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series radios using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF frequencies for easy migration to digital technology.
What’s in the Box:
- 1 x RT3S radio
- 1 x USB Programming Cable
- 1 x Battery
- 1 x Antenna
- 1 x Adapter
- 1 x Charger
- 1 x User manual
- 1 x Belt clip
- 1 x Sling
| General specifications | |
| Frequency | 136-174&400-480MHz |
| Channels | 3000 |
| Frequency Stability | ±1ppm |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |
| Dimension | 131 x 61 x 36mm |
| Weight | 258g (with battery) |
| Battery Type | Li-ion |
| Battery Capacity | 2000mAh |
| Antenna Impedance | 50Ω |
| Audio Impedance | 1W@16Ω |
| Channel Spacing | 12.5KHz |
| Vocoder | AMBE+2™ |
| Transmitter | |
| Power | High≤5W, Low≤1W |
| Frequency Stability | ±1.0ppm |
| Adjacent Channel Power | ≤-60dB |
| Free Time Slot Power | TDMA:≤57dBm |
| Hum and noise | -40dB@12.5KHz |
| Spurious radiation | Antenna:9KHz-1GHz ≤-36dBm1GHz-12.75GHz ≤-30dBm |
| FM modulation mode | 11K0F3E@12.5KHz |
| 4FSK digital mode | 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW |
| Modulation maximum deviation | 2.5KHz@12.5KHz |
| Nonactive slot power | -57dBm |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Audio Response | +1~-3dB |
| Modulation BER(bit error rate) | ≤5% |
| Receiver | |
| Analog Sensibility | 0.2µV@12dB SINAD |
| Digital Sensibility | 0.25µV(BER:5%) |
| Adjacent Channel Selectivity | ≤-60dB@12.5KHz |
| Intermodulation | ≤60dB |
| Spurious Response | ≥70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ＜5% |
| Rated Audio Power | 1W |
| Modulation | ≥45dB@25KHz≥40dB@12.5KHz |
- GPS
- Use time-division multiple-Access
- (TDMA)digital function
- Dual time slot for repeater
- Dual time slot for point to point
- Firmware upgradeable
- Lone worker
- Encryption function
- Compatible with Mototrbo TierⅠ&Ⅰ
- Single call,group call and all call
- Analog and digital combined
- Remote kill /stun and activate
- Up to 3000 channels
- Transmit interruption
- Group call match(promiscuous)
- Private call match(promiscuous)
- Record
- Emergency Alarm
- VOX
- TOT
