- With Speaker Mic direct call function, it can be used as a base station.
- Small in size and light in weight, it is very convenient to arrange and install.
This version features an updated case and a DB-9 Female connector for adding an external controller for linking purposes. You can add this repeater to the myGMRS Network by purchasing a linking bundle or an all-in-one kit that is plug-and-play (coming soon).
Featuring 8 GMRS repeater channels, full 5W of output power after the duplexer, and a built-in notch duplexer, all you need to do is add an antenna and feedline to get on the air.

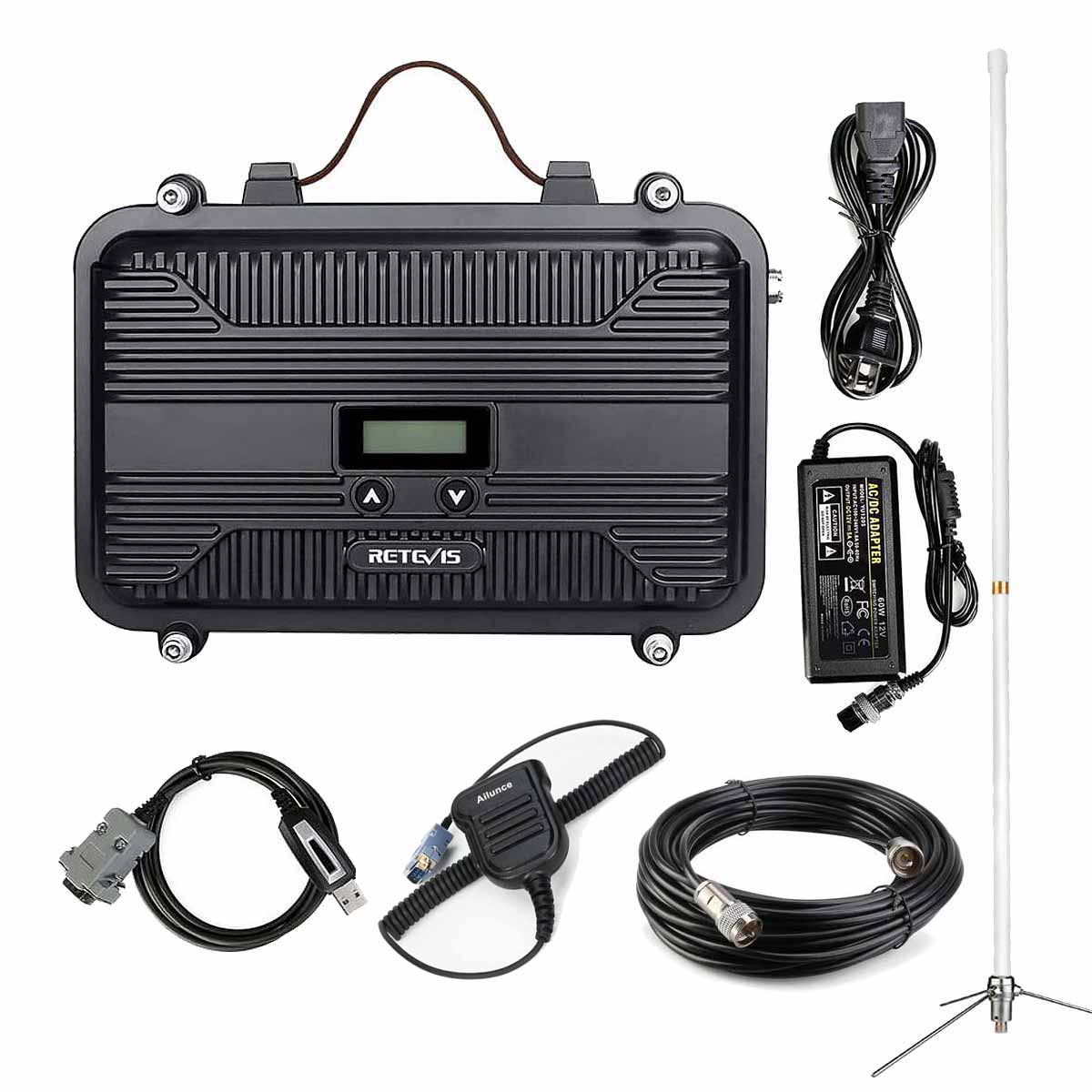

Built into a cable TV amplifier box, the RT97S is rugged and water-resistant. Two power adapters come with the repeater, a 12V/24V cigarette lighter plug, and an AC adapter. A USB programming cable is also included so you can program the repeater to your channel and CTCSS/DCS tones of choice.
The RT97S is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this repeater is perfect for camping trips or emergency preparedness.
Inside the case, there is a small 10W notch duplexer, an LCD display, a DC-DC power adapter, and the integrated radio module itself. This repeater does NOT simply have 2 handheld radios inside.
|Frequency Range||462.550 - 462.725 MHz (TX), 467.550 - 467.725 MHz (RX)|
|Channel Capacity||8 GMRS Repeater Channels|
|Channel Spacing||±12.5KHz Narrow/±25kHz Wide|
|Operating Voltage||DC12V - 24V|
|Operating Temperature||-22° F - 140° F (-30° C - 60° C)|
|Antenna Impedance||50 Ω|
|Dimensions||10.25" x 8.3" x 2.8" (260 x 210 x 70mm)|
|Weight||3.7 lbs (1.66 kg)|
|Spurious Emission||-60dB or less|
|Maximum Frequency Deviation||Wide: ±5kHz Narrow: ±2.5kHz|
|Audio Distortion||5% or less|
|FM Noise||Wide:≤45dB Narrow :≤40dB|
|Sensitivity(12dB SINAD)||0.2μV (Wide) 0.25μV (Narrow)|
|Squelch Sensitivity||0.15μV (Wide) 0.2μV (Narrow)|
|Adjacent Channel Selectivity||≥ 70dB (Wide) / ≥65dB (Narrow)|
|Spurious Rejection||≥ 55dB|
|Image Rejection||≥ 55dB|
|FM Ham and Noise||≤-45dB(Wide) / ≤ -40dB(Narrow)|
|Operating Bandwidth||≤±7KHz / ≤±5KHz|
|Audio Distortion||≤ 5%|
