- AM: 108-136MHz (only receive)
- IP67 waterproof and dustproof
- FM(65~108Mhz)
- GPS
- 10 NOAA
Description
-

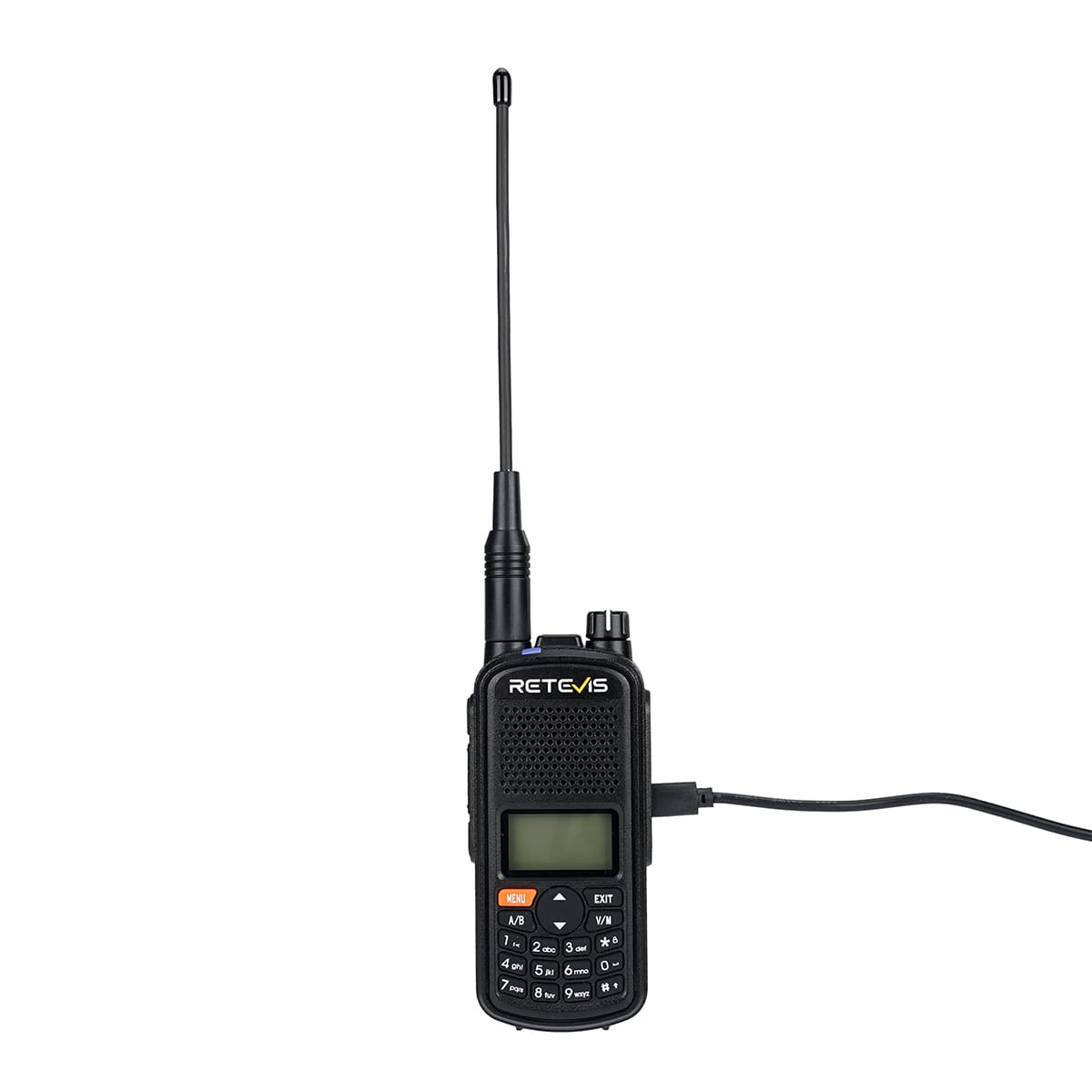

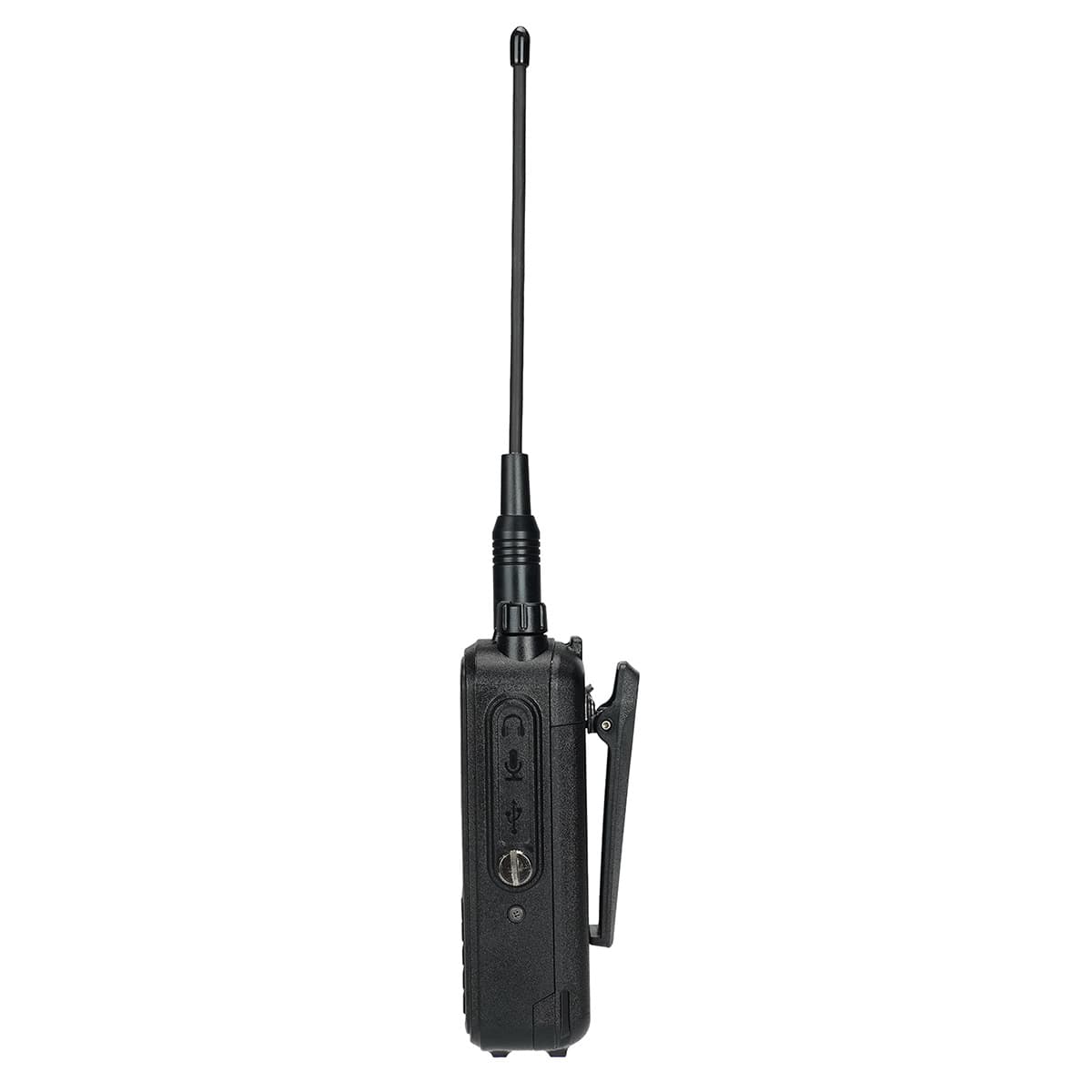

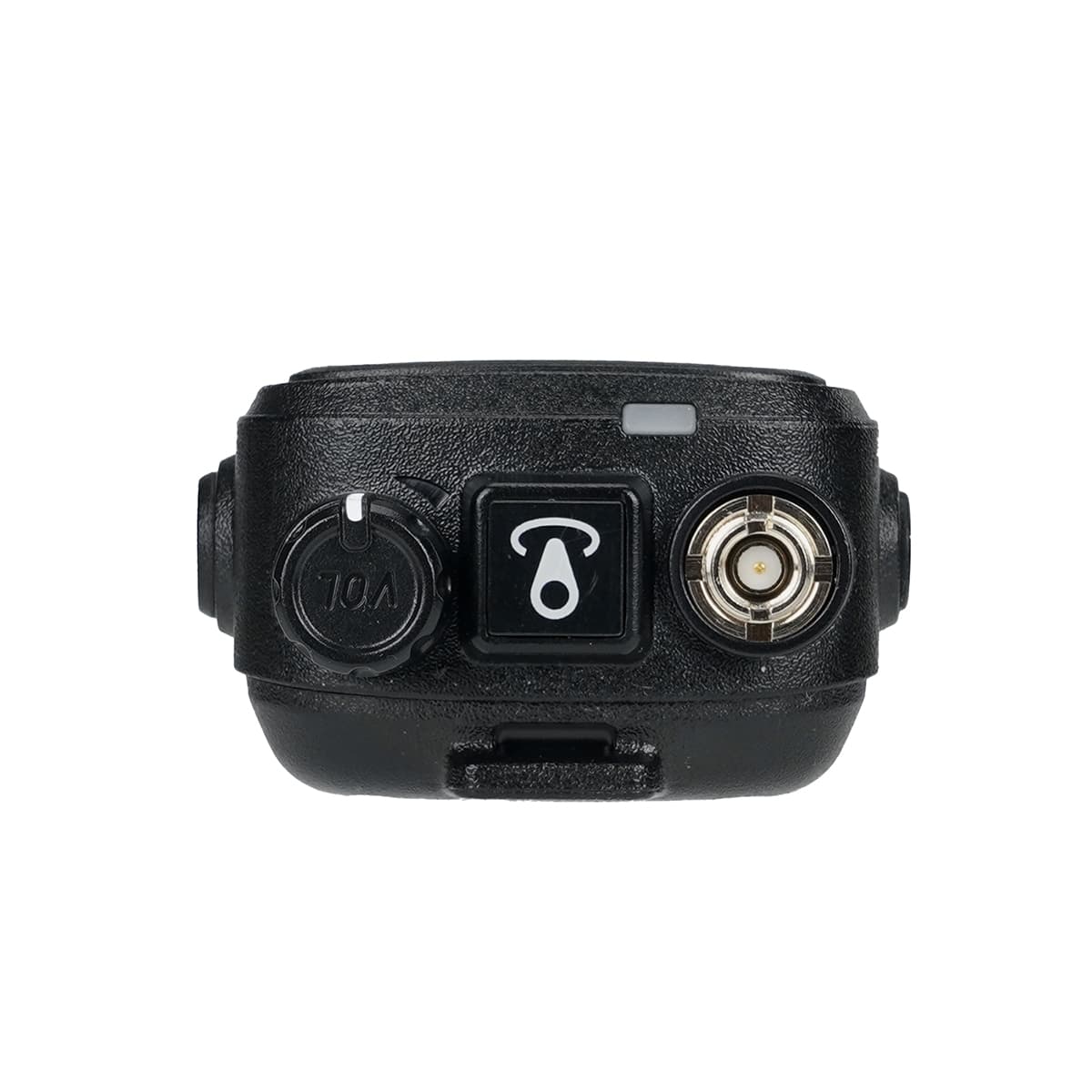

RETEVIS A1 5W GPS IP67 Waterproof Analog Amateur Two Way Radio
- RETEVIS A1 GPS IP67 waterproof analog two-way radio, amateur two-way radio suitable for use in various occasions such as outdoor camping, outdoor exploration, emergency rescue, etc. It has GPS, IP67 waterproof and dustproof, 2200mAh battery, supports Type-C charging, and can receive aviation band frequencies.
Features
IP67 High-level waterproof
GPS two way radio; Gets each other's real-time location and measures the distance between you, helping you locate and share real-time location with members, available for daily use and emergency use.
Supports 2m/70cm frequency band transmission and reception; FM and aviation band reception; not only can it communicate; it can also listen to various entertainment programs.
Helps you identify the caller by displaying name or call sign; effectively avoid unnecessary calls.The handheld radio has a radio alias display function, so you will not miss important information.
Built-in 2200mAh battery
The working time is up to 15 hours; the standby time is 67 hours; the dual-band radio can be used continuously for a long time, and the long-distance radio can be used all day without worrying about low battery power.

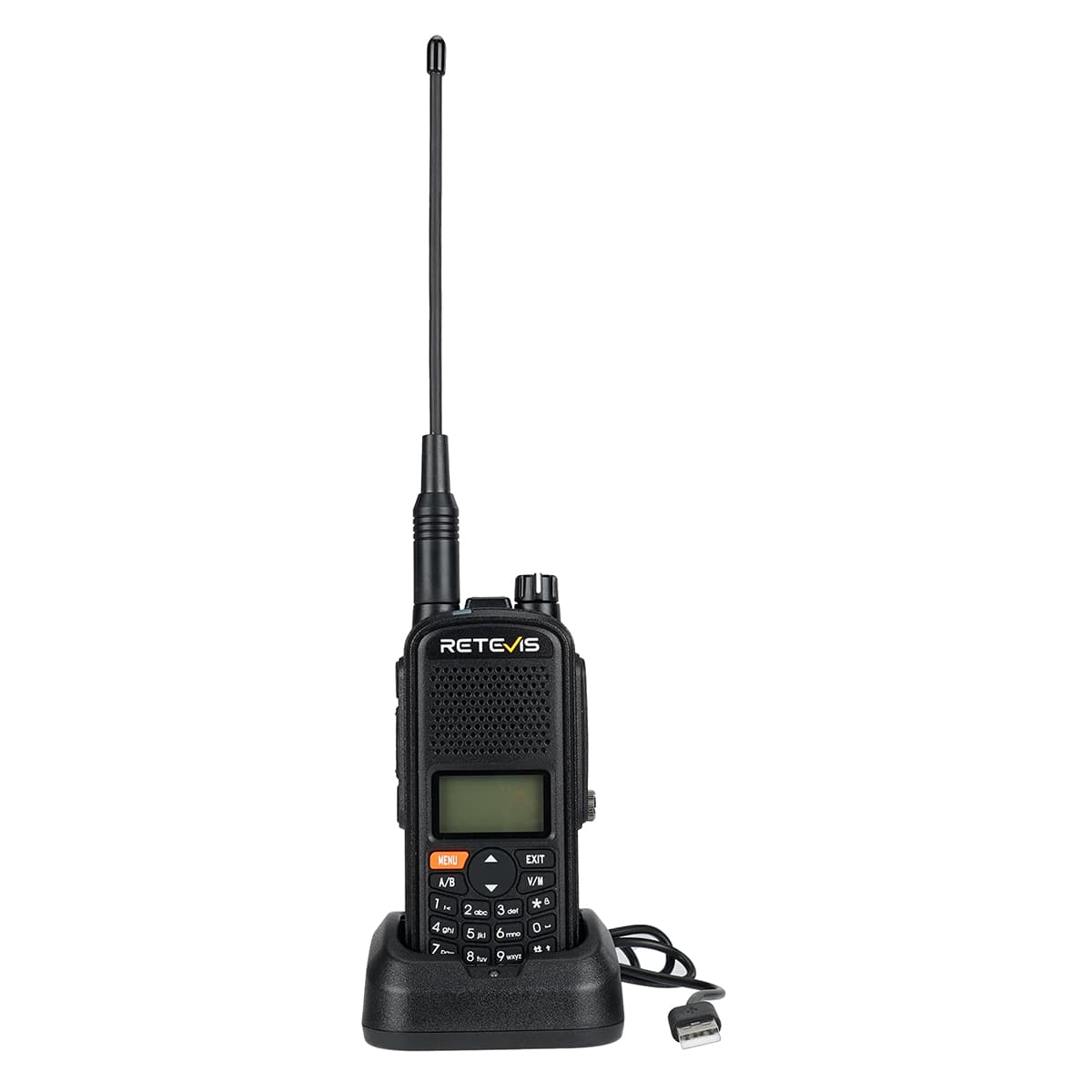

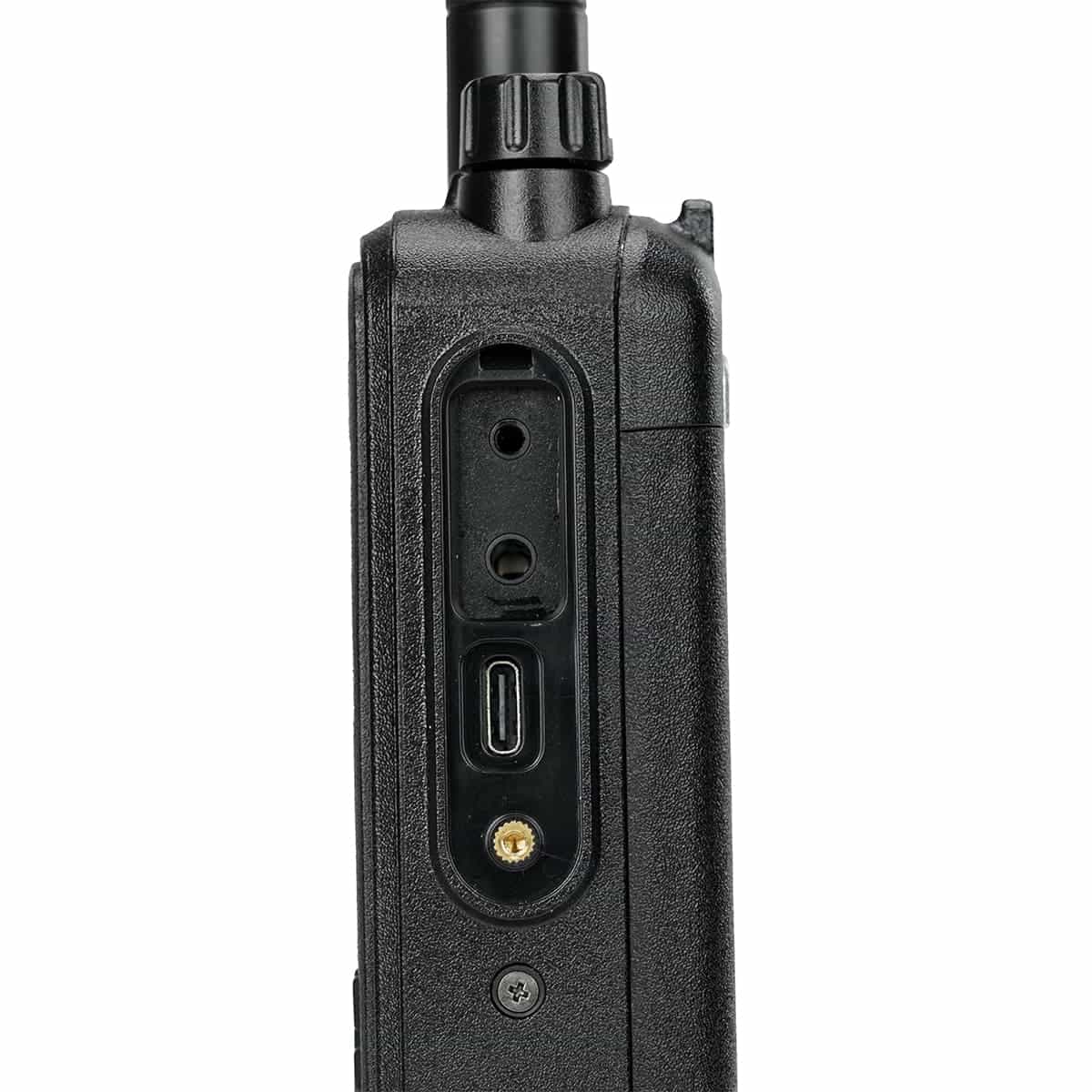

Equipped with a type-C charging port and charging base, it can be easily charged outdoors through a power bank or vehicle. Convenient for using two-way radio outdoors.
VFO mode
Enter the required frequency through the radio's keyboard instead of the software. It is convenient to enter the required frequency and save it as a commonly used frequency, which is more convenient for quick communication between members.
Sub PTT key
Long press the customized side button 2 to transmit without switching the main band and sub-band frequencies. Short pressing this key has no effect. There is no need to press the A/B button to switch frequency bands; it is convenient to transmit dual-band frequencies. Additionally; easily set custom side button 1 or 2 to your desired function.
Long press the menu button to find the 2m or 70cm frequency of other brands of two-way radios; improve communication efficiency. Easy pairing feature; quickly search for and use with other portable two-way radios; easily solve your editing/programming problems; enrich your experience by communicating with different people.
Spec
|
General |
Frequency Range |
Receive frequency: 136-520MHz |
|
|
Channel Numbers |
999 |
||
|
Channel Space |
25 kHz /12.5kHz/20 kHz |
||
|
Input Voltage |
5V 1A |
||
|
Battery Capacity |
2200mAh |
||
|
Current |
Standby |
≤85mA |
|
|
Receiving |
≤350mA |
||
|
Transmit |
≤1.8A @high power, 650 mA @ low power; |
||
|
Frequency Stability |
±2.5ppm |
||
|
Operation Temperature |
-10℃ to +40℃ |
||
|
Antenna Impedance |
50Ω |
||
|
Transmit |
Transmit Frequency |
VHF: USA 144-148/EU 144-146Mhz, UHF:USA 420-450Mhz/EU 430-440Mhz; |
|
|
RF TX Power |
High/Middle/Low |
||
|
Modulation Mode |
16K0F3E@25KHz, 11K0F3E@12.5KHz |
||
|
Spurious Emission |
-36dBm＜1GHz， -30dBm＞1GHz |
||
|
Signal Noise Ratio |
45dB@25KHz, 40dB @12.5KHz |
||
|
Audio Distortion |
≤5% |
||
|
Modulation Limited |
±5.0 KHz@25 KHz，±2.5 KHz@12.5 KHz |
||
|
Adjacent Channel Power |
70dB @ 25KHz，60dB @ 12.5KHz |
||
|
Audio Response (300-3000Hz) |
+1~3dB |
||
|
Receive |
Receive Frequency |
Full band receive: 136-520Mhz； AM:108-136MHz (only receiving) FM:65-108 MHz |
|
|
Receiver Sensitivity |
0.25μV (12dB SINAD) |
||
|
Adjacent Channel Selectivity |
≥60dB@25KHz, ≥55dB@12.5KHz |
||
|
Intermodulation Rejection |
≥60dB@25KHz, ≥55dB@12.5KHz |
||
|
Conducted Spurious Emission |
≤-57dB@25KHz, ≤-57dB @12.5KHz |
||
|
FM Signal Noise Ratio |
≥45dB@25KHz, ≥40dB @12.5KHz |
||
|
Audio Output Power |
1W @16ohms |
||
|
Audio Distortion |
≤5% |
||
|
Audio Response (300-3000Hz) |
+1～-3dB |
||
Features
- Functions:
1. 1.33 inch screen, full keyboard front panel programming.
2. Built-in input method supports editing radio alias and channel names.
3. ID code editing alias display, quickly decode the transmitting ID.
4. Dual watch and dual standby.
5. Three power levels: High/Medium/Low.
6. GPS positioning system to obtain position information, coordinate, and distance sharing.
7. Fast frequency matching.
8. Automatic or manual keyboard lock, LCD backlight, and screen brightness adjustable.
9. Power saving, low voltage indication and alarm, and battery voltage checking function.
10. 999 memory channels, CTCSS/DCS encoding and decoding, side key customization function.
11. Channel storage and delete, channel scanning adds and delete, priority scanning channel settings.
12. Relay function settings: offset, frequency shift direction, talk around, relay activation audio settings.
13. The radio can automatically switch to receive incoming calls when listening to FM (65~108Mhz）
14. Weather alarm supports NOAA weather forecast reception in the United States.
15. VOX hands-free calls, with VOX levels 1-9 optional.
16. VFO frequency range scanning setting, three scan modes. grouping channel scanning, CTCSS/DCS scanning, and priority channel scanning.
