This bundle features user-friendly, entry-level UHF radios designed for clear communication over a long range. With excellent sound quality and impressive battery life, the RT86 long range two way radio is ready to go straight out of the box. Ideal for demanding workplaces like warehouses, construction, factories, and property management, these rugged radios will keep your team connected and productive.

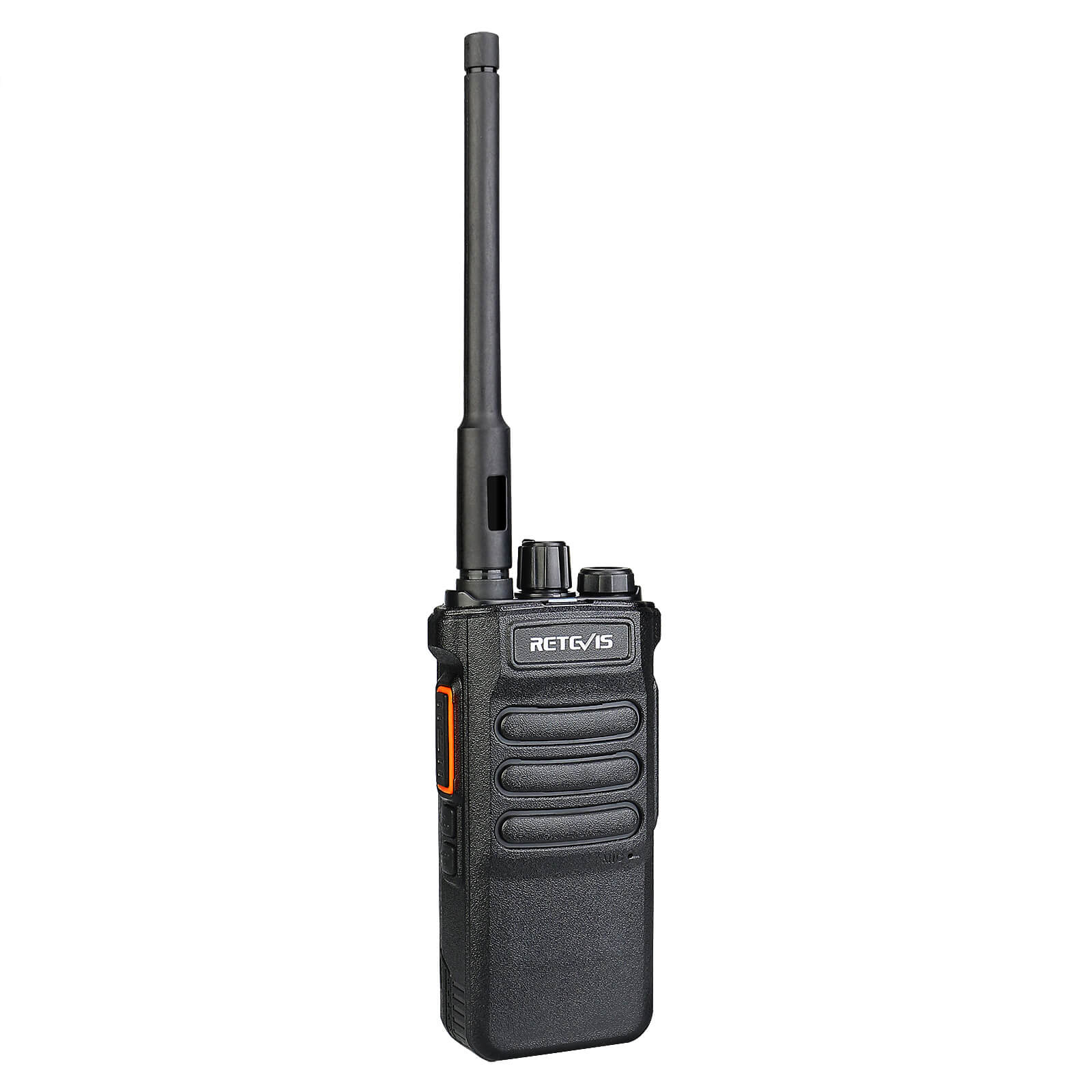

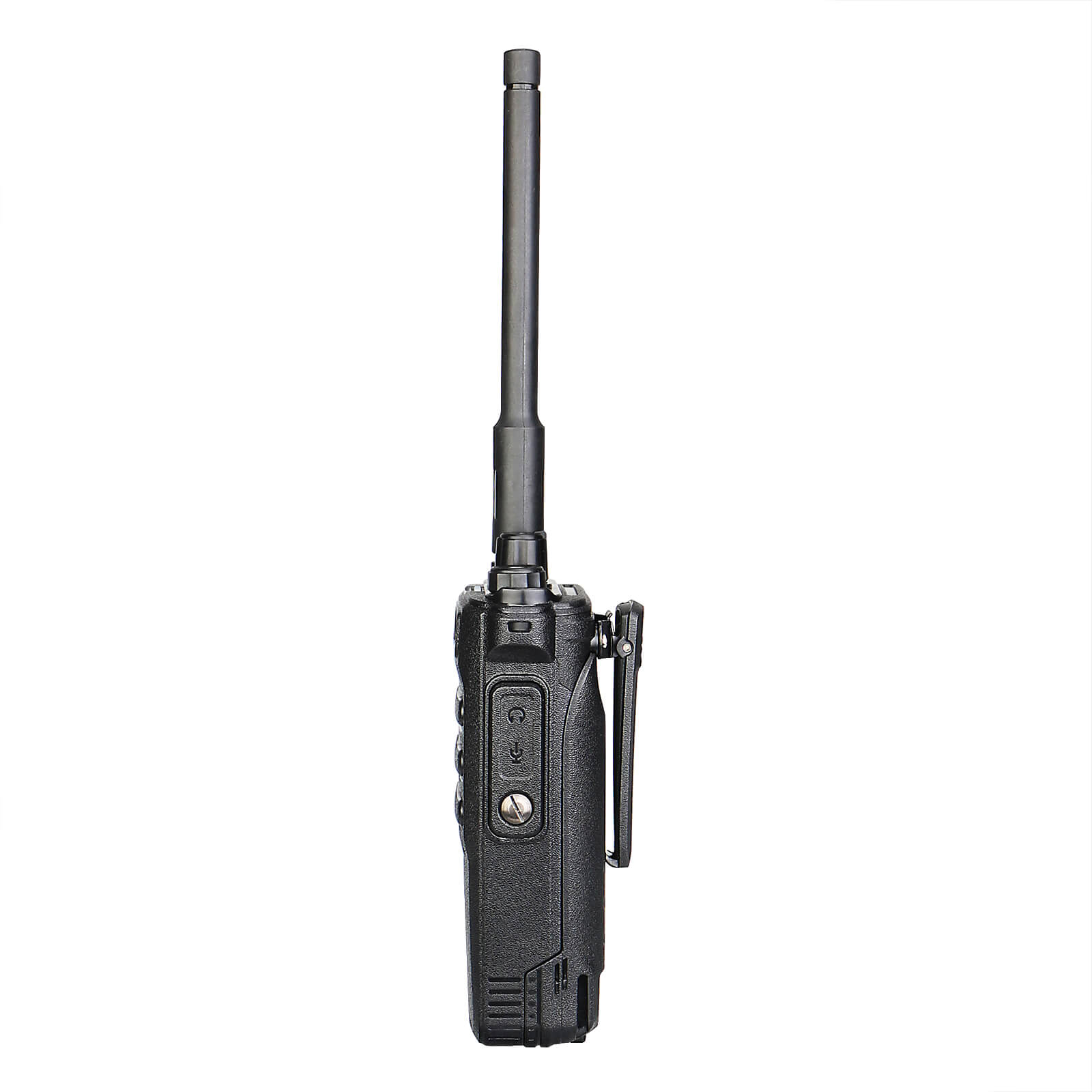

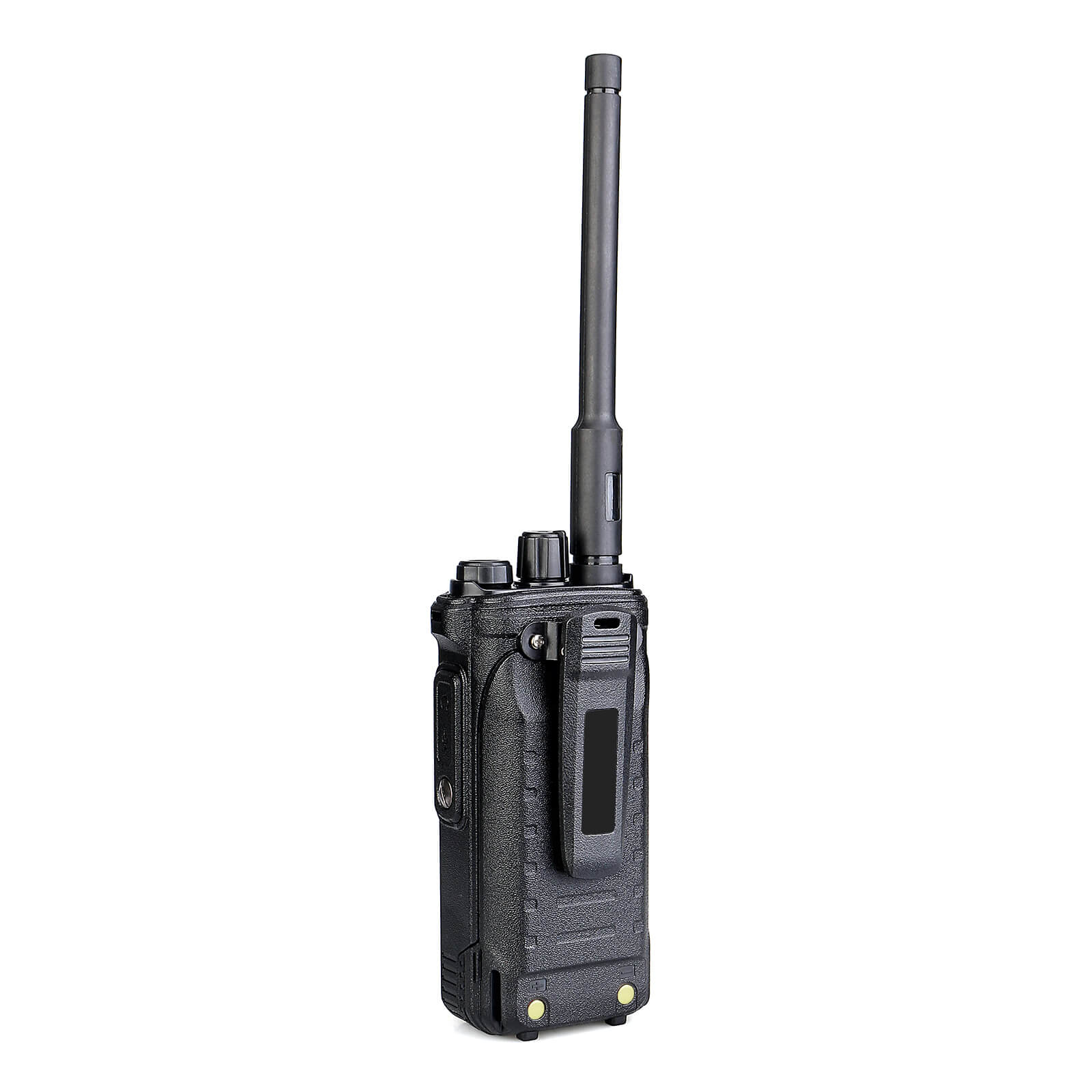

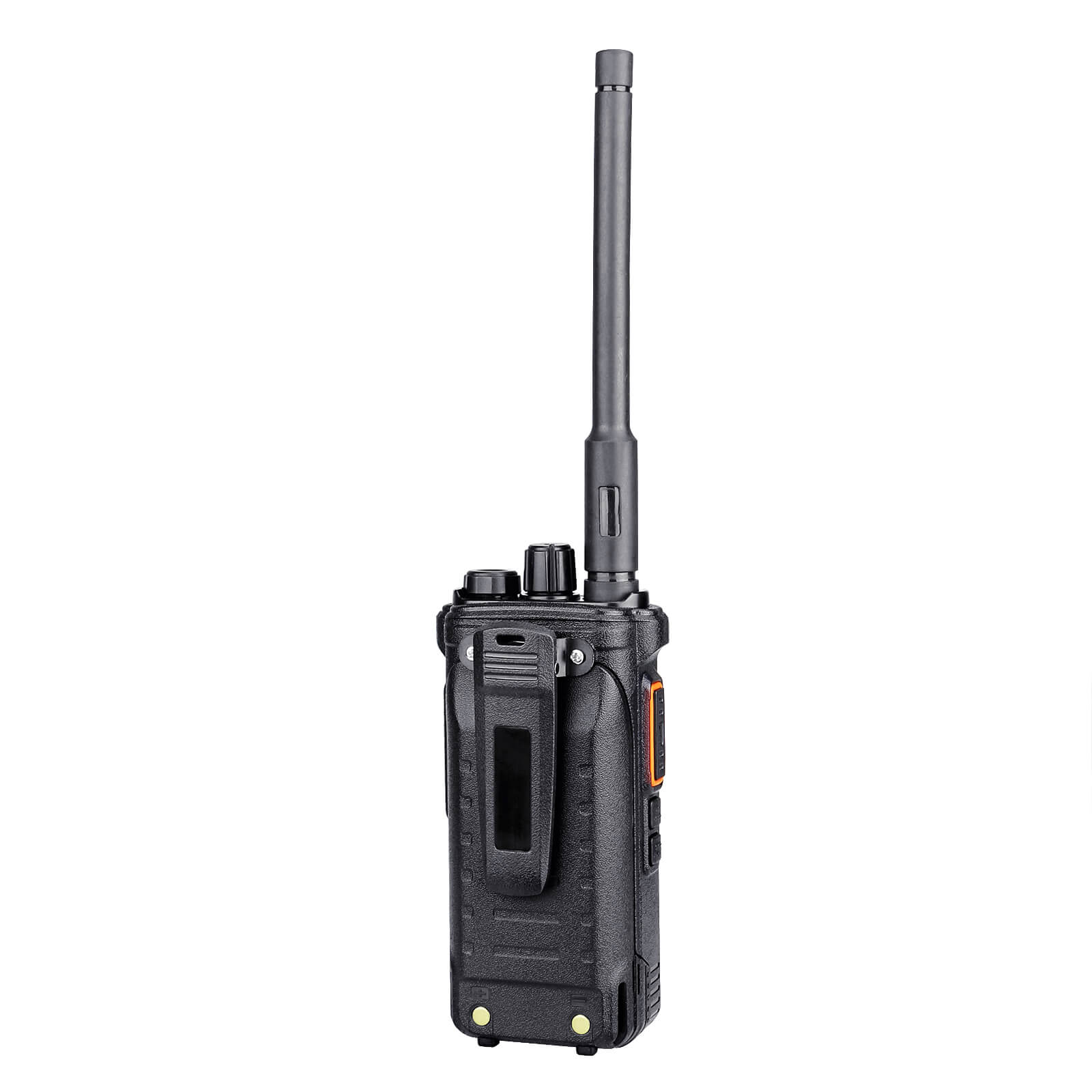

The Retevis RT86 high power two way radio offers exceptional long-range performance with its default high power setting, ensuring clear communication even in dense buildings or high-rise structures. Ideal for property management teams, this UHF radio supports strong penetration to effectively coordinate tasks and information in urban environments (For reference only, 2.5 miles in the urban area and over 4 miles in the open space.)

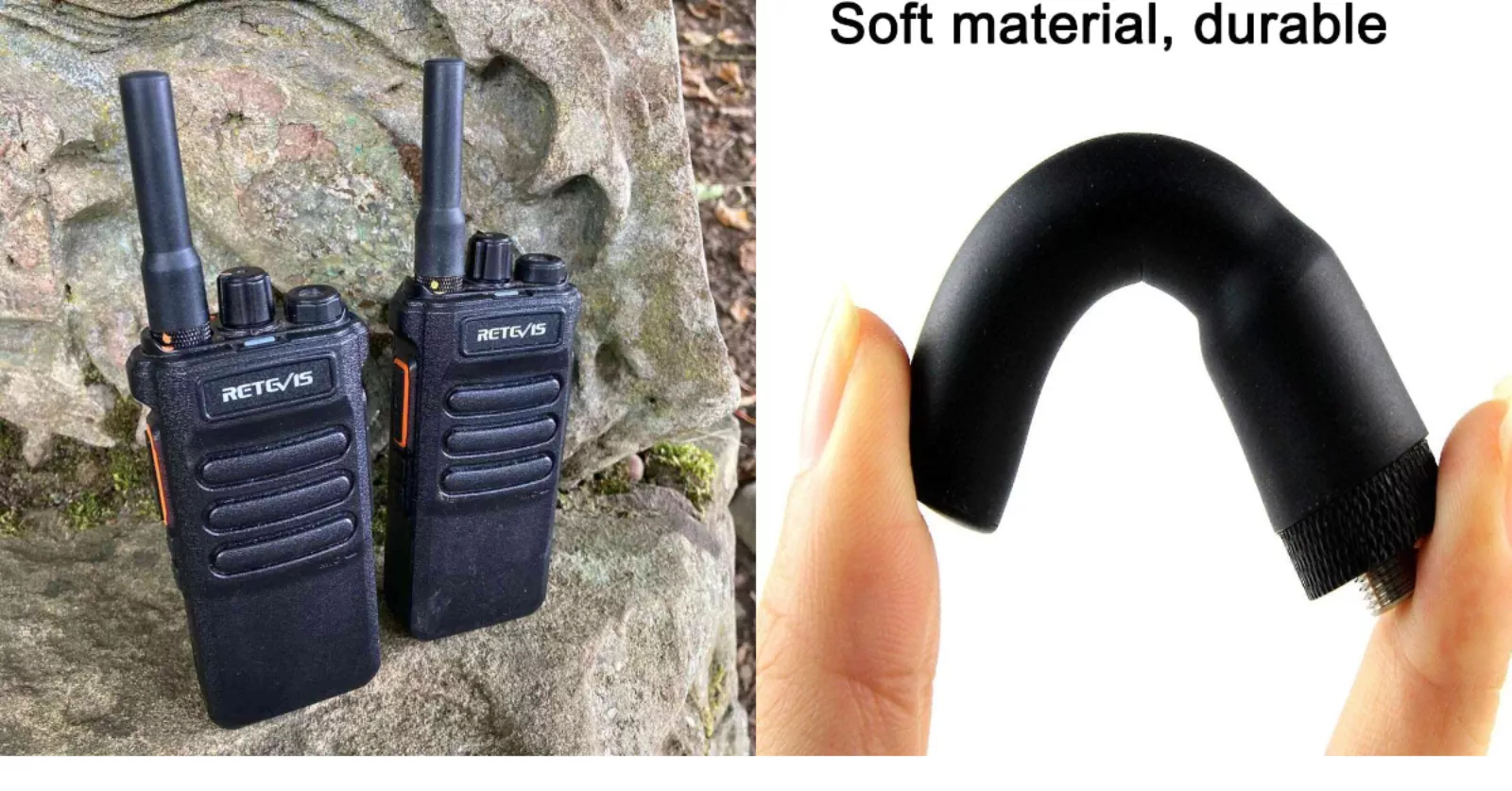

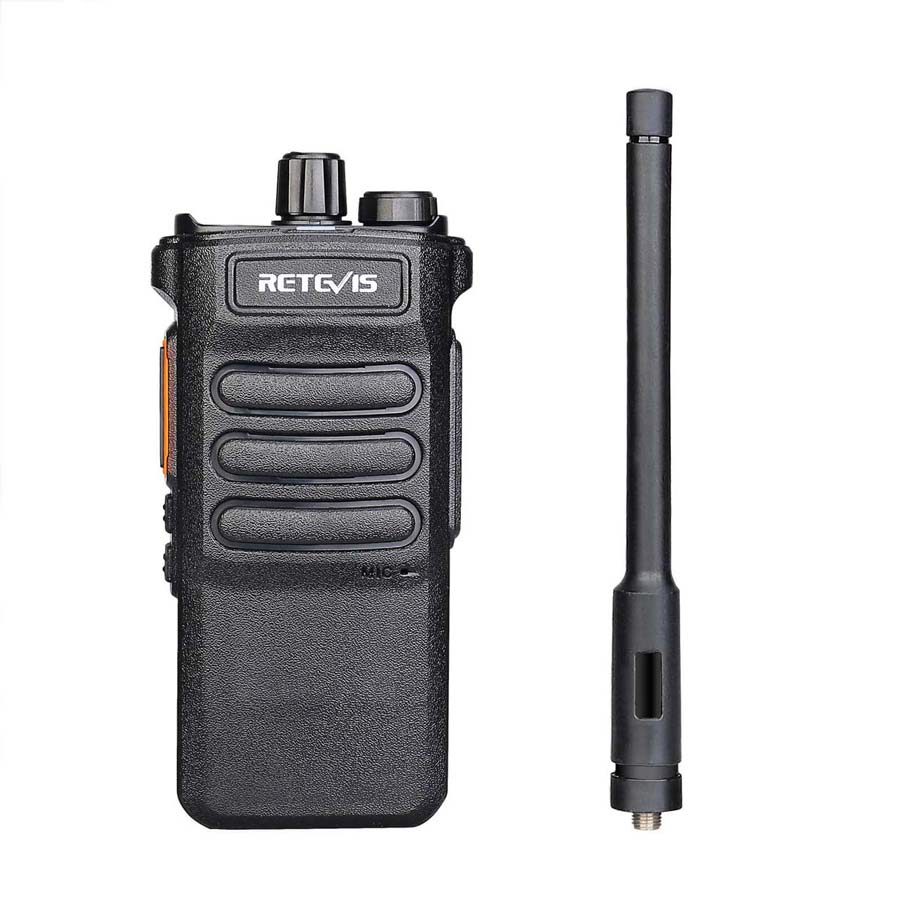

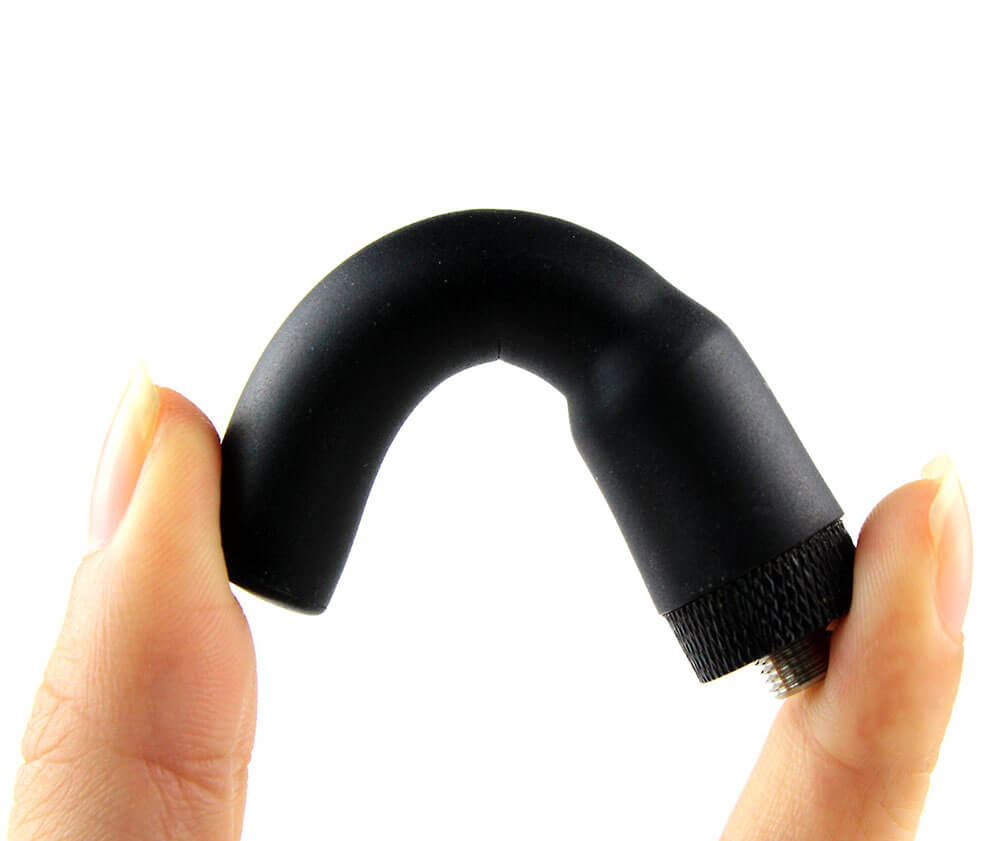

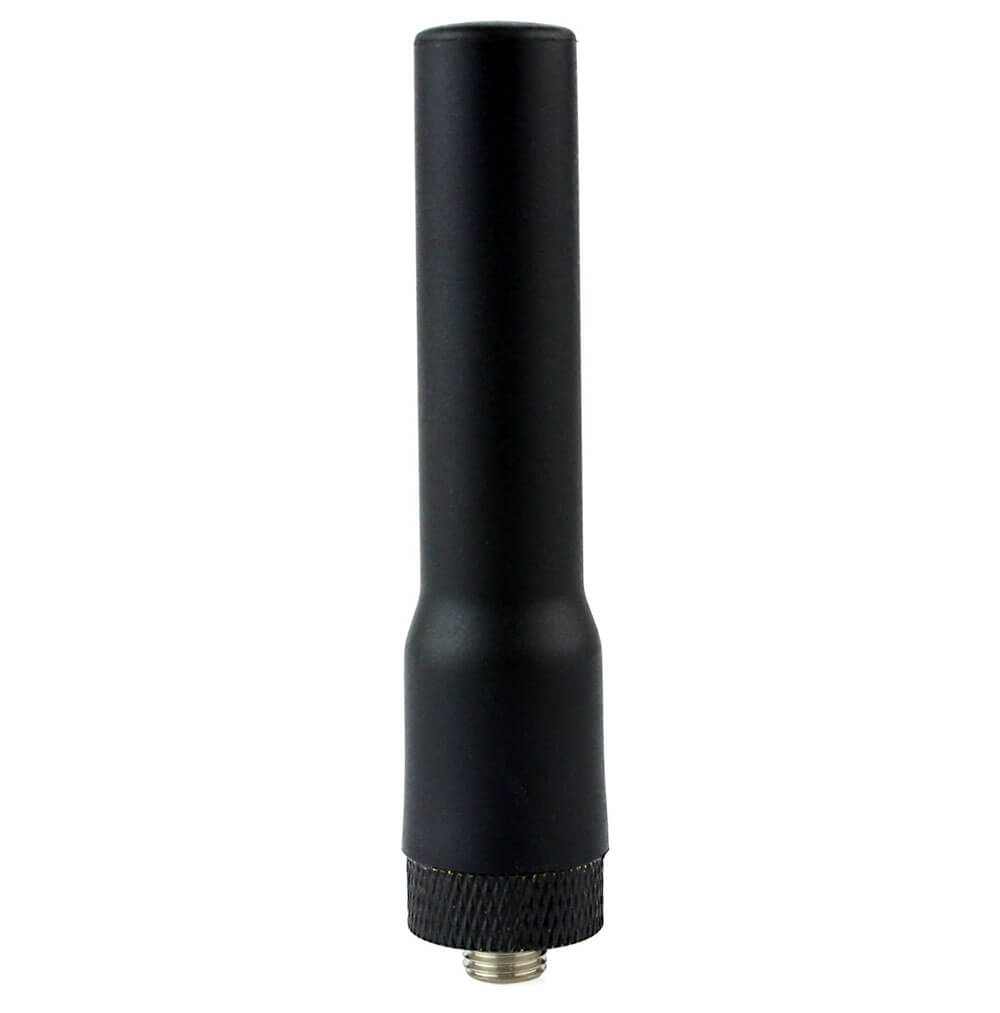

RT86's antenna is removable, and if desired, you can replace the antenna or install a reinforced one to get higher gain. Besides the original long antenna, this bundle also includes extra short antennas. Measuring just 6.6cm in length and weighing only 16g, this antenna is both easy to carry and highly effective for improving communication on the go. Its soft, flexible material extends the antenna's lifespan. The VSWR of less than 1.5 ensures efficient transmission.

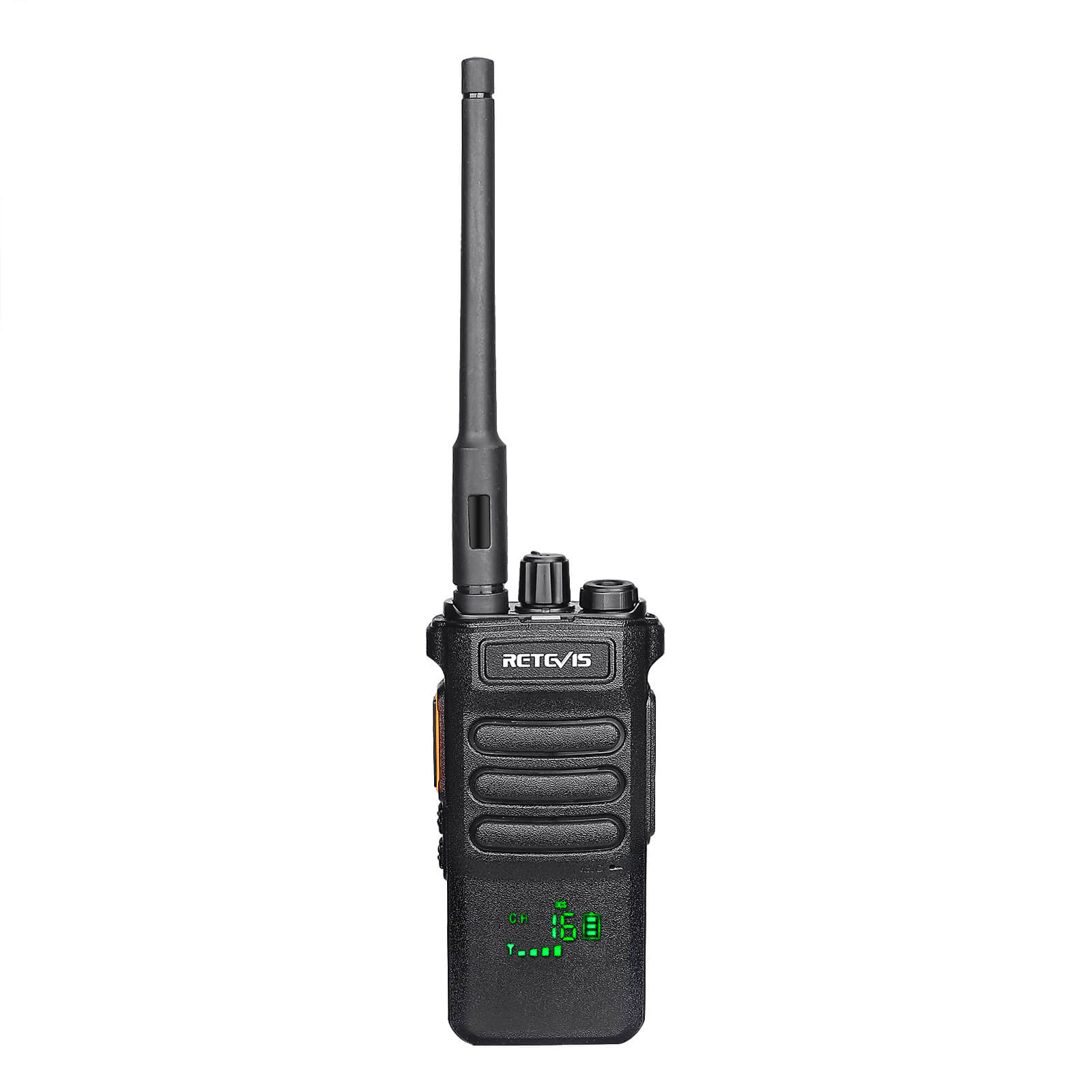

RT86 handheld two way radio adopts a 1.4-inch hidden display, which allows users to easily view channel details when required. It ensures the portability of the device and provides enough space for information display. Being able to quickly access the information you require through the display improves communication efficiency.

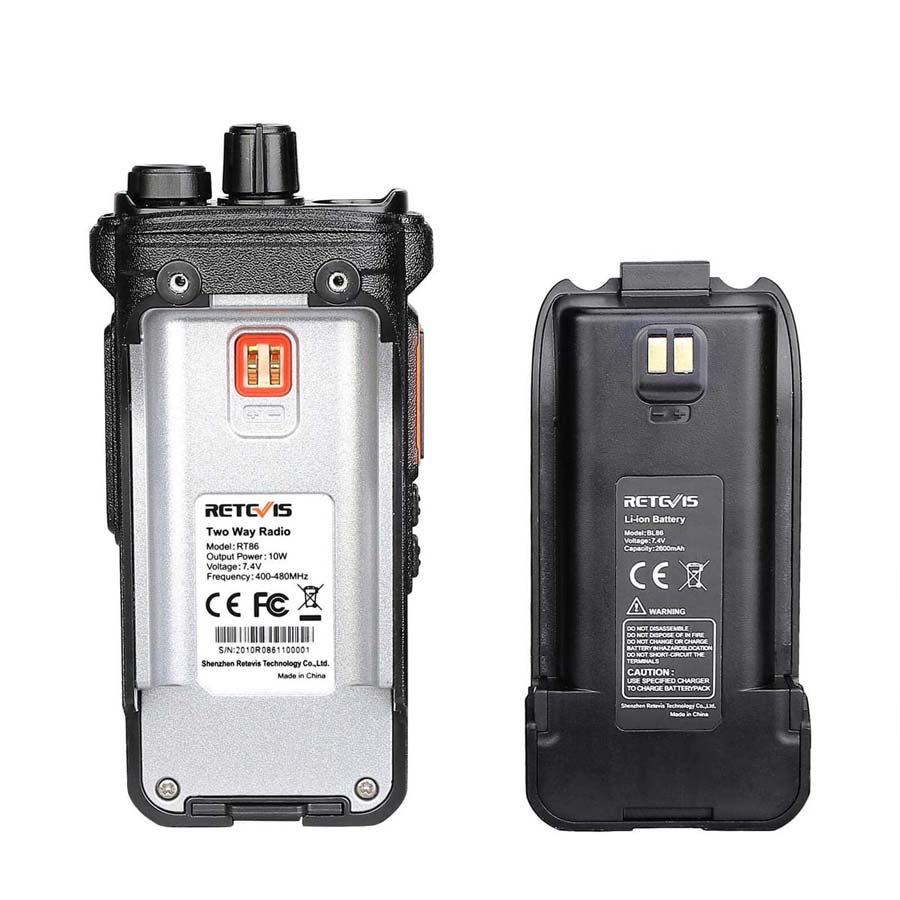

With a 2600mAh large-capacity battery, the RT86 rechargeable radio provides up to 130 hours of standby time and over 16 hours of continuous use, making it perfect for factory workers and long shifts. The rechargeable lithium battery and included USB charging base offer added convenience.
This feature allows two RT86 two way radios to pair all channels and CTCSS/DCS codes at the same time without the need for PC software setup, facilitating fast communication between team members.

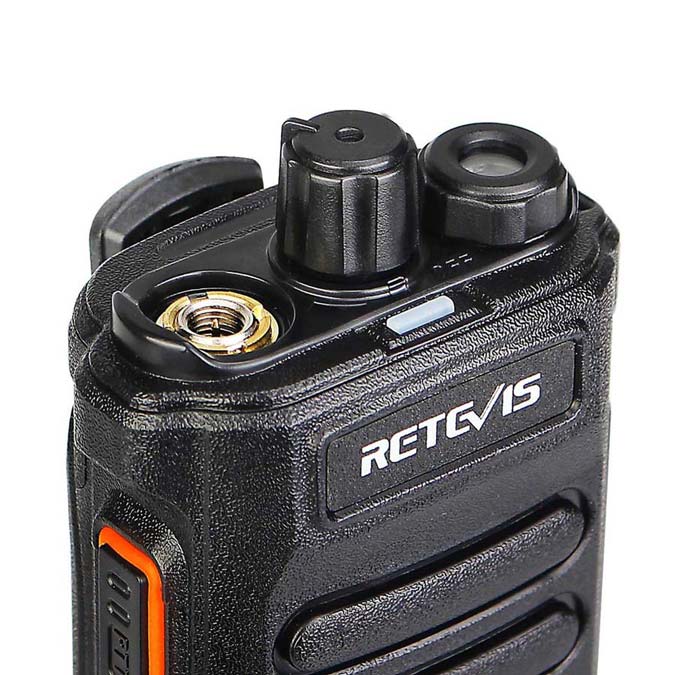

Equipped with a large-diameter lamp, the RT86 is perfect for low-light situations. Easily activate the flashlight by long pressing the PF2 key. Its emergency alarm function provides timely alerts for safety, ensuring you are always prepared in case of an emergency. The side keys can be set as an emergency alarm shortcut via the software.
Specifications of Retevis RT86 |
|
Frequency Range |
400-480MHZ |
Channel Capacity |
16 |
Display Screen |
1.4 Digital tube screen |
Battery Capacity |
2600mAH |
Net Weight (with antenna and battery): |
295g |
Power |
High:10W; Middle:5W; Low:1W |
Wide/Narrow Band |
12.5 kHz/25 kHz |
Audio Distortion |
<5% |
Frequency Stability |
±2.5ppm |
Max Frequency Shift |
≤5KHz/≤2.5KHz |
Receive Sensitivity |
≤0.25uV/≤0.3uV |
Squelch Sensitivity |
≤0.2uV/≤0.25uV |
Adjacent Channel Selectivity |
≥65dB |
Spurious Response Suppress |
≥55dB |
Intermodulation |
≥60dB |
Work Voltage |
7.4VDC |
Operating Temperature |
-15℃~+55℃ |

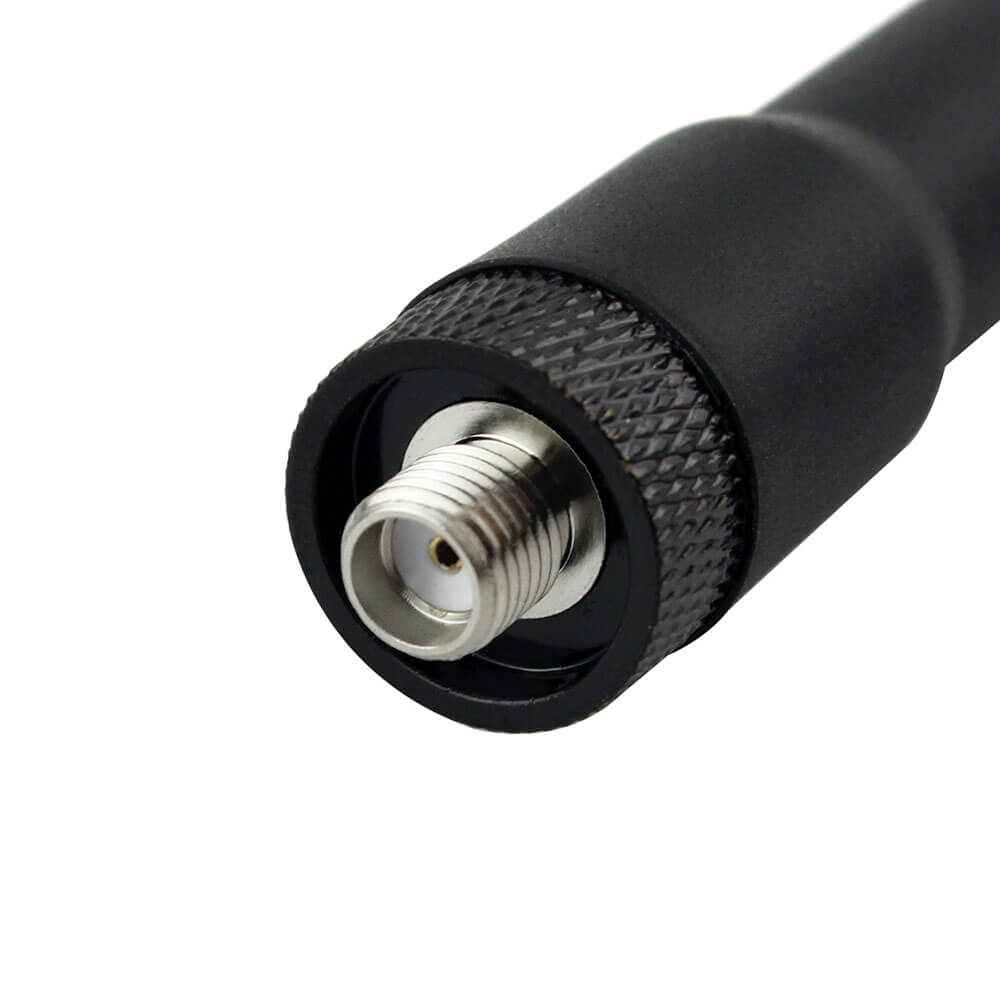

Specifications of the Dual Band Short Antenna |
|
Frequency Range |
Dual Band: VHF/UHF, 144/430MHz |
Gain |
2.15dBi |
Max power |
10W |
Impedance |
50ohm |
Connector |
SMA Female |
Polarization |
Vertical |
Radiation |
Omni |
Antenna Length |
6.6cm |
Weight |
16g |
● Easy Pairing Functions
● 1.4 inch Hidden Display
● Easy Pairing Function
● Powerful Flashlight
● VOX Hands-Free
● 1-9 Squelch Level
● Scan/Monitor Function
● Frequency hopping
● Battery Saving
● Time Out Timer (TOT)
● Beep Tone
● Key Lock
● Busy Channel Lock
● QT/DQT Tail Mode
● Scrambler
● Mic Gain
I replaced the original antenna with a short one, the original was too long and a bit flimsy. The short antenna fits the radio perfectly, seems to work fine, and is more portable while working!
