Frequency Range | TX:156.000-162.000MHz |
RX:156.000-163.275MHz | |
Type of Emission | FM(16K0G3E ) |
Frequency Stability | ±10ppm |
Frequency Interval | 25kHz |

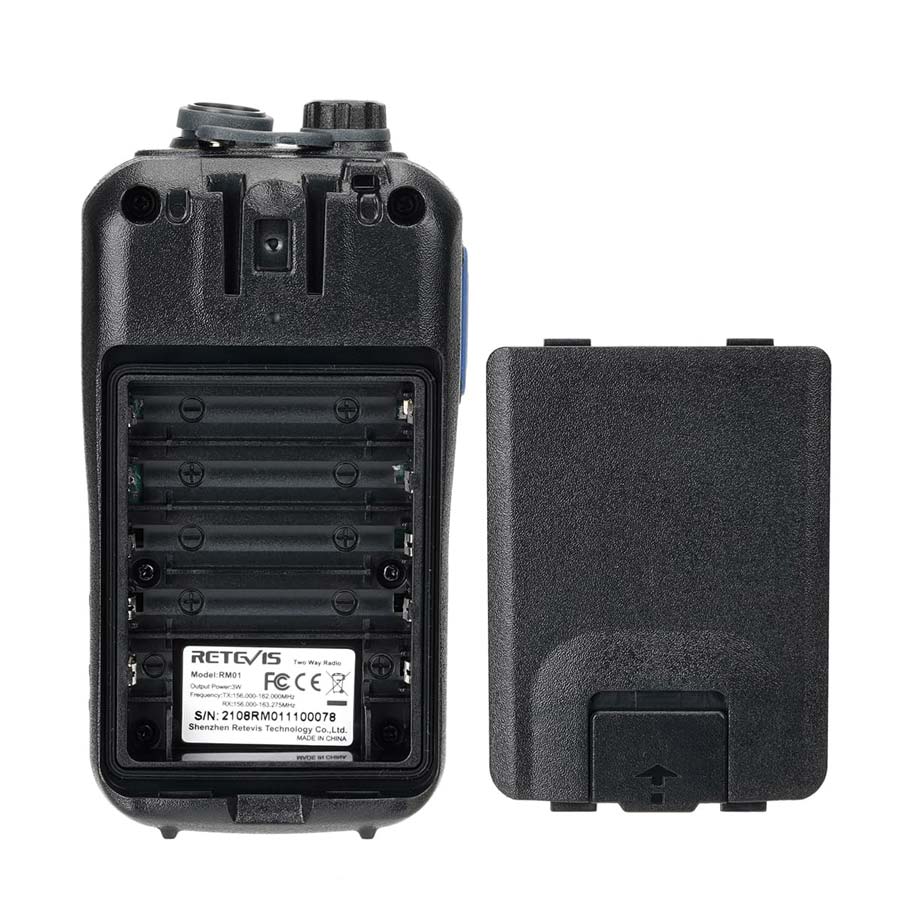

NiMH Batteries | DC1.2V*5,850mAh(AAA) |
Operating temperature | -20℃ ~ + 60℃ |

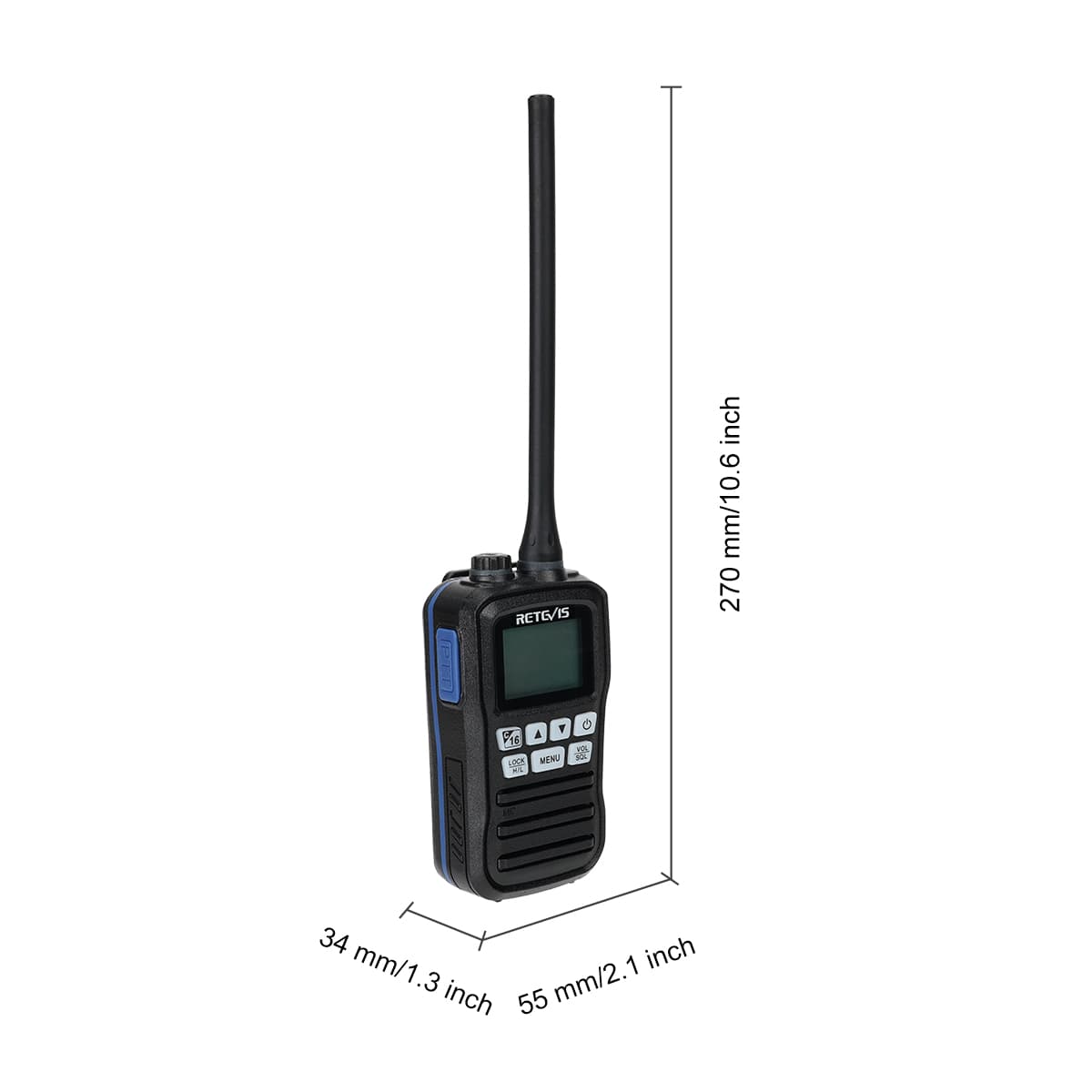

Dimension(HxWxD) | 63*119*35mm |
Weight(with battery) | 136g |

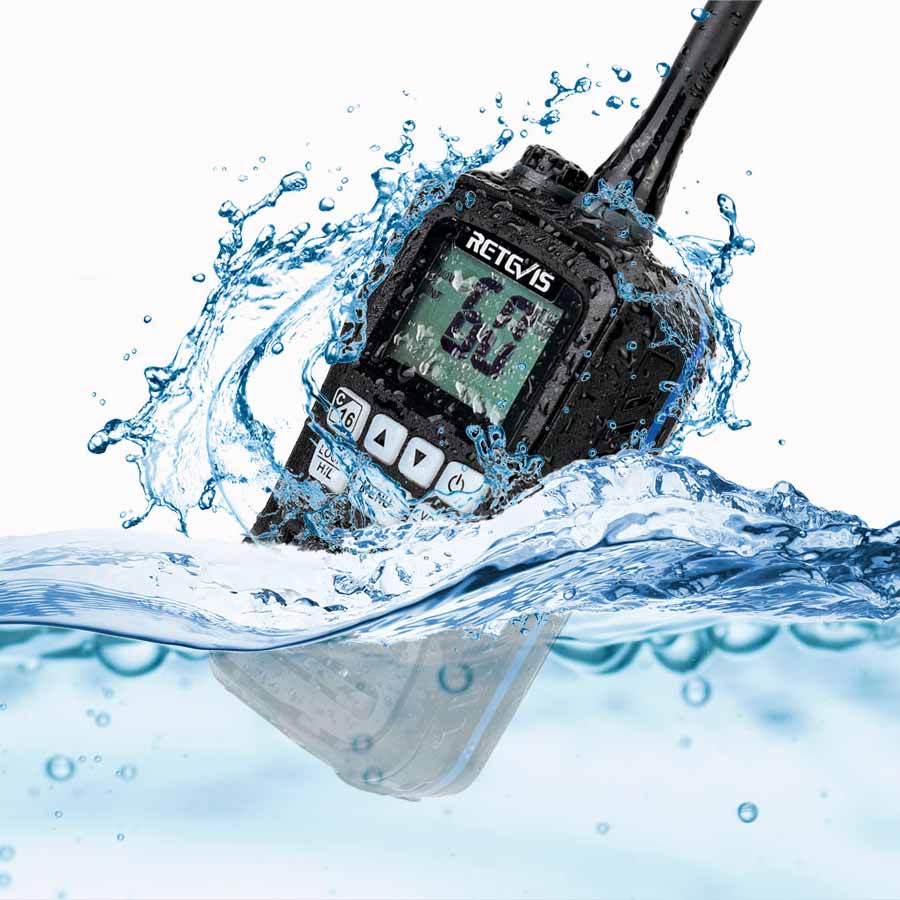

Waterproof Level | IP67 |
Receiver | |
Receiving sensitivity | ≤0.2μV |
Signal-to-Noise Ratio | ≥40dB |
Adjacent Channel Selectivity | ≥65dB |
Spurious Response Immunity | ≥70dB |
Intermodulation Rejection | ≥68dB |
Audio Output Power | ≥0.6W |
Transmitter | |
Output Power | 3W/1W |
Output Current | ≤1.3A/0.8A |
Max. Frequency Deviation | ±5kHz |
Spurious Emission | ≤0.25μW |
Adjacent Channel Power | ≥65dB |
Transmit Audio Distortion | ≤5% |
