RMB95F 25 Watt Desktop Base Station Radio

SKU: US-A9129A-C9082A-C9123B-J9129A-LP23042003

Category: Up To 60% Off, Repeater Radio Sale, Base Stations

Order Status: In Stock


Regular price

  • The RMB95F base station is a special kit that combines the Retevis RT95 mobile radio and power converter in a custom housing and includes an FRP antenna to effectively reduce signal reflection and absorption for more reliable and efficient communication
  • The Retevis RT95 is a mobile UHF&VHF compact radio with 25 watts of power, 200 channels 52 CTCSS 1024 DCS optional. Simple operation and rugged and compact design.
  • The FRP antenna has many advantages, such as reduced signal reflection and absorption, corrosion resistance, low loss, light weight, and easier installation and maintenance.
  • This base station plugs into a standard wall socket. It has overcurrent, short circuit and overvoltage protection.
  • Multiple use scenarios: The RMB95F base station with FRS antenna can better cope with bad weather, and it is lightweight and easy to assemble, suitable for various institutions, such as forest ranger stations, central offices, security stations and public work areas. In addition, the RT95 can also be disassembled and placed in a vehicle for independent use.


In Stock Pre-order Now Out of stock Order now, Only 10 left!
<<
Previous
Next >>

Description

RMB95F 25 Watt Desktop Base Station Radio

RMB95F Base Station

The RMB95F Base Station is a special package that combines the Retevis RT95 mobile radio and power converter in a custom aluminum housing, equipped with an FRP antenna, which can achieve more reliable and efficient communications in various harsh environments. This package is ideal for users who use base stations for a long time. Typical users include ranger stations, central offices, security stations, and public work areas where two-way radios are essential.

Retevis RT95

The Retevis RT95 25W UV dual-band HAM mobile radio has 200 channels, supports CHIRP and keyboard programming, has multiple scanning functions, including CTCSS/DCS scanning, each single channel has separate CTCSS, DCS, DTMF, 5Tone settings, and can reject other calls from other radios. The sturdy radio housing protects the internal components from damage and allows long-term use.

FRP Antenna

Compared with traditional metal antennas, FRS antennas have better dielectric and mechanical properties, which can effectively reduce signal reflection and absorption, low loss, and ensure transmission quality and stability. In addition, FRS antennas have higher strength, toughness and corrosion resistance, which means that the glass can work for a long time in harsh environmental conditions such as strong winds, rain and snow, acid and alkali conditions. Finally, the lightweight characteristics of FRP materials make it easier to install and maintain.

Base Station

The base station housing combines the switching power supply with the base station cover to form a complete, ready-to-use base station assembly that is designed and customized to accommodate and transform some Retevis mobile radios into a fully functional base station. The power supply housing includes additional filtering to provide a virtually noise-free environment and trouble-free operation.

Package Includes:

1 x Mobile radio

1 x Desktop Power Supply and Cabinet

1 x FRP antenna

1 x Extender Cable

1 x USB Programming Cable

1 x Handheld mic

1 x User's manual

1 x One pack of screw and accessories

Retevis RT95 25W Dual Band HAM Mobile Radio

Retevis RT95 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This mobile Transceiver is especially designed for drivers and it pursues a philosophy of innovation and practicality.

retevis-rt95-kv

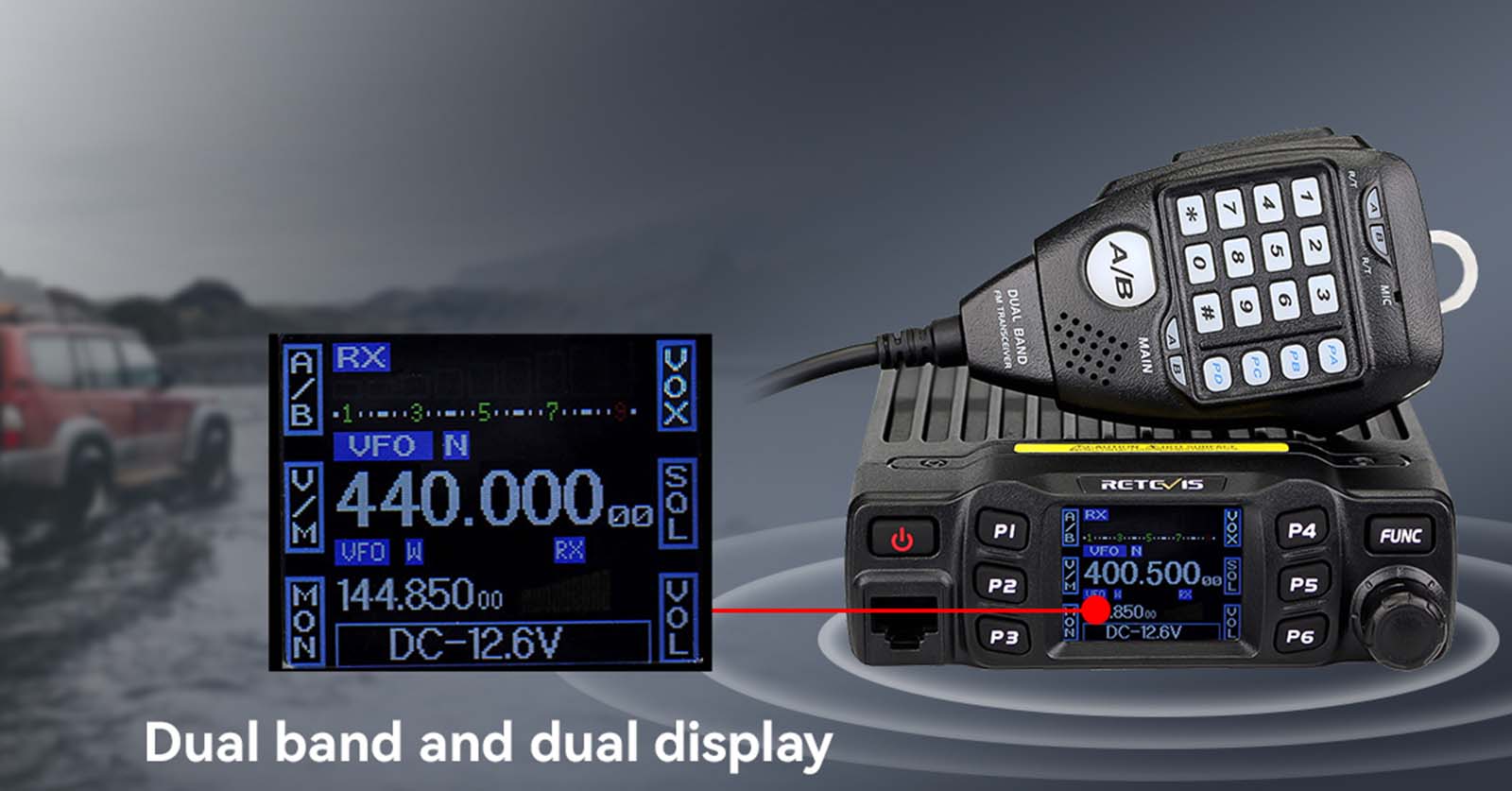

Dual band mobile transceiver:
RT95 supports multi-band transmission and reception; it can be adjusted through the digital buttons on the microphone to quickly change the frequency band you need.

Car long range radio:
Use the antenna with SL16/PL259 port installed on the vehicle for long-distance transmission; suitable for long-distance driving communication

Mini mobile radio:
6.42 x 4.88 x 1.54 inches; installation does not take up much space and compact design; comes with a handheld microphone for quick phone calls

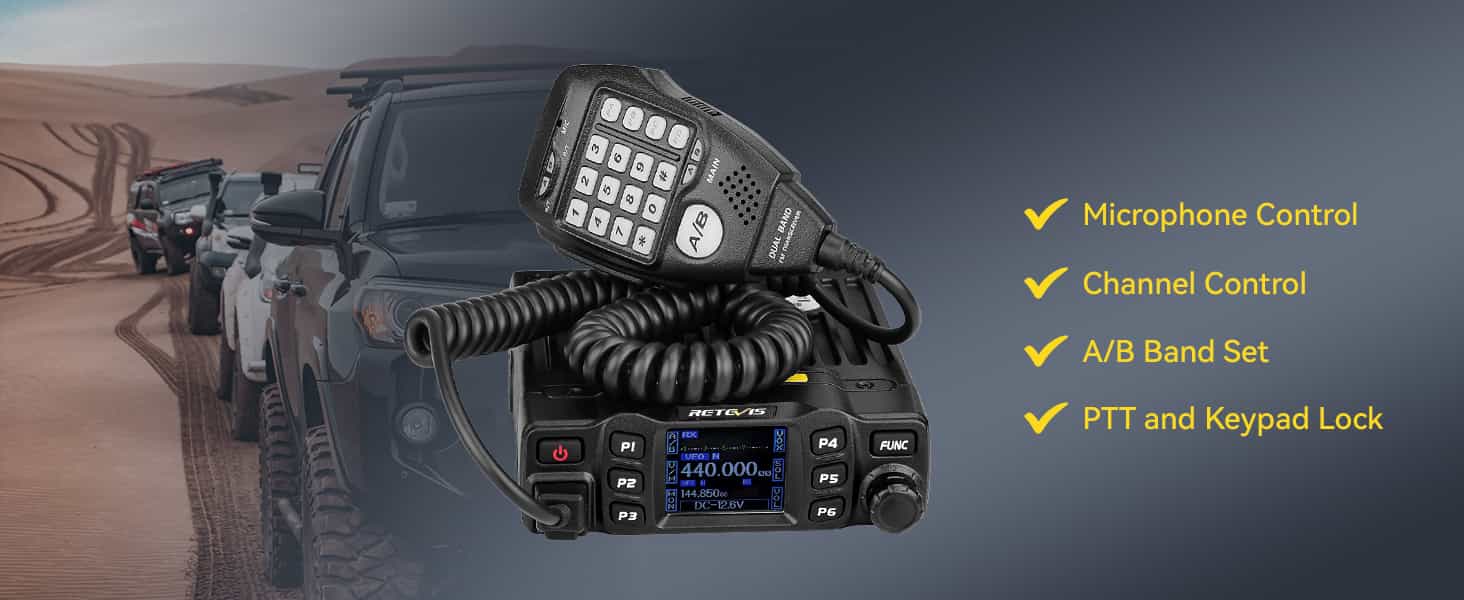

Microphone Control

The microphone can be set up quickly without having to lower your head to set up the base radio.

retevis rt95-microphone-control

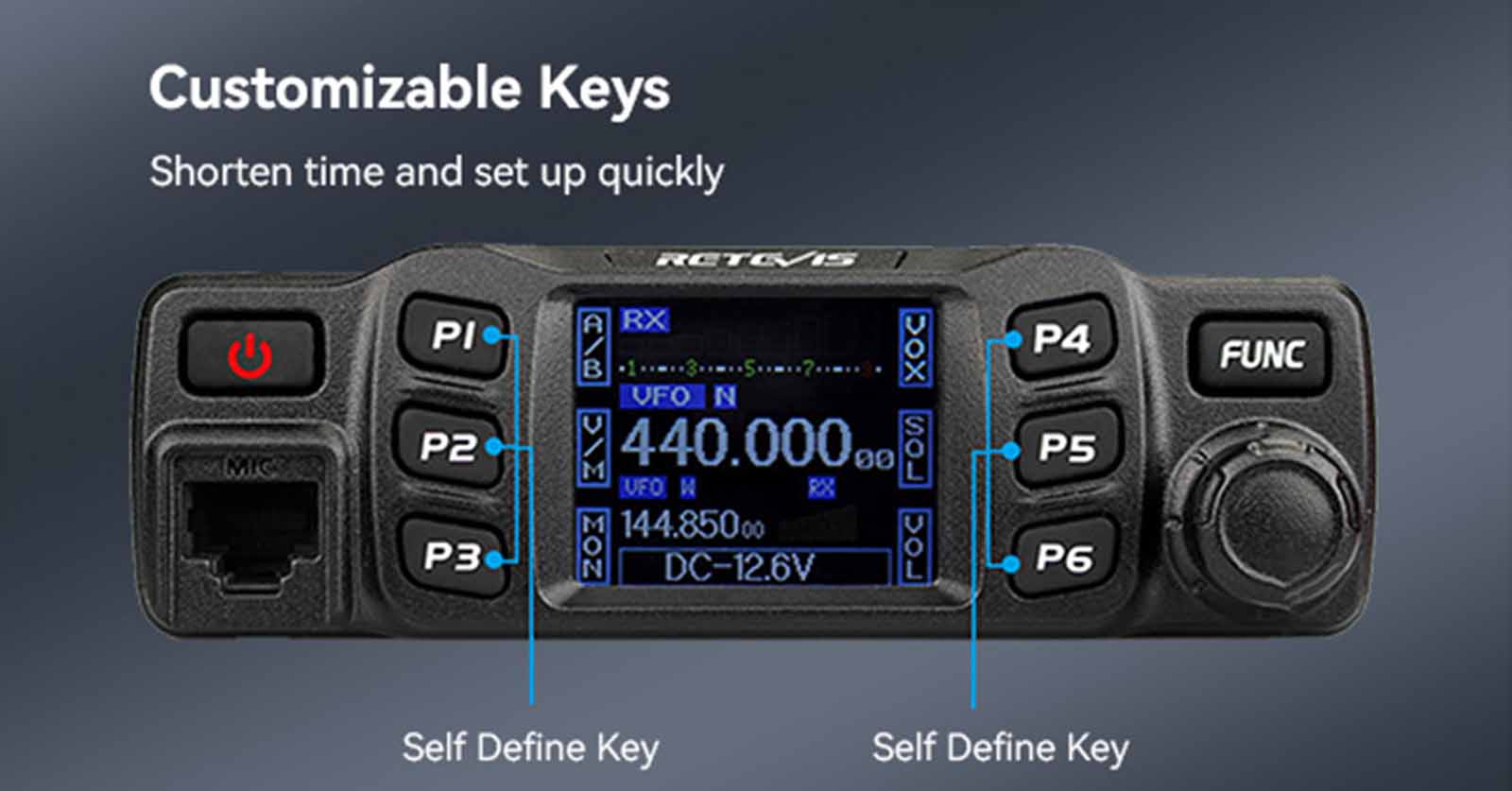

6 customizable buttons:
Customizable buttons on the radio and microphone; shortcut operations can be set through the software according to your usage habits

Programming software:
Supports CHIRP and keyboard programming; CHIRP is compatible with Windows XP/7/8/10/11 systems

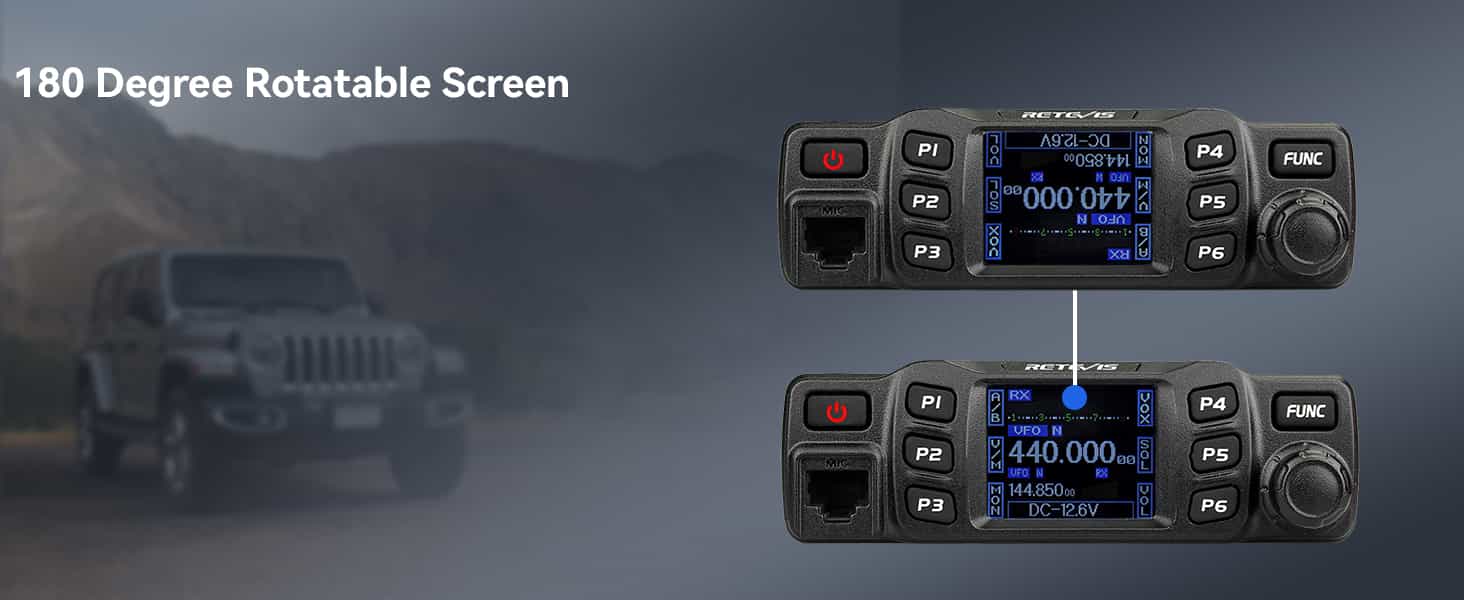

180 degree rotatable LCD display:
The screen can be rotated and the radio can be flipped; more installation location options; large screen backlight with adjustable brightness, convenient for outdoor and indoor reading

retevis-rt95-180 degree rotatable LCD display

Compact Size

Retevis RT95 Mini Mobile Car Radio is easy to install on the vehicle, convenient and simple. Suitable for off-road jeeps and trucks.

retevis-rt95-compact-size

Full functioning:
Single call, group call, selective call, emergency call are all available, keyboard lock function, squelch level setting, LCD screen off control, voltage level protection, automatic power off function

Spec

RT95--Frequency Range VHF:144-148MHz UHF: 430~440MHz
Number of Channels 200 channels
Channel Spacing 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band)
Phase-locked Step 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz,    25KHz, 30KHz, 50KHz
Operating Voltage 13.8V DC ±15%
Squelch Carrier/CTCSS/DCS
Frequency Stability ±2.5 ppm
Operating Temperature -20℃~+60℃
Dimensions(mm) 124 (W) x 163(D) x 39 (H)
Weight about 0.64Kg
RECEIVER
  Wide band Narrow band
Sensitivity (12dB Sinad) ≤0.25μV ≤0.35μV
AdjacentChannelSelectivity ≥60dB ≥60dB
Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
Hum & Noise ≥45dB ≥40dB
Audio distortion ≤5%
Audio power output >2W@8
TRANSMITTER
  Wide band Narrow band
Power Output 25W / 15W / 5W
Modulation 16KΦF3E 11KΦF3E
Adjacent Channel Power ≥70dB ≥60dB
Hum & Noise ≥40dB ≥36dB
Spurious Emission ≥60dB ≥60dB
Audio Response +1~-3dB(0.3~3KHz) +1~- dB(0.3~2.55KHz)
Audio Distortion ≤5%

Frequency

UV(144/430 MHz)

VSWR

≤1.5

Input Resistance

50Ω

Gain

6.5dB

Power Capacity

50W

Antenna Length

110cm

Antenna Diameter

20mm

Antenna Housing Material

Fiberglass Radome

Antenna weight

335g

Antenna Connector

N.J

Spring Base Height

102mm(top plastic spacer not included)

Spring Base Material

Steel

Feeder Type

RG-58U

Cable

5M

Connector

SL16J

(Spring Base + Feeder) weight

670g

Colour

Black

Features

RT95 Function:

  • Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation
  • 180 degree rotatable TFT LCD display
  • Full alloy body for heat radiation
  • Amateur mode and professional mode for different operation requirement
  • Distribute buttons reasonably, convenient for operation
  • Separate band width setting for each single channel, Wide 25K, Middle band20K, Narrow band 12.5K
  • 200 programmable memory channels, identified by editing name
  • Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel, rejecting extra calling from other radios
  • Various scan functions including CTCSS/DCS scan function
  • Smart menu control and PC programming control
  • Voltage level protection
  • LCD brightless control
  • Automatic power on function
  • Main unit and microphone key lock function
  • 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
  • DTMF-ANI or 5Tone-ANI for automatical calling recognition
  • Password function
  • Dualwatch function
  • Talk around function
  • Frequency reverse function
  • Offset function
