- 1.DMR+Analog +GPS+TDMA digital function+Record function

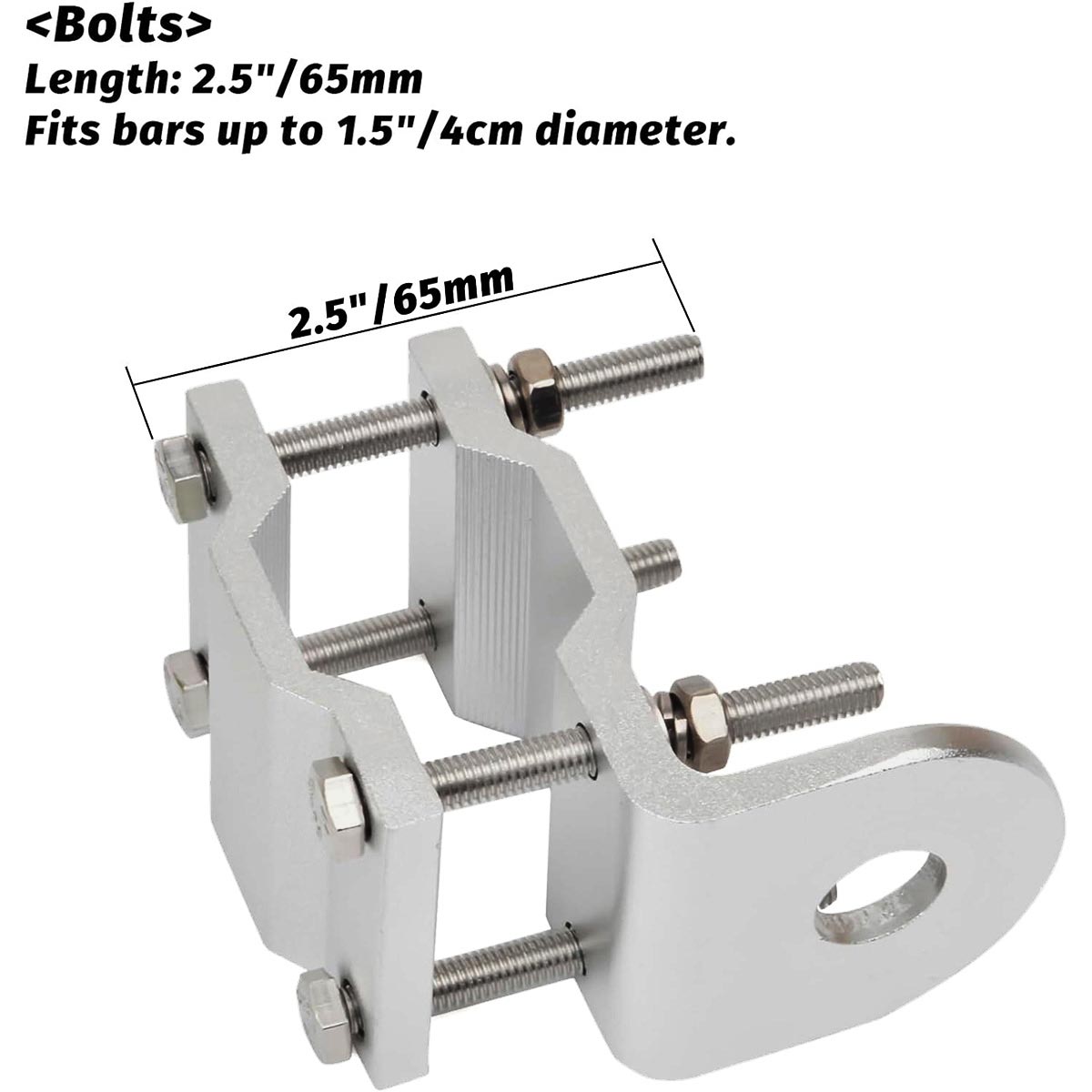

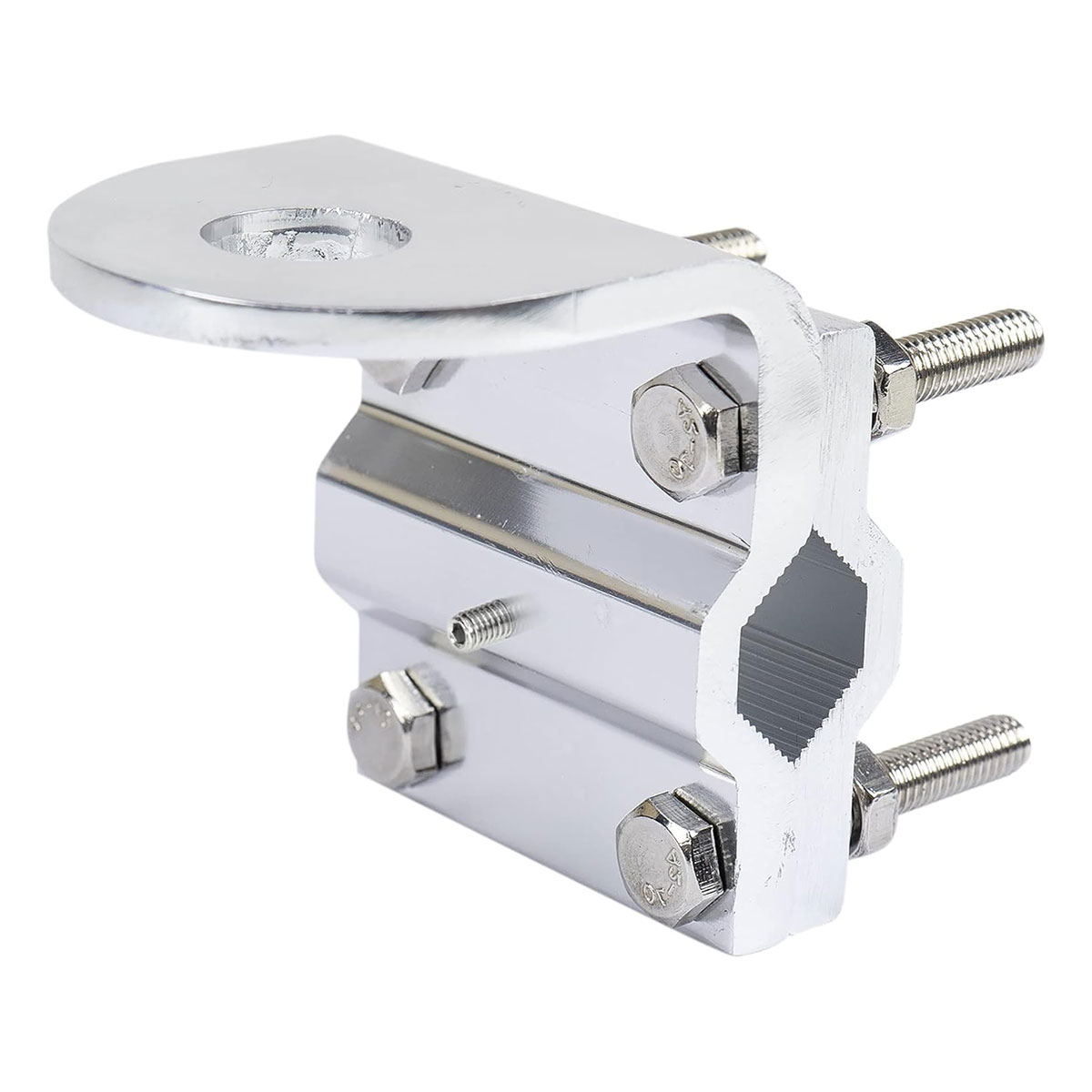

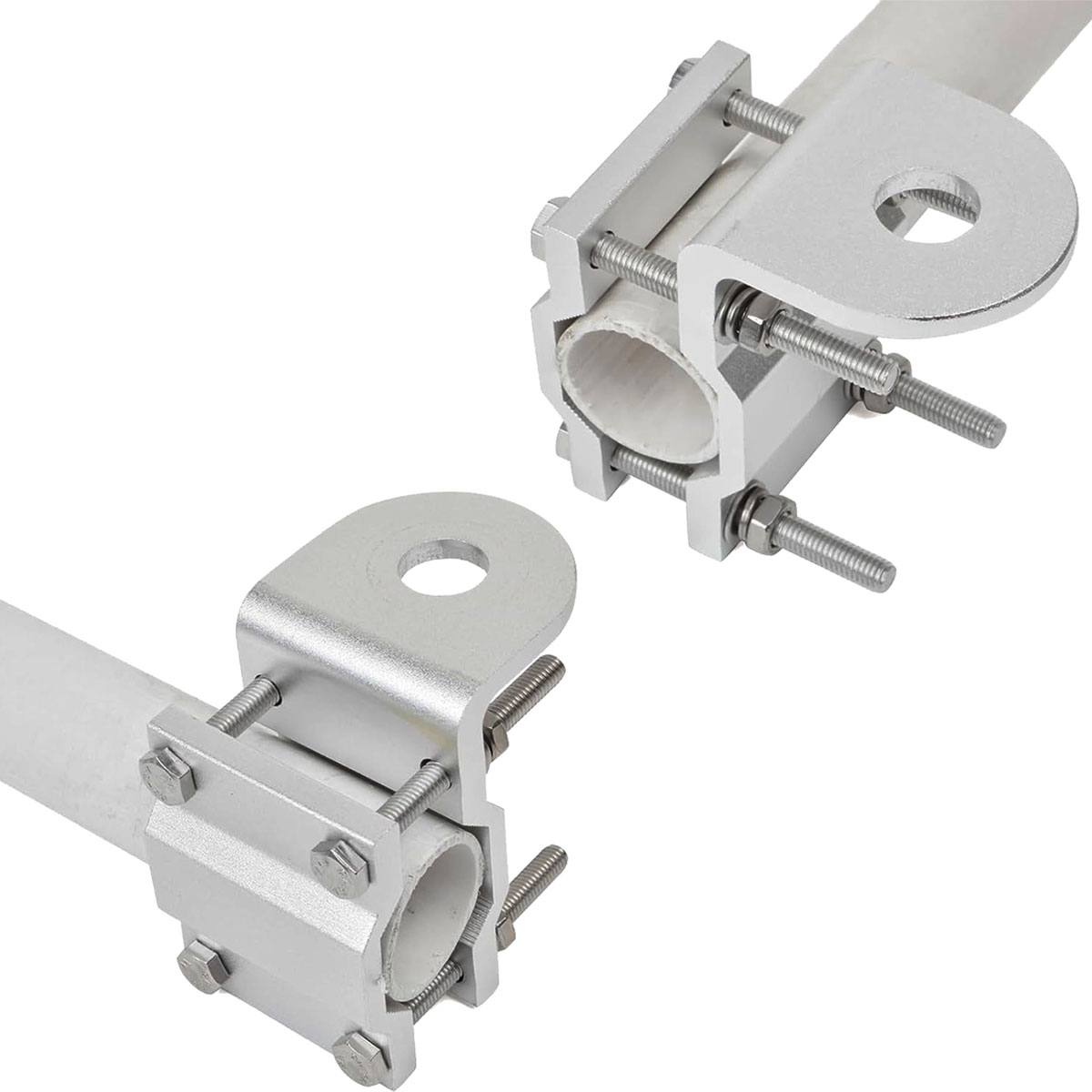

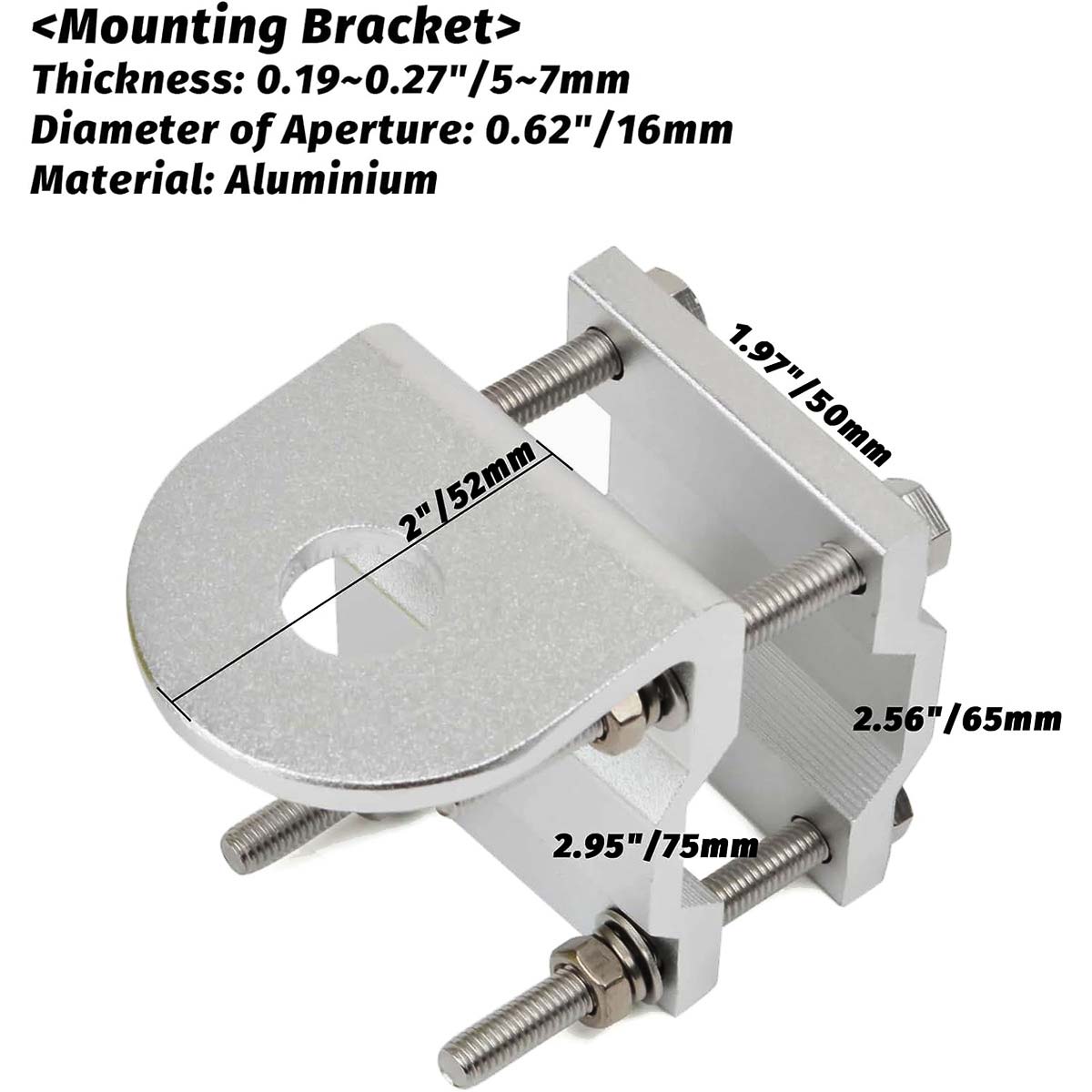

2.The Stubby Radome Antenna and Roll BarMirror Mounting Bracket are very convenient when installing the roof rack, and the cut signal is released perfectly.
3.This combination can also be installed perfectly on agricultural vehicles.
Previous
Next
>>
Description

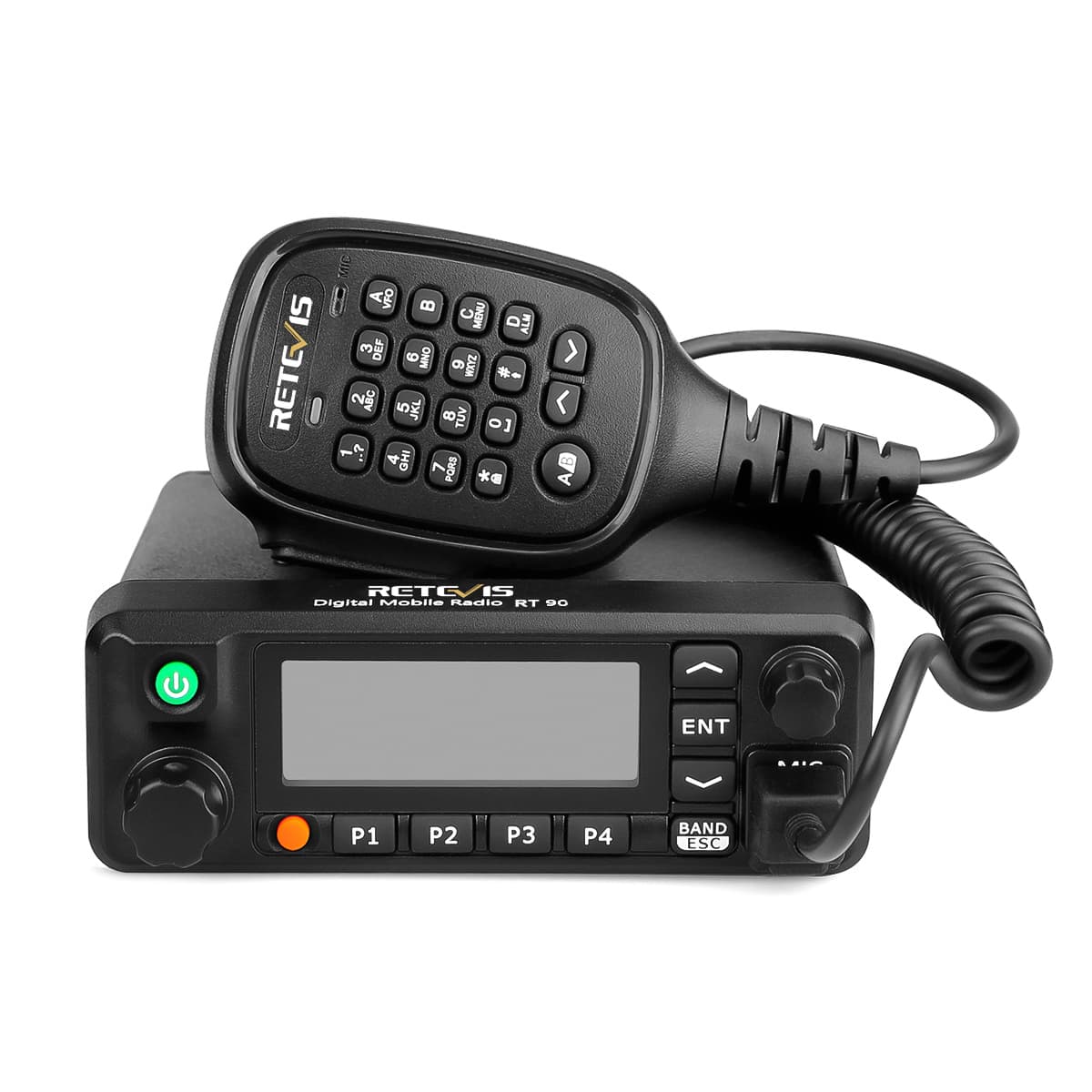

Retevis RT90 50 Watt Dual Band DMR Mobile and Ghost Antenna Kit
*Retevis RT90 50 Watt Dual Band DMR Mobile and Short Antenna Kit. It is equipped with a 9cm short antenna to achieve a gain effect of 3.5dbi. It can also pass through most road sections smoothly when placed on the roof of the car. It will not have a significant impact on the height of the vehicle body.
*RT90 digital ham Mobile radio supports analog and digital mode, It provides dual band, dual standby, dual display, dual time slot, operating on both 400-480MHz UHF frequencies and 136-174MHz VHF at up to 50 watts VHF and 45 watts UHF.
What's in the package?

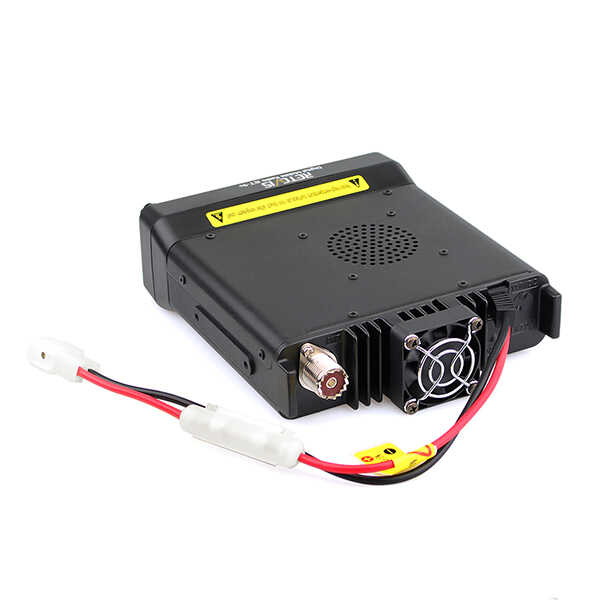

1 x RT90 50W GPS DMR mobile radio

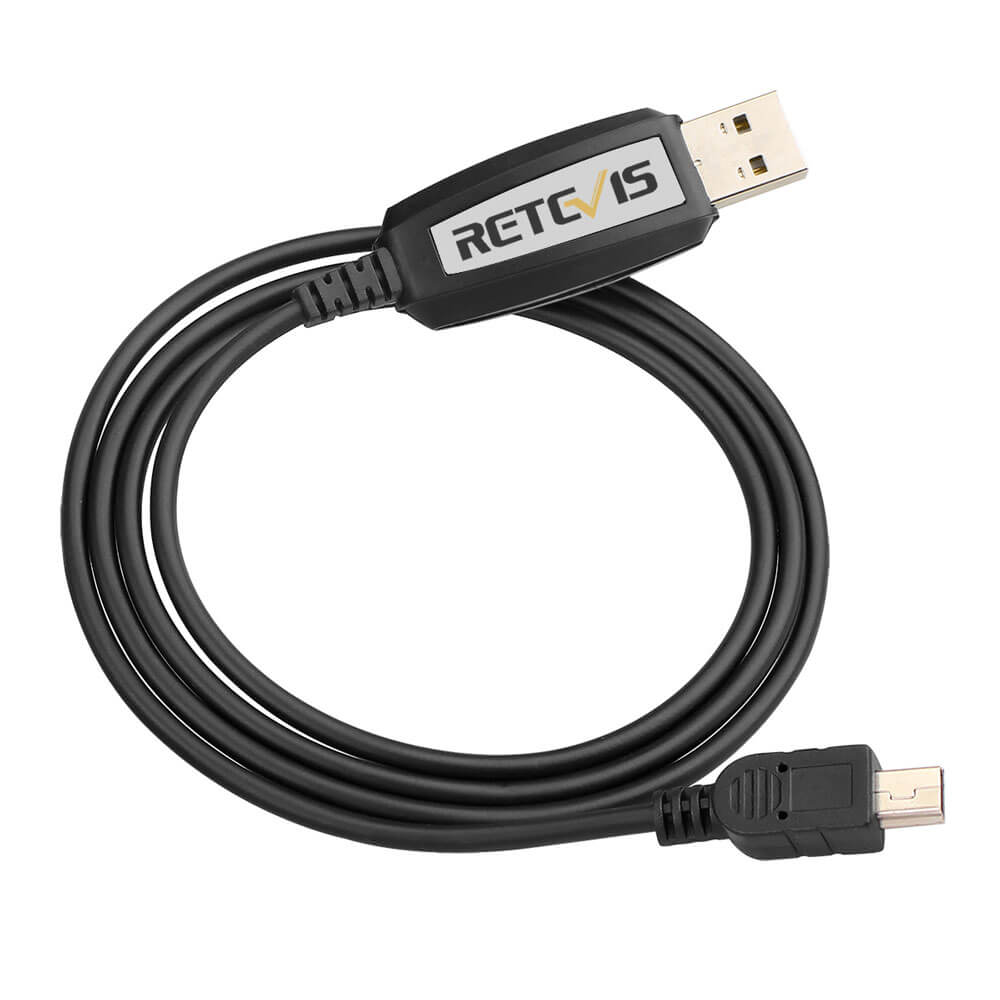

1 x RT90 programming cable

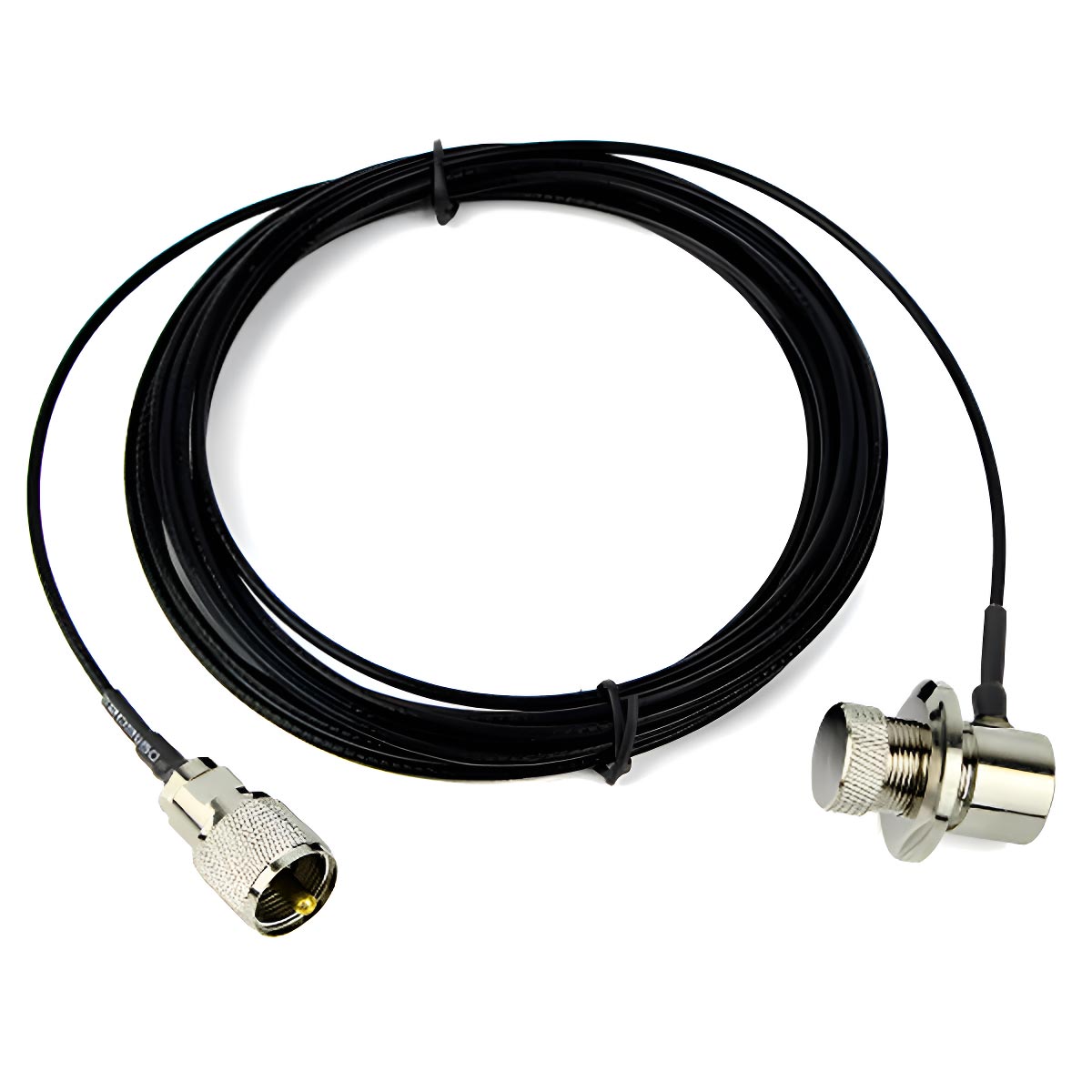

1 x 5m - low loss coaxial cable
1 x PL259-M black double stub antenna
Spec
| General | |
| Frequency Range(MHz) | VHF: 136-174Mhz UHF:400-480Mhz |
| Channel | 3000 |
| PLL Channel Spacing | 6.25/12.5/25KHz |
| Voltage Rating | DC 13.8V |
| Operating Temperature | -30℃~+60℃ |
| Storage Temperature | -30℃ ~+85℃ |

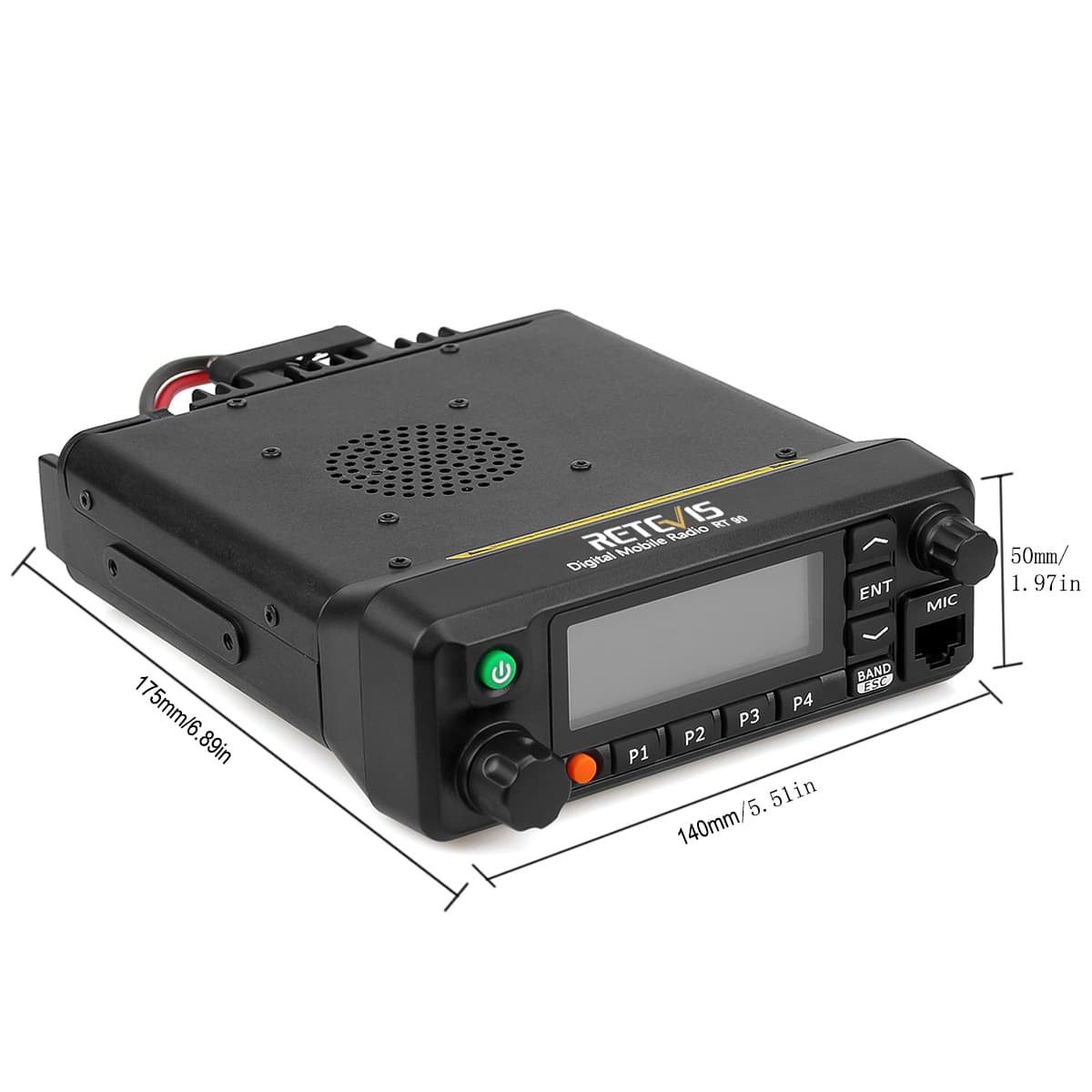

| Dimention | 143*50*175 mm |
| Compatible With American Military Standard | (MIL-STD-810C/D/E) |
| Transmitter | |
| RF Power Output | L:25W H:50W (VHF)L:25W H:45W (UHF) |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Modulation limited | +/- 2.5KHz @ 12.5 KHz +/-5.0KHz @ 25KHz |
| Conducted/radiated emission | -36 dBm ＜ 1GHz -30 dBm ＞ 1GHz ＜ 4GHz |
| Adjacent channel power | -60dB @12.5KHz -65dB @25KHz |
| Audio Response | +1dB ~ -3dB |
| Audio distortion | 3% |
| FM Modulation | 12.5KHz:11KOF3E25KHz:16KOF3E |
| 4FSK digital modulation | 12.5KHz only date:7K60FXD 12.5KHz date and audio:7K60FXE |
| Digital protocol | ETSI TS 102361-1,-2,-3 |
| Digital vocoder type | AMBE++ |
| Digital agreement | DMR |
| Receiver | |
| Frequency stability (-20℃+60℃,+25℃) | +/-1.0ppm |
| Digital Sensibility | 0.3uV/-117.4dBm (BER 5%)0.7uV/-110 dBm (BER 1%) |
| Analogue Sensibility | 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(20dB SINAD) |
| Rated audio | 5W |
| Adjacent Channel Selectivity | TIA603C:60dB@ 12.5 KHz ETSI: 60dB@12.5 KHz |
| Intermediation | TIA603C:65 dB ETSI:65dB |
| C0-Channel Rejection | 12dB @12.5KHz |
| Spurious Rejection | TIA603C:70dB ETSI:70dB |
| Audio distortion @ rated audio | ≤3% |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Audio response | +1dB~-3dB |
| Spurious emission | -57dBm@m ＜ 1GHz -47dBm@m ＜ 1GHz |
| Bolck | 84dB |

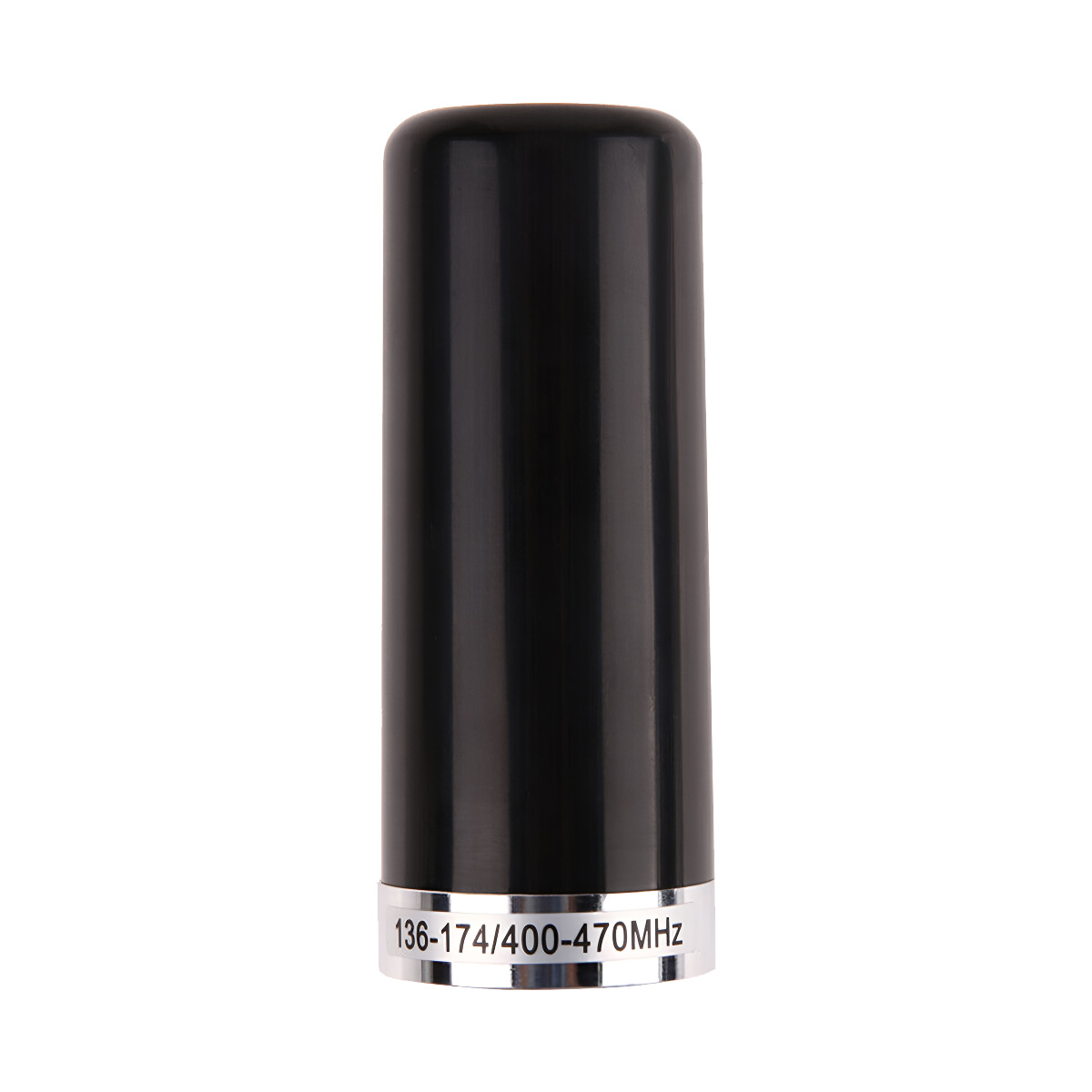

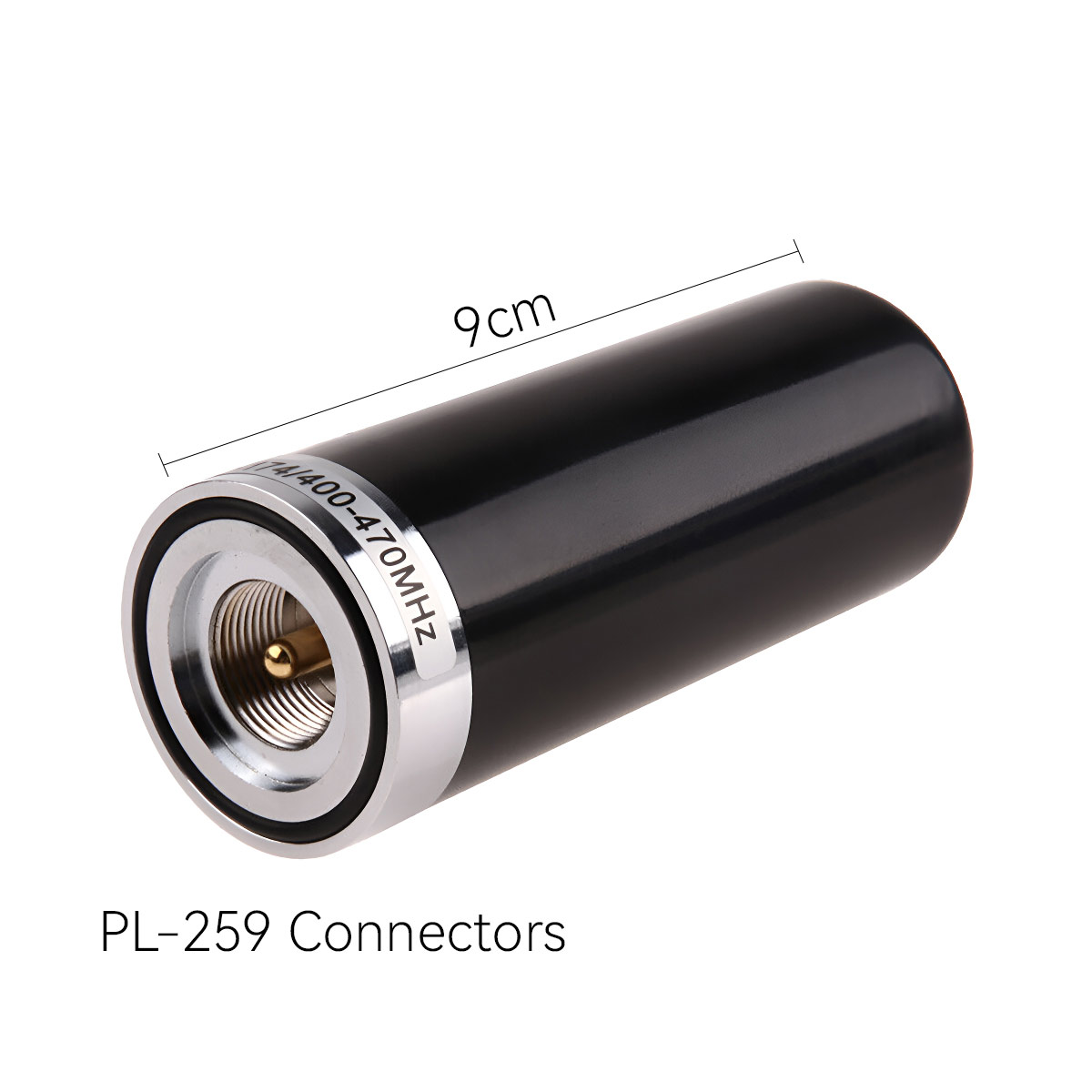

Antenna-Specifications:
| Frequency | Dual Band:136-174Mhz&400-470Mhz |
| Max Power | 50WATTS |
| Connector | PL259 UHF Type |
| Impedance | 50ohm |
| Gain | 2.15/3dBi |
| V.S.W.R | LESS1.5 |
| Antenna Height | 9cm/3.54in |
| Color | Black |
| Weight | 130g/4.6oz |
Features
Feature:
- Output power: 50W
- Use TDMA digital function
- Compatible with Mototrbo Tier I &II
- Dual band, dual standby, dual display, dual time slot
- 250 zone, 3000 channel, 10000 contacts
- Digital mode and Analog mode
- Single call, group call and all call
- Emergency function
- Remote kill/stun/Activate
- Group match/single match
- Record function
- PC programmable function
- CTCSS.DCS encoding and decoding function
- PC password protection function
- Color LCD Display

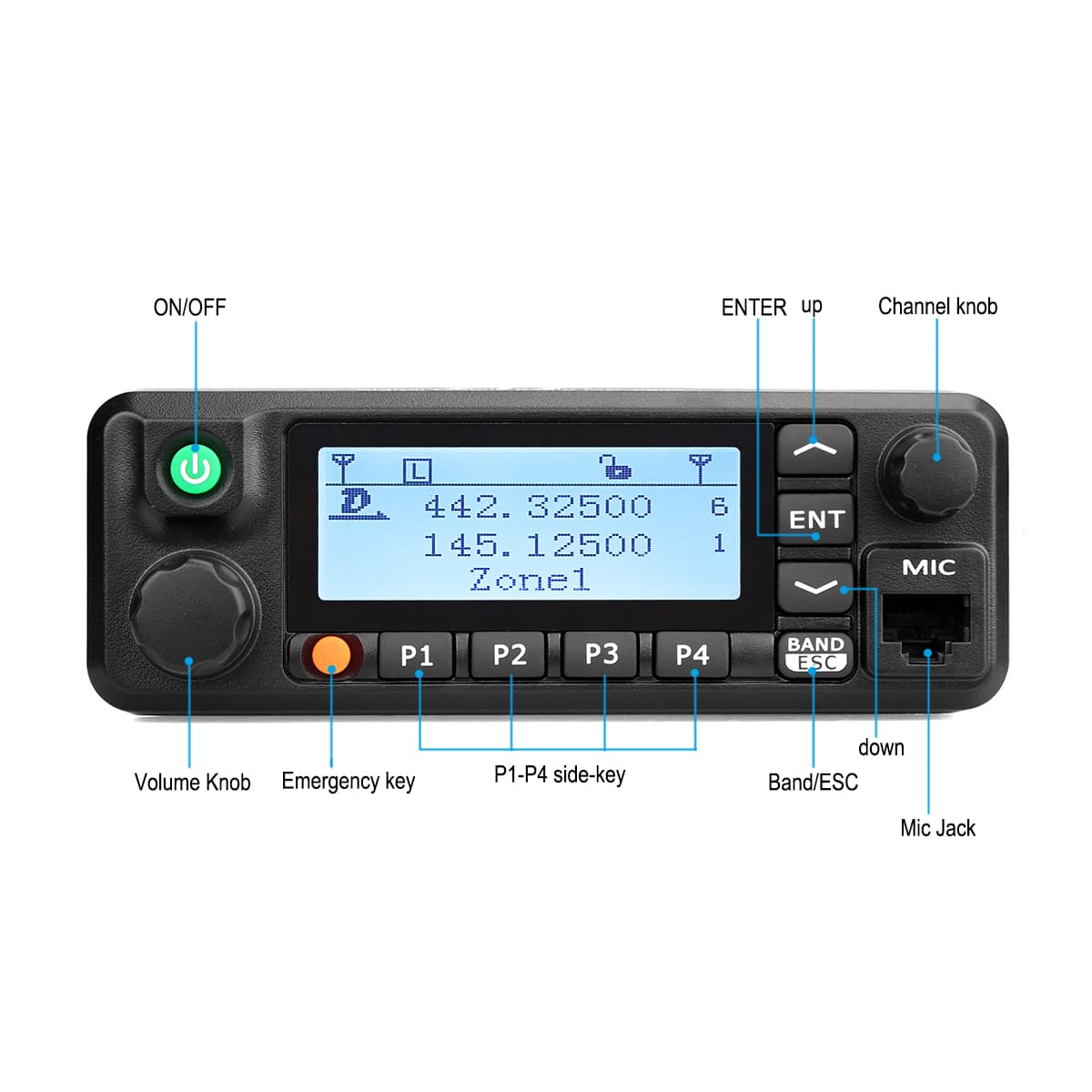

- Programmable functional keys
- Low Voltage prompt
- Upgradeable by firmware
- TOT
- SQL Setting
- Scanning Function and priority scanning
- Monitor Function
- VOX Transmitting
- Lone Worker
- Time and zone setting
