How DMR Digital Radios Work: A Beginner's Technical Guide

How DMR Digital Radios Work: A Beginner's Technical Guide

How DMR Digital Radios Work: A Beginner's Technical Guide

Introduction to DMR Technology

DMR (Digital Mobile Radio) represents a significant advancement in two-way communications, offering clearer audio and more efficient spectrum use than traditional analog systems. Whether you're a professional user or a DMR amateur radio enthusiast, understanding how these radios work will help you get the most from this technology.

The Digital Transformation Process

From Analog to Digital

  1. Voice Capture: Your voice is picked up by the microphone

  2. Analog-to-Digital Conversion: The sound wave is converted to digital data

  3. Compression: AMBE+2 vocoder reduces data size while preserving clarity

  4. Packetization: Voice is divided into digital packets for transmission

Key Components Involved

  • Digital signal processor (DSP)

  • Error correction algorithms

  • TDMA timing controller

TDMA: The Heart of DMR Technology

Time Division Multiple Access Explained

DMR's magic lies in its TDMA implementation:

  • Divides each 12.5 kHz channel into two 30ms time slots

  • Allows two simultaneous conversations on one frequency

  • Synchronized timing ensures smooth operation

Slot 1 vs. Slot 2

  • Each slot operates independently

  • Can carry voice or data

  • Enables advanced features like voice+GPS simultaneously

Signal Transmission and Reception

Transmission Path

  1. Digital packets are modulated onto radio waves

  2. Signal travels via RF to receiver

  3. Receiver demodulates the signal

  4. Error correction fixes any transmission errors

  5. Digital-to-analog conversion recreates the voice

Why Digital Sounds Better

  • Eliminates analog hiss and static

  • Maintains consistent audio quality at range limits

  • Background noise suppression

DMR for Amateur Radio Operators

The DMR amateur radio community has embraced this technology because:

Benefits for Hams

  • Access to worldwide digital networks

  • More efficient spectrum usage

  • Advanced features like text messaging

  • Affordable entry into digital technology

Popular DMR Ham Activities

  • Talking across global repeaters

  • Digital emergency communications

  • Technical experimentation

  • Radio programming challenges

Practical Applications

Everyday Scenarios

  • Business communications in noisy factories

  • Clear transmissions in crowded urban areas

  • Reliable emergency services coordination

  • Long-distance communication with repeaters

Getting Started with DMR

Basic Setup Requirements

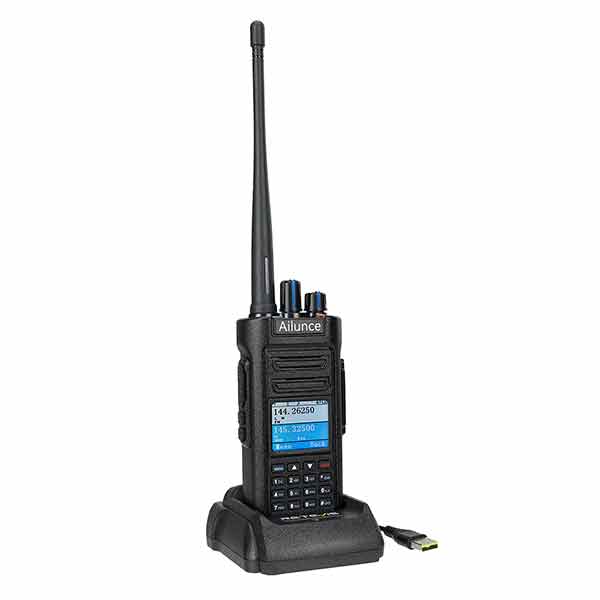

  1. DMR-capable radio

  2. Programming software

  3. Valid radio ID (for amateur use)

  4. Understanding of local repeaters

Tips for Beginners

  • Start with a basic handheld model

  • Join local DMR user groups

  • Practice programming before field use

  • Learn the etiquette of digital nets

Conclusion

DMR digital radios transform communication through sophisticated digital processing and efficient TDMA technology. From public safety professionals to DMR amateur radio operators, this system offers clear advantages in clarity, efficiency, and functionality. Understanding these technical fundamentals helps users optimize their DMR experience and troubleshoot issues when they arise.

As digital radio continues evolving, DMR remains at the forefront, combining proven reliability with innovative features that meet diverse communication needs.
