- DMR Radios for clear calls and digital voice encryption
- 50 watts transmission power, long communication distance.
- GPS gives you a clear idea of your location even in the wild.
- Anti-collision spring base, makes the fiberglass antenna more durable and not easy to break. And the installation is firm, not easy to fall off.
Description

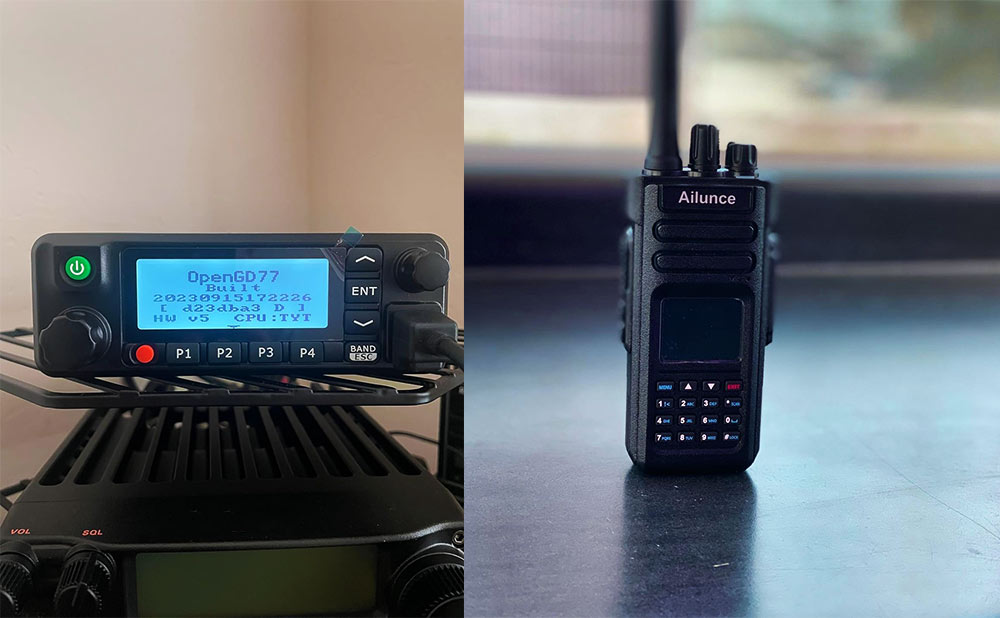

Retevis RT90 50W GPS Mobile Radio & HD1 10W Handheld DMR Two Way Radio + MR400 Fiberglass Antenna
RT90 50W GPS DMR Mobile Radio+HD1 10W GPS DMR Radio+MR400 7.2 dBI Fiberglass Antenna = Long Distance Adventure, Rescue Kit.The highest power among RT90 mobile stations, combined with the high-gain antenna, is not only sturdy but also corrosion-resistant, HD1 high-power mobile station. All come with GPS, suitable for outdoor adventures, deep dives into uninhabited areas, rescuers, preparers, etc. The communication distance in open areas can reach 25km or more.
Package Includes:

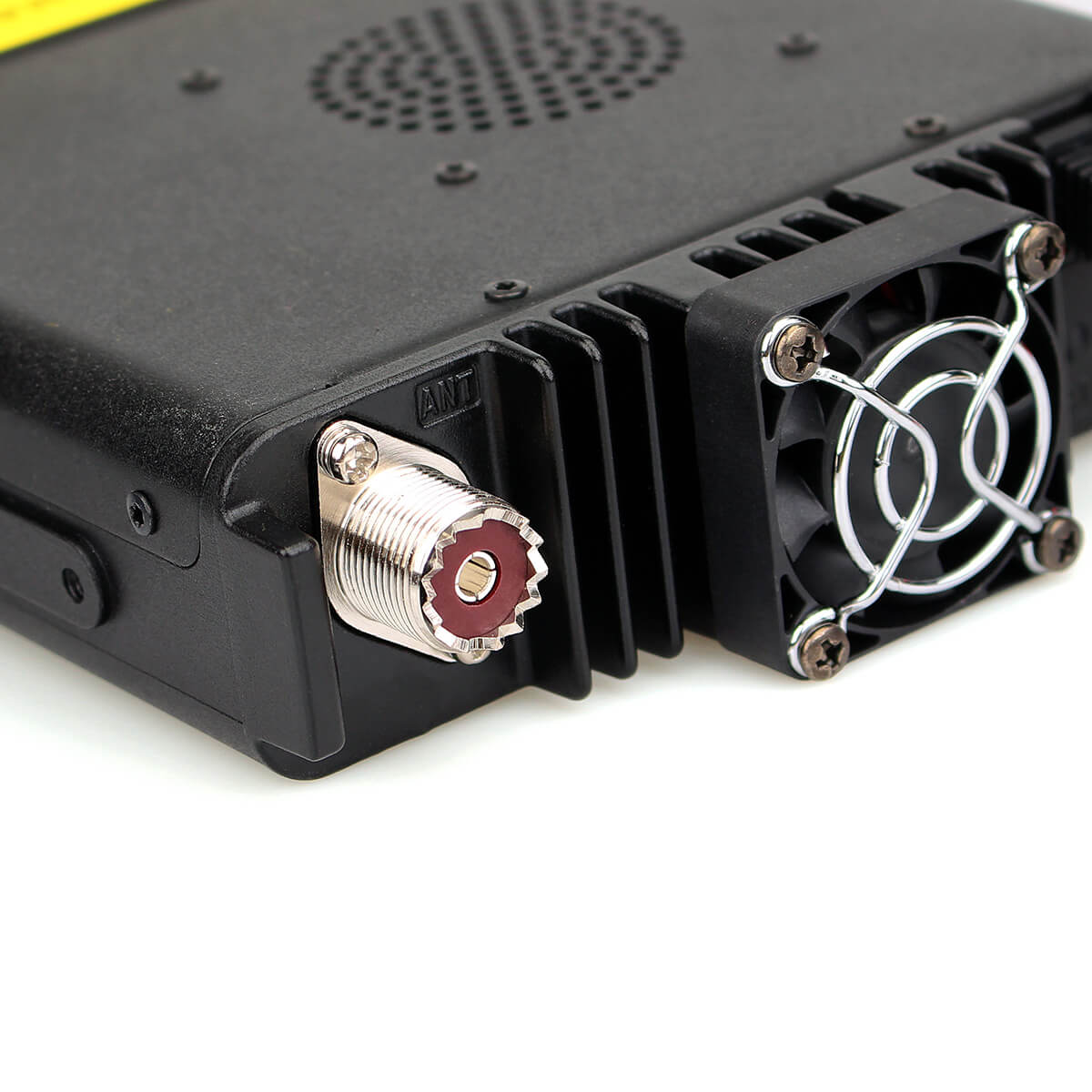

- 1 x RT90 50w dual band DMR Mobile Radio

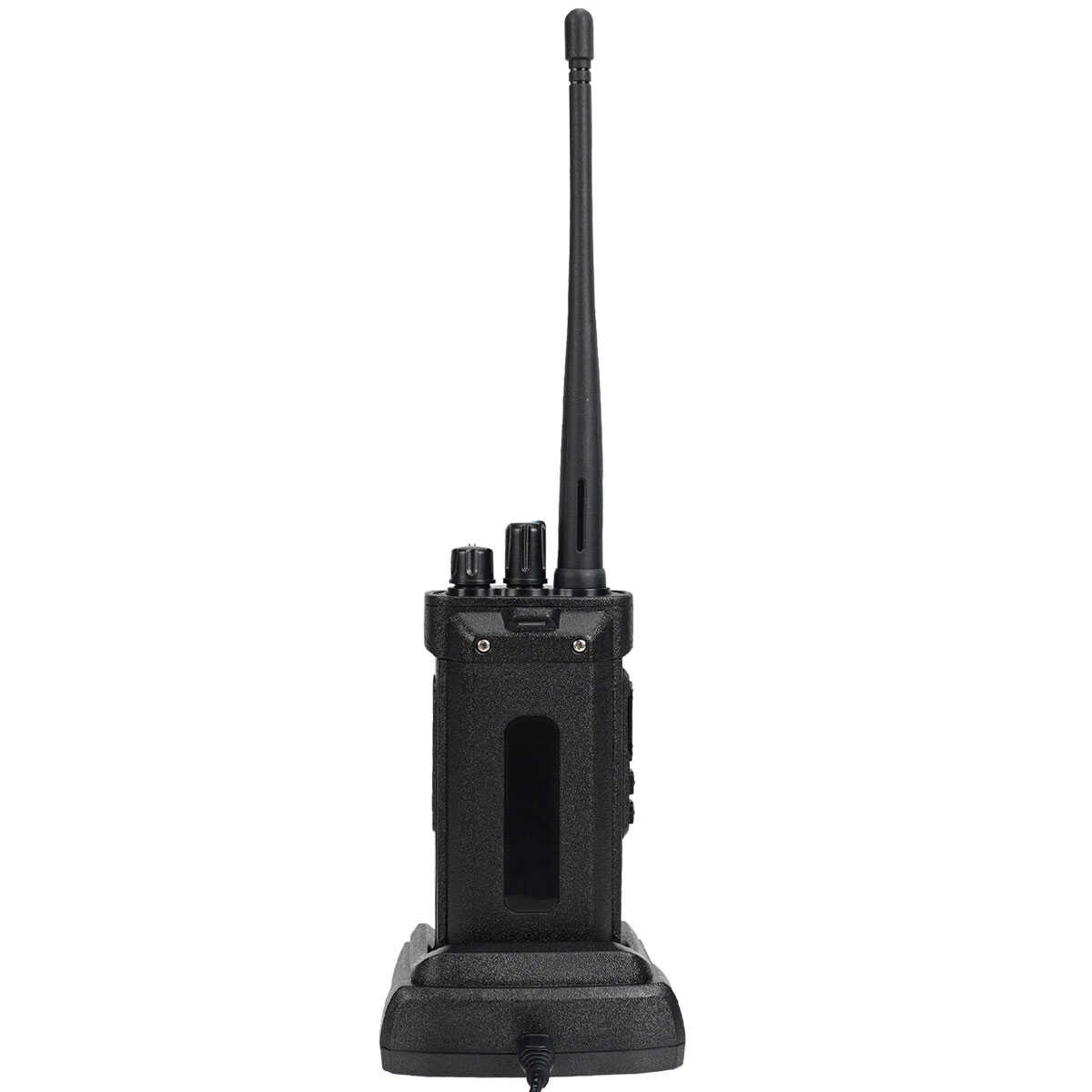

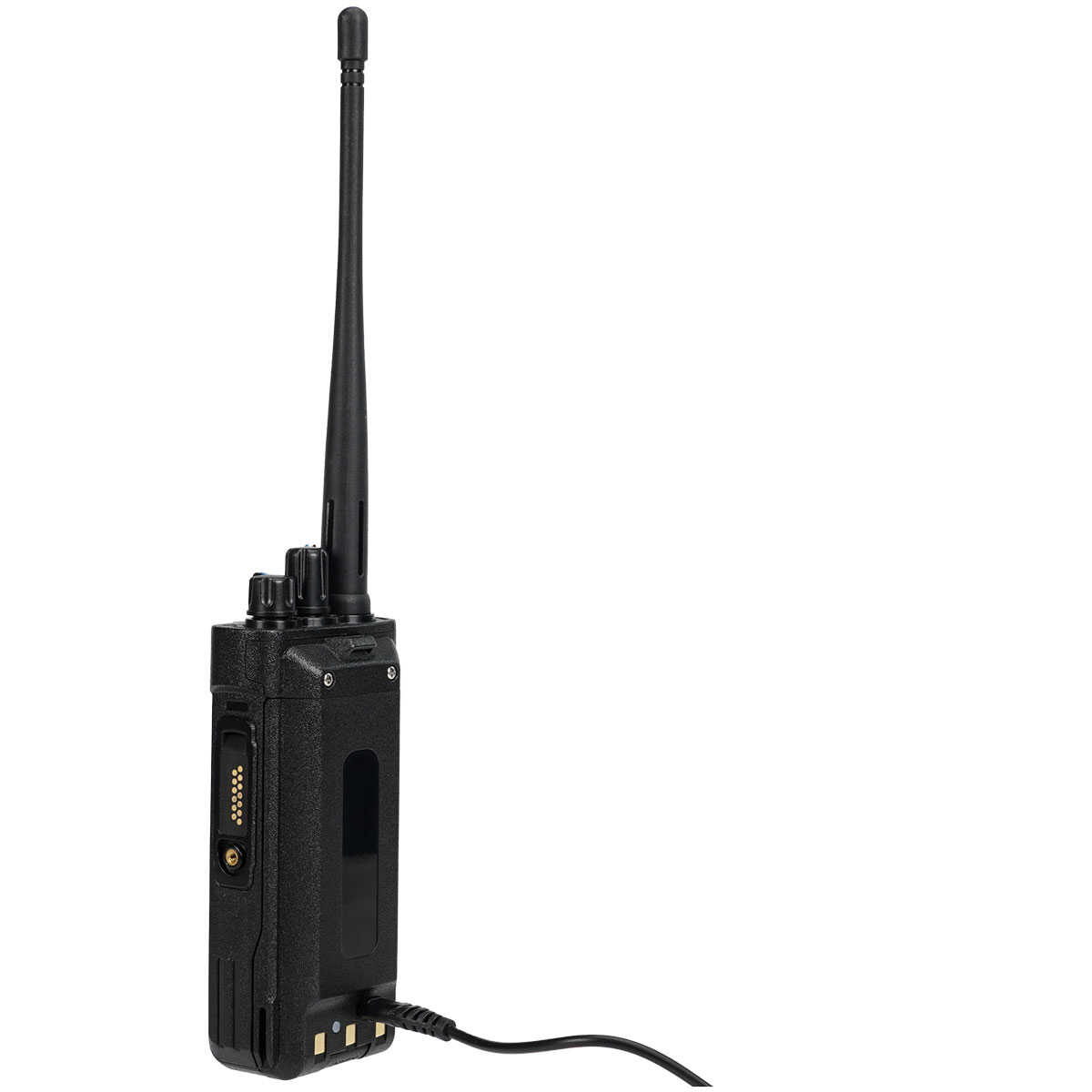

- 1 x HD1 GPS Handheld Radio

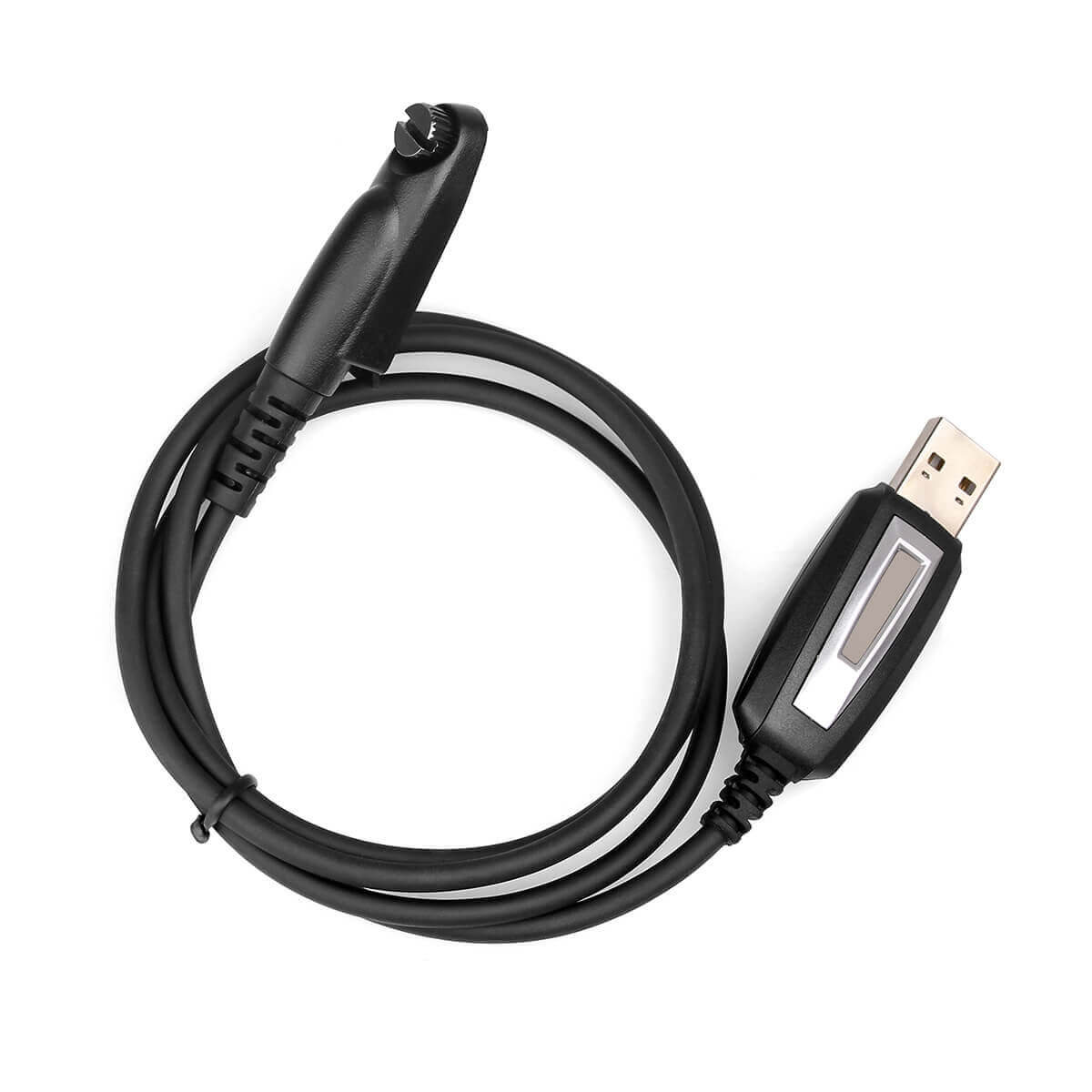

- 1 x RT90 Mobile Radio Programming Cable
- 1 x HD1 Programming Cable

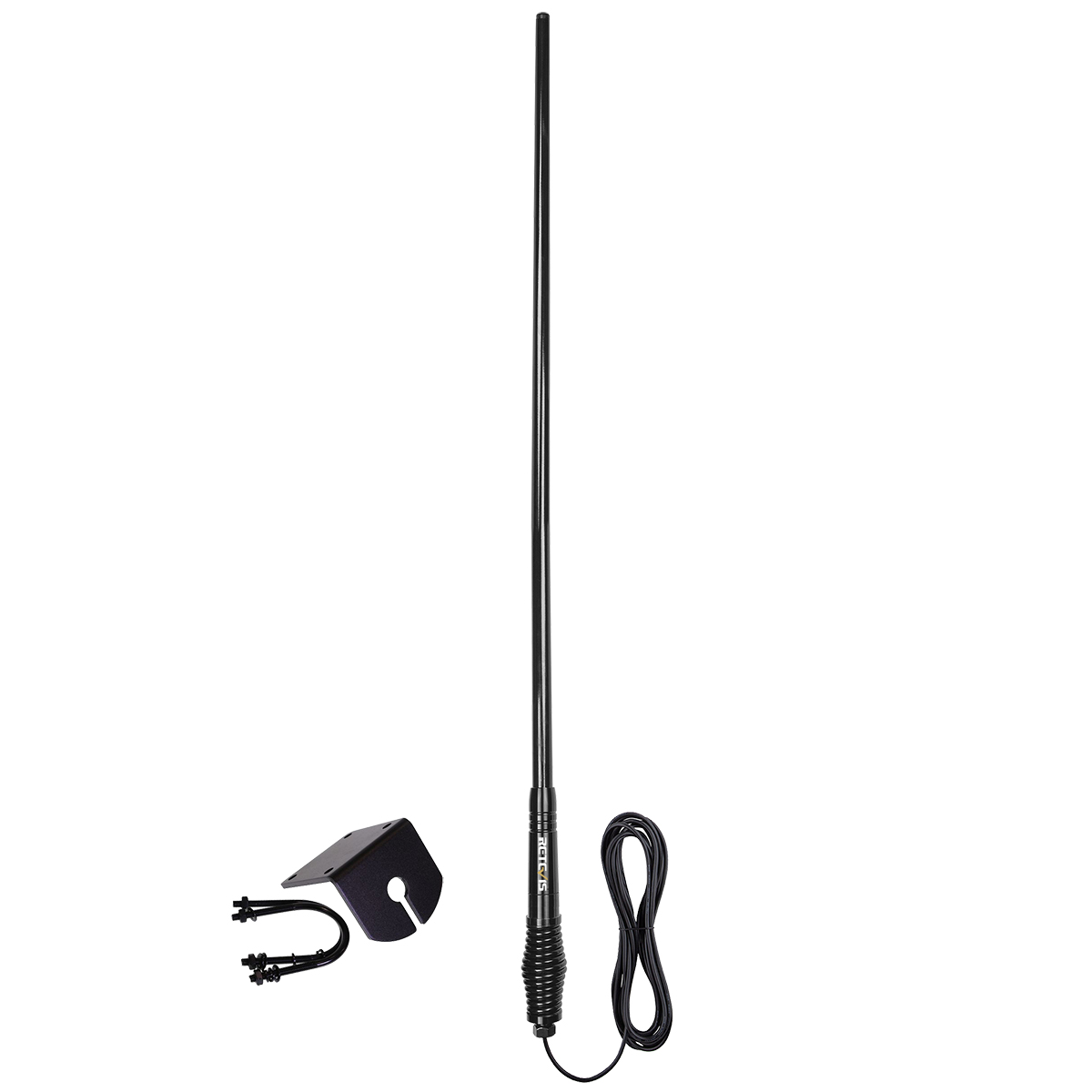

- 1 x MR400 Fiberglass Radome Antenna
- 1 x Mobile Radio Power Cable
- 1 x Handheld Mic

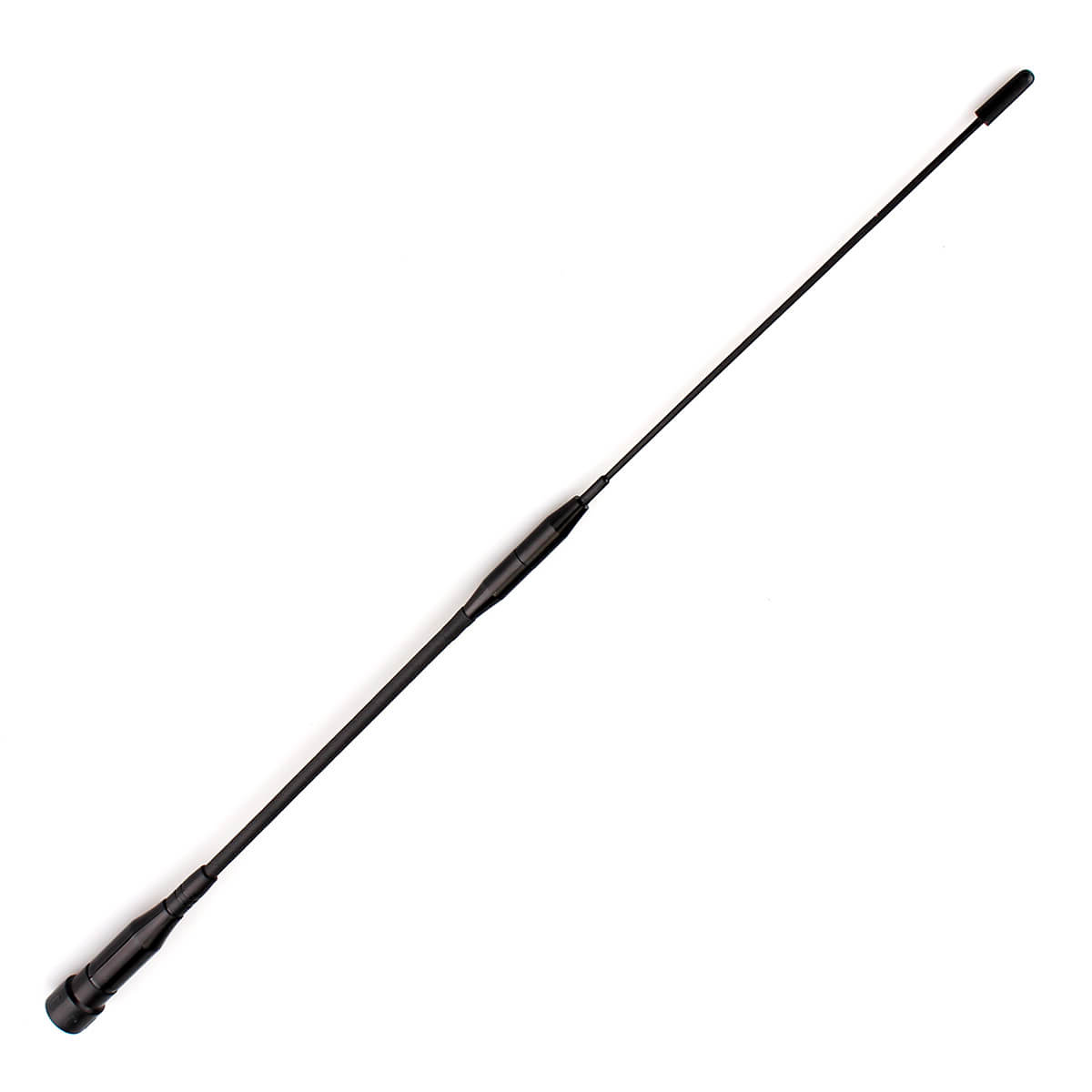

- 1 x Long Antenna
- 2 x User's Manual
- 1 x One Pack of Screw and Accessories
- 1 x HD1 Type-C Battery

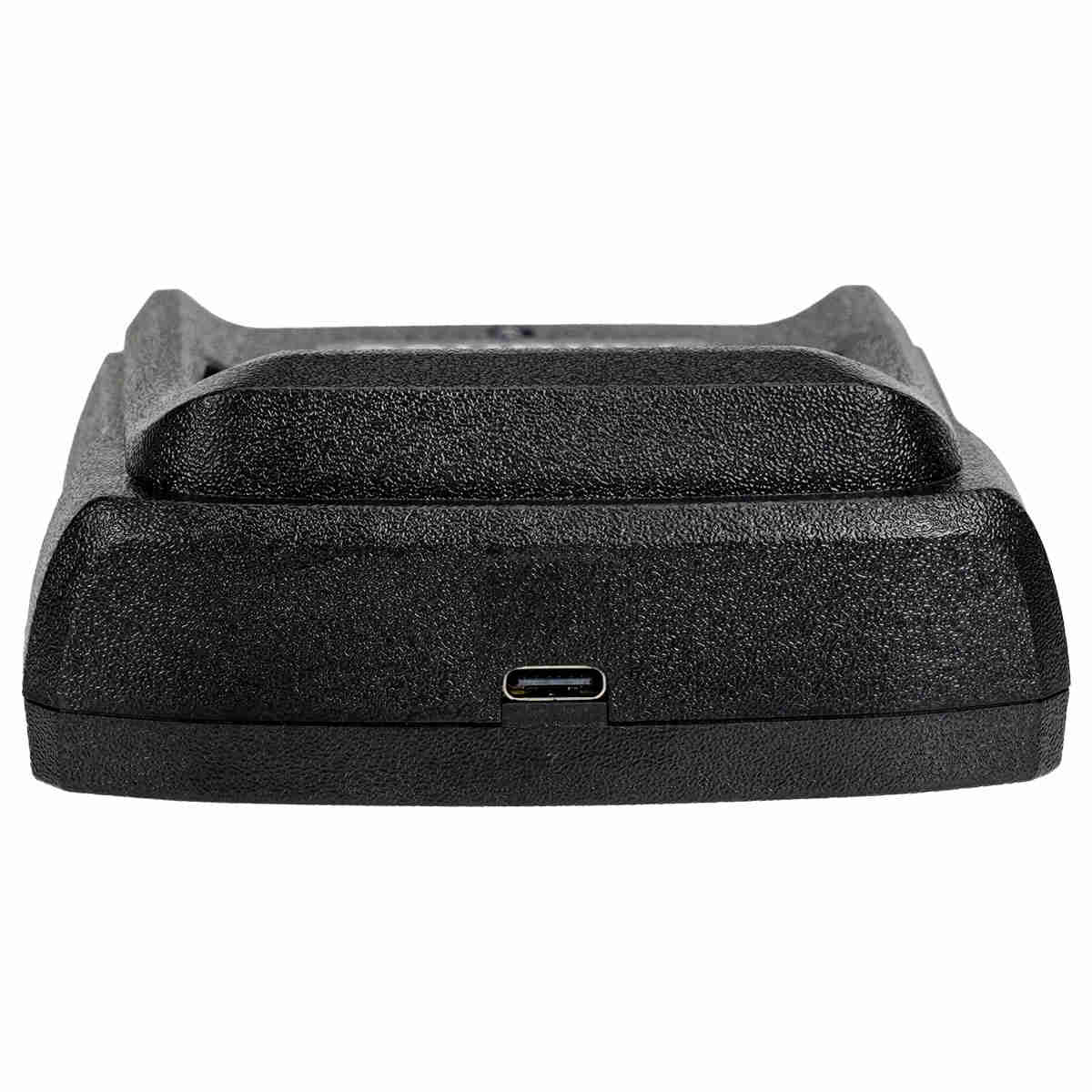

- 1 x HD1 Type-C Desktop Charger

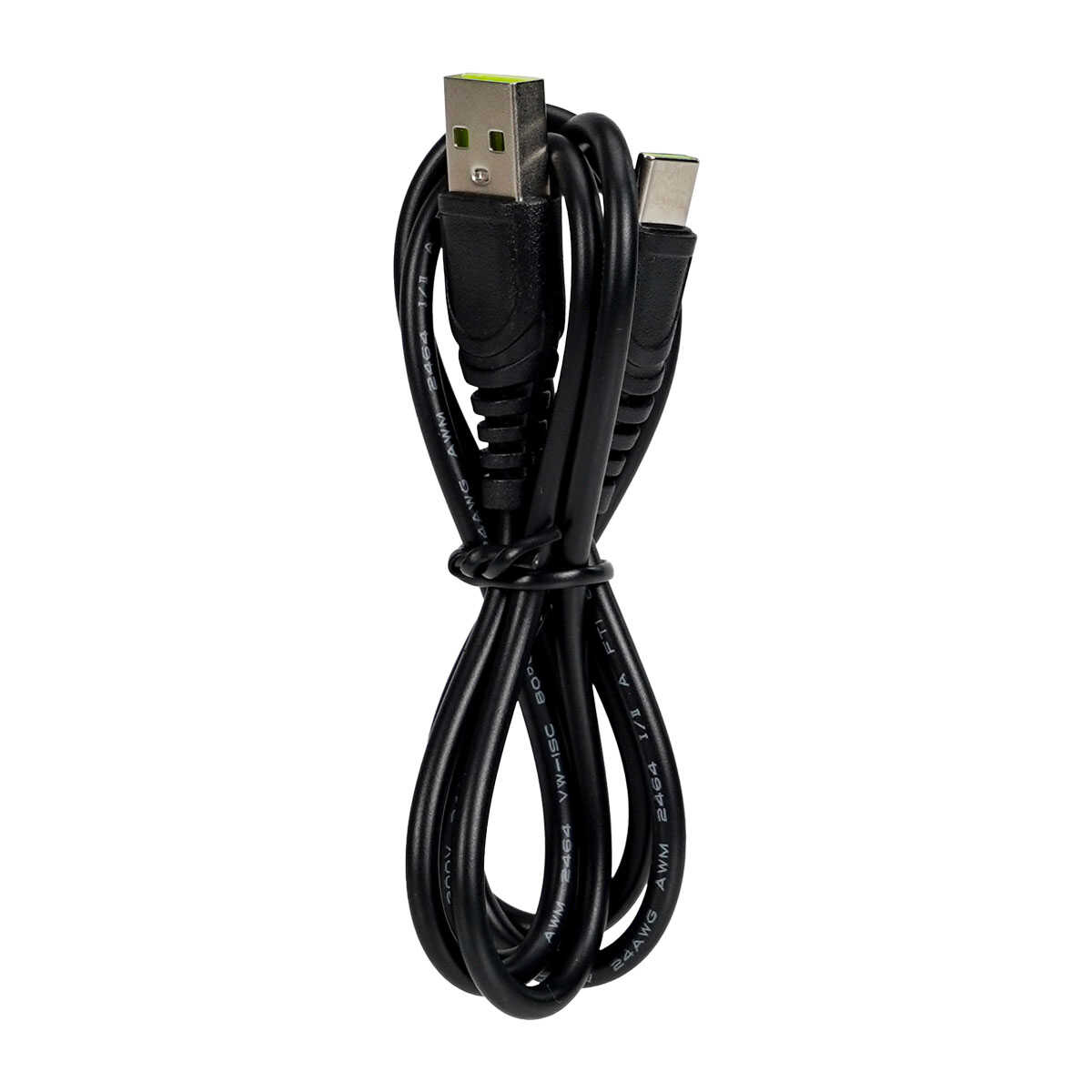

- 1 x HD1 Type-C Charging Cable
Learn More:
Spec
| RT90-General | |
| Frequency Range(MHz) | VHF: 136-174Mhz UHF:400-480Mhz |
| Channel | 3000 |
| PLL Channel Spacing | 6.25/12.5/25KHz |
| Voltage Rating | DC 13.8V |
| Operating Temperature | -30℃~+60℃ |
| Storage Temperature | -30℃ ~+85℃ |

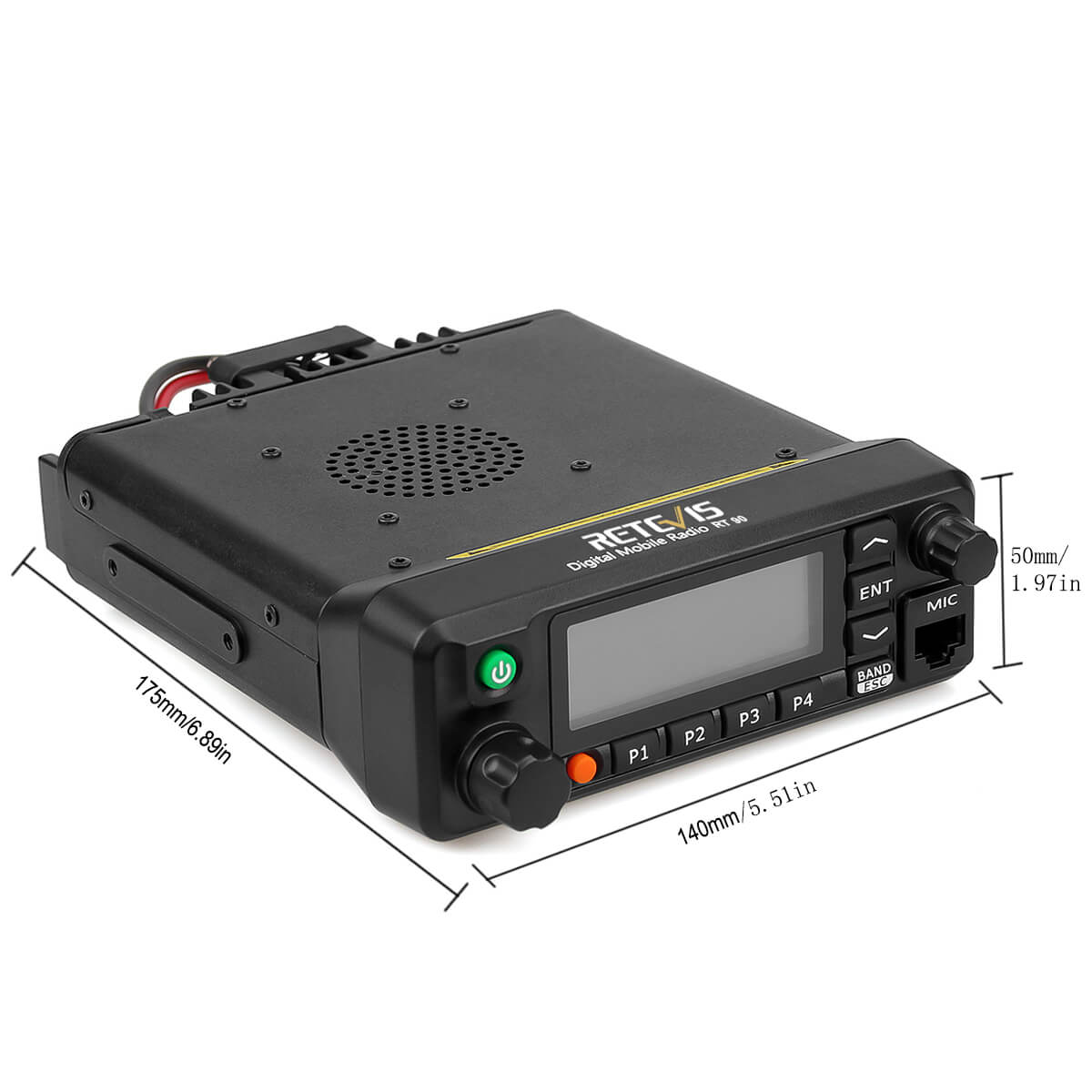

| Dimention | 143*50*175 mm |
| Compatible With American Military Standard | (MIL-STD-810C/D/E) |
| Transmitter | |
| RF Power Output | L:25W H:50W (VHF)L:25W H:45W (UHF) |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Modulation limited | +/- 2.5KHz @ 12.5 KHz +/-5.0KHz @ 25KHz |
| Conducted/radiated emission | -36 dBm ＜ 1GHz -30 dBm ＞ 1GHz ＜ 4GHz |
| Adjacent channel power | -60dB @12.5KHz -65dB @25KHz |
| Audio Response | +1dB ~ -3dB |
| Audio distortion | 3% |
| FM Modulation | 12.5KHz:11KOF3E25KHz:16KOF3E |
| 4FSK digital modulation | 12.5KHz only date:7K60FXD 12.5KHz date and audio:7K60FXE |
| Digital protocol | ETSI TS 102361-1,-2,-3 |
| Digital vocoder type | AMBE++ |
| Digital agreement | DMR |
| Receiver | |
| Frequency stability (-20℃+60℃,+25℃) | +/-1.0ppm |
| Digital Sensibility | 0.3uV/-117.4dBm (BER 5%)0.7uV/-110 dBm (BER 1%) |
| Analogue Sensibility | 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(20dB SINAD) |
| Rated audio | 5W |
| Adjacent Channel Selectivity | TIA603C:60dB@ 12.5 KHz ETSI: 60dB@12.5 KHz |
| Intermediation | TIA603C:65 dB ETSI:65dB |
| C0-Channel Rejection | 12dB @12.5KHz |
| Spurious Rejection | TIA603C:70dB ETSI:70dB |
| Audio distortion @ rated audio | ≤3% |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Audio response | +1dB~-3dB |
| Spurious emission | -57dBm@m ＜ 1GHz -47dBm@m ＜ 1GHz |
| Bolck | 84dB |
|
HD1-General specifications |
|
|
Frequency |
136-174&400-480MHz |
|
Channels |
3000 |
|
Operating Temperature |
-30℃~+60℃ |
|
Input |
7.4V 2.5A Max |
|
Dimension |
150×64×40mm |
|
Weight |
360g (with battery) |
|
Battery Type |
Li-ion |
|
Battery Capacity |
3200mAh |
|
Battery Charging Input |
5V1A |
|
Antenna Impedance |
50Ω |
|
Transmitter |
|
|
Power |
UHF:8w:4w:1w |
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
Frequency Stability |
±1.0ppm |
|
FM modulation mode |
12.5KHz 11K0F3E |
|
4FSK digital mode |
12.5KHz(data only): 7K60FXD |
|
Modulation distortion |
＜5% |
|
Vocoder |
AMBE+2TM |
|
Adjacent channel power |
60dBm 12.5KHz |
|
Audio Response |
+1~-3dB |
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
Receiver |
|
|
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
Audio Response |
+1~-3dB |
|
Rated Audio Distortion |
≤3% (Type) |
|
Audio Power |
≥500mW |
|
Frequency-MR400 |
UV（144/430 MHz） |
|
VSWR |
≤1.5 |
|
Input Resistance |
50Ω |
|
Gain |
6.5dB |
|
Power Capacity |
50W |
|
Antenna Length |
110cm |
|
Antenna Diameter |
20mm |
|
Antenna Housing Material |
Fibreglass Radome |
|
Antenna weight |
335g |
|
Antenna Connector |
N.J |
|
Spring Base Height |
102mm(top plastic spacer not included) |
|
Spring Base Material |
Steel |
|
Feeder Type |
RG-58U |
|
Cable |
5M |
|
Connector |
SL16J |
|
(Spring Base + Feeder) weight |
670g |
|
Colour |
Black |
Features

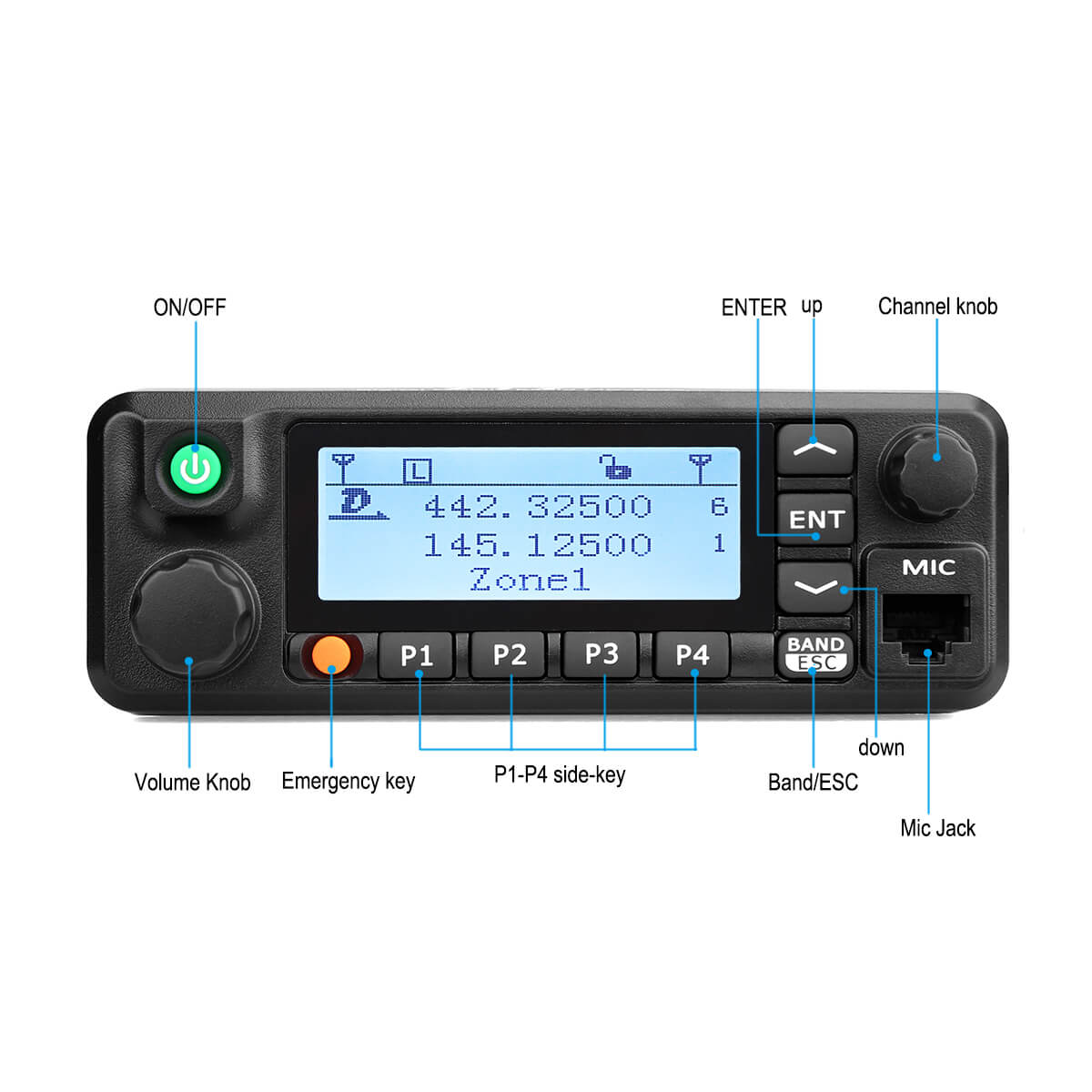

RT90-Feature:
- Output power: 50W
- Use TDMA digital function
- Compatible with Mototrbo Tier I &II
- Dual band, dual standby, dual display, dual time slot
- 250 zone, 3000 channel, 10000 contacts
- Digital mode and Analog mode
- Single call, group call and all call
- Emergency function
- Remote kill/stun/Activate
- Group match/single match
- Record function
- PC programmable function
- CTCSS.DCS encoding and decoding function
- PC password protection function
- Color LCD Display
- Programmable functional keys
- Low Voltage prompt
- Upgradeable by firmware
- TOT
- SQL Setting
- Scanning Function and priority scanning
- Monitor Function
- VOX Transmitting
- Lone Worker
- Time and zone setting

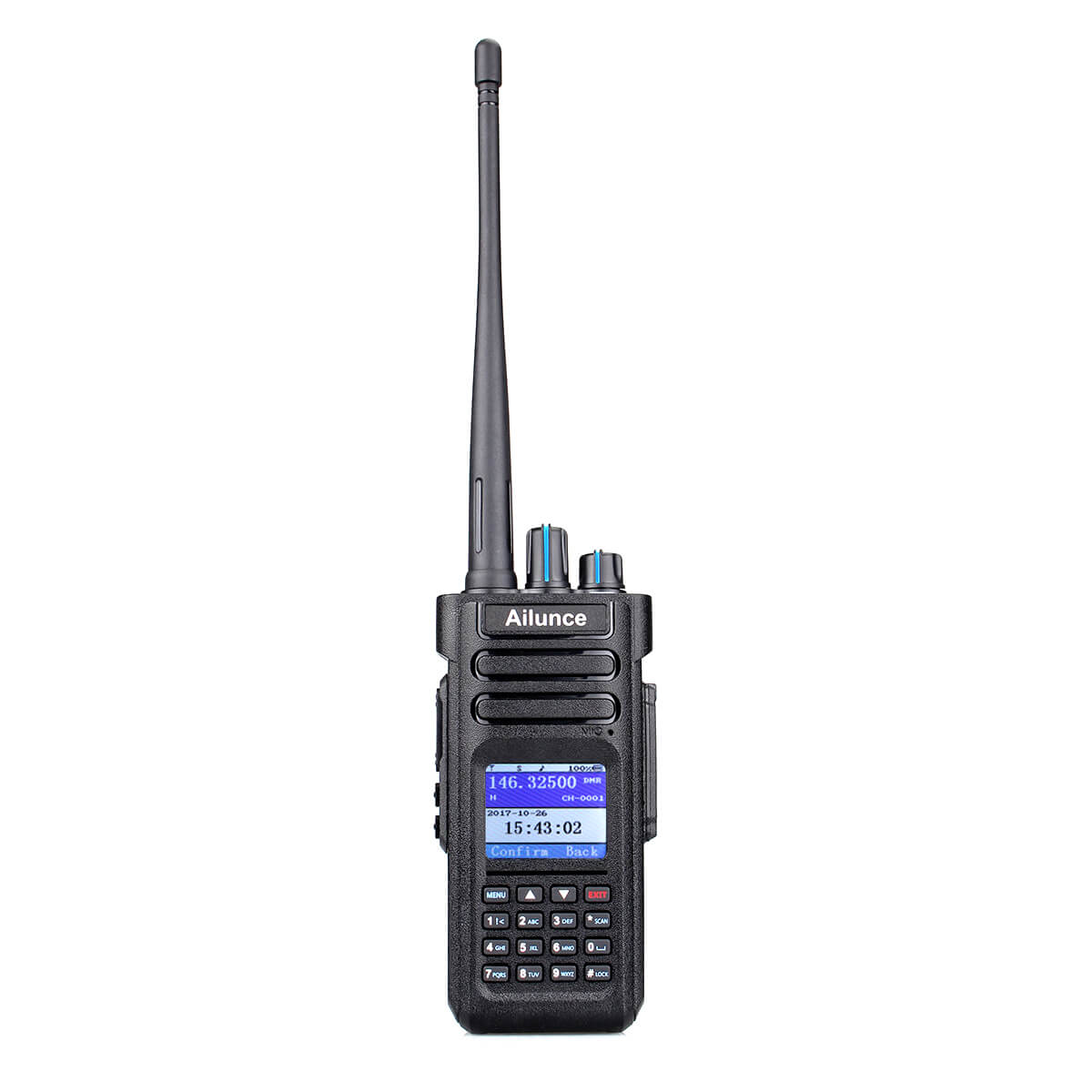

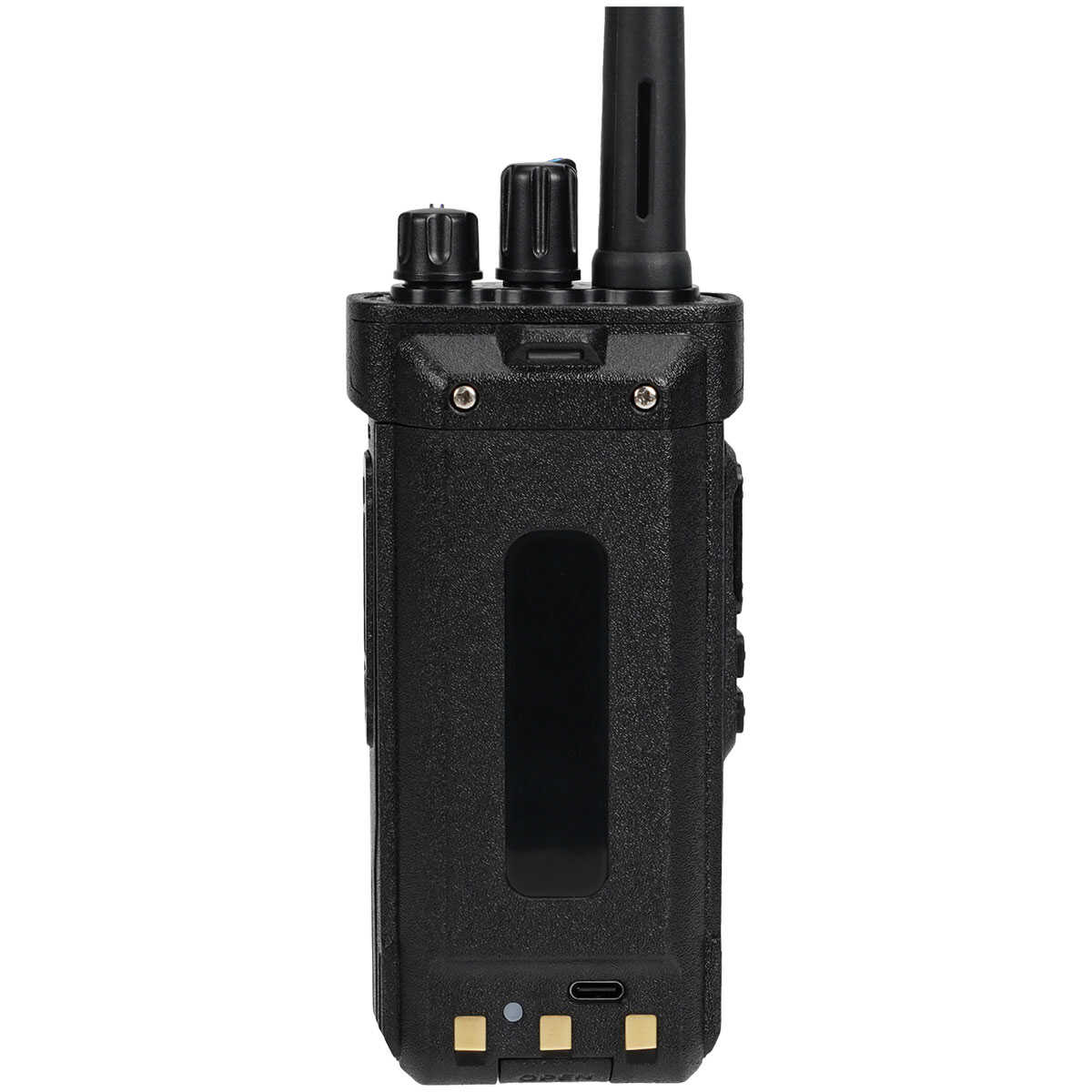

HD1-General Specifications:
- GPS Function: Gives you lat long, altitude, bearing, and speed Support to text the information to another radio with the same DMR protocol.
- VFO mode: Supports VFO and Channel model switch easily via EXIT key.
- Group call match: Call freely without group restrictions.
- Dual time slot: Supports Dual time slot and point to point
- ID Setting: Supports save and edit radio ID via keypad FM Function: Support receive signal from other radios when you listening radio
- Dual Band DMR Radio
- Analog and Digital Combined
- Compatible with Motorola Tier Ⅰ&Ⅱ
- 200000 Contacts
- 1000 Priority Contacts
- Dual Time Slot for Point to Point
- Firmware Upgrade-able
- IP67 Waterproof
- Scan:Time/Search/Carrier
- Lone Worker
- Single/Group/All call
- Remote kill/stun/activate
- Color LCD Display
- Transmit/Transceiver interruption
- CTCSS/DCS
- Analog Monitor
- Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
- VOX
- TOT
- Talk around
- Squelch
- Keypad Lock
- LED Indicator
- Password Lock
- Battery Save
- Voice Annunciation
