Description
|
Channel |
200 |
|
FM Radio Channel |
20 |
|
NOAA Channel |
10 |
|
Frequency Stability |
±1ppm |
|
Modulation Mode |
FM：11KφF3E (12.5Khz) 16φF3E (25Khz） |
|
Dimension |
115×60×37.5 mm (without antenna) |
|
Net Weight |
225g (including antenna and battery) |
|
Operation Temperature |
-10 °C ～+50 °C |
|
Antenna Impedance |
50 Ω |
|
Receiving |
|||
|
Sensitivity |
FM (12dB SINAD) |
F1 (50-76Mhz) |
-121dBm |
|
F2 (108-135.9975Mhz) |
-121dBm |
||
|
F3 (136-173.9975Mhz) |
-123dBm |
||
|
F4 (174-349.9975Mhz) |
-123dBm |
||
|
F5 (350-399.9975Mhz) |
-123dBm |
||
|
F6 (400-469.9975Mhz) |
-123dBm |
||
|
F7 (470-599.9975Mhz) |
-121dBm |
||
|
WFM(20dB SINAD) |
WFM (76-108Mhz） |
-110dBm |
|
|
AM (10dB S/N) |
F2 (108-135.9975Mhz） |
-113dBm |
|
|
Audio Frequency |
≥0.5W |
||
|
Audio Distortion |
≤10% |
||
|
Transmitting |
|
|
Frequency range |
US version: UHF 420-450Mhz; VHF 144-148Mhz; |
|
Output Power |
＜5W |
|
Emission Current |
≤1.5A |
|
Max Frequency Deviation |
≤5Khz (25Khz） ≤2.5Khz (12.5Khz） |
|
Modulation Distortion |
≤5% |
|
Stray Power |
≤7.5uW |
|
Adjacent Channel Power |
70dB(25Khz) 60dB (12.5Khz） |
|
Residual Modulation |
40dB |
Features:
- Multi-Band Transmitting & Receiving
- AM/FM Aviation Band Receiving
- 200 Channels/Channel Store Function
- 10 NOAA Weather Alerts

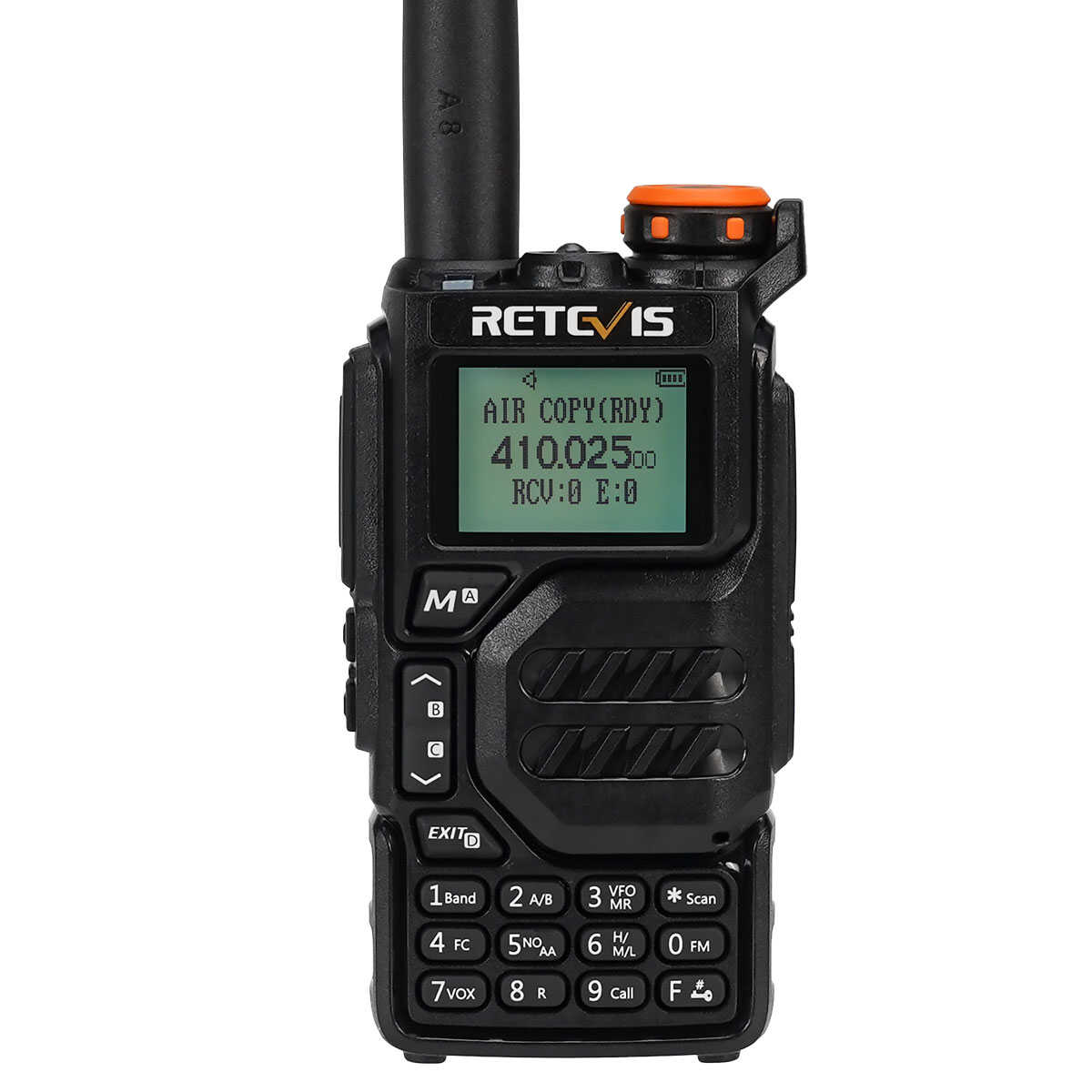

- Fast Copy One Channel
- 10-Group Scrambler
- 1750HZ Call Tone
- Reverse Frequency Function
- Emergency Alert
- Multi-Scan Function
- Offset Frequency Direction Set
- Offset Frequency Setting
- Wide/Narrow Bandwidth
- Squelch Level Adjustable
- Keypad Lock Function
- Backlight Auto Off Time Selective
- DTMF/DTMF ANI
- High/Middle/Low Power Switch
- Split CTCSS/DCS Tone
- Busy Channel Lock
- Large LCD Screen
- Time-Out-Timer

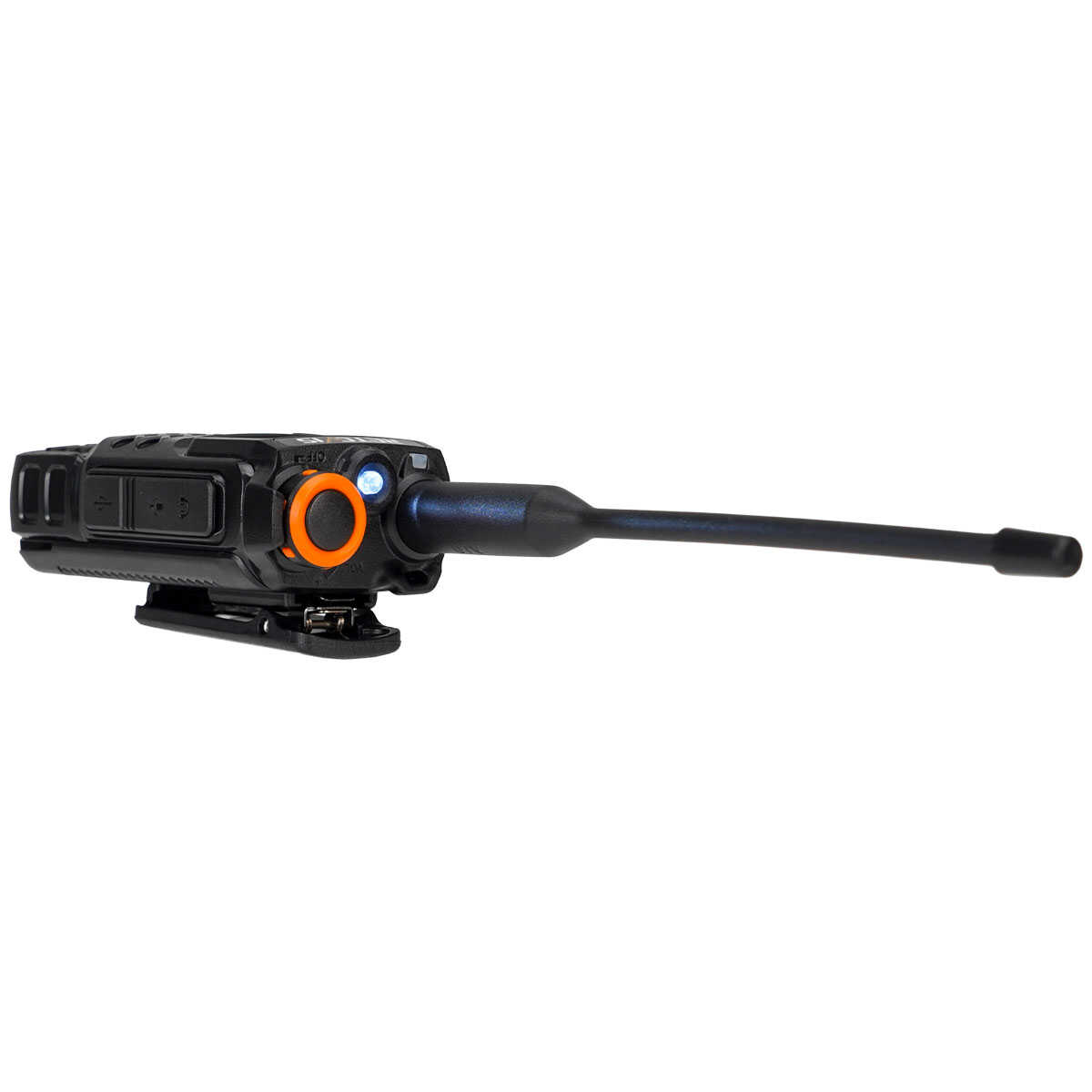

- Flashlight
- FM Radio

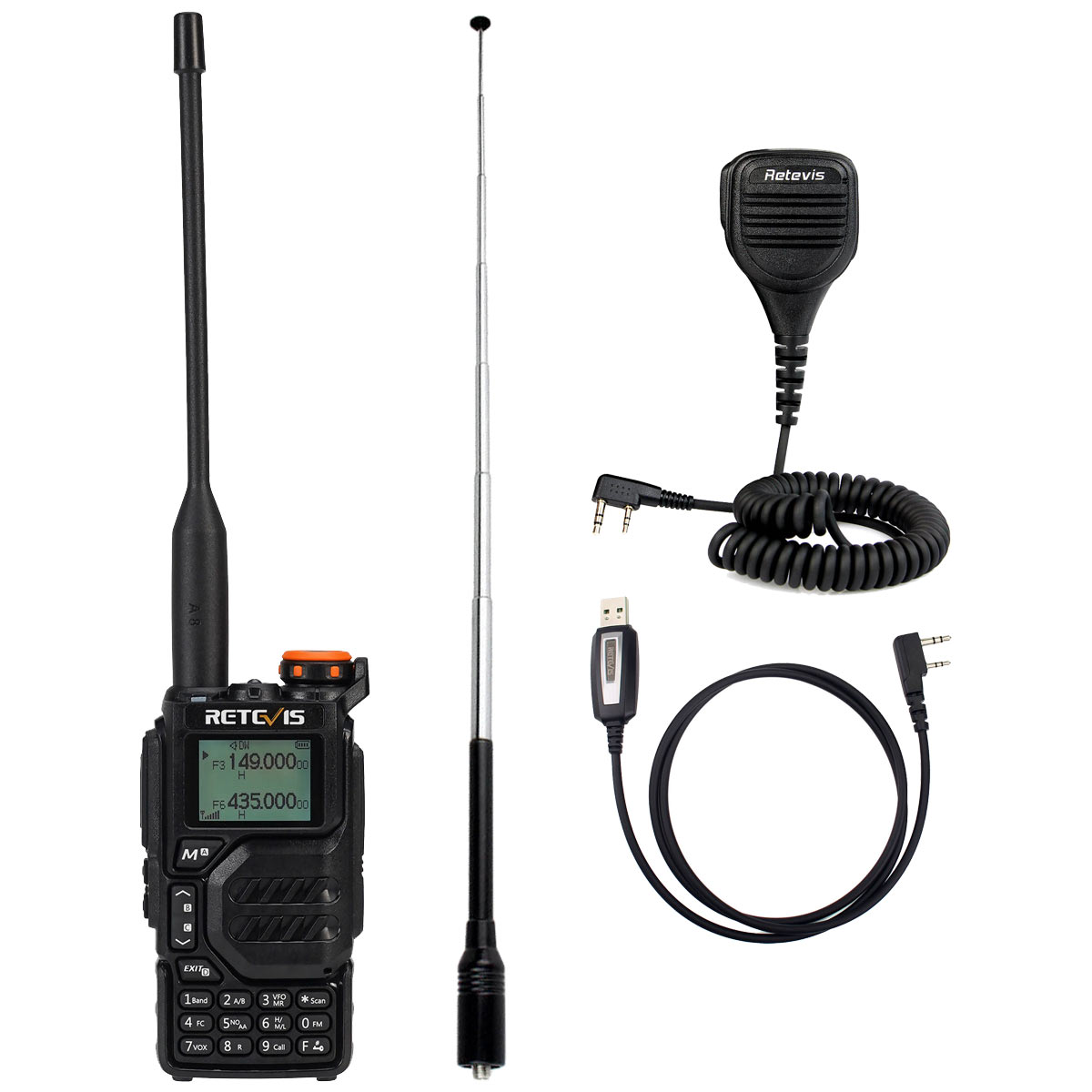

What’s in the Box？
-
- 1 x RA79 5W handheld Ham Radio
- 1 x Telescopic Antenna
- 1 x Speaker Mic
- 1 x Programming Cable

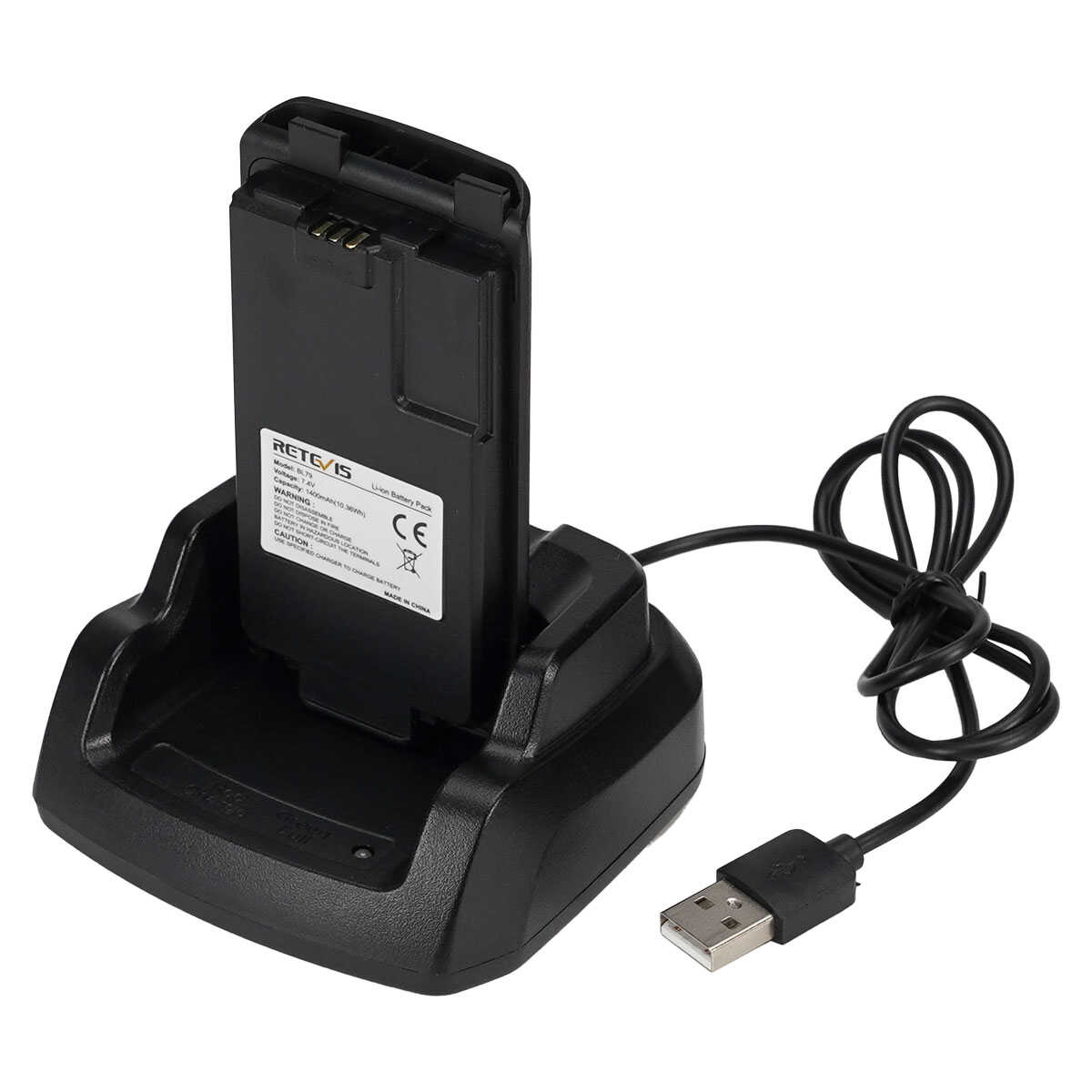

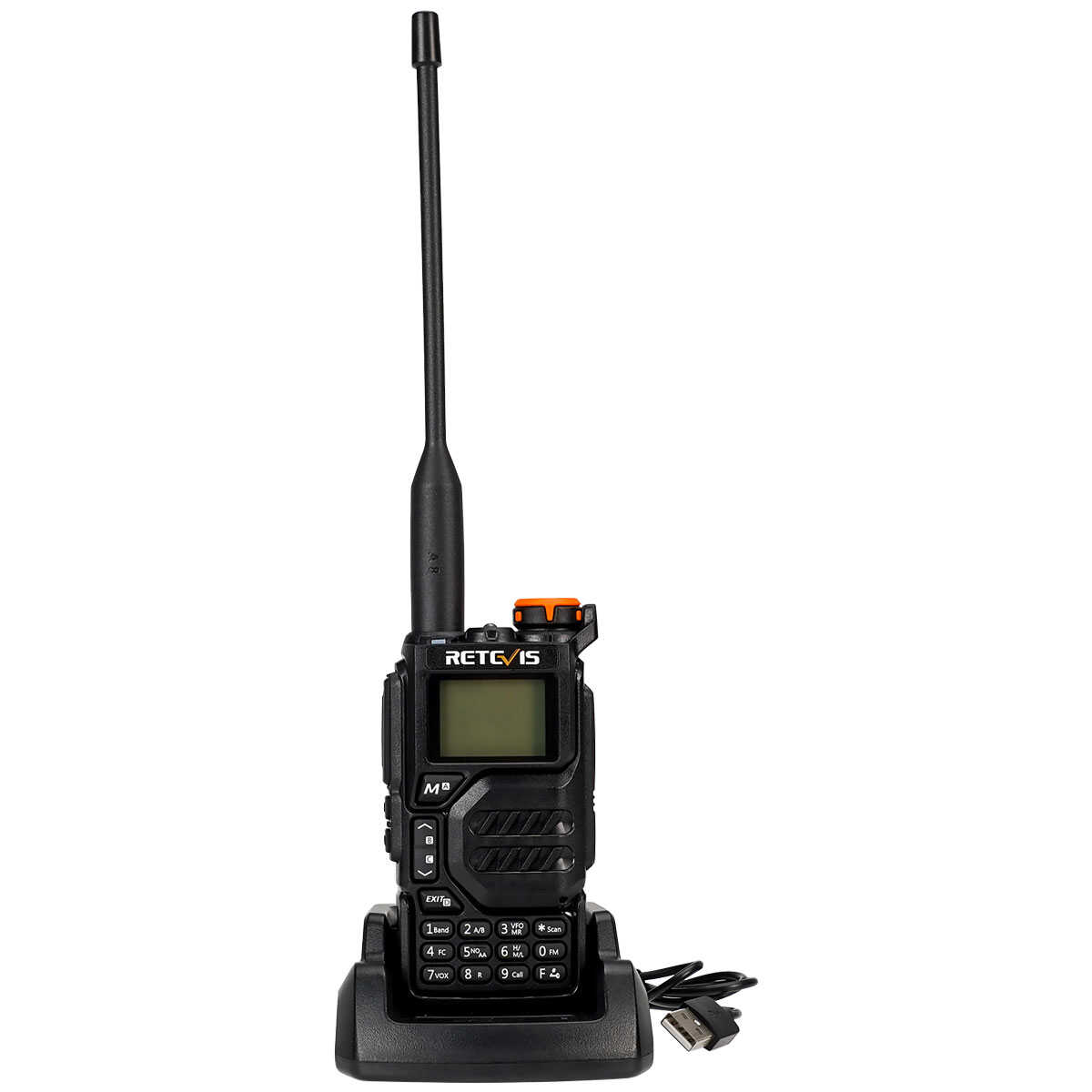

- 1 x USB Desktop Charger
- 1 x 1400mAh Battery
- 1 x User Manual
- 1 x Belt Clip
- 1 x Antenna
- 1 x Adapter
- 1 x Lanyard
