Description
| Model | RT1 |
| Frequency Range | UHF:400-520MHz |
| Channel capacity | 16 |
| Output power | High:10W/Low:5W |
| Operating Voltage | 7.2V DC |
| Antenna Impedance | 50 ohm |
| Working Temperature | -20°C～+50°C |
| Frequency Spacing | 12.5kHz/25kHz |
| Battery capacity | 3000mAh |
| Color | Black |
| Dimension（Exclude antenna） | 133x59x36mm |
| Weight(Include Battery) | 272g |
| Feature | |
| 3000mAh polymer Li-ion Battery | Yes |
| 260 hours long standby time | Yes |
| CTCSS/DCS non-standby code | Yes |
| High/Low power selectable | Yes |
| English/Chinese Voice prompt | Yes |
| VOX sensitivity adjustable | Yes |
| 10W/5W power switch with side-key operation | Yes |
| 10 Watt ultra-high output power | Yes |
| High/Low voltage TX selection | Yes |
| PC program protection | Yes |
| COMP/Scrambler | Yes |
| Voice companding function | Yes |
| Bandwidth selectable(12.5/25kHz | Yes |
| Battery save function | Yes |
| 1750Hz tone | Yes |
| Squelch adjustment function | Yes |
| End-tone elimination | Yes |
| Receiving alarm | Yes |
| Time-out-timer(TOT) | Yes |
| Side-key assignment | Yes |
| Low-battery alert | Yes |
| Busy channel lock | Yes |
| VOX transmitting | Yes |
| Scanning | Yes |
| Specification | |
| Working mode | Simplex or semi-duplex |
| Modulation type | 16KF¢3E |
| Spurious radiation | <=7.5µW |
| Modulated noise | <-40dB |
| Modulation distortion | <55 |
| Frequency stability | 5ppm |
| Max Fr. Deviation | <=±5kHz |
| Current | <=2600mA |
| Audio response | +6.5—-14dB |
| Adjacent Ch. Power | >=65dB |
| Intermediation sensitivity | 8-12mv |
| Receiver | |
| Sensitivity | <=0.2V |
| Occupied bandwidth | <=16kHz |
| Selectivity | >=65dB |
| intermediation | >=55dB |
| Audio power | 1W |
| Audio distortion | <=5% |
| Frequency stability | 5ppm |
| Curent | 80mA(when standby) 220mA(when working) |
| Audio response | +7—12.5dB |
Feature:
- High-power, The communication distance farther
- High-capacity battery, Long standby time
- The to ensure the communication confidentiality
- Two Antenna (High gain antenna and Common antenna),Increase your distance
Package Include
- 20 x Handheld Radio

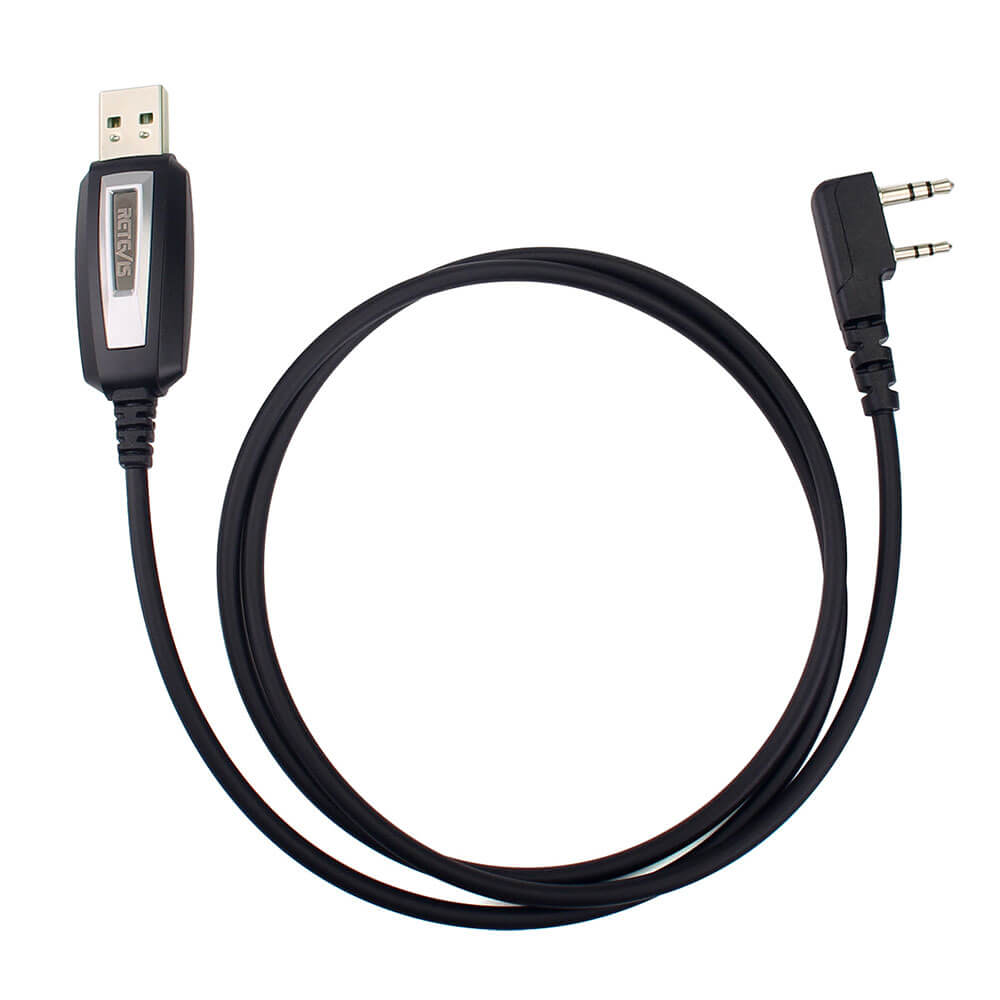

- 2 x Programming Cable
- 20 x Antenna(High gain antenna)
- 20 x Antenna(Common antenna)
- 20 x Battery
- 20 x Adapter
- 20 x Charger
- 20 x Belt clip
- 20 x User manual
Package
