Spec
Specification:
| General | |
| Frequency Range | MURS |
| Channel Number | 5 |
| Working Voltage | DC 3.7V |
| Working Temperature | -10℃~+50℃ |
| Antenna | High gain antenna |
| Antenna Impendence | 50Ω |
| Working Mode | Simplex |
| Transmitter | |
| Output power | ≤ 2W |
| Modulation mode | 16KF¢3E |
| Spurious radiation | ≤ 7.5uW |
| Modulation noise | < -40dB |
| Modulation distortion | < 5% |
| Frequency Stability | 5ppm |
| Maximum deviation | ≤ ±5KHz |
| Current | ≤ 1000mA |
| Audio response (300-3000Hz) | +6.5~-14dB |
| Adjacent Ch. power | ≥ 65dB |
| Intermediation sensitivity | 8~12mv |
| Receiver | |
| Sensitivity | ≤ 0.2uV |
| Occupied Bandwidth | ≤ 16KHz |
| Selectivity | ≥ 65dB |
| Intermediation | ≥ 55dB |
| Audio power | > 500m W |
| Audio distortion | ≤5% |
| Frequency Stability | 5ppm |
| Current | 55mA (when standby) 150mA (when working) |
| Audio response | +7~-12.5dB |
Feature
Product Features:
-
Scan function
-
License-free
-

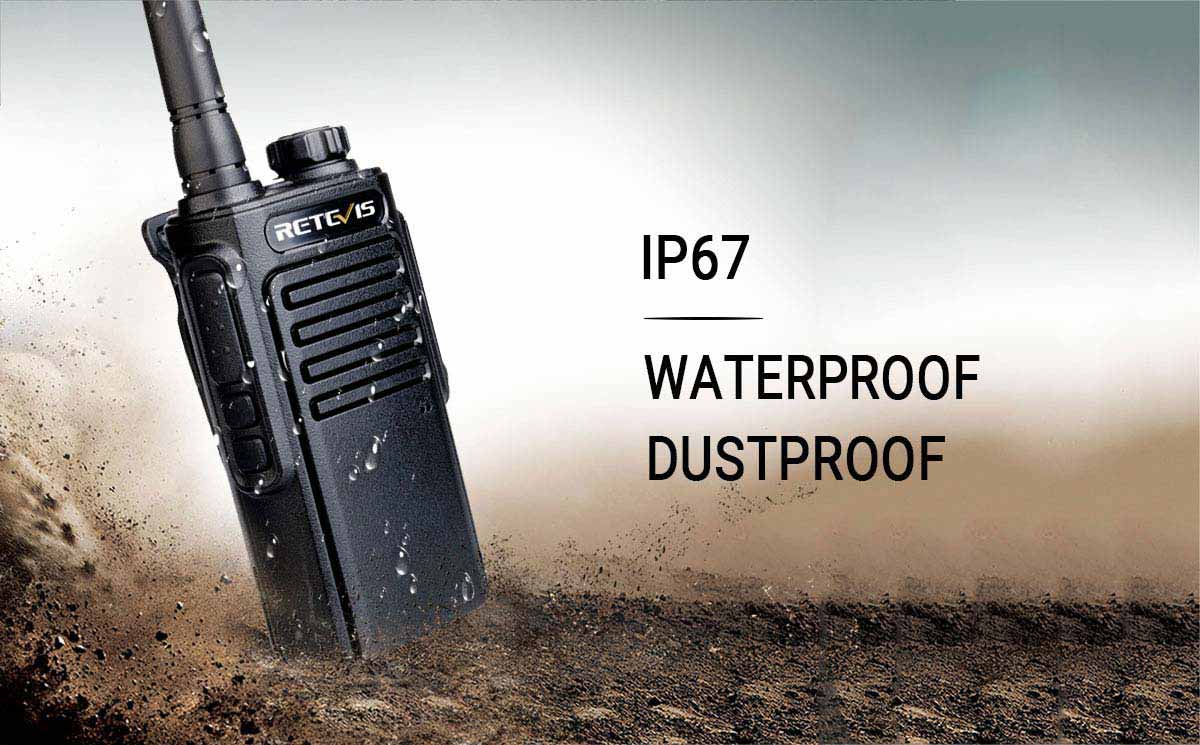

IP67 Waterproof and dustproof
-
Analogue mode two way radio
-
Simple and easy to use
-
Battery save function
-
VOX
-
Monitor
-
Busy channel lock
-
TOT
-
Low battery alert
-
Squelch function
-
CTCSS/DCS
