Description
| General | |
| Frequency Range | 136.000-174.000 MHz or 400.000-470.000 MHz |
| channel capacity | 200 Channels |
| Working Voltage | DC 7.4V |
| Working Temperature | -10℃~+50℃ |
| Battery capacity | 1400mAh |
| Antenna Impendence | 50Ω |
| Channel step value | 12.5KHz/25KHz |
| Transmitter | |
| Output power | 1W/5W |
| Stray power | ≤-15db |
| modulation noise | <-40dB |
| Modulation distortion | <5% |
| maximum frequency offset | ≤±5KHz |
| transmit current | ≤1600mA |
| audio response | +6.5~-14dB |
| adjacent channel power | ≥65dB |
| Receiver | |
| Sensitivity | ≤ 0.2uV |
| Occupied Bandwidth | ≤ 16KHz |
| Selectivity | ≥ 65dB |
| Intermediation | ≥ 55dB |
| Audio power | > 500m W |
| Audio distortion | ≤5% |
| Frequency Stability | 5ppm |
| Current | 60mA (when standby) 250mA (when working) |
| Audio response | +7~-12.5dB |
Feature
- Dual-band, dual display, dual standby
- DOT-MATRIX LCD display
- 200 channels storage and scanning
- FM Radio and 24 stations memory
- A/B band independent operation
- Wide/Middle/Narrowband selectable
- VOX 0-7 grade setting
- CTCSS/DCS
- Scanning
- 1750Hz tone
- Shortcut menu operation mode
- Emergency alert
- DTMF and remote stun/kill/activate
- ANI function
- 8 group of
- 2Tone /5 Tone
- Multi types for keys lock setting
- Multi-display mode

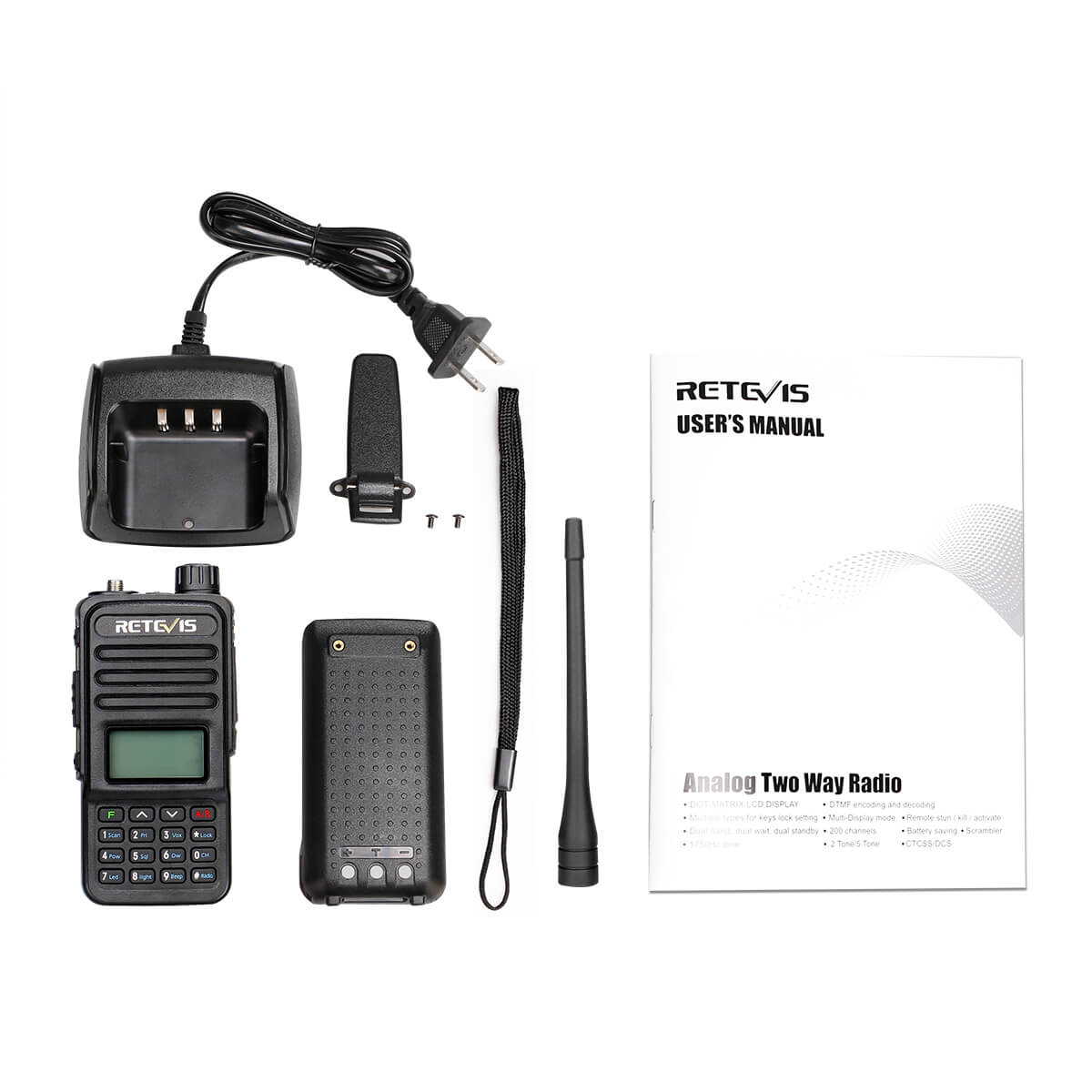

Package Includes:

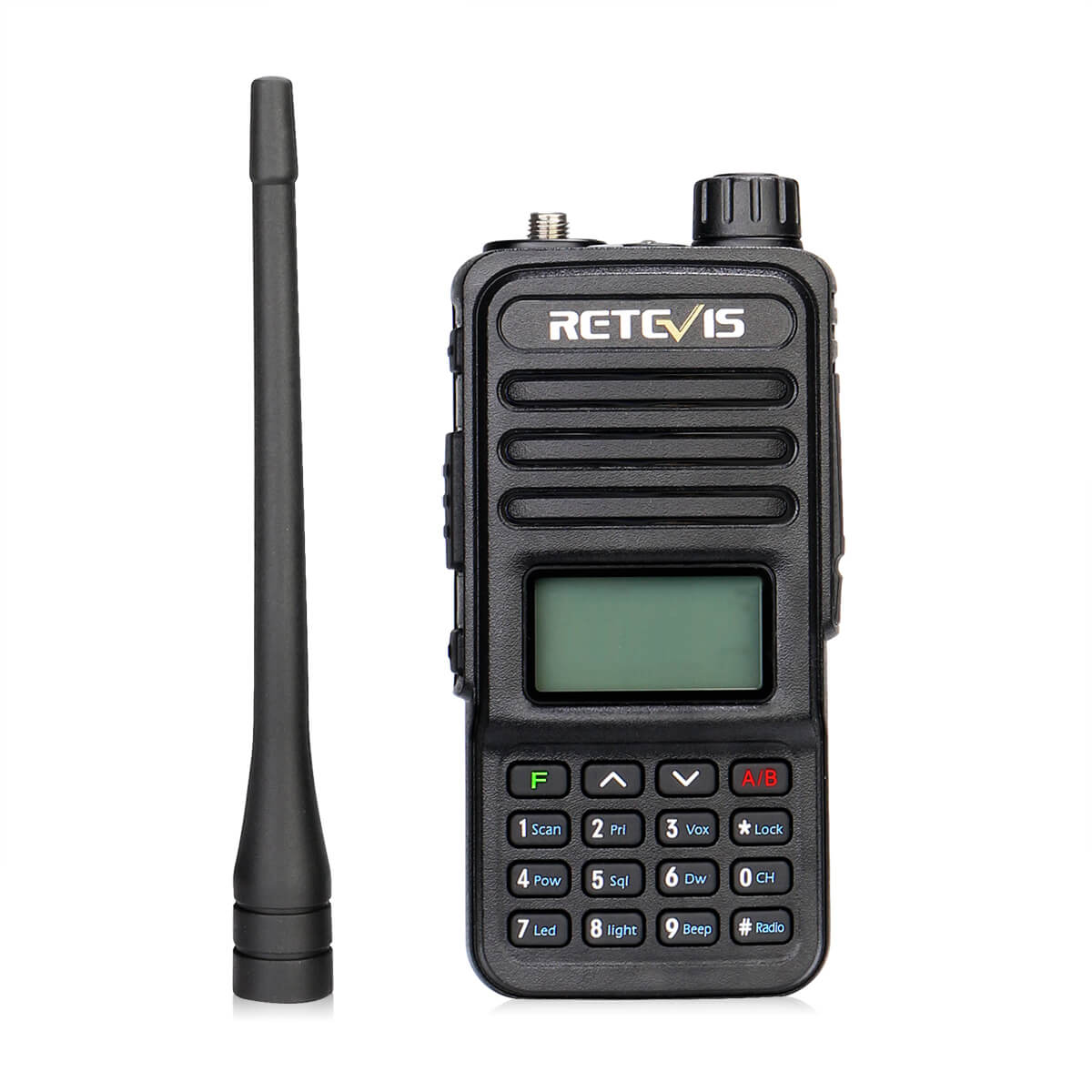

- 1 x UHF/VHF Radio

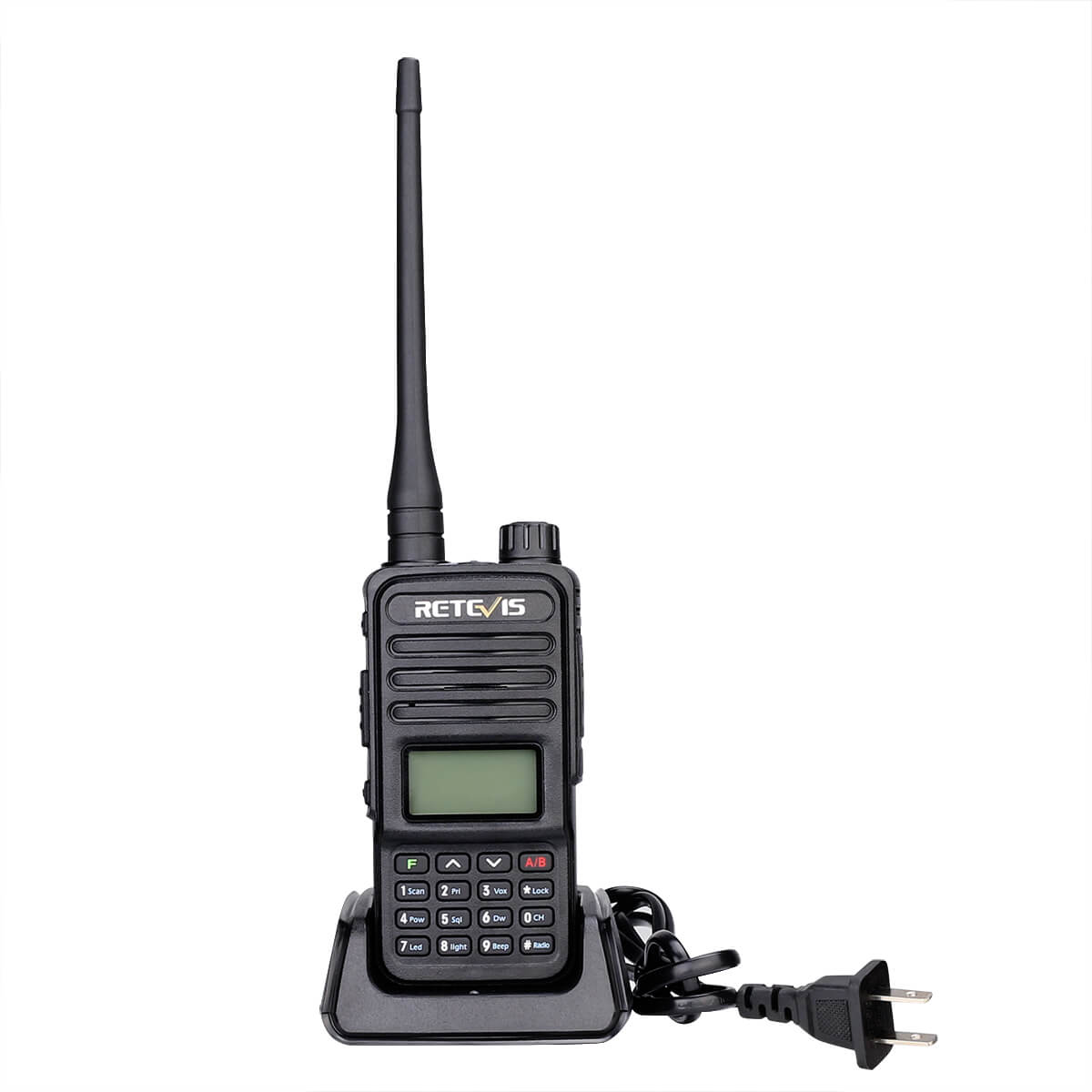

- 1 x Desktop Charger
- 1 x User Manual
- 1 x Batteries
- 1 x Belt Clip
- 1 x Lanyard
Package
