- 25w-long distance
- 200 Channels 52 CTCSS 1024 DCS Optional
- 180 Degree Rotatable LCD Display
- Smart Menu Control and 7 Programmable Keys
- Support CHIPR Programming
Description

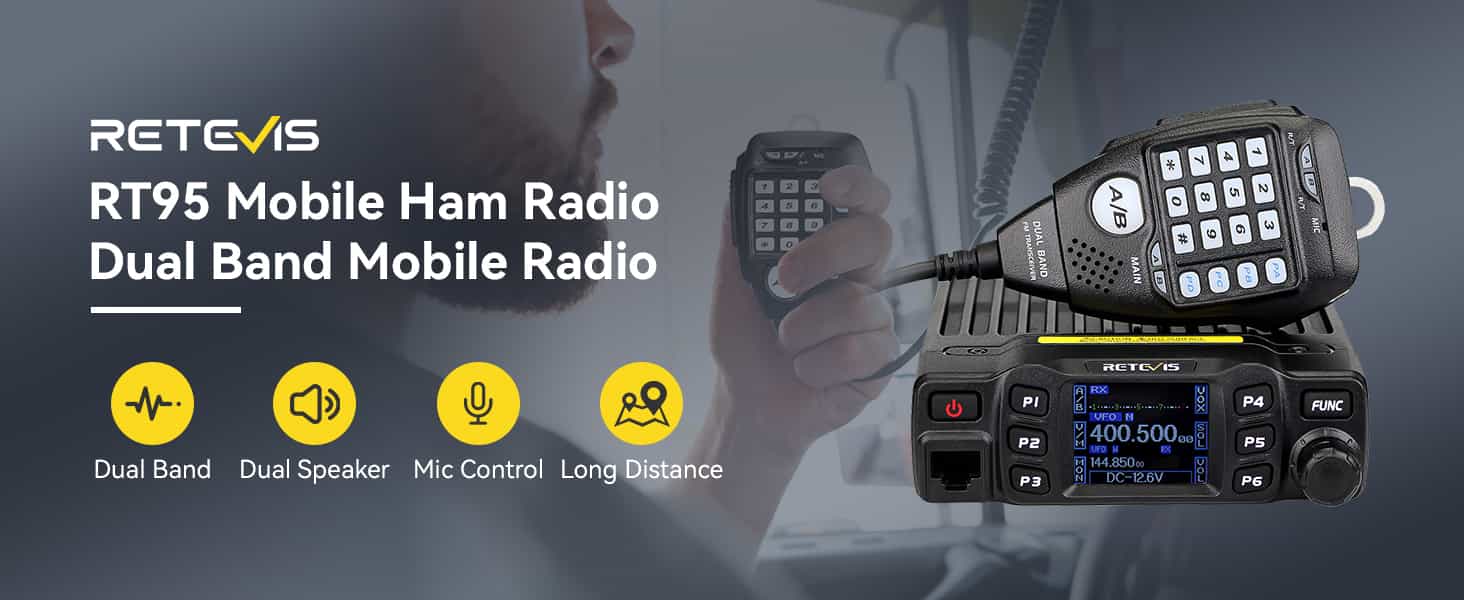

Retevis RT95 25W Dual Band HAM Mobile Radio With Program Cable
Retevis RT95 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This mobile Transceiver is especially designed for drivers and it pursues a philosophy of innovation and practicality.
Dual band mobile transceiver:
RT95 supports multi-band transmission and reception; it can be adjusted through the digital buttons on the microphone to quickly change the frequency band you need.

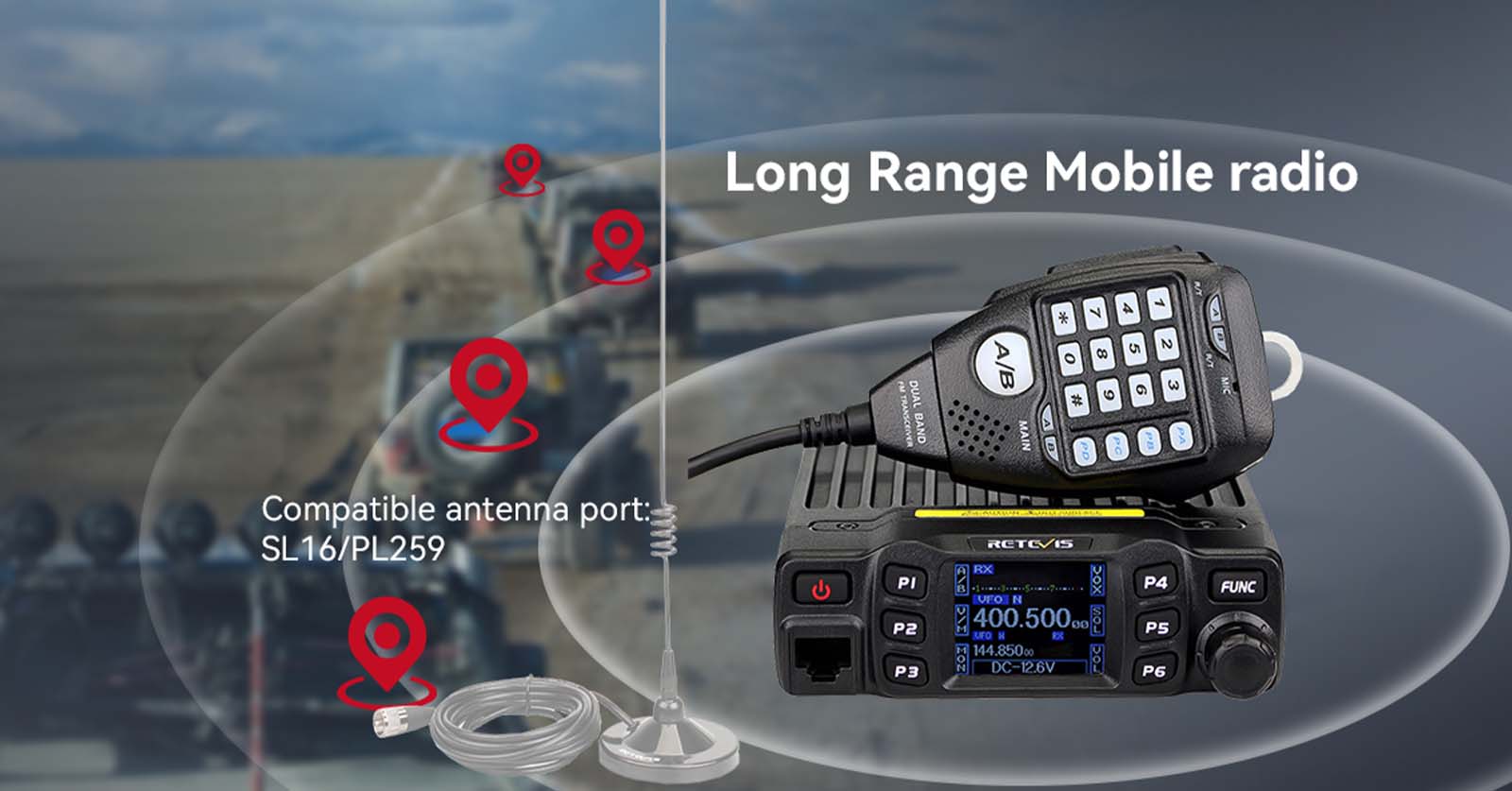

Car long range radio:
Use the antenna with SL16/PL259 port installed on the vehicle for long-distance transmission; suitable for long-distance driving communication
Mini mobile radio:
6.42 x 4.88 x 1.54 inches; installation does not take up much space and compact design; comes with a handheld microphone for quick phone calls

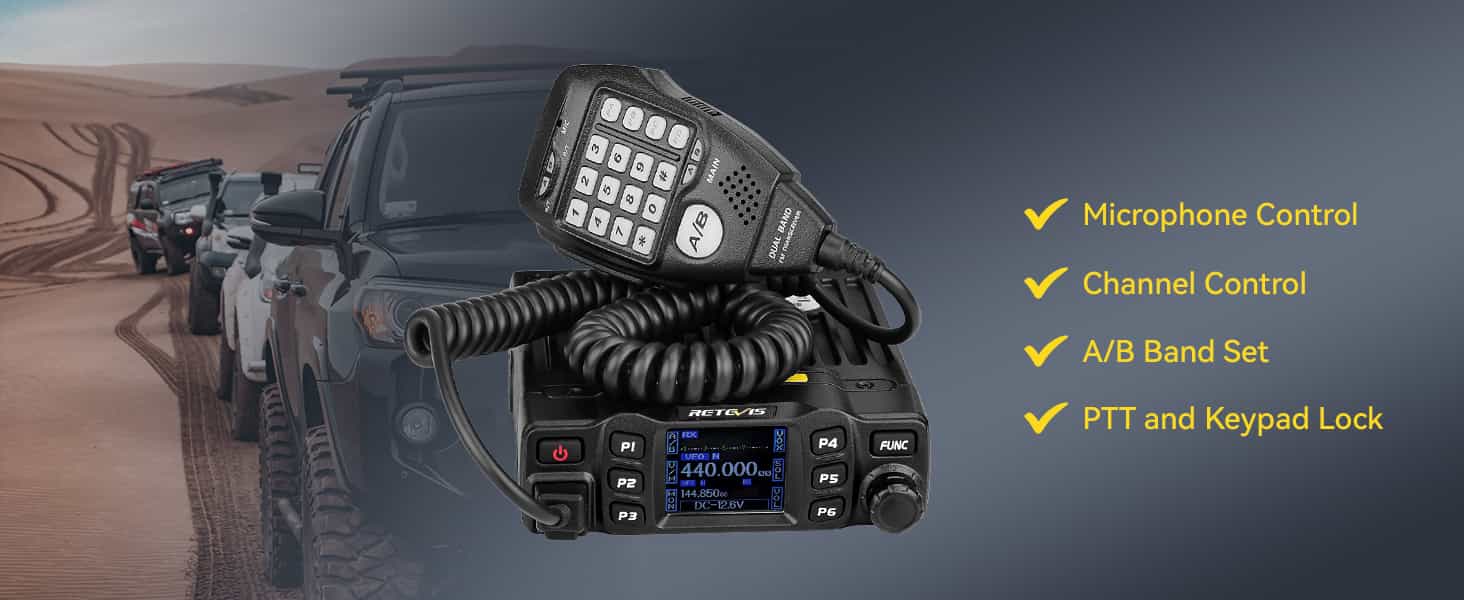

Microphone Control
The microphone can be set up quickly without having to lower your head to set up the base radio.

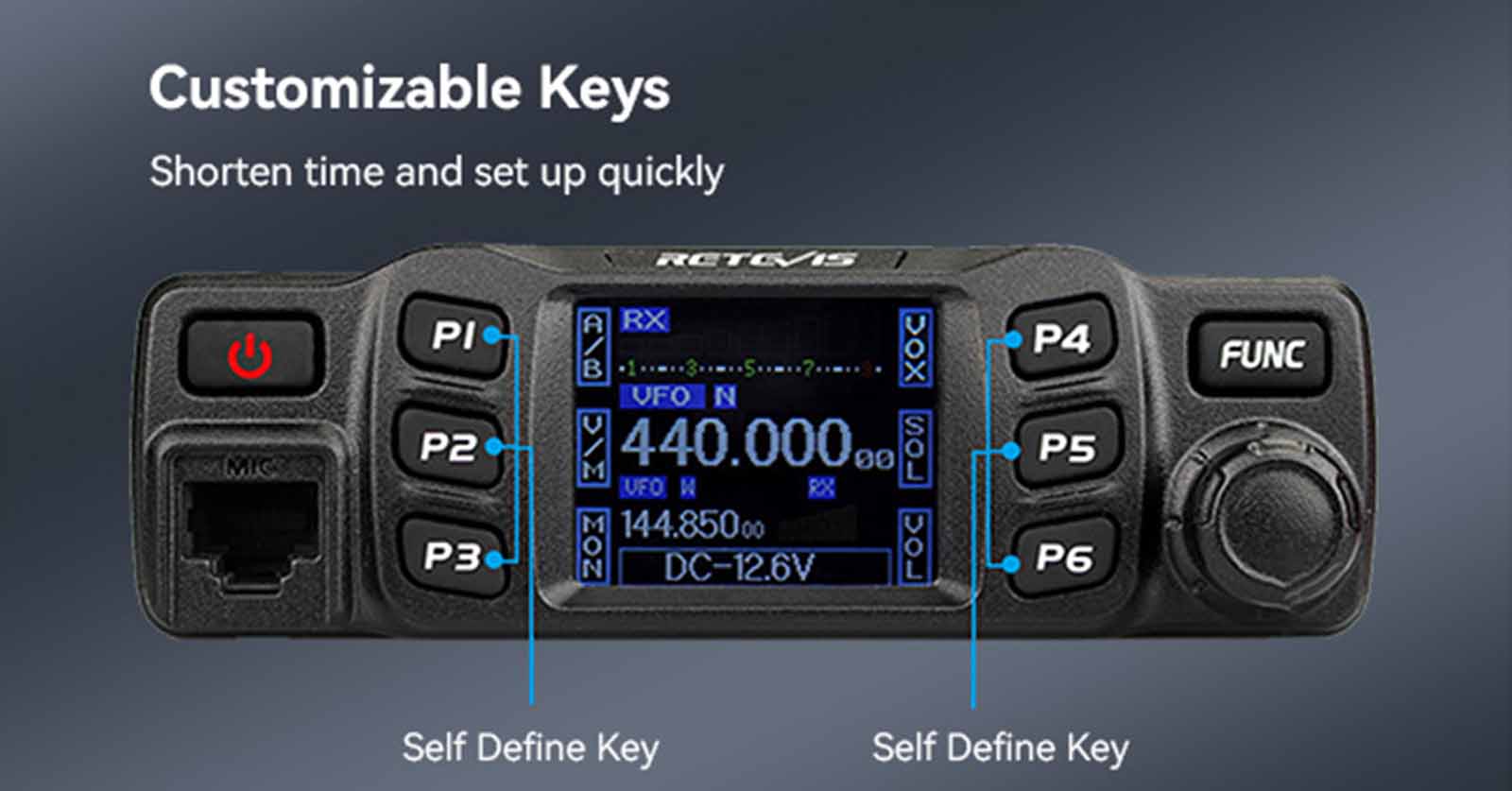

6 customizable buttons:
Customizable buttons on the radio and microphone; shortcut operations can be set through the software according to your usage habits
Programming software:
Supports CHIRP and keyboard programming; CHIRP is compatible with Windows XP/7/8/10/11 systems

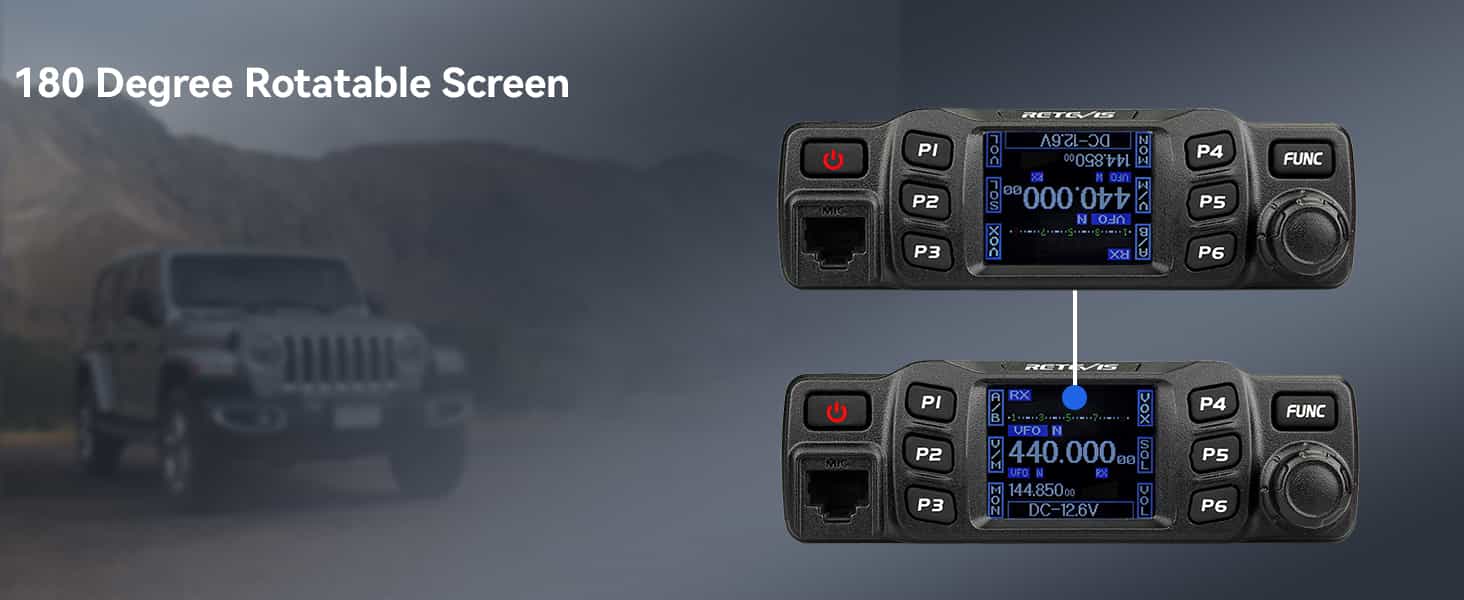

180 degree rotatable LCD display:
The screen can be rotated and the radio can be flipped; more installation location options; large screen backlight with adjustable brightness, convenient for outdoor and indoor reading

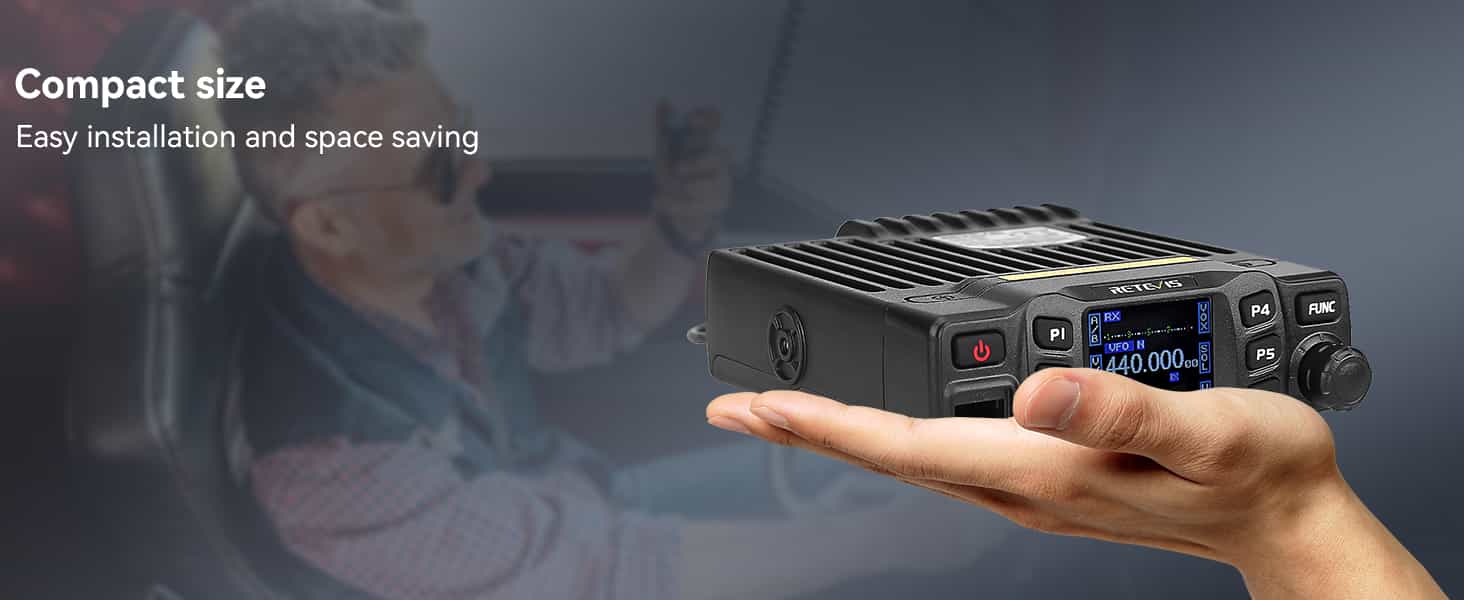

Compact Size
Retevis RT95 Mini Mobile Car Radio is easy to install on the vehicle, convenient and simple. Suitable for off-road jeeps and trucks.
Full functioning:
Single call, group call, selective call, emergency call are all available, keyboard lock function, squelch level setting, LCD screen off control, voltage level protection, automatic power off function

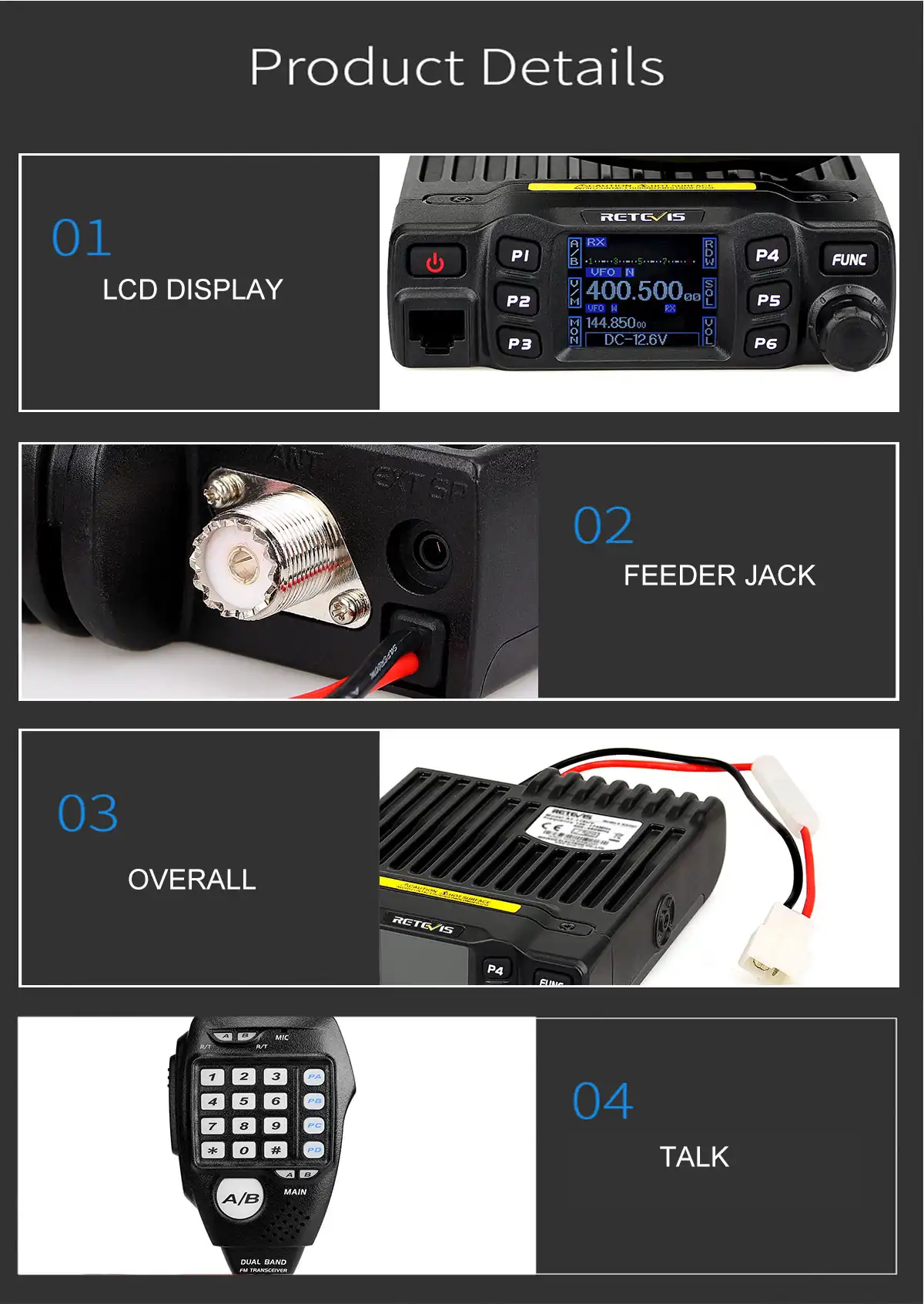

Product Details
Q and A
Q: Will the RT95 receiving signal quality be affected?
Answer: The quality of the received signal is related to two aspects. One is the quality of the transmitted signal itself; the other is the receiving sensitivity of the receiver.
Q: How many channels does RT95 have?
Answer: The Retevis RT95 mobile radio has 200 programmable memory channels, which can be identified by editing the name.
Q: Will there be call ID information on the screen?
A: The Retevis RT95 mobile radio will display the ID and caller's name (if editable).
Q: Does the Retevis RT95 mobile radio have encryption function?
Answer: Yes, the Retevis RT95 car radio has a scrambling function, which is similar to an encryption function and can make the decoded radio clearer.
Q: Is the antenna interface of the Retevis RT95 mobile radio a K-type female connector?
Answer: The antenna interface is SL16-J/M, and the RT95 itself is a SL16F/K female connector.
Spec
| Frequency Range | VHF:144-148MHz UHF: 430~440MHz | ||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS | ||
| Frequency Stability | ±2.5 ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | ||
| Weight | about 0.64Kg | ||
| RECEIVER | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| AdjacentChannelSelectivity | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | >2W@8 | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | 25W / 15W / 5W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
Features
- Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation
- 180 degree rotatable TFT LCD display
- Full alloy body for heat radiation
- Amateur mode and professional mode for different operation requirement
- Distribute buttons reasonably, convenient for operation
- Separate band width setting for each single channel, Wide 25K, Middle band20K, Narrow band 12.5K
- 200 programmable memory channels, identified by editing name
- Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel, rejecting extra calling from other radios
- Various scan functions including CTCSS/DCS scan function
- Smart menu control and PC programming control
- Voltage level protection
- LCD brightless control
- Automatic power on function
- Main unit and microphone key lock function
- 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
- DTMF-ANI or 5Tone-ANI for automatical calling recognition
- Password function
- Dualwatch function
- Talk around function
- Frequency reverse function
- Offset function
Reviews
Customer Reviews
All Reviews
Great little radio for the right price. It says 25W and that's what it does. Plenty of features. Was able to program utilizing their software and cable on Windows 10 machine
I wanted a simple mobile dual band for my vehiche so I didn't have to deal with hand held HTs in my car. Overall quality and feels is very good. Receive audio is great and folks on the other end of my transmissions report "loud and clear". Programming is fairly straight forward and since you can use Chirp, adding my channels was a breeze.
I'm happy that I purchased this RT95 (VOX version) for my Ham station. I'm very old, and I didn't want to learn to program a new radio, so I used the CHIRP program (Windows 10) to set up settings and local repeaters. It's powered by a Lipo4 12VDC 100AH battery (from Amazon), so there is no power supply hum etc. The built-in main speaker has very good audio output. I did use the control panel this afternoon, for setting up the audio level from the microphone. Signal reports said my audio was a bit low. It was set to 1, and I increased it to 3. After watching a YouTube video. Look for "RETEVIS RT95- NEW FIRMWARE MIC GAIN ADJUST" on YouTube. I did also edit the 'Auto Power On', so it wouldn't turn on automatically when 12VDC power is applied. I've got it connected to a large outdoor tri-band antenna with good SWR on 2m & 70cm. So far, I'm really enjoying using my new RT95 VOX.
I'm a lowly tech, so there's not much that I can use it for, but it simply works.
Pros: Price, Performance, audio quality, build quality, programmable buttons on both the radio and the hand mike, microphone "may" be used as a speaker mike, 200 channels, and on an on. This thing is so flexible and easy to "open" to things like GMRS bands. I LOVE this radio. Program the buttons the way you want and you will love it too.
Was going to go with an expensive Radio glad I didn't. This little guy does great super bright display. Easy setup so happy with my purchase think I may get a couple more. Easy to use really don't know how you could do much better unless you just feel the need for more power but this little guy really gets out there.
Awesome radio, I have a bunch of dual band ham radios and this one is excellent and unbeatable for the price!!! Excellent transmit and receive audio! Buy it
Perfect for my needs
Works ok I had no problem with it
I bought this a '24 black friday sale at a reduced price. It's advertised as 'rugged', and I want to eventually put it in my UTV. After playing with it for a few weeks I can say I like it rather much!
Awesome radio! Easy to program and sounds great. Installed in .50cal ammo box with 2 Ryobi batteries for a "GO RADIO". Tried 3 radios from another brand and could not get to work. Very happy I chose this radio.
Fairly easy to install, super easy to program thanks to CHIRP. Working just fine with a cigarette lighter adapter (I will hardwire it down the road). Amazingly easy to program with CHIRP
This is a good radio for the price. The included antenna works well. I am consistently getting into repeaters from 30miles away. Receives clear enough. For the price it is great to have and keep in a vehicle. I did have to adjust the settings to get it to accept more frequencies/bands.
Great bang for your buck. Small and easy to place. Chirp compatibility and ability to “unlock” gmrs. I highly suggest getting the programming cable for quick chirp programming. I have it mapped like my handhelds. Seems sturdy and has a lot of little extras for screen information like signal strength and a multi-colored screen. The screen is a bit small. The mounting bracket for the base is simple but great. The screen rotates 180 for upside-down screen viewing. All around a great little ham/gmrs 25watt radio. It is a SOC (system on a chip) but the sound and signal are clear and not bad on the harmonics. For the price, it’s worth it and great for just starting or as a good Mobile car radio. If you get the cigarette lighter adapter chord you can easily move it from one vehicle to the next. I would buy it again or as a gift.
Great transceiver for the price. Don’t forget to unlock it
This radio exceeded my expectations, especially for the price. My output is about 24.3W. The handheld mic is well built and backlit, which I wasn't expecting. The menu system is simple and easy to use. If you want to dump a large list on it, you can do it programmatically with chirp. The main body has a certain weight and feels well made. Got excellent audio reports from others. There are no premium features, but for the price, I'm very happy with my purchase.
I'm still a new ham. I installed it in my car and this radio does the job with almost no issues. For the price this is a great radio, I get great audio reports and I can connect to my local repeater with no issues.
Function buttons allow customization and quick access to functions from changing power to VOX operation. Sub-audio setup is quick and easy. Working seamlessly and smoothly using Chirp software on my Mac Studio. Upload and download speeds aren't great, but they're okay. The color display is bright and contains all the relevant information you need. Audio quality is very good for a small speaker, and the people I spoke to seemed to hear my audio clearly and pleasantly. All in all, a great little radio that I have in my Jeep. This product has a programmable difficulty of $109 and fits the bill. I'll install it this week and let it go. You know how things go. Very happy with this product, it's a keeper with its solid construction and simple menu.
