- High-power dual band radio
- 360°C rotatable desktop stand
- Desktop regulated power supply
Description
RT95 25W Dual Band Analog Mobile Radio+Table Tripod+Desktop Power Supply
Retevis RT95 25W Dual Band Analog Mobile Radio+Table Tripod+Desktop Power Supply, forming a small and stable transmission base station, the desktop bracket can better use the RT95 heat dissipation. Suitable for warehouses, ham houses, or scenes that require long-distance calls.
RT95 Mobile Radio Features：

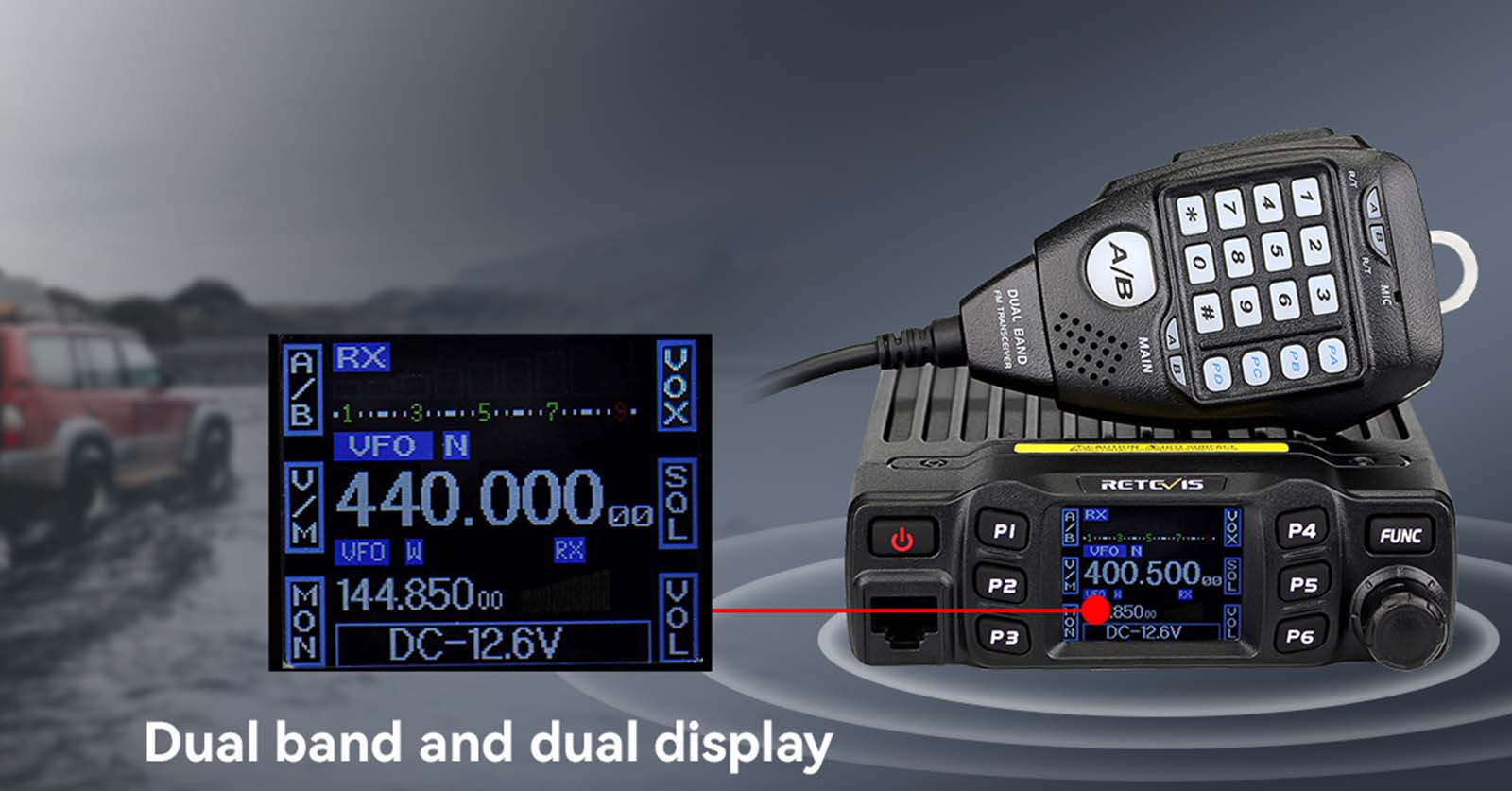

Dual-band mobile transceiver:
RT95 supports multi-band transmission and reception; you can adjust it through the digital buttons on the microphone to quickly change the frequency band you need.

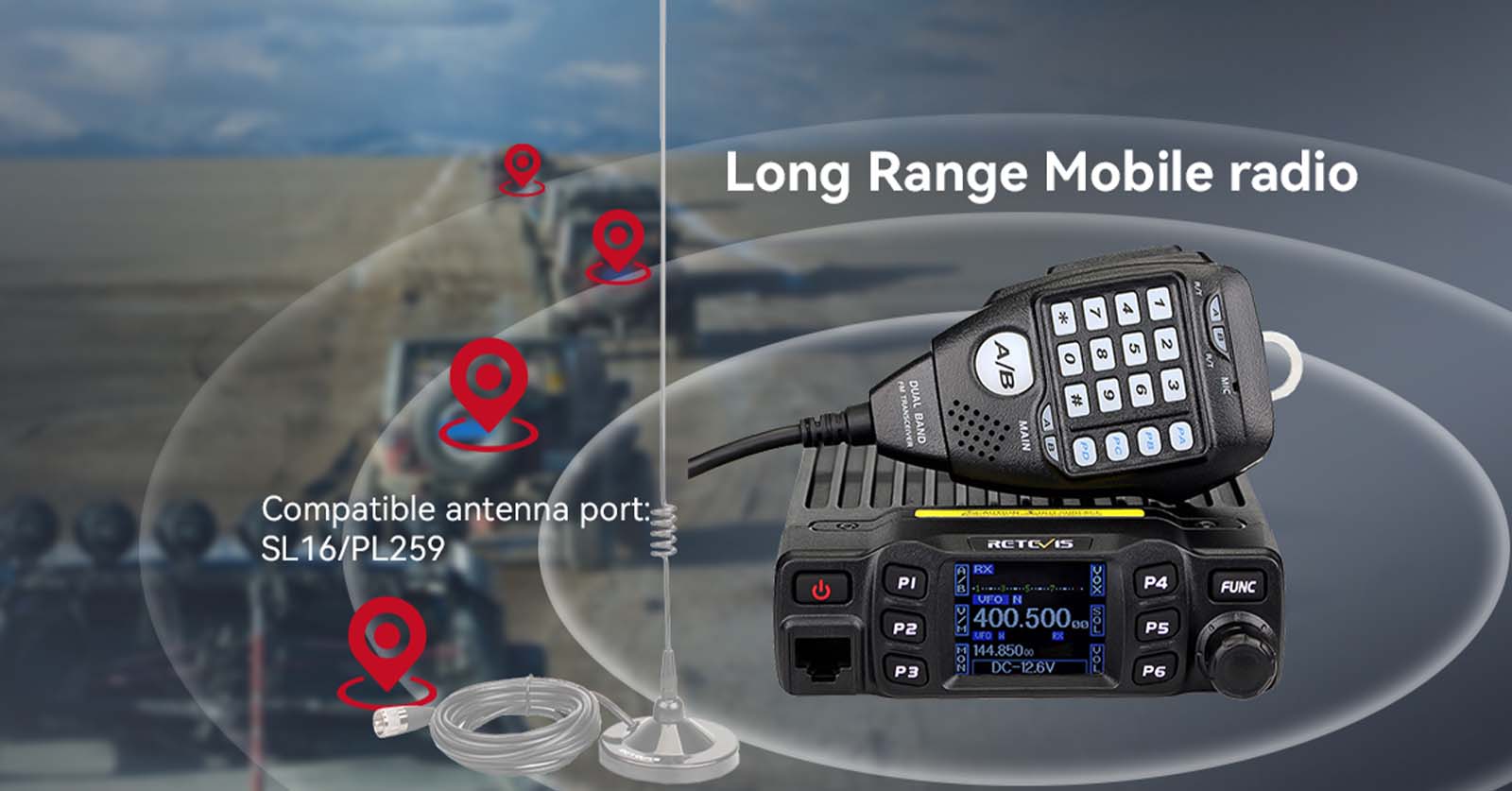

Long-distance vehicle radio:
Use the antenna with SL16/PL259 interface installed on the vehicle for long-distance transmission, suitable for long-distance driving communication
Mini mobile radio:
6.42 x 4.88 x 1.54 inches; installation does not take up too much space, compact design; equipped with a handheld microphone for quick call

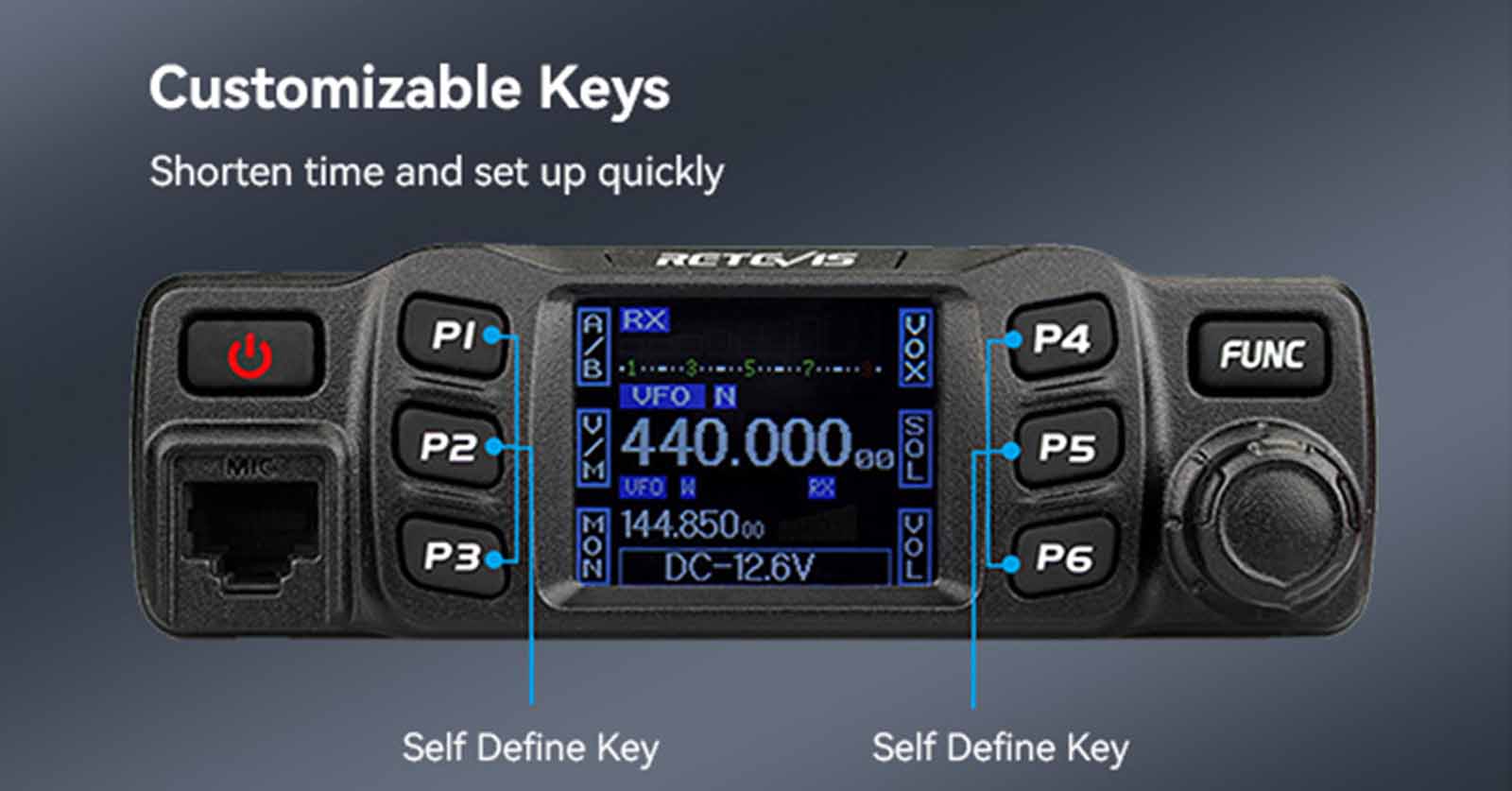

6 customizable buttons:
Buttons on the radio and microphone can be customized; quick operations can be set through software according to your usage habits
Programming software:
Support CHIRP and keyboard programming; CHIRP is compatible with Windows XP/7/8/10/11 systems

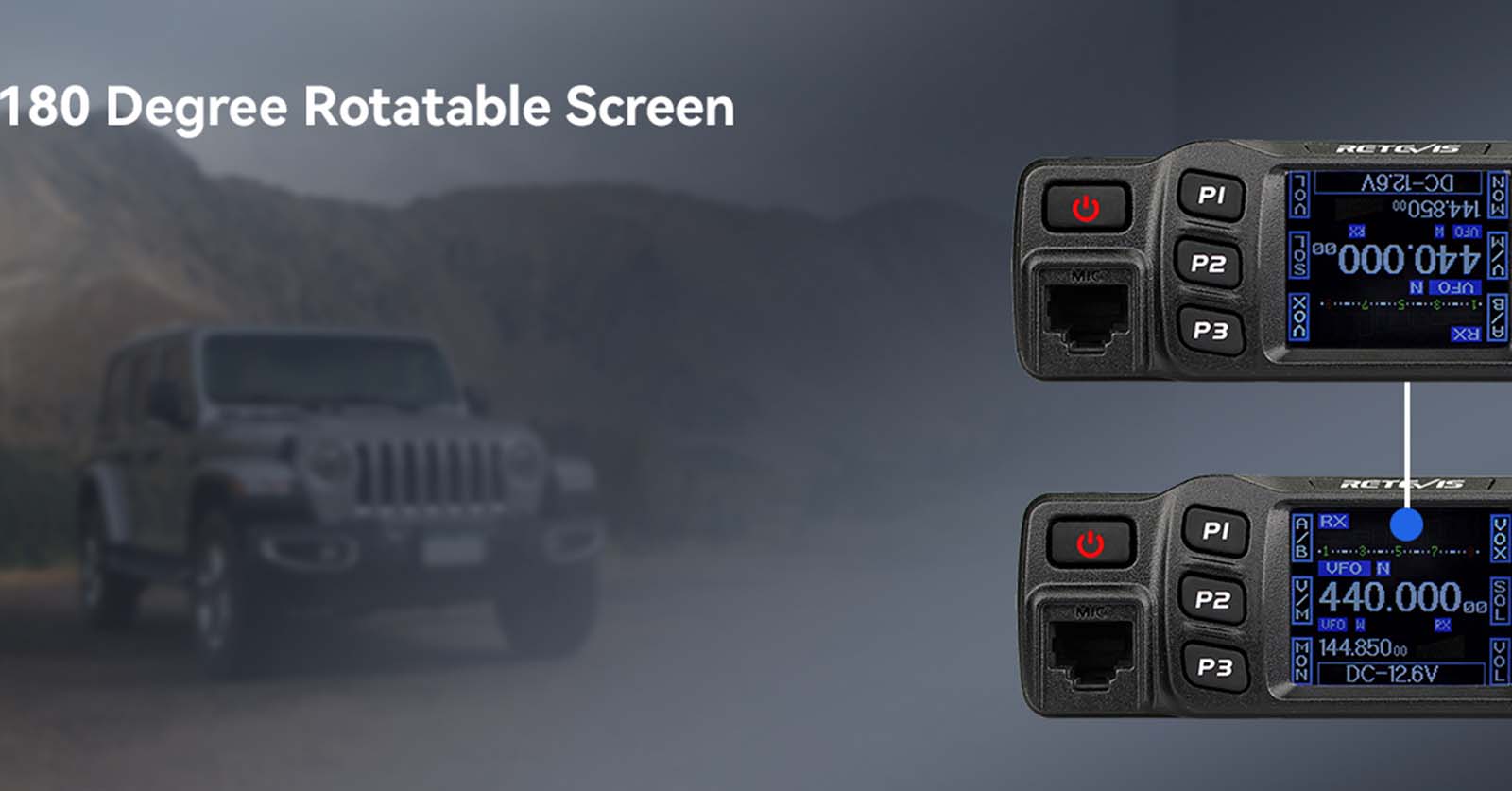

180-degree rotatable LCD screen:
The screen can be rotated and the radio can be flipped; more installation location options; large screen backlight brightness is adjustable for outdoor and indoor reading
Full functions:
Single call, group call, selective call, emergency call are all available, keyboard lock function, squelch level setting, LCD screen off control, voltage level protection, automatic shutdown function

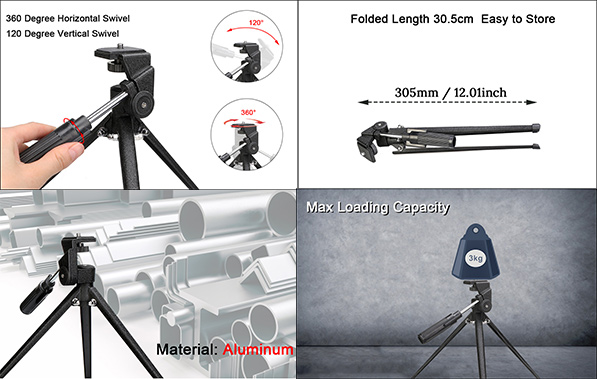

Desktop tripod：
Made of aluminum alloy, with a load capacity of up to 3kg, sturdy and durable, no deformation when dropped, and rust-proof. With a length of 305mm, it is easy to place and carry, and its weight is relatively light.

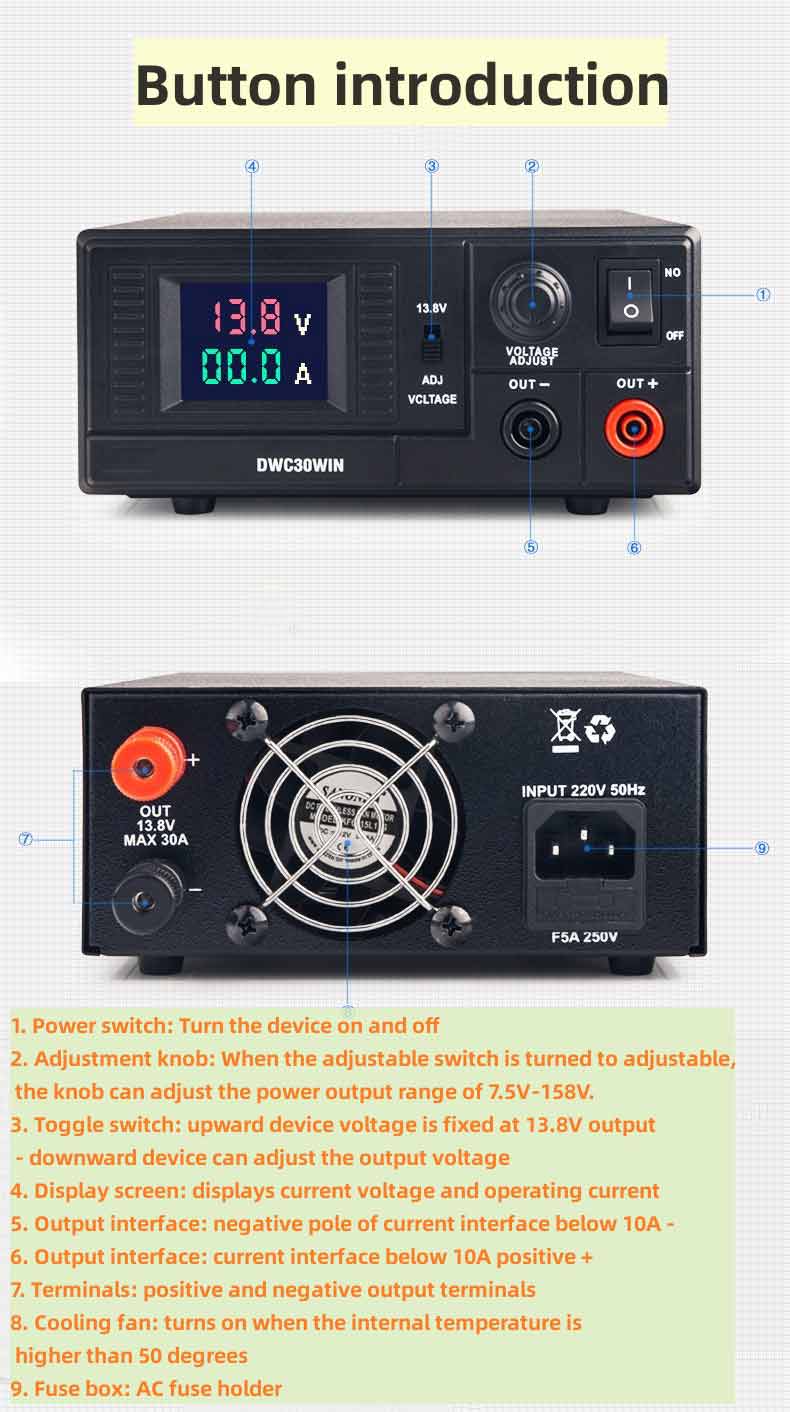

Desktop Power Supply：
Provides stable and reliable power.
It has adjustable current and power limit functions to ensure that the devices connected to it will not be damaged by overpowering.
Desktop power supplies are designed to comply with various safety standards and regulations. These standards ensure that the power supply is safe under normal use conditions and reduce the risk of electrical failure.
Although desktop power supplies are mainly used in fixed places, they are designed to be relatively lightweight and easy to carry and move. This makes them ideal for travel, outdoor activities and temporary workplaces.
Package Details:
1 X RT95 25W Dual Band Analog Mobile Radio
1 X Program Cable For RT95
1 X Desktop Tripod
1 X Desktop Power Supply
Spec
| RT95-Frequency Range | VHF:144-148MHz UHF: 430~440MHz | ||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS | ||
| Frequency Stability | ±2.5 ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | ||
| Weight | about 0.64Kg | ||
| RECEIVER | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| AdjacentChannelSelectivity | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | >2W@8 | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | 25W / 15W / 5W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
| Desktop Regulated Power Supply-Specifications | |
| Input voltage | 220vAC |
| The output voltage | Fixed 13.8vDC/adjustable 7.5v-15.8v |
| Output voltage regulation | less than 2% |
| Protect | Automatic short circuit protection (maximum limit 30A) |
| Output current | 30A (maximum), 20A (continuous) |
| ripple | Less than 8mVp-p rated load |
| fuse | 5A |
| meter | Color screen voltage/ammeter |
| size | 155(W)*70(H)*205(D)mm |
| weight | 1.6kg |
| Rated to withstand | ≤100W |
Features
- Adopt superior quality material, better technology and high-quality radiator to ensure the stable and durable operation
- Amateur mode and professional mode for different operation requirements
- Distribute buttons reasonably, convenient for operation
- Separate bandwidth setting for every single channel, Wide 25K, Middle band20K, Narrowband 12.5K
- Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel, rejecting extra calling from other radios
- Various scan functions including CTCSS/DCS scan function
- Smart menu control and PC programming control
- Voltage level protection
- LCD brightless control
- Automatic power on function
- Main unit and microphone key lock function
- 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
- DTMF-ANI or 5Tone-ANI for automatical calling recognition
- Password function
- Dual watch function
- Talk around function
- Frequency reverse function
- Offset function
Reviews
Customer Reviews
All Reviews
Installed two of these in two cars. I couldn't ask more for the money I spent. If you're just getting started, you can't go wrong with this radio for a mobile. Only thing is as you TX for longer periods and the unit warms up, the TX power drops but it is by design and works like it should.
Low cost, small size with nice display.
Good radio haven’t used that much but when I get it set up, I think I will buy more.
this is a really solid little radio. Tons of features, and lots of options to play with.
Using in my company work truck for ham radio for weather net motioning, Right size to fit in with all the other equipment we carry and plugs into lighter 12 VDC plug.
Great basic dual band rig. Programming is easy, display is easy to read, both TX and RX audio are excellent. Tests excellent on the service monitor with harmonics -50db or better on both bands. Planning to order a second unit next month.
