RT97S Full Duplex Portable GMRS Repeater Bundle
- 8 GMRS Repeater Channels
- Built-in sound card can be connected to Raspberry Pi
- Antenna and extender cable can boost the repeater's signal
Bulk order Inquiry
Personalize your device
OverView

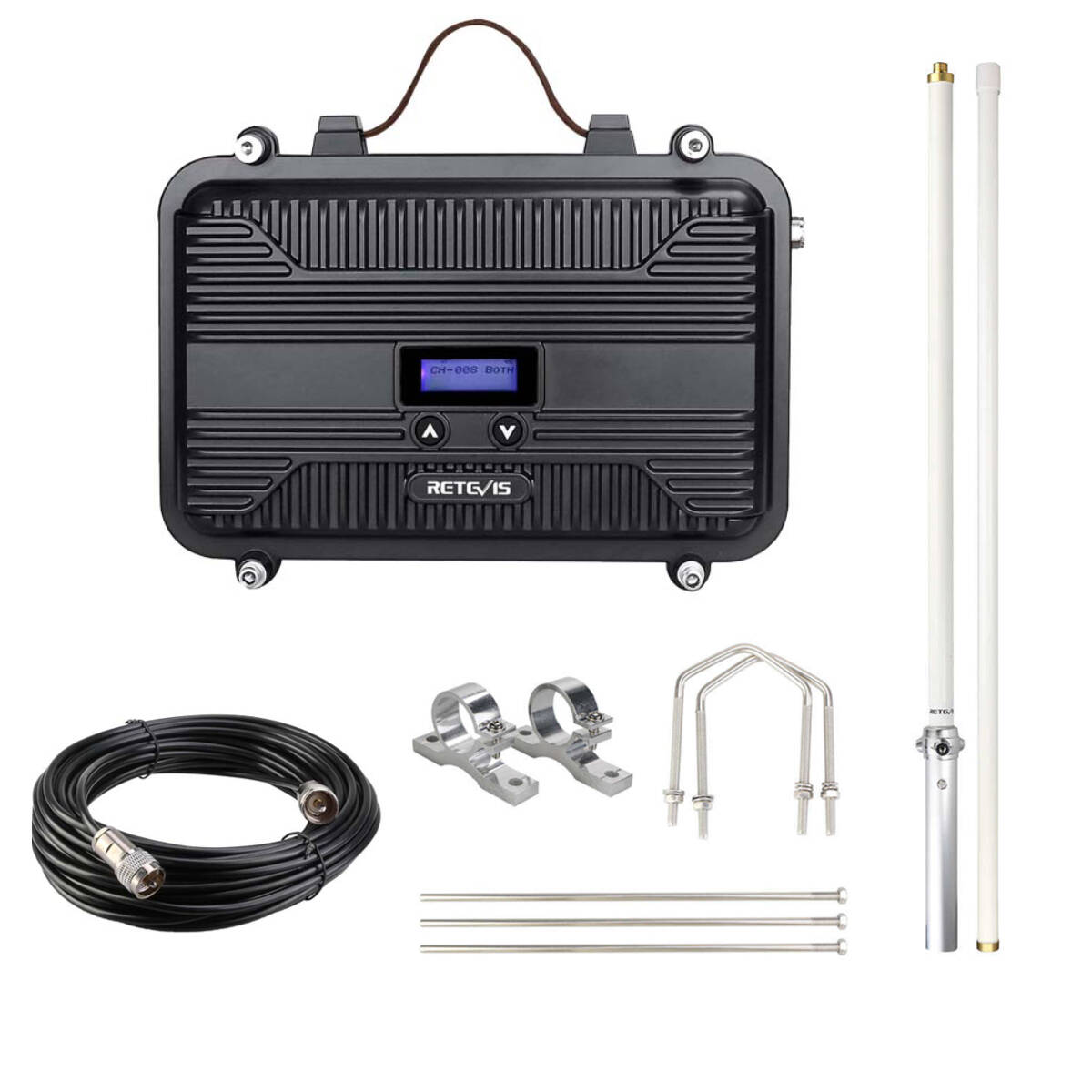

Retevis RT97S Portable GMRS Repeater and Speaker With Mic Bundle
Retevis RT97S portable GMRS repeater extends the range of your handheld or mobile GMRS radios. Ideal for farm use, community communication and various outdoor activities like fishing, hiking, and off-road driving, as well as for emergency preparedness, this portable repeater is a valuable addition to your gear.
Descriptions:
1. This version of GMRS repeater RT97S features an updated case and a DB-9 Female connector for adding an external controller for linking purposes. You can add this repeater to the myGMRS Network by purchasing a linking bundle or an all-in-one kit that is plug-and-play (coming soon).
2. Featuring 8 GMRS repeater channels, full 5W of output power after the duplexer, and a built-in notch duplexer, all you need to do is add an antenna and feeder cable to get on the air.
3. Built into a cable TV amplifier box, the RT97S is rugged and water-resistant. Two power adapters come with the repeater, a 12V/24V cigarette lighter plug, and an AC adapter. A USB programming cable is also included, so you can program the repeater to your channel and CTCSS/DCS tones of choice.
4. The RT97S is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this repeater is perfect for camping trips or emergency preparedness.
5. Inside the case, there is a small 10W notch duplexer, an LCD, a DC-DC power adapter, and the integrated radio module itself. This repeater does NOT simply have 2 handheld radios inside.
FAQs
Spec
| Specifications | |
| Frequency Range | 462.550 - 462.725 MHz (TX), 467.550 - 467.725 MHz (RX) |
| Channel Capacity | 8 GMRS Repeater Channels |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V - 24V |
| Operating Temperature | -22° F - 140° F (-30° C - 60° C) |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ω |
| Dimensions | 10.25" x 8.3" x 2.8" (260 x 210 x 70mm) |
| Weight | 3.7 lbs (1.66 kg) |
| Transmitter | |
| Power Output | 5W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB (Wide) / ≤ -40dB (Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
Feature
10 Watt GMRS Duplexer, 5W Output Power
LCD-Display, Built Into a Cable TV Amplifier Box
Wide/Narrow Band Selection through PC Software
50 CTCSS and 210 DCS Privacy Codes
Independent Receive and Transmit Privacy Tone Selection through PC Software
Repeater Delay (Hang) Time Adjustment through PC Software
Noise Squelch Level Adjustment through PC Software
High/Low Transmit Power Selection through PC Software
Include Antenna and Feeder Cable to Build Your GMRS Repeater System
DB-9 Female Connector for Adding An External Controller for Linking Purposes
GMRS License Required
