- FRS License-free walkie talkie
- with a small display.
- Vibrating walkie talkie suitable for noisy places.
- NOTE: Programming software: please click "support" to download, programming cable, order here:C9118A
Order Handling Time within 3 Working days(Pre-sale products excluded).
21009 PEOPLE ARE LOOKING FOR THIS PRODUCT
Bulk order Inquiry
Personalize your device
OverView

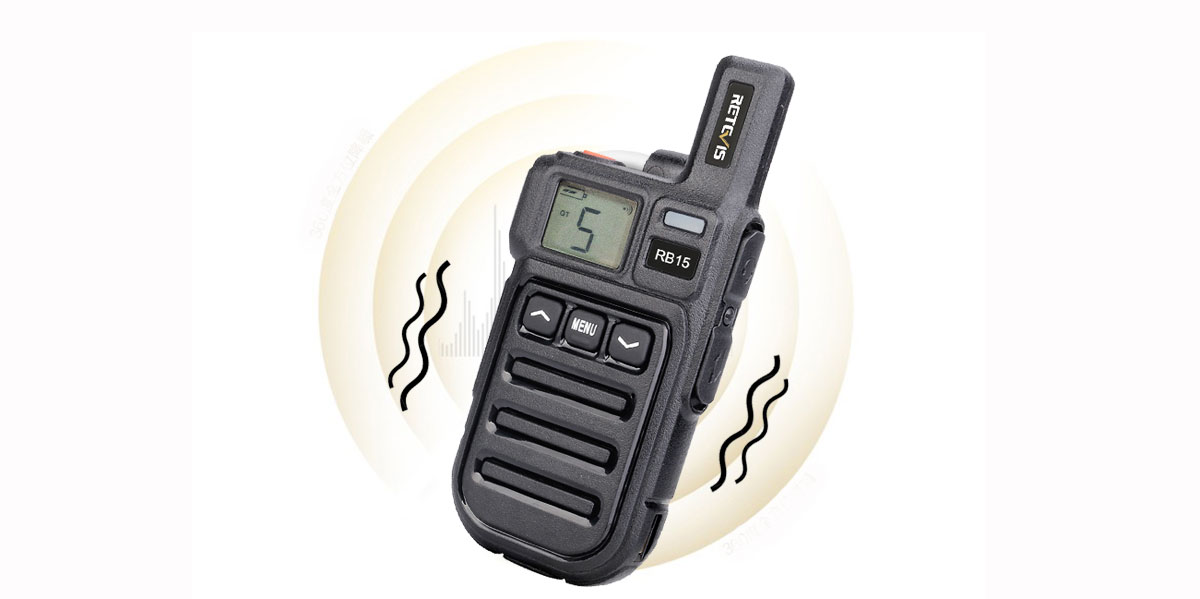

Vibration function, reminds the user when receiving signals. Avoid missing information, suitable for noisy environments;

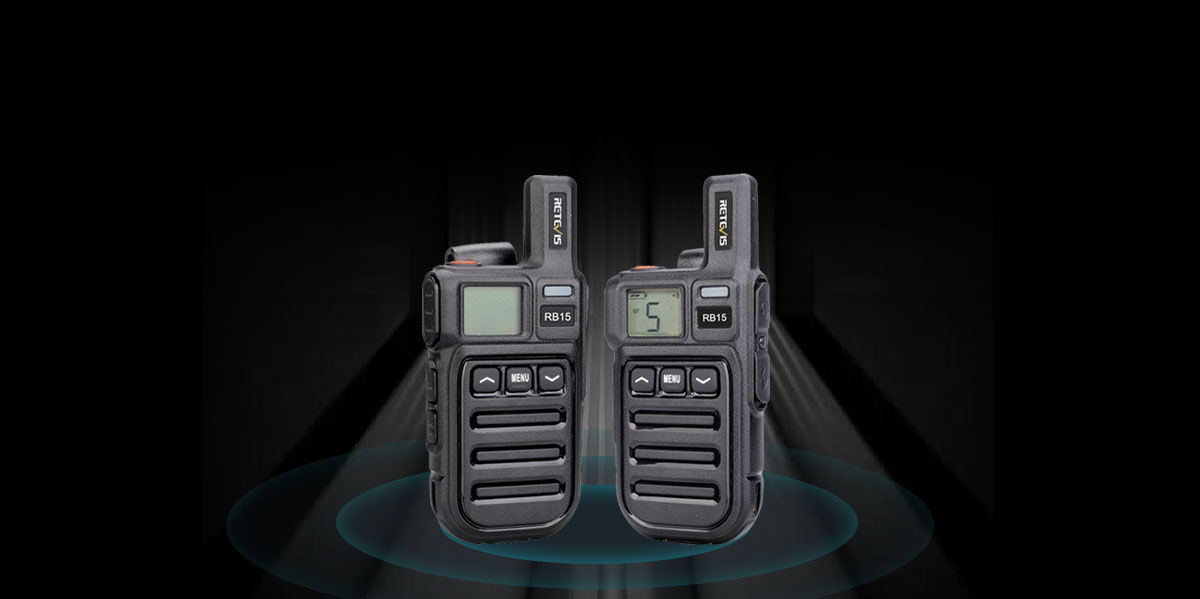

Wireless cloning function, no need to program on PC to complete the pairing, bringing convenience to users.

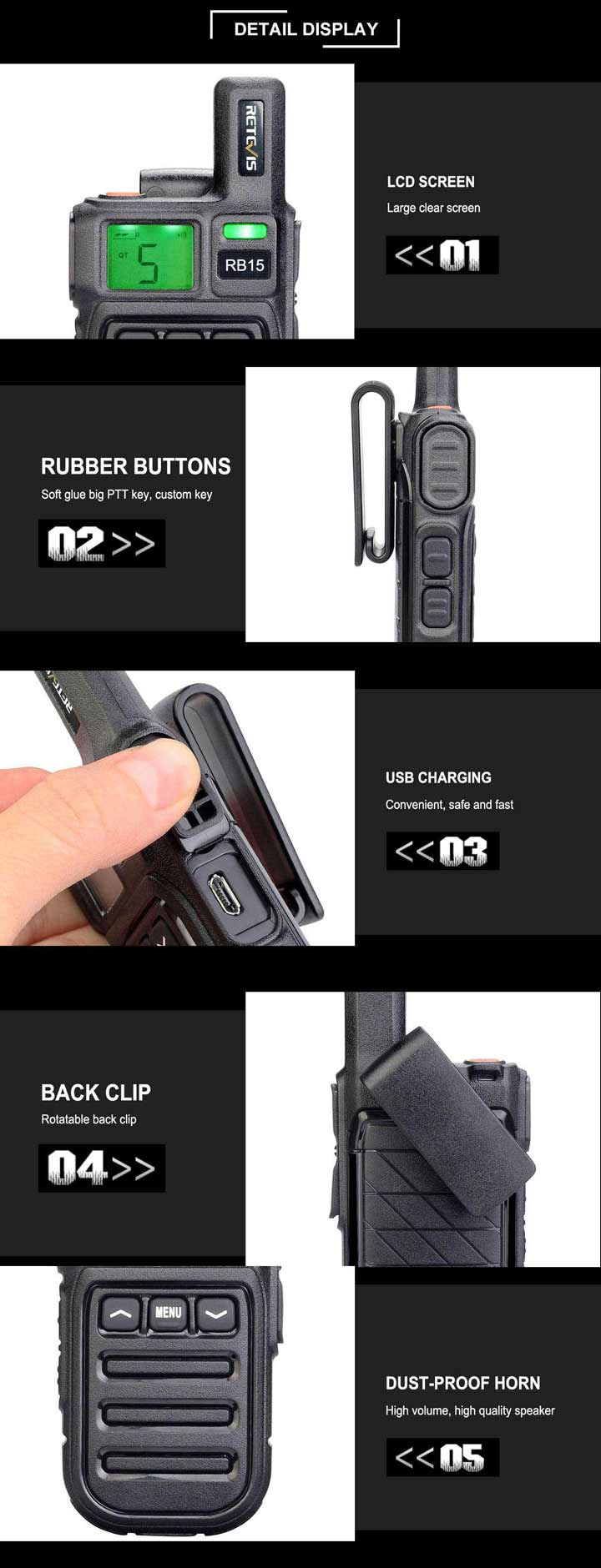

The product is small in shape and comfortable to handle. It adopts a sturdy plastic shell to make the product not easy to damage.
Spec
General Specification
| Frequency | FRS(US) |
| Channel capacity | 22/16 |
| Channel spacing | 12.5kHz |
| Voltage | 3.7 V DC ±20% |
| Working mode | simplex |
| Antenna | Built-in antenna |
| Frequency stability | ±2.5ppm |
| Temperature | 20 ~ ＋60℃ |
| Dimension | 119mm X 55mm X 23mm（doesn’t include belt clip） |
| Weight | 93g（doesn’t include belt clip） |
Transmitter
| RF output power | 2W/0.5W |
| Modulation mode | F3E |
| Maximum frequency deviation | ≤2.5KHz |
| Adjacent channel power | 60dB |
| SNR ratio | -40dB |
| Stray power | ≤7.5uW |
| TX current | 1.0A |
Receiver
| RX sensitivity | 0.25μV 12dB SINAD |
| Adjacent channel selectivity （W/N） | 60dB |
| Inter-modulation | 60dB |
| Audio distortion | ≤10％ |
| Audio output power | ≤1W（8 Ω） |
| RX current | ≤350mA |
| Standby current | ≤60mA |
Feature
-
Vibrate Function
-
Wireless Cloning Function
-
CTCSS/DCS
-
Power save
-
Squelch level
-
Hands free VOX
-
TOT
-
Roger
-
Call tone
-
Keypad lock
-
Scanning
-
Non-standard DCS encode
-
Emergency alarm
-
Programmable side keys
Product Reviews
Support
Brochures
Brochures
Firmware/Software
Firmware/Software
- RB15-DriverToolkitInstaller
- RB15_softwareV1.01
Unzip: Windows 64bits：https://www.7-zip.org/a/7z2201-x64.exe
