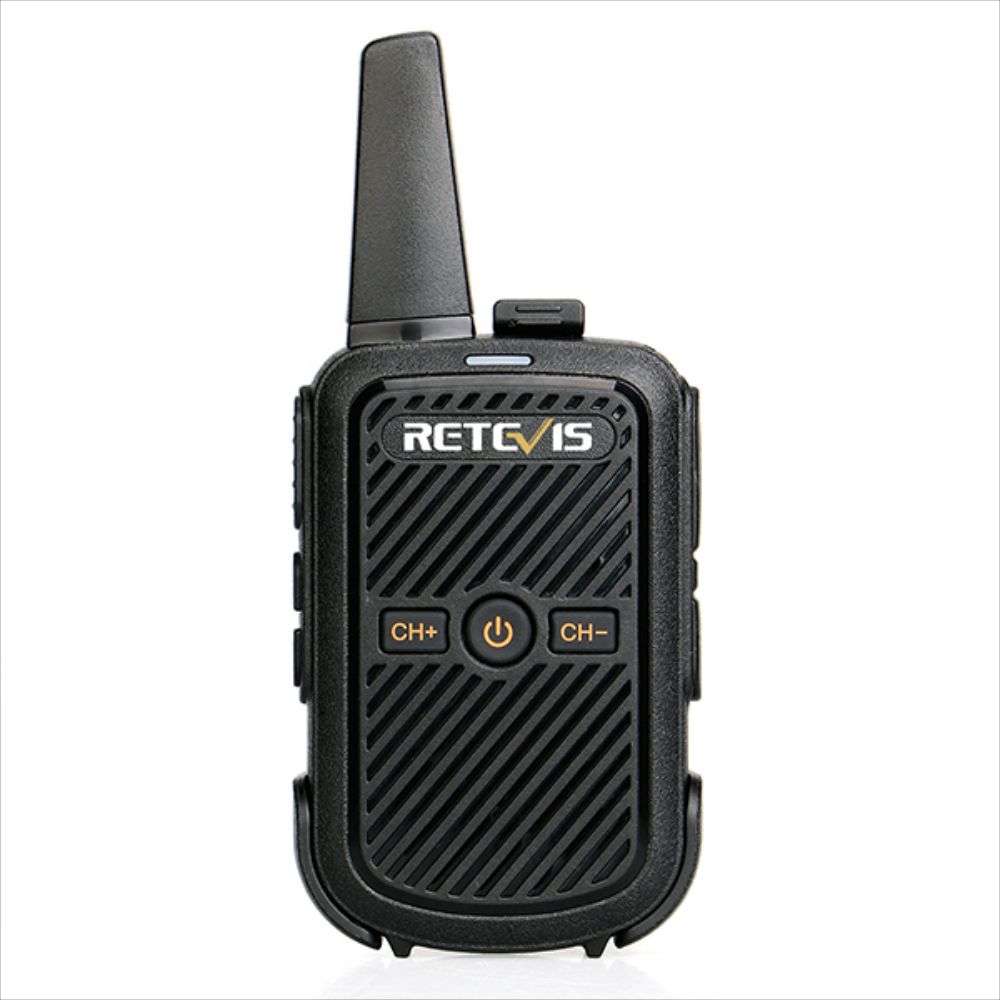

RT20 Mini Indoor FM business radio
Description:
- Mini body, compact, easy one-handed operation;
- High quality batteries for long time calls;
- USB Type-C jack, support multiple charging methods.
- Buy 5 for $17.89 each and save 11%
Feature:
- Scanning
- VOX
- TOT
- Monitoring
- Keyboard Lockout
- High-Low Power Selection
- Busy Channel Lockout
- Low Battery Warning
- Power Saving Function
- Companding/Scrambling Function
- FM Radio FM 87-108MHz
- Special Signaling
- 50 CTCSS/208 DCS
Technical parameters:
SPECIFICATIONS |
|
Frequency Range |
400-470MHz |
Supply Power |
DC3.7V |
Memory Channel |
16 |
Antenna Configuration |
Integrated Antenna |
Dimension |
89x51x15mm |
Output Power |
2W/0.5W |
Modulation Mode |
F3E |
Max. Frequency Deviation |
≤±5KHz |
Sparious Radiation |
≤7.5uW |
Preemphasis Character |
Per Octave 6dB |
Emission Current |
≤1000mA |
RECEIVER |
|
Sensitivity |
<0.16uV(12dB SINAD) |
Audio Power |
≥300mW |
Audio Distortion |
≤60dB |
Intermodulation interference resistance |
≥60dB |
Receiving Current |
≤300mA |
Standby Current |
≤20mA |
Package include:
- 1 x RT20 two way radio
- 1 x Adapter
- 1 x USB cable
- 1 x Sling
- 1 x User manual
Model | RT20 |
---|---|
Radio type | Handheld |
Technological regimes | Analog |
Frequency band | UHF |
Frequency range | 400-470MHz |
Memory Channel | 16CH |
RF Power | 2W |
Operating Temperature | N/A |
Operating Voltage | DC3.7V |
Battery | N/A |
Size | 89x51x15mm |
Antenna onnector | N/A |
Antenna Impedance | N/A |
Accessory onnector | N/A |
Features | VOX, Monitor, Scanning, CTCSS/DCS, Scrambler, TOT, BCL, Power saving, Battery low alert, Compand |
Other parameters | N/A |
Here is the link of RT20 software: www.retevis.com/resources_center/software/RT20_Software_v1.25.zip, please download and install it.
