- Detachable speaker
- High sound quality
- UHF Full-Frequency Radio
- Digital and analog compatible
- NOTE: Programming software: please click "support" to download
Order Handling Time within 3 Working days(Pre-sale products excluded).
Bulk order Inquiry
Personalize your device
OverView

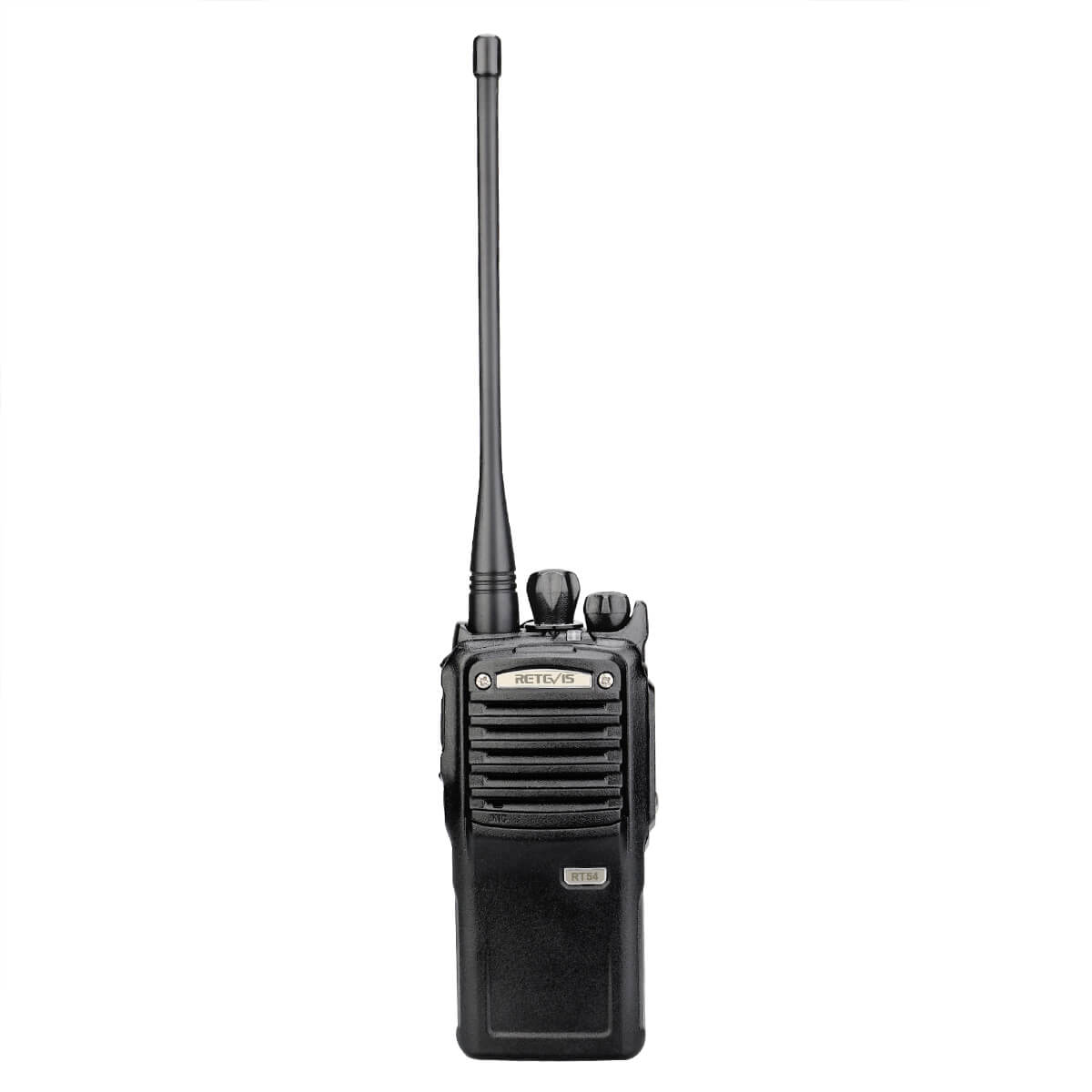

Business Radio RT54: DMR Digital UHF 400-470MHz 5W digital and analog AMBE +2TM voice two way radios for manufacturing
Main Features
●Detachable speaker
Remove and clean the speaker, guaranteed sound quality
●UHF Full-Frequency Radio
Frequency range: UHF 400.000-470.000MHz
●Digital and analog compatible
Support DMR digital and analog two communication modes to ensure that the original analog products smooth transition to digital products to meet different communication needs
●Digital signaling function
Rich calling modes that support DMR protocol, including single call, group call and all call; supports remote inhibit function and other applications
●High sound quality
This digital two-way radio uses advanced AMBE +2TM voice processing technology to achieve higher quality
●High/low power switch
5W/1W power switch, Meeting the power requirements of different call distances to save more energy
●Supports the use of repeater
●Side buttons can be customized without changing the user’s operating habits
- Waterproof rating: IP54
Package includes
-
1 x RT54 Two Way Radio
-
1 x Antenna
-
1 x Battery
-
1 x Belt Clip
-
1 x Sling
-
1 x Power Adapter
-
1 x User Manual
-
1 x Charging stand
Spec
Main technological specification
| Frequency range | UHF:400-470MHz |
| Channel Capacity | 16CH |
| Channel Spacing | 12.5KHz |
| Operating Temperature | -25℃~+60℃ |
| Operating Voltage | DC 7.4V |
| Antenna Impedance | 50Ω |
| Microphone Impedance | 2.2KΩ |
| Battery | Li-ion DC7.4V 1600mAh |
| Dimension | 135×53×33mm ( no including antenna) |
| Weight | 316g |
Transmission
| Output power | High:5W Low:1W |
| FM modulation | 25/16K¢F3E 12.5K/8K¢F3E |
| 4FSK digital modulation | 12.5KHz for data:7K60FXD 12.5KHz for data and voice :7K60FXE |
| Vocoder type | AMBE++or SELP |
| Digital Protocol | ETSI-TS102 361-1,-2, |
| Harmonic | ≥70dB |
| Signal-to-noise Radio(wide/narrow) | 25K≤-45 dB 12.5≤-40 dB |
| Rated audio Distortion | ≥5% |
| Frequency Stability | ±2.5ppm |
| Max Frequency Stability | 12.5K≤-40dB |
Reception
| Sensitivity (12dB SINAD) | Analog 25K≤-121dB 12.5K≤-119dB |
| Digital 0.3μV/BER5% | |
| Signal-to-noise Radio | 25K≥45 dB 12.5K≥40dB |
| Adjacent channel selectivity | 25K≥65 dB 12.5K≥60dB |
| Intermediation (Wide/ narrow) | 25K≥60 dB 12.5K≥55dB |
| Spurious Response Rejection | ≥65 dB |
| Audio power | 1W |
| Audio distortion | <5% |
| Frequency Stability | ±2.5ppm |
| Battery life under 5-5-90duty | 14.8 hours(with 1600mAh Li-ion battery) |
| 20.9 hours(with 1600mAh Li-ion battery) |
