RT69 FRS Business two way radio
- Retevis RT69 is a license-free FRS radio.
- The walkie talkie professional for businesses.
- NOTE: Programming software: please click "support" to download
Order Handling Time within 3 Working days(Pre-sale products excluded).
Bulk order Inquiry
Personalize your device
OverView

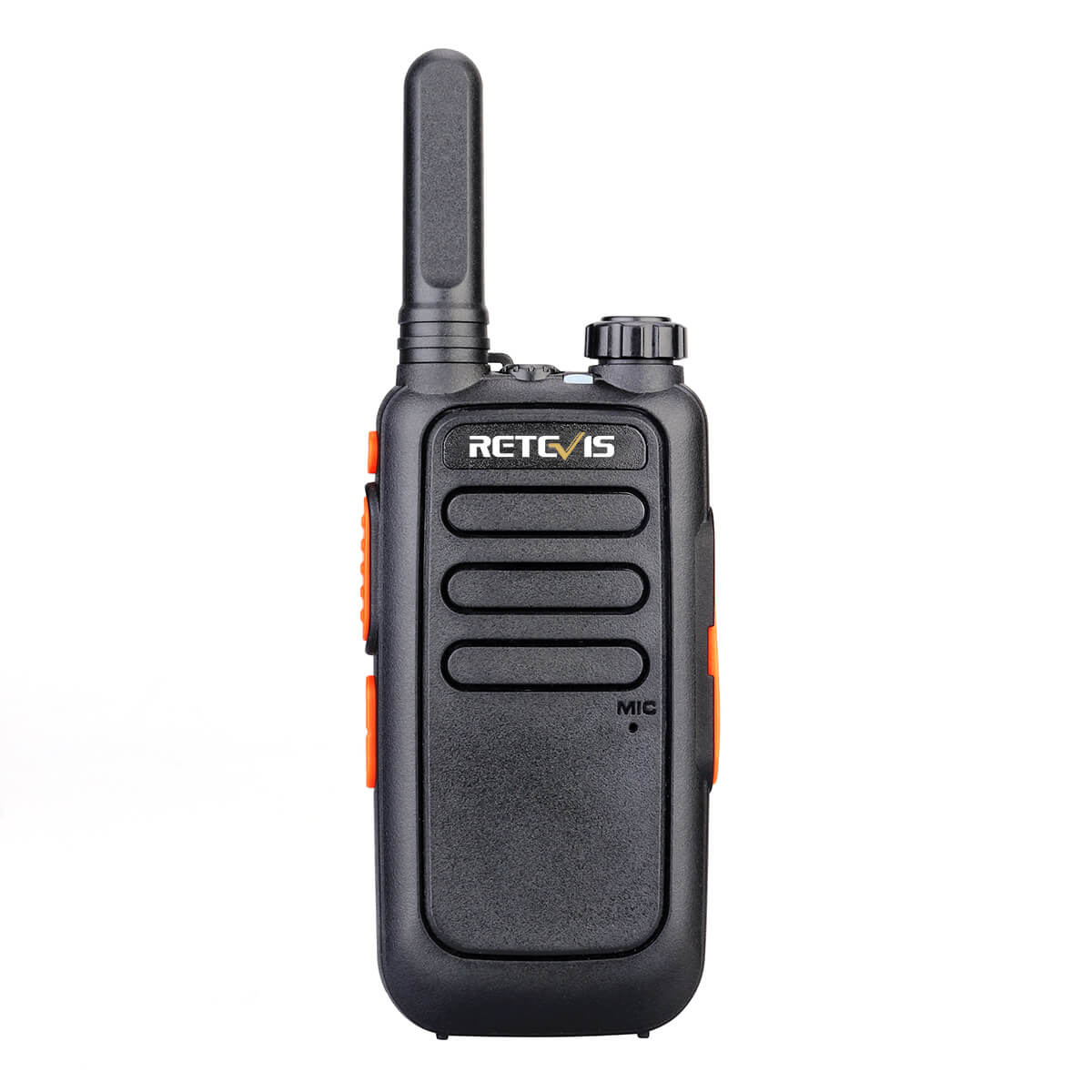

New Retevis RT69 2W/0.5W CTCSS/DCS TOT VOX Scan FRS License Free Two Way Radio
Description:

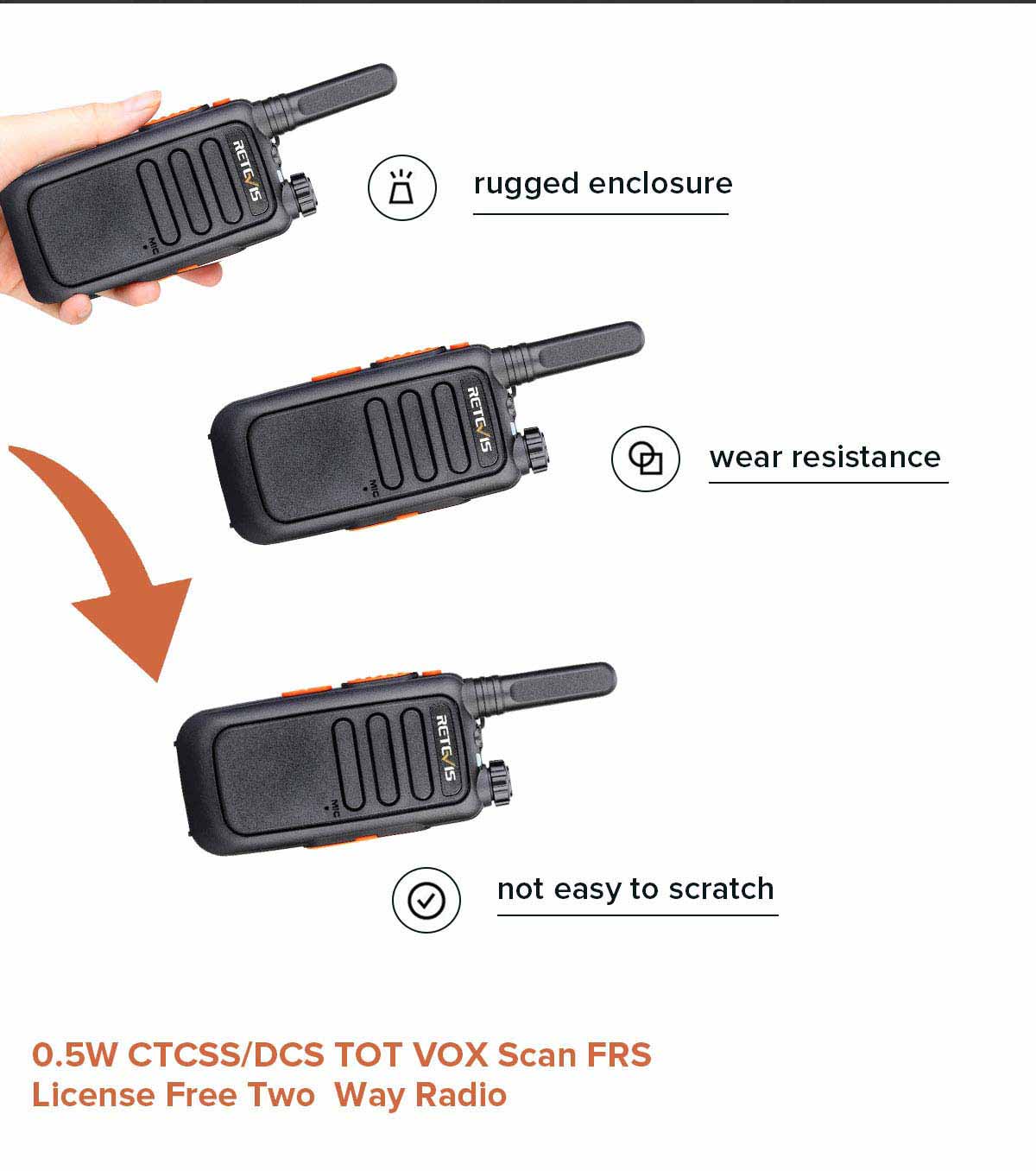

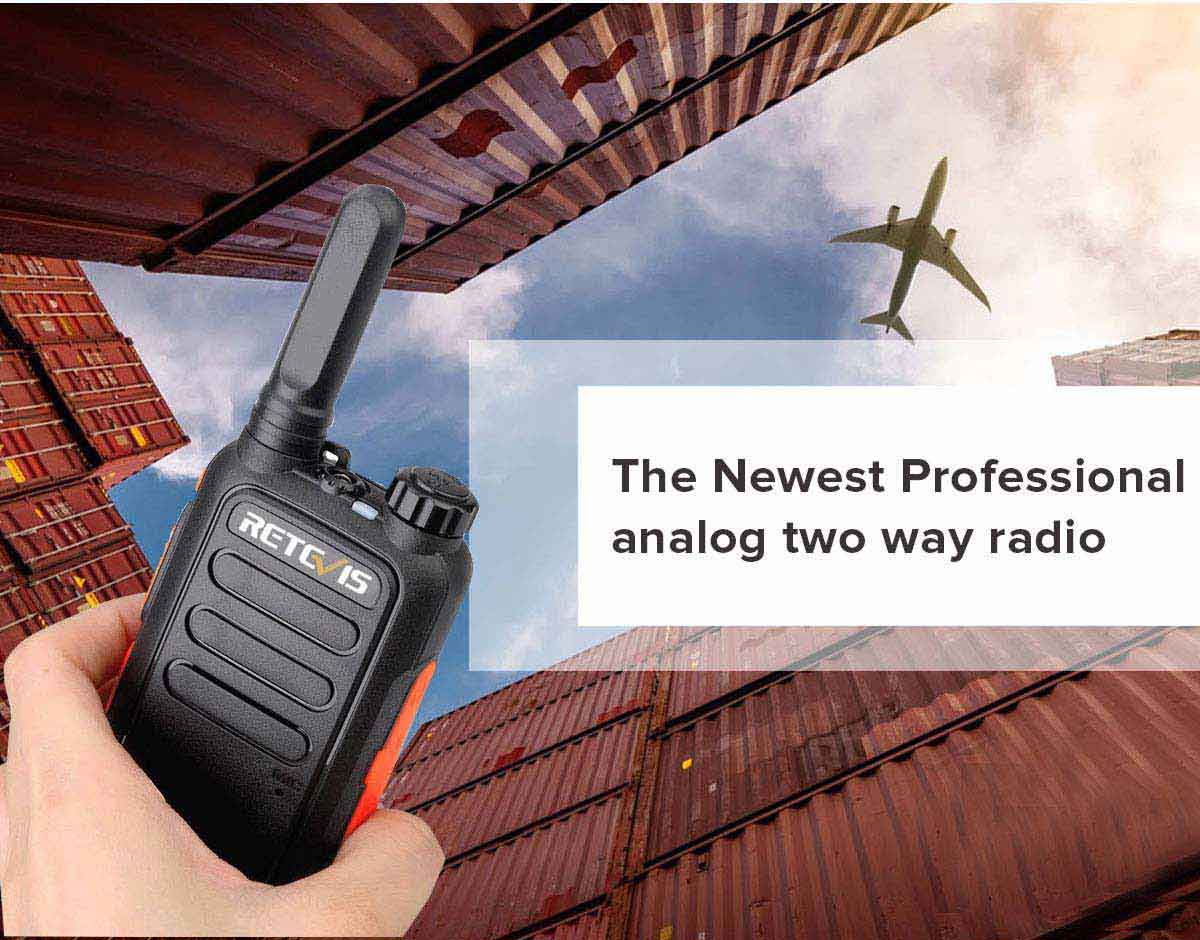

This is the newest professional analog two way radio, stylish appearance, comfortable feel, rugged enclosure, wear resistance, not easy to scratch. One meter free-fall, two-way radio housing without damage, the two way radio can continue to work (The bottom of the intercom down, can not turn the knob down). Good call quality, stable and reliable quality, the use of longer. This two way radio is suitable for storage, wharf, construction site, tourism, hotel, logistics, factory, etc.

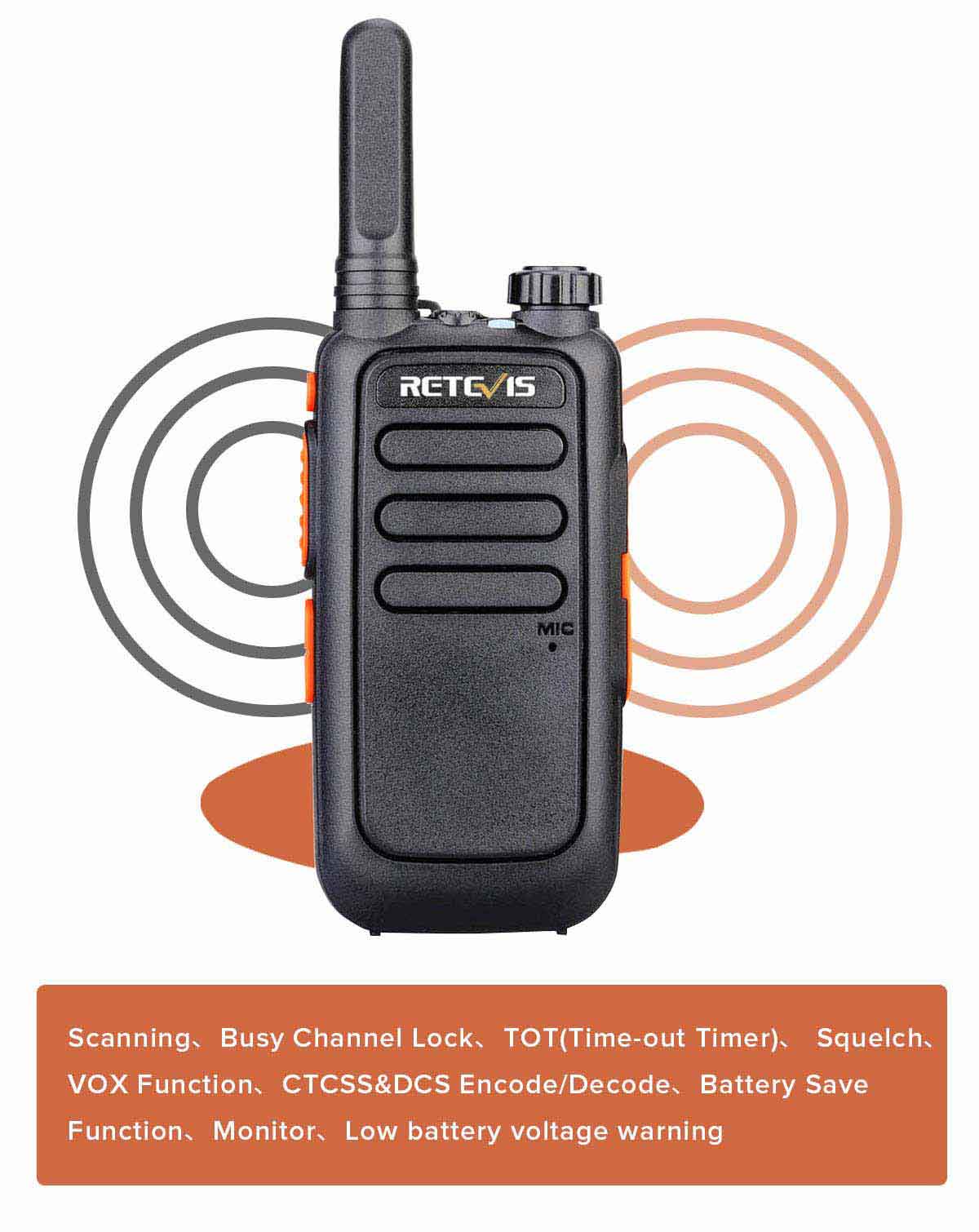

Feature: Scanning、Busy Channel Lock TOT(Time-out Timer) Squelch VOX Function CTCSS&DCS Encode/Decode Battery Save Function Monitor Low battery voltage warning
What’s in the Box?
-
2 x Radio
-
2 x Battery
-
2 x Belt Clip
-
2x Sling
-
1x Adapter
-
1 x User manual
-
1 x One for two charging lines
Spec
General Specification
Frequency Range | FRS |
Power | 2W |
Channel Capacity | 16 |
Battery capacity | Li-ion 1200mAh |
Working Voltage | DC 3.7V |
Working Temperature | -10°C~50°C |
Antenna Impendence | 50Ω |
Weight (with battery) | 161g |
Size | 153*55*25mm |
Receiver | |
Sensitivity | ≤0.16μV |
Occupied Bandwidth | ≤16KHz |
Selectivity | ≥65dB |
Intermediation | ≥55dB |
Audio Power output | >380mW |
Modulation Distortion | ≤10% |
Frequency Stability | 5ppm |
Current | 55mA(when standby)150mA(when working) |
Audio Response | +7~-12.5dB |
Transmitter | |
Modulation type | FM |
Spurious Radiation | ≤0.75μW |
Modulation Noise | <-40dB |
Modulation Distortion | ≤5% |
Frequency Stability | 5ppm |
Maximum Deviation | ≤±5KHz |
Current | ≤1000mA |
Audio Response | +6.5~-14dB |
Adjacent Ch.power | ≥65dB |
Intermediation sensitivity | 8-12mv |
Feature
Feature:
-
Scanning
-
Busy Channel Lock
-
TOT(Time-out Timer)
-
Squelch
-
VOX Function
-
CTCSS&DCS Encode/Decode
-
Battery Save Function
-
Monitor
-
Low battery voltage warning
Support
Firmware/Software
Firmware/Software
- win11-DriverInstaller
The win11 driver is compatible with win10, win8 and win7 systems.
- RT69-softwareV1.0.2
Unzip: Windows 64bits:https://www.7-zip.org/a/7z2201-x64.exe
