RT9550 DMR Digital Repeater IP Network
US$3,699.00
Free shipping on orders over $50
US$ 3,699.00 -100%
SKU: US-A9116A-B
NOTE: Programming software: please click "support" to download
Order Handling Time within 3 Working days(Pre-sale products excluded).
9389 PEOPLE ARE LOOKING FOR THIS PRODUCT
Bulk order Inquiry
Personalize your device
OverView

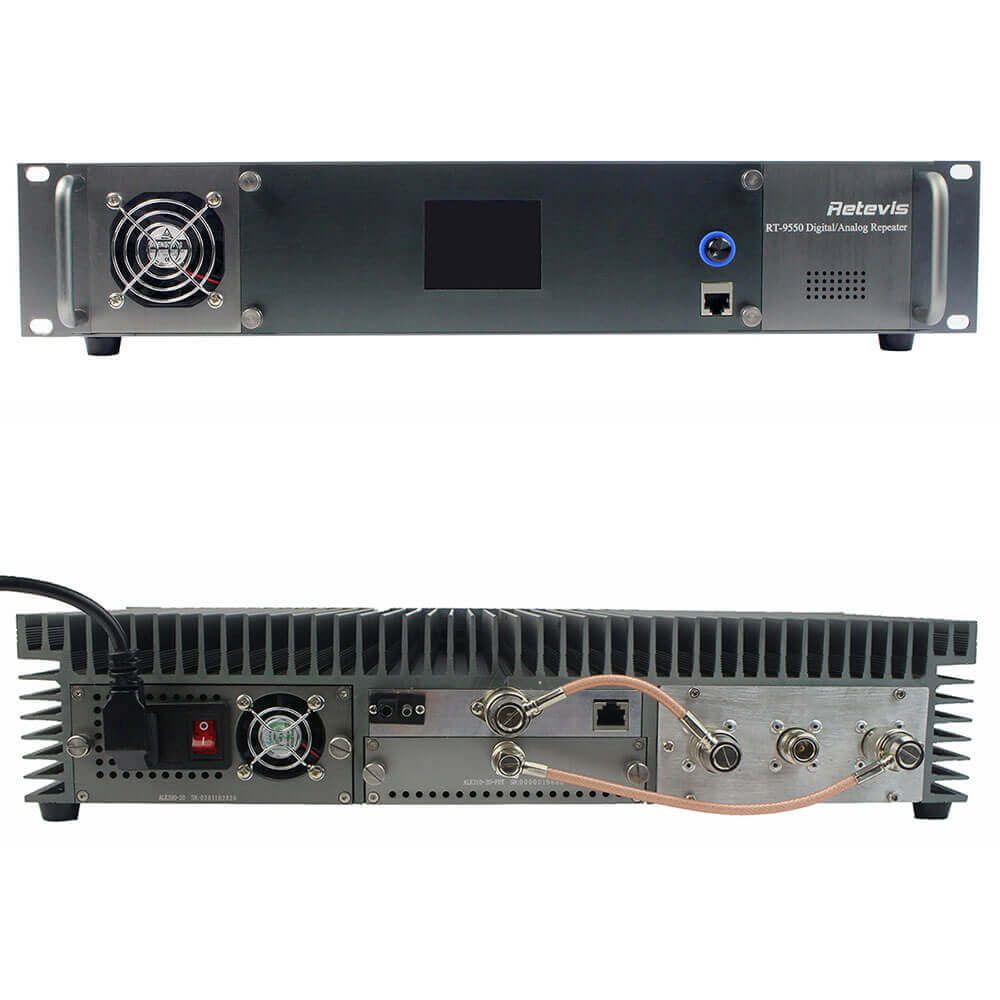

RETEVIS RT9550 DMR Digital two way radio Repeater IP Network 50W Digital/Analog mode built-in duplexer
- Supports conventional transceiving in digital/analog modes.
- Supports DMR modes.
- Supports IP networking.
- Supports pseudo trunking function.
- All-aluminum alloy workmanship and large area heat dissipation design.
- Configure with a broadband duplexer slot,and optional built-in duplexer.
- Realizing integration of the CCM module, TX and RX module, power supply module and duplexer, and can be put to used after attaching the antenna, even without an engineering cabinet.
- All modules can be replaced easily, and you can choose modules flexibly according to your accrual needs.
- Equipped with the 220V power module and battery port preventing communication shut down because of power off.
- LCD screen for displaying information such as transmit and receive condition.
- Equipped with knob that can quickly adjust operating mode, frequency, color code and power.
What’s in the Box?
- 1 x RT-9550 Digital/Analog Repeater
- 1 x Power line
Spec
Specification
Working frequency | Receive:430-440Mhz,Transmit:440-450MHz(Frequency can be customized according to demand) | ||
Channel space | 12.5kHz/25kHz | ||
Multi-access mode | TDMA | ||
Duplexing space | 5M-10MHz | ||
Power | 1-50 watts adjustable | ||
Modulation and demodulation | 4FSK/FFSK/FM | ||
Successive data transmission speed(per carrier) | 9.6kbps | ||
Carrier frequency error | <=100hz | ||
Working humidity | 20%-80% | ||
Storage humidity | <80% | ||
Working temperature | -30℃~+60℃ | ||
Storage temperature | -40℃~+85℃ | ||
Receiver | |||
Sensitivity(5%BER)(digital) | Static sensitivity | -120dBm | |
Dynamic sensitivity | -115dBm | ||
Sensitivity(12dB SINAD)(analogue) | -117dBm | ||
Maximum signal Rx level | -7dBm | ||
Adjacent channel selectivity | -65dB@12.5kHz/-70dB@25kHz | ||
Channel inhibition | 12dB | ||
Blocking | 84dB | ||
Inter modulation | 70dB | ||
Spurious response inhibition | 70dB | ||
Conducted spurious transmission | -57dBm | ||
Transmitter | |||
Frequency stability | ±0.1ppm | ||
RF output power | 3-50W | ||
Maximum output power variation | ±1.5dB(normal) | ||
+2/-3dB(Limit) | |||
Adjacent channel power | -65dB@12.5kHz/-75dB@25kHz | ||
Conducted/radiated interference(antenna) | 9kHz-1GHz<=-30dBm | ||
1GHz-12.75Ghz<=-30dBm | |||
Conducted/radiated interference(antenna) | 30Mhz-1GHz<=-36dBm | ||
1GHz-12.75GHz<=-30dBm | |||
Inter modulation attenuation | <=-60dB@12.5kHz | ||
<=-70dB@25kHz | |||
Adjacent channel power during transient switch | ±12.5kHz<=-50dB | ||
±25kHz<=-60dB |
Feature
- Supports conventional transceiving in digital/analog modes.
- Supports DMR modes.
- Supports IP networking.
- Supports pseudo trunking function.
