How a Professional Warehouse Communication System Works: A Deep Dive

Actual Working Principle:

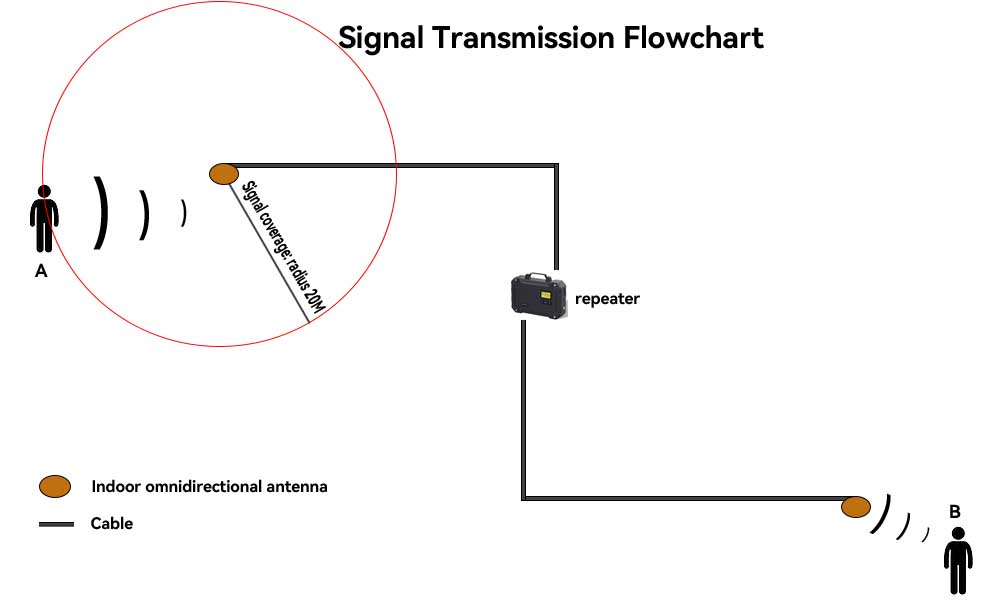

Let's look at the communication process between A in the loading/unloading area and B in the high-rack warehouse.

① A transmits: A presses the PTT button on the walkie-talkie. Her signal weakens after passing through the metal shelving, but is received by the nearest ceiling antenna.

② Signal Transmission: The signal travels along the coaxial cable and eventually reaches the repeater.

③ Repeater Amplification: The signal enters the repeater (RT97P), which receives it, amplifies it significantly, and prepares it for retransmission.

④ Signal Redistribution: The strong new signal is retransmitted through the cable.

⑤ B Receives the Call: The signal is emitted from an antenna near B's location. His walkie-talkie receives a clear and strong call, as if A were standing right next to him.

The entire process is completed within milliseconds, resulting in a natural and smooth real-time conversation.

Core of the Professional System: Key Components

1. System Core: Repeater

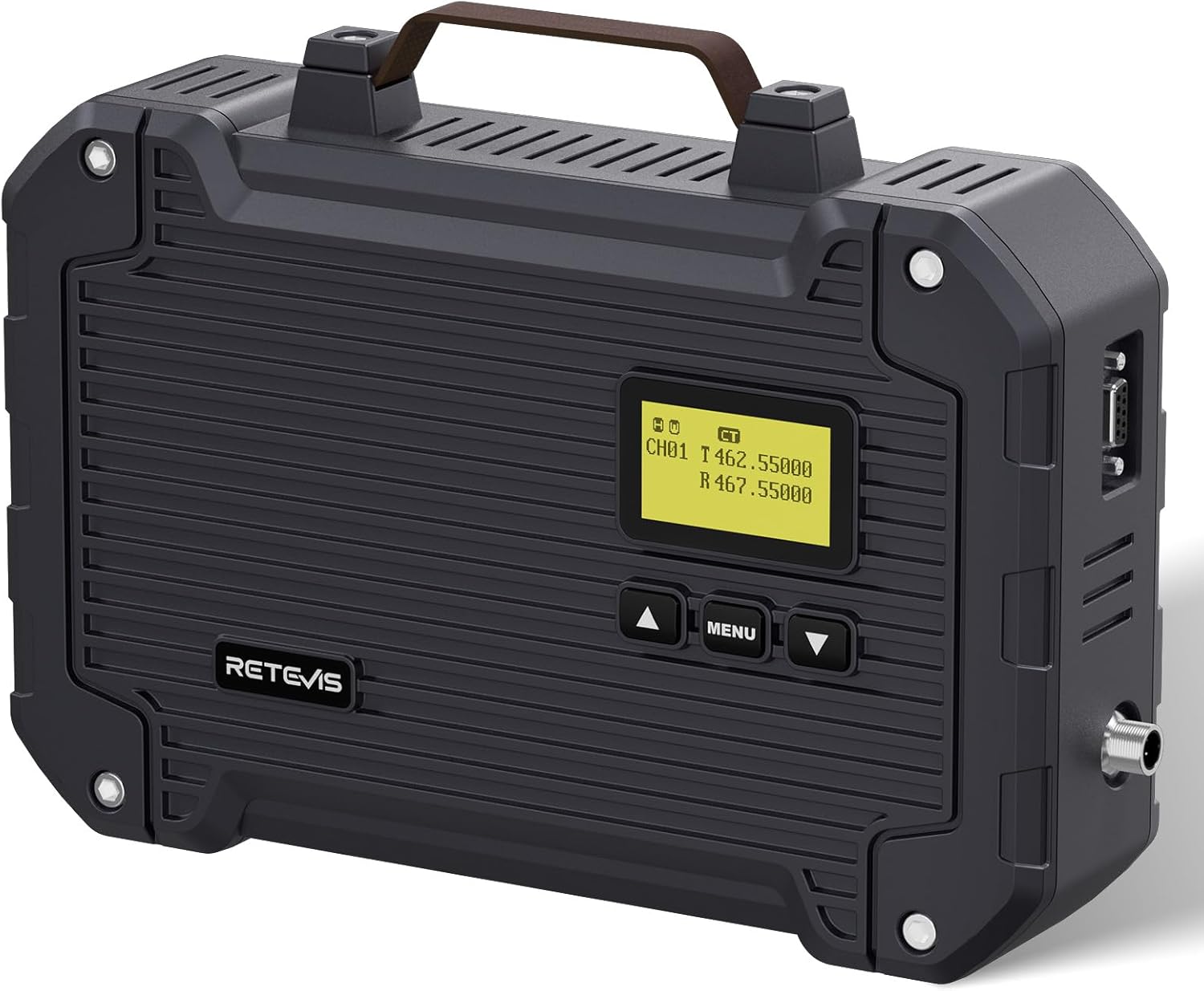

Model: Retevis RT97L (Analog) / RT97P (Digital)

Function Introduction: The central hub and power source of the entire network.

Role: The repeater can be considered the control room of the system. It performs a key function called "full-duplex" communication:

It receives weak single-frequency signals from walkie-talkies.

It can instantly amplify the signal and retransmit it at higher power on different frequencies.

Key Features: High output power (25W), high gain, and support for multiple frequency bands make it ideal as the core of large-scale coverage.

2. System Components: Antenna Distribution System

This network is responsible for transmitting the strong signal from the repeaters throughout the facility.

① Coaxial Cable: Signal Transmission Conduit

What it is: A dedicated “cable” used to transmit RF signals.

Its Importance: Not all cables are created equal. High-quality, low-loss cables (such as 1/2-inch or 7/8-inch coaxial cables) are crucial to prevent excessive signal attenuation over long distances before reaching the antennas.

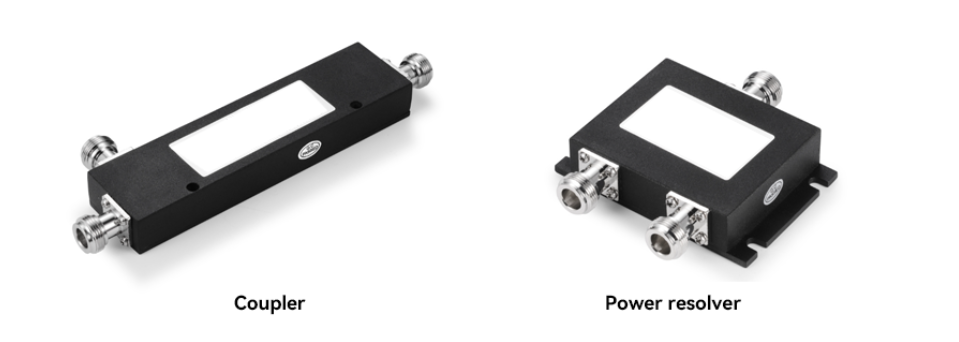

② Power Dividers and Couplers: Signal Directors

Models: Power Dividers, Couplers
Function: These passive components efficiently distribute and route signals.

Power Dividers: Distribute signals evenly across two, three, or four channels. Ideal for powering multiple antennas in areas with similar coverage.

③ Coupler:

A small, specific signal is diverted from the main line to feed branch lines (e.g., a single antenna in a corridor), while allowing most of the power to continue along the main line.

3. Key System Components: Antennas

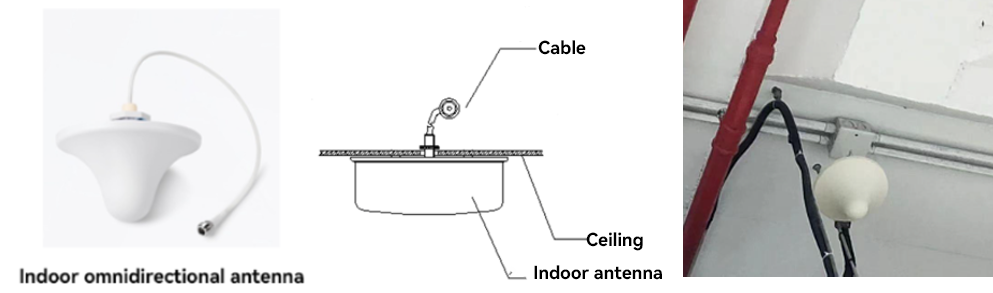

Model:Ceiling-Mounted Omnidirectional Antenna, Outdoor Omnidirectional Antenna

Function: Antennas are the final connection point of the system. They broadcast system signals into the air and receive signals from nearby walkie-talkies.

Choosing the Appropriate Antenna Type:
Omnidirectional Antenna: Radiates signals in all directions like a sphere. Ideal for open areas, low-ceilinged warehouses, and general wide-area coverage.

Directional Antenna: Focuses the signal into a specific beam like a flashlight. Essential for narrow spaces (e.g., conveyor belt tunnels, between high racks) or connecting different buildings.

Why Invest in This System? Key Advantages

Comprehensive Coverage:

Systematically eliminates signal blind spots caused by distance, concrete walls, and dense metal shelving.

High Stability and Clarity:

Provides stable signal strength in any location, eliminating annoying static interference and signal interruptions.

Easy Management:

Centralized control via the repeater enables channel management, diagnostics, and monitoring.

Seamless Expansion:

The modular design allows you to easily expand coverage by simply adding more antennas and splitters as the warehouse grows.
