Key Features

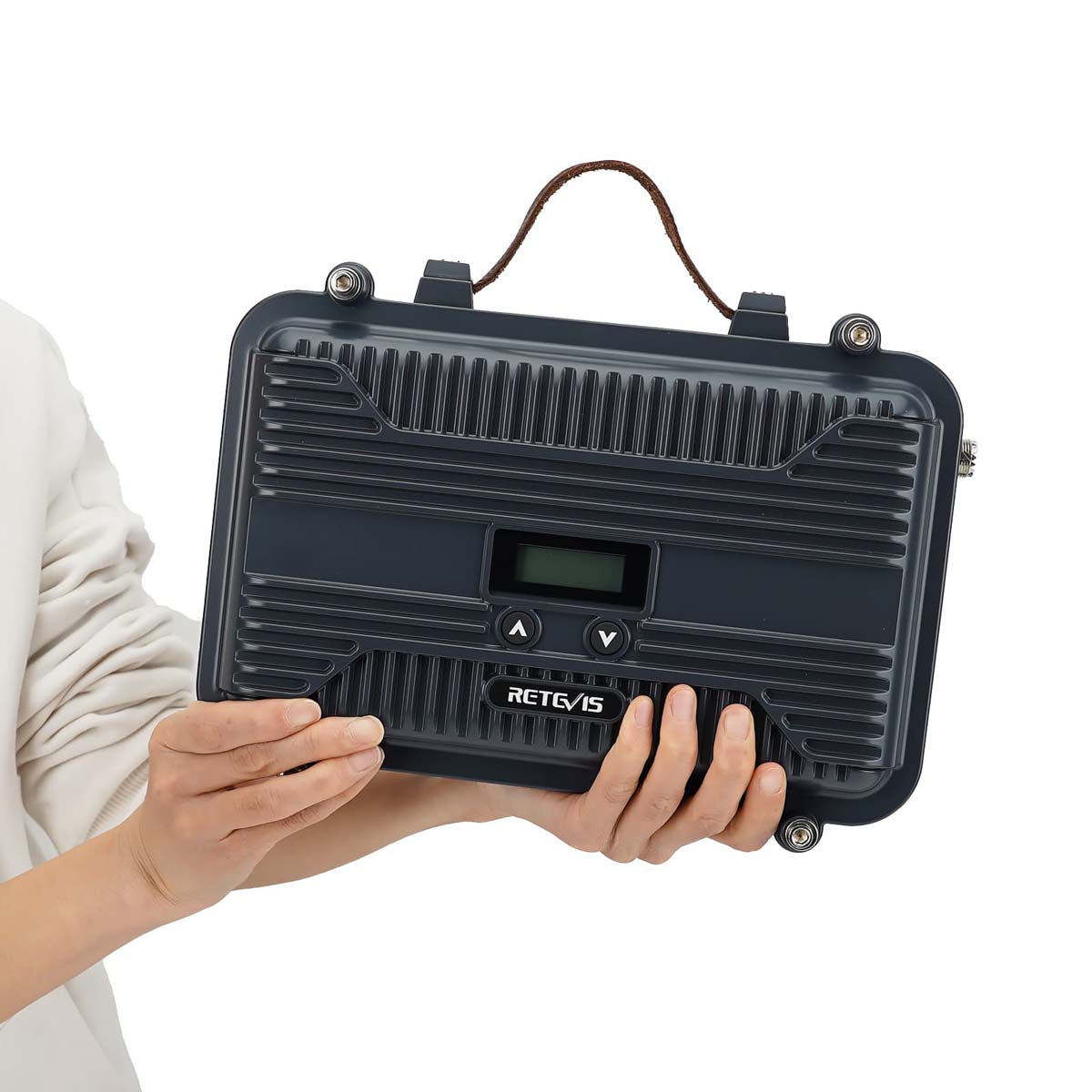

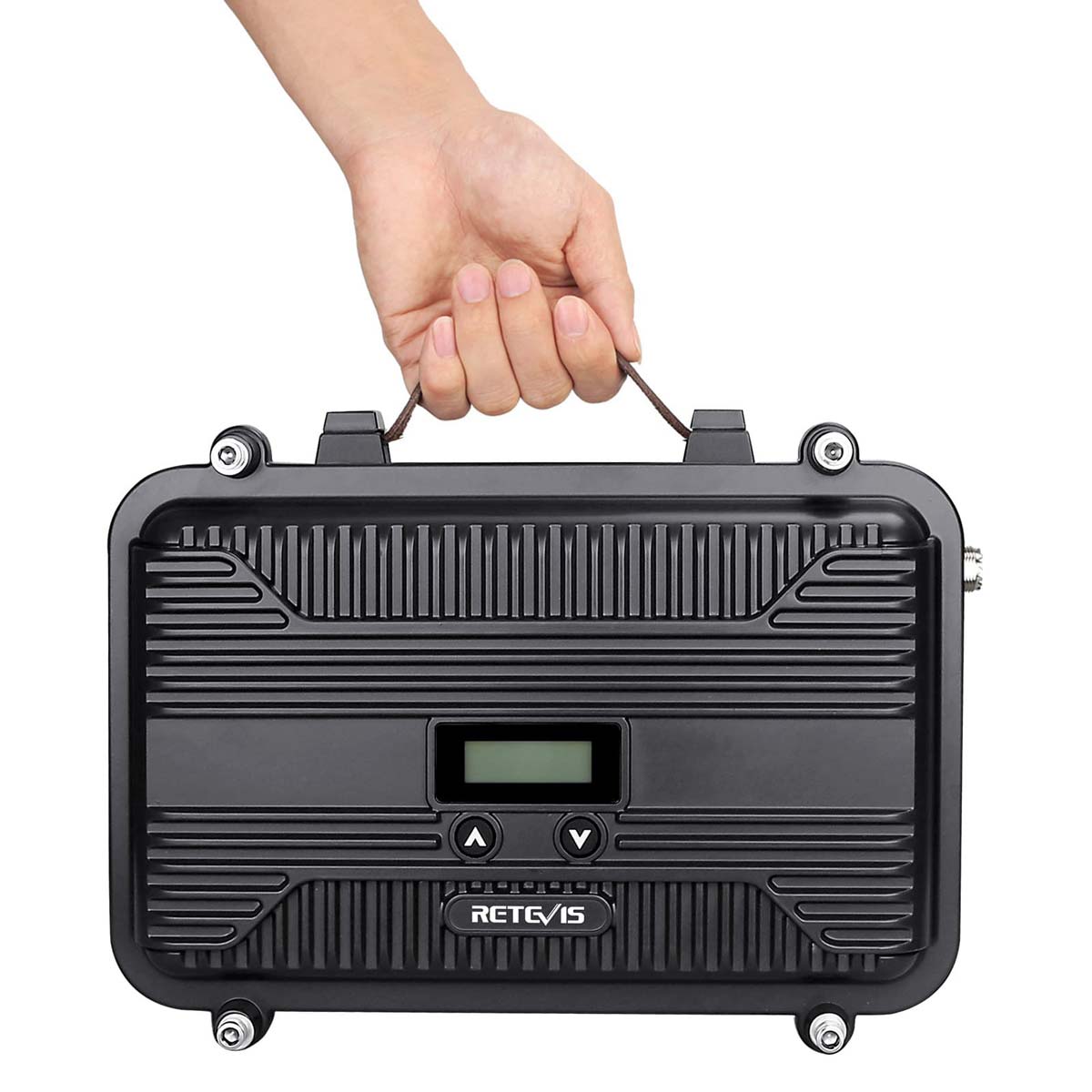

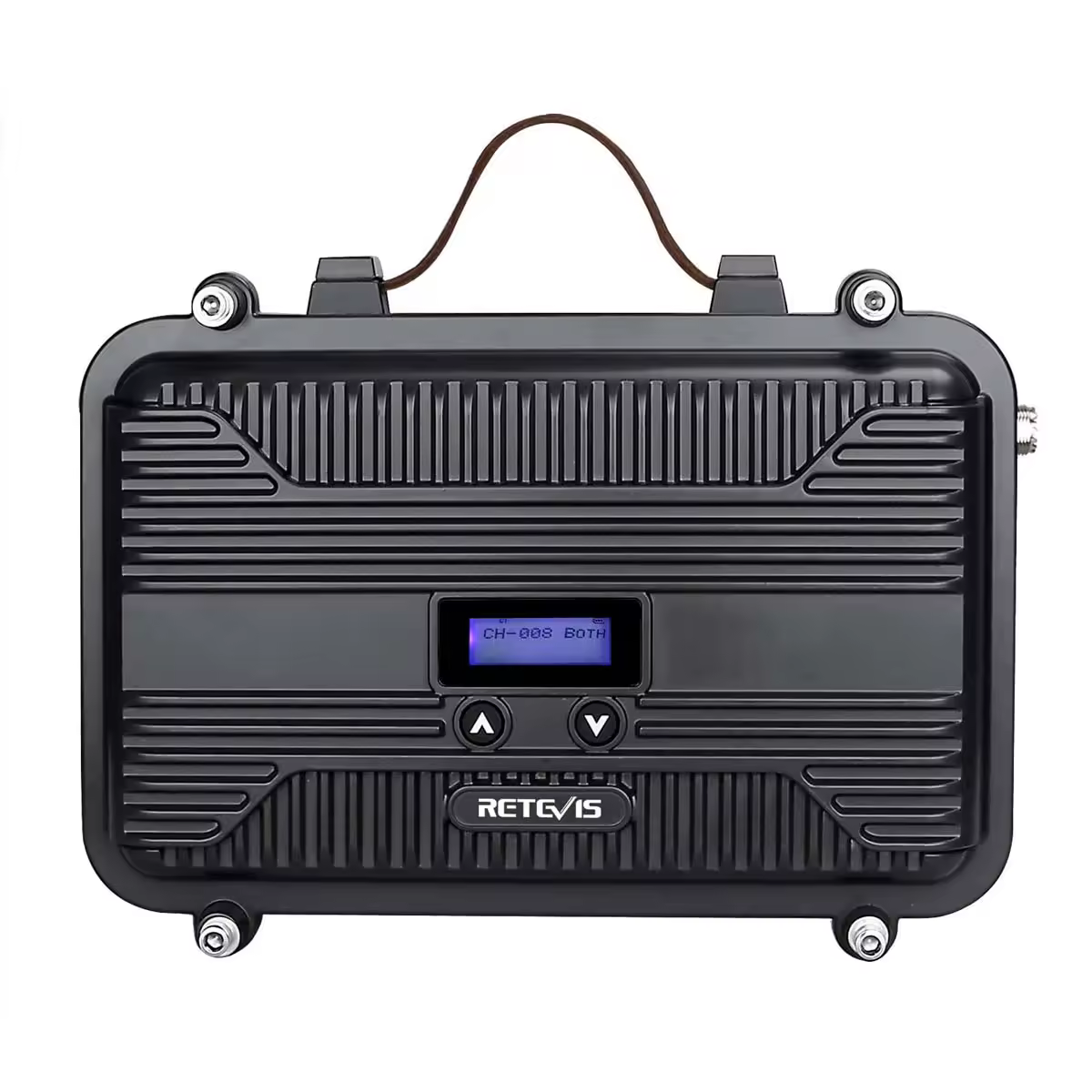

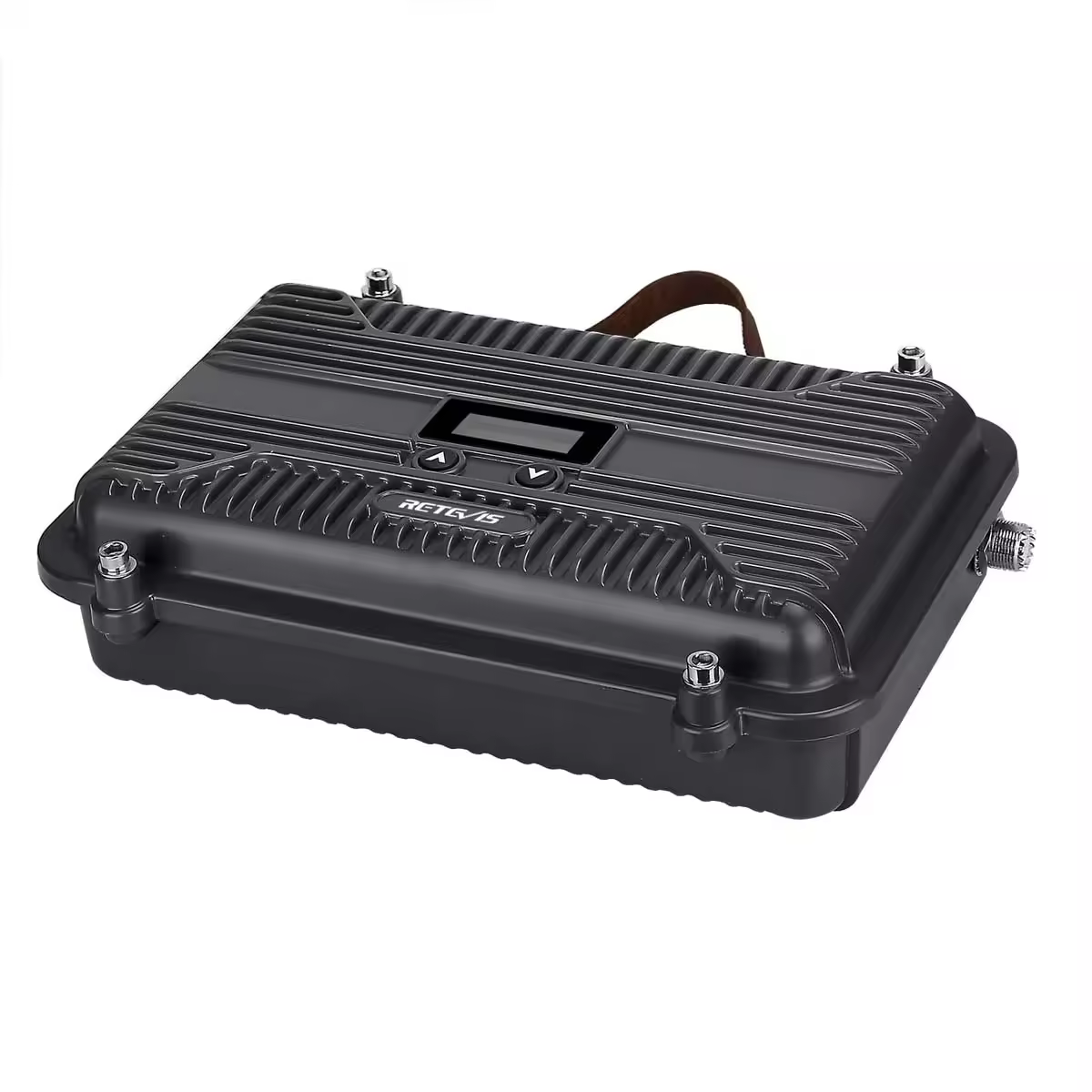

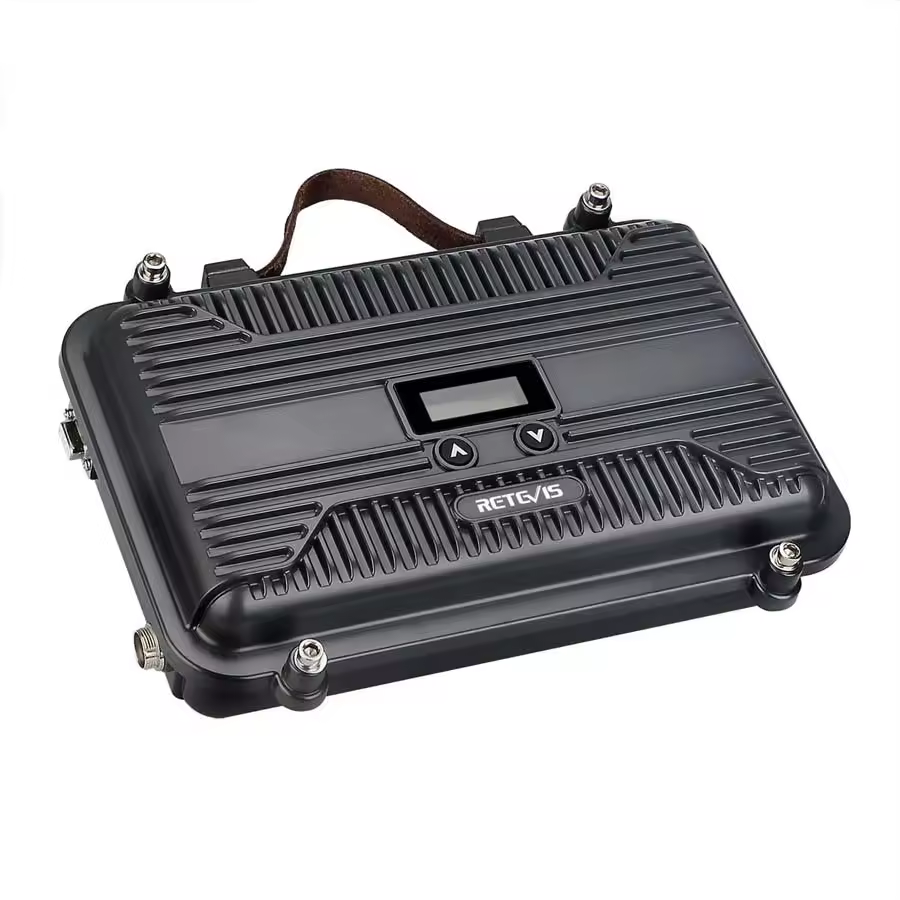

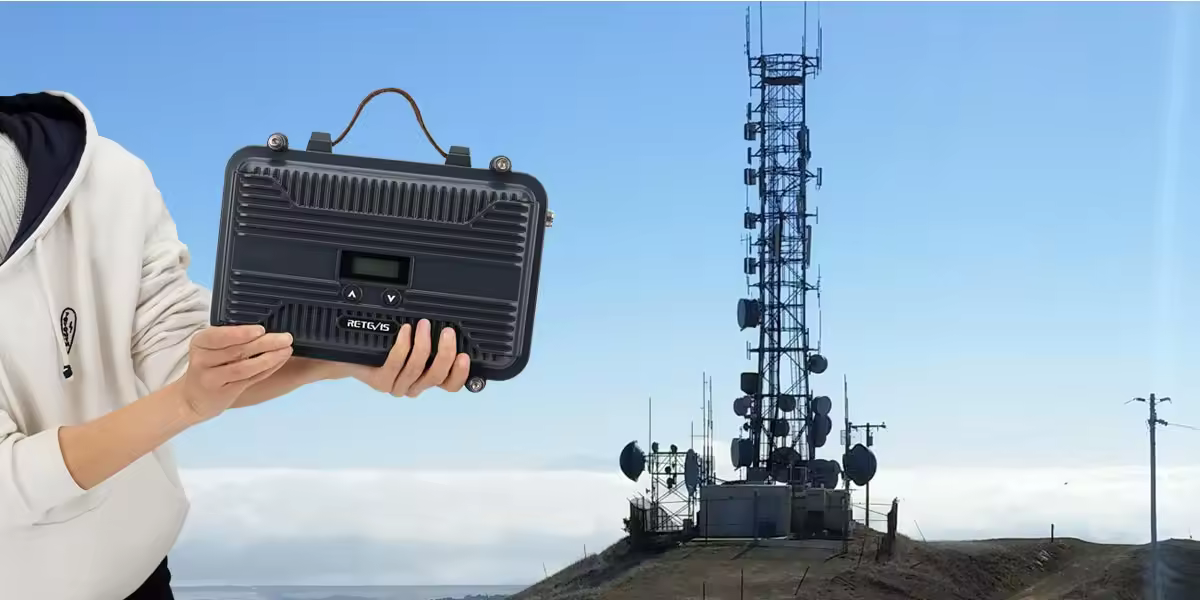

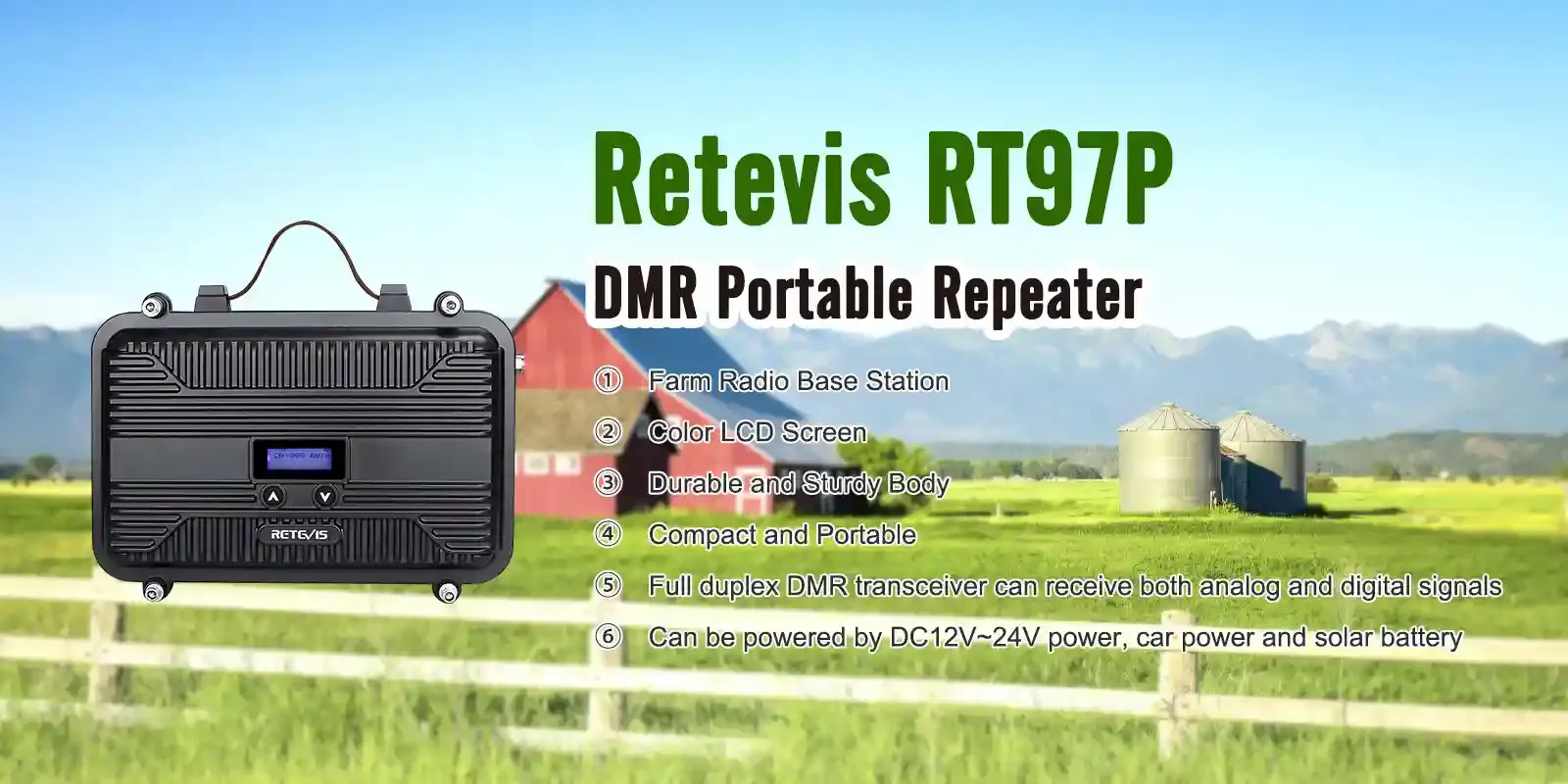

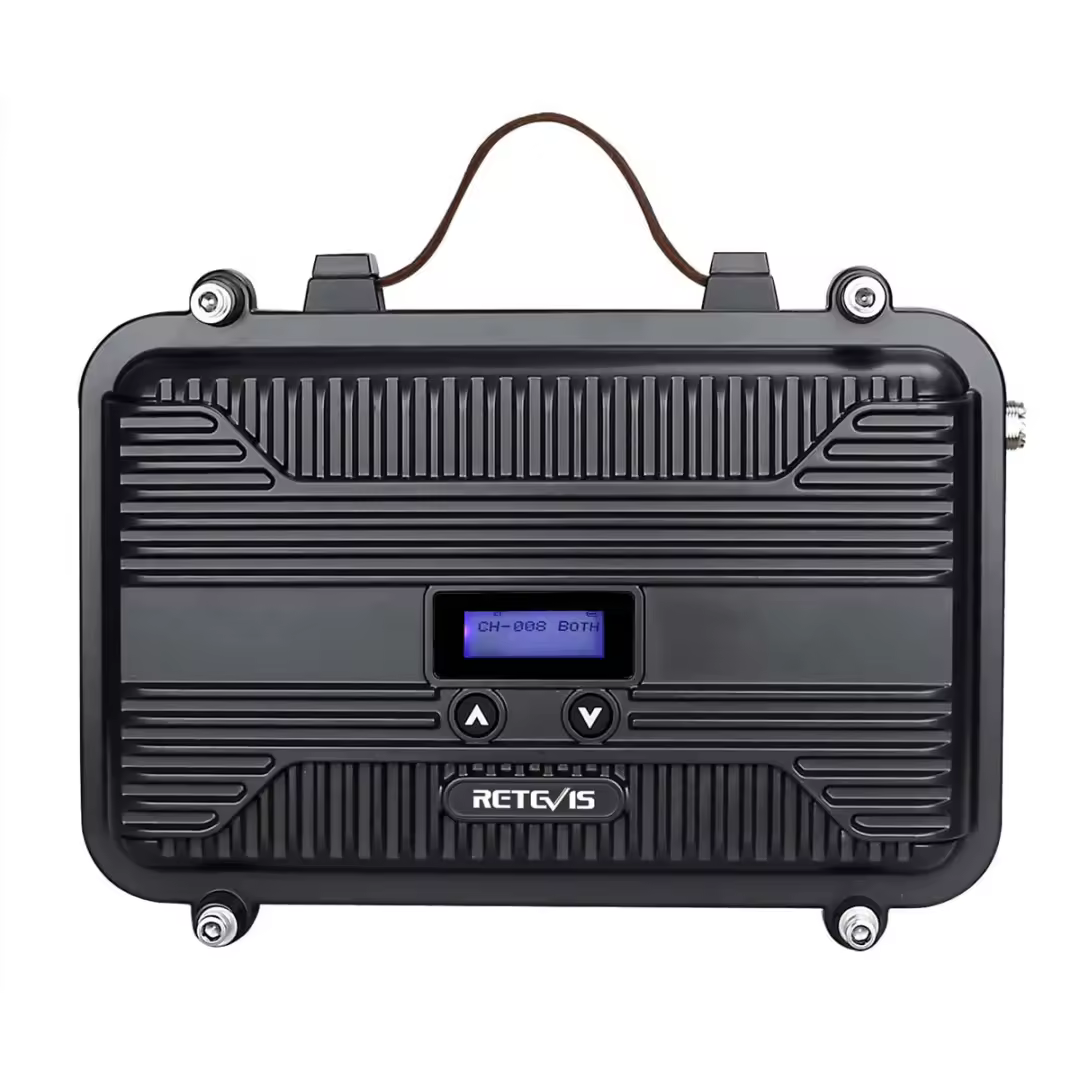

DMR digital technology-equipped mini repeater, featuring a compact and lightweight design for easy portability in diverse scenarios.
10W high-power output effectively extends the communication range of handheld walkie-talkies, breaking through distance limitations. RT97P helps to connect emergency calls outside the range of the walkie-talkies.
Offering clear audio and consistent performance to enhance team coordination efficiency.
It can be compatible with NR30D, RT29D, RT81, RT50, and many other DMR radio models.

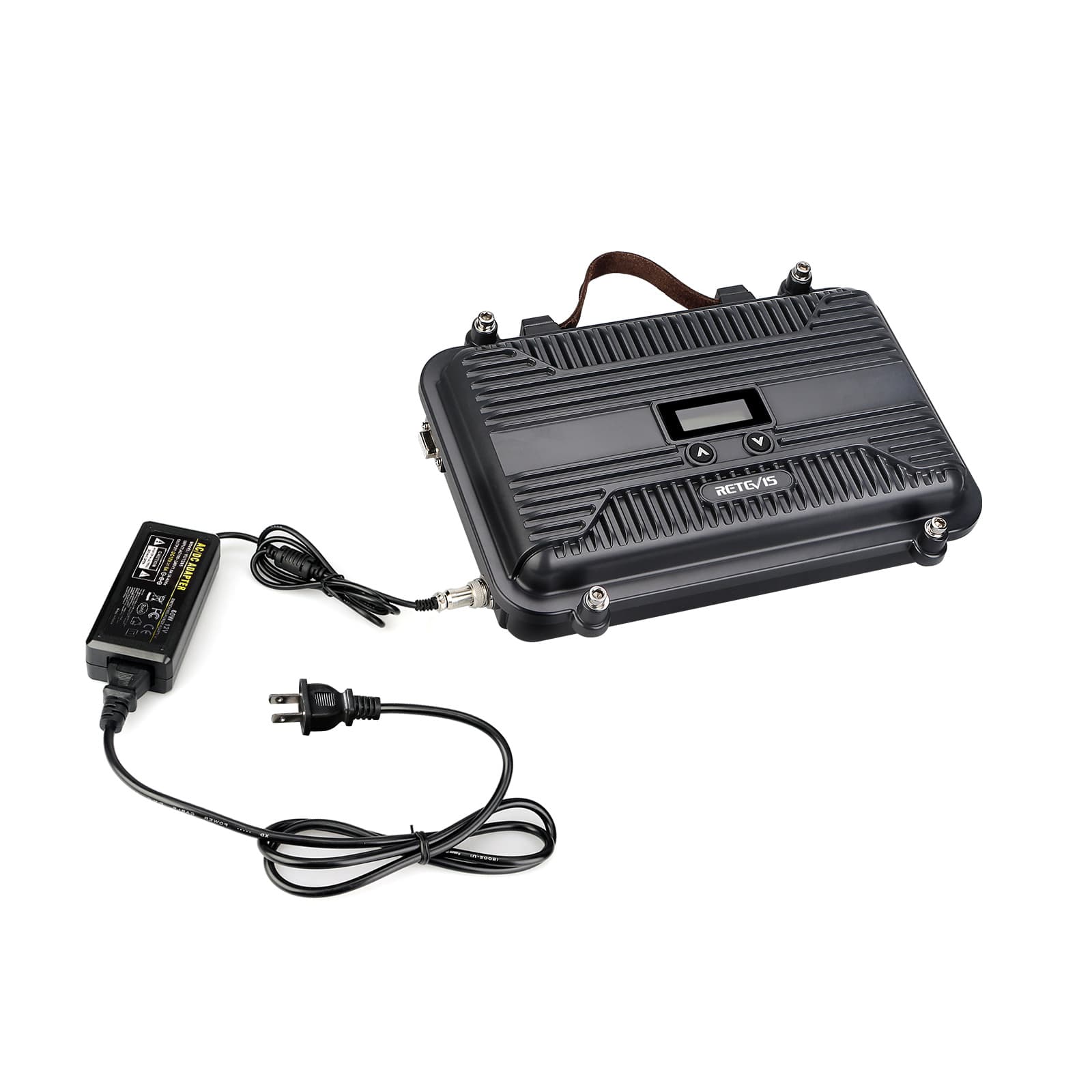

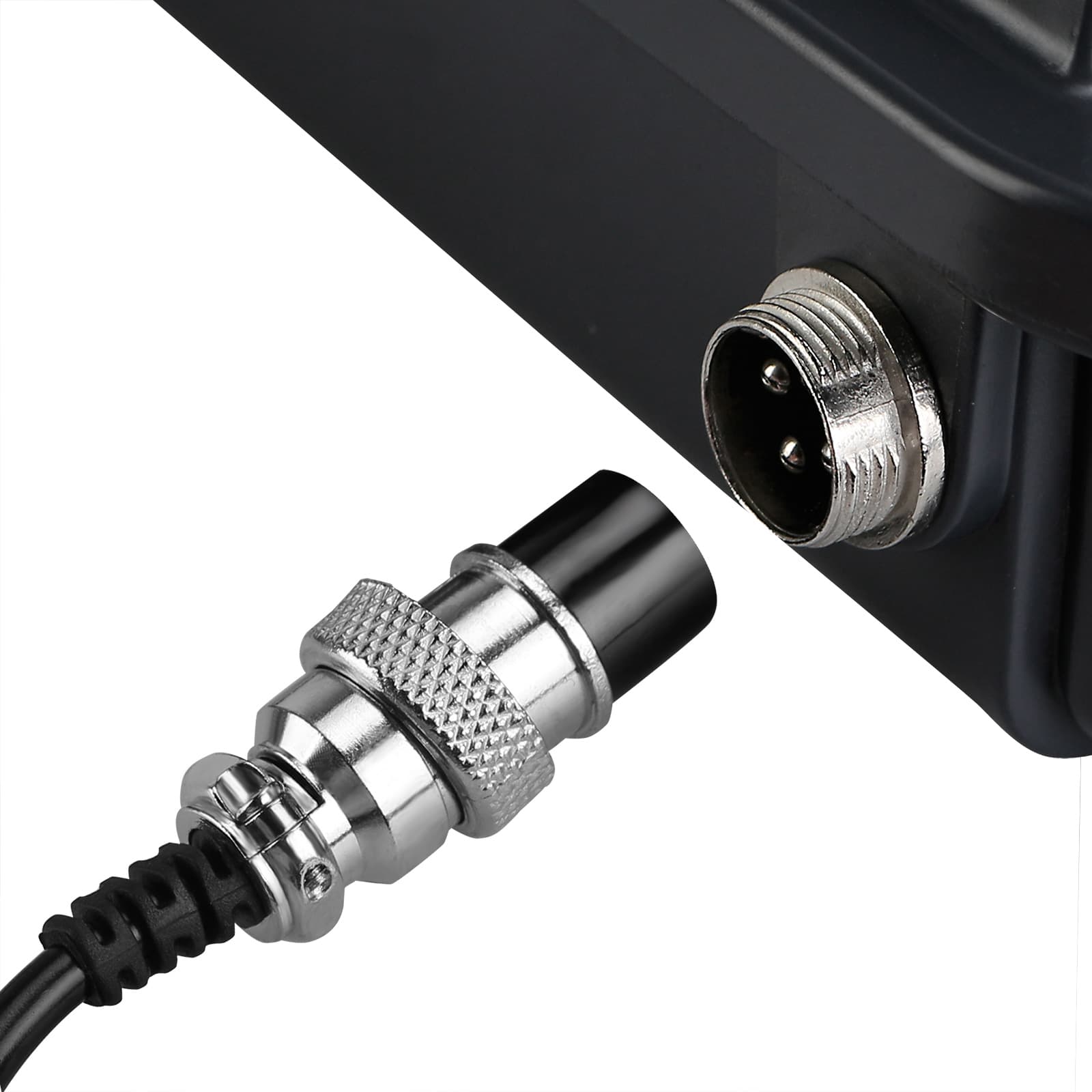

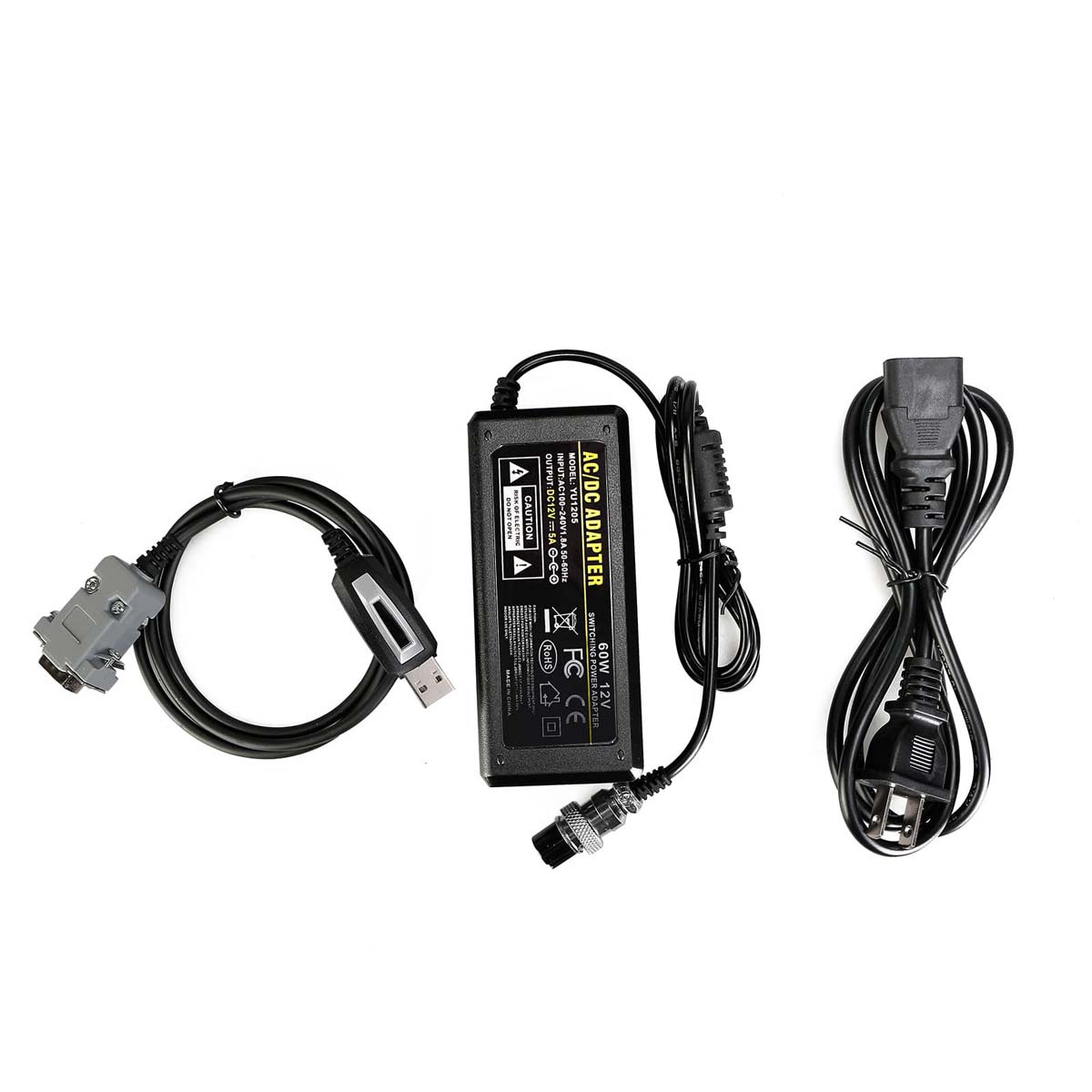

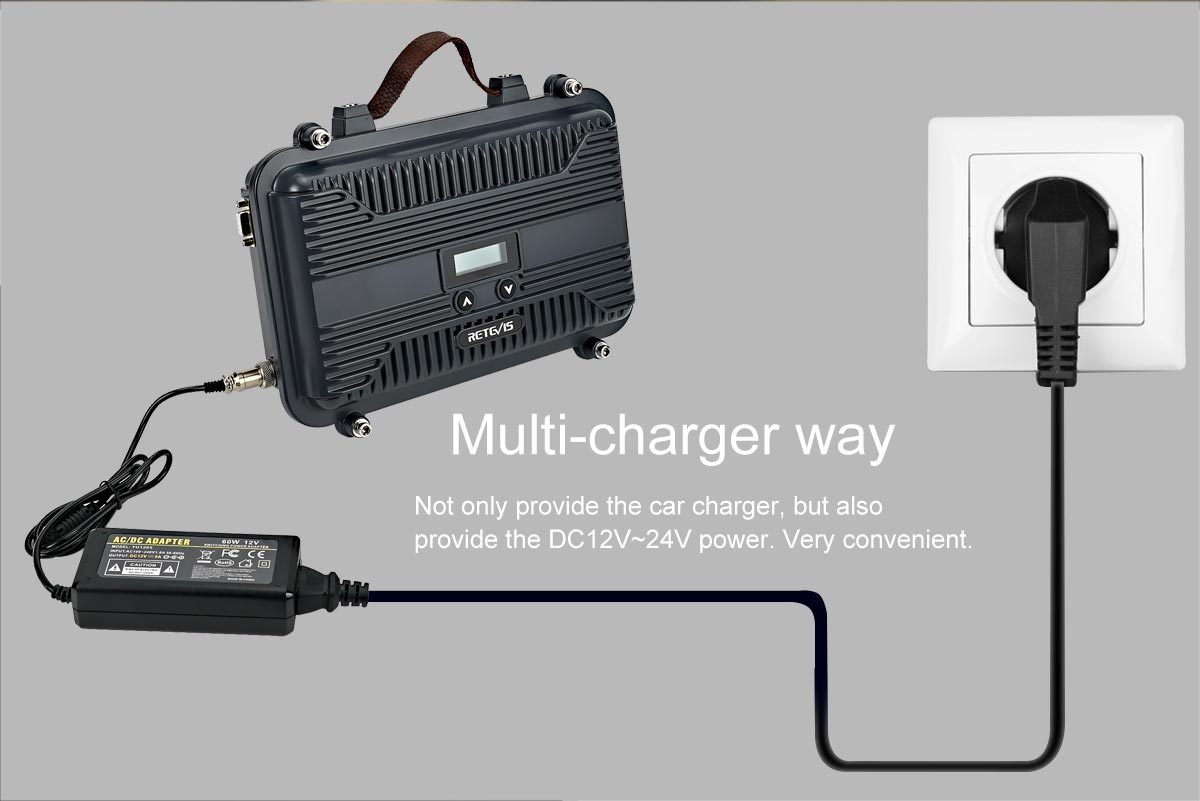

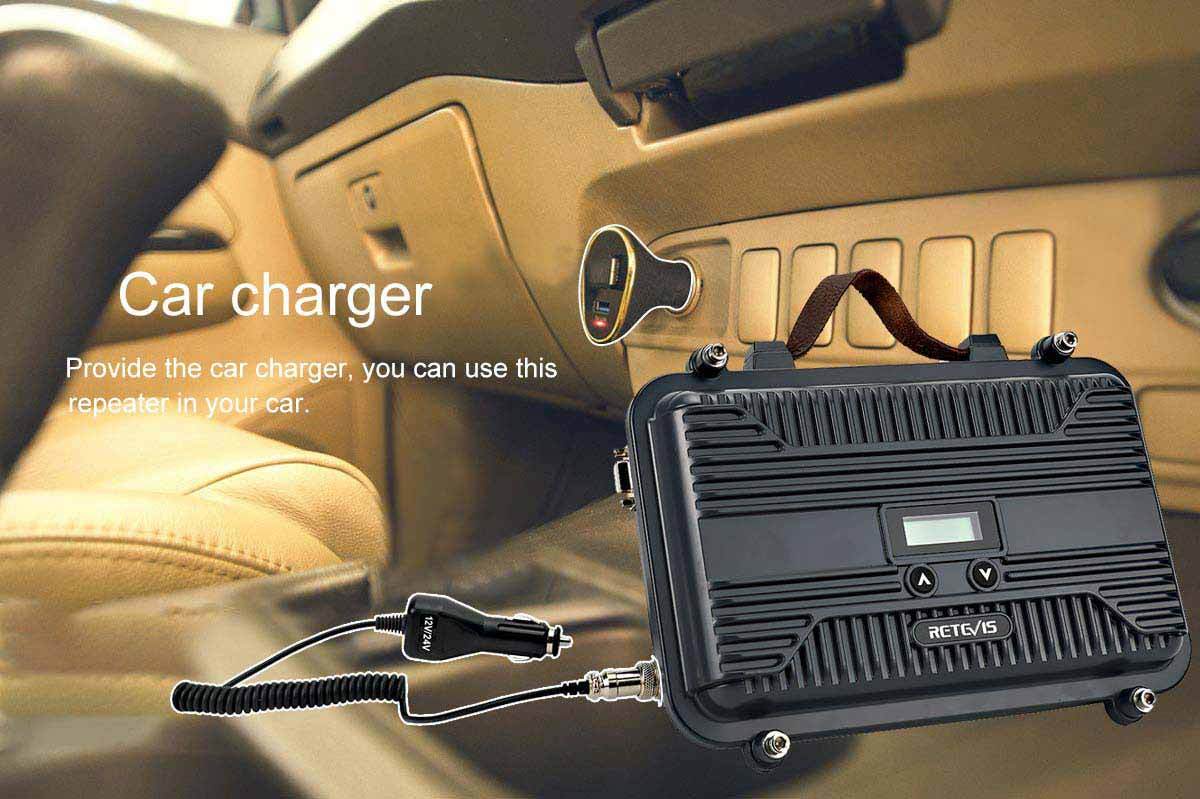

Powered via 12V-24V DC, vehicle outlets, or solar panels, the RT97P ensures reliable operation.
Description
Spec
Main Technological Specification
| Frequency | TX 463.3125MHz / RX 453.3125MHz |
| Standard form | DMR/FM/DMR+FM |
| Channel Capacity | 8CH |
| Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | DC12V-24V |
| Antenna Impedance | 50Ω |
| Frequency Stability | ±0.5ppm |
| Dimension | 280×210×75mm |
| Weight | 2624g |
Transmitter
| Output power | 10W |
| Transmission Current | ≤2.5A |
| FM Modulation | 11kφF3E/16kφF3E |
| Digital modulation | 4FSK |
| Modulation Distortion | ≤5% |
| FM Noise | ≥40dB（25KHz）/≥35dB（12.5KHz） |
| Adjacent Channel Power | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Audio Response | +1～-3dB |
| DMR Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver
| Analog receive Sensitivity | 0.25μν（12dB）SINAD |
| Digital receive sensitivity | -120dBm (BER≤5%) |
| Adjacent channel selectivity | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Inter-modulation | ≥60dB/≥65dB |
| Signal imitation | ≥70dB |
| Audio Response | +1～-3dB |
| Audio distortion | <5% |
| FM Noise | ≥45dB（25KHz）/≥40dB（12.5KHz） |
