Description

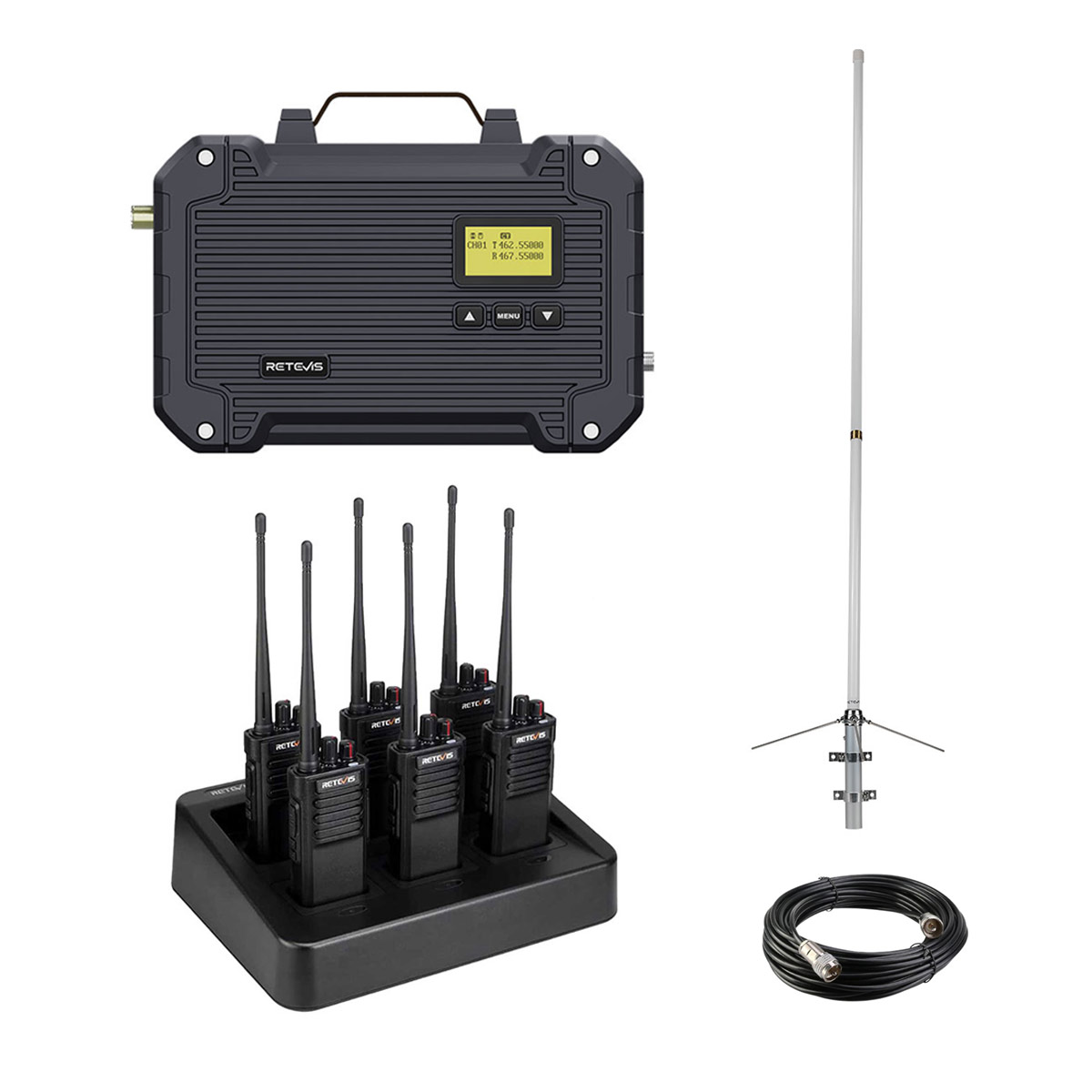

RT97L 25W GMRS Repeater and RT29 IP67 Radio Kit

A Complete Long Range Radio Communication System

The RT97L 25W repeater extends radio range significantly, ensuring stable communication even across multi-story buildings, warehouses, and outdoor job sites. Its compact, portable design makes it easy to deploy anywhere—ideal for both temporary and fixed installations. The RT29 radios, known for their high power, rugged build, high audio clarity, and 3200mAh strong battery life, keep teams connected throughout long work shifts. The 6-way charger allows for efficient group charging, minimizing downtime and improving team readiness.

This radio repeater and handheld radio bundle is perfectly suited for construction sites, logistics operations, security teams, and event management, delivering reliable, clear, and long-distance communication that keeps every member in sync and operations running smoothly.

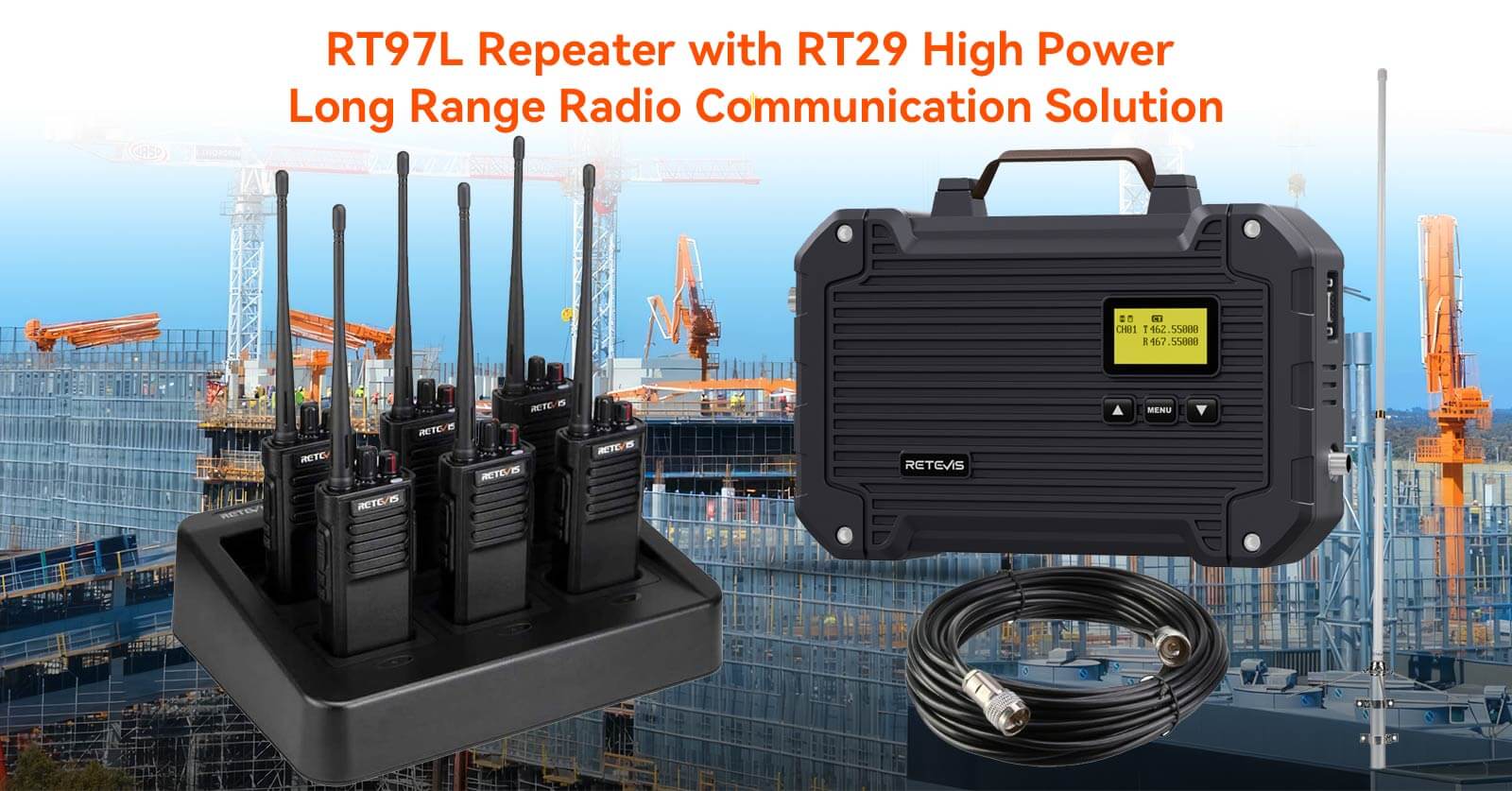

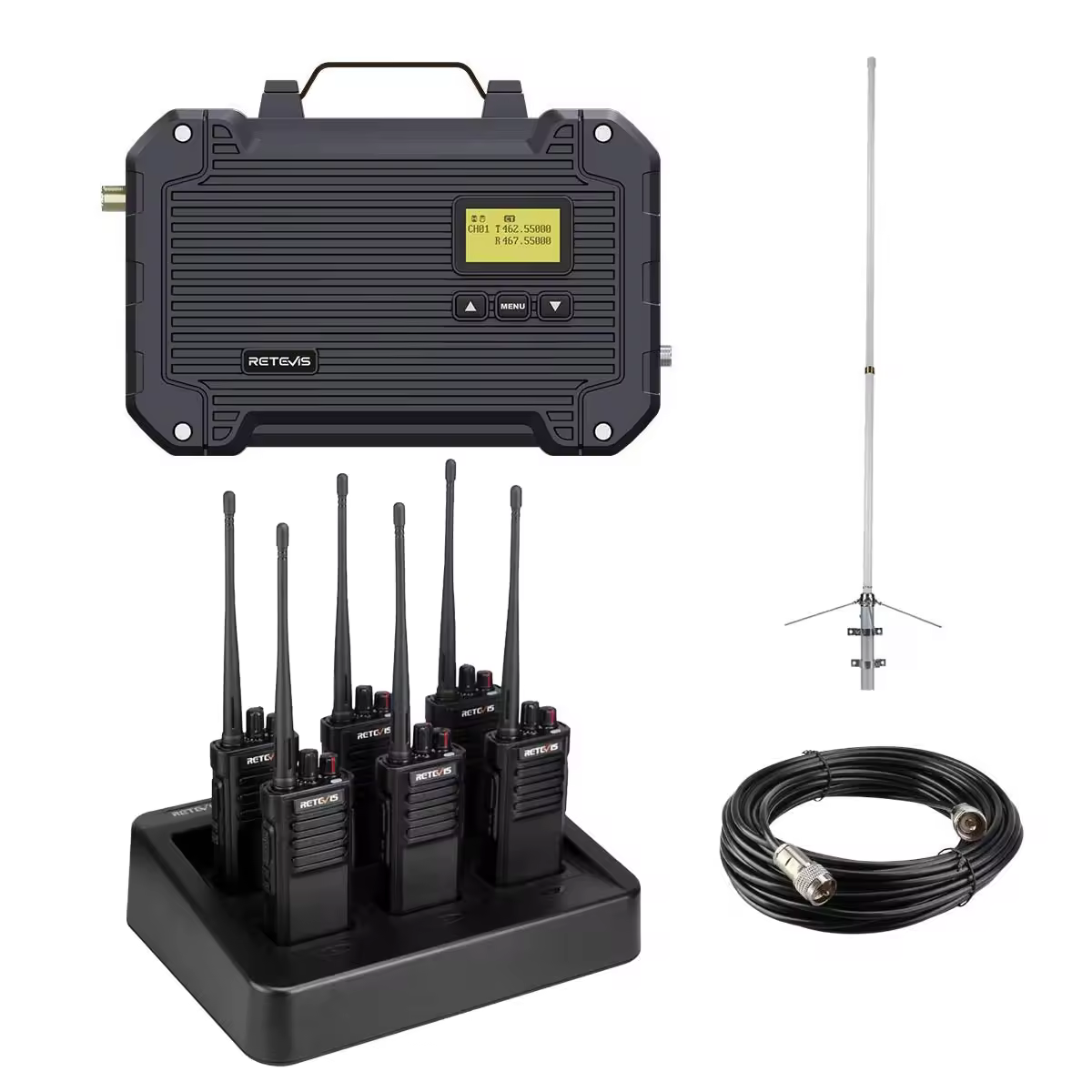

Retevis RT29 long range radio with RT97L repeater

Solve Dead Zones Across Construction Sites, Farms, and Events

Three Challenges This Kit Removes

Dead zones in multi-story buildings and warehouses: the RT97L 25W repeater boosts radio signals across large or obstructed areas, so crews in basements, stairwells, and steel structures stay connected instead of walking outside to make a call.

Long-range communication gaps: RT29 radios pair high transmit power with high-gain antennas, keeping messages audible across construction sites, industrial plants, and large outdoor areas.

Team coordination inefficiencies: because every call repeats through one repeater, dispatch and field teams hear the same traffic at the same time, which speeds decisions and emergency response.

RT29 Long Range Radio: Rugged Handhelds for Hard Work

Long-Distance Communication That Gets Through

Each RT29 pairs a high-power transmitter with a high-gain antenna, a combination that carries messages between high-rise buildings and across rugged terrain. Where consumer walkie-talkies fade after a few walls, the RT29 is built to keep site-wide calls clear.

Rugged, Waterproof, and Drop-Tested Design

The RT29 IP67 housing is dustproof and survives immersion in 1 meter of water for 30 minutes, and the casing shrugs off drops and tumbles on concrete. Rain, mud, and washdowns are part of the job - the radio keeps working through them.

3200mAh Battery for Full-Shift Operation

A 3200mAh lithium battery carries the RT29 through long shifts, and the six-way charger recharges the whole fleet overnight so every radio starts the day full. No more morning scramble over whose radio still has power.

User-Friendly and Safety-Ready Controls

Large buttons work with gloves on, and the press-less keypad avoids accidental key presses in the field. A local emergency alert warns nearby teammates at critical moments - a feature safety managers on construction and industrial sites ask for by name.

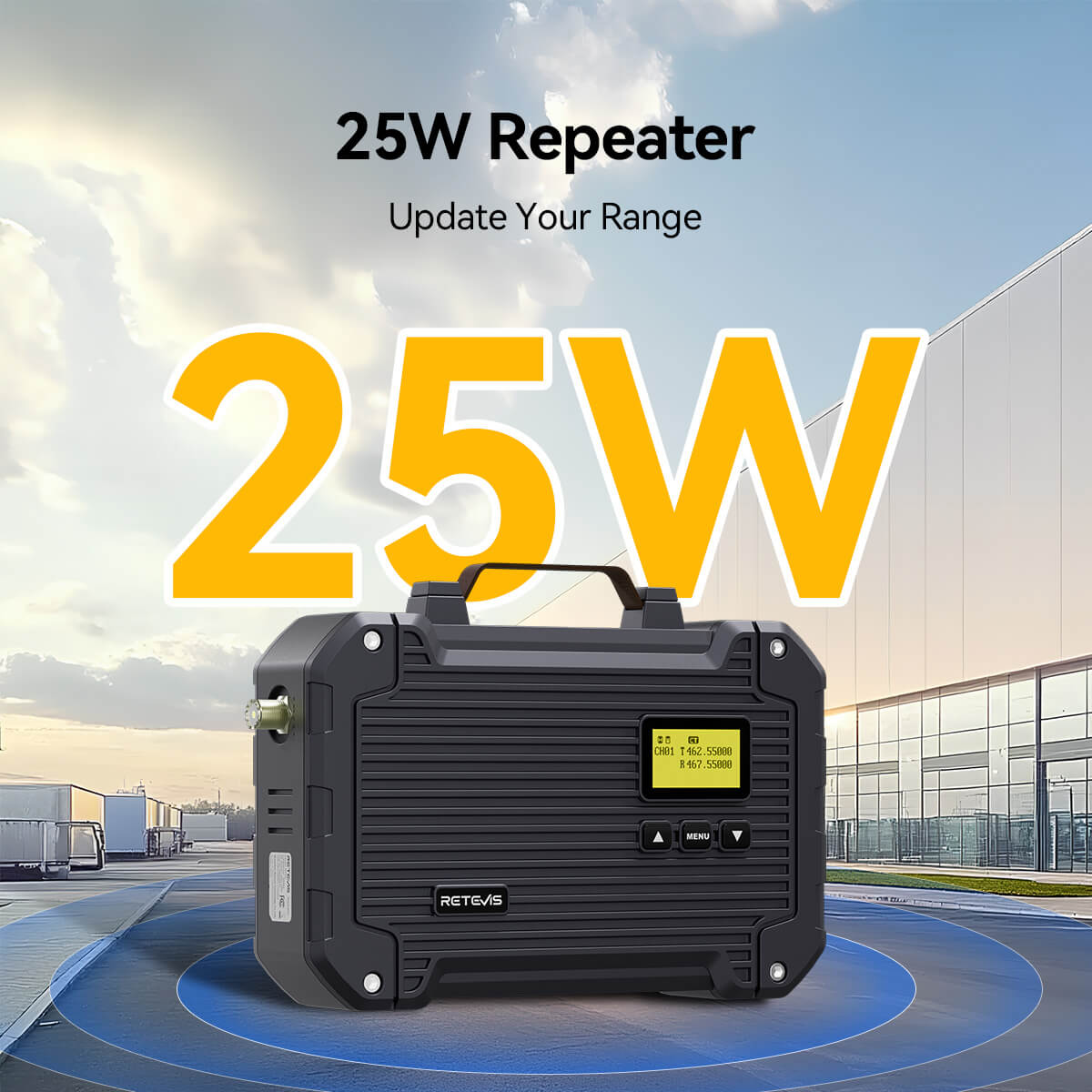

RT97L Portable 25W Repeater: High Power, Backpack Size

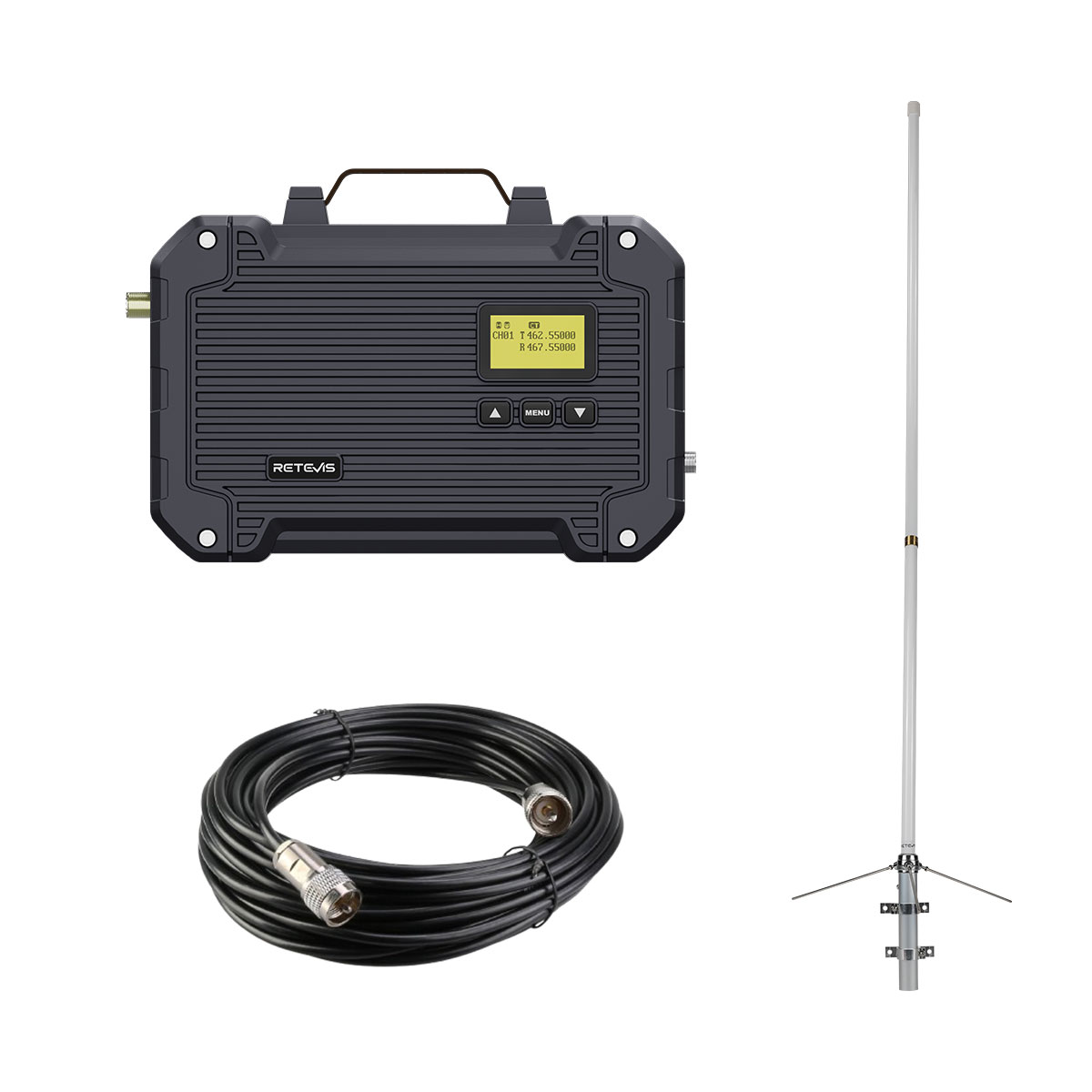

25W High Power with FRP Antenna Kit

The RT97L outputs 25W (15-22W after the built-in duplexer) and ships with an FRP antenna and coaxial cable, pushing strong signals across farms, buildings, and campuses while minimizing dead zones.

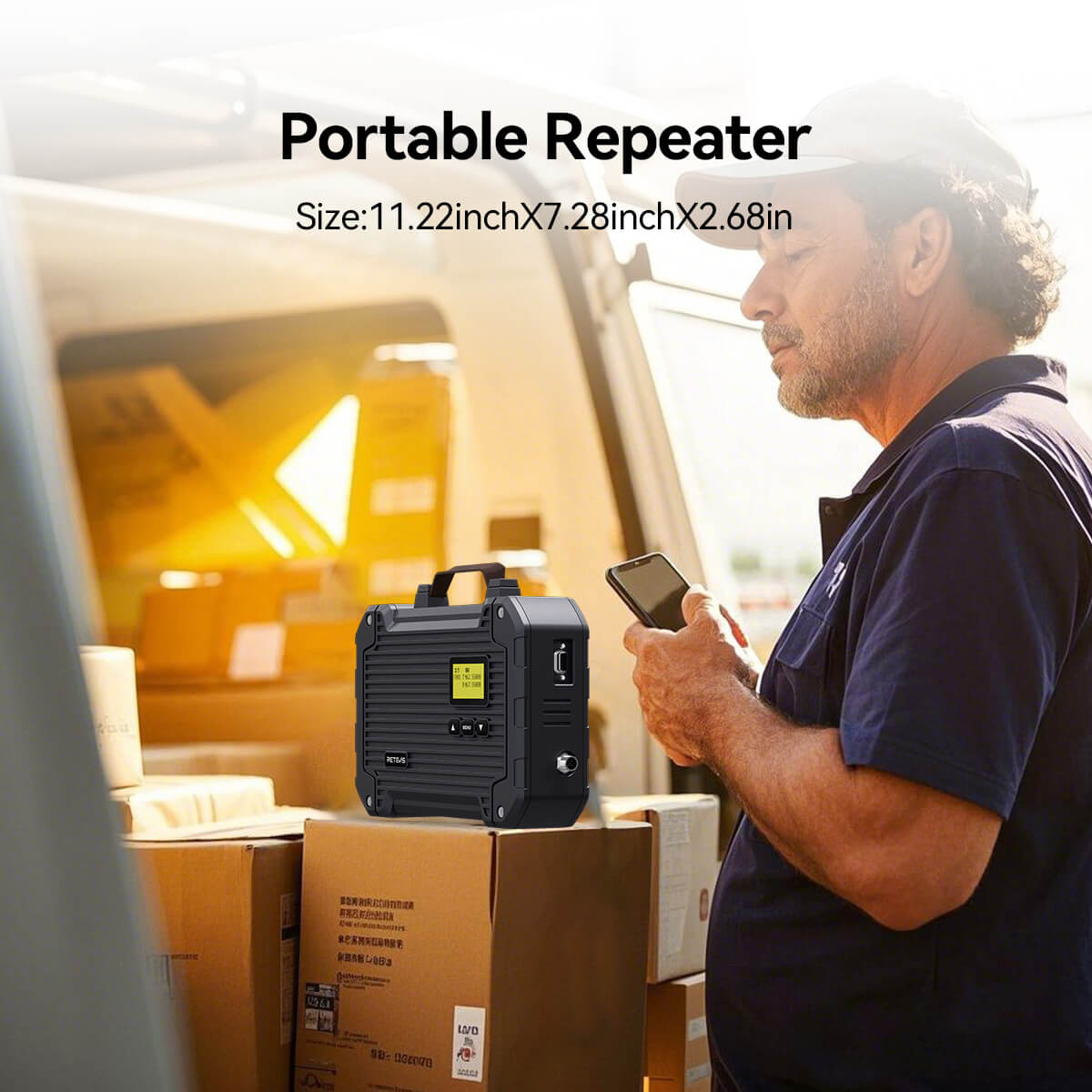

Portable, Lightweight, and Fast to Deploy

At 11.22 x 2.68 x 7.28 inches and 7.86 lb, the RT97L fits in a backpack and deploys in minutes - temporary event coverage one weekend, a fixed site the next. Its portability is exactly why event coordinators and public safety volunteers keep choosing it.

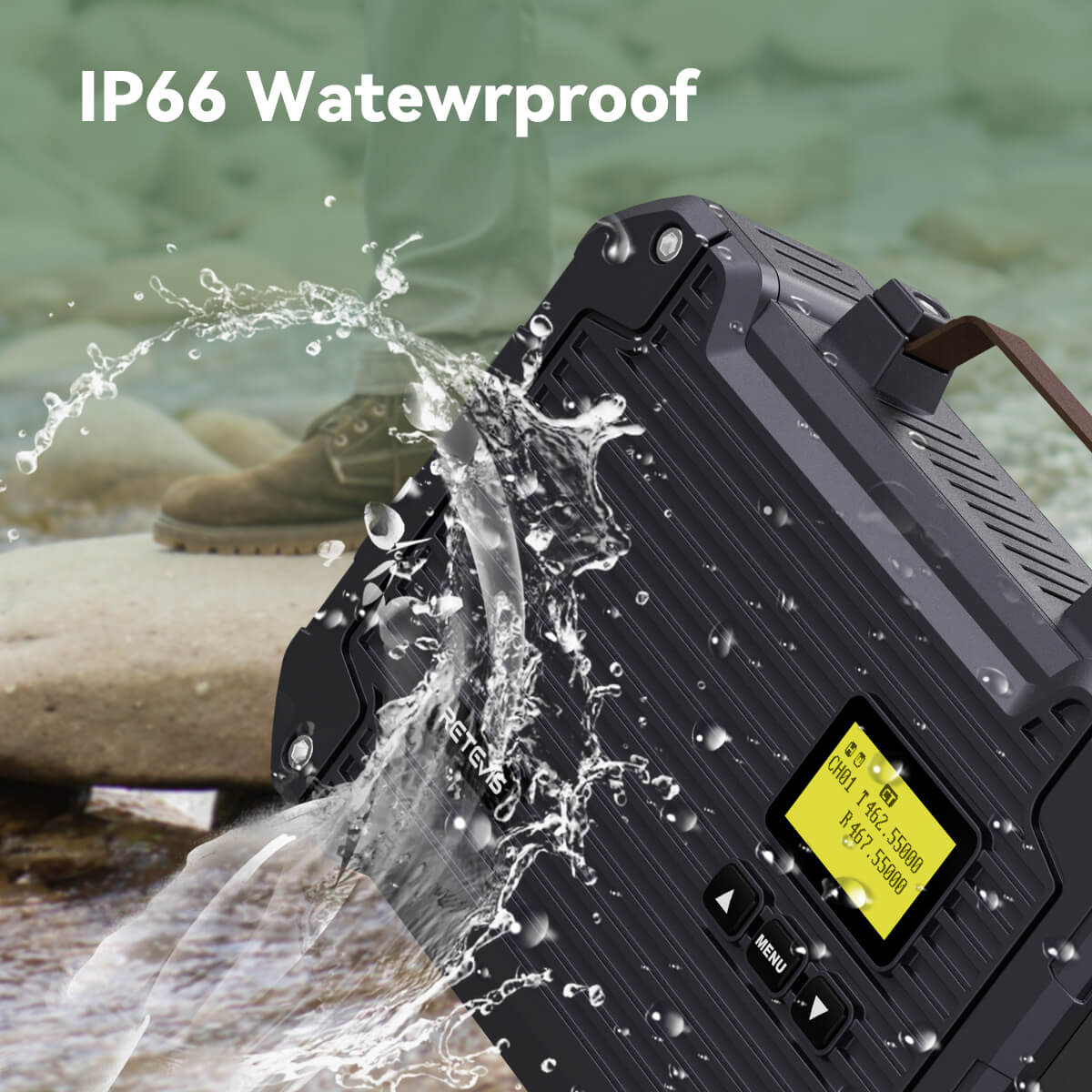

IP66 Waterproof for Outdoor Duty

The IP66 rated housing keeps rain and dust out, so the repeater can live on a rooftop, a tower base, or an open-field mast through storm season.

16 Channels with CTCSS/DCS Tone Control

Sixteen channels and 50 CTCSS plus 210 DCS tones let you separate work groups, contractors, and events on one repeater without cross-talk, and channel lock prevents accidental reprogramming in the field.

Information at a Glance on the LCD

The LCD screen shows channel, power, and status at a glance, so a volunteer or a new operator can verify the repeater is healthy without connecting a computer.

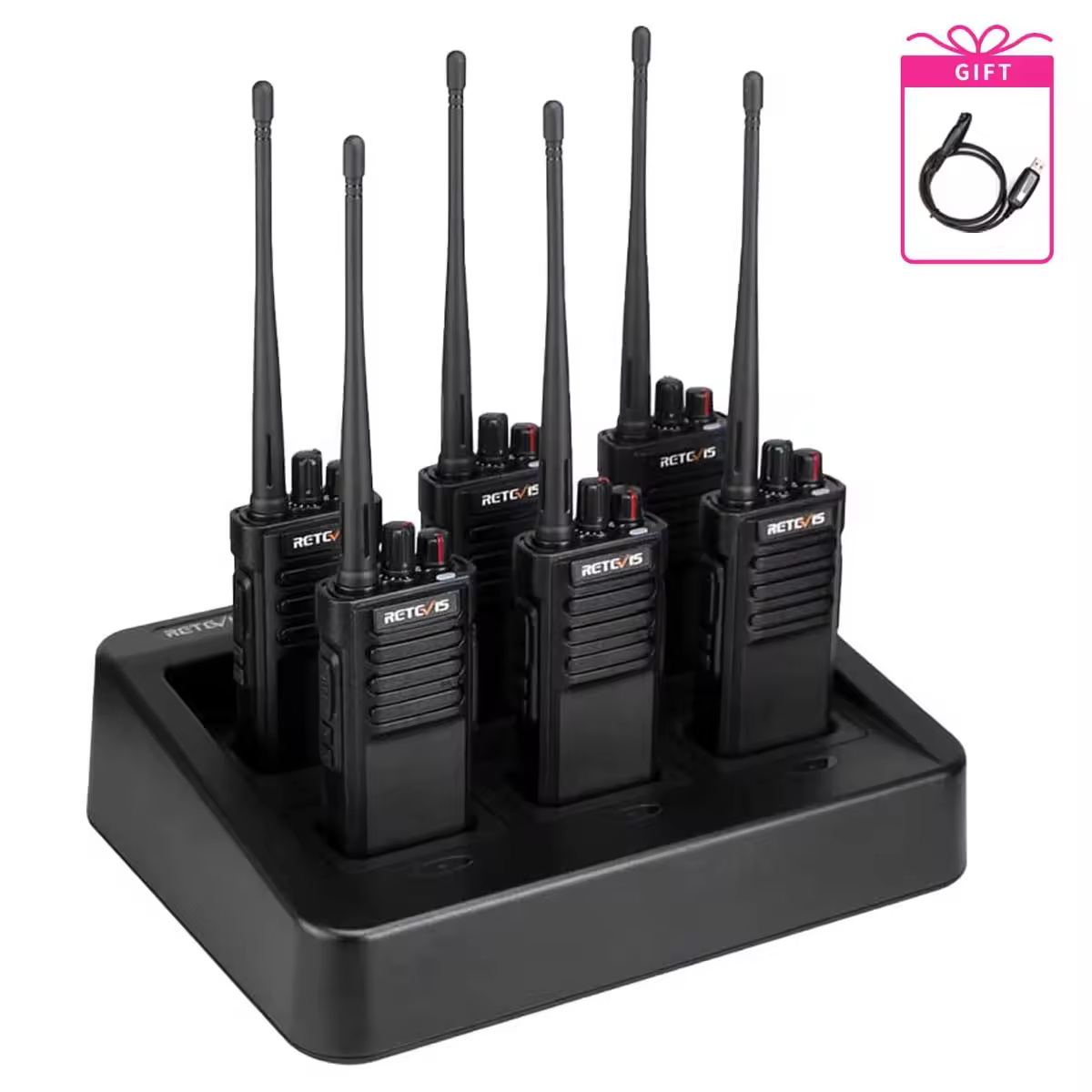

Six-way Charger

Efficiently charges all six radios at once, reducing downtime and keeping teams ready for action.

With the RT97L 25W portable repeater and RT29 long-range radios, your team can overcome communication dead zones, maintain clear and reliable contact across complex construction sites, manufacturing plants, and security operations. This 25 Miles radio communication bundle ensures long-range connectivity, durable performance, and easy deployment, keeping your operations running smoothly and your team safe and coordinated—whether in multi-story buildings, noisy warehouses, or outdoor job sites.>

Spec

Mode	RT97L:/
Frequence Band	RT97L:GMRS
Transmit Frequency（TX）	RT97L:UHF: 462-467MHz
Receive Frequency(RX)	RT97L:UHF: 462-467MHz
Power	RT97L:25W
Channel Number	RT97L:16
Battery Capacity	RT97L:/
Operation Temperature	RT97L:-30°C to +60°C
Encryption Type	RT97L:50 CTCSS/210 DCS
Weight	RT97L:3563g
Size	RT97L:28518568mm
Additional Features	RT97L:1.Channel Lock； 2.Scan Channel； 3.Volume Set； 4.Modem Set； 5.Squelch Level； 6.Repeater Delay； 7.High/Low Power Switching； 8.Backled Adjustment； 9.Low Temperature Mode； 10.Init Option； 11.Software Version；

RT97L Repeater Specification

Item	Specification
Model	RT97L
Output Power	Factory Output: 22–25 WAfter Duplexer: 15–22 W
Frequency Range	GMRS:462.550–462.725 MHz (TX)467.550–467.725 MHz (RX)Customizable:UHF: 400–470 MHzVHF: 136–174 MHz
Channel Capacity	16 Channels
Bandwidth	20 kHz / 12.5 kHz
Audio Distortion	≤ 5%
Frequency Stability	±2.5 ppm
Maximum Frequency Deviation	4.5 kHz / 2.5 kHz
Modulation Mode	FM
Adjacent Channel Selectivity	≥ 65 dB
Transmit Current	≤ 6 A
Operating Voltage	15 V DC
Antenna Impedance	50 Ω
Operating Temperature	-30 °C ~ +60 °C
Dimensions	285 × 185 × 68 mm
Weight	3563 g

RT29 Handheld Radio Technical Specification

Item	Specification
Channel Number	16
Working Voltage	7.4 V DC
Battery Capacity	3200 mAh (Li-ion)
Dimension (With Battery, Without Antenna)	151 × 58 × 38 mm (5.9 × 2.3 × 1.5 in)
Weight (With Battery & Antenna)	335 g (11.8 oz)
Audio Distortion	＜ 5%
Frequency Stability	±2.5 ppm
Max Frequency Deviation	≤ 2.5 kHz
Spurious Emission	≤ 7 μW
Modulation Mode	11KΦF3E
Reference Sensibility	≤ 0.3 μV
Squelch On Sensibility	≤ 0.25 μV
Adjacent Channel Selectivity	≥ 65 dB
Spurious Response	≥ 55 dB
Intermodulation	≥ 60 dB
Current	≤ 1.5 A

FAQ

The bundle pairs the RT97L, a 25W full-duplex GMRS portable repeater with 16 channels, CTCSS/DCS tones, an LCD display, and an IP66 rating, with six RT29 IP67 long range radios that add a 3200mAh battery, high-gain antennas, and glove-friendly controls. The six-way charger recharges the whole fleet overnight, and the repeater runs on DC12-15V from wall power, a vehicle outlet, or a solar setup.

Under ideal conditions - the repeater mounted high and in the open with a quality external antenna - this system is rated for up to 25 miles, and field results of 15-20 miles are common in open terrain. Dense forest, hills, and steel buildings cut that down quickly, and antenna height, gain, and feed-line loss matter more than wattage. Tell us your terrain and site plan and we will help you set realistic coverage expectations.

It depends on your frequencies and region. Stock RT97L channels transmit on GMRS, which requires an FCC GMRS license in the United States, and business use on UHF may require a Part 90 license instead. If you order the customizable version programmed to your own frequencies, share your country and channels with our team and we will confirm the licensing path before you order.

Yes. Beyond the 16 stock GMRS channels, the RT97L is offered in a customizable version that can be set up for UHF 400-470 MHz or VHF 136-174 MHz, with the duplexer factory-tuned to your frequency pair. Send us your TX/RX pair and we will confirm feasibility and programming before shipment.

The RT97L is a full-duplex repeater with one receive and one transmit pair, so it relays one channel at a time: group 1 on channel 1 and group 2 on channel 5 would each need their own turn or their own repeater. CTCSS/DCS tones can still separate sub-teams on the same channel so they do not hear each other during routine work.

Yes. Retevis publishes a dual daisy-chaining RT97L setup that links two repeaters to extend coverage between sites, and public safety and SAR teams have used this configuration to join two coverage areas. Contact our support team with your site layout and we will help you plan the link.

The RT97L repeater carries an IP66 rating, which keeps heavy rain and dust out during outdoor duty, while the RT29 handhelds are IP67: dustproof and able to survive 1 meter of water for 30 minutes. Between them, the system keeps talking through storm season, washdowns, and muddy jobsites.

Each RT29 runs a 3200mAh lithium battery sized for full-shift operation, and the six-way charger puts all six radios back to full overnight, so a fresh radio is on the dock every morning. For exact talk and standby hours on your power setting, our support team can confirm details for your configuration.

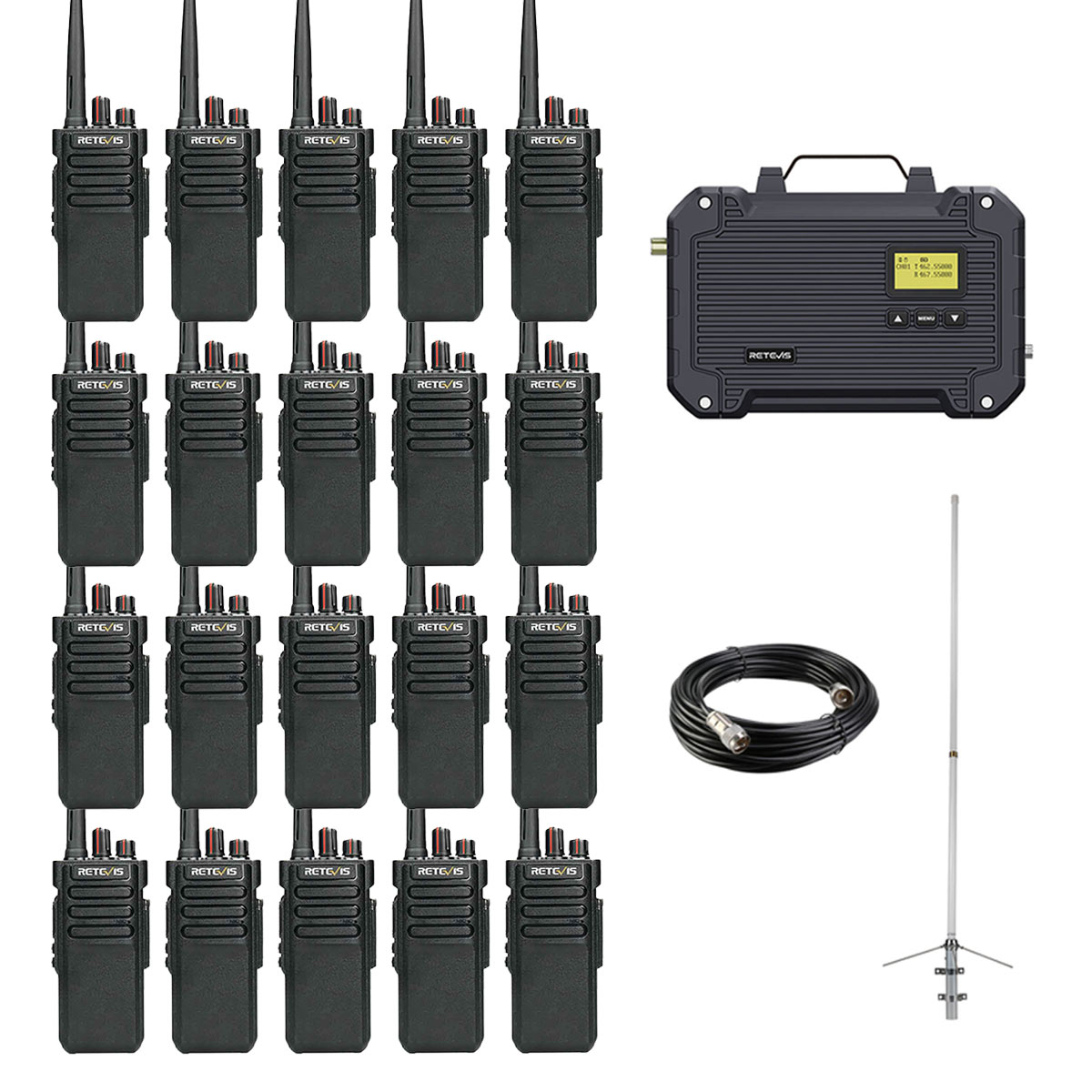

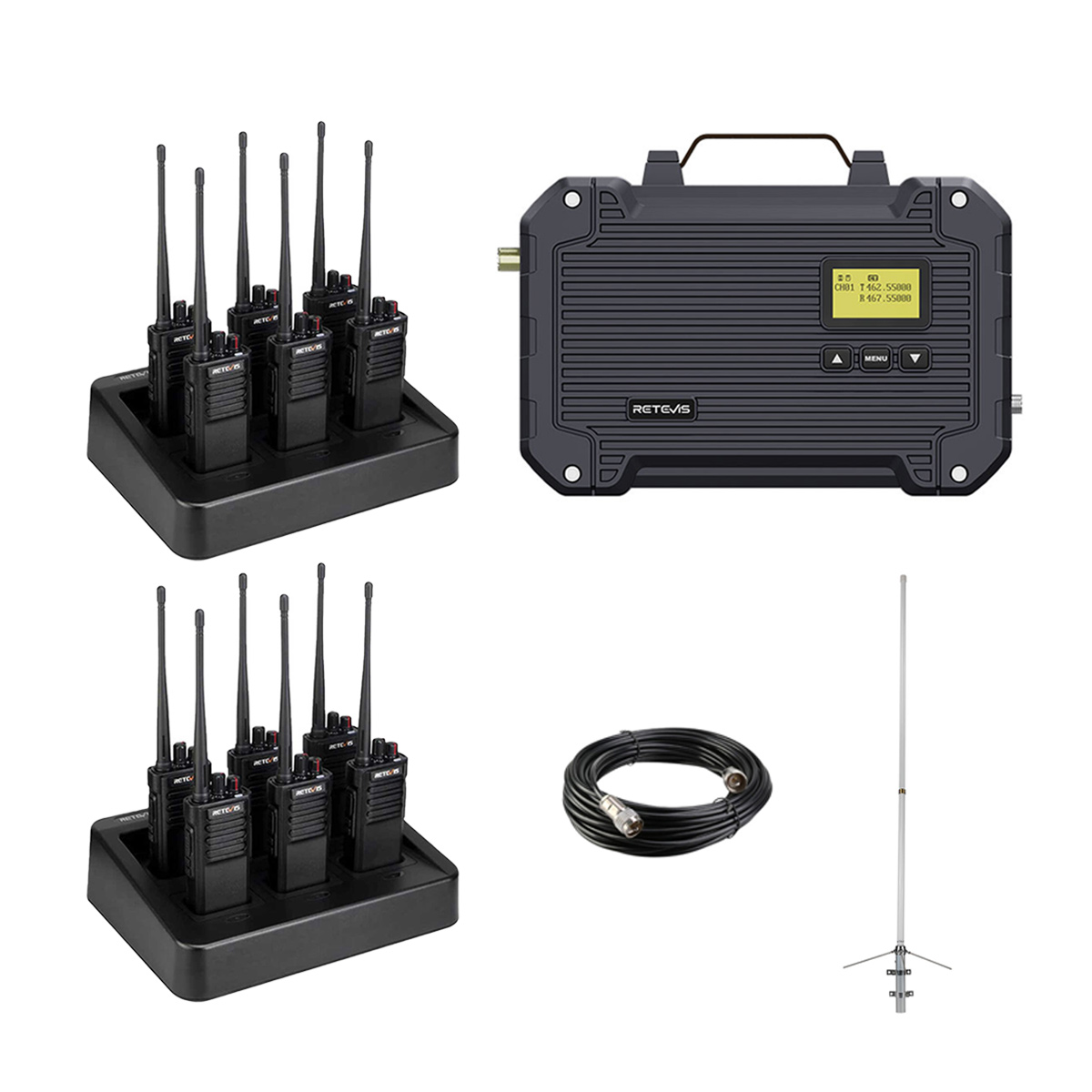

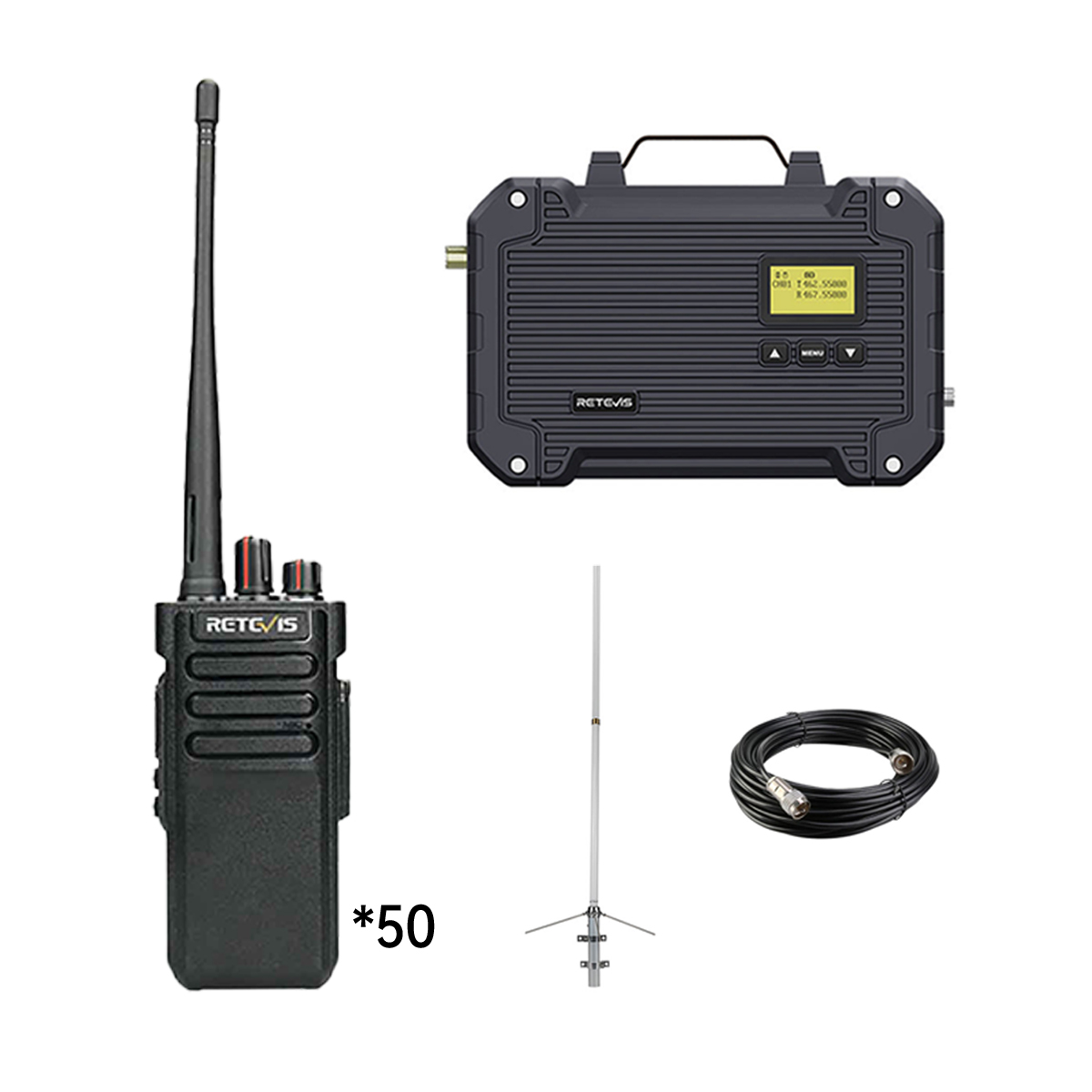

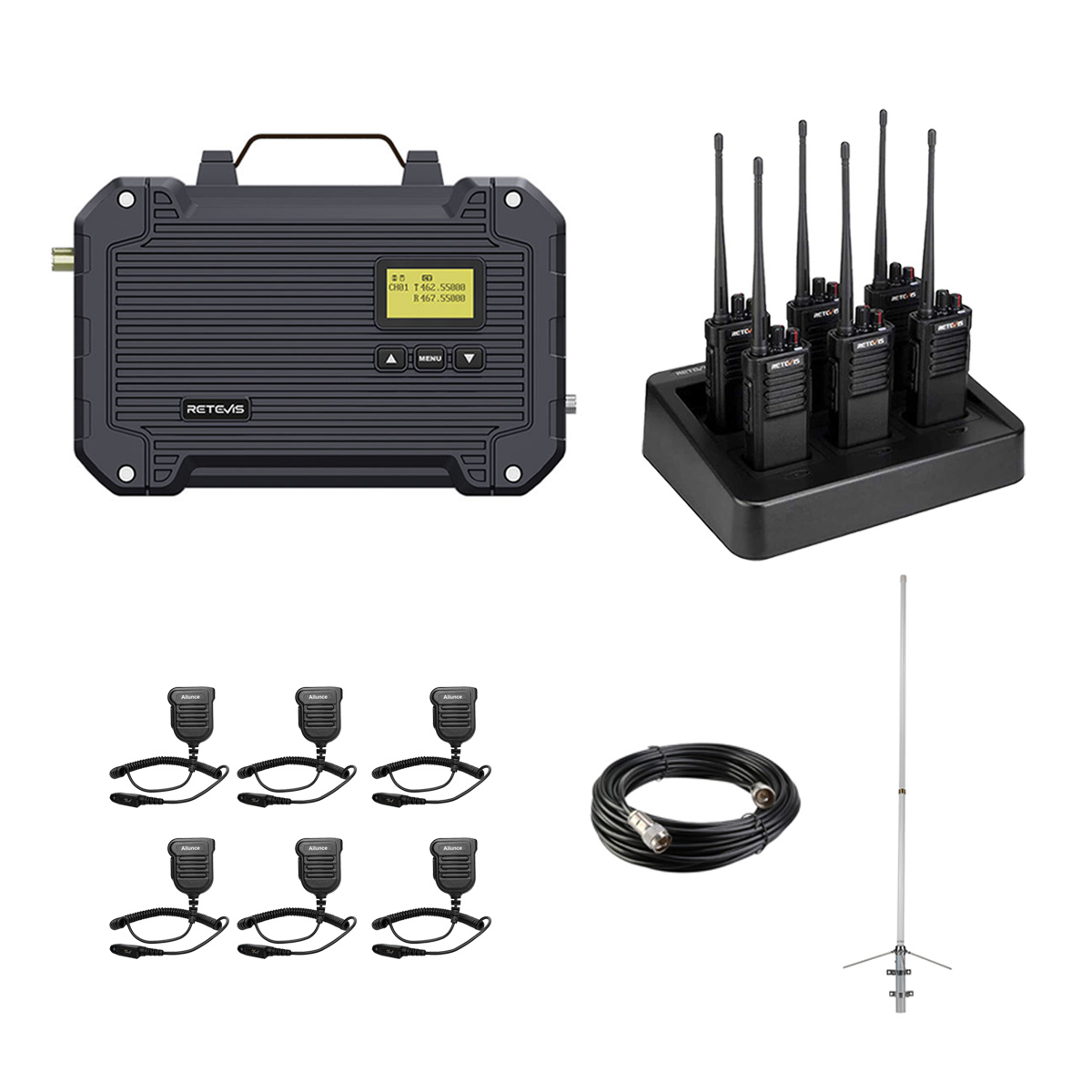

Bundles scale from 6 to 50 RT29 IP67 radios: the 6-pack adds one six-way charger, the 12-pack includes two six-way chargers, and a mic-upgrade tier adds 6 IP67 speaker mics. Every bundle includes the RT97L repeater with its FRP antenna, coaxial cable, AC adapter, and cigarette lighter plug. See the package details table above for each tier.

Yes. The RT97L runs on DC12-15V and ships with both an AC-to-DC adapter and a cigarette lighter cable, so you can power it from wall power, a vehicle outlet, or a battery bank and solar panel at an off-grid repeater site. A solar panel is not included in the package.

The inquiries we answer most come from construction and industrial site managers, event coordinators, security teams, community GMRS groups, and search and rescue volunteers. Police departments use it for special events, schools and churches for campus coordination, and farms for daily crew contact - anywhere teams need coverage beyond cell service and radios that survive the weather.

Both are portable full-duplex GMRS repeaters, but the RT97L outputs 25W (15-22W after the duplexer) against the RT97S 5W, carries 16 channels instead of 8, and adds an IP66 rating. The RT97S instead exposes a DB-9 port for external controllers. Choose the RT97L for raw coverage and custom frequency work; choose the RT97S for controller-based linking.

The repeater is portable at 7.86 lb and backpack-sized, so deployment is a matter of mounting the antenna, connecting the coax and power, and powering on - most teams are relaying within minutes of arrival. For fixed installs, the metal housing and IP66 rating let it live outdoors year-round.

Yes, as long as they are the UHF analog RT29 or other analog UHF radios programmed to match the RT97L frequency pair and CTCSS/DCS tones. Digital radios will not work on the analog RT97L. If you are mixing fleets, send us your radio list and we will confirm compatibility before you order.

The RT29 pairs high transmit power with a high-gain antenna specifically to punch through multi-story buildings, warehouses, and rugged terrain, which is why it is a staple on construction sites and in industrial plants. Paired with the RT97L repeater mounted high, handheld-to-handheld dead zones become repeater-boosted coverage.

Stock units transmit on GMRS repeater pairs (462.550-462.725 MHz TX with 467.550-467.725 MHz RX) across 16 channels. The customizable version can be factory-programmed for UHF 400-470 MHz or VHF 136-174 MHz. Tell us your target pair when ordering and our team will confirm the programming options.

The RT97L is set up through the Retevis programming software. For external controller projects - such as linking the repeater to a Raspberry Pi based Allstar node through a DB-9 interface - contact our support team with your plan: we will confirm the current interface pinout and what the stock firmware supports before you order.

Sixteen channels with 50 CTCSS and 210 DCS tone codes, plus channel lock, scan, squelch level adjustment, repeater delay, and high/low power switching configurable in the software. Tones let multiple work groups share one channel without hearing each other routine traffic.
