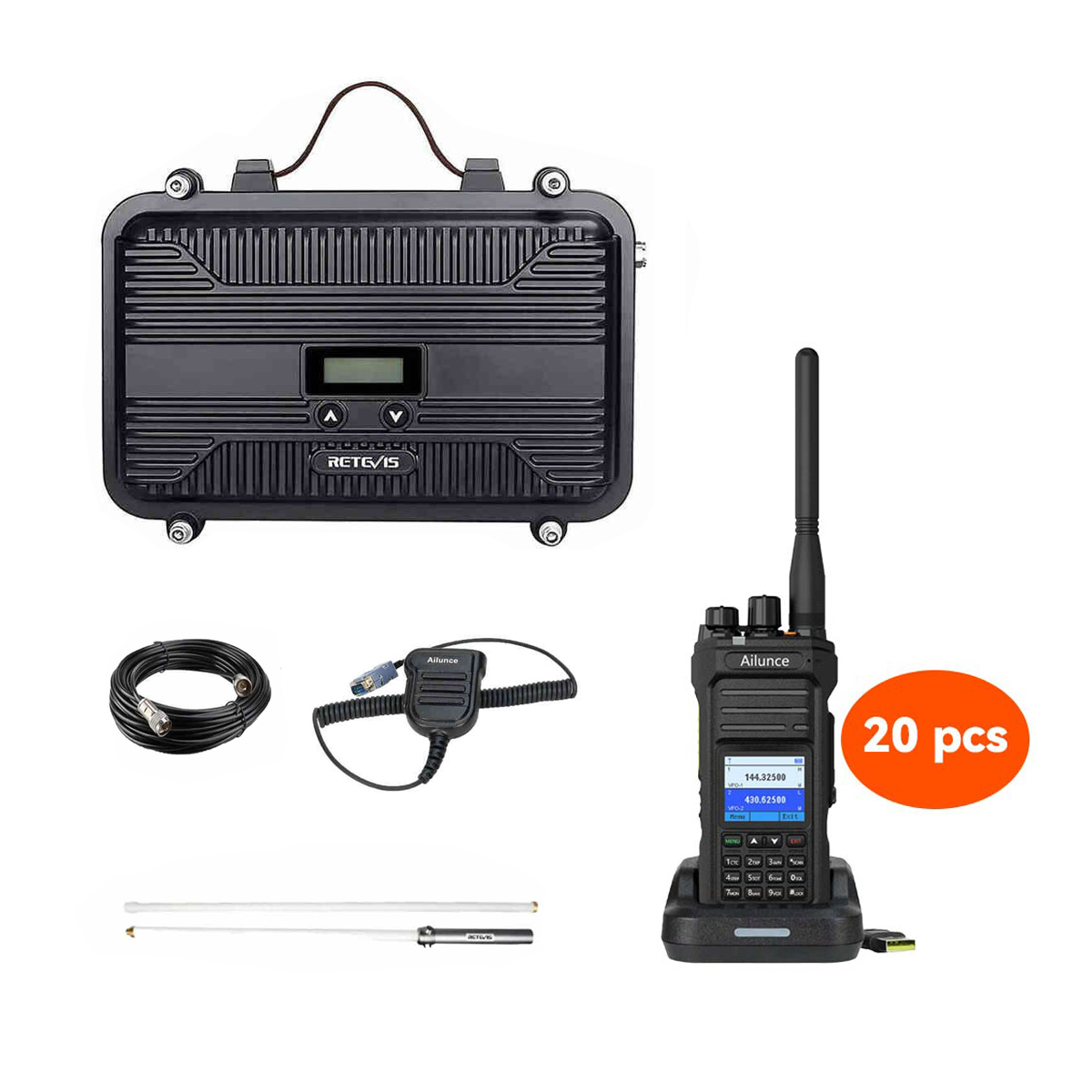

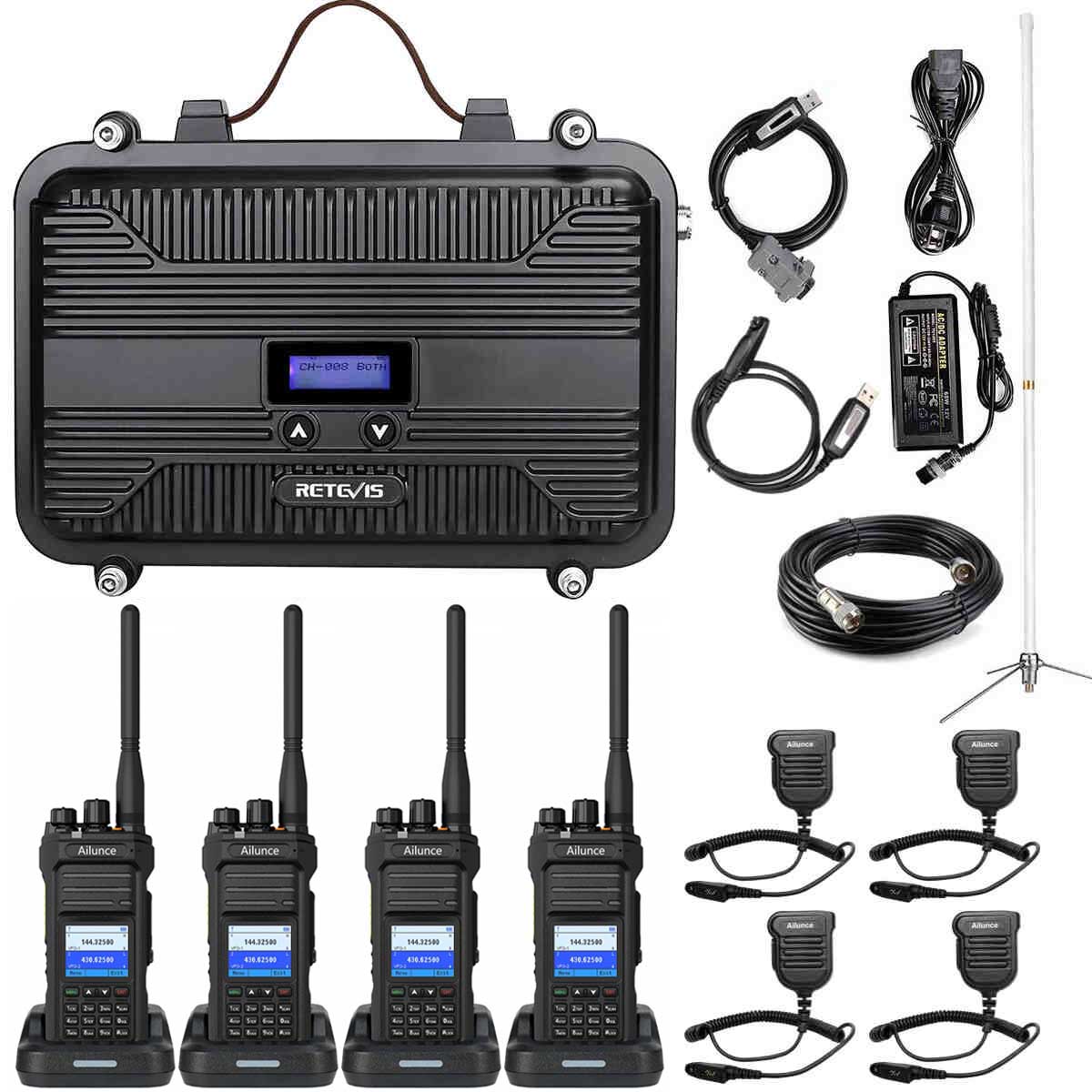

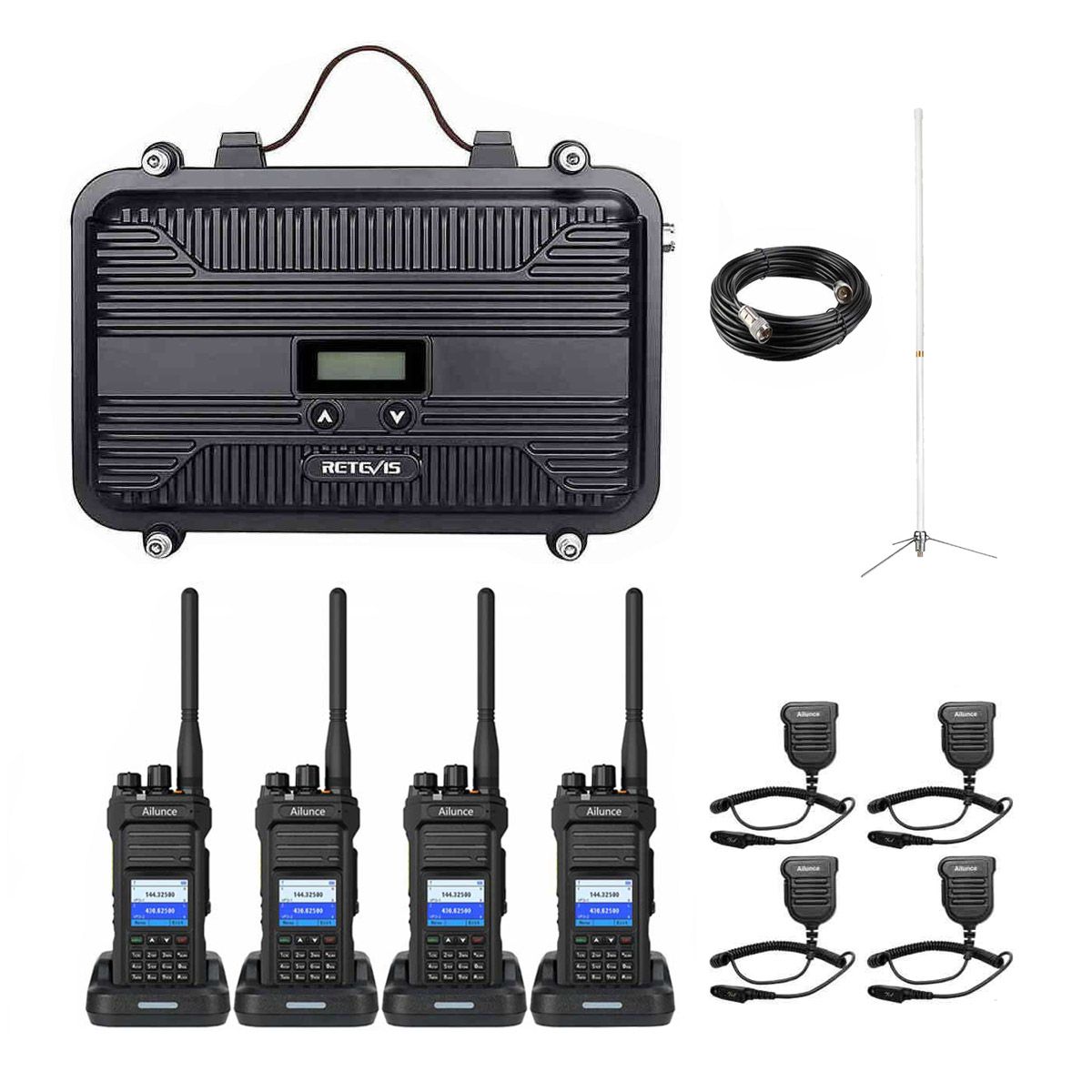

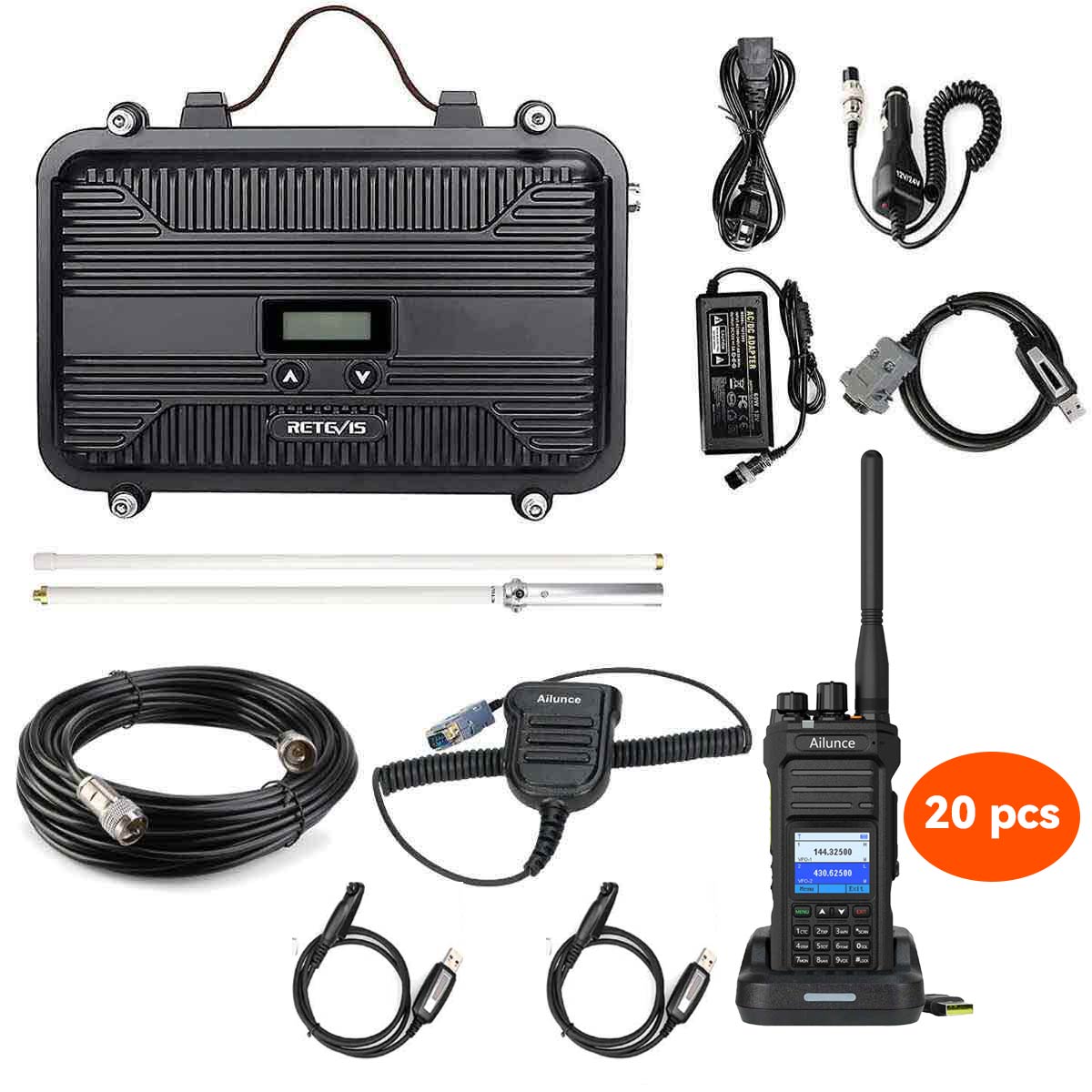

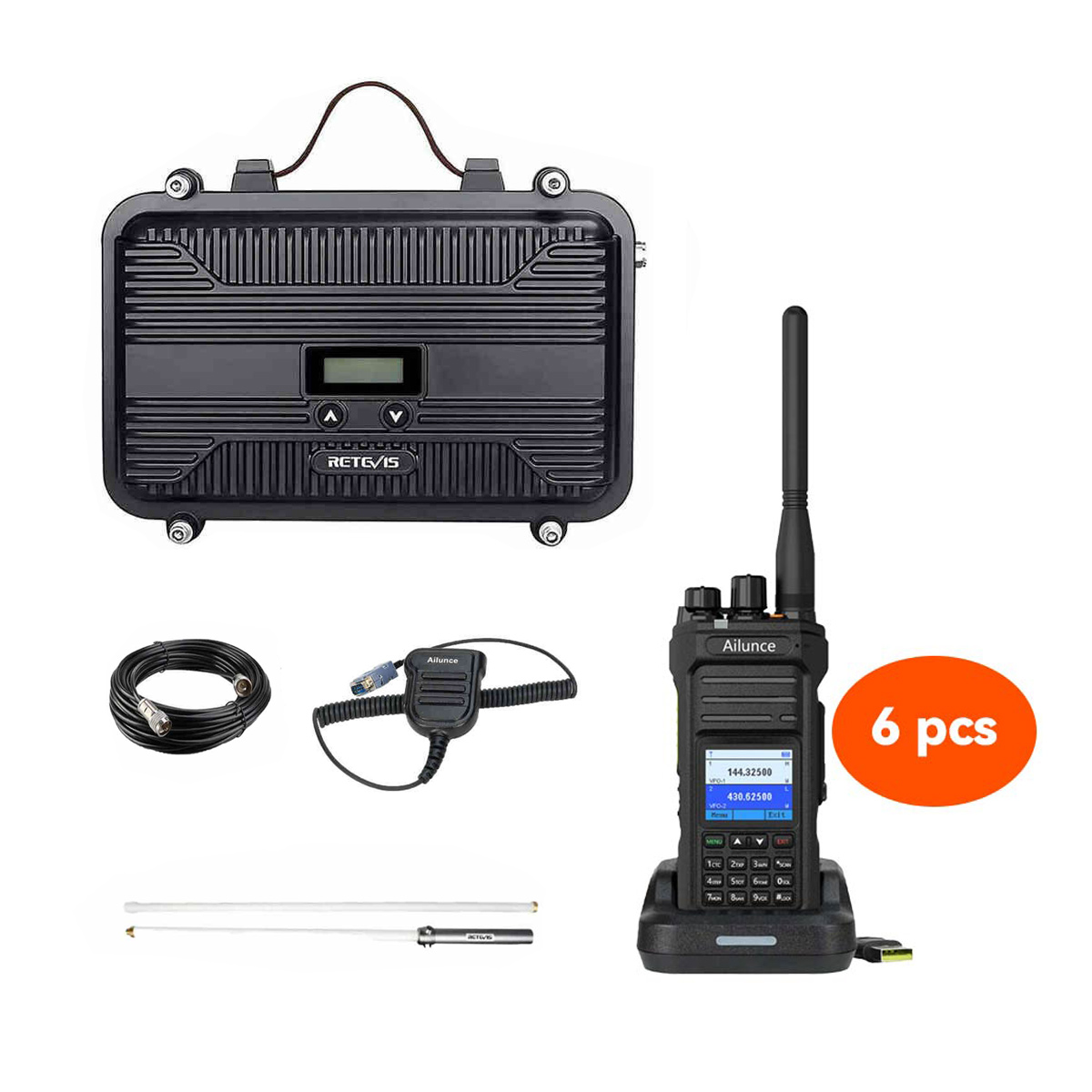

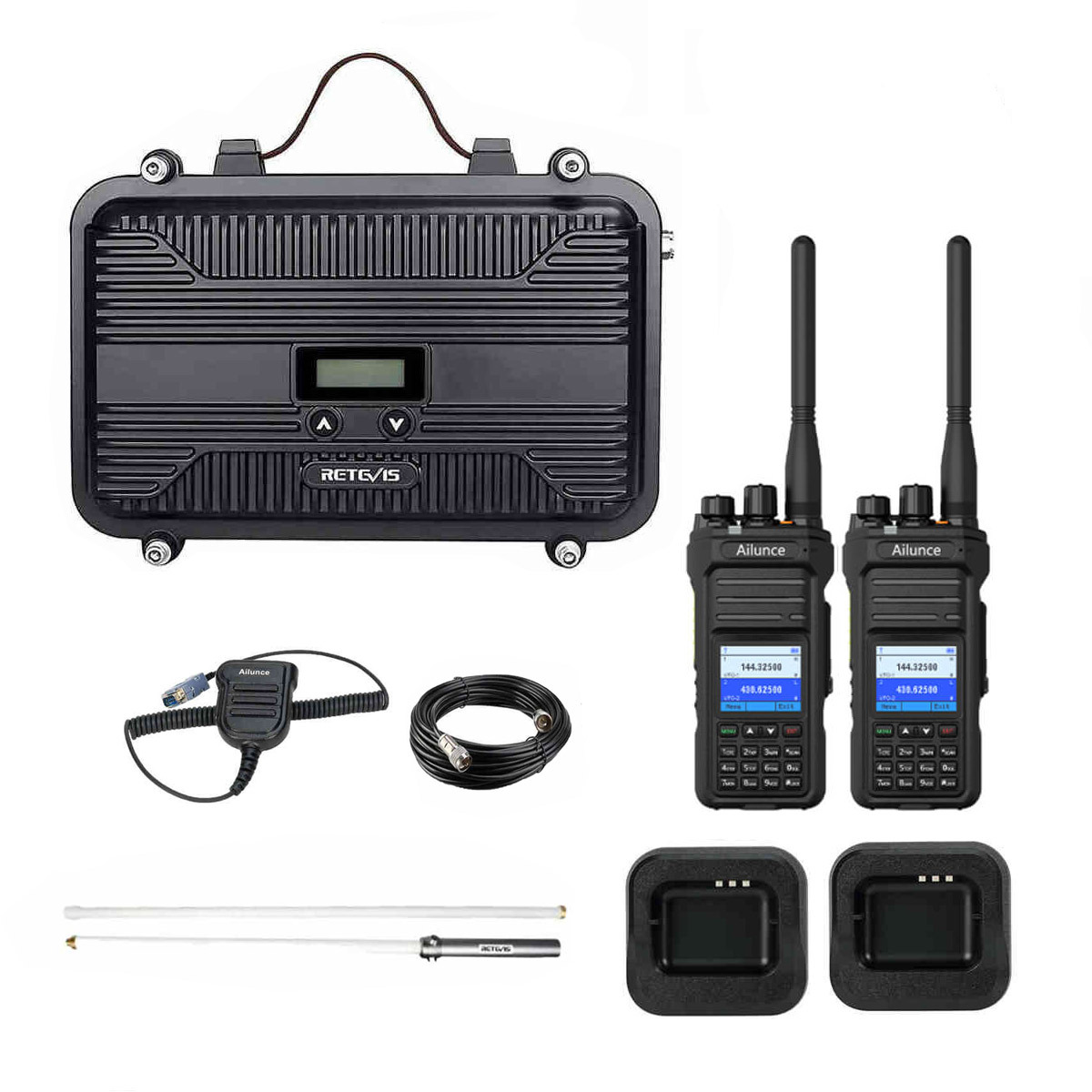

This bundle provides reliable communications during natural disasters or other emergencies when traditional communications networks may be disrupted. GMRS has a significant distance improvement over FRS, and using the Retevis RT97S GMRS repeater can greatly extend the communication distance of the Ailunce HA1G GMRS handheld radio. So even if you live in a remote area, you can reach emergency personnel within a few miles.

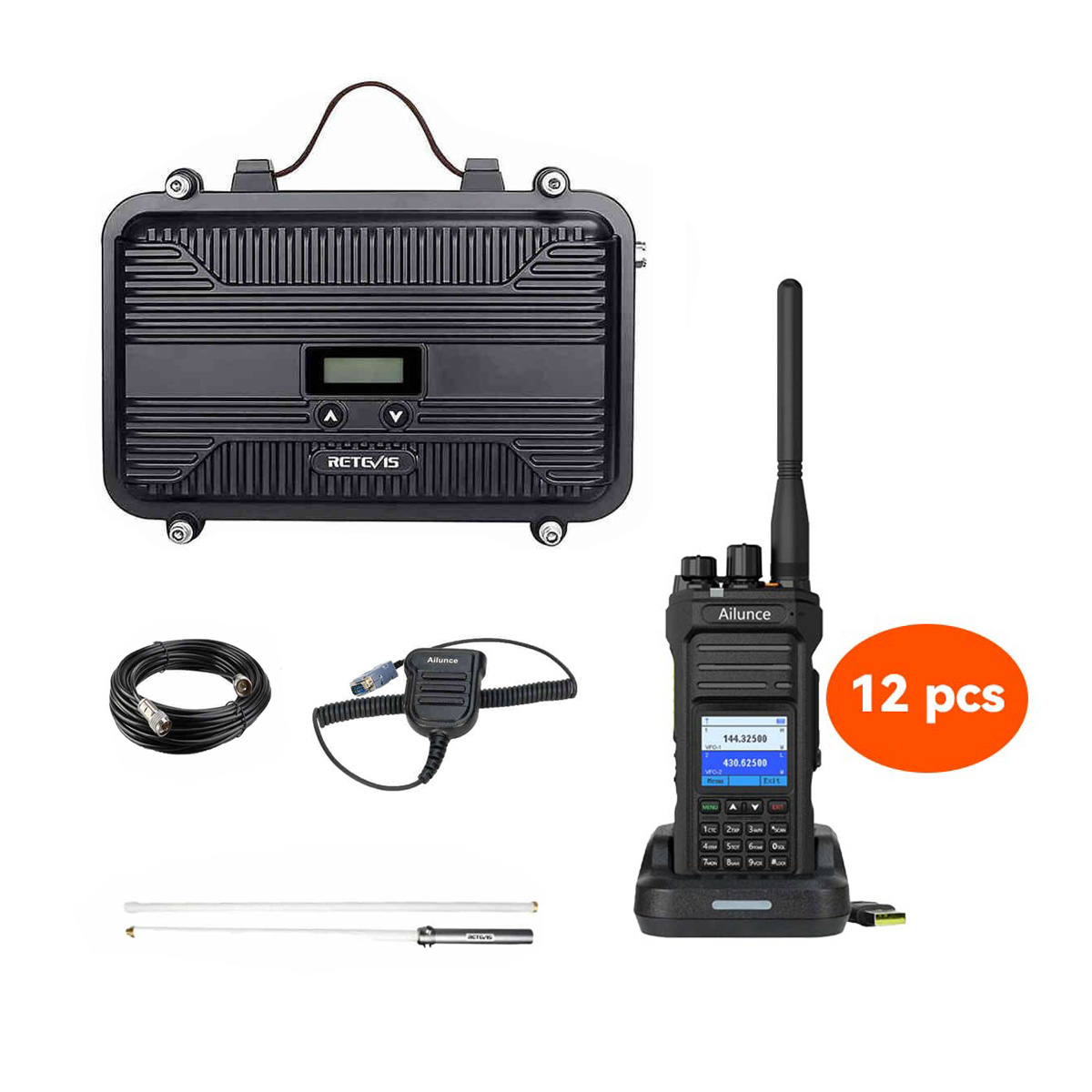

RT97S Portable repeater can be used to talk directly to walkie-talkies or mobile radios with a microphone. This package can enable three departments to communicate at the same time. With additional radios, the number of users can be increased for team collaboration.

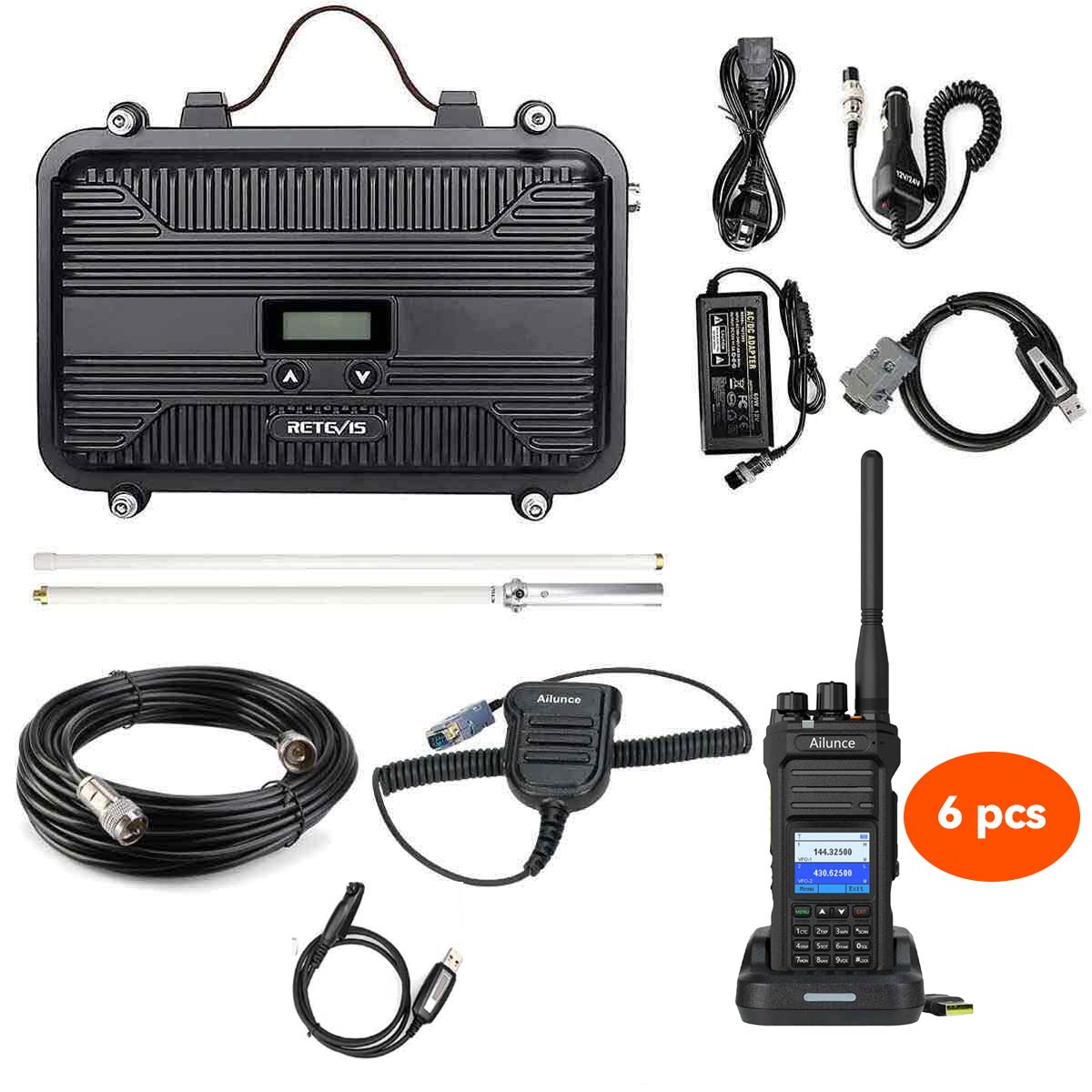

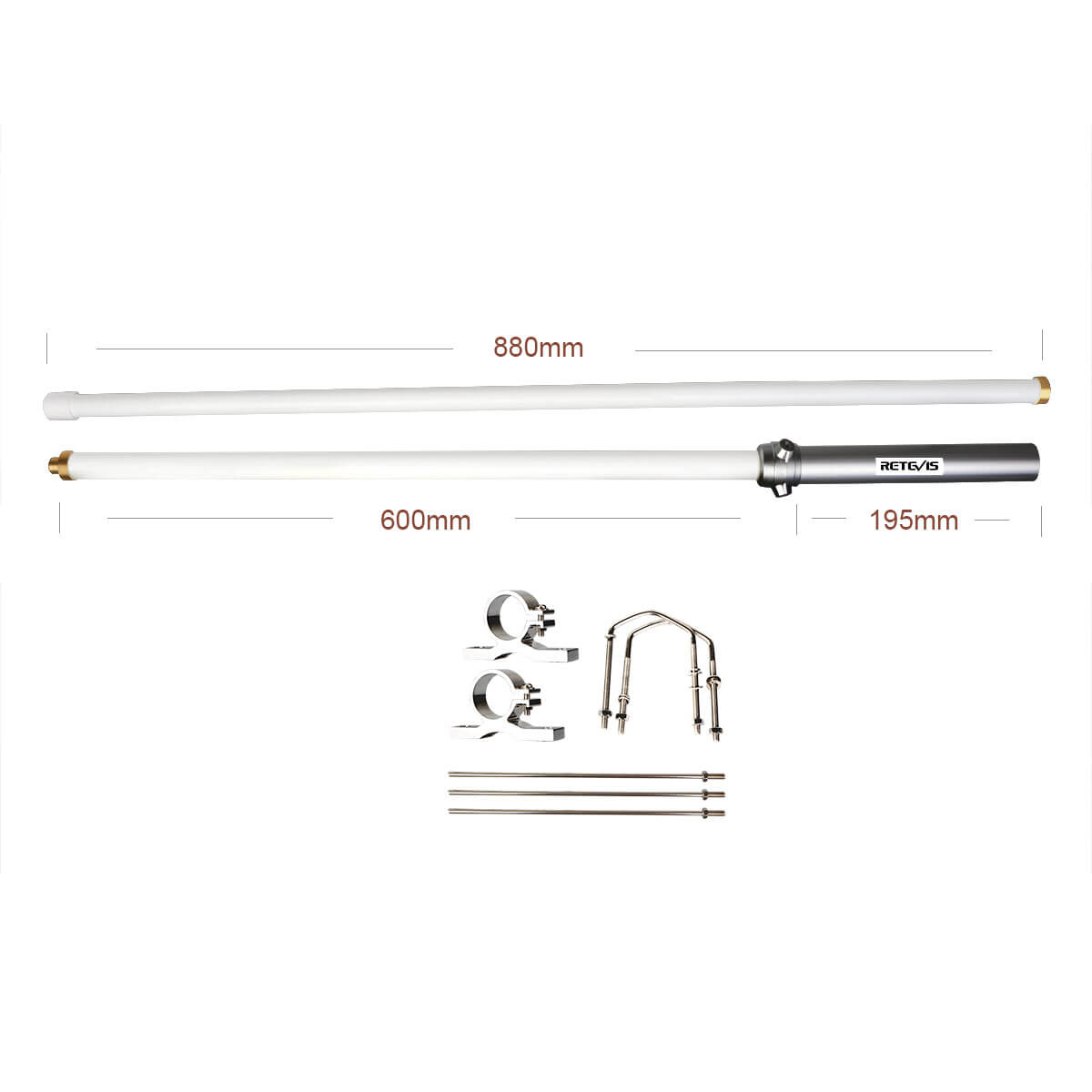

Featuring 8 GMRS repeater channels, a 10W transmitter with a full 5W output power after the duplexer, and a built-in notch duplexer, all you need to do is add an antenna and feeder cable to get on the air. A USB programming cable is also included to program the repeater to your channel and CTCSS/DCS tones of choice.

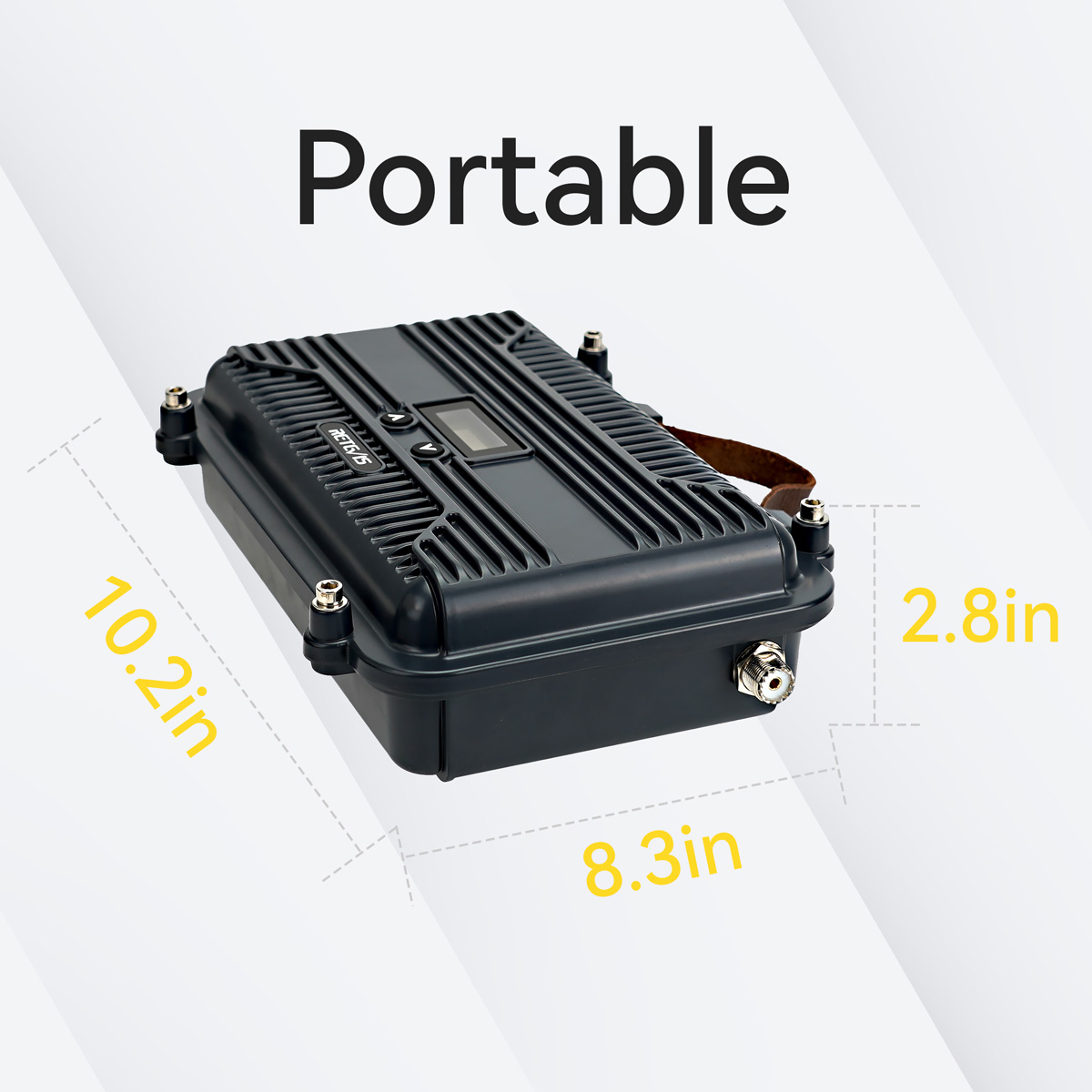

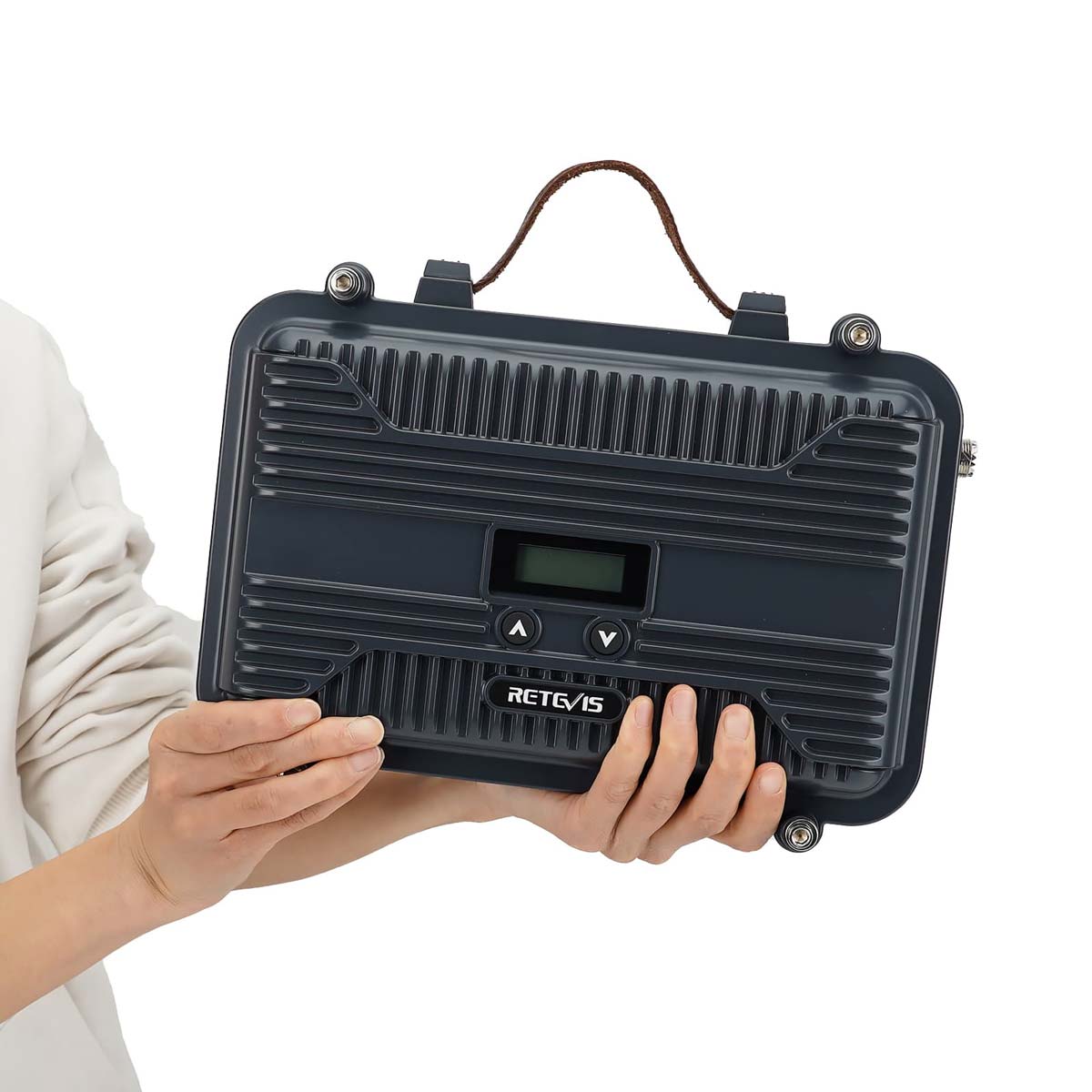

2. Small and Portable RepeaterRetevis RT97S repeater size is only 260x210x70mm. It is very small and compact, convenient to carry, and very useful for outdoor use and for families, individuals, and groups. You can also install it on the top of the mountain to build your base station.
3. Multiple Charging OptionsRT97S can be powered by DC12V~24V power, car power, or a solar battery. The RT97S is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a portable size, this repeater is perfect for camping trips or emergency preparedness.
4. Easy-to-Read LCD DisplayRetevis RT97S repeater comes with an LCD. The display can help you know the TX and RX frequencies, CTCSS/DCS code, and bandwidth settings easily. There are also up and down keys, which can help you change channels and CTCSS/DCS tones. You can also use the key to lock/unlock the keypad.

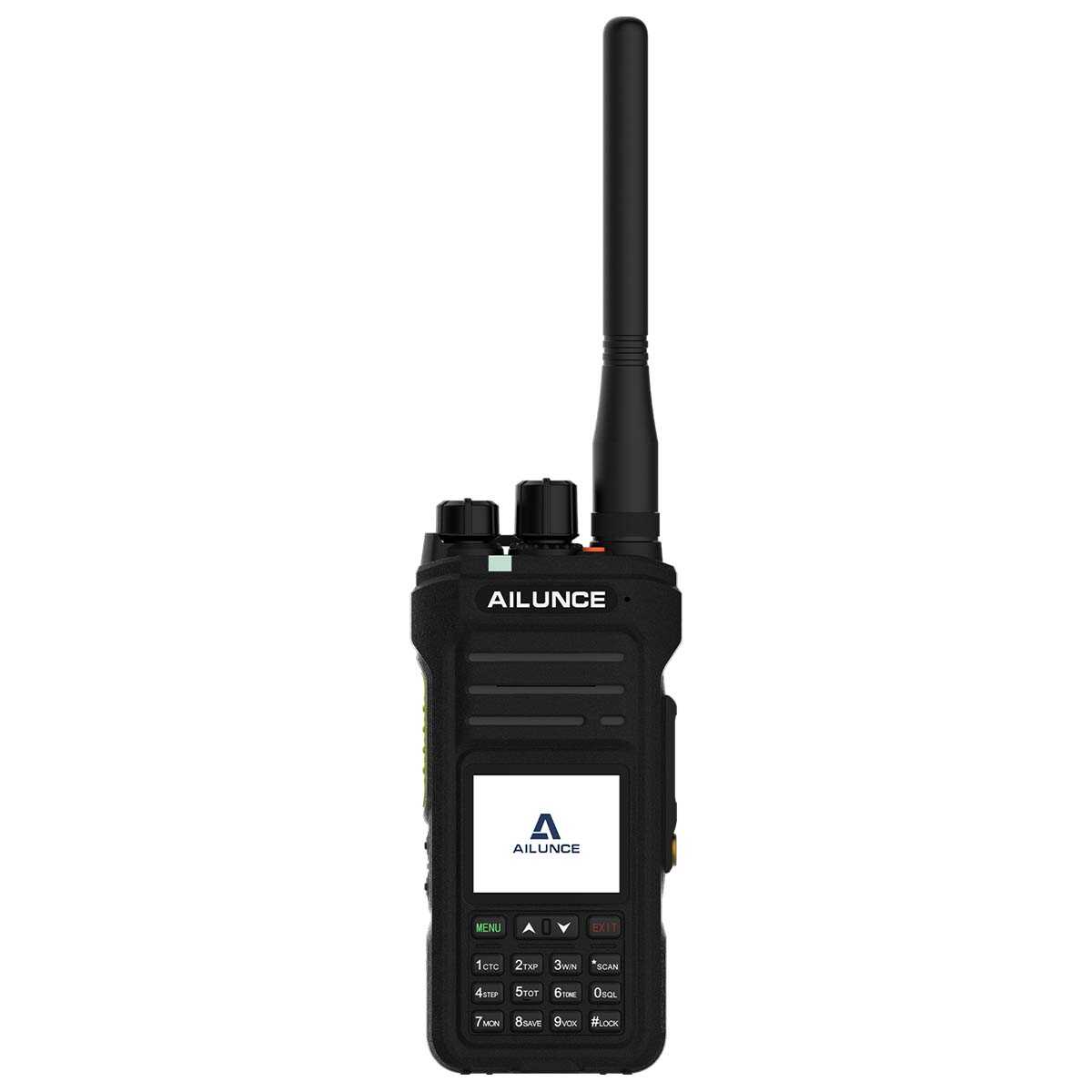

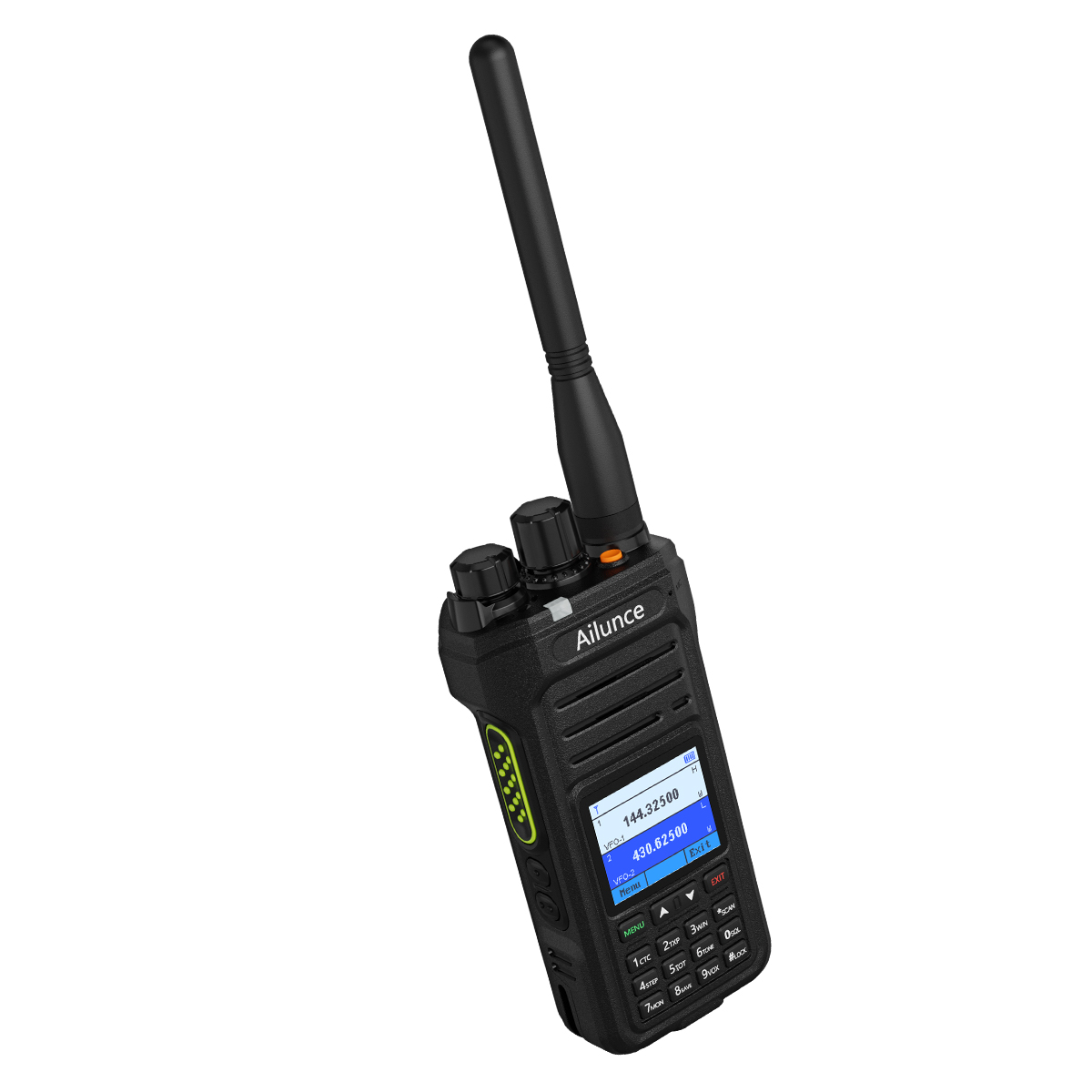

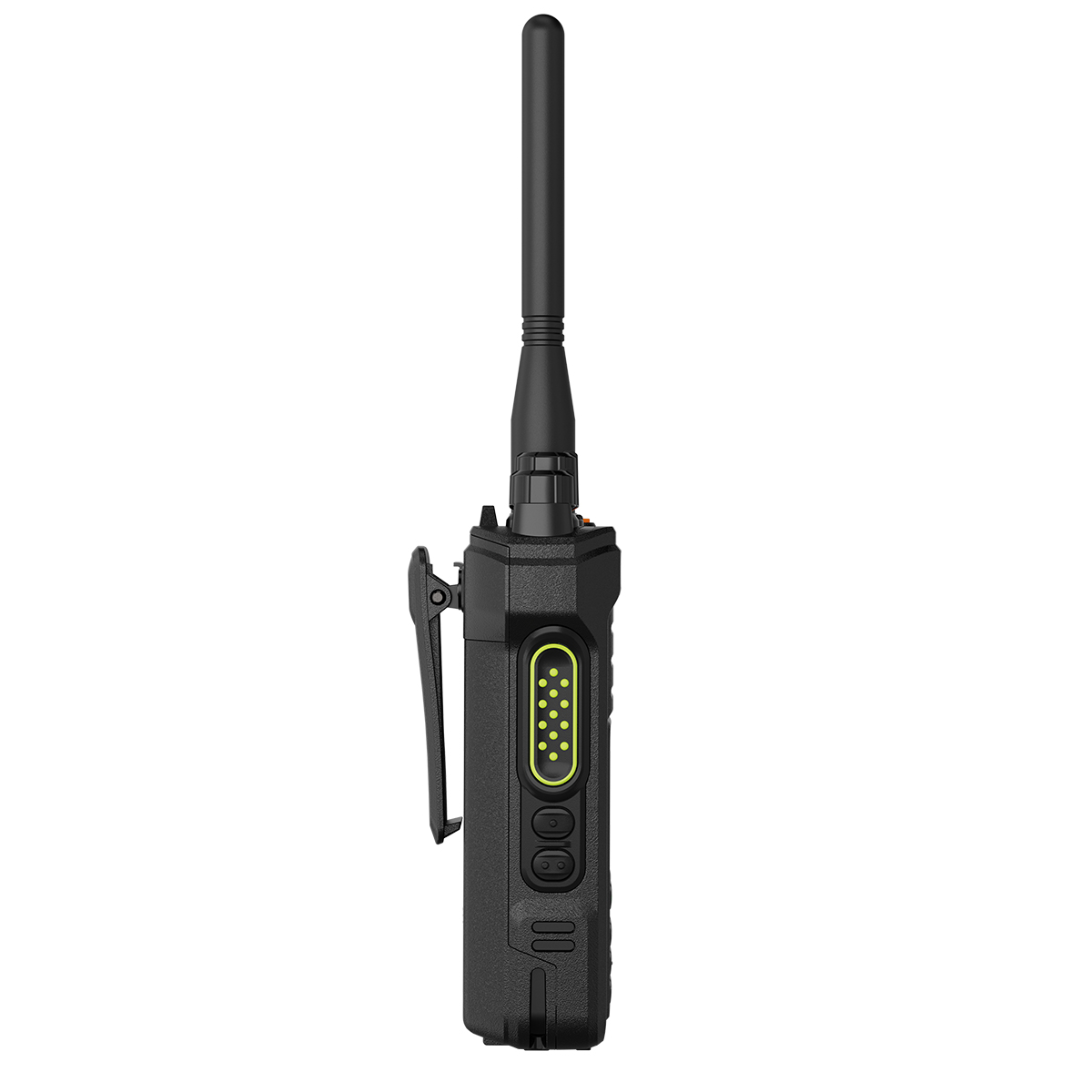

HA1G GMRS radio includes 30 GMRS channels, of which 8 repeater channels can be connected to a repeater to extend the communication distance. An additional 220 programmable channels allow you to program multiple repeater channels for ease of use and extended range.

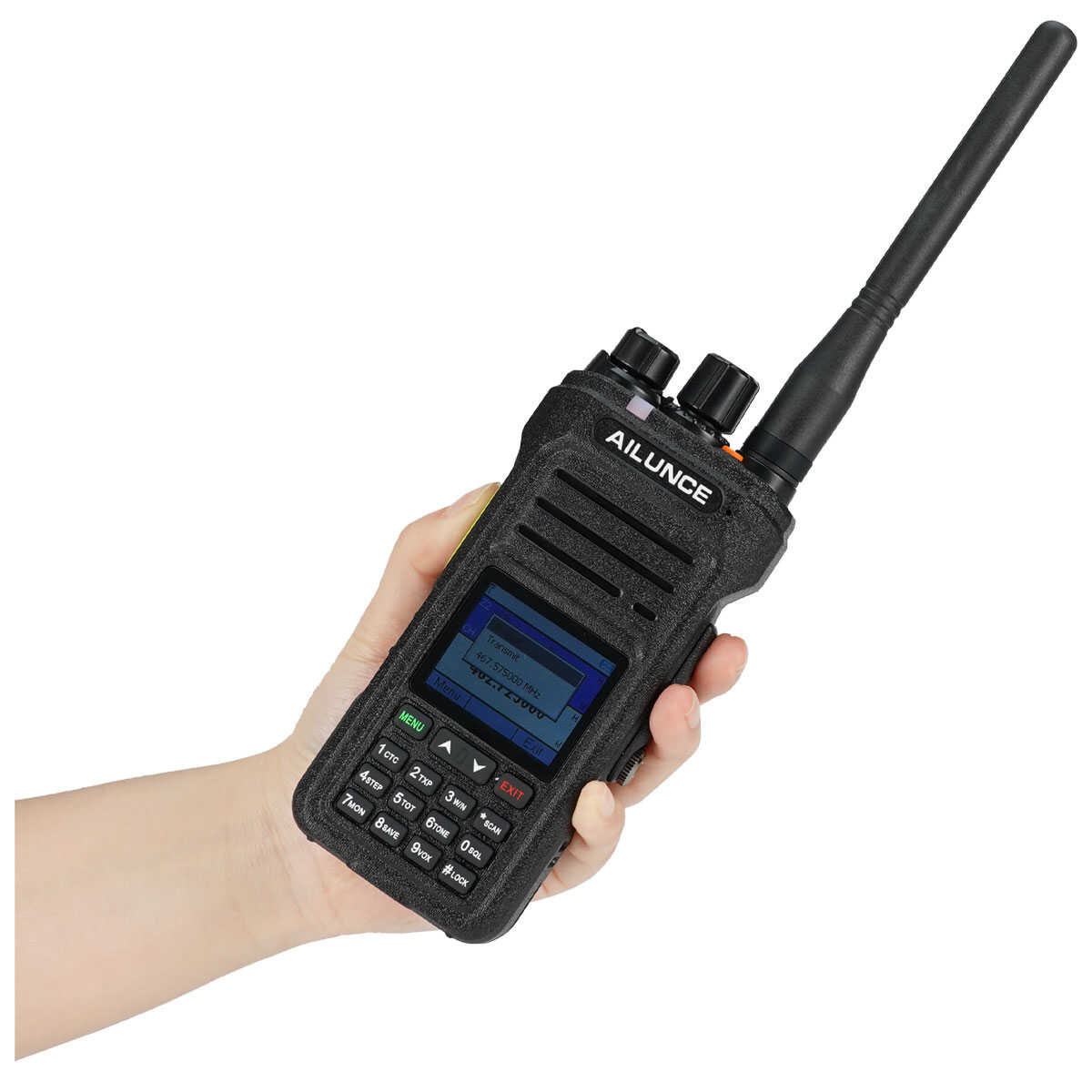

2. IP67 WaterproofThe HA1G GMRS two-way radio has an IP67 waterproof rating to withstand harsh rain conditions and can be used outdoors in rainy weather.
3. Dual StandbyHA1G GMRS portable radio can effectively stand by on two channels at the same time, so you will not miss important information.
4. Long Battery LifeEquipped with a 2800mAh large-capacity battery, the Ailunce HA1G GMRS walkie-talkie is efficient enough to support all-day outdoor activities without frequent charging.

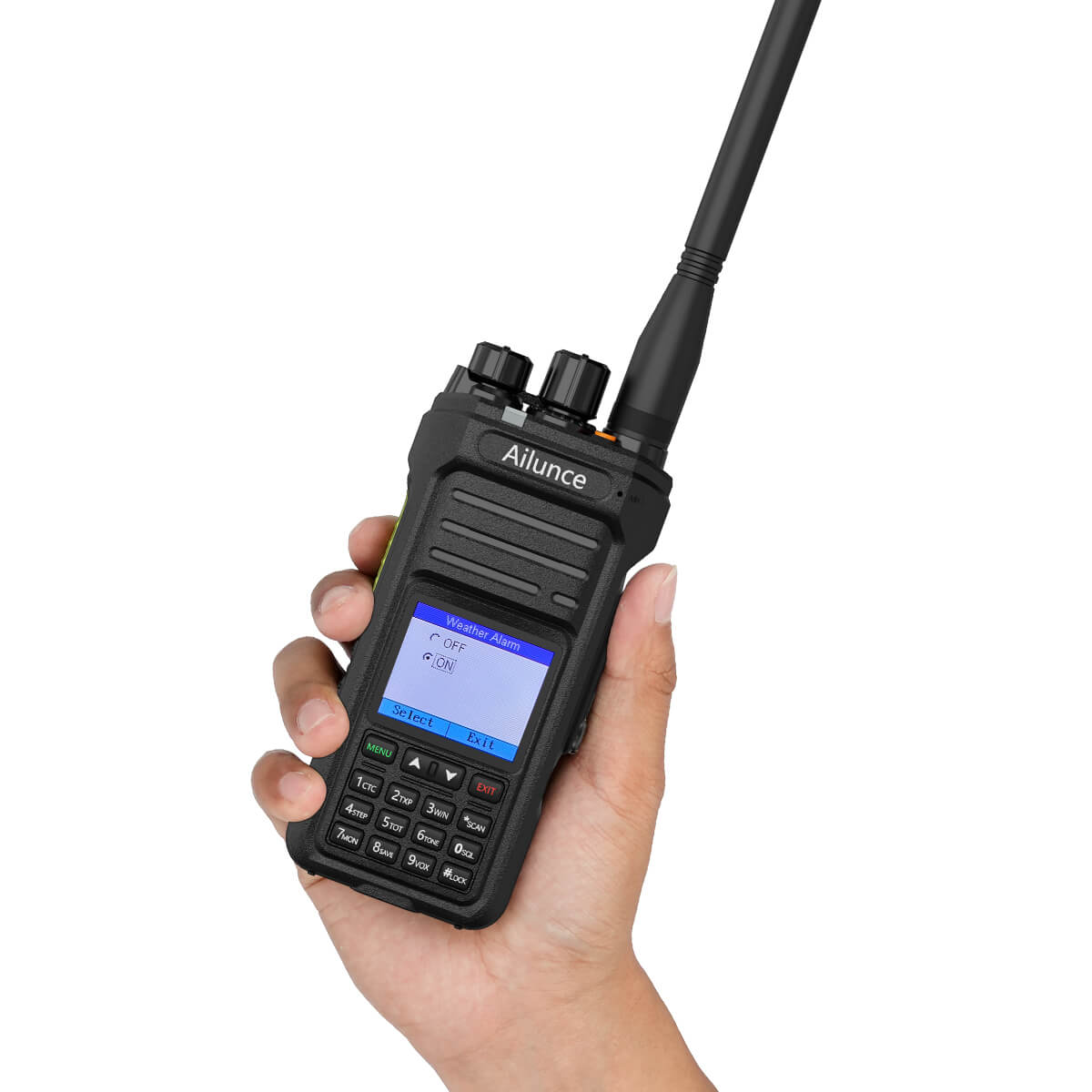

5. NOAA Weather AlertsThe dual-watch function allows you to monitor NOAA while communicating with your partner. NOAA weather channel scans and locks the strongest weather channel to remind you of severe weather updates.

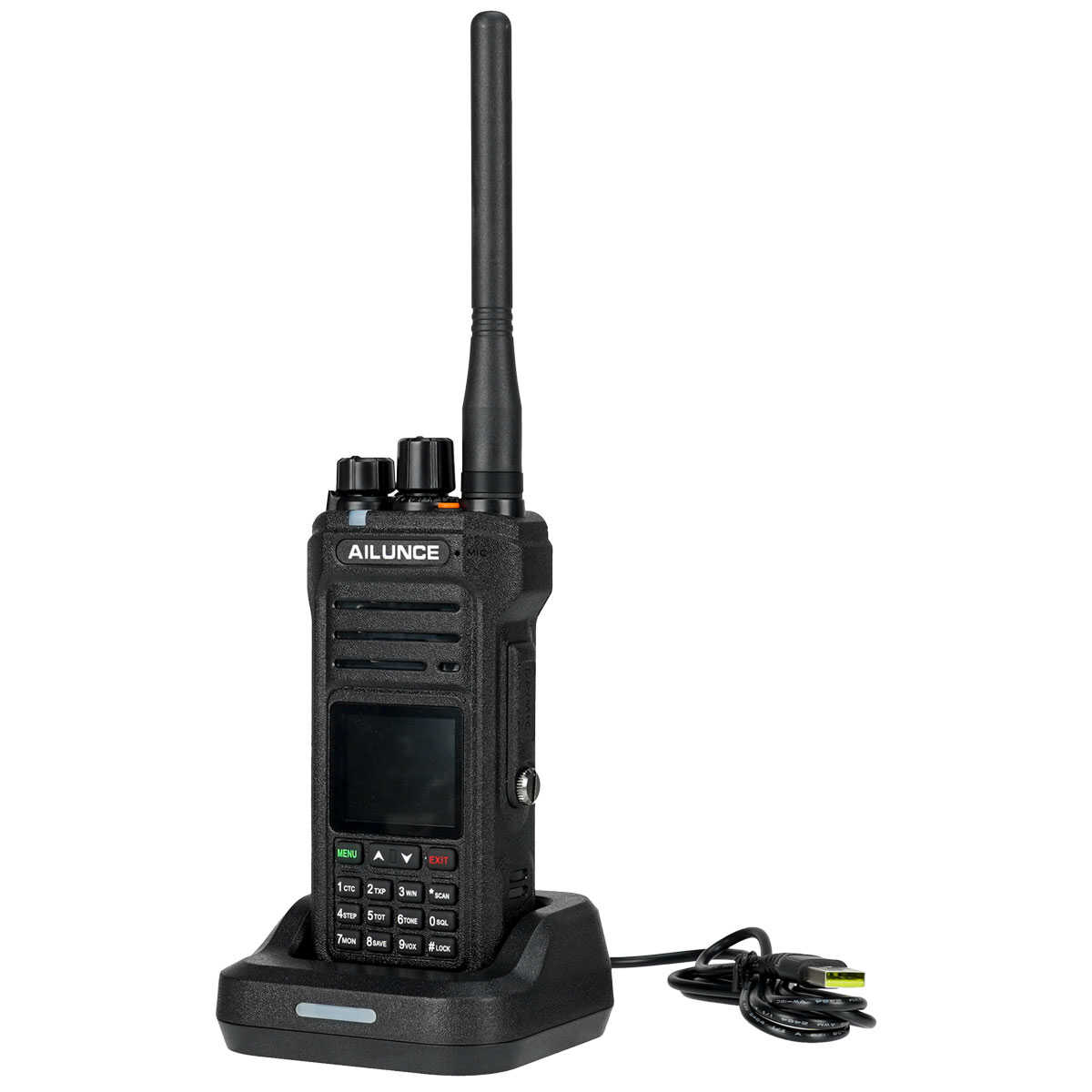

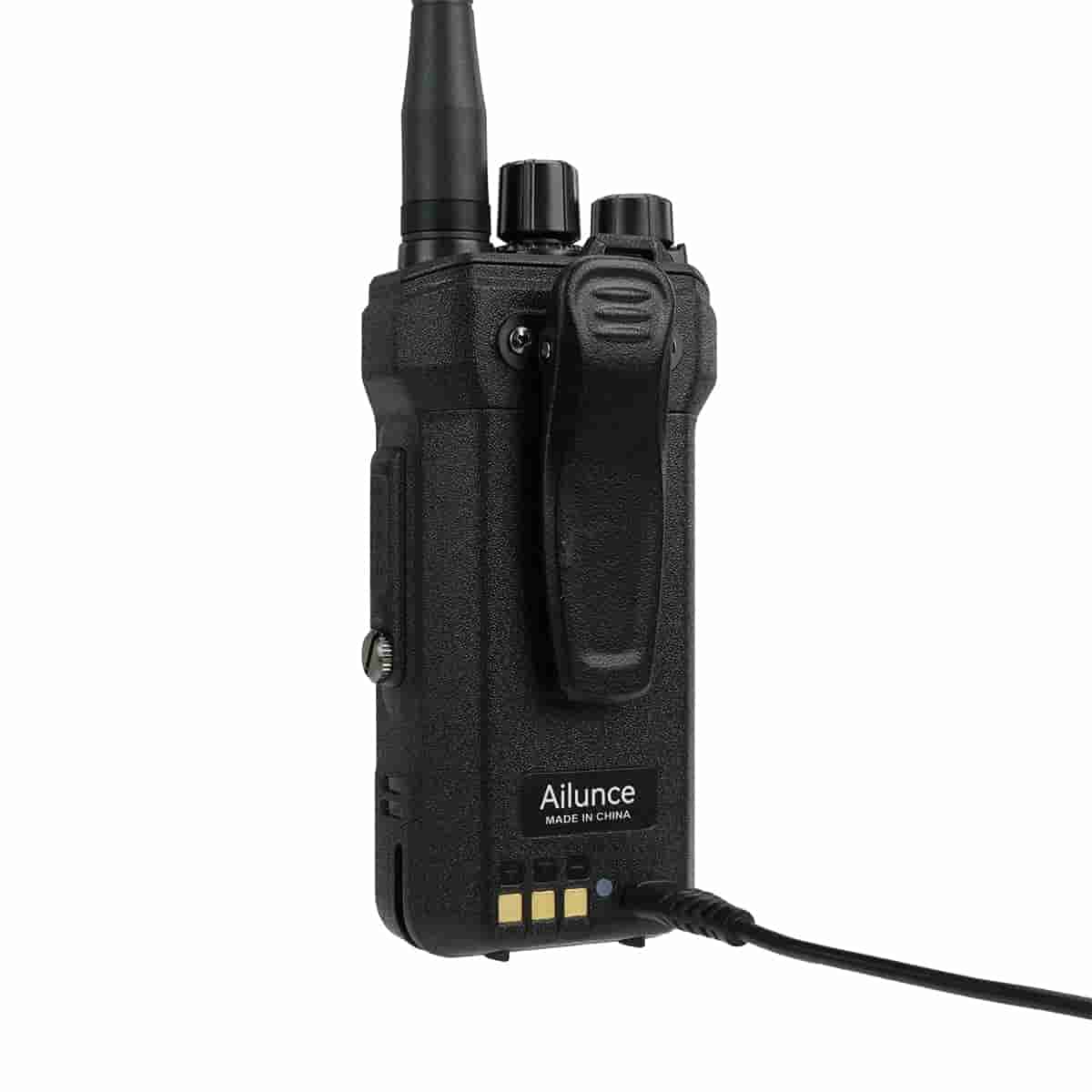

6. Support Type-C ChargingThe HA1G GMRS two-way radio supports Type-C charging and desktop charging. It is convenient to recharge the radio through a power bank, a vehicle, etc.
7. 1.77-inch Color DisplayAilunce HA1G GMRS handheld two-way radio features a 1.77-inch color screen, which provides convenience for checking the current working channel and battery condition during outdoor activities.
Specifications | |
Frequency Range | 462.550-462.725 MHz (TX), 467.550-467.725 MHz (RX) |
Channel Capacity | 8 GMRS Repeater Channels |
Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
Operating Voltage | DC:12V-24V |
Operating Temperature | -22°F-140° F (-30° C-60° C) |
Frequency Stability | ±2.5ppm |
Antenna Impedance | 50 Ω |
Dimensions | 10.25"x8.3"x2.8" (260x210x70mm) |
Weight | 3.7 lbs (1.66 kg) |
Transmitter | |
Power Output | 5W |
Modulation | F3E |
Spurious Emission | -60dB or less |
Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
Audio Distortion | 5% or less |
FM Noise | Wide:≤45dB Narrow :≤40dB |
Receiver | |
Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
Intermodulation | ≥ 55dB |
Spurious Rejection | ≥ 55dB |
Image Rejection | ≥ 55dB |
FM Ham and Noise | ≤-45dB (Wide) / ≤ -40dB (Narrow) |
Modulation Type | F3E |
Operating Bandwidth | ≤±7KHz / ≤±5KHz |
Audio Distortion | ≤ 5% |
Transmitter |
Adjacent Channel Power: |
Wide band:≤-65dBc; Narrowband:≤-62dBc |
CTCSS/CDCSS Modulation |
Wideband:0.75KHz±0.1KHz; Narrowband: 0.4KHz±0.1KHz |
|
Audio Distortion |
≤5% |
|
Modulation Sensitivity |
8-12mV |
|
Maximum Frequency Deviation |
Wide band:≤5KHz ; Narrowband:≤2.5KHz |
|
Spurious Power |
≤-20dBm; |
|
Modulation Mode |
Wide band:16KφF3E ; Narrowband:11KφF3E |
|
Transmit Current |
≤1.70A |
|
Pre-emphasis Character |
6dB/every time the frequency will increase |
|
Receiver |
Sensitivity |
Wide band:-123dBm; Narrowband:-124dBm |
Voice Output Power |
≥500mW |
|
Audio Distortion |
≤5% |
|
Obstruct |
≥85dB |
|
Inter modulation |
Wideband: ≥65dBc; Narrowband: ≥60dBc |
|
Adjacent Channel Selection: |
Wideband: ≥65dBc; Narrowband: ≥60dBc |
|
Spurious Power |
RX≤-57dBm |
|
Spurious Rejection |
≥65dBc |
|
Receiving Current |
≤400mA |
Excellent plug and play bundle where finding a high point and erecting antenna was only difficulty. Great reach!
I found this a good unit. Its very easy to program & set-up.
Simple to use and program. As long as expectations for range don't exceed common sense, you'll be happy. It is only a 10 watt repeater with just above 5 watts out of the duplexer. It is a quality unit. Glad I bought one.
Repeater kit comes with everything you need to set up. Seems to be built very sturdy with a metal case. Suggest downloading software which is required to set privacy tones. My antenna is on a 35 ft tower. My area is rolling hills with lots of woods and can get 5 miles reliably, up to 10 miles from hilltops.
Great product for the price! It was very easy to set up with the software!
Great unit, easy setup with everything you need to setup you own duplex repeater. Software makes it a breeze to your repeater channel.
We had a road that goes through a smaller valley on our farm and always lose GMRS signal for a couple seconds. We placed this repeater in the barn near this area and it solved our dead spot issues.
I ordered my repeater last Sunday. Item shipped Mondy and I should have it by the end of the week. So far so good!

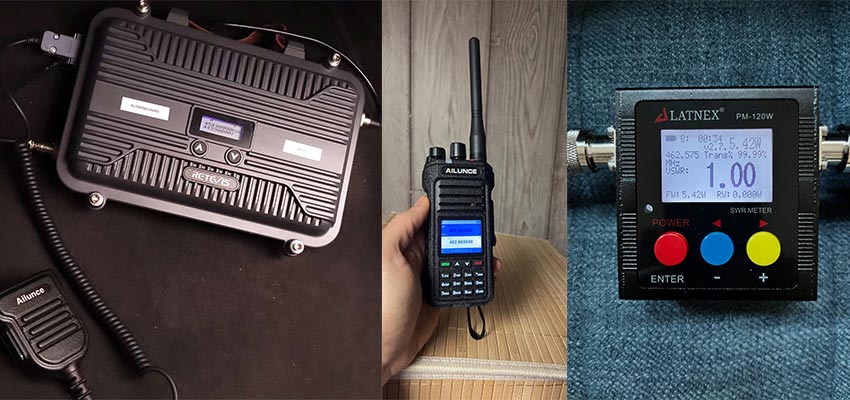

My short review of this bundle, after 2 weeks. RT97S, Incredible price, OK performance. You’re going to have a hard time beating this repeater. Quality is a little iffy, with the TX getting stuck occasionally if your transmission is quiet or too short. AC adaptor is bulky, unrated(UL or intertek), cable doesn’t even seat right. Would prefer a bare Anderson type lead or not include an AC adaptor. Programming software was not usable as downloaded as it is defaulted to Chinese and my computer did not have characters installed so couldn’t even translate. Programming software and instructions are very sparse but easy enough to learn. Mast antenna seems to be quite solid except the small aluminum tube at the base, which is only held on with a single bolt, and not the tightest tolerances. Edge of the tubing was quite sharp, and could damage coax if not mitigated. HA1G, robust and quality, missing some features. Really impressed by the HA1G, preforms better than some higher or similar priced handhelds in my urban environment tests. USB C charging on the cradles and batteries is always nice to have, making traveling or camping way simpler. Screen is very bright on max, however font, size and color choice, combined with the viewing angle can make some menus very hard to read, however the main channel view is solid. I’d like to see better DTMF, radio ID, and tone scanning added. So far the biggest feature I miss vs my GMRS pro is Bluetooth. Wish the software was open source.
retevis has many repeater and handset combination packages. I was hesitating between this combination and the RB26 combination. I finally chose this one because the HA1G has more functions. I like this two way radio with many functions. . I have the repeater installed in my attic so that my friends and I can talk to each other anytime within the confines of the community.
Awesome repeater. Everything is set and ready to go. Documentation is good. Software is easy to use.
Live in Albuquerque, Nm seems like this unit can get around 8 miles, hoping to play with antenna.
