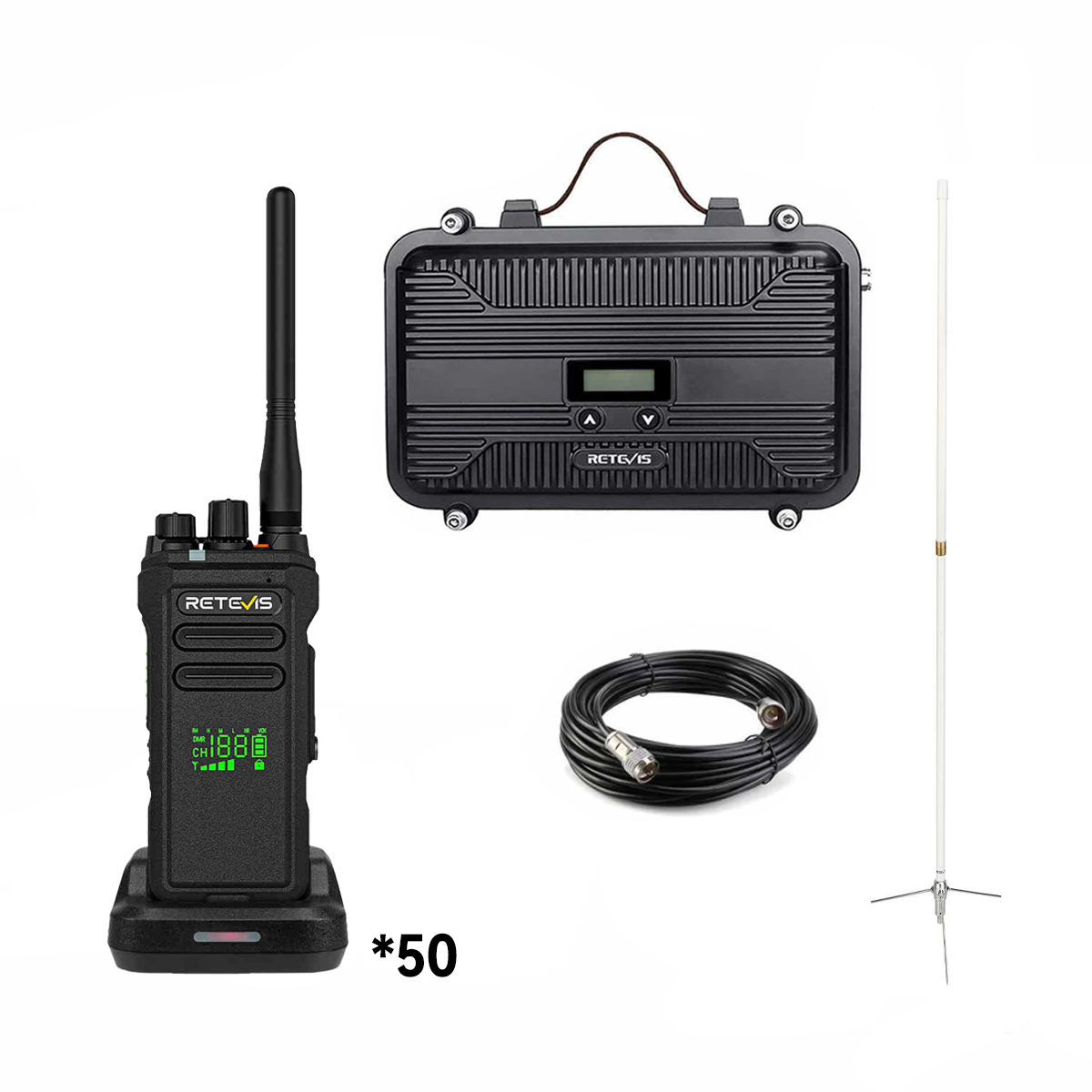

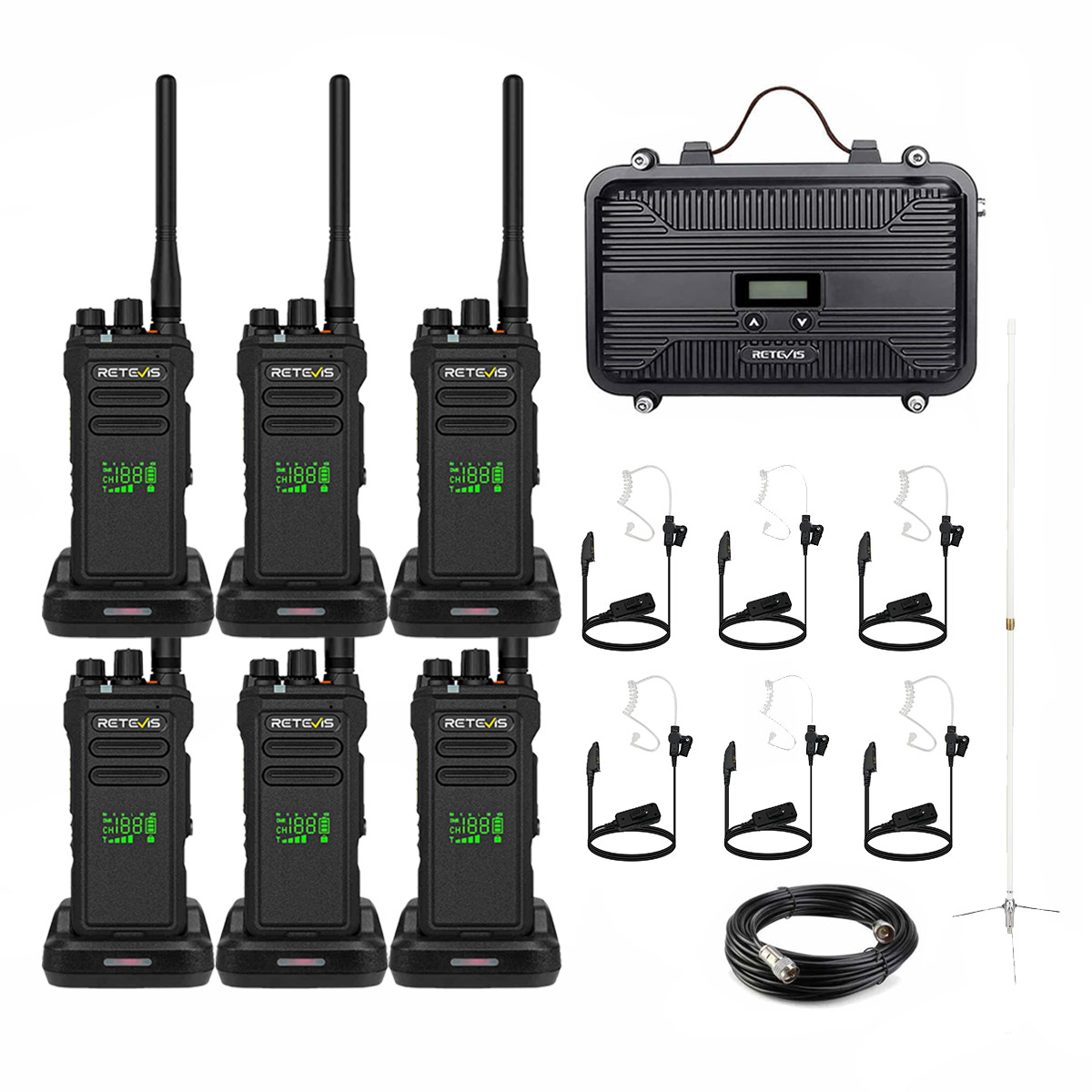

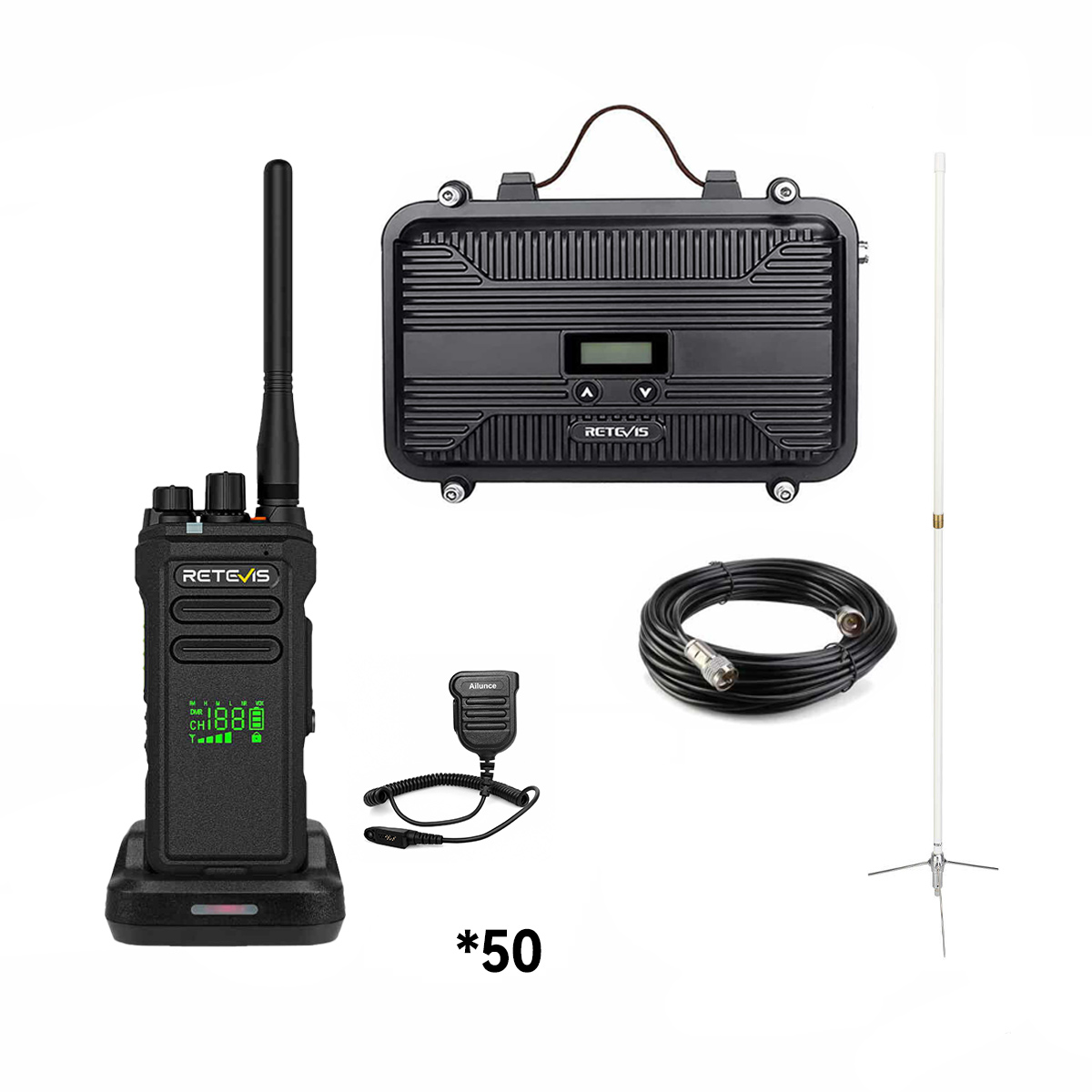

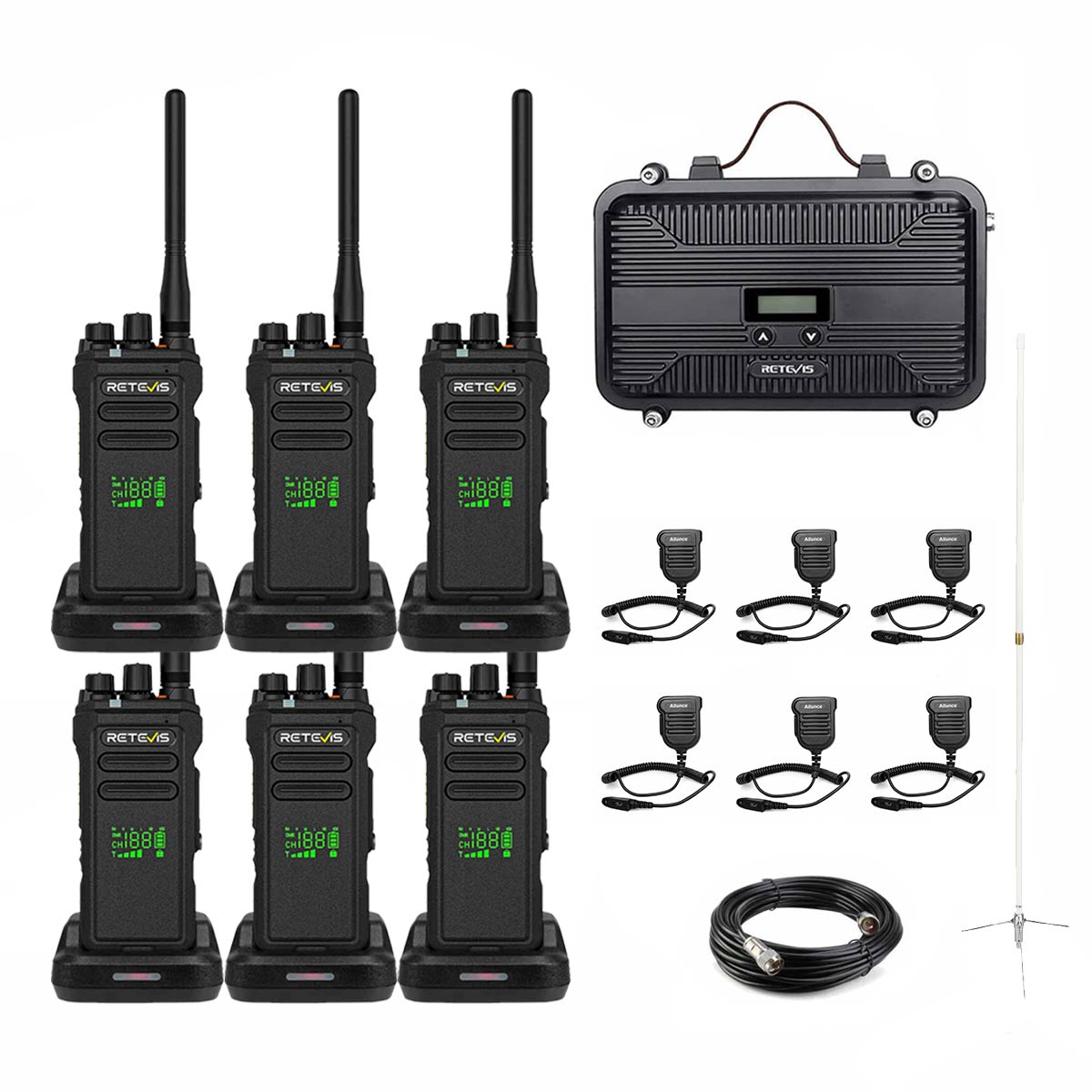

RT97P DMR Repeater + NR30D Radios 10+ Miles Range

Description
Spec
Features
RelevantDocuments
Reviews

Description

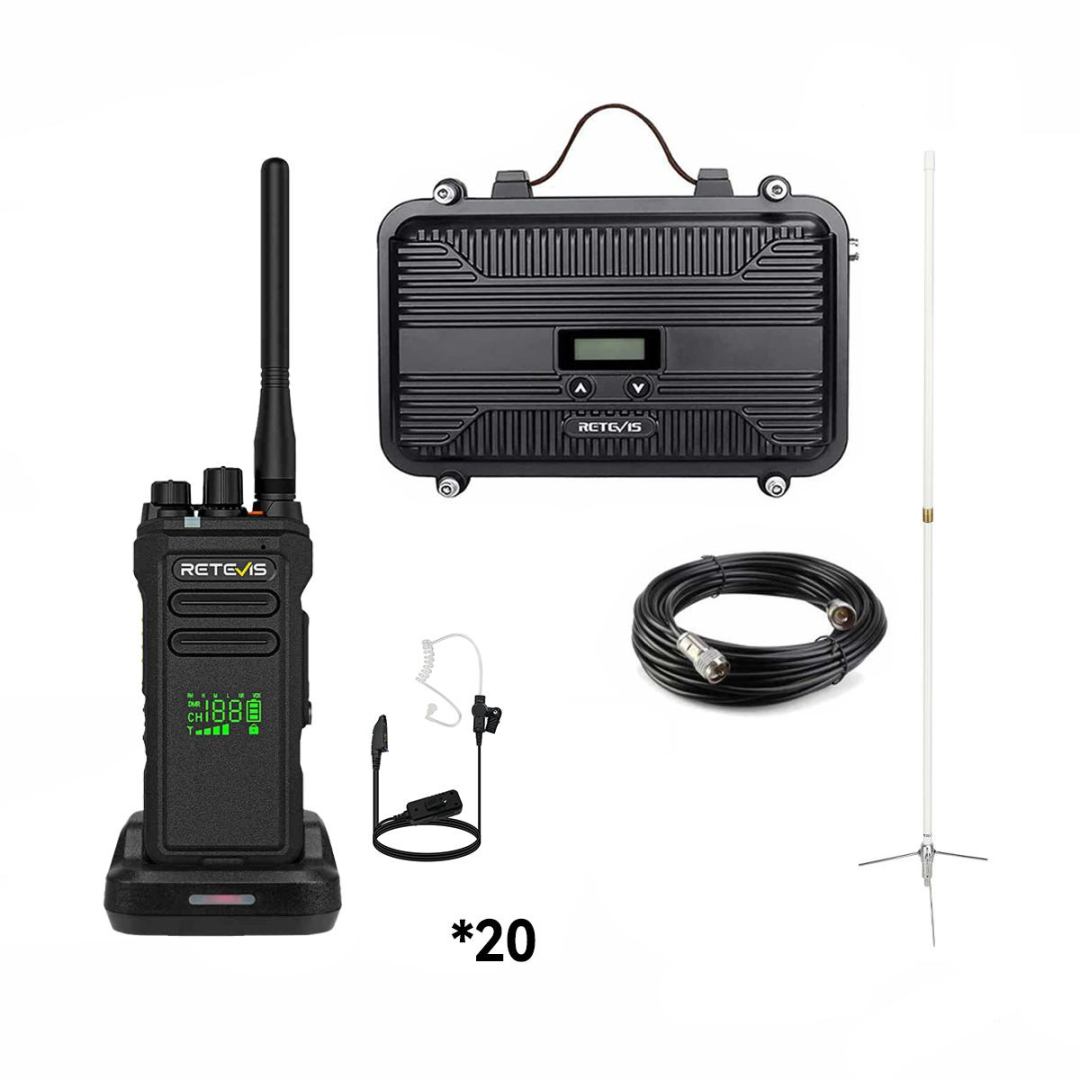

Retevis RT97P + NR30D: 10+ Miles DMR Repeater and Handheld Radio Solution

This DMR digital radio long-range communication solution combines the RT97P DMR digital repeater with NR30D handheld DMR radios to significantly extend communication range.
By deploying the portable repeater at a suitable height or remote site, teams can achieve 10+ miles of stable long-range DMR radio communication, even in areas where direct radio-to-radio contact is limited.

It suits warehouses, construction sites, farms, hotels, schools, and outdoor events where handheld radios alone may leave dead zones — a scenario list taken from real buyer inquiries rather than a generic feature claim.

How the RT97P Mini UHF DMR Repeater Extends Team Coverage

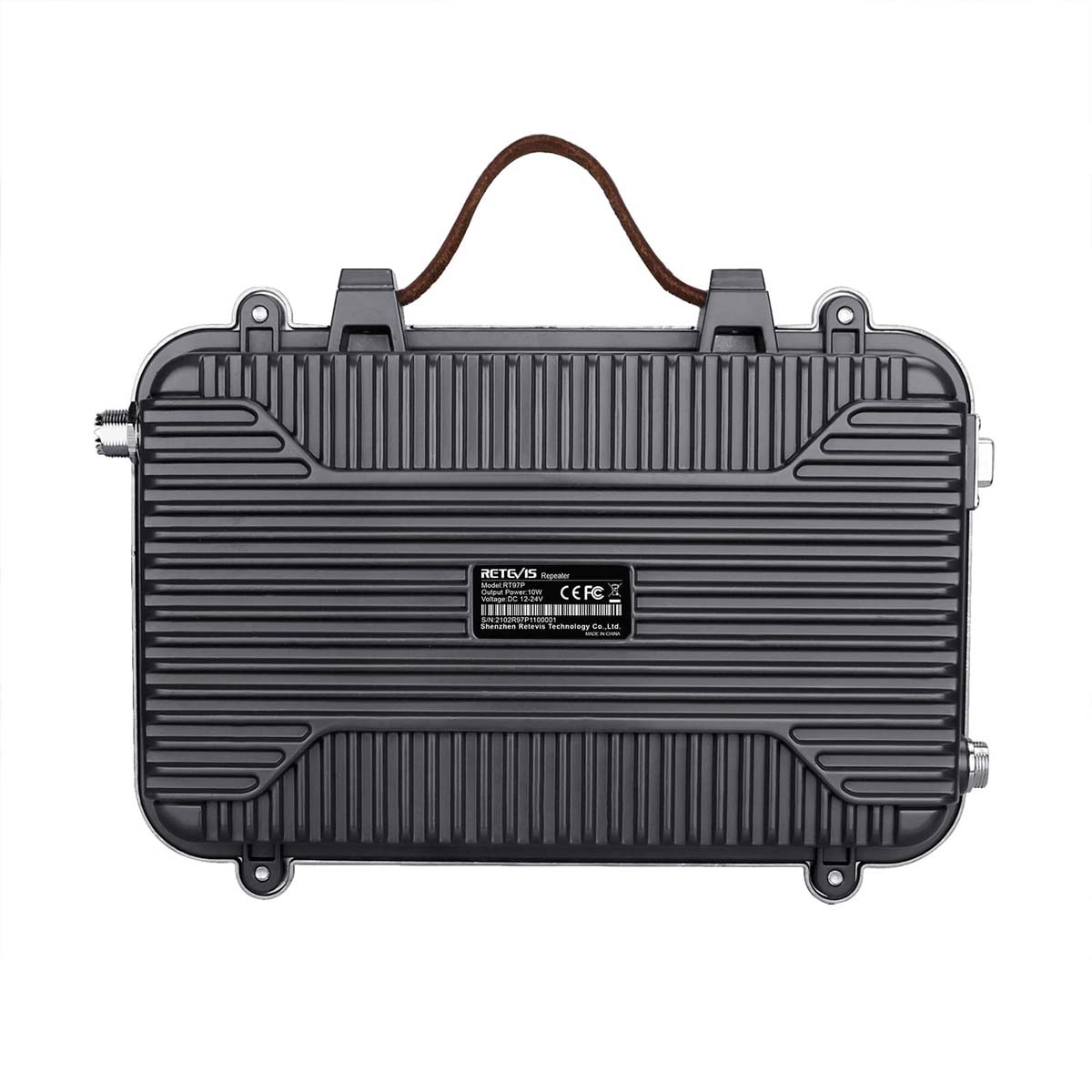

The RT97P is a 10W UHF DMR repeater in a compact 280x210x75mm carry box for portable and remote installations. This mini digital repeater is suitable for solar-powered repeater sites, vehicles, or temporary field deployments.

Key advantages of the RT97P DMR repeater:

Low current draw, so the RT97P runs from a modest solar panel and battery bank
Small and light enough for one person to carry and mount
Stable transmit performance in outdoor and remote locations

Signals that cannot cross a hill, a warehouse floor, or a treeline on their own are relayed around the obstruction by the repeater.

NR30D DMR Handheld Radios Built for Noisy, Multi-Floor Sites

Retevis NR30D DMR security radio with IP67 waterproof rating and noise cancelling

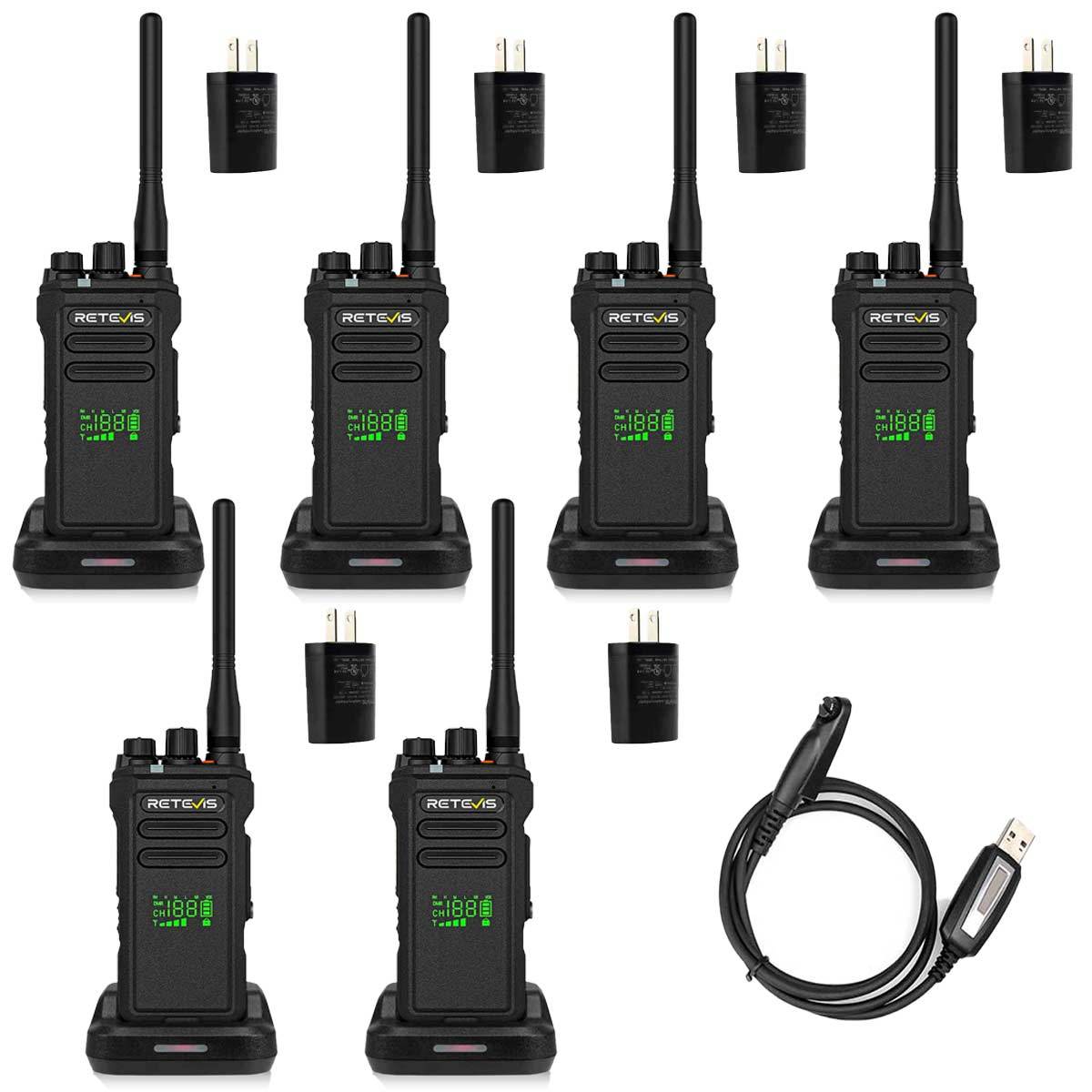

The Retevis NR30D is a DMR digital handheld radio built for professional teams working in loud environments. It carries 64 channels across 2 zones, puts out 10W, 5W, or 1W, and runs on a 2800mAh battery with a Type-C charging port. A color display shows the channel, zone, and battery state at a glance, and the AI two-way noise reduction keeps speech intelligible when machinery, crowds, or music drown out an analog radio.318

The NR30D DMR radio is Especially Suitable for:

Warehouses and logistics operations
Security teams and event staff
Stadiums, arenas, and concert venues
Construction and industrial sites
Schools, campuses, and churches
Hotels, convention centers, and multi-floor buildings

Why DMR Digital Audio Beats Analog in Steel and Concrete Buildings

Compared with analog walkie-talkies, DMR digital radios offer:

DMR keeps audio intelligible further into the fringe than analog FM
Digital error correction rejects the interference that turns analog audio into noise
A digital signal stays either clear or gone, so teams know when to move
Encrypted digital channels cannot be picked up by a scanner the way analog can

That matters most where metal and concrete do the damage. Pallet racking, steel beams, cold-store panels, and reinforced floors all reflect and absorb radio energy, which is exactly the environment the RT97P and NR30D are built for.

RT97P Deployment: AC, 12V/24V DC, Vehicle, or Solar Power

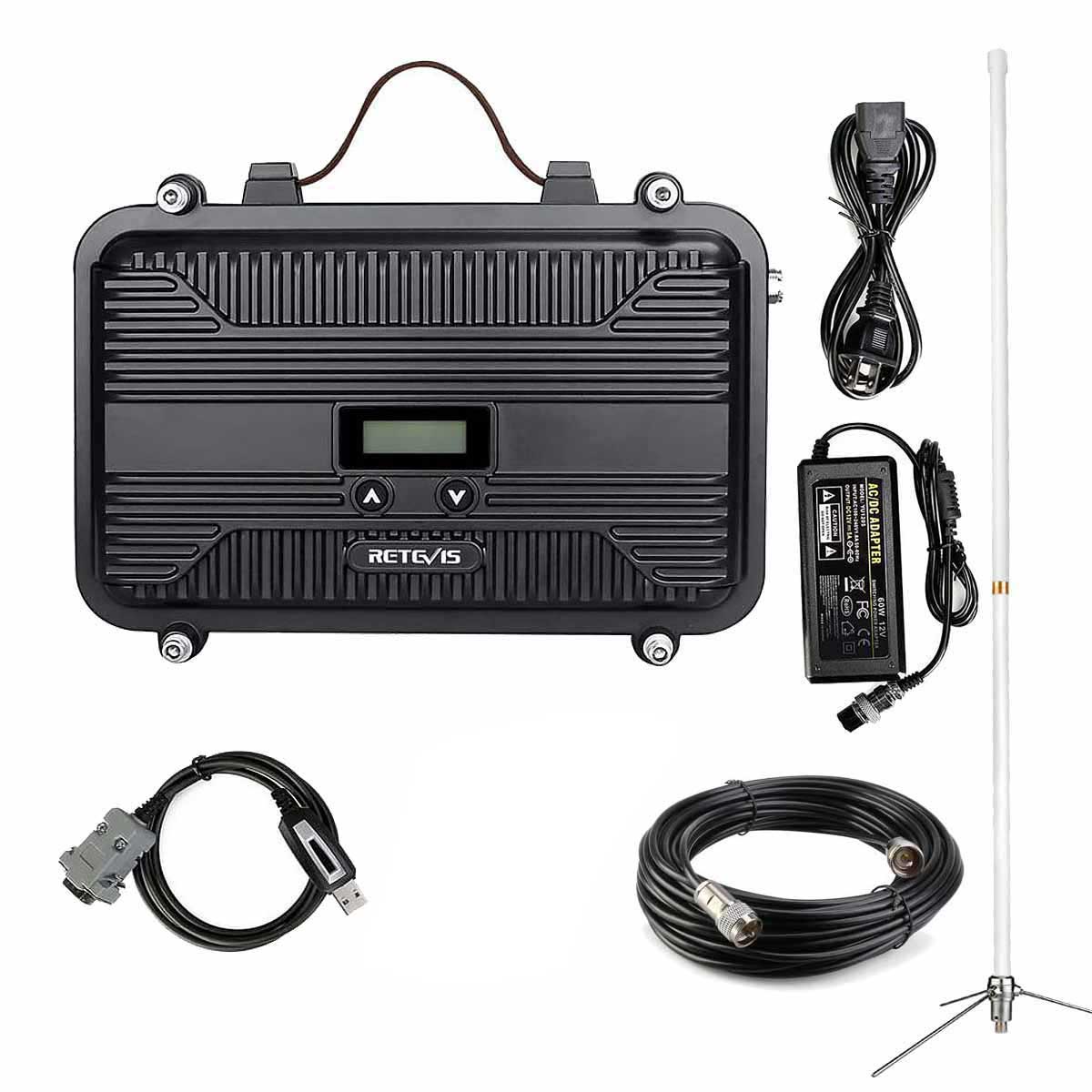

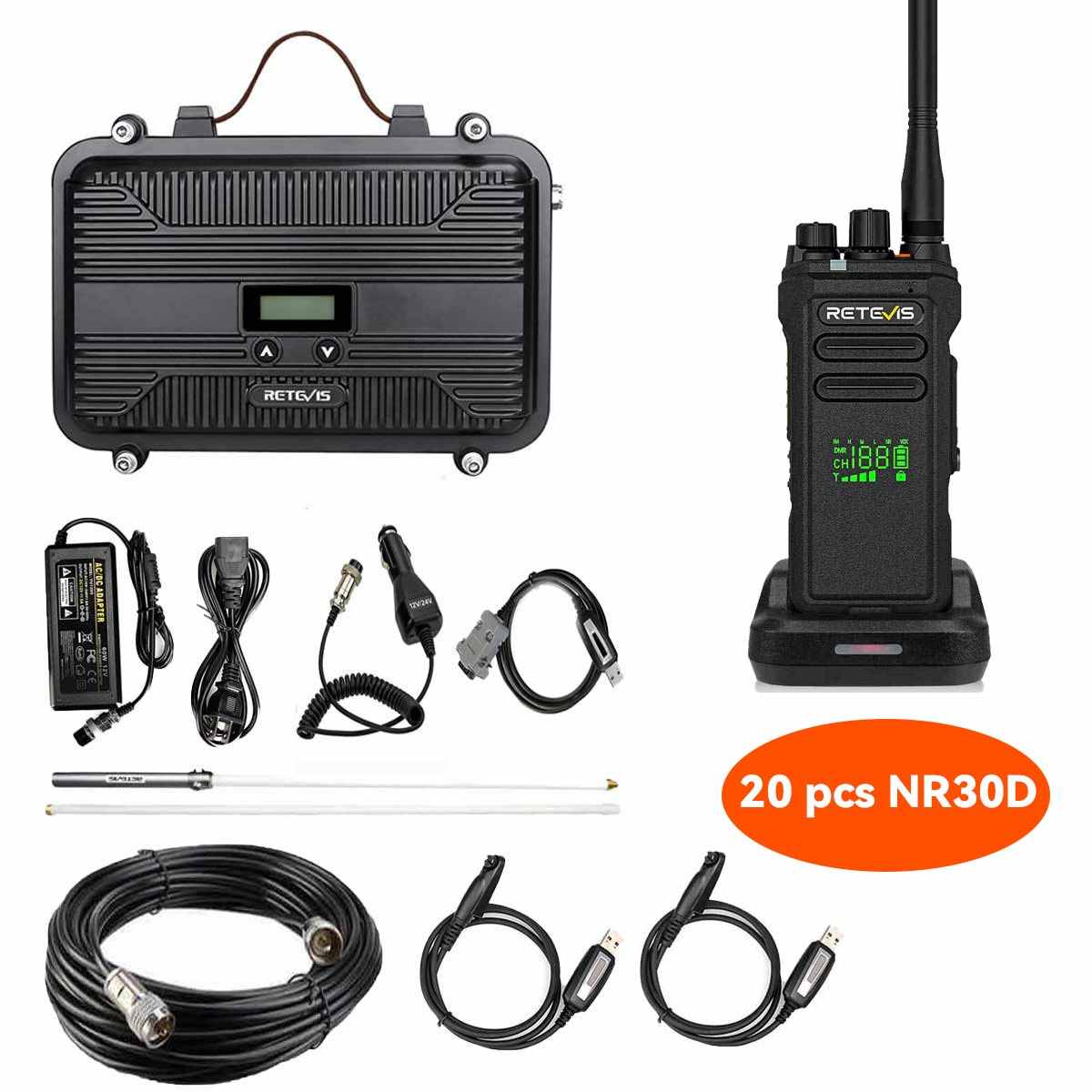

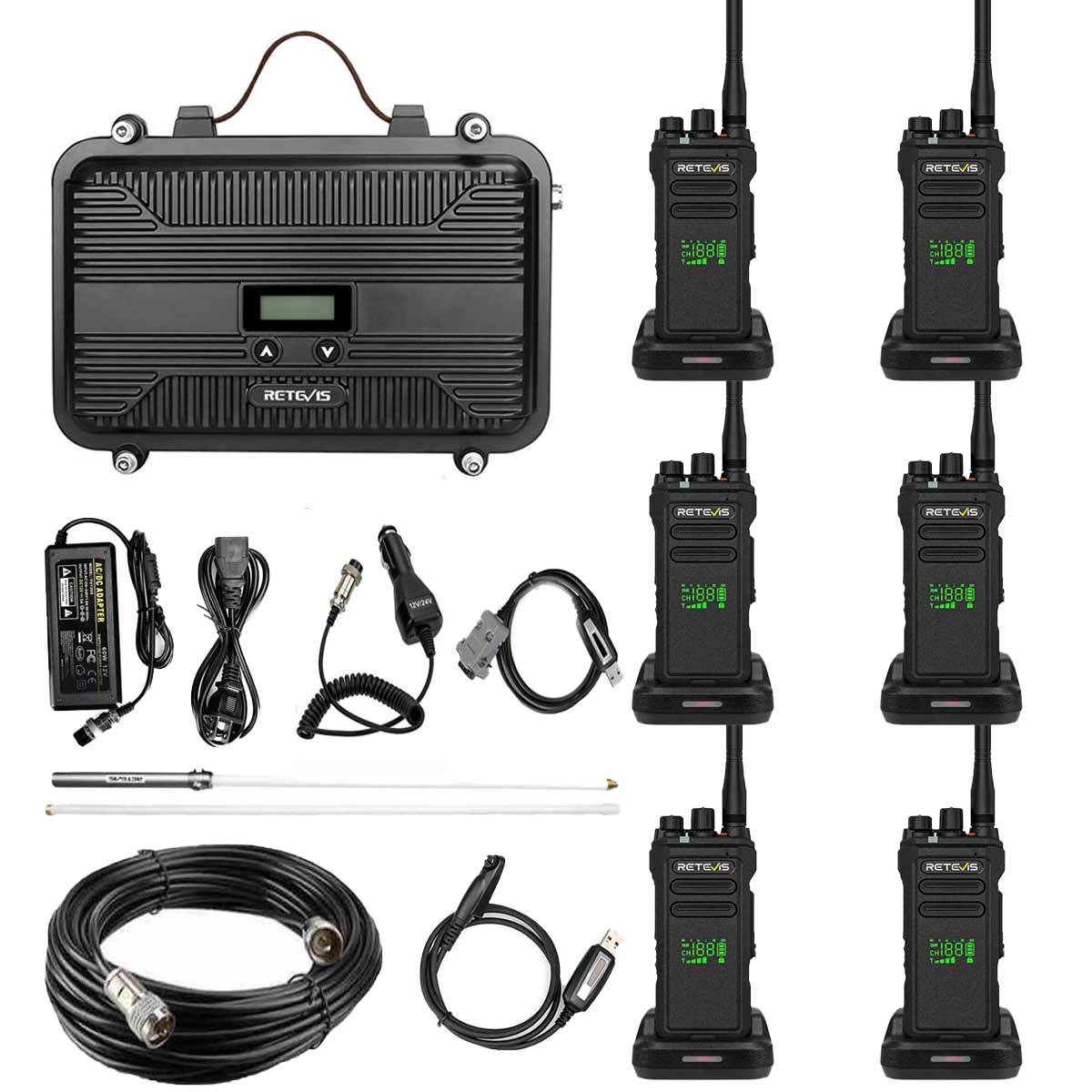

The RT97P ships as a finished repeater in one enclosure: duplexer, power supply, and control board are already integrated, so there is no separate controller. Mount it, connect the antenna, apply power, and the repeater is on the air.

RT97P Power Options for Flexible Deployment

12V to 24V DC input, so it runs from a vehicle or a battery bank
Car cigarette lighter power cable for mobile and temporary bases
AC adapter included for permanent indoor sites
Solar and battery compatible for hilltop and off-grid repeaters

This plug-and-play design allows users to quickly set up a DMR repeater system without complex infrastructure.

Dual-Mode Operation: Digital and Analog Compatibility

The RT97P DMR repeater supports both digital and analog modes, providing excellent flexibility. It can be used to: extend the range of DMR digital radios, support existing analog radio systems during transition

This dual-mode capability makes it a practical choice for teams upgrading from analog to digital communication.

Advanced DMR Walkie Talkie Features for Team Safety and Efficiency

The NR30D DMR handheld radio includes advanced features designed for professional team coordination:

AI Two-Way Noise Reduction

The NR30D is equipped with a noise reduction chip and realizes background noise filtering at both the receiving and transmitting ends. This enables clearer and more accurate voice messaging.

AES256 Encryption

In many business environments, we don't want our communication channels to be occupied and calls to be disturbed. The addition of AES256 encryption is a great way to help you realize the need for more independent and private calls. Ensures private and secure communication in business and industrial environments.

Lone Worker Function

Protects staff working alone in hazardous or confined environments. Teams don't always work together, such as in hazardous environments or tight quarters (e.g., pipelines). Confined environments require the use of Lone Woker to ensure the safety of the people involved, and the DMR is better able to withstand the interference of confined environments and reinforced concrete.

Rugged and Reliable for Outdoor and Emergency Use

The RT97P DMR repeater and NR30D handheld DMR radios are designed for demanding outdoor and emergency environments. Featuring IP67 waterproof protection (NR30D), ruggedized construction, and essential functions such as VOX, emergency alarm, channel lock, and Type-C charging, this DMR radio communication solution delivers stable and dependable performance in harsh conditions. It is well-suited for farming operations, camping trips, emergency preparedness, disaster response, and remote or off-grid deployments where reliability is critical.

Ideal Applications for This DMR Repeater & Handheld Solution

This DMR digital radio long-range solution is ideal for:

Security
Farms and ranches
Warehouses and logistics centers
Construction sites
Large outdoor events
Emergency preparedness

Why Choose the RT97P & NR30D DMR Radio Solution

By combining a portable DMR repeater with professional-grade DMR handheld radios, this solution delivers:

Long-range and stable communication
Clear digital audio in noisy environments
Secure and efficient team coordination
Flexible power and deployment options

It is a reliable and scalable DMR radio communication solution for teams that need dependable coverage beyond the limits of standard handheld radios.

FAQ on RT97P Digital Repeater and NR30D DMR Radio Communication Kit

Q1. How do I pair the NR30D with the RT97P repeater?

A1: Ensure both devices are powered on.

Set the NR30D to the same frequency and CTCSS/DCS code as the RT97P (check the repeater’s manual for default settings).

Test communication by pressing the PTT button—the repeater should relay your signal.

Q2. Why is my NR30D not transmitting through the repeater?

A2: Verify the NR30D and RT97P are on the same frequency/offset.

Check CTCSS/DCS tones match.

Ensure the repeater’s antenna is properly connected.

Q3. Can I use multiple NR30D radios with one RT97P repeater?

A3: Yes! The RT97P supports multiple NR30D units (or other compatible radios) simultaneously, as long as they share the same repeater settings.

Q4. How can I reduce interference when using the repeater?

A4: Set unique CTCSS/DCS tones to filter out unwanted signals.

Avoid overlapping frequencies with nearby repeaters.

Place the RT97P antenna high and away from obstructions.

Q5. Can the RT97P work without internet or cellular networks?

A5: Yes! The RT97P is a standalone UHF/VHF repeater and does not require internet or external networks.

Q6: Does the NR30D have a "Talk Around" function, and what does it do? How do I set it up?

A6:Yes, the NR30D supports Talk Around (Direct Mode). This feature allows the radio to communicate directly with other radios without relying on a repeater, making it ideal for:

Short-range communication (when a repeater is unavailable or unnecessary).

Emergency backup (if the repeater fails).

Private team chats (avoiding repeater traffic).

How to Enable:

Use the programming software to assign Talk Around to a side key (short/long press).

Toggle the key to switch between Repeater Mode and Direct Mode.

Note: Ensure the radio and repeater use the same frequency/CTCSS when switching modes.

Spec

Mode	NR30D:DMR/Analog RT97P:Digital/Analog
Frequence Band	NR30D:UHF RT97P:Dual Band
Transmit Frequency（TX）	NR30D:UHF:400–480MHz RT97P:UHF:400-470MHz VHF:136-174MHz
Receive Frequency(RX)	NR30D:UHF:400–480MHz RT97P:UHF:400-470MHz VHF:136-174MHz
Power	NR30D:10W/5W/1W RT97P:10W/5W
Channel Number	NR30D:64 RT97P:8
Battery Capacity	NR30D:2800mAh RT97P:/
Operation Temperature	NR30D:-20°C to +50°C RT97P:-30℃ to +60℃
Encryption Type	NR30D:AES256 RT97P:CTCSS/DCS
Weight	NR30D:333.7g RT97P:3000g
Size	NR30D:1265836mm RT97P:28021075mm
Additional Features	NR30D:1.Two Zones； 2.VOX； 3.Channel Lock； 4.Monitor； 5.Scan； 6.Roger； 7.Low Battery Alert； 8.Power Save； 9.Squelch； 10.TOT； 11.One Key Call； 12.Remote Stun； 13.Remote Kill； 14.DCDM； 15.50CTCSS+210DCS； RT97P:1.Easy carry； 2.Car Charger； 3.Dual Mode；

RT97P Main Technological Specification

Frequency	TX 463.3125MHz / RX 453.3125MHz
Standard form	DMR/FM/DMR+FM
Channel Capacity	8CH
Channel Spacing	±12.5KHz Narrow/±25KHz Wide
Operating Temperature	-30℃~+60℃
Operating Voltage	DC12V-24V
Antenna Impedance	50Ω
Frequency Stability	±0.5ppm
Dimension	280×210×75mm
Weight	2624g

Transmitter

Output power	10W
Transmission Current	≤2.5A
FM Modulation	11kφF3E/16kφF3E
Digital modulation	4FSK
Modulation Distortion	≤5%
FM Noise	≥40dB（25KHz）/≥35dB（12.5KHz）
Adjacent Channel Power	≥70dB（25KHz）/≥60dB（12.5KHz）
Audio Response	+1～-3dB
DMR Protocol	ETSI-TS102 361-1,-2,-3

Receiver

Analog receive Sensitivity	0.25μν（12dB）SINAD
Digital receive sensitivity	-120dBm (BER≤5%)
Adjacent channel selectivity	≥70dB（25KHz）/≥60dB（12.5KHz）
Inter-modulation	≥60dB/≥65dB
Signal imitation	≥70dB
Audio Response	+1～-3dB
Audio distortion	<5%
FM Noise	≥45dB（25KHz）/≥40dB（12.5KHz）

NR30D Specifications

Model	NR30D
Frequency	UHF：400-480MHz
Number of Channels	64 channels: 2 zones (32 channels per zone)
Power	10W/5W/1W
Battery Capacity	2800mAh Lithium Battery (with Type-C interface)
Voltage	7.4V
Antenna Impedance	50Ω
Antenna	Detachable Antenna
Earphone Jack	Moto Pin
Dimensions	1265836mm (HWD, excluding antenna and knobs)
Weight	550g

Features

Retevis RT97P UHF DMR Portable Repeater

1. UHF-10mhz-Stock：Offset 10mhz, TX: 463.3125mhz and RX: 453.3125MHZ

2. Output power: 10W.

3. Small size: With the package size: 310×283×170mm. Very small and easy to carry, you can use it outdoor.

4. Car charger: Provide the car charger, you can use this repeater in your car.

5. Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.

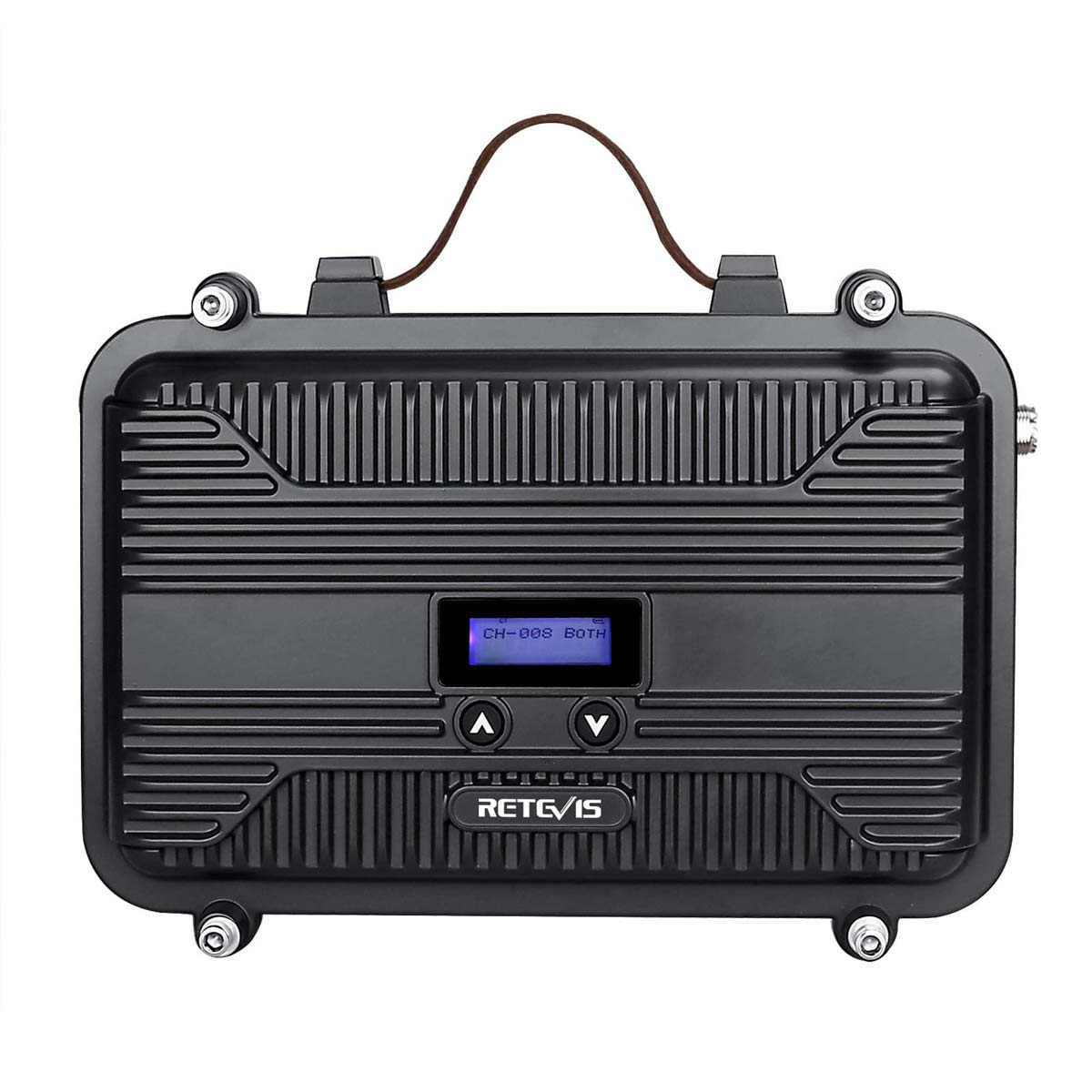

6. LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.

NR30D Function:

High / Middle/Low Power Adjustable
Two Zones
VOX Hands-free
Private Call/Group Call/All Call
Channel Lock
Monitor
Scan
Roger
Emergency Alarm
AES256 Encryption
Lone Worker
Low Battery Alert
Power Save
Squelch
TOT（Time Out Timer）
One Key Call
Remote Stun
Remote Kill
DCDM
