Retevis GMRS Radios RA86 and High power Waterproof Repeater RT97L Large Farm Bundle
The RT97L Waterproof GMRS repeater combines RA86 gmrs mobile radios to form a large gmrs communication solution. Can talk to other GMRS radios such as GMRS handheld walkie-talkies. Suitable for communication in large farms, pastures, warehouses and other large venues.
RA86 GMRS mobile radio feature：
- Full Micro Mobile GMRS Radio, with an external magnetic mount 2 dB gain antenna for extended range
- 30 factory set GMRS Channels（8 gmrs repeater channels）
- 10 NOAA channels: NOAA Weather Scan will automatically scan through 10 available weather (WX) band channels and locks onto the strongest weather channel to alert you of severe weather updates.
- NOAA Weather Alert will sound an alarm indicating that there is a risk of severe weather in your area.
- 260 CTCSS/DCS PRIVACY CODES: The privacy codes give you up to 5720 channel options to protect your conversations
- Fully Integrated Control Microphone and low profile hide away unit. Personalized backlight selection, clearer microphone for better call sound quality.
- Scan
- Monitor
- Squelch
- VOX
- Keypad lock
- Power Level Hi/Lo
- Bandwidth Settings
- TOT
- Call Alert Tone
- Repeater ON/OFF
- MIC Gain

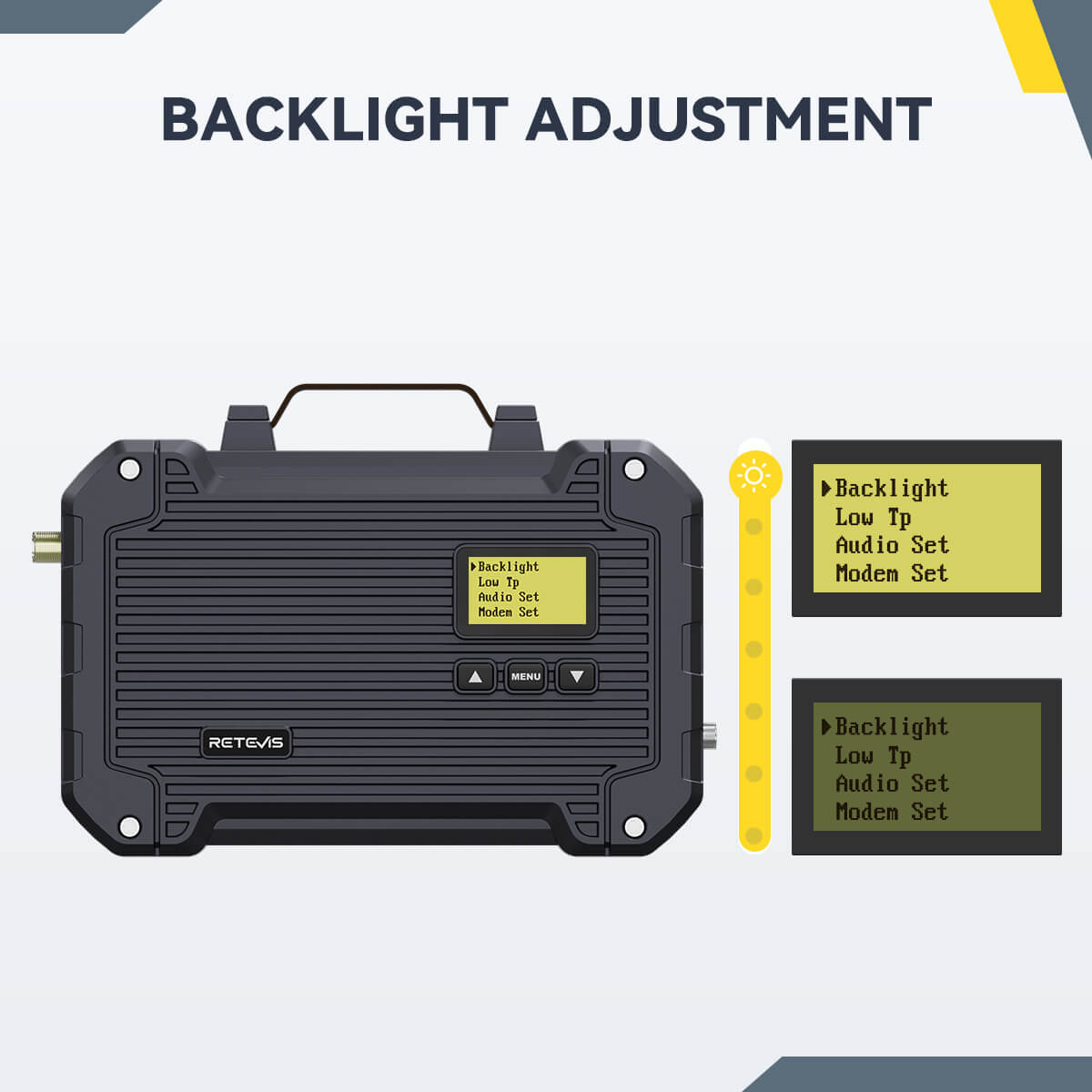

Backlight Settings
LCD Brightness Settings
Sleep Time Settings
Extemal Speaker Jack
Automatic Power On Function

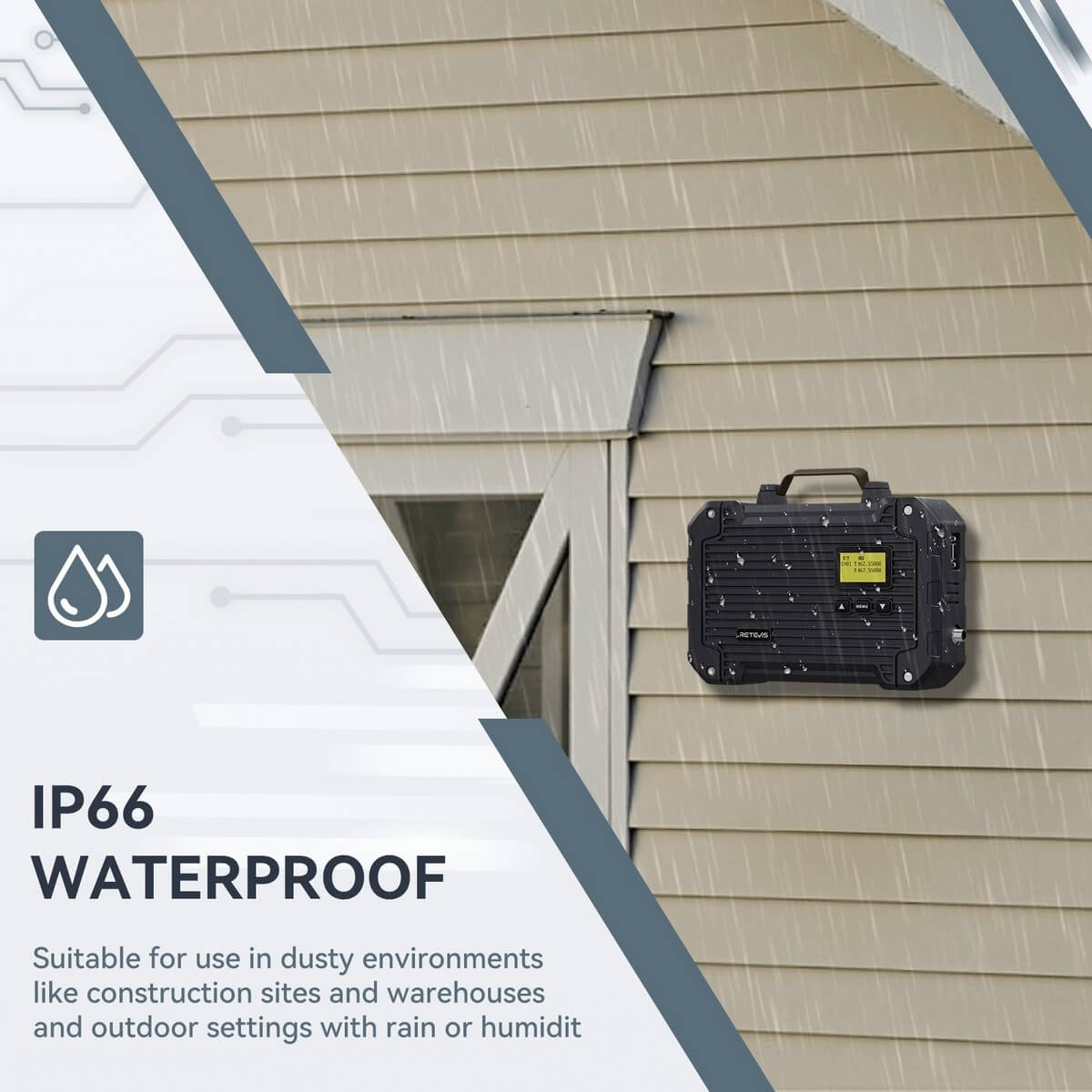

RT97L High power waterproof GMRS Repeater feature:

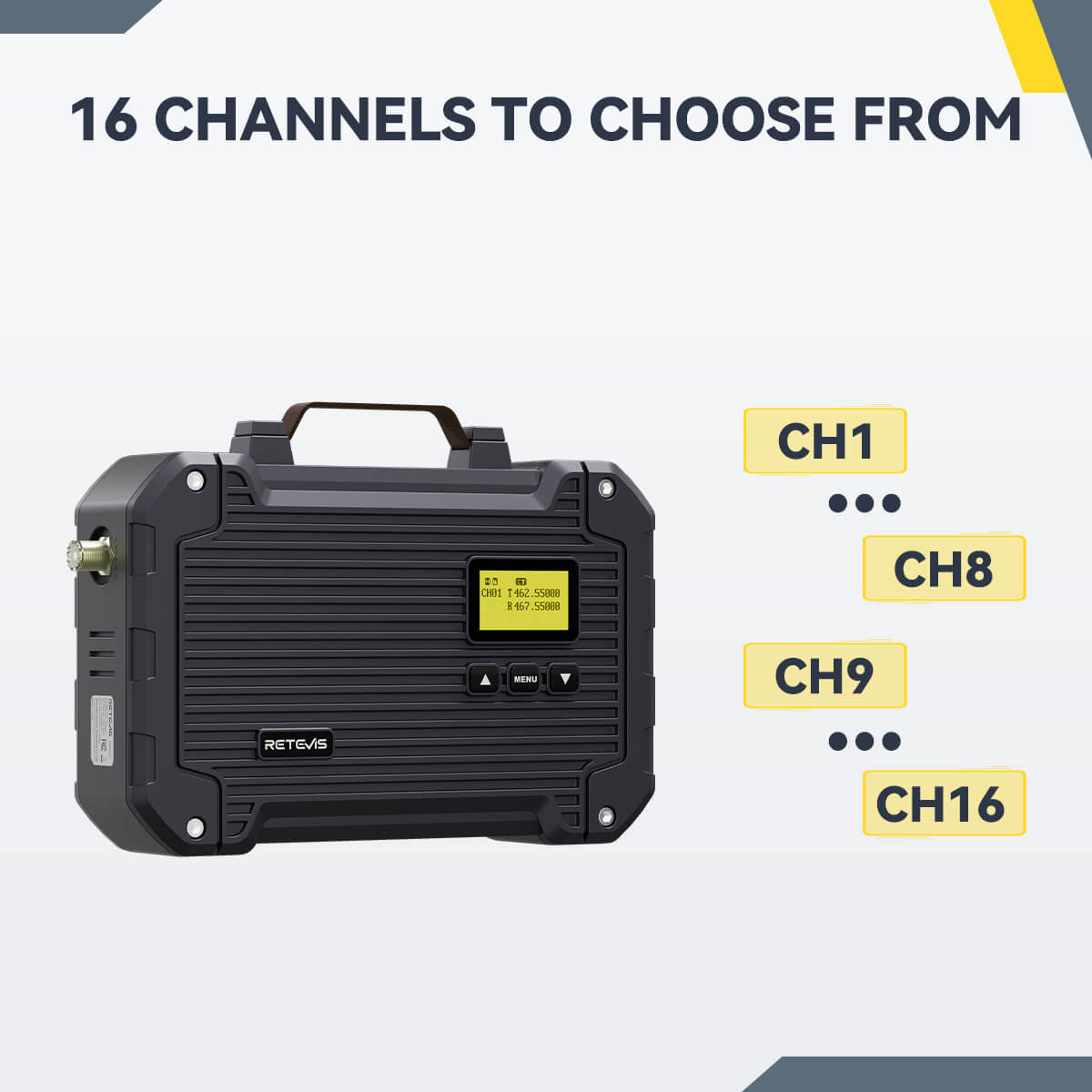

- 16 Channel Capability
Wide/Narrow Band Selection through PC Software
Repeater Delay (Hang) Time Adjustment through PC Software
Noise Squelch Level Adjustment through PC Software
High/Low Transmit Power Selection through PC Software
UHF Female (SO-239) Antenna Connector
Two charge methods: 12V/24V DC Cigarette Lighter Plug(fit for solar-powered ) or 120V AC Adapter.
50 CTCSS and 210 DCS privacy codes, Independent Receive and Transmit Privacy Tone Selection through PC Software
Built into a cable TV amplifier box

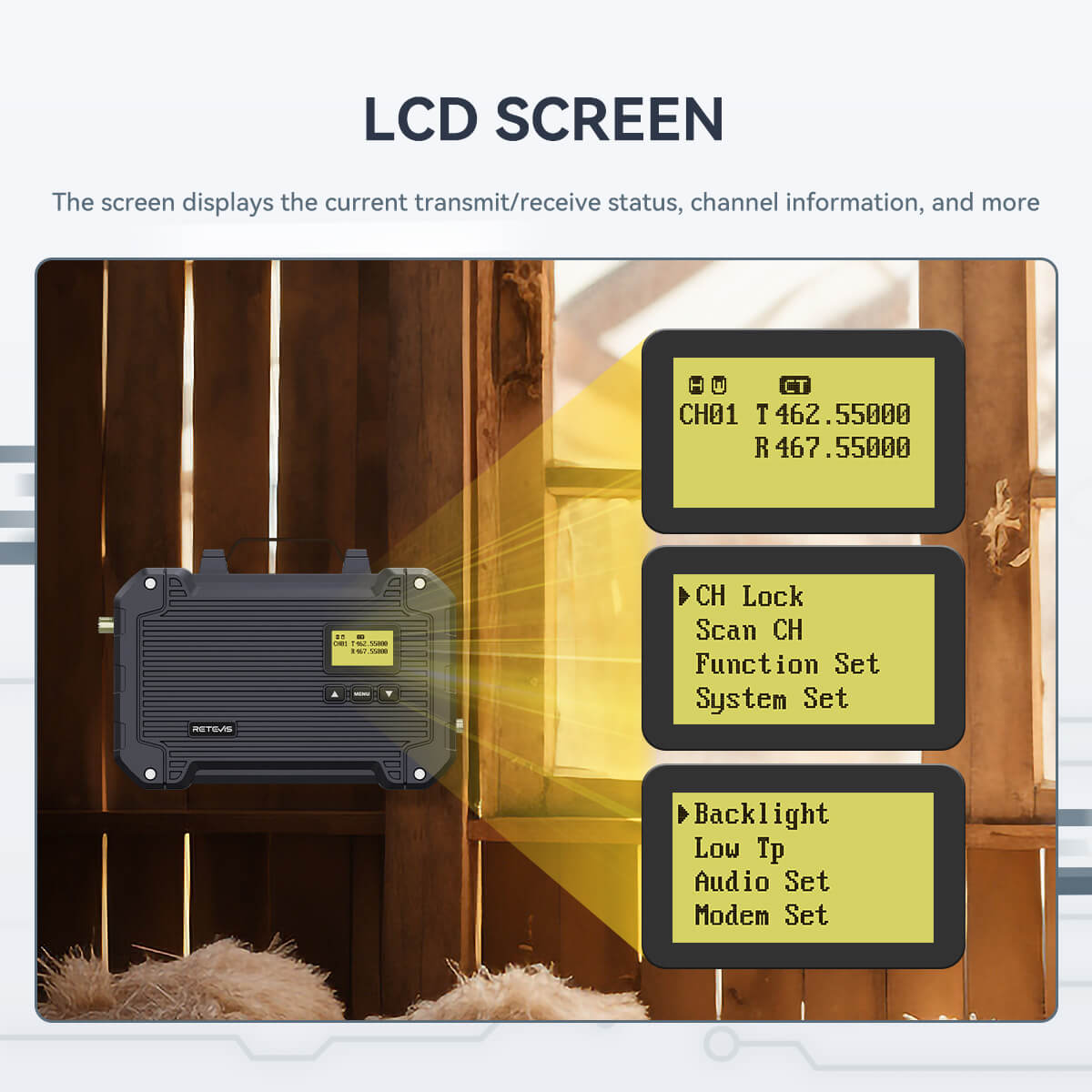

LCD display
Need Antenna and feeder cable to build your GMRS base stations(can choose from this listing).

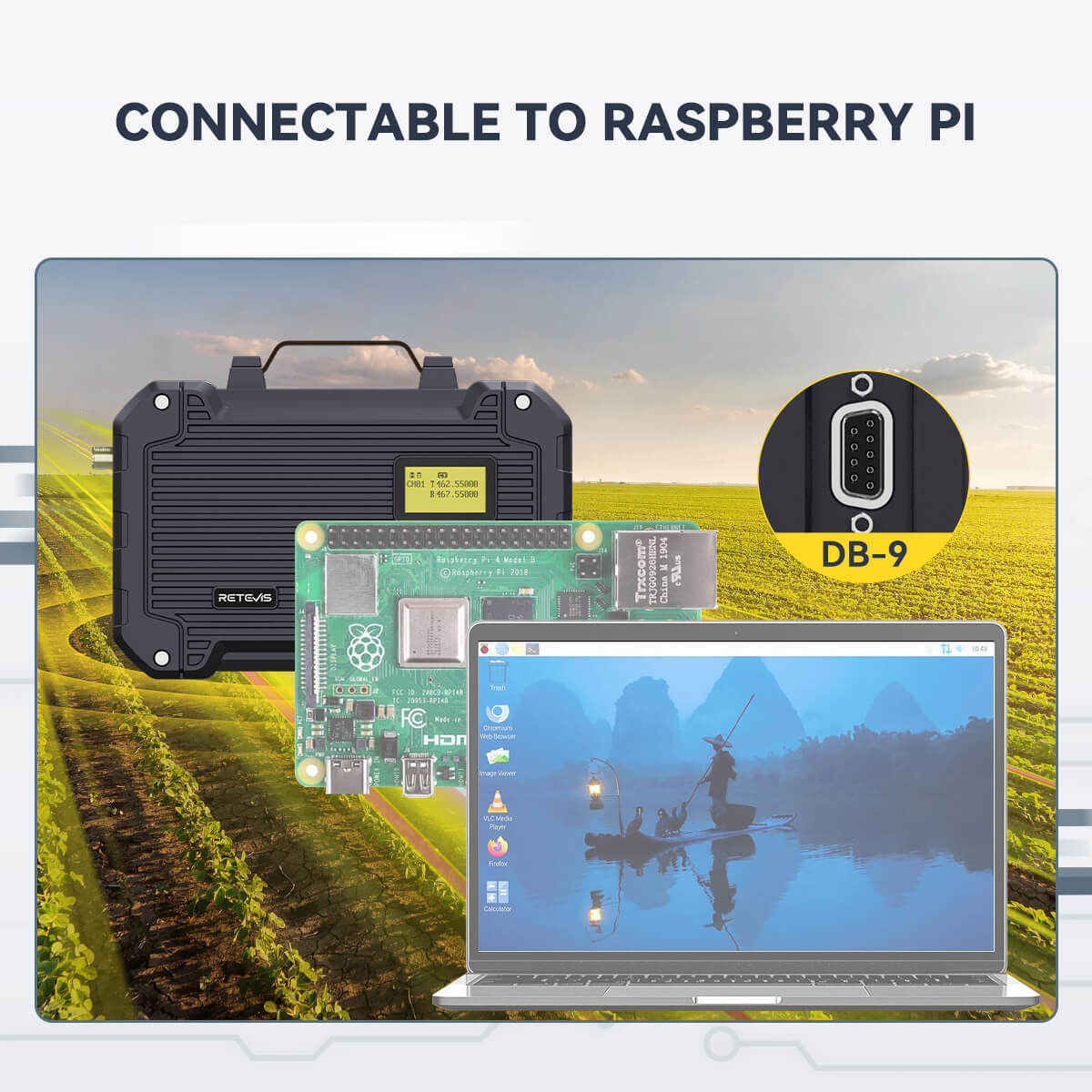

DB-9 Female connector for adding an external controller for linking purposes
GMRS License Required

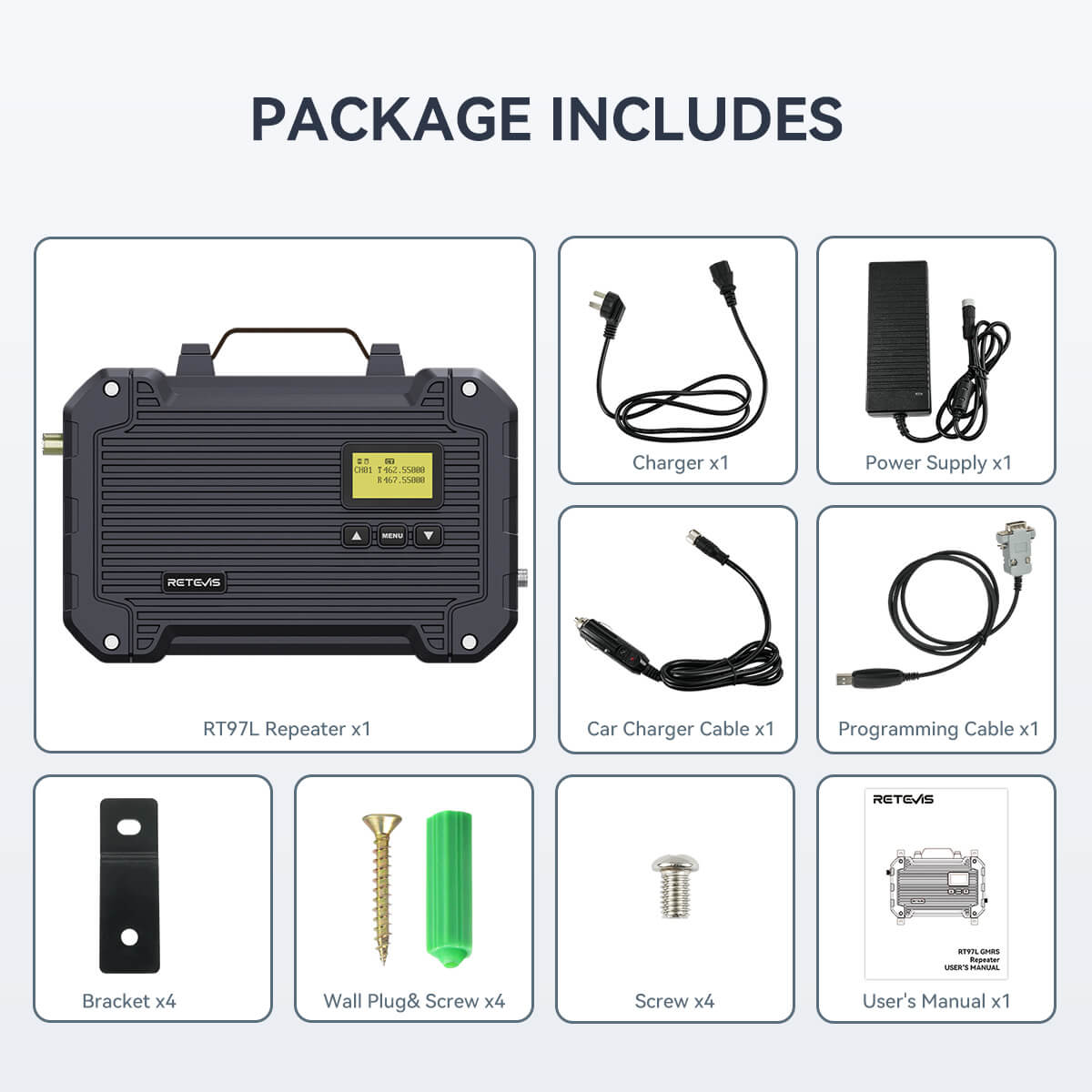

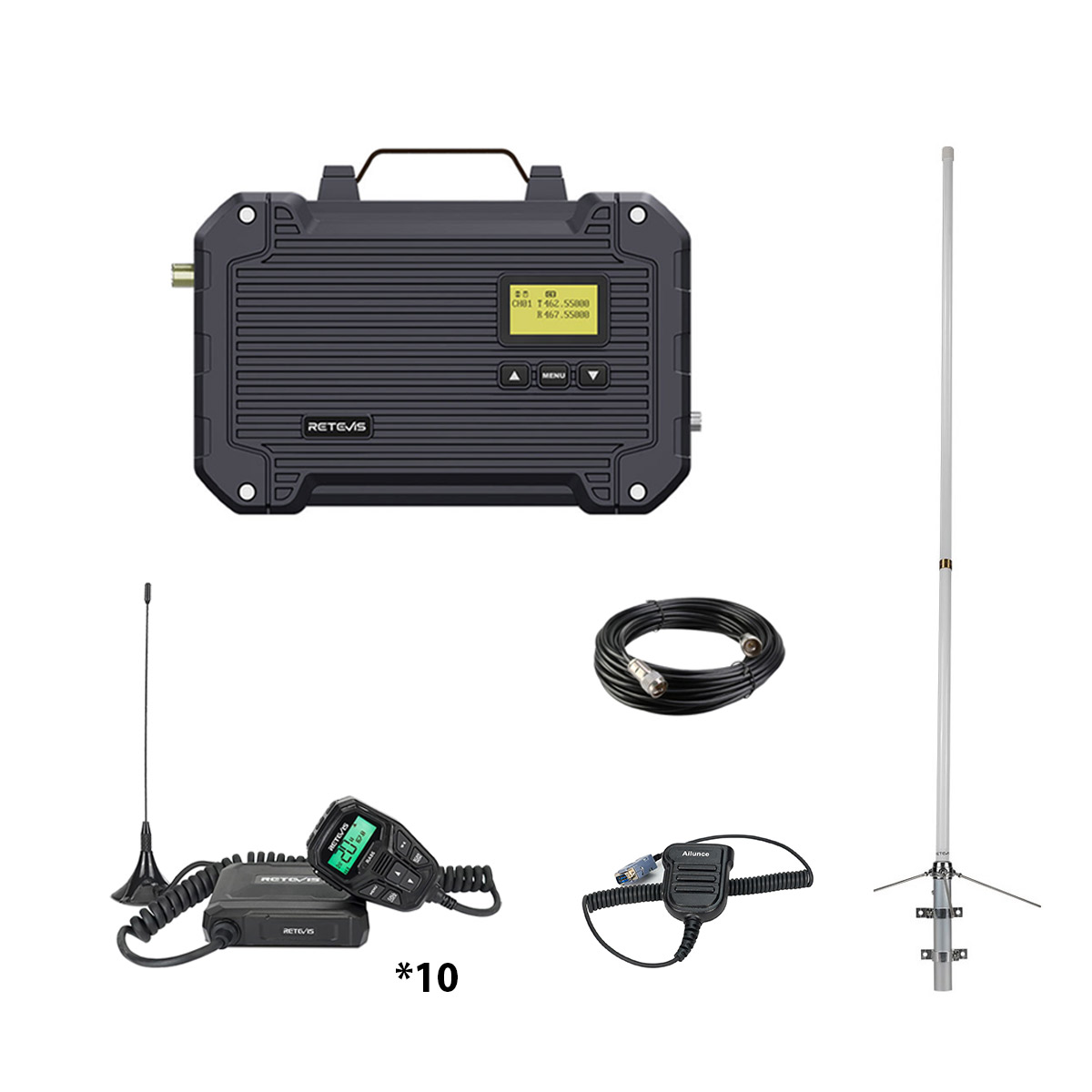

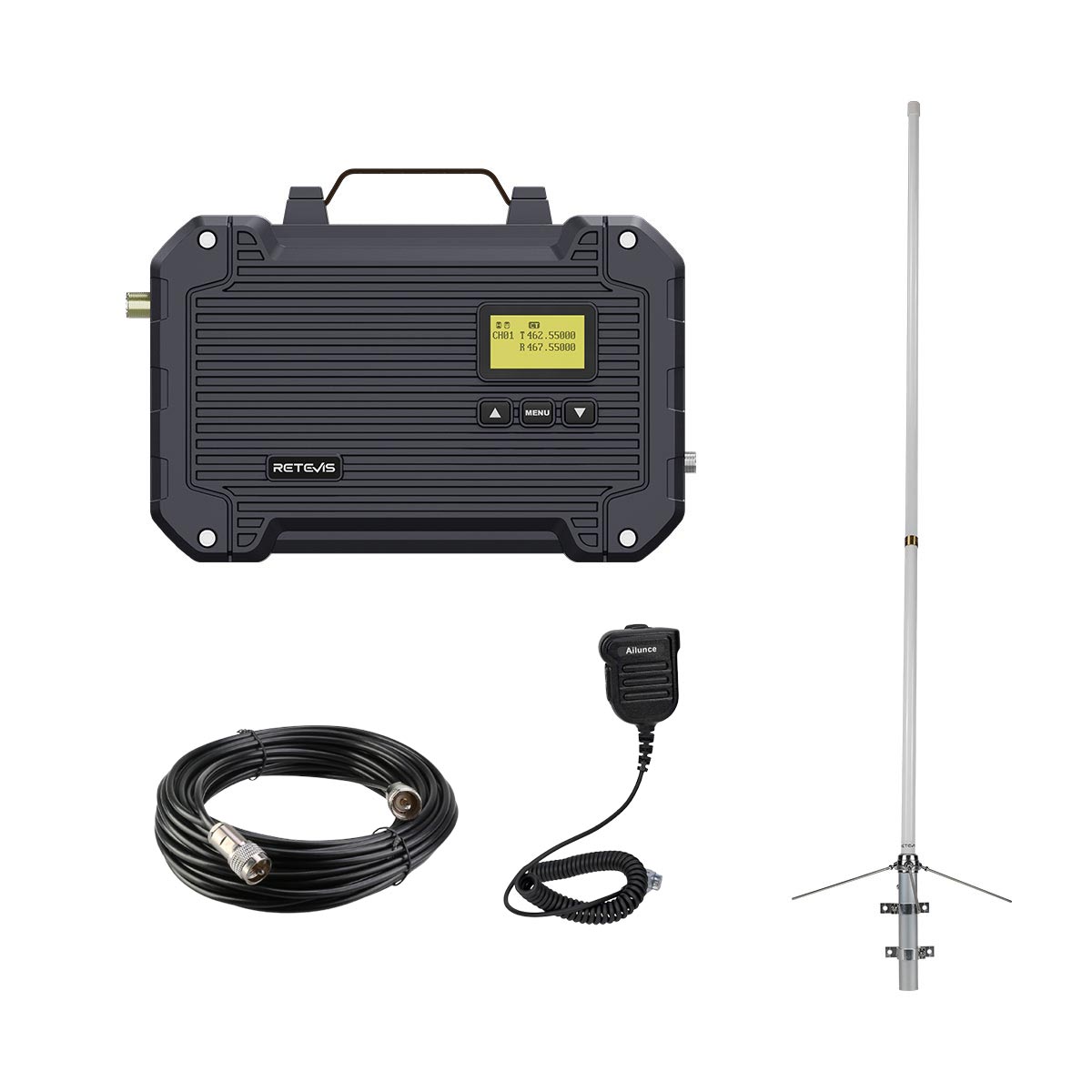

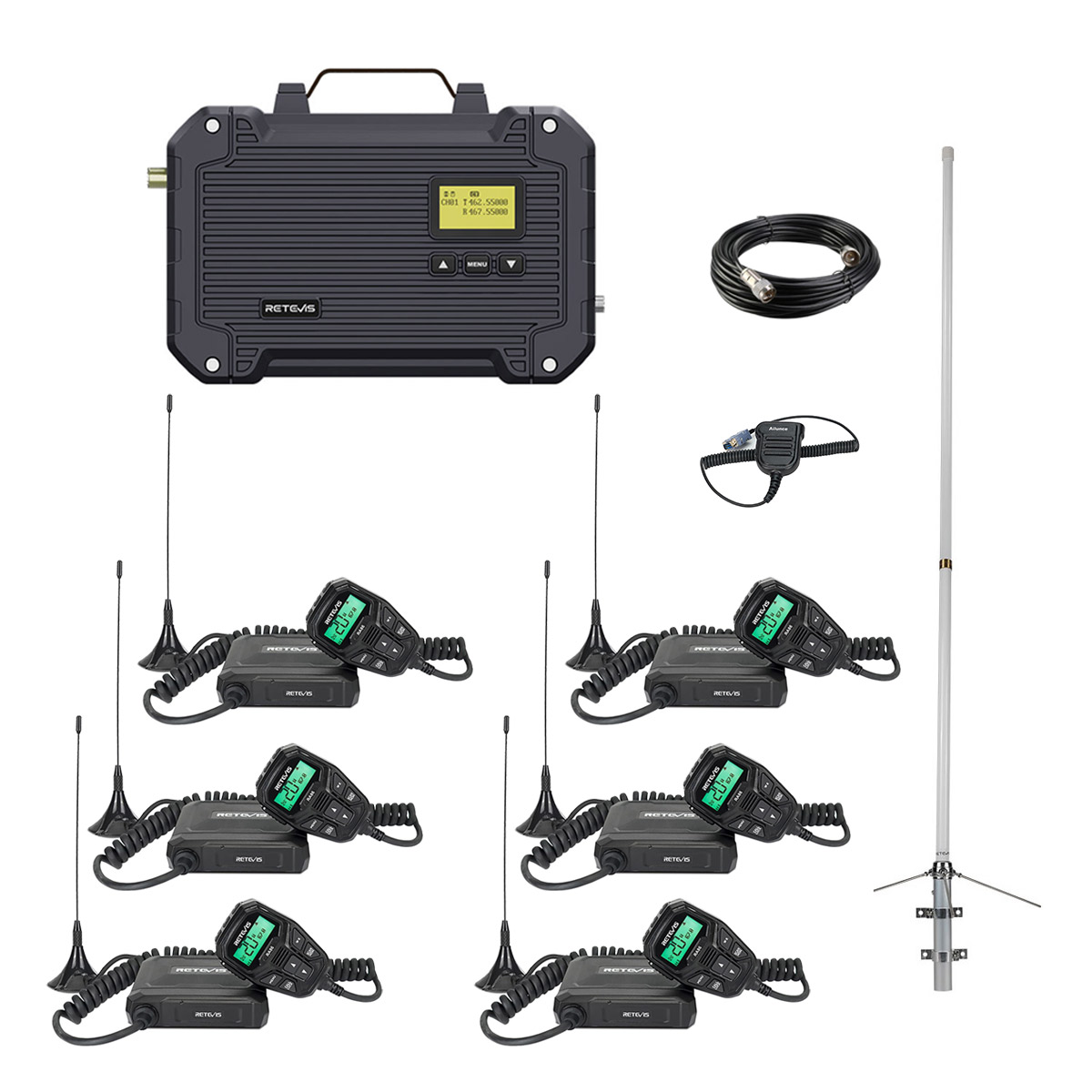

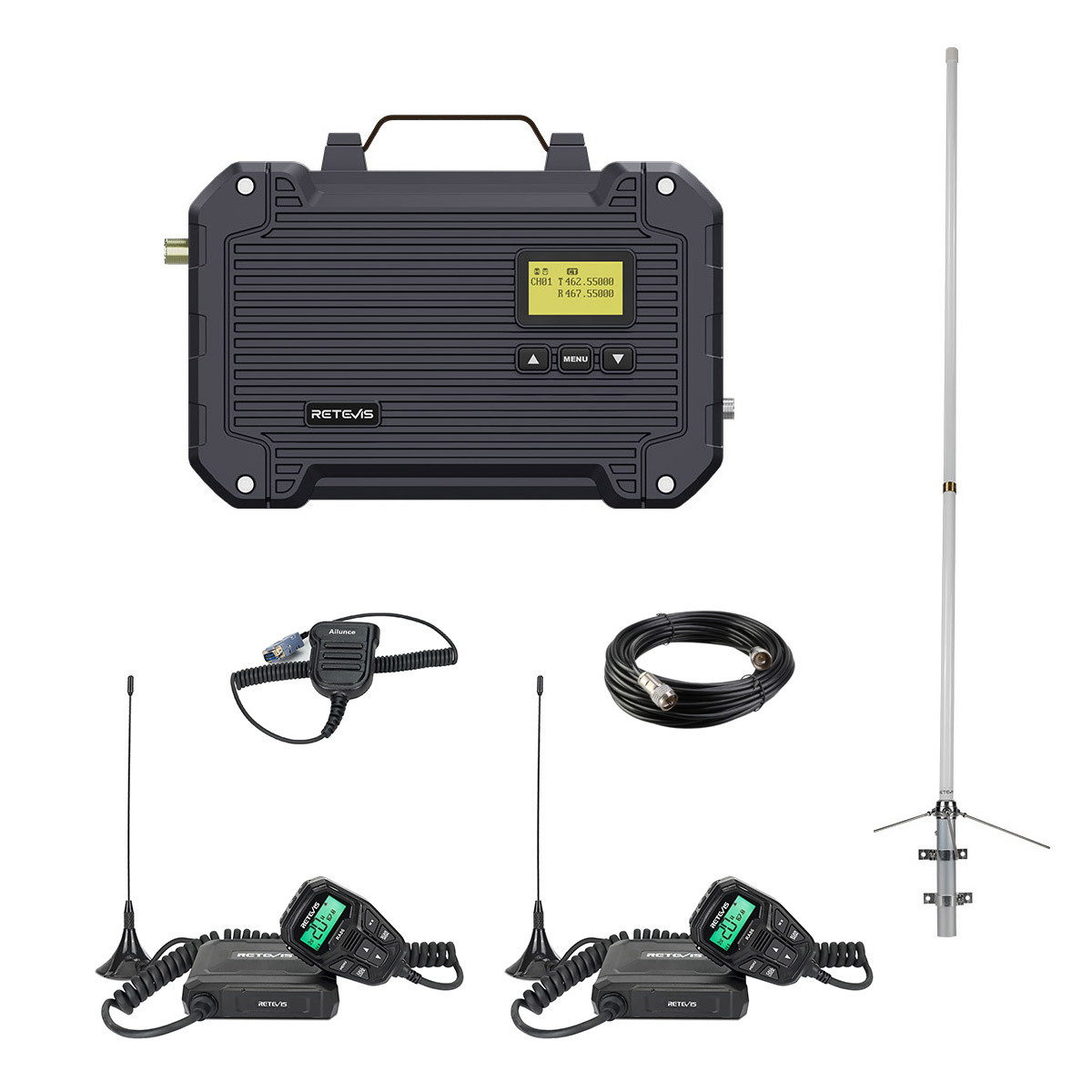

Package includes：
1 x RT97L Portable Repeater

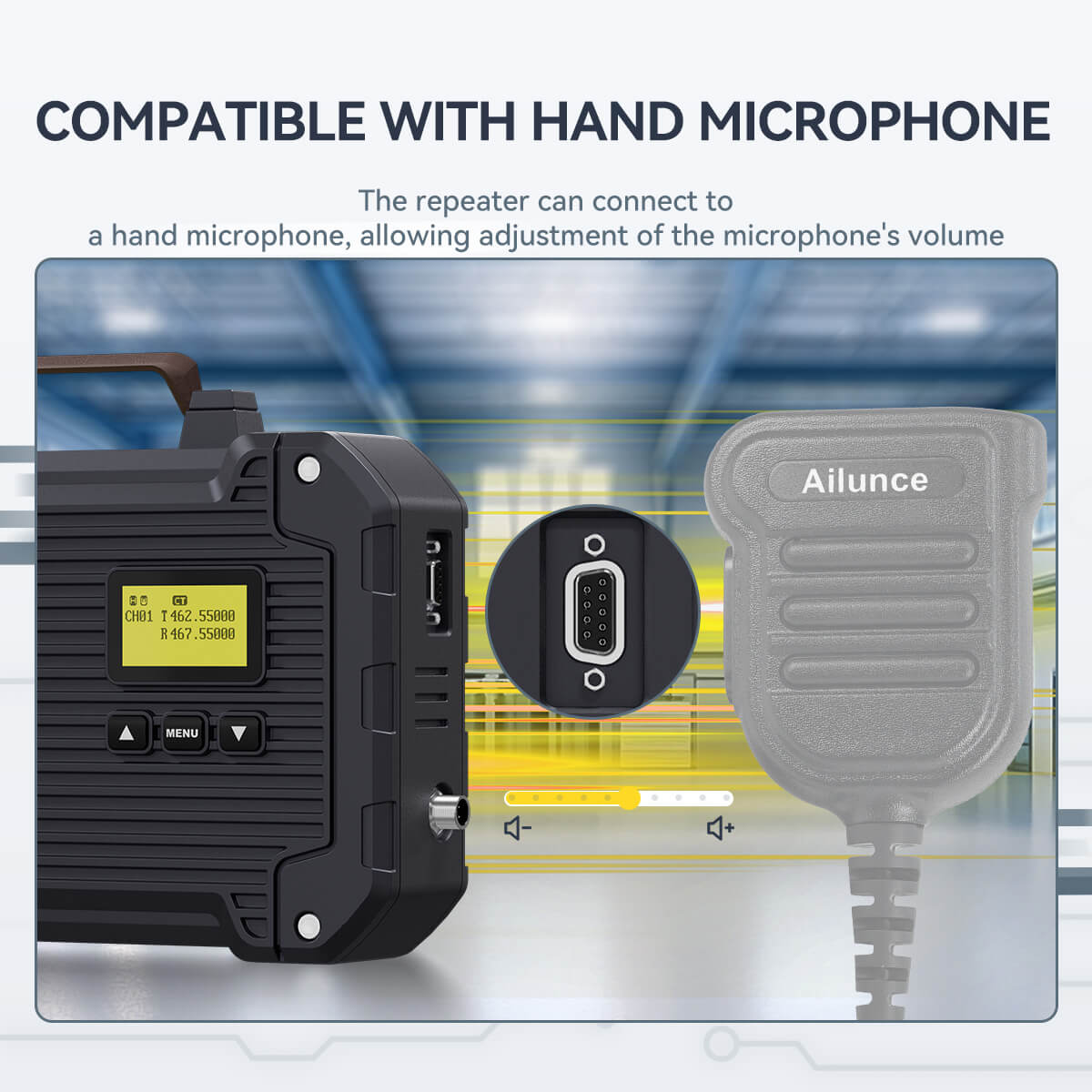

1 x RT97L speaker microphone
1 x MA09 7.2 dBi fiberglass antenna
1 x Repeater 15m feeder
1 x Repeater programming cable
2 x RA86 GMRS mobile radio
2 x Mobile radio short antennas
1 x RA86 program cable
1 x RT97S car charger cable
Spec
Retevis RT97L Portable GMRS repeater Specifications
| Frequency Range | 462.550 - 462.725 MHz (TX), |
| 467.550 - 467.725 MHz (RX) | |
| Channel Capacity | 16 GMRS Repeater Channels |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V - 24V |

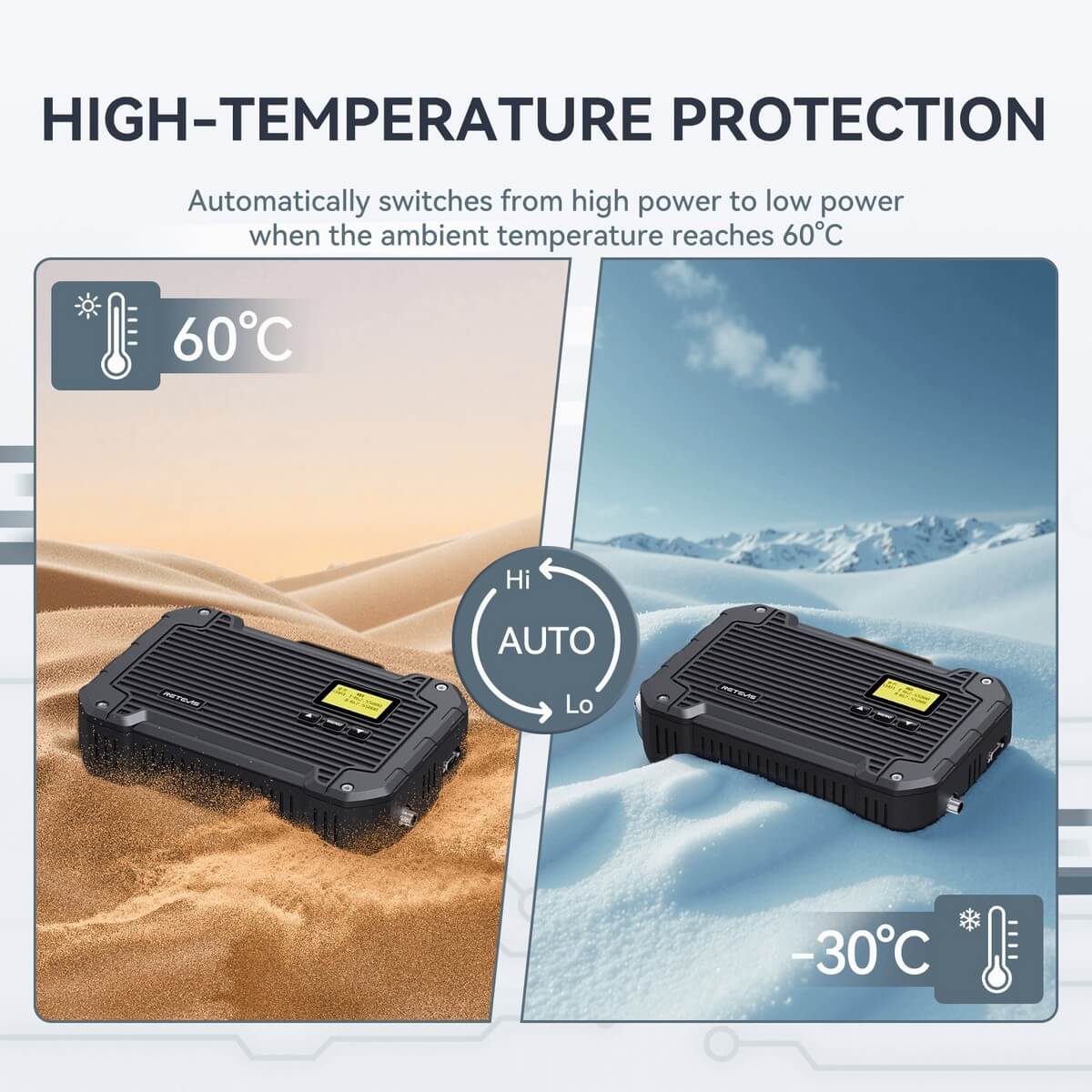

| Operating Temperature | -22° F - 140° F (-30° C - 60° C) |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ω |

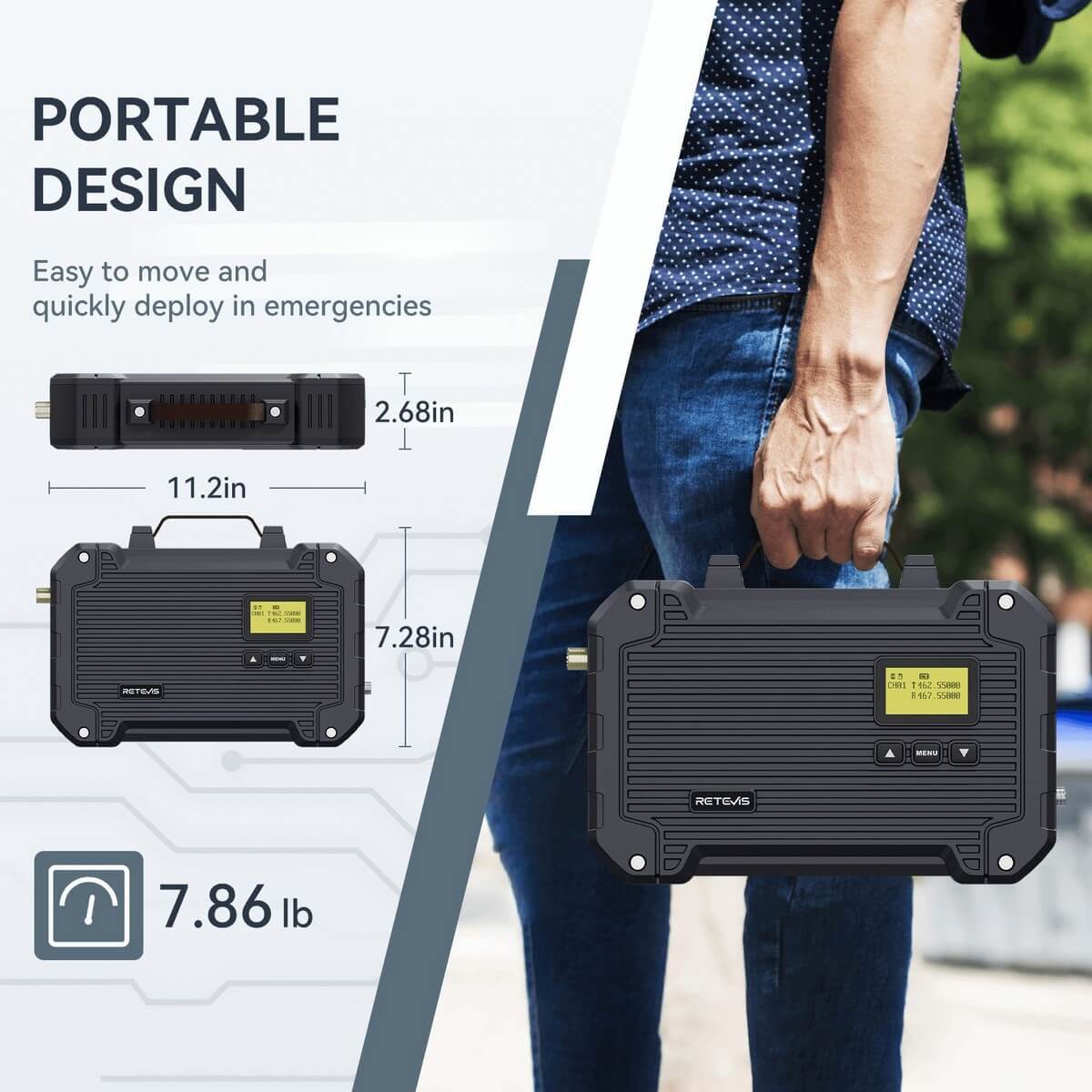

| Dimensions | 10.25" x 8.3" x 2.8" (260 x 210 x 70mm) |
| Weight | 3.7 lbs (1.66 kg) |
| Transmitter | |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
