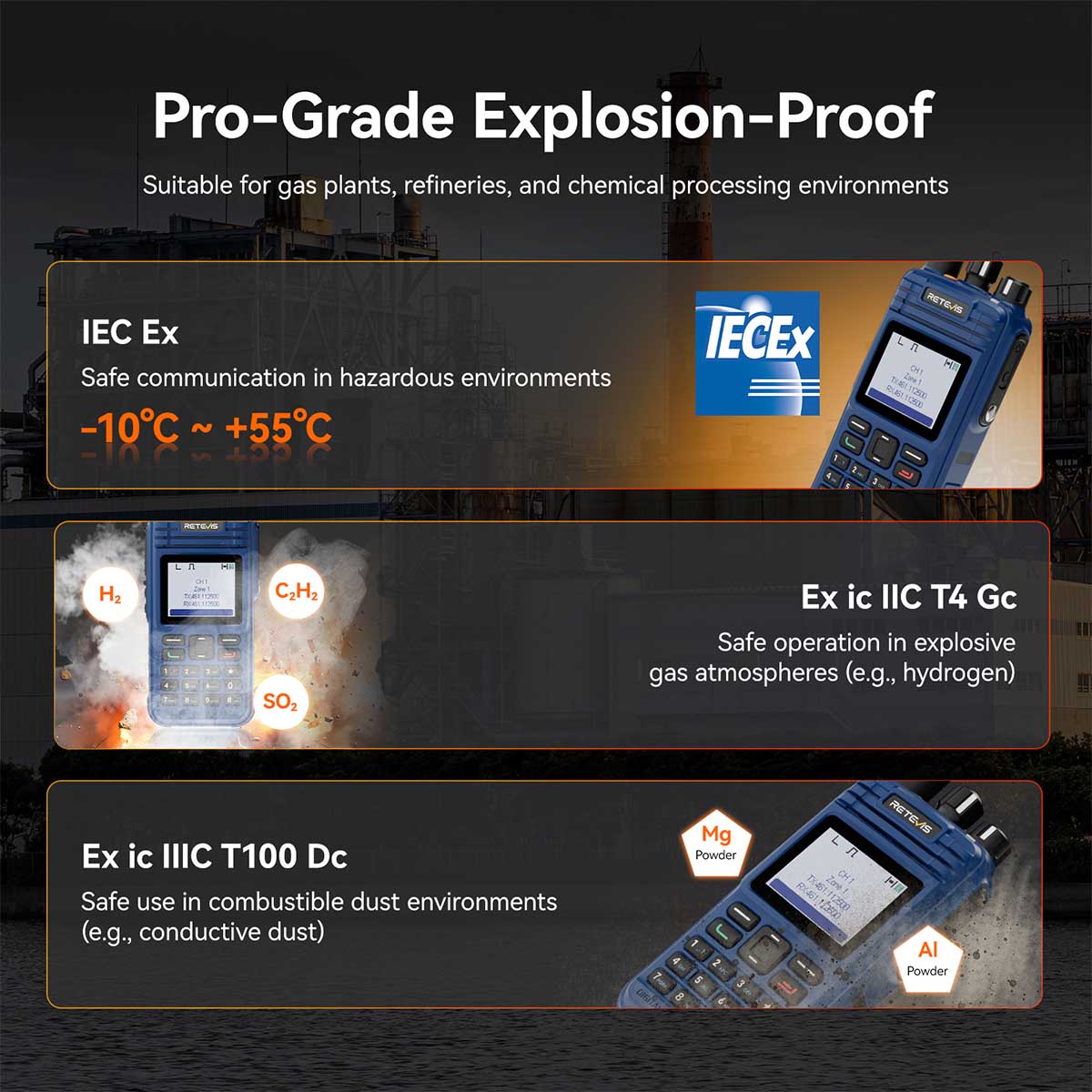

- ATEX/IEC Ex certified explosion-proof radio

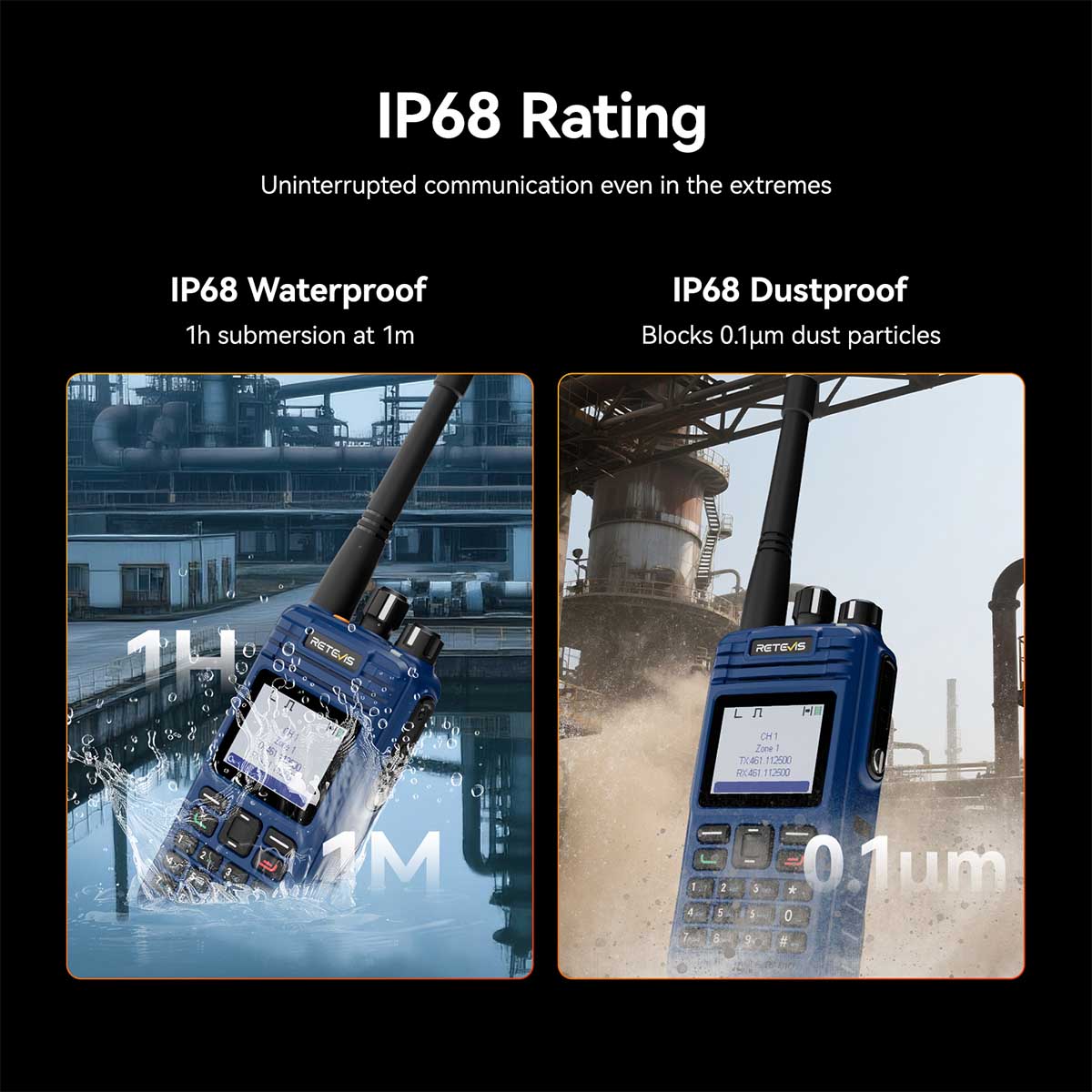

- IP68 waterproof, designed for extreme conditions
- AES256 encryption for secure, clear communication

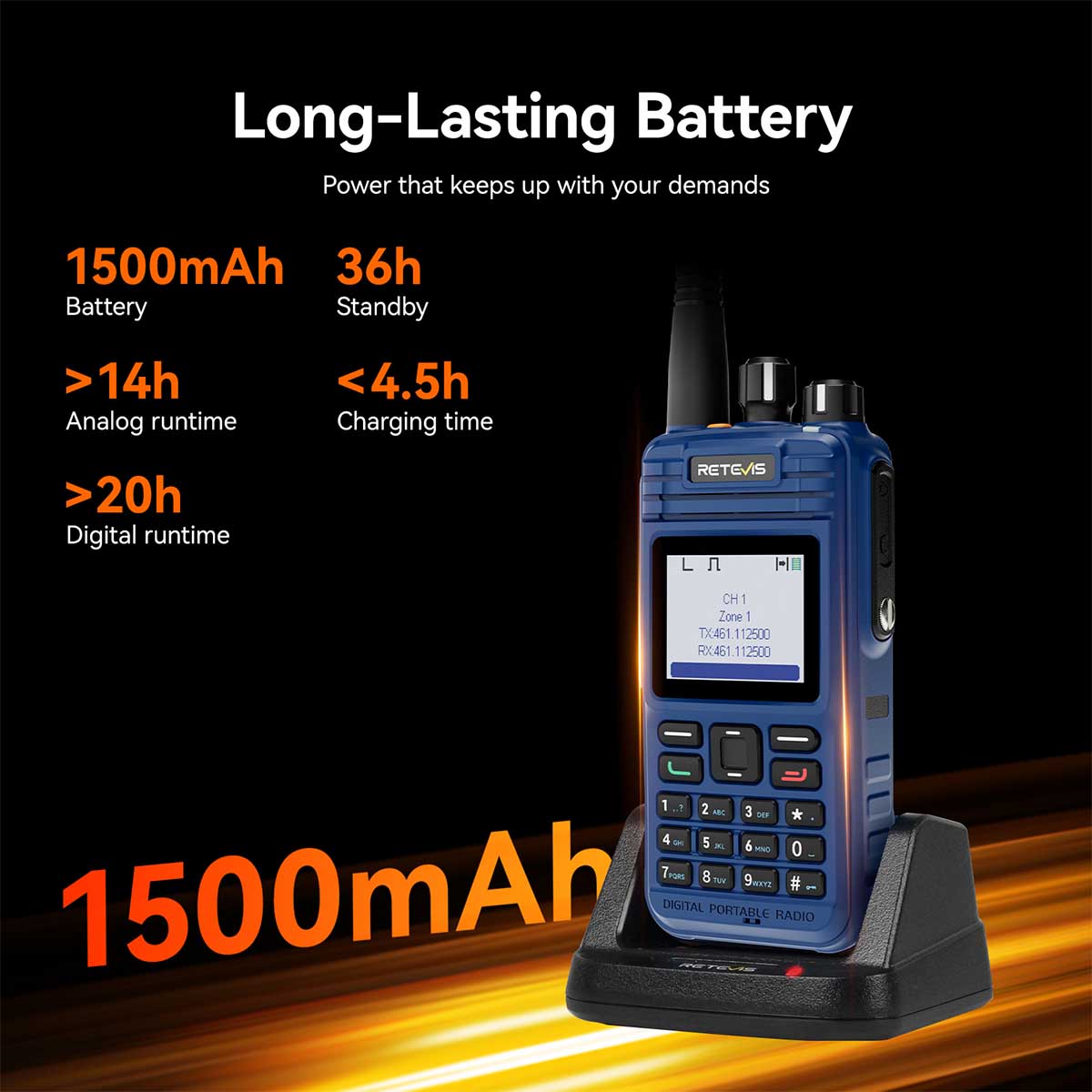

- All-day battery life for nonstop use
- Lone worker protection & emergency alarms for safety
Payment Methods
Delivery Method
Double-Certified for Global Reliability
Bulk order Inquiry
Personalize your device
OverView

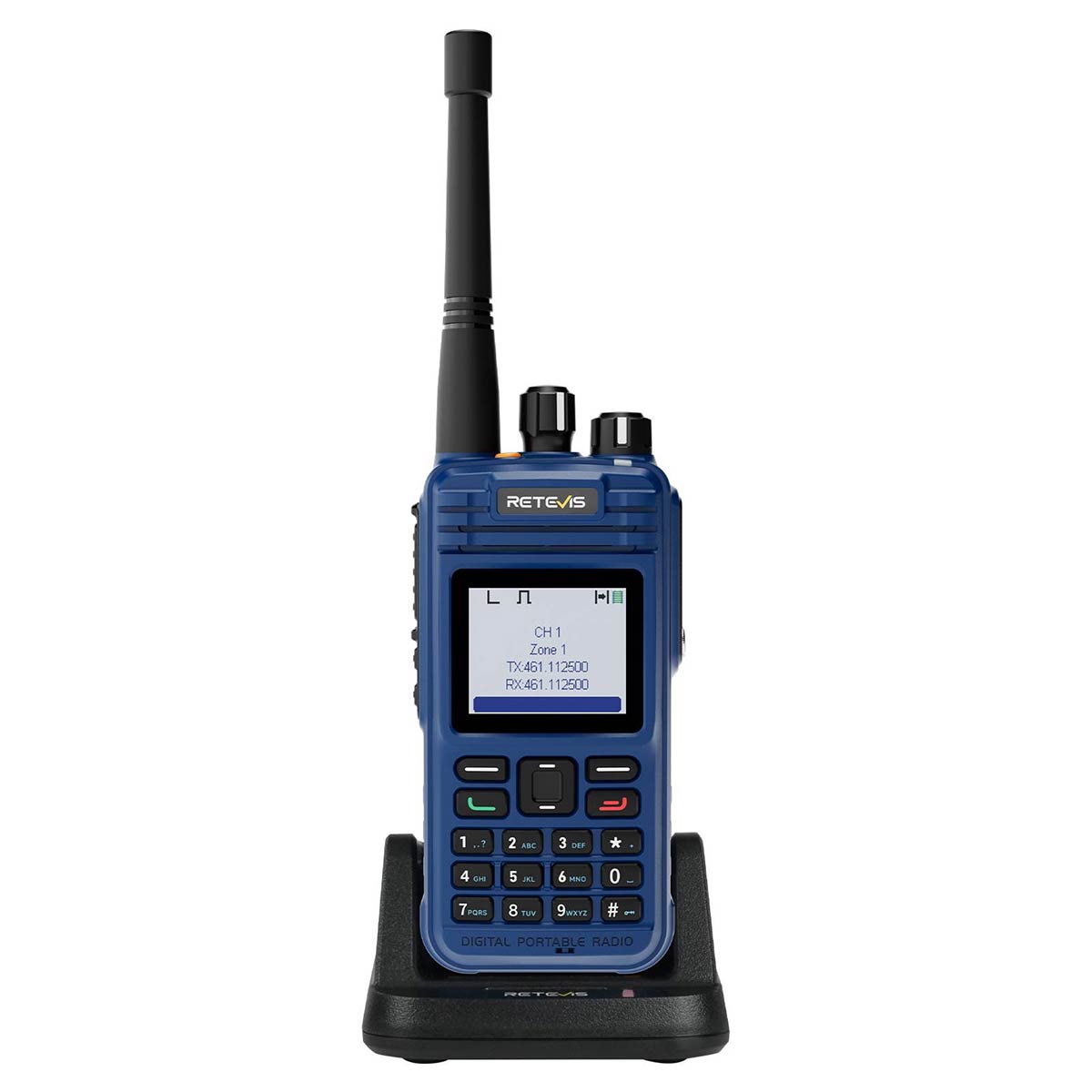

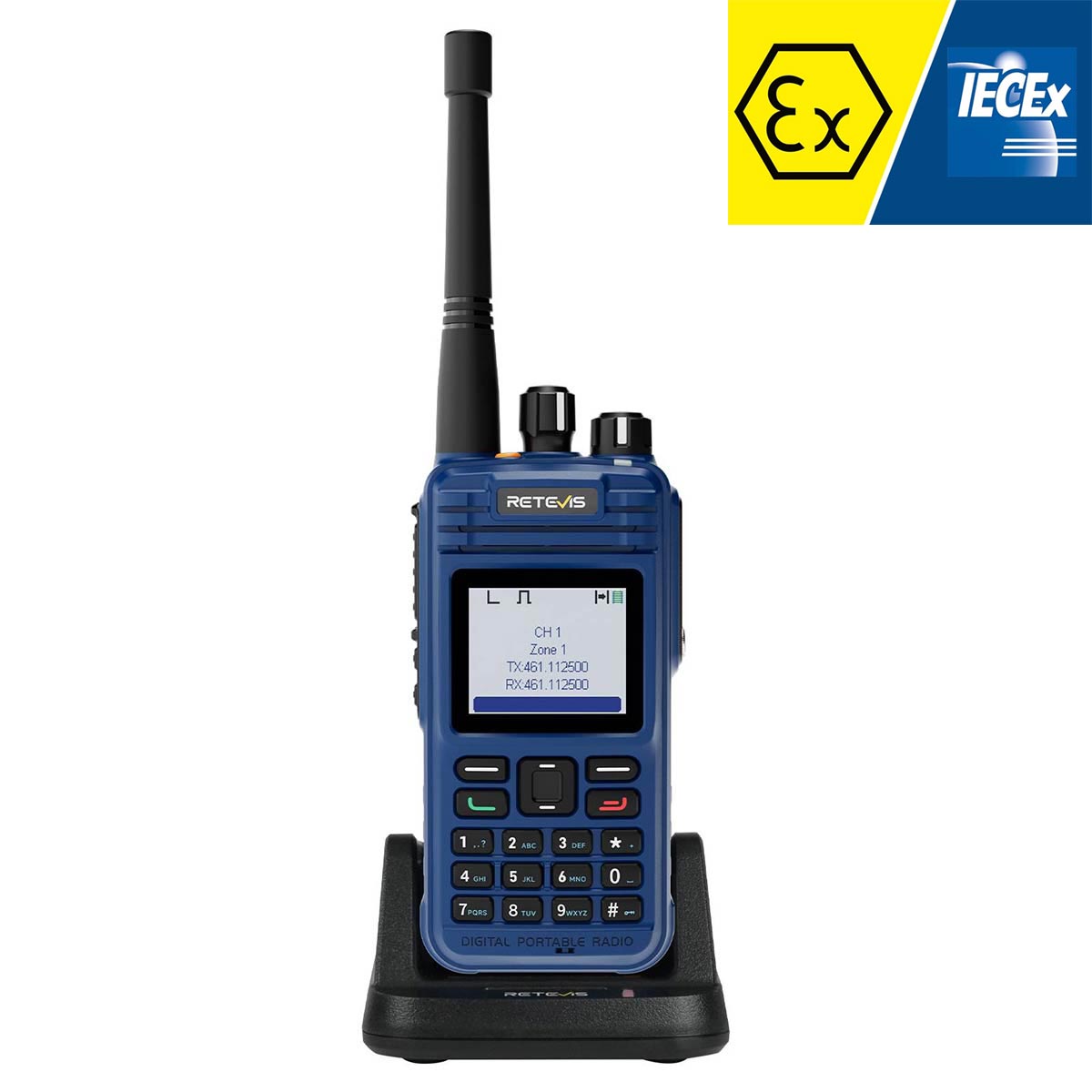

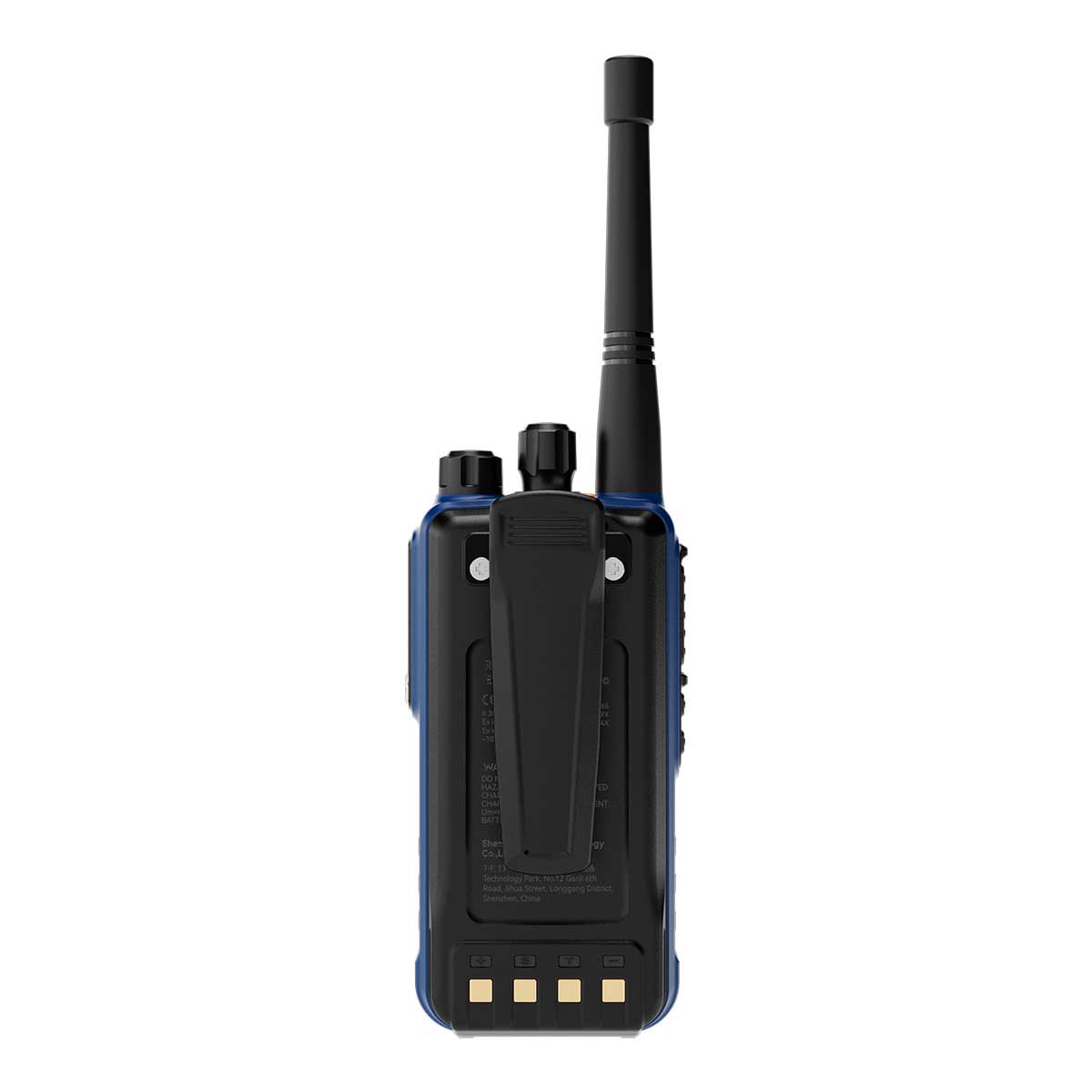

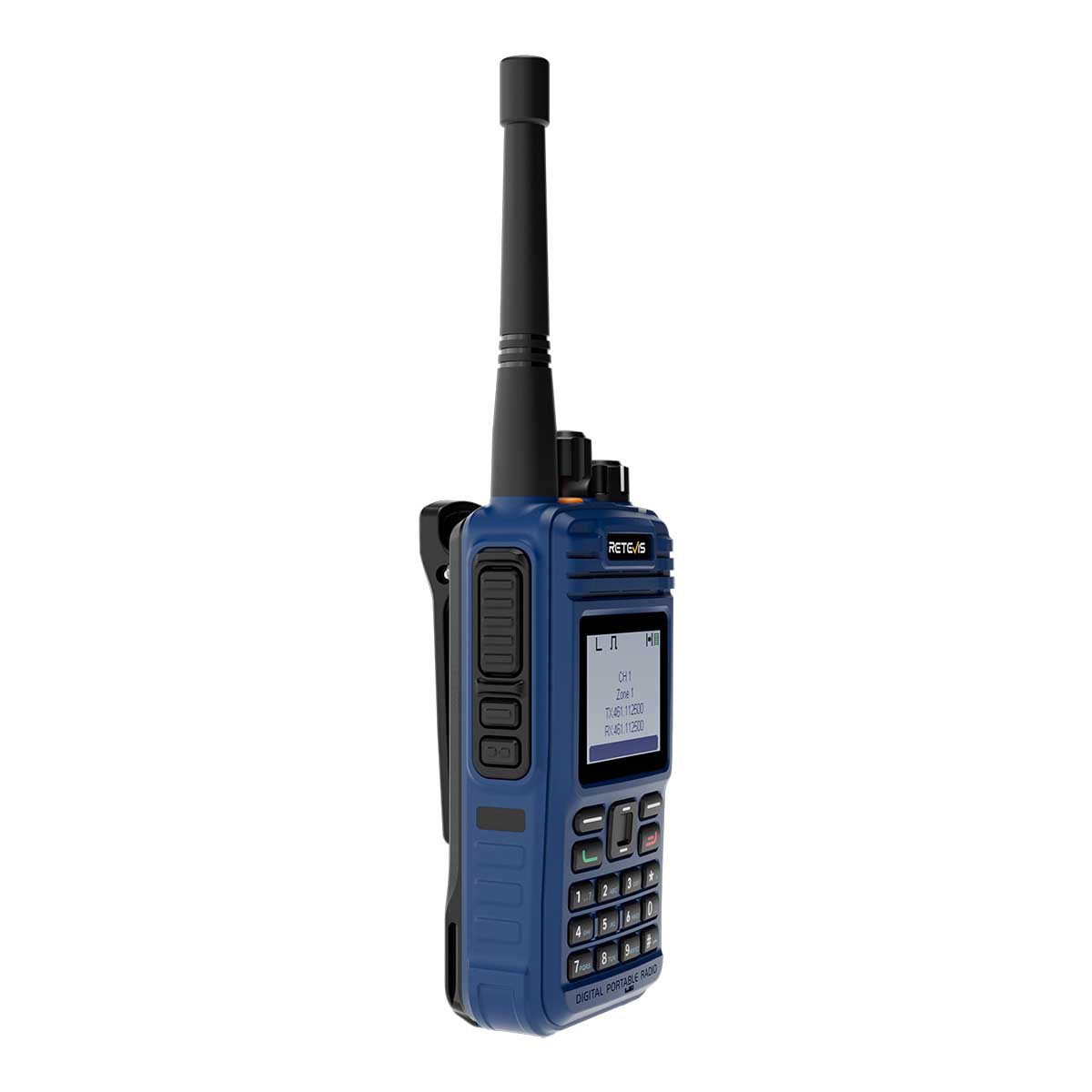

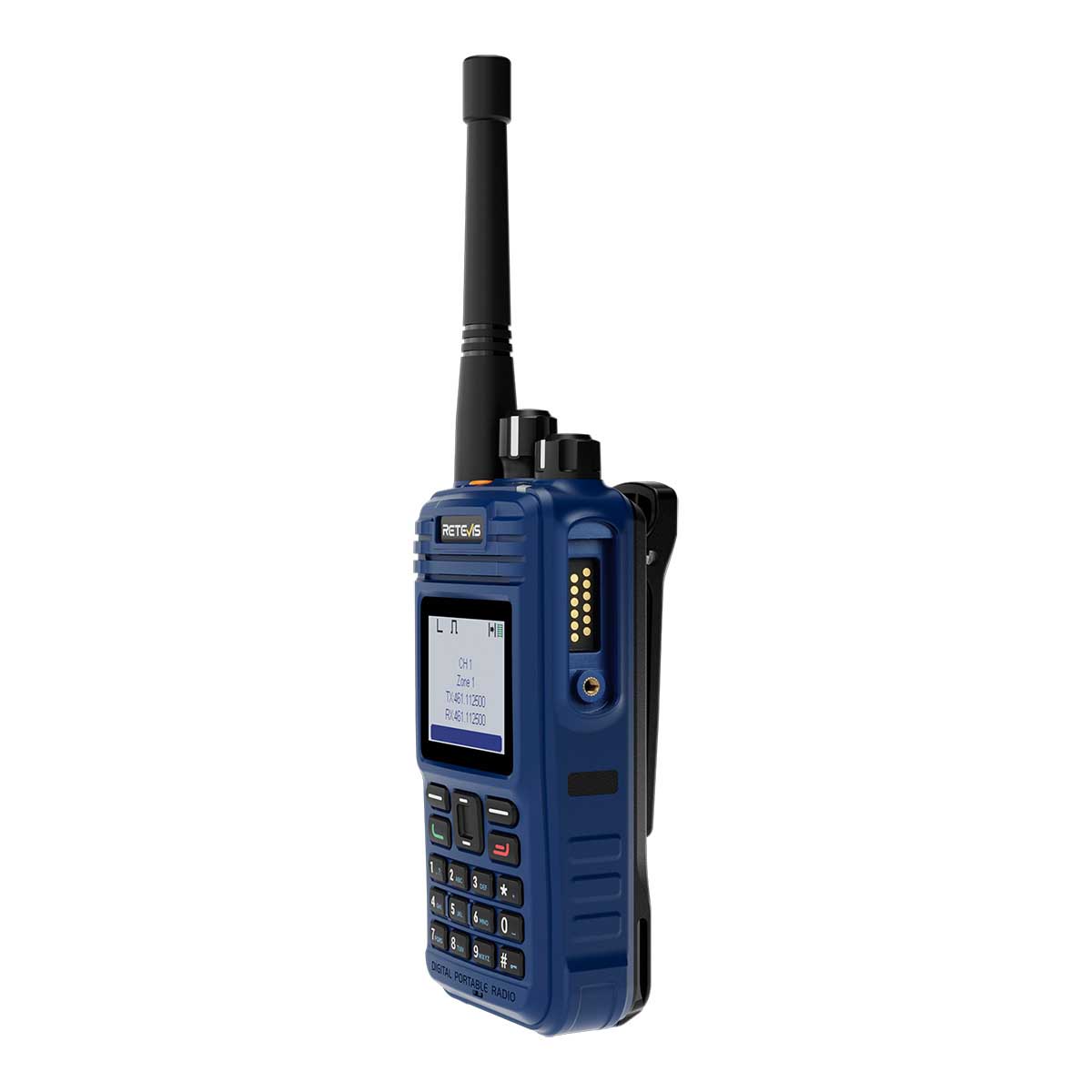

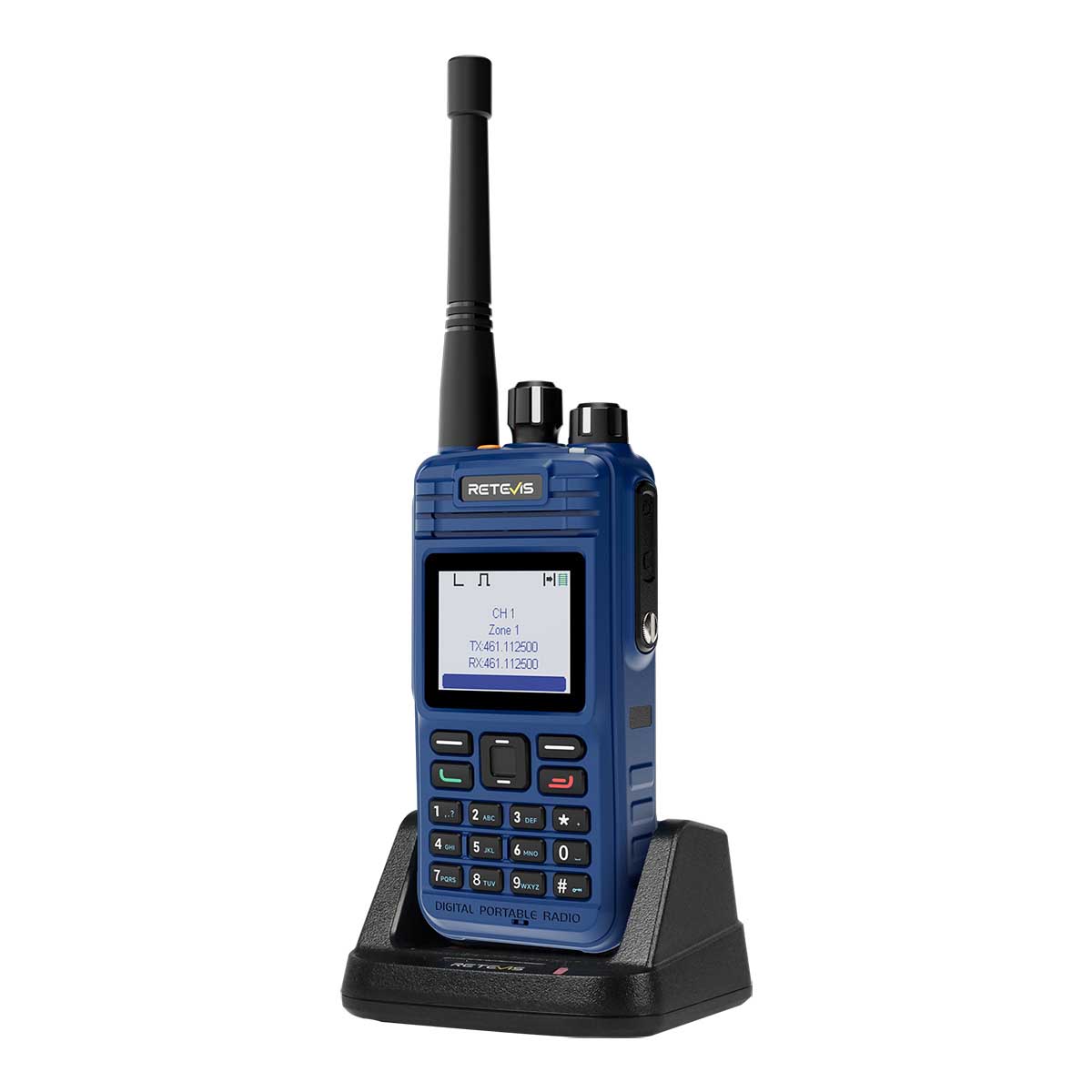

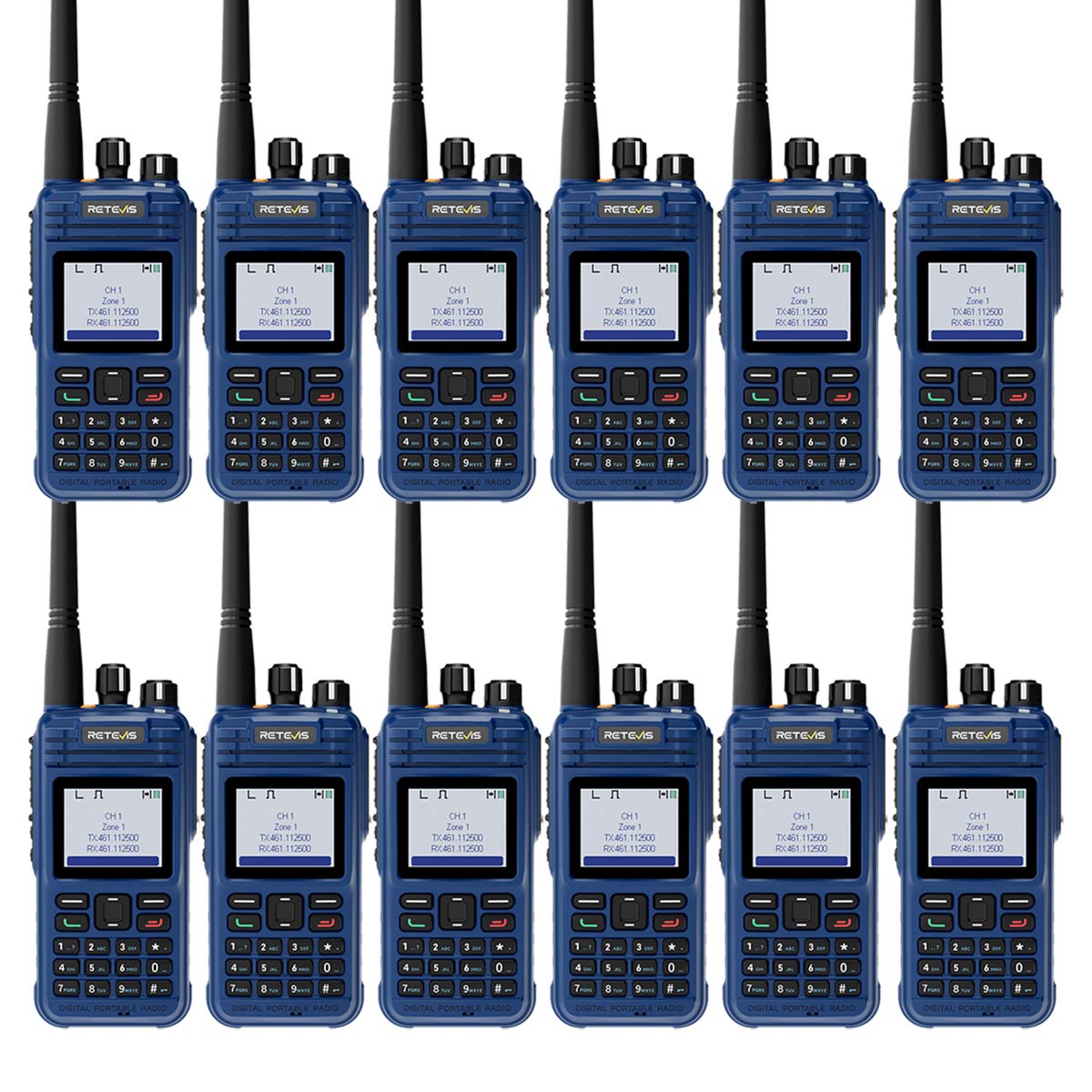

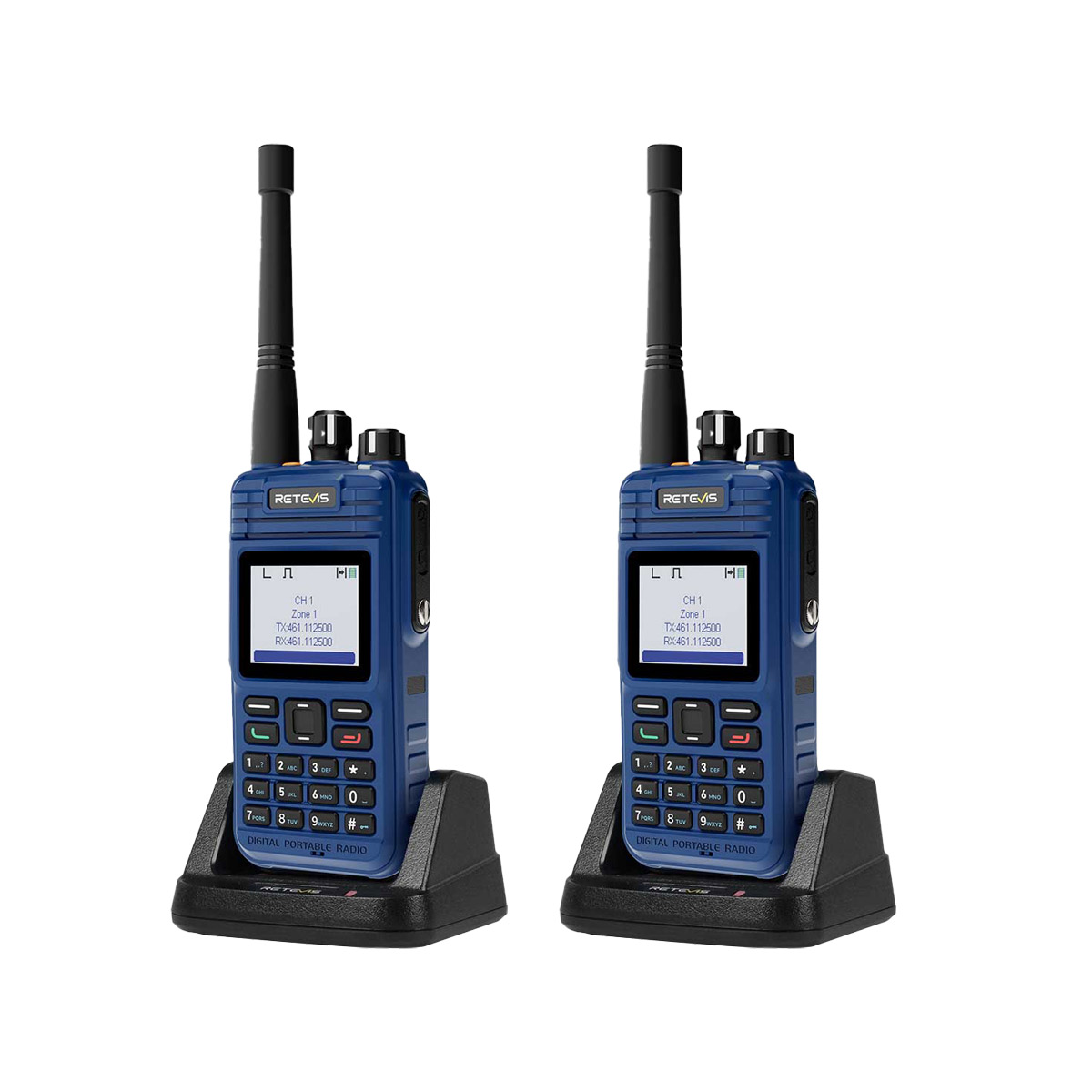

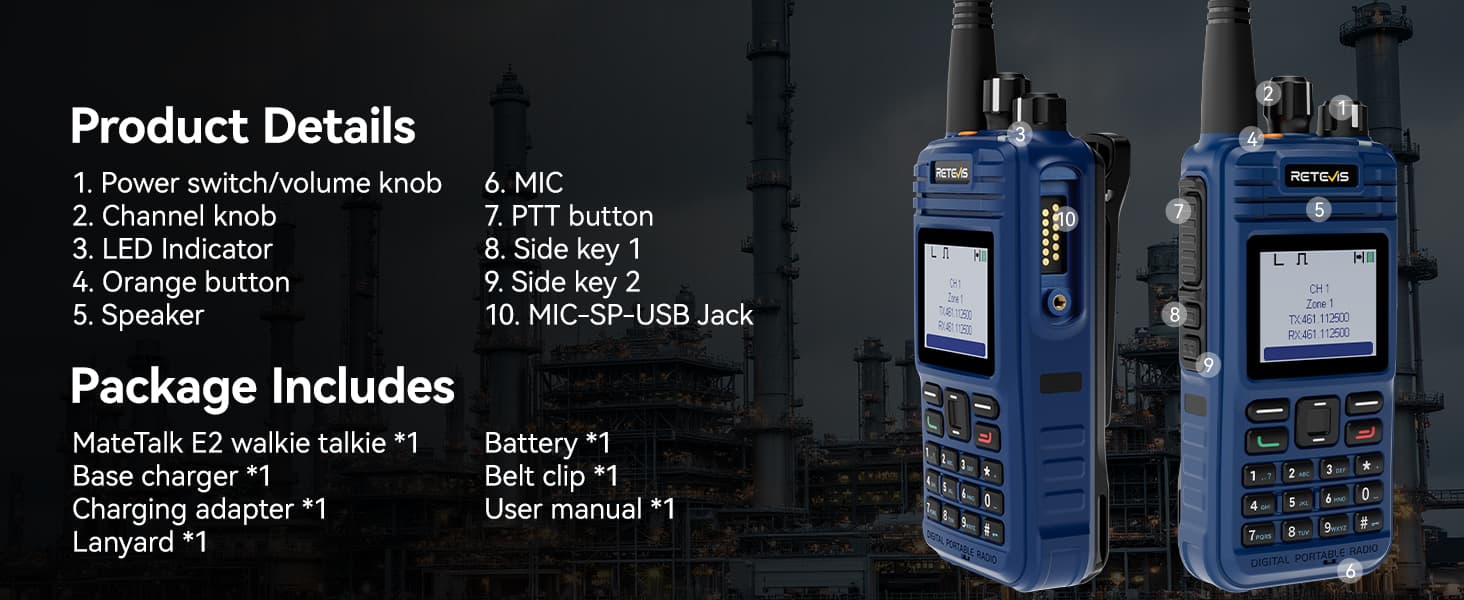

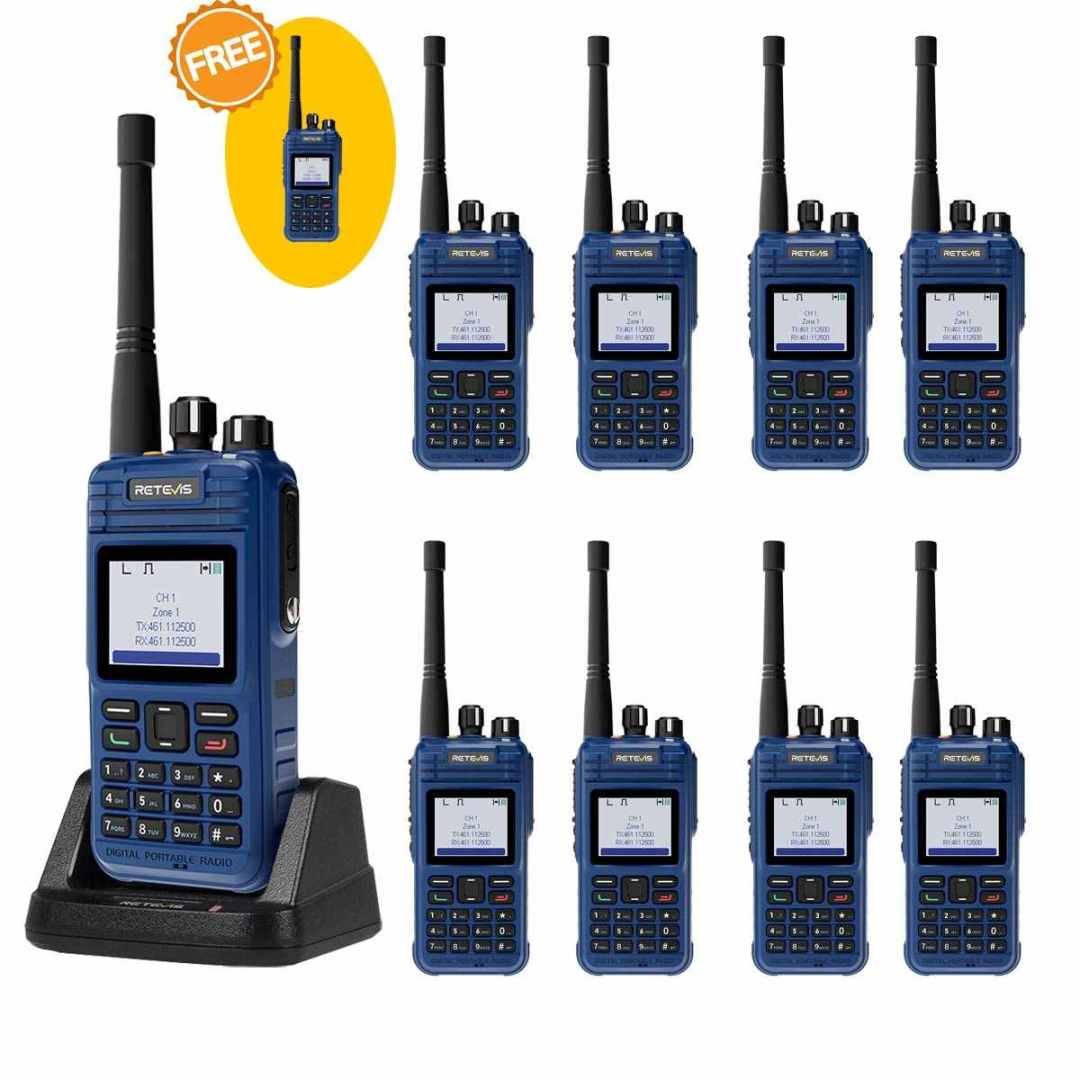

Retevis Mate Talk E2 Explosion Proof Intrinsically Safe DMR Portable Two-way Radio

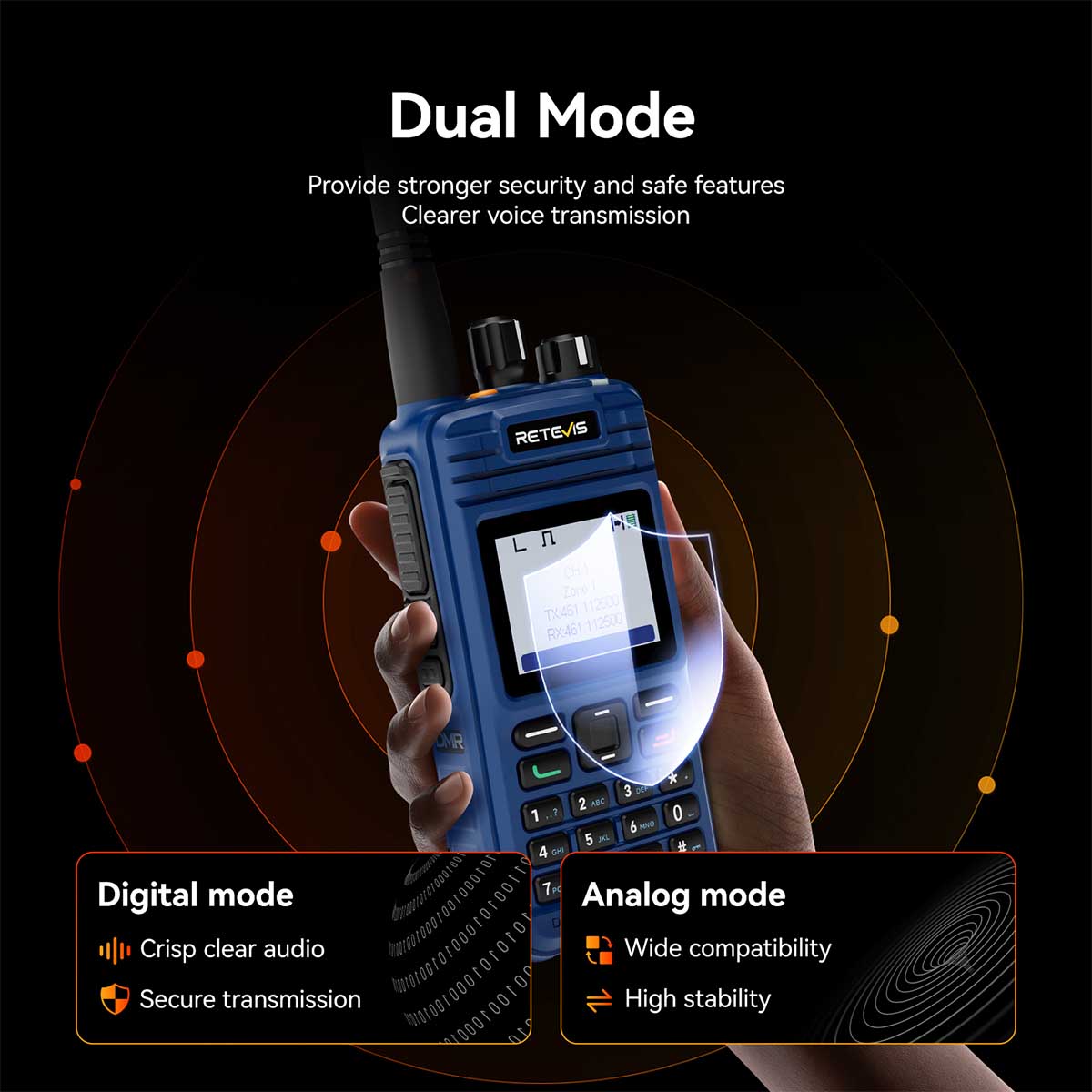

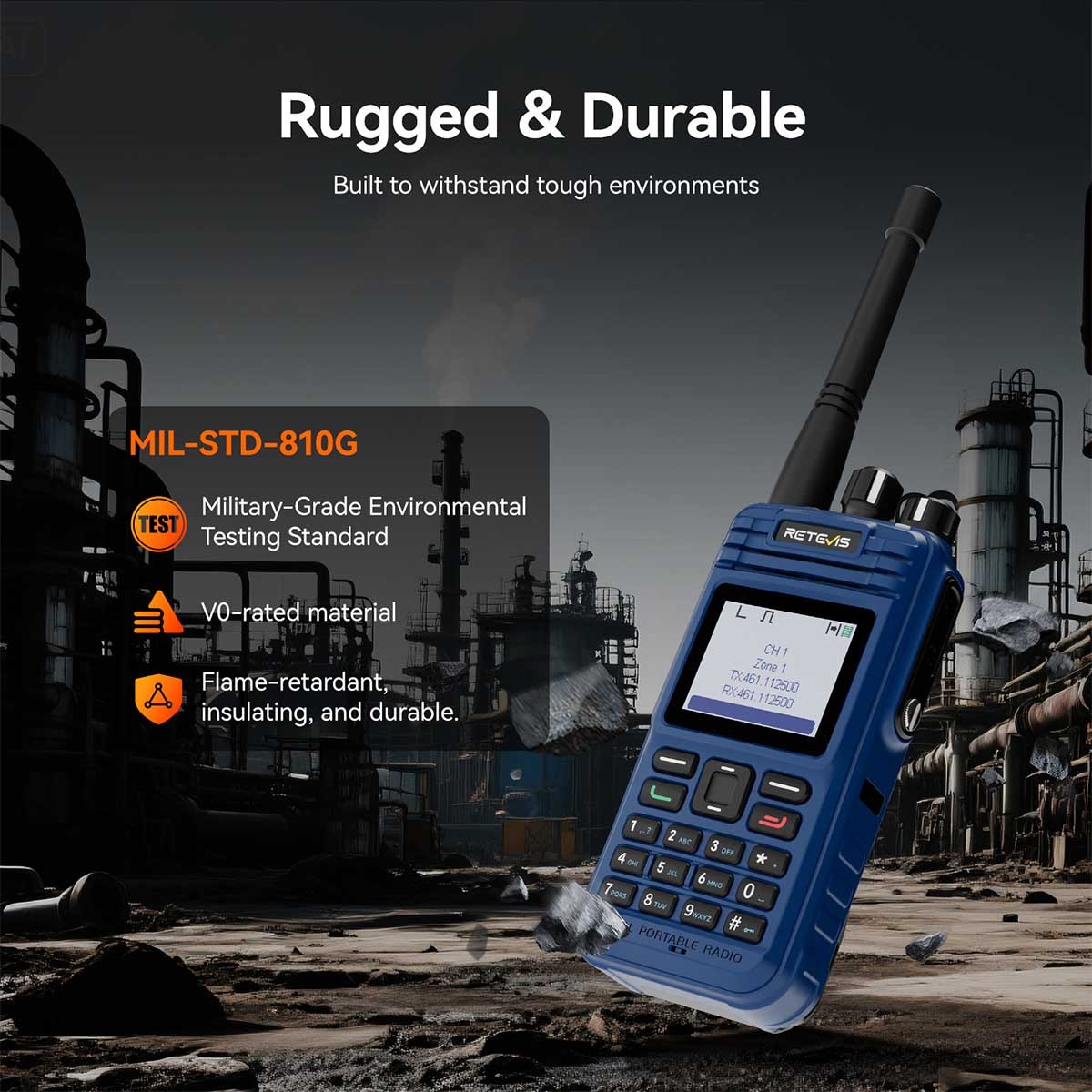

The Retevis MateTalk E2 is an intrinsically safe, explosion-proof two-way radio, certified with ATEX/IEC Ex and IP68 waterproof protection. Designed for harsh environments like refineries and chemical plants, it offers durable performance with MIL-STD-810G compliance, ensuring reliability in extreme conditions. Featuring AES256 encryption for secure communication, dual-mode operation for clarity, and safety features like lone worker protection and emergency alarms, the E2 is built for secure, efficient communication in hazardous areas. With long battery life and rugged design, it’s perfect for demanding industrial settings.
Spec
| General | |
|---|---|
| Frequency Range | UHF: 400-480MHz |
| Channel Capacity | 1024 |
| Zones | 64 |
| Channel Spacing | 12.5KHz / 25KHz |
| Operating Voltage | DC 7.4V (±20%) |
| Battery Capacity | 1500mAh |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (L×W×H) | 57(L) × 33(W) × 119(H)mm |
| Transmitter | |
|---|---|
| RF Output Power | High Power: < 2W; Low Power: 1W |
| 4FSK Modulation |
12.5kHz Only Data: 7K60FXD; 12.5kHz Data & Audio: 7K60FXE |
| FM Modulation | 12.5kHz: 8K50F3E; 25kHz: 16KΦF3E |
| Modulation Limiting | ±2.5kHz @ 12.5kHz; ±5kHz @ 25kHz |
| FM Noise | -40dB |
| Conducted Emission | -36 dBm ≤ 1GHz / -30 dBm ≥ 1GHz |
| Adjacent Channel Power | ≤ -60dB |
| Audio Response | +1 / -3 dB |
| Audio Distortion | 3% |
| Digital Voice Coder Type | AMBE |
| Receiver | |
|---|---|
| Digital Sensitivity | 5% BER: 0.25 µV |
| Analog Sensitivity | 0.25 µV (12 dB SINAD) |
| Intermodulation | 60dB |
| Adjacent Channel Selectivity | 60dB |
| Spurious Response Rejection | 60dB |
| FM Noise | -40dB |
| Audio Response | +1 / -3 dB |
