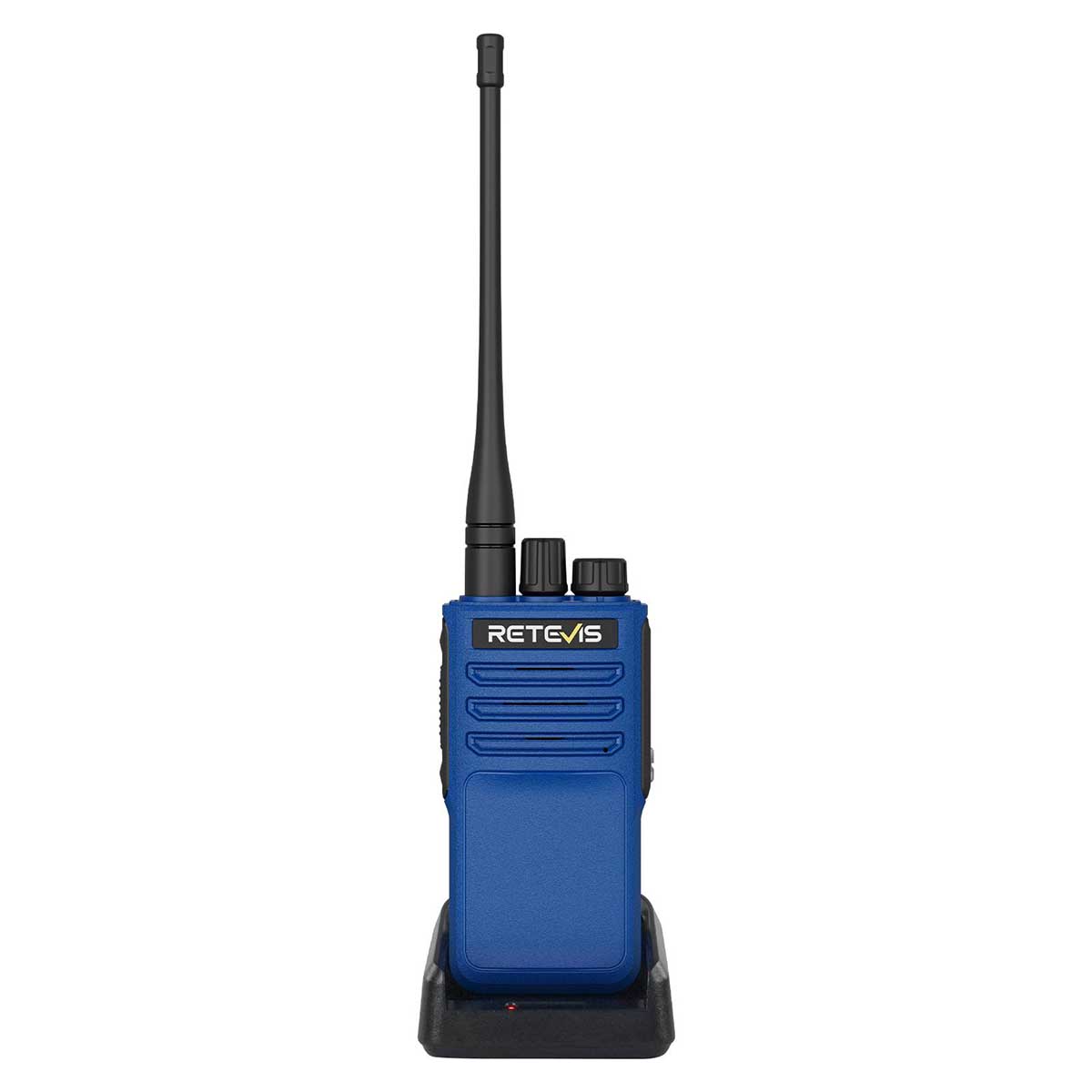

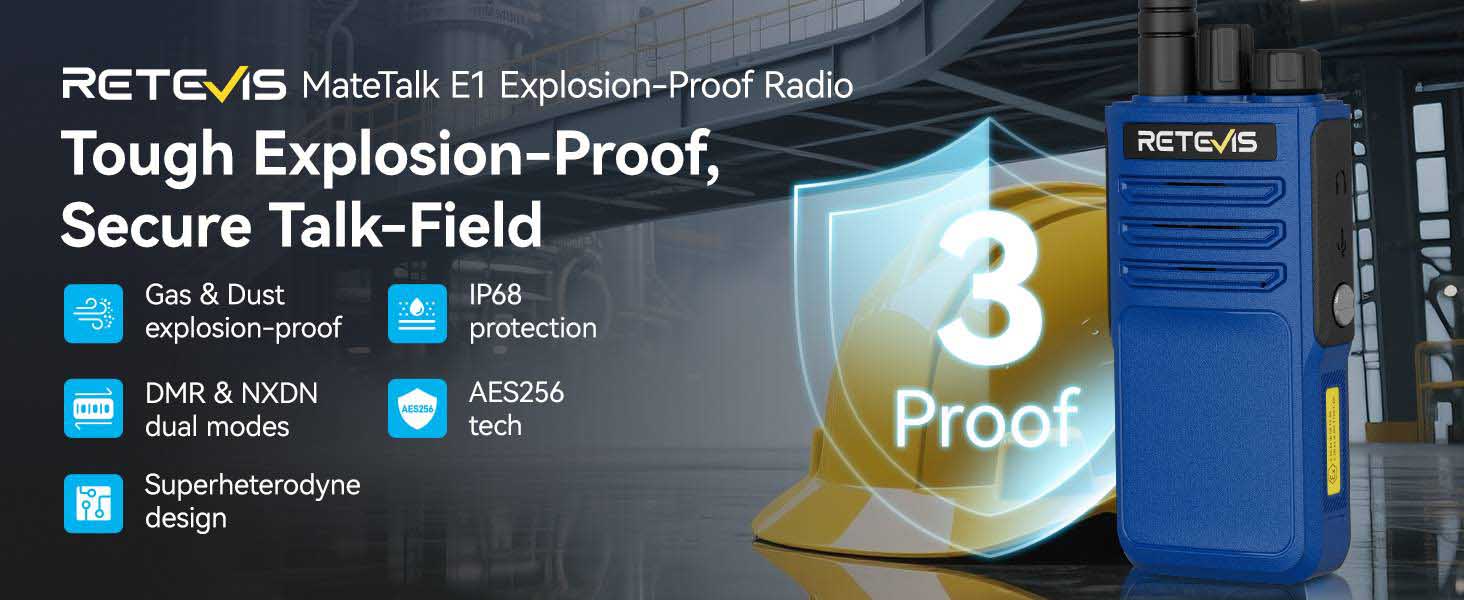

Retevis MateTalk E1 Explosion-Proof Walkie Talkie with DMR and NXDN Tech

Retevis MateTalk E1 is a premium explosion-proof digital walkie talkie designed for hazardous environments. With dual gas and dust protection, IP68 rugged housing, and support for DMR/NXDN modes, it ensures safe, clear, and reliable communication. Long battery life, encryption, and multiple safety features make it an ideal solution for refineries, chemical plants, food processing, and fuel transport operations.

Retevis E1 explosion proof walkie talkie

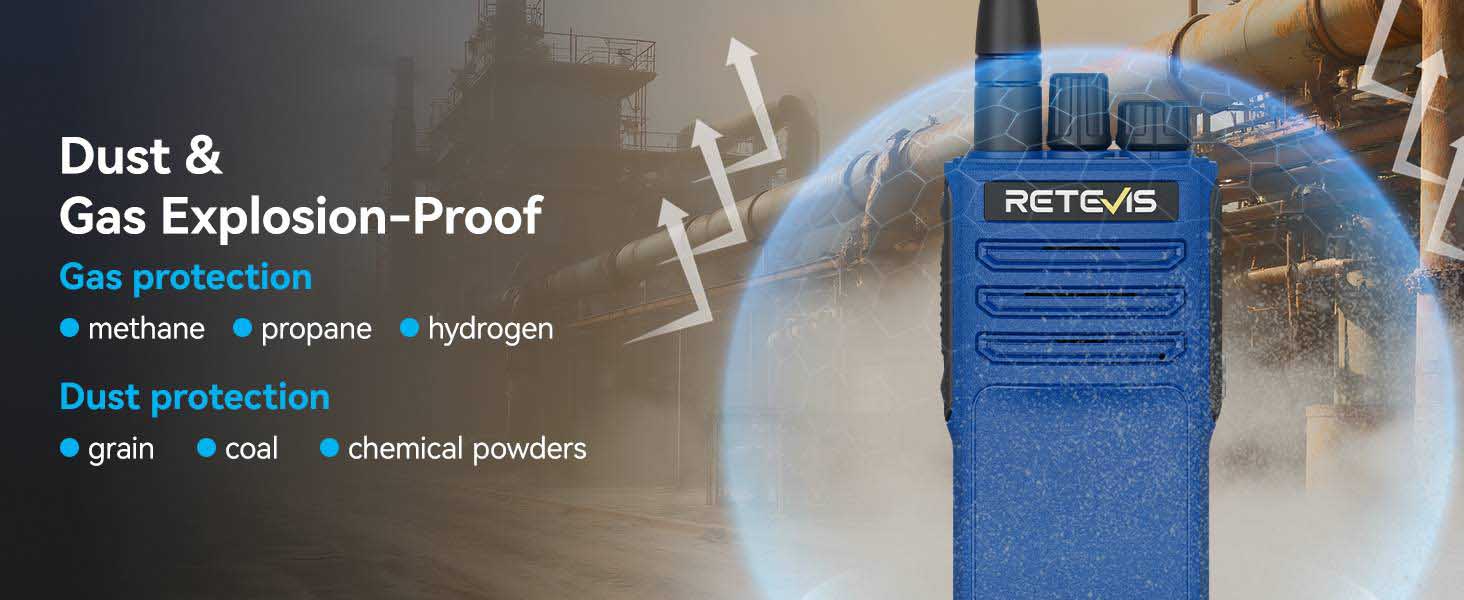

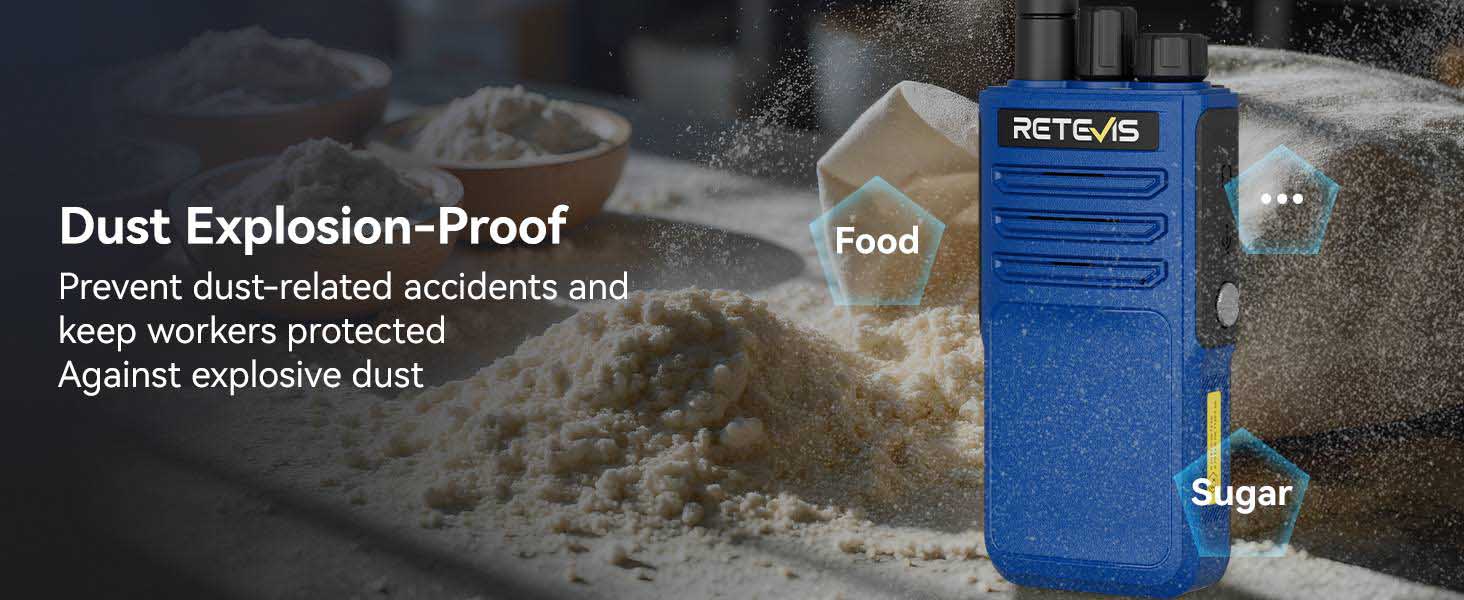

Gas & Dust Proof, Explosion-proof Walkie Talkie

The MateTalk E1 explosion-proof walkie talkie is engineered to handle both gas and dust hazards. In refineries, chemical facilities, or processing plants, it ensures safe, stable communication without ignition risks, while its rugged and reliable design guarantees dependable performance in the harshest environments.

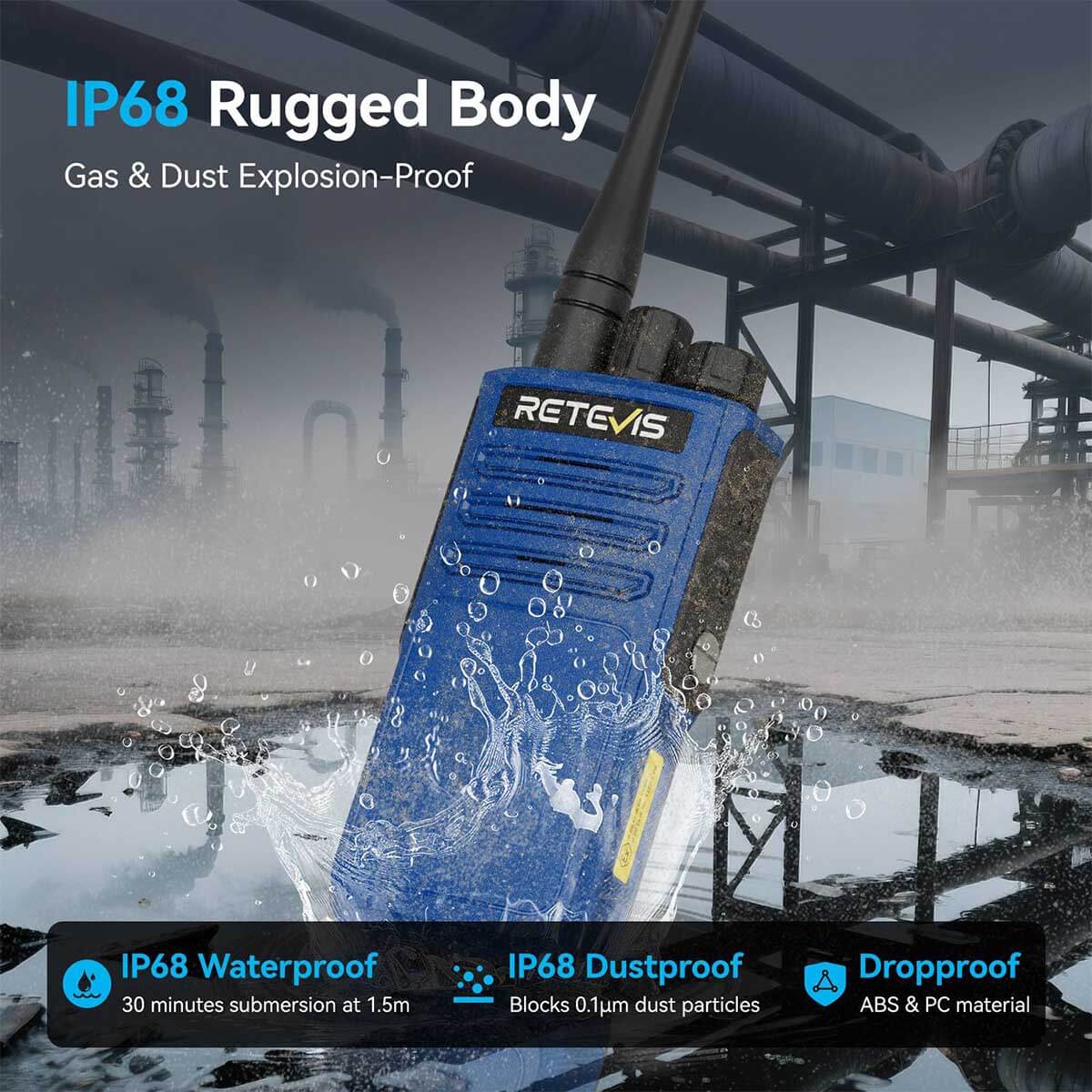

IP68 Explosion-Proof Radio

The MateTalk E1 explosion-proof radio is designed for extreme environments, offering IP68 protection with full dustproof, waterproof (up to 1m for 1 hour), and dropproof capabilities. Its rugged ABS and PC housing ensures durability, making it perfect for tough job sites where reliable communication is essential.

Retevis E1 explosion proof radio with IP68 waterproof and dustproof

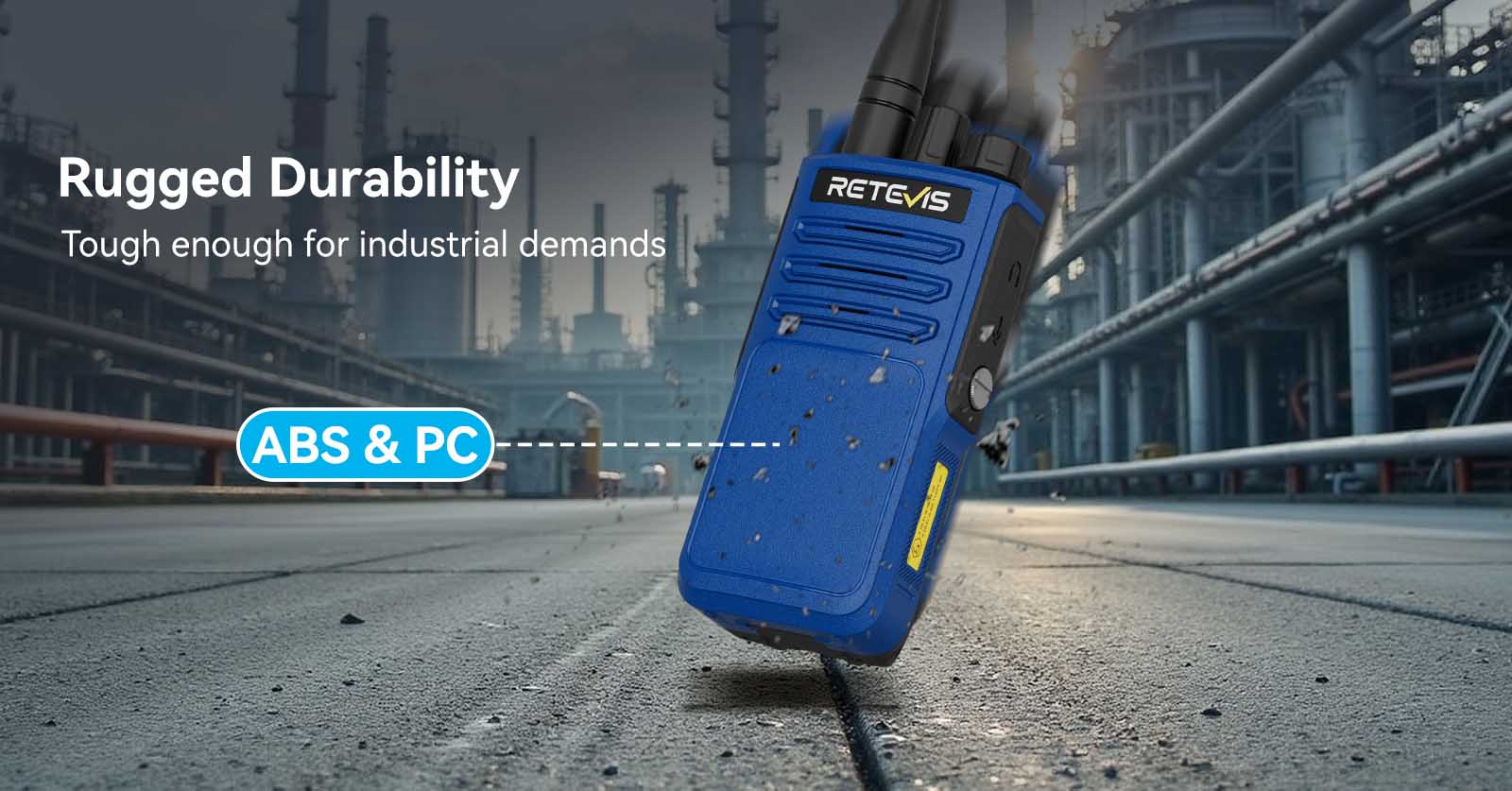

Retevis E1 explosion proof radio with rugged design

Triple Alarm Safety

The MateTalk E1 explosion-proof two-way radio enhances safety with triple alarms: emergency, lone worker, and man-down. In hazardous environments, these alerts trigger instantly if a worker falls or stops responding, ensuring quick rescue and added protection on-site. A reliable companion that prioritizes worker safety.

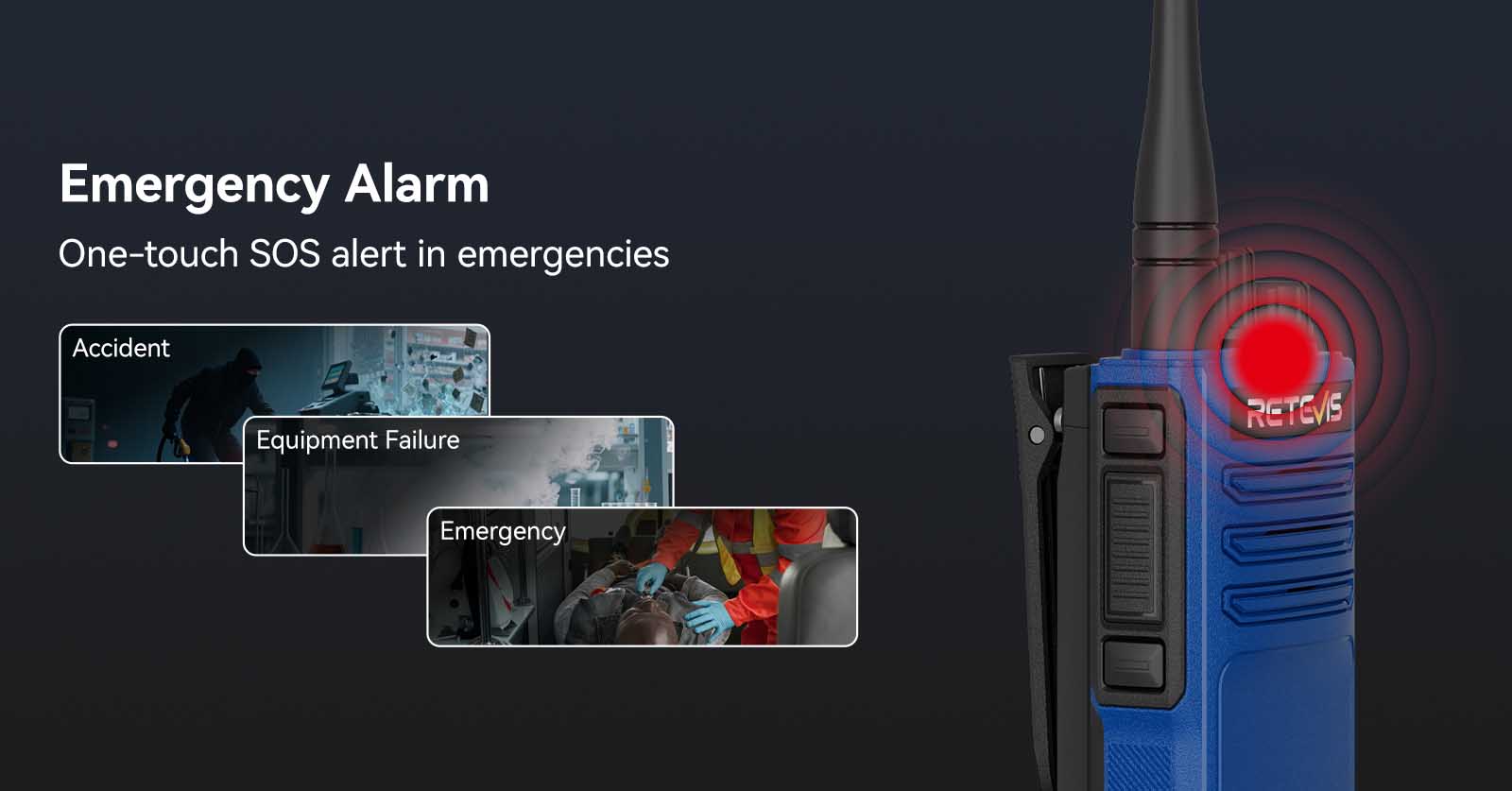

Retevis E1 explosion proof radio with emergency alarm

Retevis E1 explosion proof radio with lone worker alarm

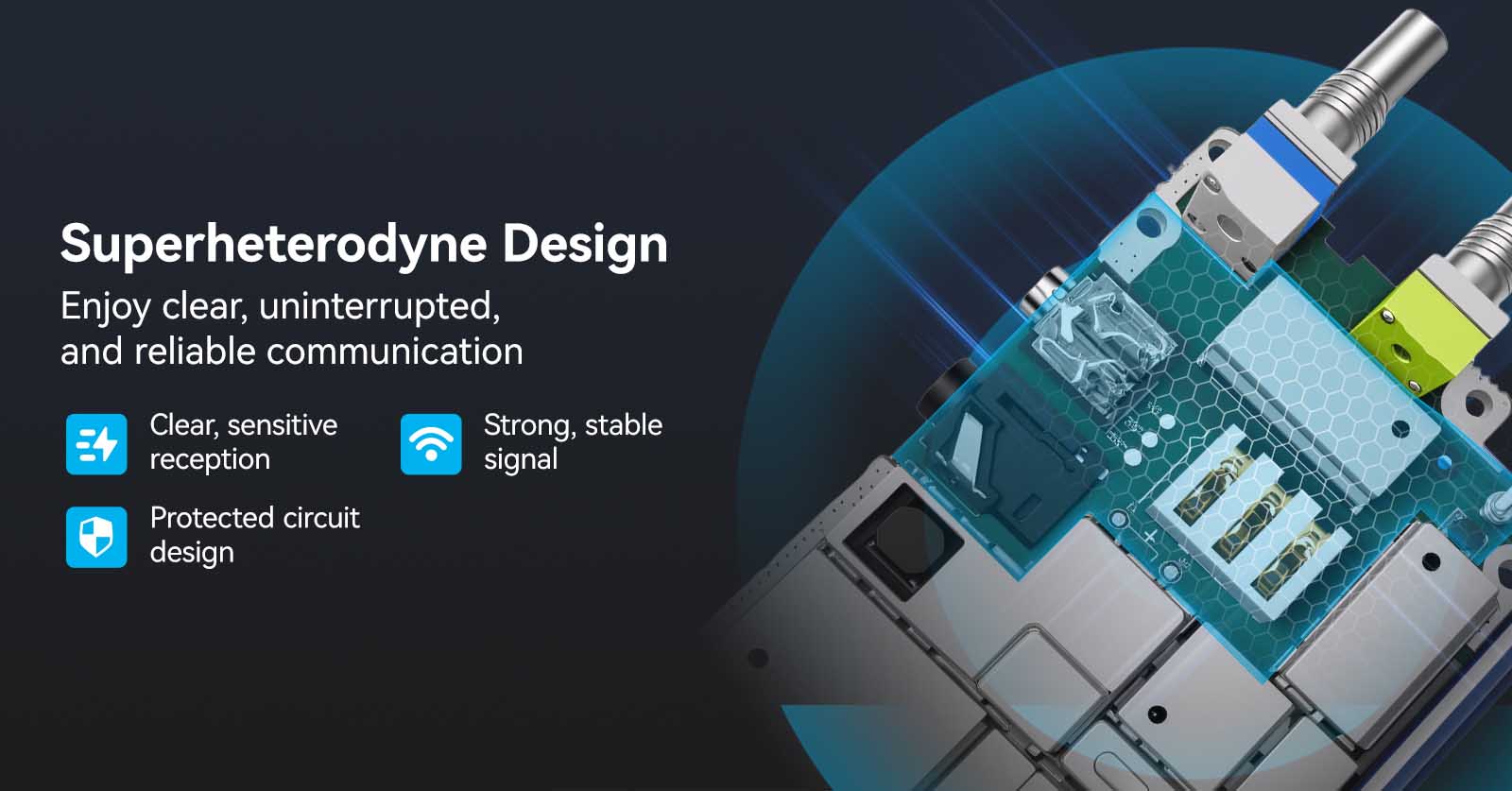

Retevis E1 explosion proof radio with man-down alarmSuperheterodyne Performance

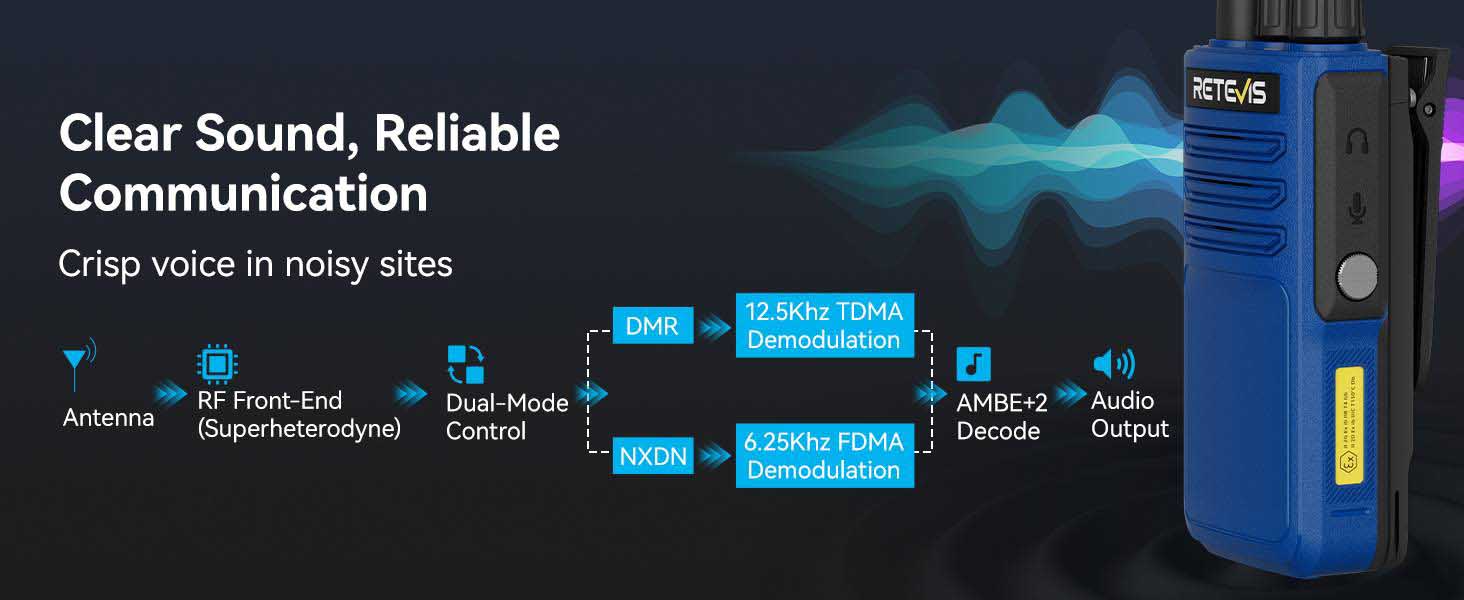

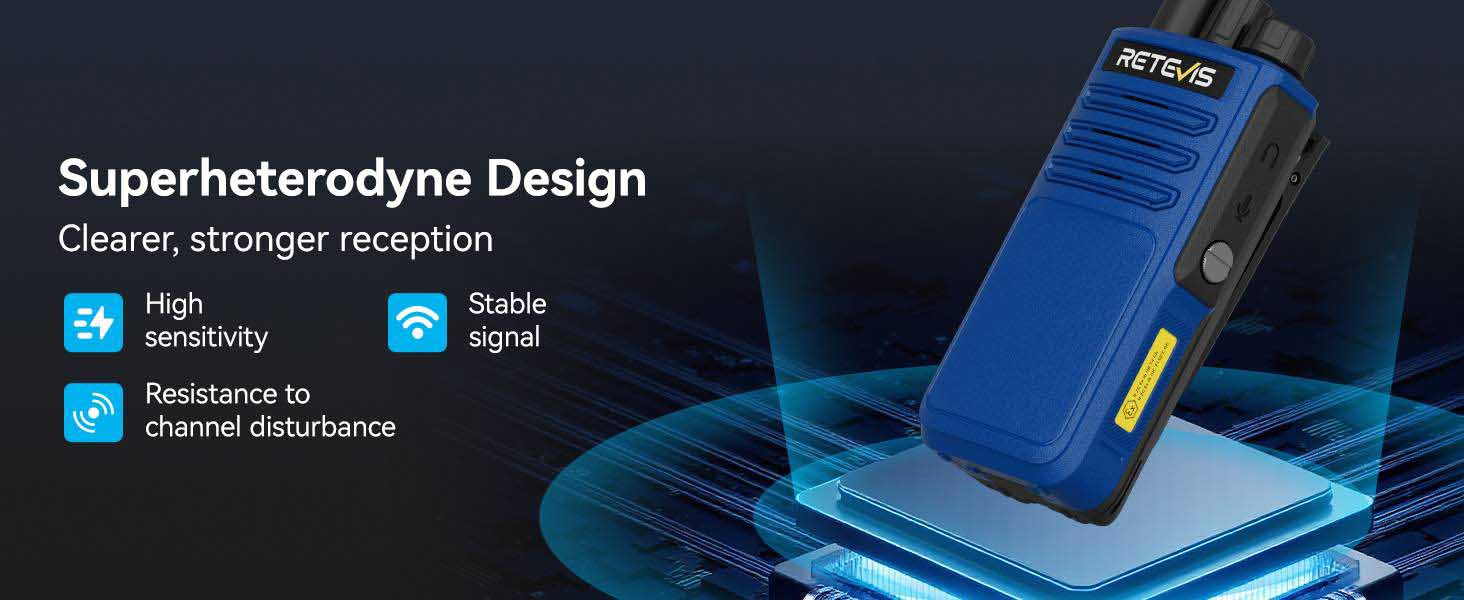

The MateTalk E1 explosion-proof walkie talkie adopts a superheterodyne design with higher sensitivity, stronger selectivity, and reduced interference. It delivers stable, clear signals even in noisy industrial sites, ensuring reliable communication and consistent performance.

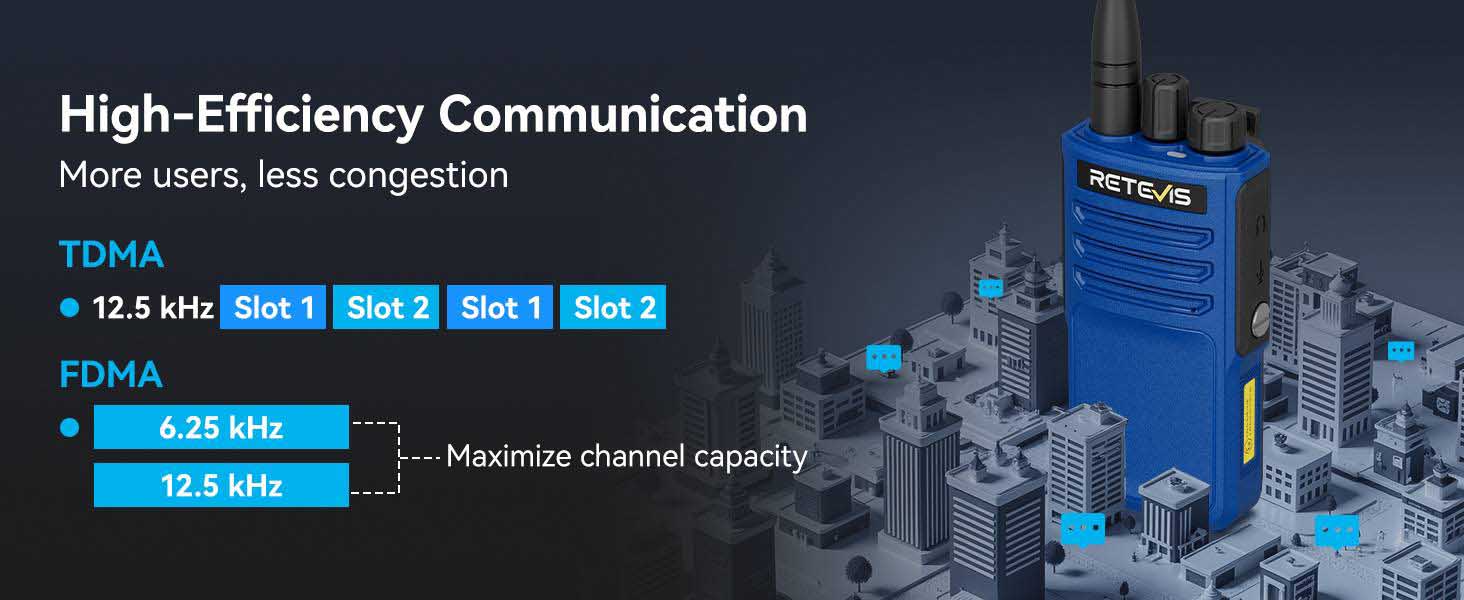

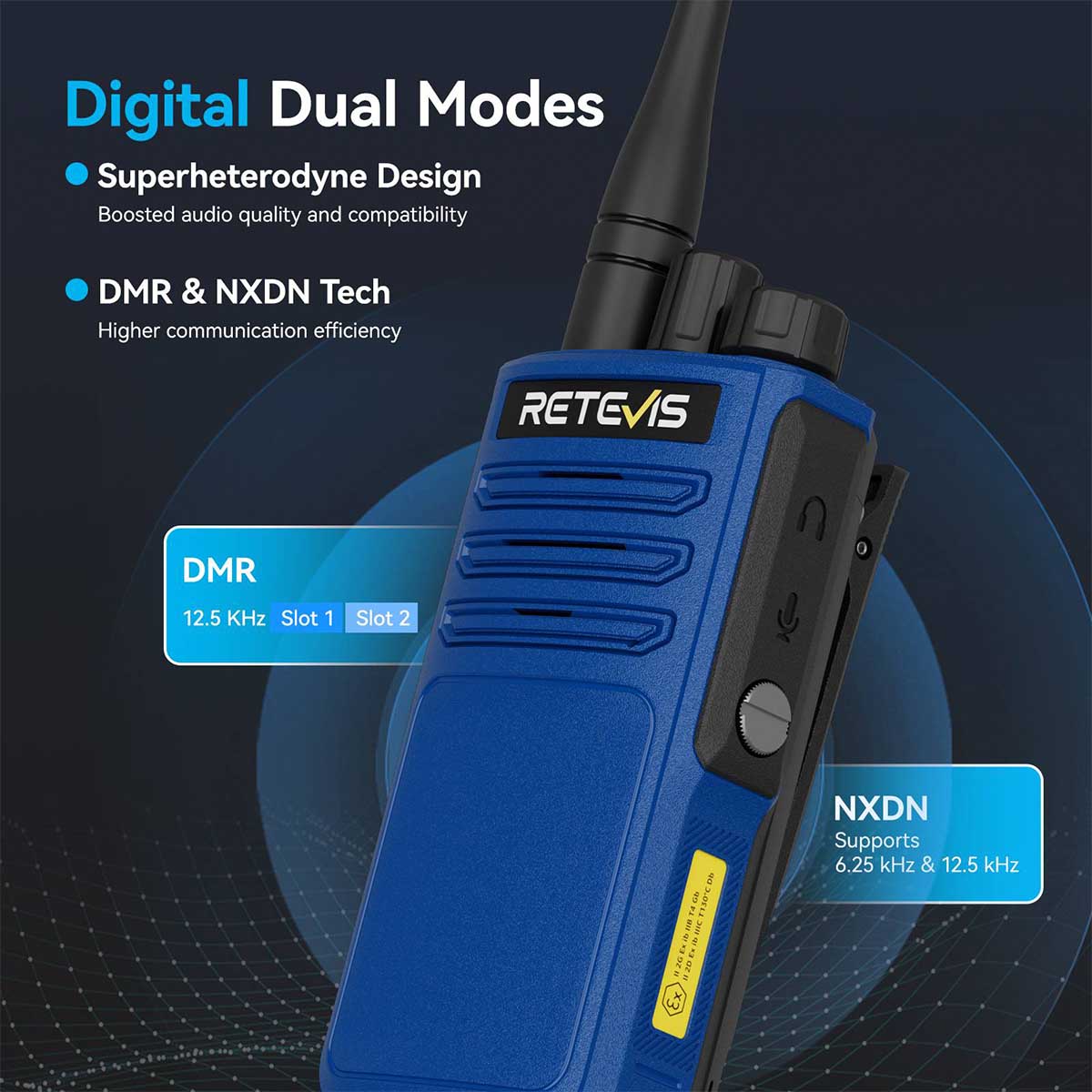

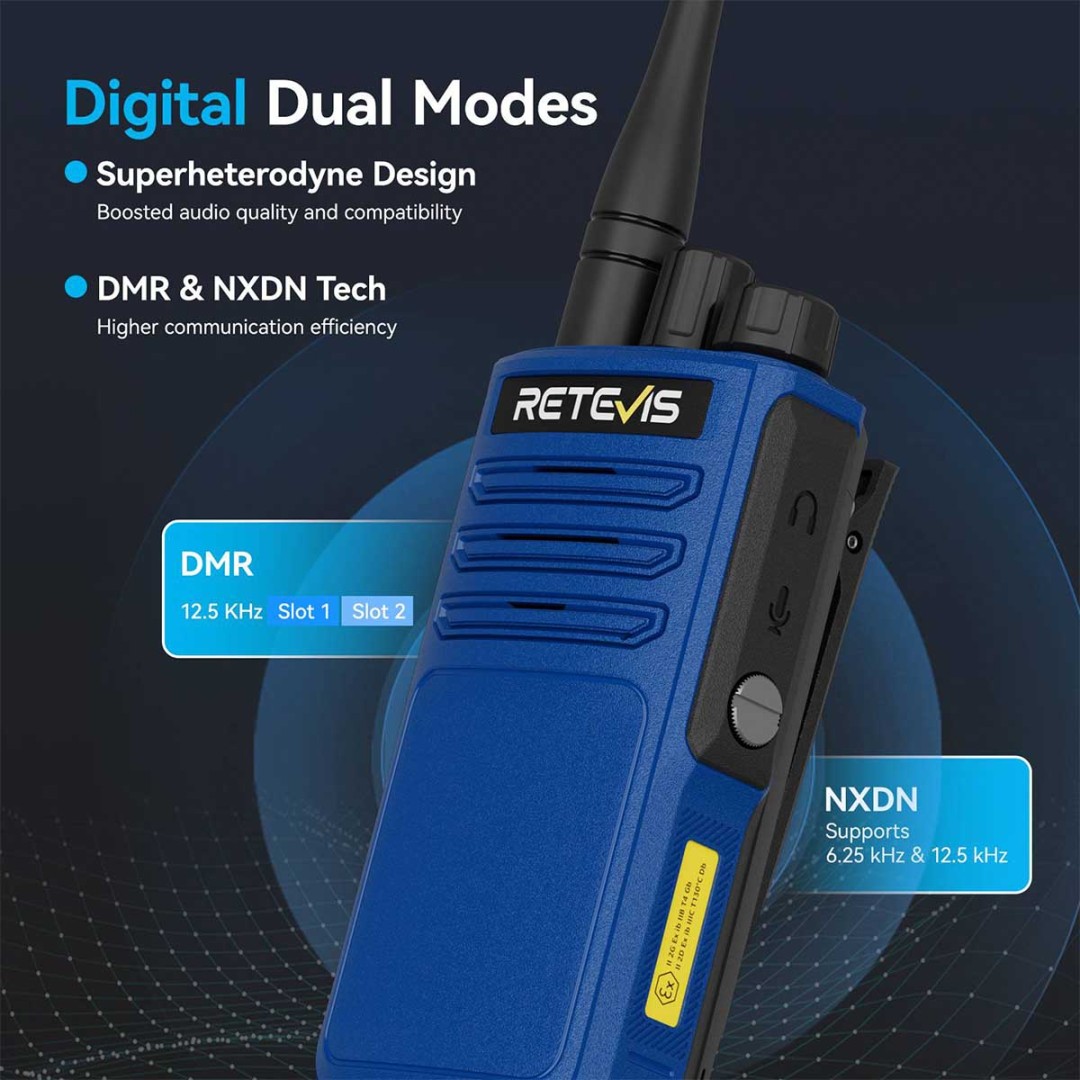

Dual-modes Digital Radio

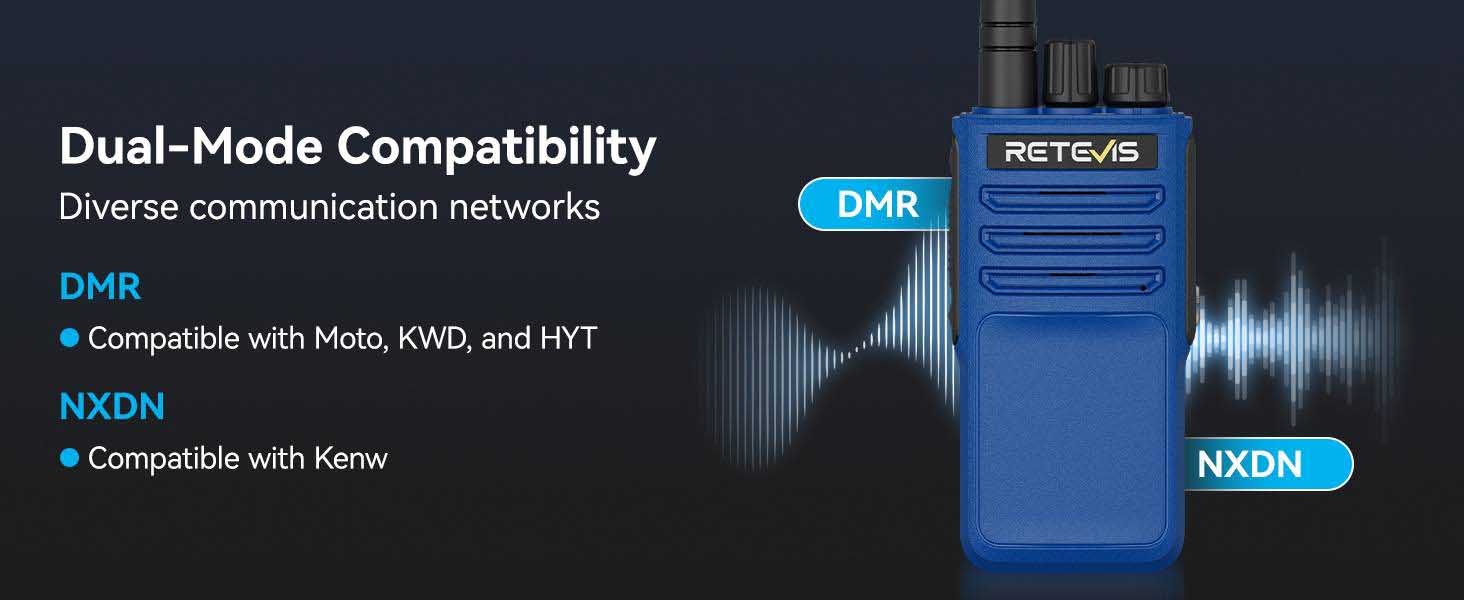

The MateTalk E1 explosion-proof DMR two-way radio supports both DMR and NXDN, delivering clear, stable, and reliable voice communication. With advanced noise-reduction technology, it ensures efficient team coordination even in the noisiest industrial environments.

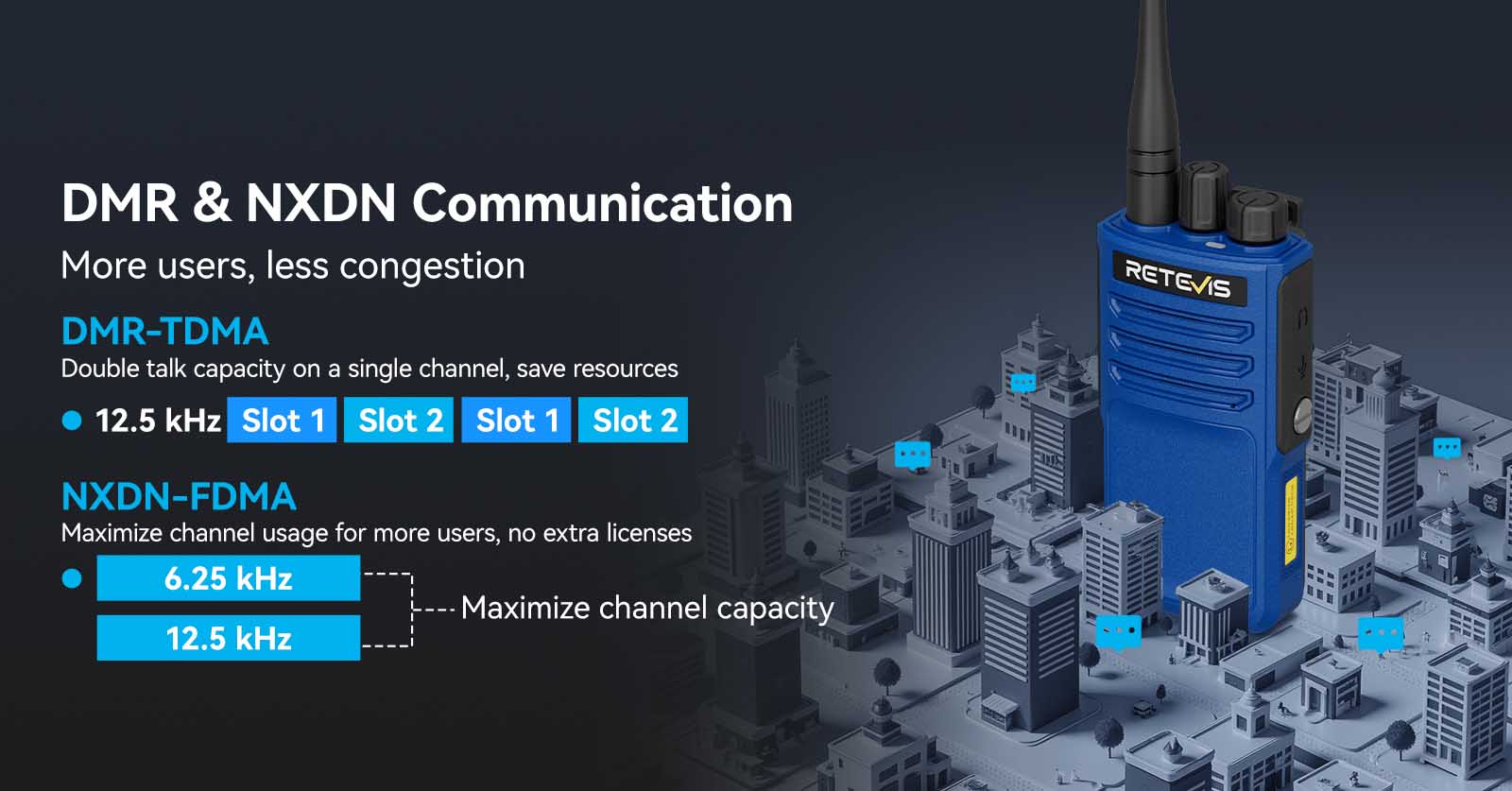

Retevis E1 NXDN communication

Retevis E1 explosion proof radio with dual mode

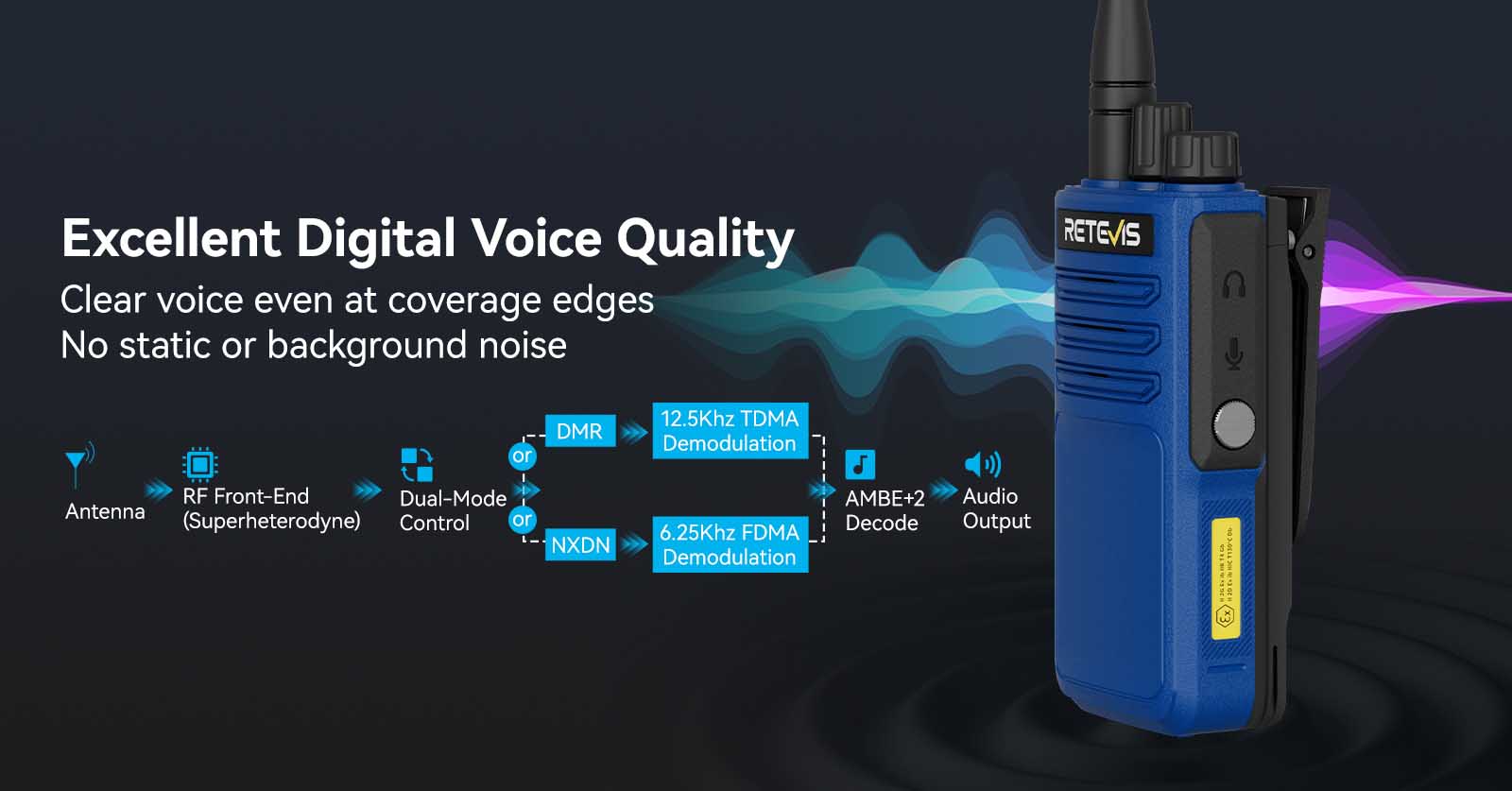

Retevis E1 explosion proof radio with clear voice

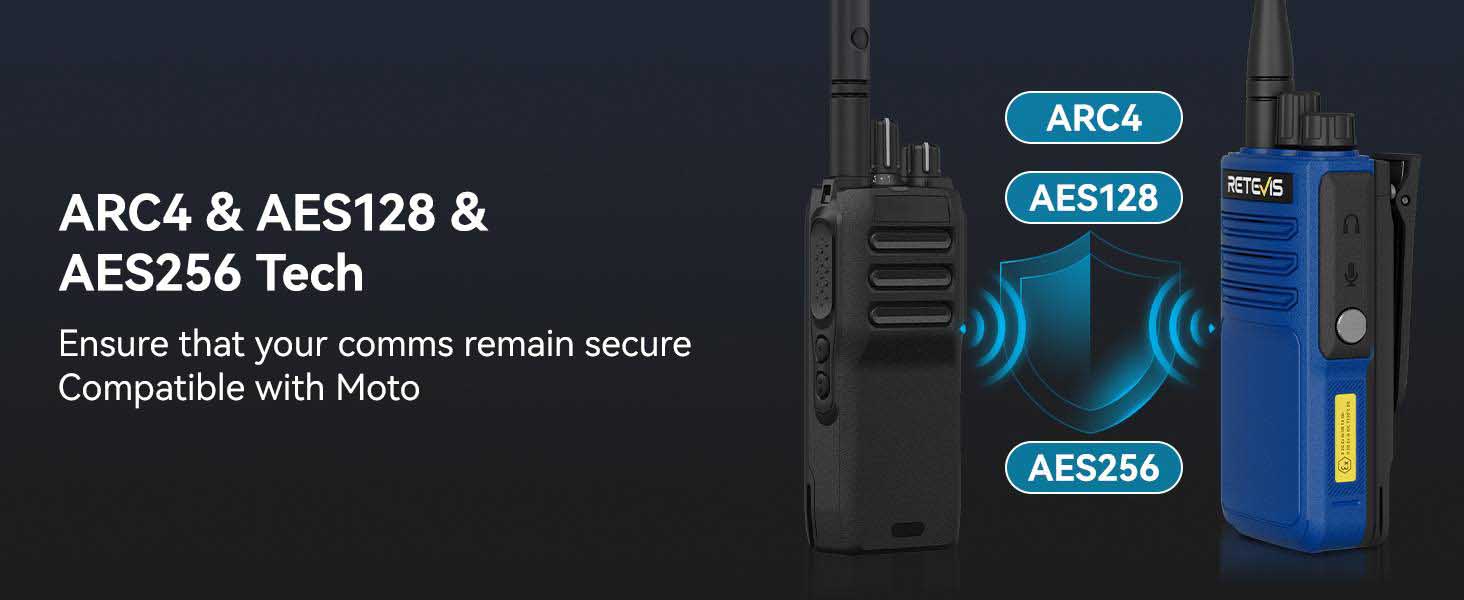

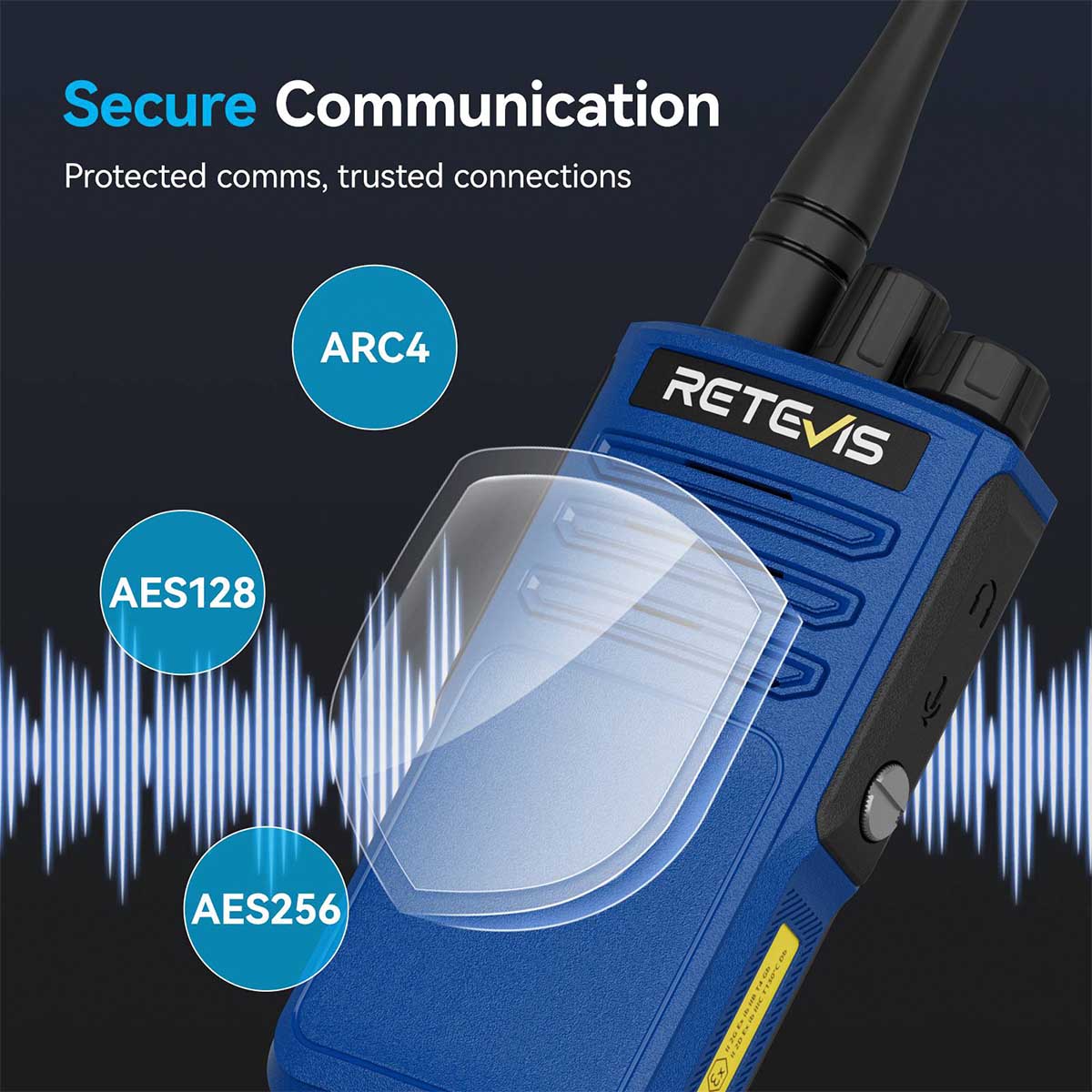

Secure Communication

Equipped with ARC4, AES128, and AES256 encryption, the MateTalk E1 explosion-proof DMR two-way radio safeguards sensitive conversations from unauthorized access. It ensures secure, private calls, making it a trusted choice for hazardous sites where both safety and data protection are critical.

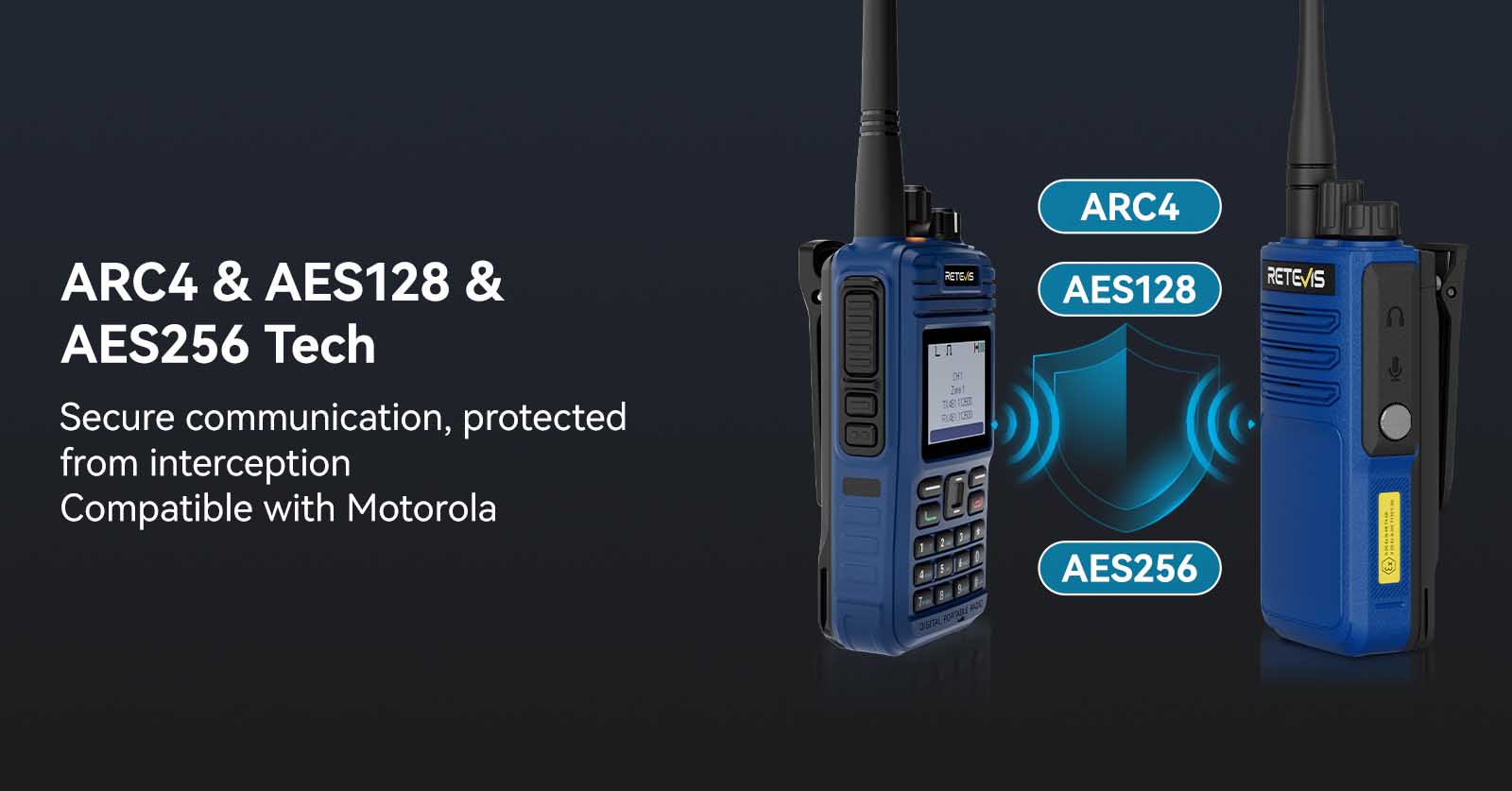

Retevis E1 explosion proof radio with AES256 encryption

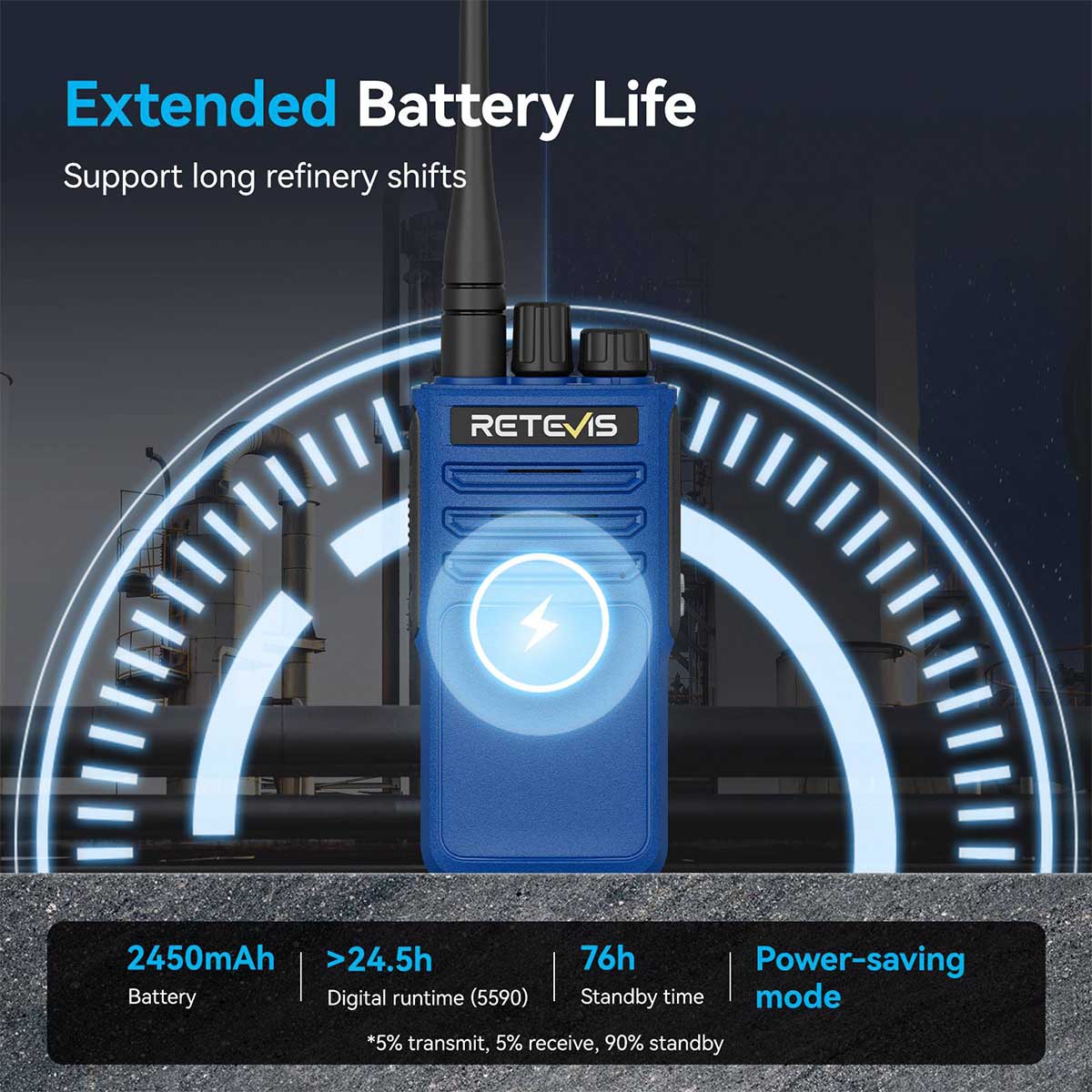

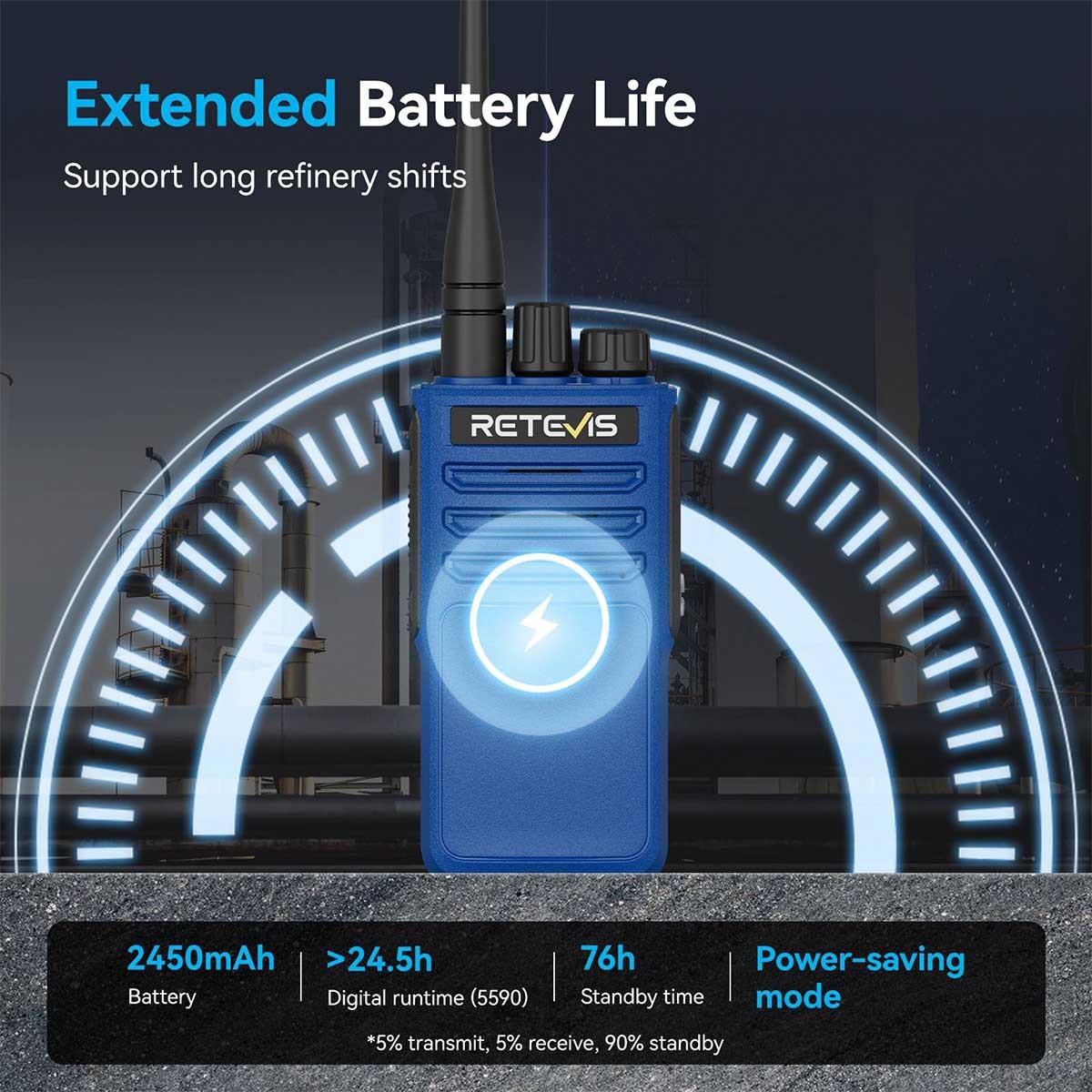

Long Battery Life

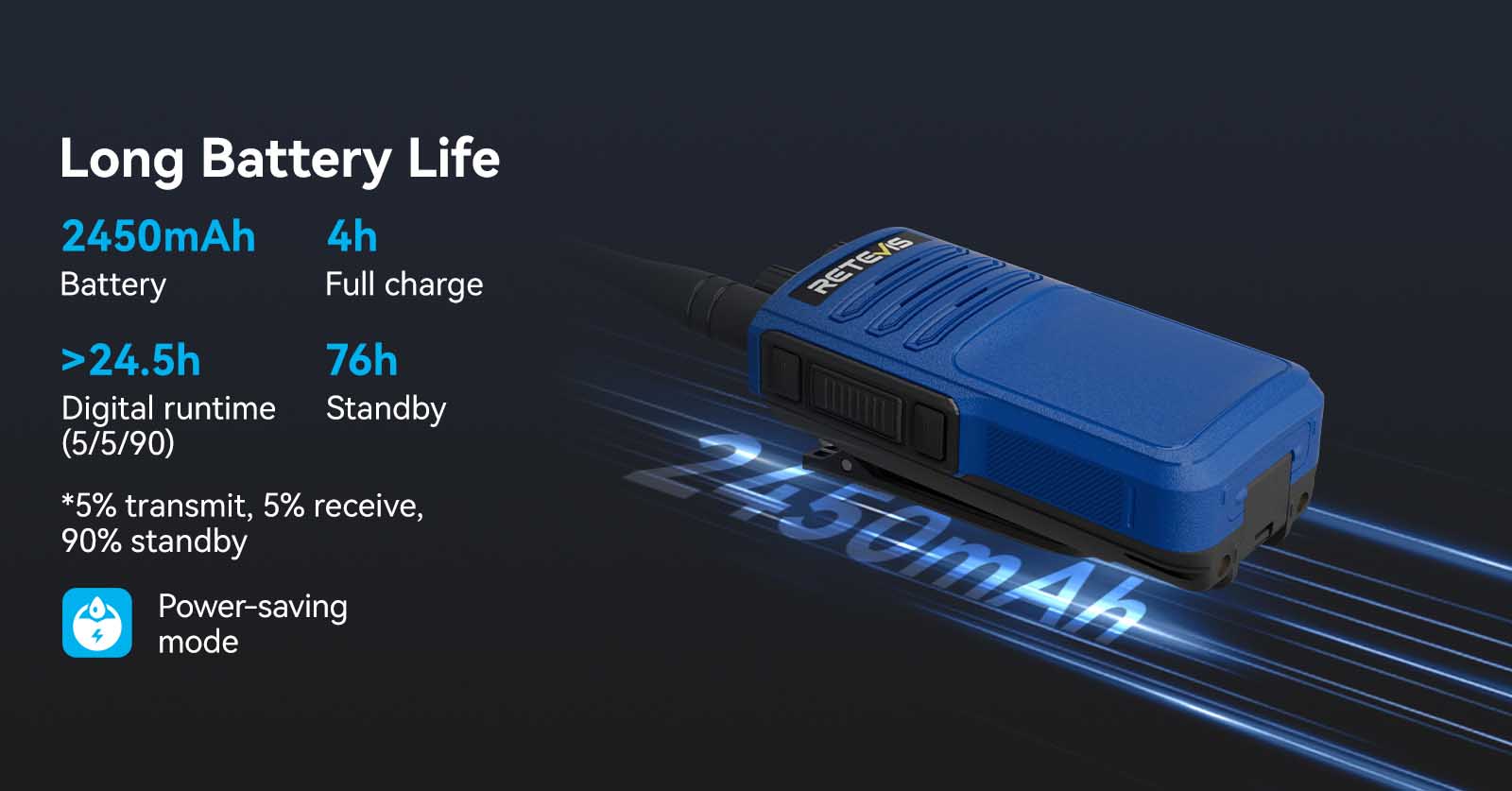

The MateTalk E1 explosion-proof walkie talkie is equipped with a 2450mAh battery, providing over 24.5 hours of continuous use on a single charge. With power-saving features, it ensures extended runtime, keeping your device reliable and ready for long shifts in demanding environments. Retevis E1 explosion proof radio with long battery life

3 Flexible Calling Modes

The MateTalk E1 DMR walkie talkie supports single, group, and all call modes, offering flexible communication options for one-to-one chats or emergency broadcasts. Perfectly suited for dynamic needs in hazardous environments.

Retevis E1 DMR walkie talkie with single group and all call modesAdvanced Safety and Communication Features

  • Pre-set SMS: Send silent preset messages like "Leak Alert" or "Evacuation Done," reducing the risk of sparks or noise in combustible environments.
  • SFR Mode: Boost coverage with SFR mode for extended range and reliable communication in large or obstructed hazardous sites.
  • 1500 Channels: With 1500 channels, the MateTalk E1 supports flexible organization, ensuring smoother communication for complex teams in hazardous environments.
  • Remote Kill: In case of loss or theft, remotely disable the device, locking it to prevent unauthorized use and ensuring communication security.

Spec

Overall Specification Parameter
Frequency Range UHF 400-470 MHz
Channel Capacity 1500
Channel Spacing (Digital) 12.5 KHz
Channel Spacing (Analog) 12.5/25 KHz
Zones 100
Operating Voltage DC 8V
Battery 2450 mAh
Operating Current <1300 mA
Operating Temperature -10℃ ~ +50℃
Storage Temperature 0℃ ~ +35℃
Weight 295 g
Dimensions (H x W x D, mm) 132 x 60.6 x 38.25 (without antenna)



Transmitter Specification Parameter
Frequency Stability < 3.5W
Digital Sensitivity Analog 1200 mAh, Digital 600 mAh
Analog Receiver Sensitivity N: ≤2.5 kHz; W: ≤5 kHz
Intermodulation -36 dBm ≤ 1 GHz / -30 dBm > 1 GHz
Adjacent Channel Selectivity N: ≤-60 dB; W: ≤-70 dB
Occupied Bandwidth 0.03
Frequency Sensitivity N > 35 dB; W > 40 dB
Audio Power 1W
Audio Power Frequency Response

300Hz: -13.45dB ~ -9.46dB

500Hz: -9.02dB ~ -5.02dB

1kHz: -3.00dB ~ 1dB

2kHz: 3.02dB ~ 7.02dB

3kHz: 4.96dB ~ 10.54dB

Rated Audio Distortion 10%
Spurious Emission Suppression 70 dB
Receive Spurious Emission -57 dBm @ <1 GHz; -47 dBm @ >1 GHz
Rated Audio Distortion 10%
Frequency Stability ±2.5 ppm
Co-Channel Suppression -8 dB @ 12.5 KHz
Blocking 84 dB



Receiver Specification Parameter
Power < 3.5 W  at 7.4V
Signal-to-Noise Ratio 40 dB @ 12.5 KHz
Transmit Spurious Radiation -36 dBm @ <1 GHz
Adjacent Channel Power -60 dB @ 12.5 KHz
4FSK Digital Modulation Mode

12.5 KHz (data only): 7K60FXD

12.5 KHz (data + voice): 7K60FXE

Frequency Stability 7.5 μW
Modulation Distortion 5%
Modulation Error Rate (BER) ≤ 3%
Frequency Stability ±2.5 ppm
Maximum Frequency Deviation ±2.5 KHz
Idle Slot Power -57 dBm
Standby Time > 2.45 hours
Charging Time < 6 hours
5590 Operating Time Digital: 24.5 hours, Analog: 20 hours
Digital Protocol ETSI TS 102361-1-2-3
TX Current Analog: 1360 mA at 7.4V; Digital: 660 mA at 7.4V
Audio Response +1 ~ +3 dB
Modulation Limitation 2.5 KHz @ 12.5 KHz

Features

  • DMR & NXDN combined.
  • DMR, compatible with Motorola, Kenwood, and Hytera
  • NXDN, compatible with Kenwood
  • ARC4/AES128/AES256 enhanced encryption compatible with M
  • SFR function (single frequency repeater)
  • Superhet receiver
  • 100 zones
  • 1500 channels (500 DMR channels, 500 analog channels, 500 mixed-mode channels)
  • 5W output power
  • High/low power selective
  • 2 side keys programmable
  • Roger
  • Lone worker.
  • Firmware upgrade.
  • Man down
  • Talk permit tone
  • Emergency alert
  • Private / group / all call
  • Remote monitor.
  • Remote disable/enable.
  • Talk around.
  • Busy channel lock
  • SQL
  • End tone elimination
  • Record optional (500 hours)

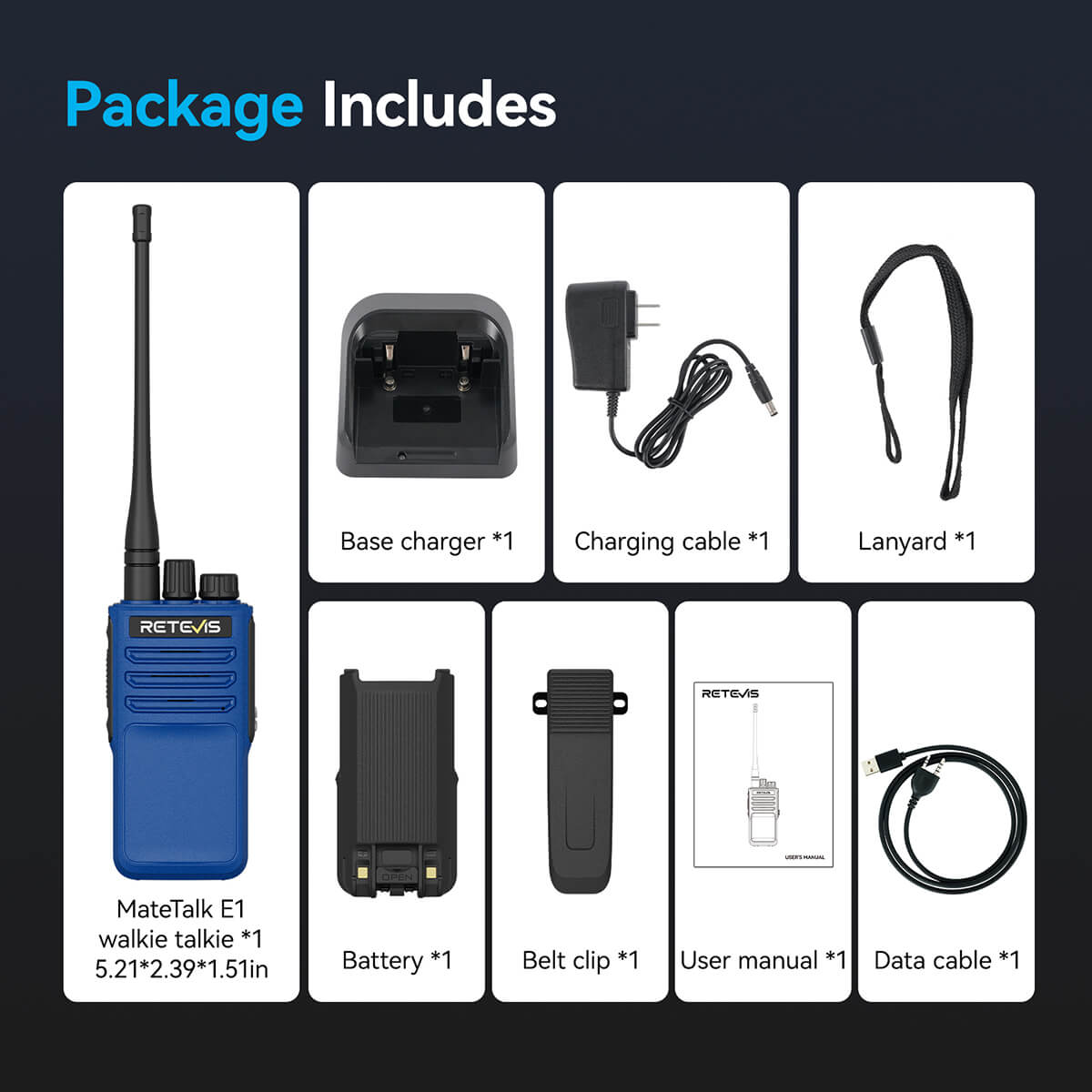

Package
