- High discharge current, multi-level protection.
- Built-in fast semiconductor protection devices, fast response speed, low residual voltage.
- Core components use internationally renowned brands, superior performance.
- Energy-saving, environmentally friendly, easy to install, suitable for various standard interface types.
- Low insertion loss, ensuring unobstructed line flow.
- Low VSWR, wide operating frequency range.
Add To Cart
Description
Product Application:
Antenna feeder surge protectors are mainly used for lightning (overvoltage) protection against lightning strikes along various antenna feeder lines, such as antenna signal equipment (GSM, CDMA, WCDMA, CDMA2000, TD-SCDMA mobile communication equipment and cable television, etc.).
Installation Instructions:
- This product is a series connection.
- Please select a product with the same interface type as the protected equipment.

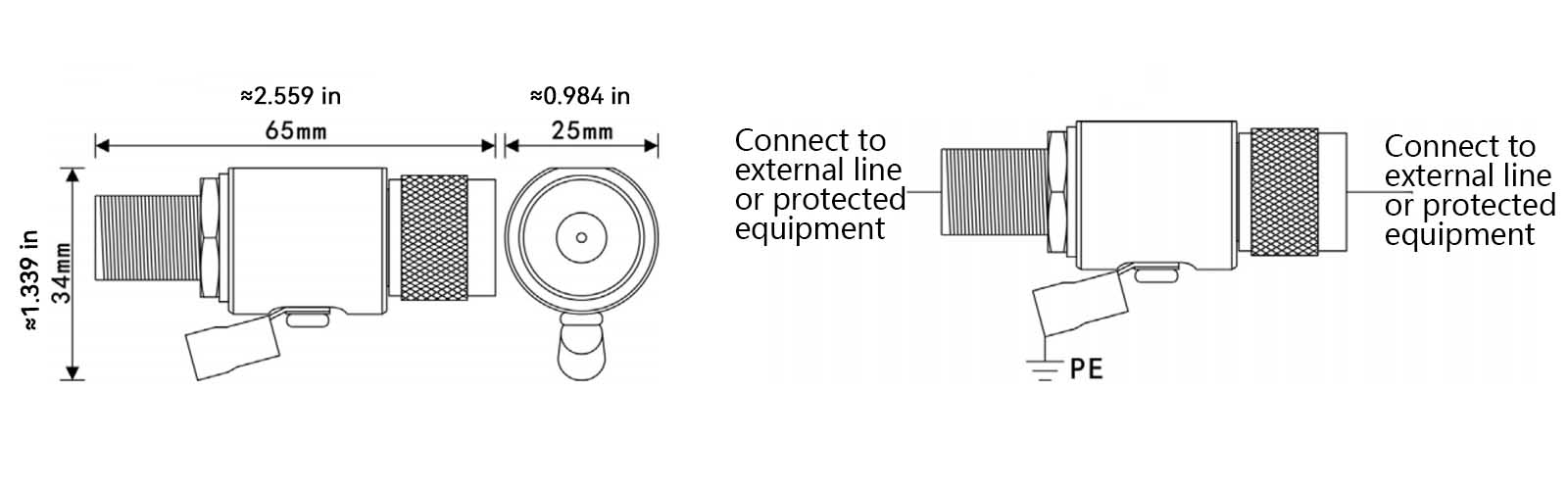

- During installation, please connect according to the installation diagram. IN is the input, OUT is the output, and PE is the ground wire. Connect the input terminal to the external line, and connect the output terminal to the input terminal of the protected equipment (for brass products, both ends can be connected to either the input or output wire). Do not connect incorrectly.
- The surge protector's PE wire must be reliably connected to the ground wire of the lightning protection system. The connecting wire should be short, thick, and straight.
- During use, the surge protector should be inspected regularly. If a fault occurs, it should be repaired or replaced promptly to ensure equipment safety.
| Specification | Interface type | Characteristic impedance (Ω) | Voltage protection level: Upx-x (kV, 1.2/50μs) | Transmission characteristics | Nominal discharge current In (kA, 8/20μs) | Maximum discharge current: Imax (kA, 8/20μs) | Response time tA (ns) | Standing Wave Ratio (VSWR) | Insertion loss (dB) |
| Metric F Interface Brass |
F | 75 | 1.4 | 0～2.5 GHz |
10 | 20 | ≤1 | ≤1.2 | ≤0.2 |
Product Application:
Antenna feeder surge protectors are mainly used for lightning (overvoltage) protection against lightning strikes along various antenna feeder lines, such as antenna signal equipment (GSM, CDMA, WCDMA, CDMA2000, TD-SCDMA mobile communication equipment and cable television, etc.).
Installation Instructions:
- This product is a series connection.
- Please select a product with the same interface type as the protected equipment.
- During installation, please connect according to the installation diagram. IN is the input, OUT is the output, and PE is the ground wire. Connect the input terminal to the external line, and connect the output terminal to the input terminal of the protected equipment (for brass products, both ends can be connected to either the input or output wire). Do not connect incorrectly.
- The surge protector's PE wire must be reliably connected to the ground wire of the lightning protection system. The connecting wire should be short, thick, and straight.
- During use, the surge protector should be inspected regularly. If a fault occurs, it should be repaired or replaced promptly to ensure equipment safety.
| Specification | Interface type | Characteristic impedance (Ω) | Voltage protection level: Upx-x (kV, 1.2/50μs) | Transmission characteristics | Nominal discharge current In (kA, 8/20μs) | Maximum discharge current: Imax (kA, 8/20μs) | Response time tA (ns) | Standing Wave Ratio (VSWR) | Insertion loss (dB) |
| Metric F Interface Brass |
F | 75 | 1.4 | 0～2.5 GHz |
10 | 20 | ≤1 | ≤1.2 | ≤0.2 |
