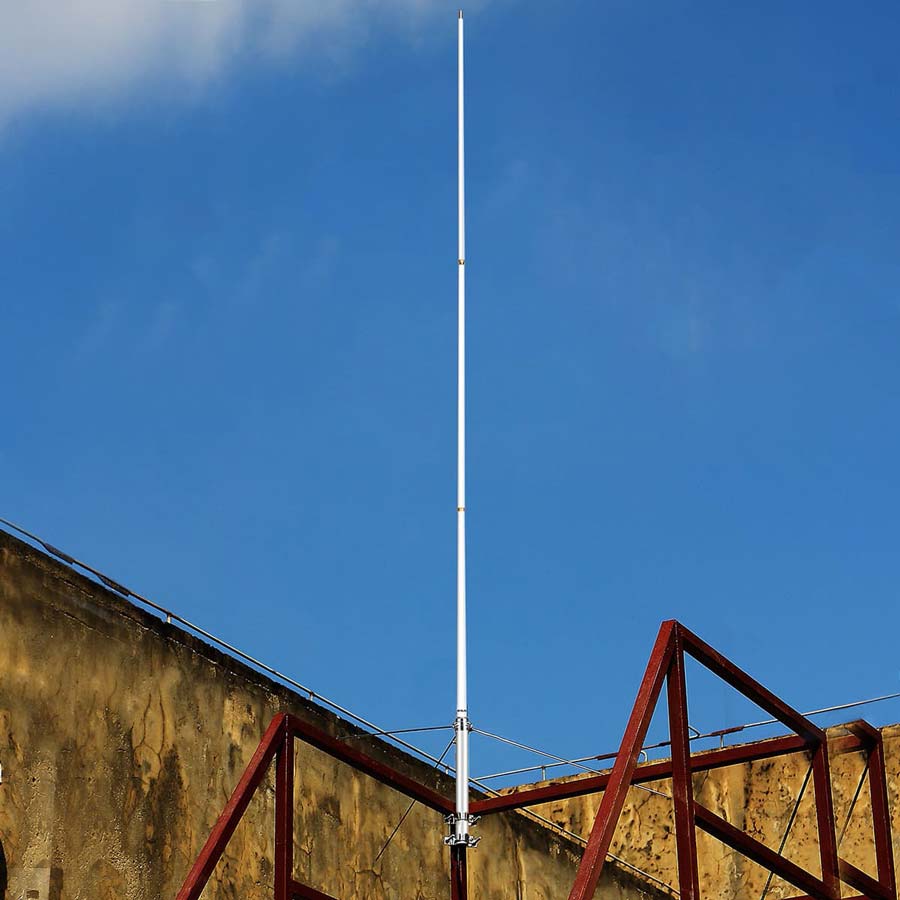

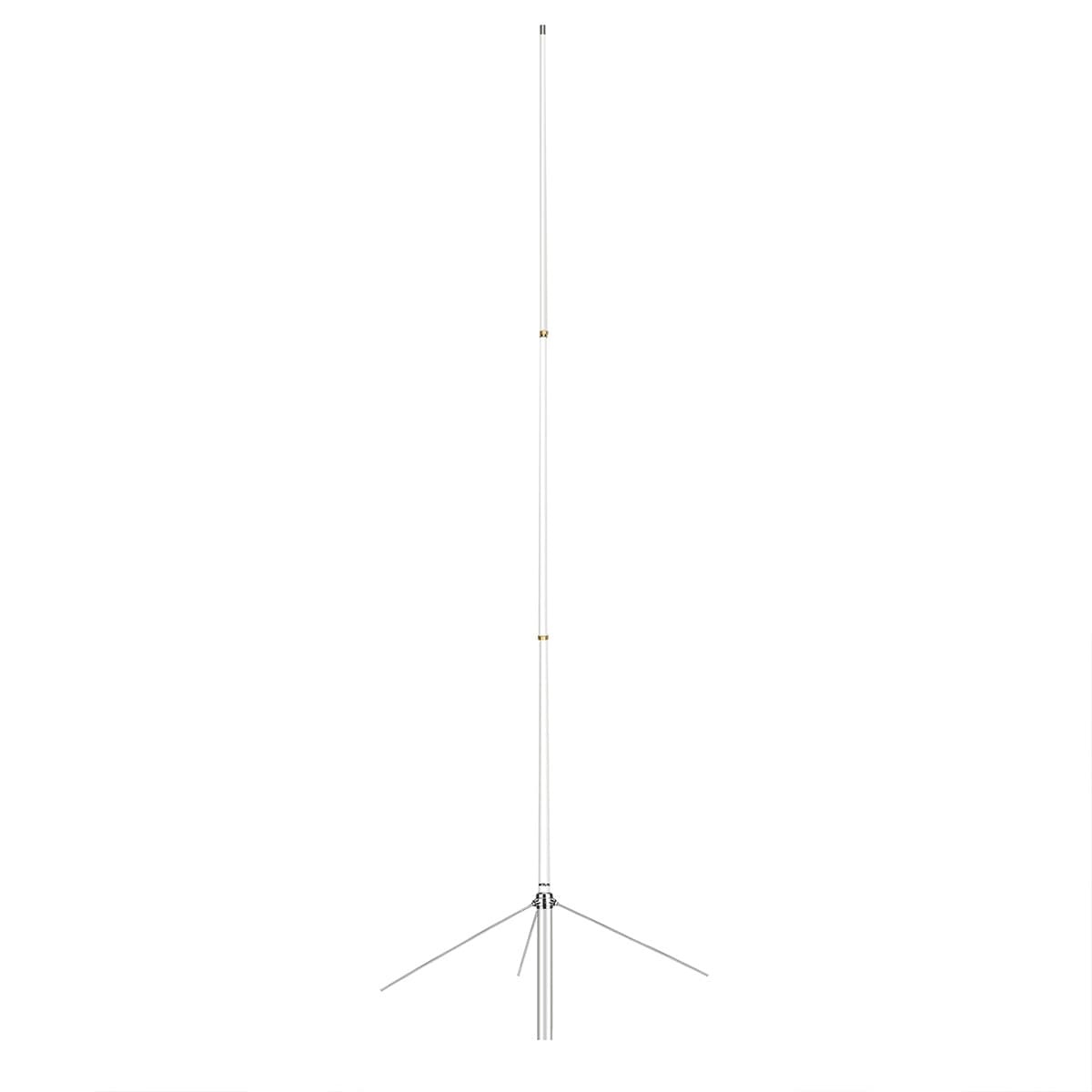

MA05 High Gain Glass Steel Omni-Directional Antenna

     The antenna is Omni directional base station antenna, support UHF and VHF bands, with high gain, wide bandwidth, low standing wave ratio, waterproof, anti-corrosion with high strength and high quality glass steel package, strong wind resistance characteristics, is a kind of ideal communication antenna, antenna design style, easy disassembly and assembly and convenient use.

Features:

1. FRP encapsulation, omnidirectional waterproof and corrosion-resistant, anti-ultraviolet, no cracking, waterproof, wind resistance, strong sealing, suitable for harsh marine environments.。
2. . Using pure copper vibrator, high receiving sensitivity,accurate impedance matching, and longer communication distance.

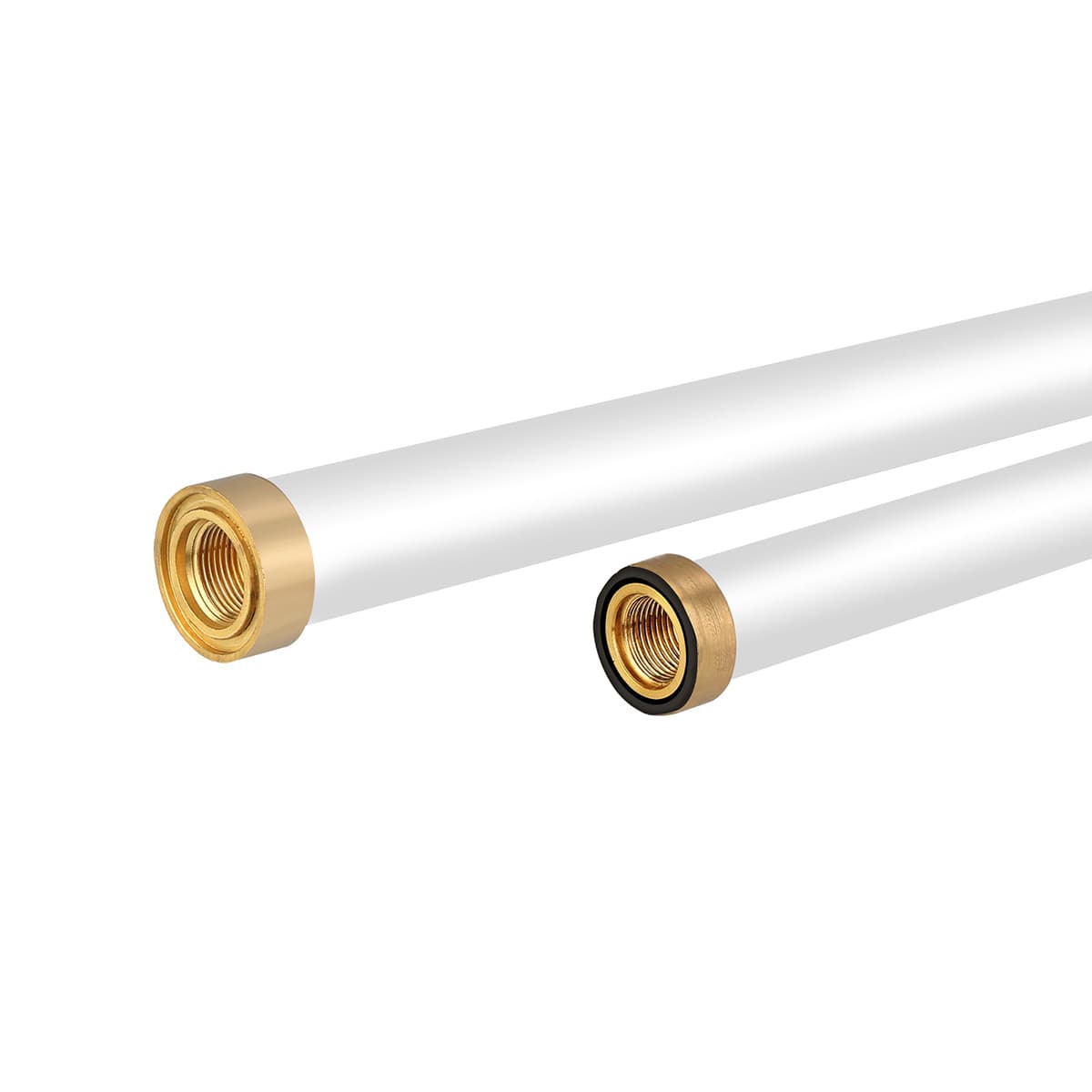

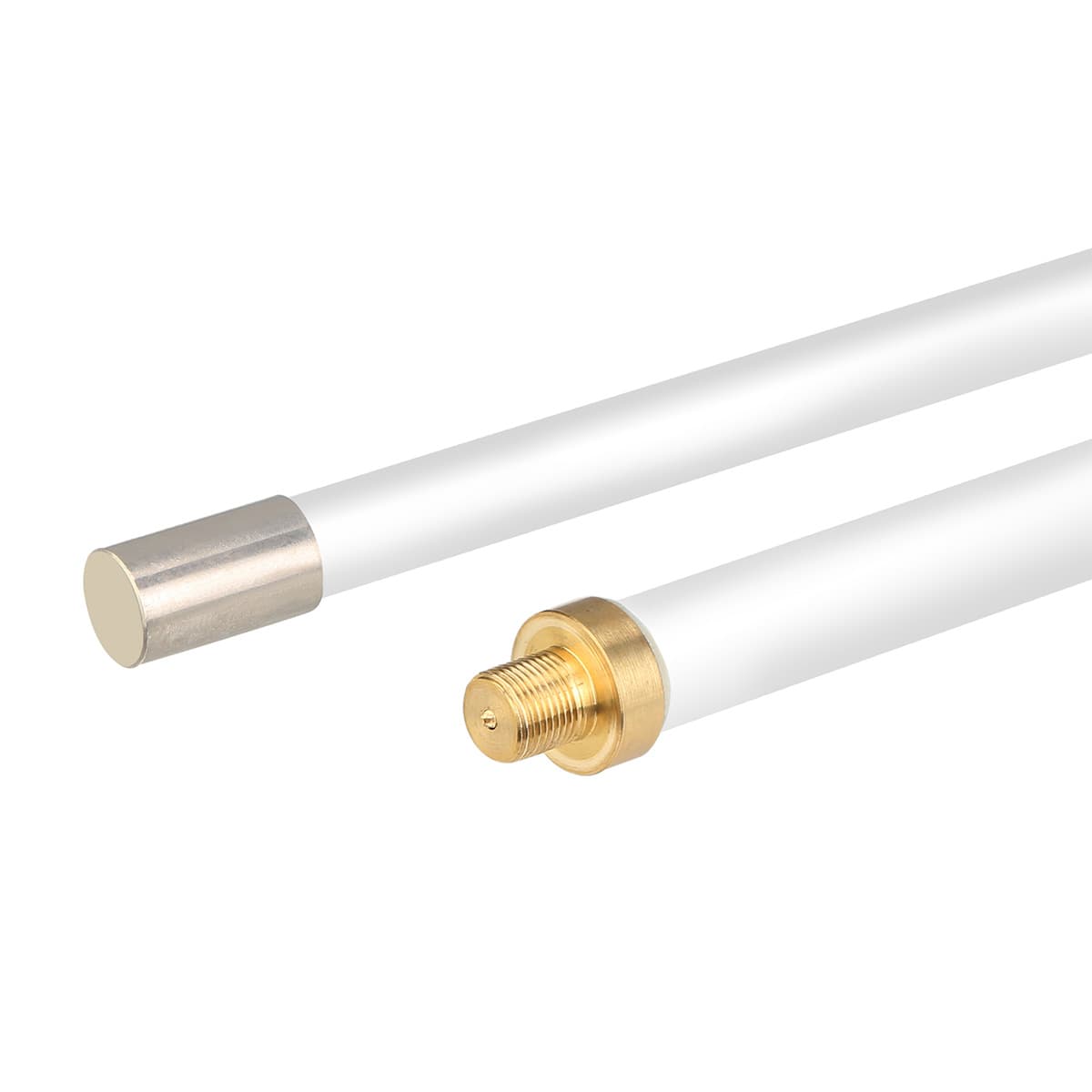

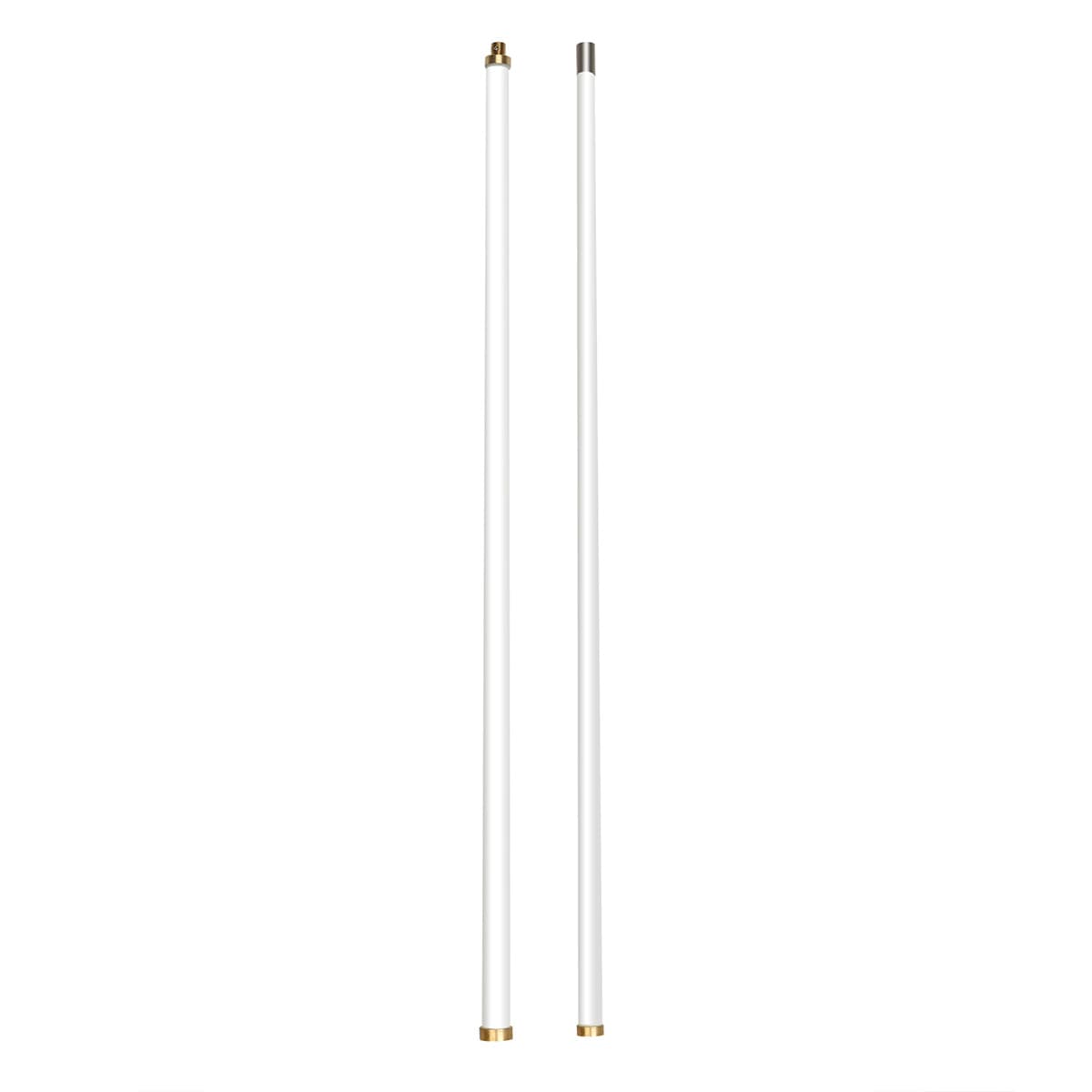

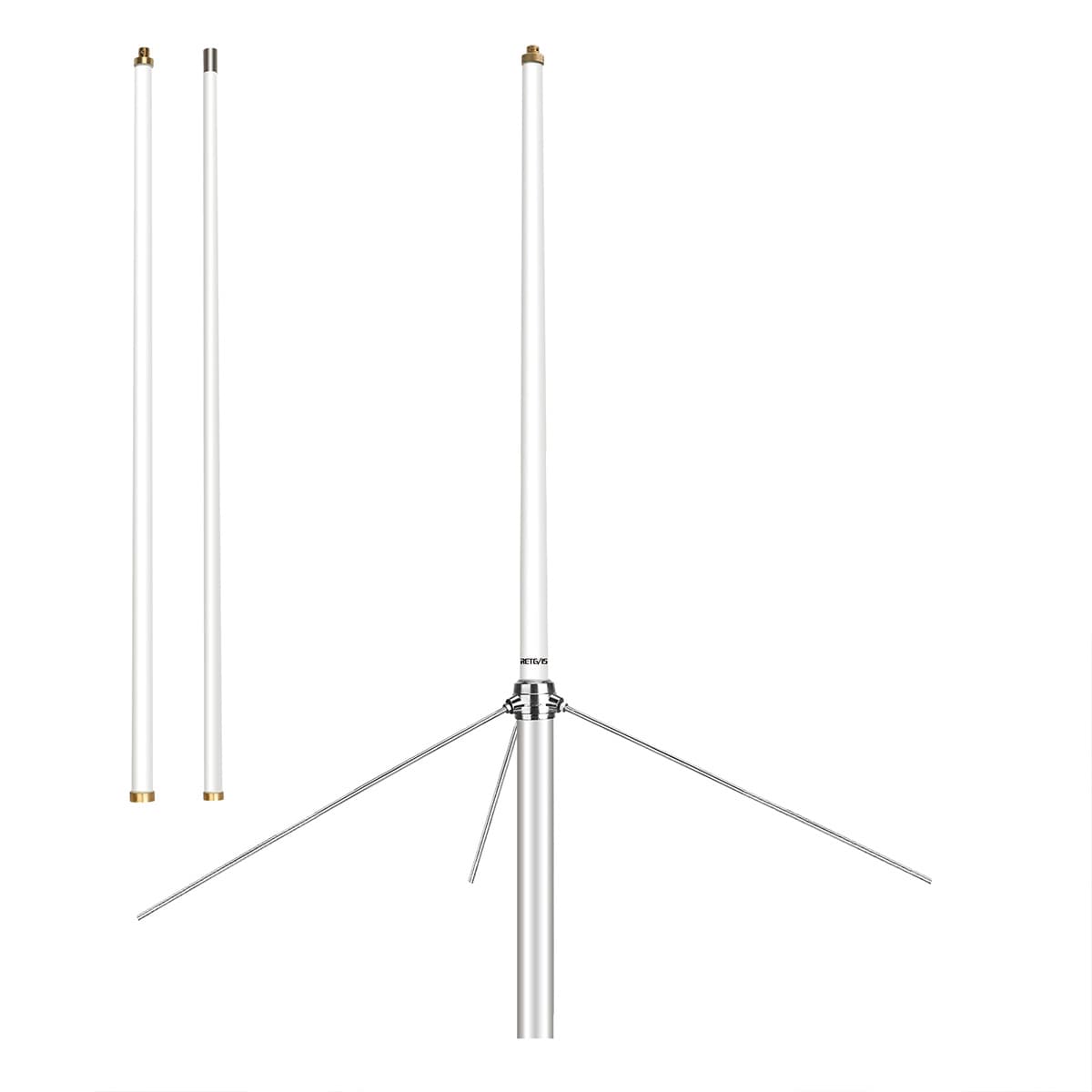

3. Three-section detachable design, easy to disassemble and assemble.
4. Support maximum power: 200W gain: 5.5/8.5dbi

Specification:

1. Brand: RETEVIS
2. Model : MA05
3. Frequency :144/430MHz
4. Gain : 5.5/8.5dBi
5. Max power: 200W
6. VSWR: Less1.5
7. Imdepdance : 50Ω

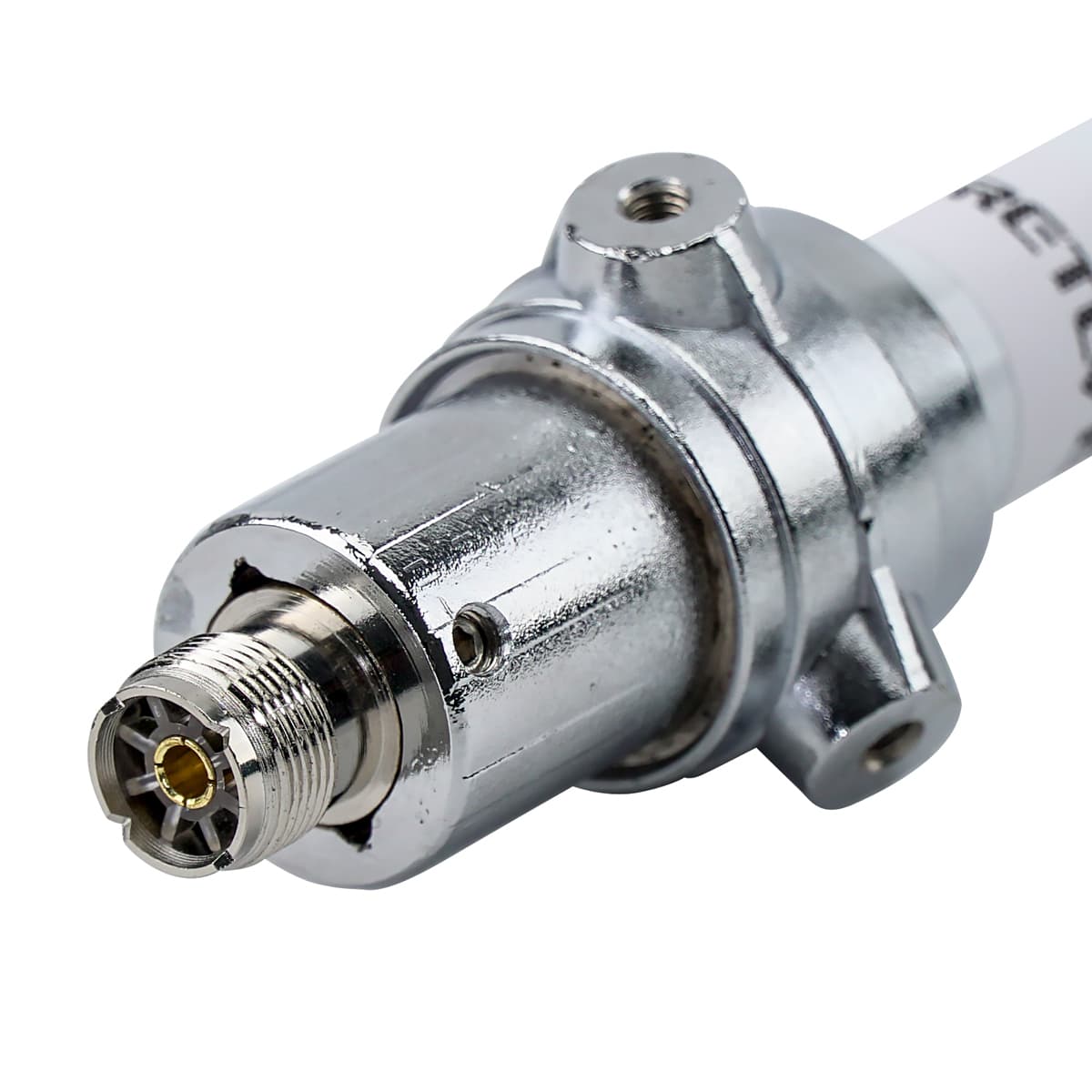

8. Connector : SL16-K
9. Length : 2.2M
10. Radome Material: Fiberglass

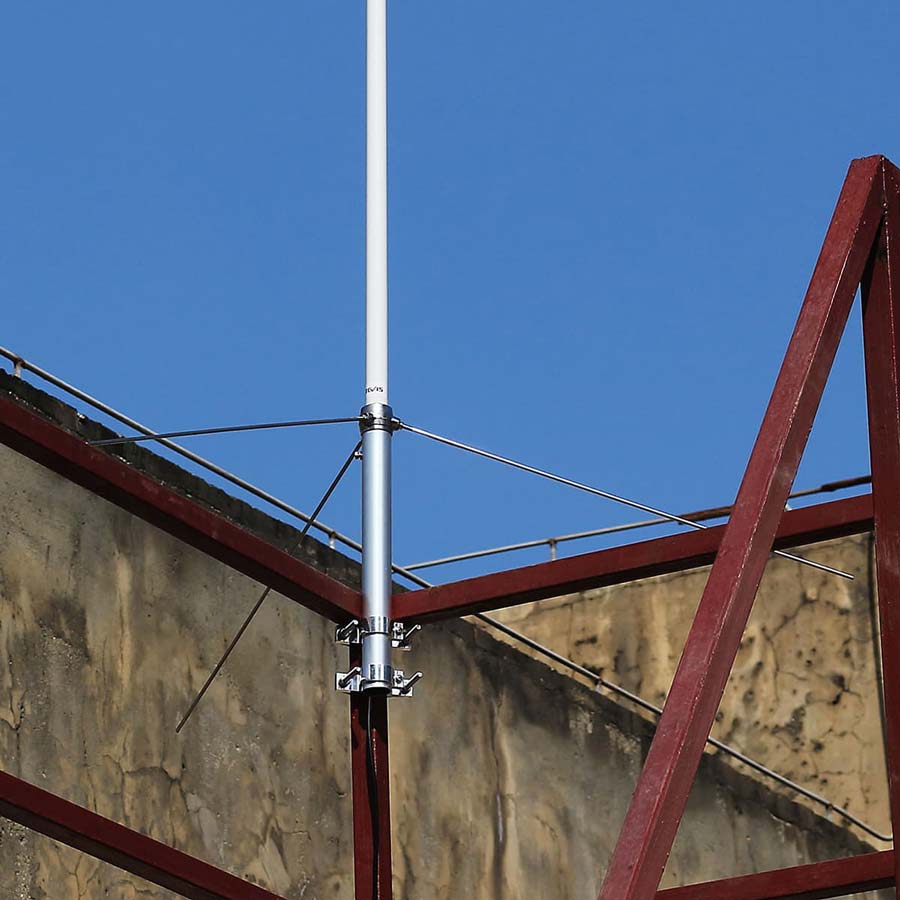

11. Pole diameter: Ø30～Ø62 mm
12. Net Weight: 1450g
13. Applicable models: Retevis RT97 RT9550 RT92 RT74 Mobile Radio
14. Applicable coaxial cable: Retevis CA31 CA32

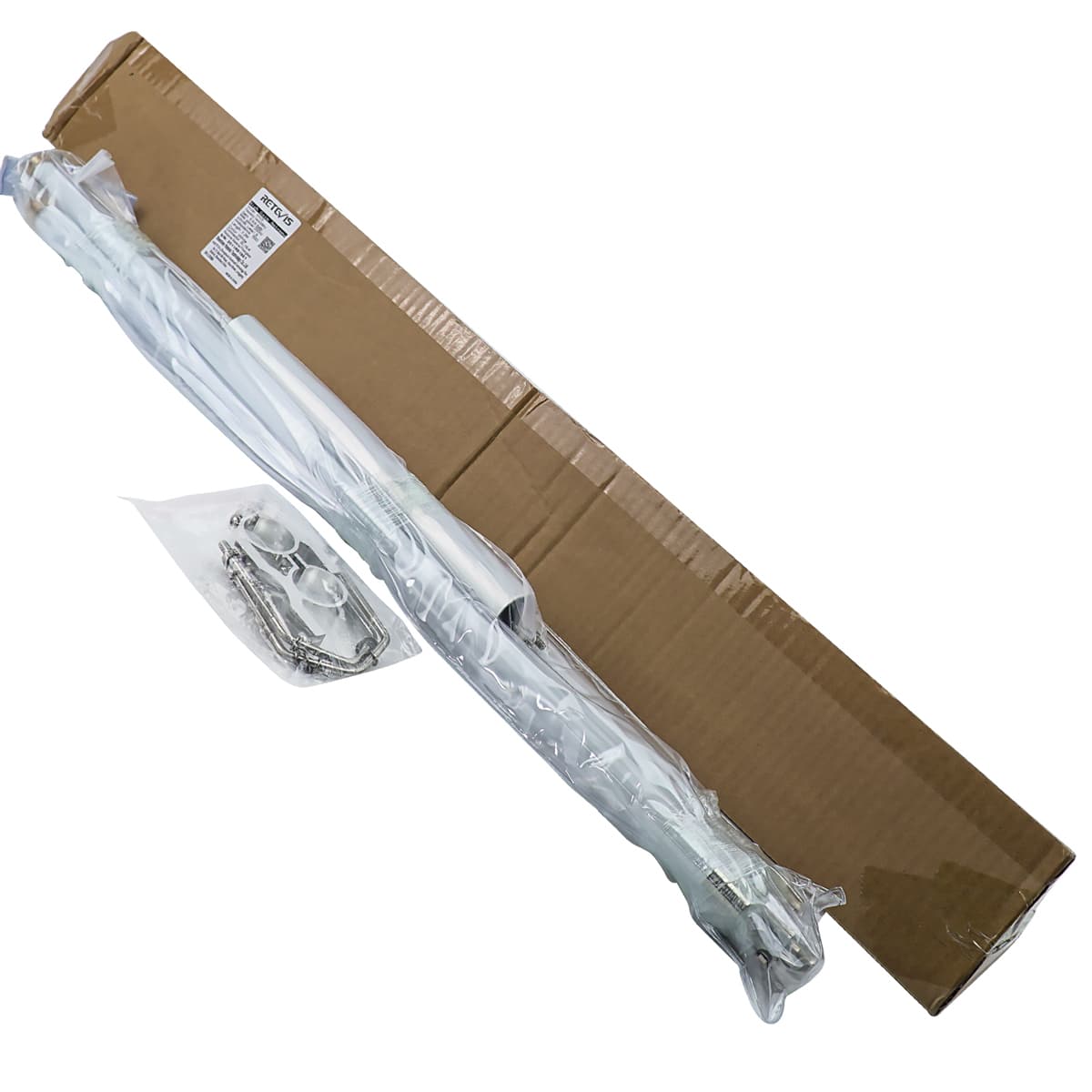

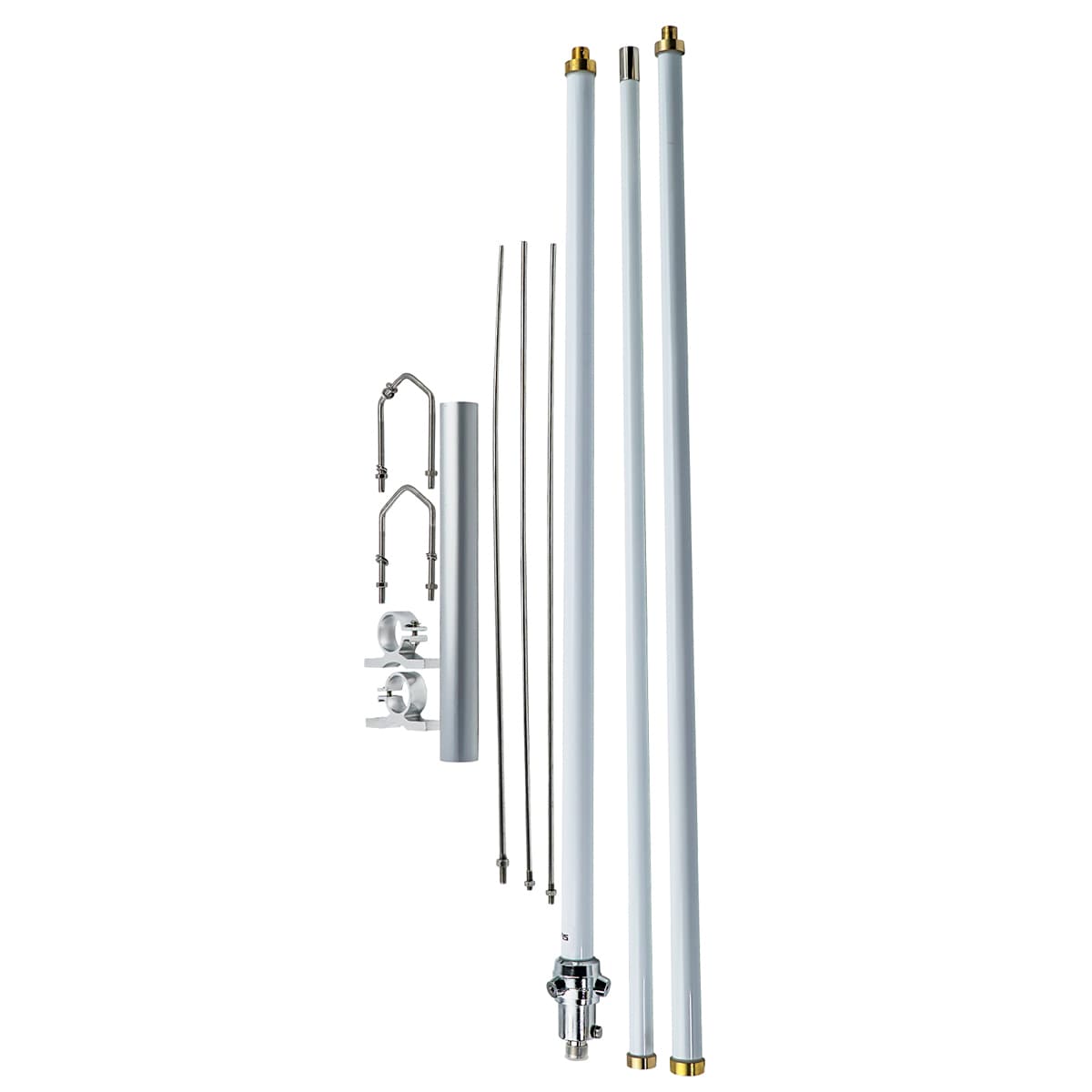

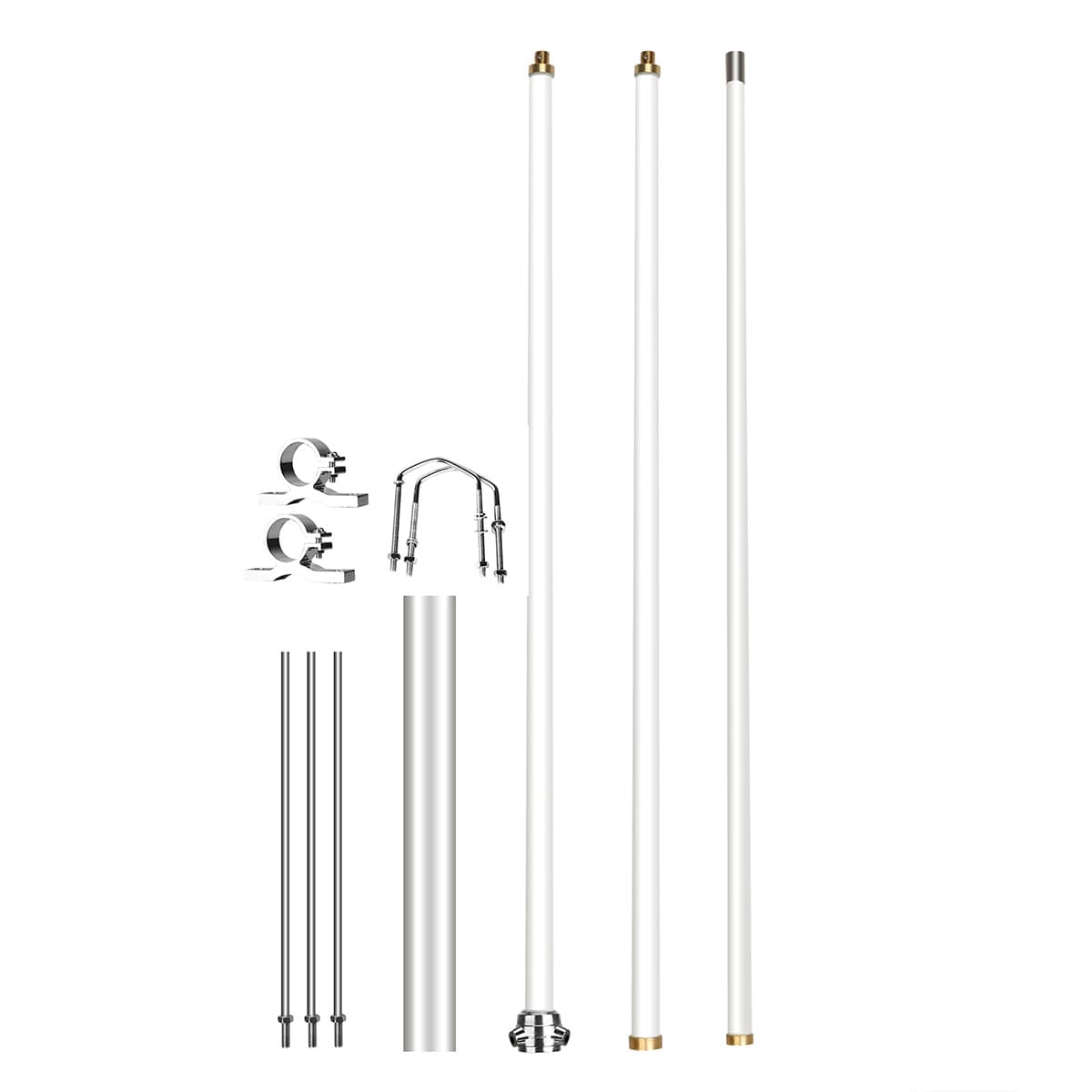

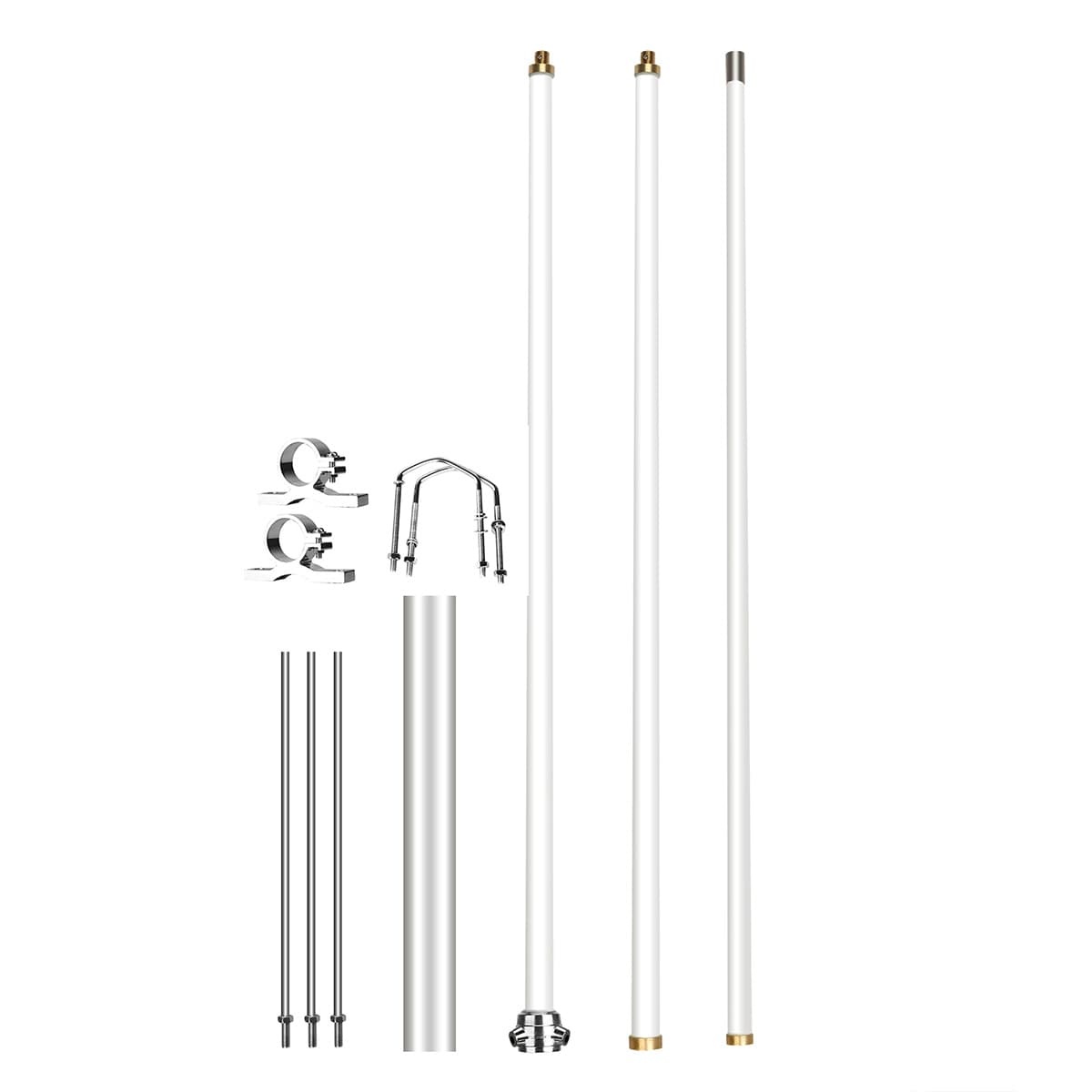

Package Details：

• MA05 fiberglass base station antenna (UV dual-segment three-section 2.2m SL16K interface)
• Aluminum alloy connecting pipe

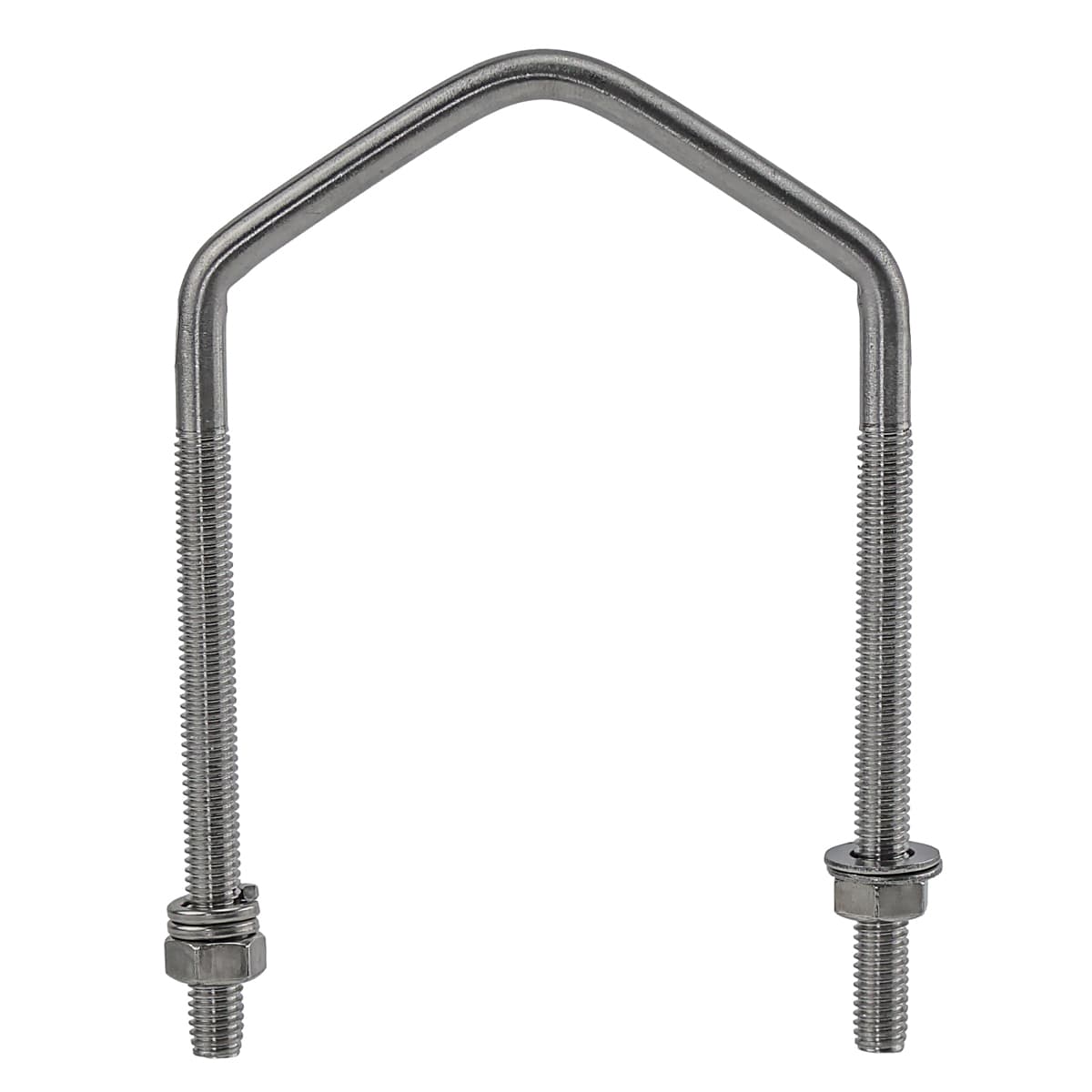

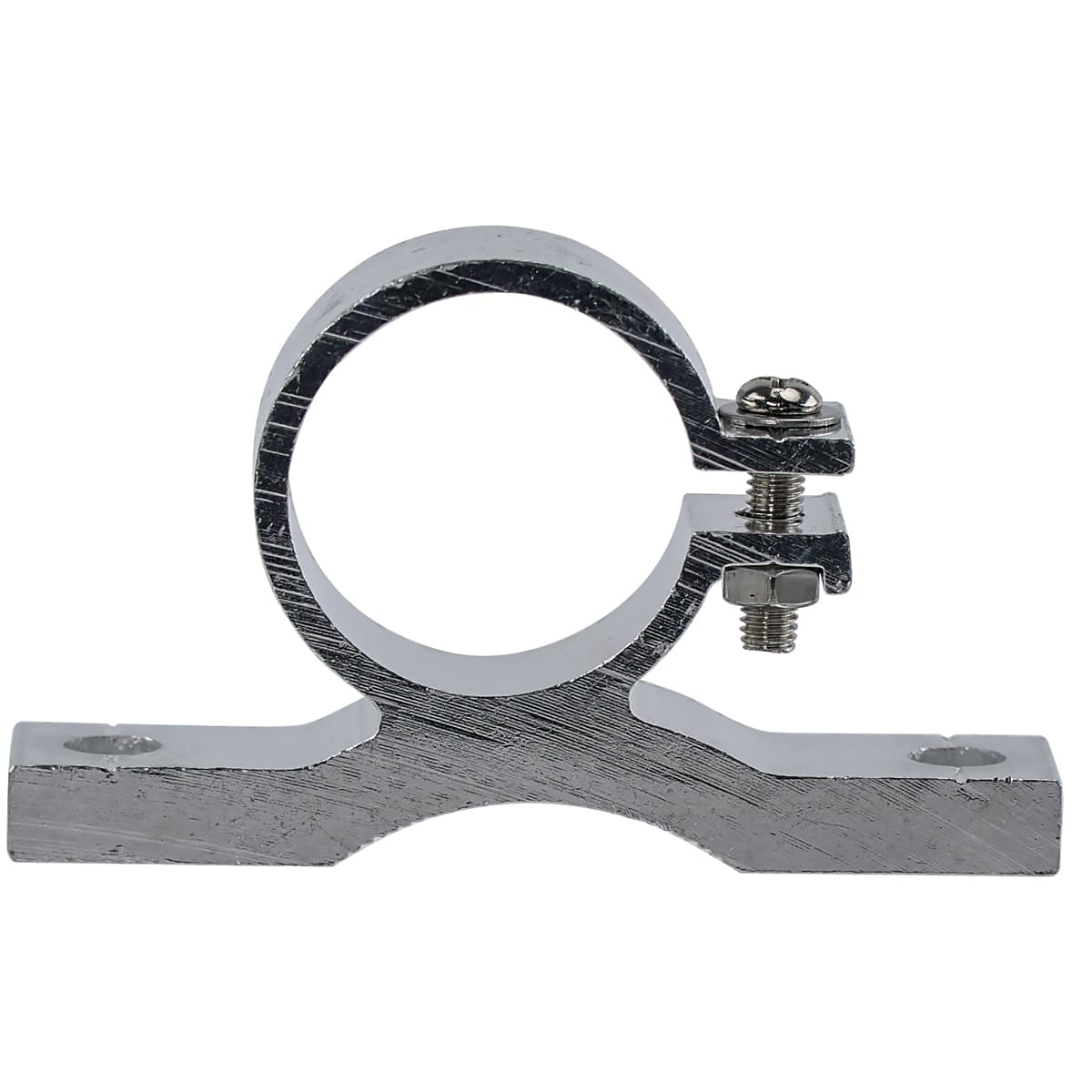

• 2x Aluminum fixture
