Retevis GMRS Radios RA86 and High power Waterproof Repeater RT97L Large Farm Bundle

The RT97L Waterproof GMRS repeater combines RA86 gmrs mobile radios to form a large gmrs communication solution. Can talk to other GMRS radios such as GMRS handheld walkie-talkies. Suitable for communication in large farms, pastures, warehouses and other large venues. This bundle will expand your communication range, ensuring seamless communication. Portable and lightweight, easy to install.

RA86 GMRS mobile radio feature：

  1. Full Micro Mobile GMRS Radio, with an external magnetic mount 2 dB gain antenna for extended range
  2. 30 factory set GMRS Channels（8 gmrs repeater channels）
  3. 10 NOAA channels: NOAA Weather Scan will automatically scan through 10 available weather (WX) band channels and locks onto the strongest weather channel to alert you of severe weather updates.
  4. NOAA Weather Alert will sound an alarm indicating that there is a risk of severe weather in your area.
  5. 260 CTCSS/DCS PRIVACY CODES: The privacy codes give you up to 5720 channel options to protect your conversations
  6. Fully Integrated Control Microphone and low profile hide away unit. Personalized backlight selection, clearer microphone for better call sound quality.
  7. Scan
  8. Monitor
  9. Squelch
  10. VOX
  11. Keypad lock
  12. Power Level Hi/Lo
  13. Bandwidth Settings
  14. TOT
  15. Call Alert Tone
  16. Repeater ON/OFF
  17. MIC Gain
    Backlight Settings
    LCD Brightness Settings
    Sleep Time Settings
    Extemal Speaker Jack
    Automatic Power On Function

RT97L High power waterproof GMRS Repeater feature:

1. 25W High Power GMRS Repeater

With the 25W GMRS repeater kit, including an FRP antenna and coaxial cable, you get strong and reliable signals across your farm or building, minimizing dead zones for seamless communication.

2. Portable and Lightweight GMRS Repeater

The 25W GMRS repeater, with its compact 11.22 × 2.68 × 7.28-inch size and lightweight 7.86lb design, fits easily in your backpack. It’s the perfect companion for maintaining strong signals in transient lifestyles or remote work scenarios.

3. Obstacle Penetration

Right for industrial, or agricultural settings, it minimizes signal dead zones and ensures a stable connection with your Raspberry Pi.

4. Flexible Mobility

Portable with one hand, it adapts to dynamic needs, allowing for free and agile movement as usage scenarios change.

5. Information Visualization

Equipped with an LCD screen design, ensuring that critical information is at a glance.

6. 16 Channel Capability
7. Wide/Narrow Band Selection through PC Software
8. Repeater Delay (Hang) Time Adjustment through PC Software
9. Noise Squelch Level Adjustment through PC Software
10. High/Low Transmit Power Selection through PC Software
11. UHF Female (SO-239) Antenna Connector
12. Two charge methods: 12V/24V DC Cigarette Lighter Plug(fit for solar-powered ) or 120V AC Adapter.
13. 50 CTCSS and 210 DCS privacy codes, Independent Receive and Transmit Privacy Tone Selection through PC Software
14. Built into a cable TV amplifier box
15. LCD display
16. Need Antenna and feeder cable to build your GMRS base stations(can choose from this listing).
17. DB-9 Female connector for adding an external controller for linking purposes

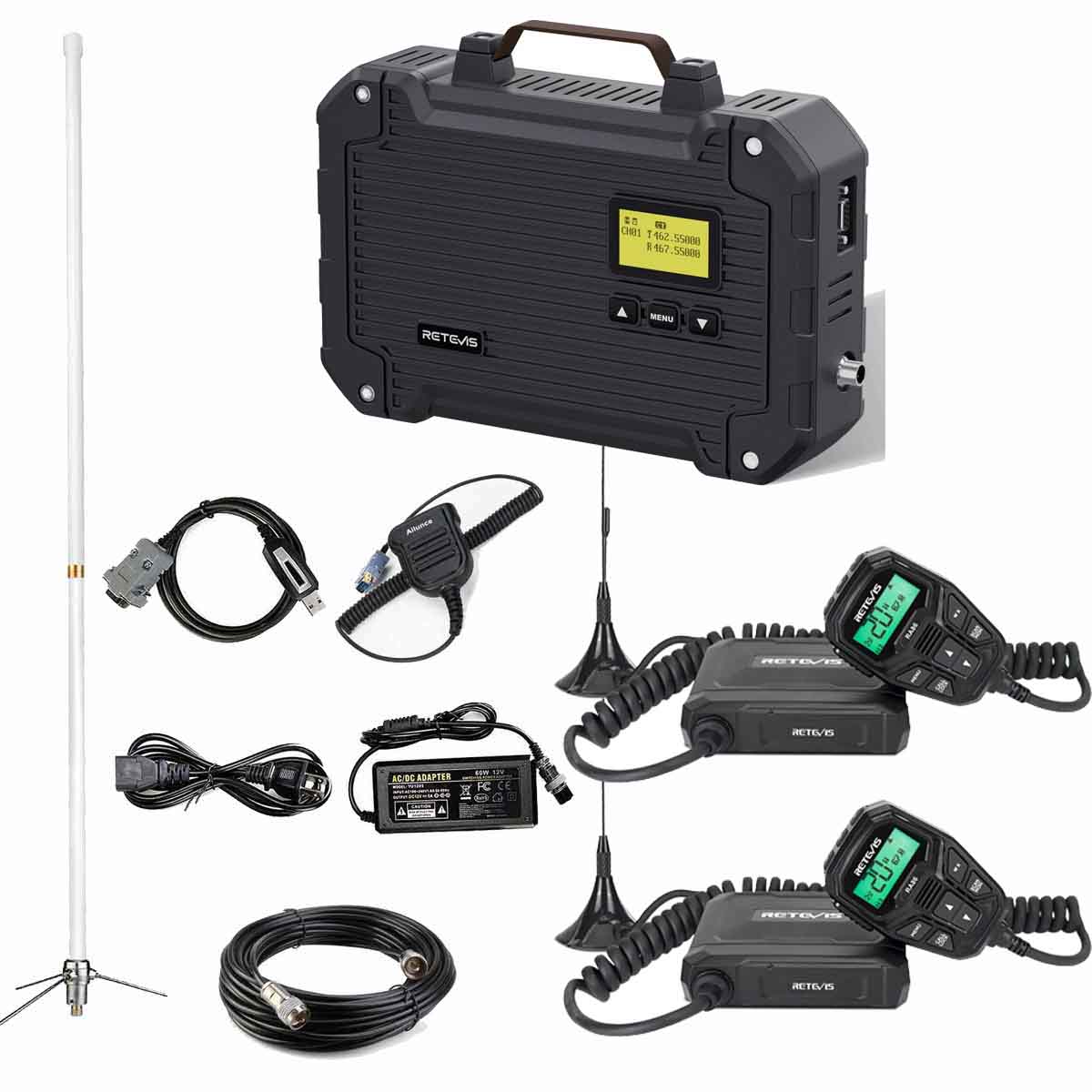

Package includes：

1 x RT97L Portable Repeater
1 x RT97L speaker microphone
1 x MA09 7.2 dBi fiberglass antenna
1 x Repeater 15m feeder
1 x Repeater programming cable
2 x RA86 GMRS mobile radio
2 x Mobile radio short antennas
1 x RA86 program cable
1 x RT97S car charger cable

Spec

Retevis RT97L Portable GMRS repeater Specifications

Frequency Range 462.550 - 462.725 MHz (TX),
467.550 - 467.725 MHz (RX)
Channel Capacity 16 GMRS Repeater Channels
Channel Spacing ±12.5KHz Narrow/±25kHz Wide
Operating Voltage DC12V - 24V
Operating Temperature -22° F - 140° F (-30° C - 60° C)
Frequency Stability ±2.5ppm
Antenna Impedance 50 Ω
Dimensions 10.25" x 8.3" x 2.8" (260 x 210 x 70mm)
Weight 3.7 lbs (1.66 kg)
Transmitter
Modulation F3E
Spurious Emission -60dB or less
Maximum Frequency Deviation Wide: ±5kHz Narrow: ±2.5kHz
Audio Distortion 5% or less
FM Noise Wide:≤45dB Narrow :≤40dB
Receiver
Sensitivity(12dB SINAD) 0.2μV (Wide) 0.25μV (Narrow)
Squelch Sensitivity 0.15μV (Wide) 0.2μV (Narrow)
Adjacent Channel Selectivity ≥ 70dB (Wide) / ≥65dB (Narrow)
Intermodulation ≥ 55dB
Spurious Rejection ≥ 55dB
Image Rejection ≥ 55dB
FM Ham and Noise ≤-45dB(Wide) / ≤ -40dB(Narrow)
Modulation Type F3E
Operating Bandwidth ≤±7KHz / ≤±5KHz
Audio Distortion ≤ 5%
