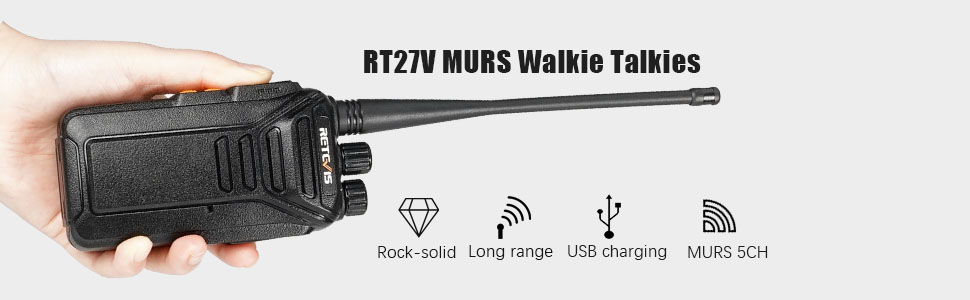

| Specification of RT27V | |
| Frequency Range | MURS:151.820MHz-154.600MHz |
| Channel | 5 |
| Channel Spacing | 12.5KHz |
| Operation Voltage | 3.7V |
| Battery | 1100mAh(Li-ion) |
| Frequency Stability | ±2.5ppm |
| Operating Temperature Range | -20℃~+55℃ |
| Dimensions | 105×59×34mm (without antenna) |
| Weight (with antenna and battery) | 185g |
| Transmitter | |
| Output Power | 2W/0.5W |
| Modulation | F3E |
| Current | ≤1.2A |
| Modulation Distortion | ≤5%(300-3000Hz) |
| Maximum Frequency Deviation | ≤2.5KHz |
| Remanent Modulation | ≤-35dB |
| Receiver | |
| RF Sensitivity | ≤0.3µV |
| Silent Sensitivity | ≤0.25µV |
| Audio Frequency Power | ≥250mW |
| Related Audio Distortion | ≤5% |
| Modulation Receiver Bandwidth | ±7KHz |
| Spurious Rejection | ≥55dB |
| Selectivity | ≥65dB |
| Inter-modulation | ≥60dB |
|
Specification of HA06 Antenna |
|
|
Center frequency : |
152MHz |
|
Impedance: |
50 Ω |
|
V.S.W.R: |
Less 1.5 |
|
Gain: |
2.15dBi |
|
Polarization direction: |
Vertical |
|
Radiation direction: |
Omnidirectional |
