- Long Range and 8 Repeater Channels
One Key Group Call Function
2600mAh Battery with Type-C Charging

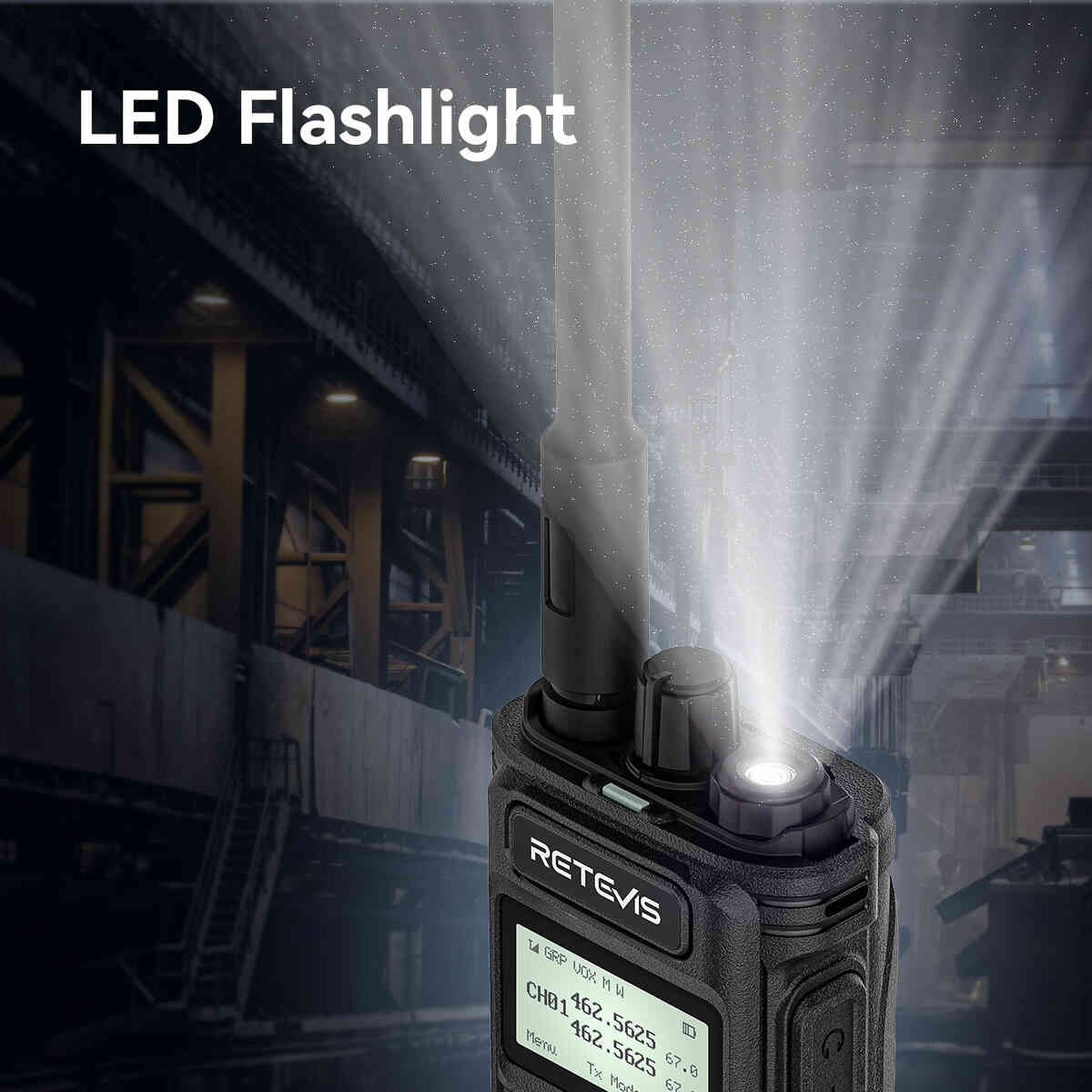

LCD display and Powerful Flashlight
NOAA Weather Alarm - Get it Free: 1 x Programming Cable
Description

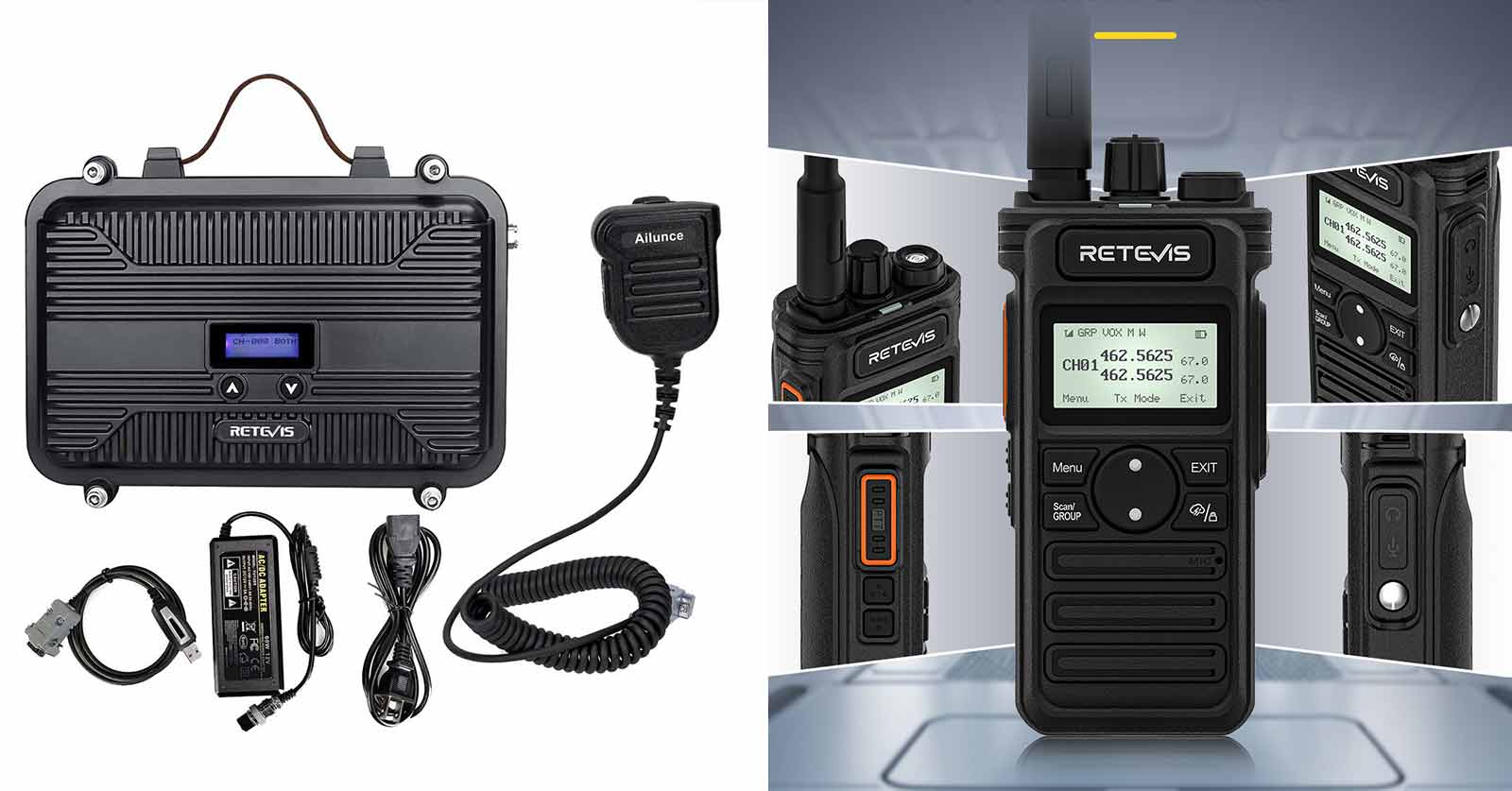

Retevis RT97S Repeater with 6pcs RT86S GMRS Walkie Talkie Kit
Retevis RT97S Repeater with 6pcs RT86S GMRS Walkie Talkie Kit
Designed for business teams to communicate over long distances and to ensure communications reliability, especially in situations where traditional networks may be disrupted, the GMRS has a superior range to FRS and by using the Retevis RT97S GMRS Repeater, the range of the RT86S GMRS handheld radio can be significantly increased. This kit is therefore ideal when an extended communications coverage area is required.
RT97S GMRS Repeater Key Features:
The RT97S repeater in this kit is equipped with a microphone. It can be used to talk directly to walkie-talkies or car radios. This kit comes with 6 RT86S GMRS long range radios to increase the number of users and enable teamwork.
1. Simple-to-use GMRS repeater Kit
With 8 GMRS repeater channels, and a built-in trap duplexer, all you need to do is add an antenna and feeder and you're ready to broadcast. A USB programming cable is also included to program the repeater to the channel and CTCSS/DCS tones of your choice. 2.
2. Small Portable Repeater
The Retevis RT97S repeater measures only 260x210x70mm, which is very small and compact, easy to carry and perfect for outdoor use, suitable for family, individual and group use. You can also install it on top of a mountain to build your own base station.
3. Multiple Charging Options
RT97S can be powered by DC12V~24V power supply, car power supply or solar battery.RT97S is perfect for solar repeater sites that require low power and small space. The portable size of this repeater makes it ideal for camping trips or emergency preparedness.
4. Clear and easy to read LCD display
The Retevis RT97S repeater comes with an LCD display. The display helps you easily understand TX and RX frequencies, CTCSS/DCS codes and bandwidth settings. There are also up and down keys to help you change channels and CTCSS/DCS tones. You can also lock/unlock the keypad using the keys.

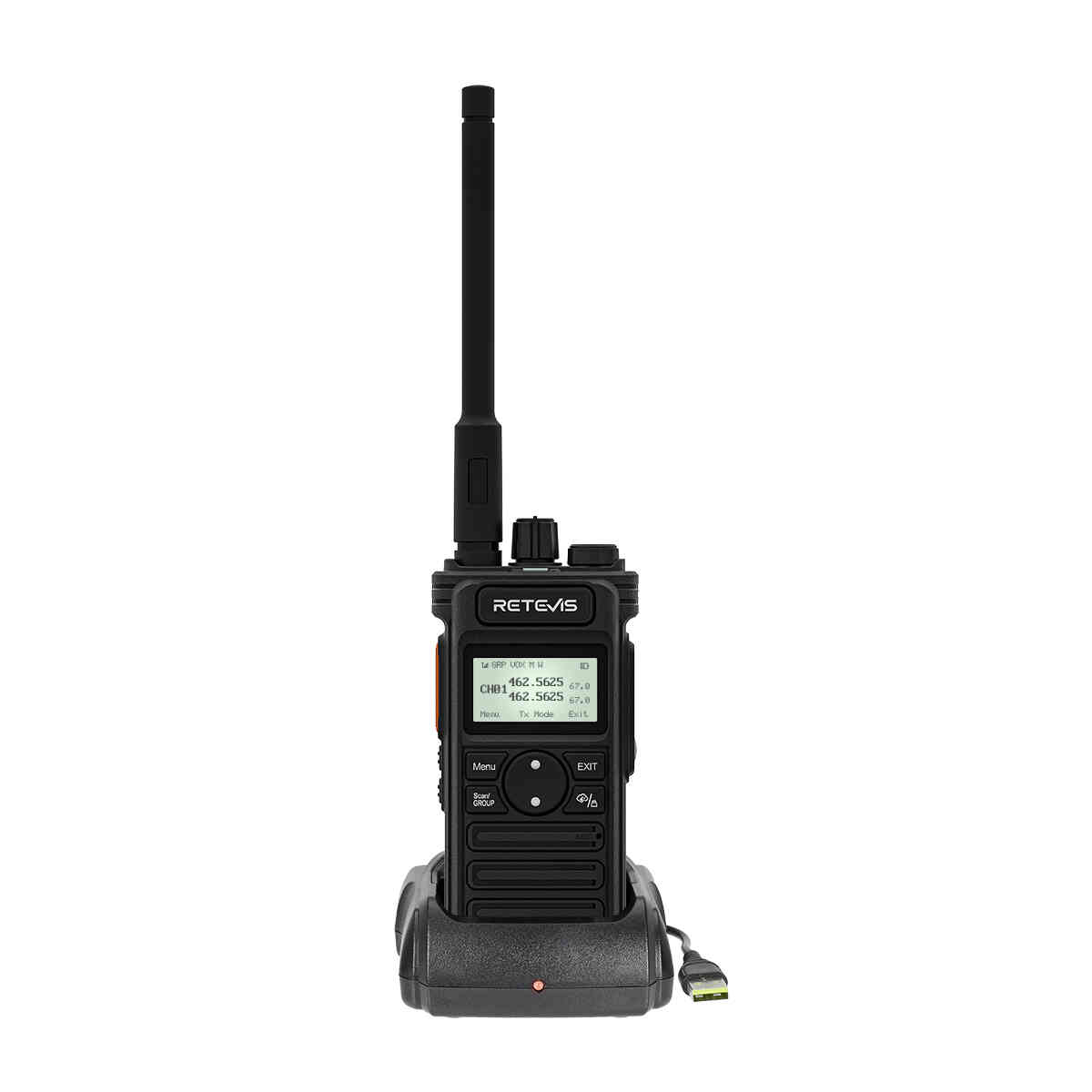

Key Features of RT86S
Retevis RT86S GMRS radio has added LCD display and buttons. It has added one-button reset, NOAA weather alarm, Type-C charging and other functions. It further meets the needs of commercial users for simple operation. This 4-pack is perfect for groups and small business teams.

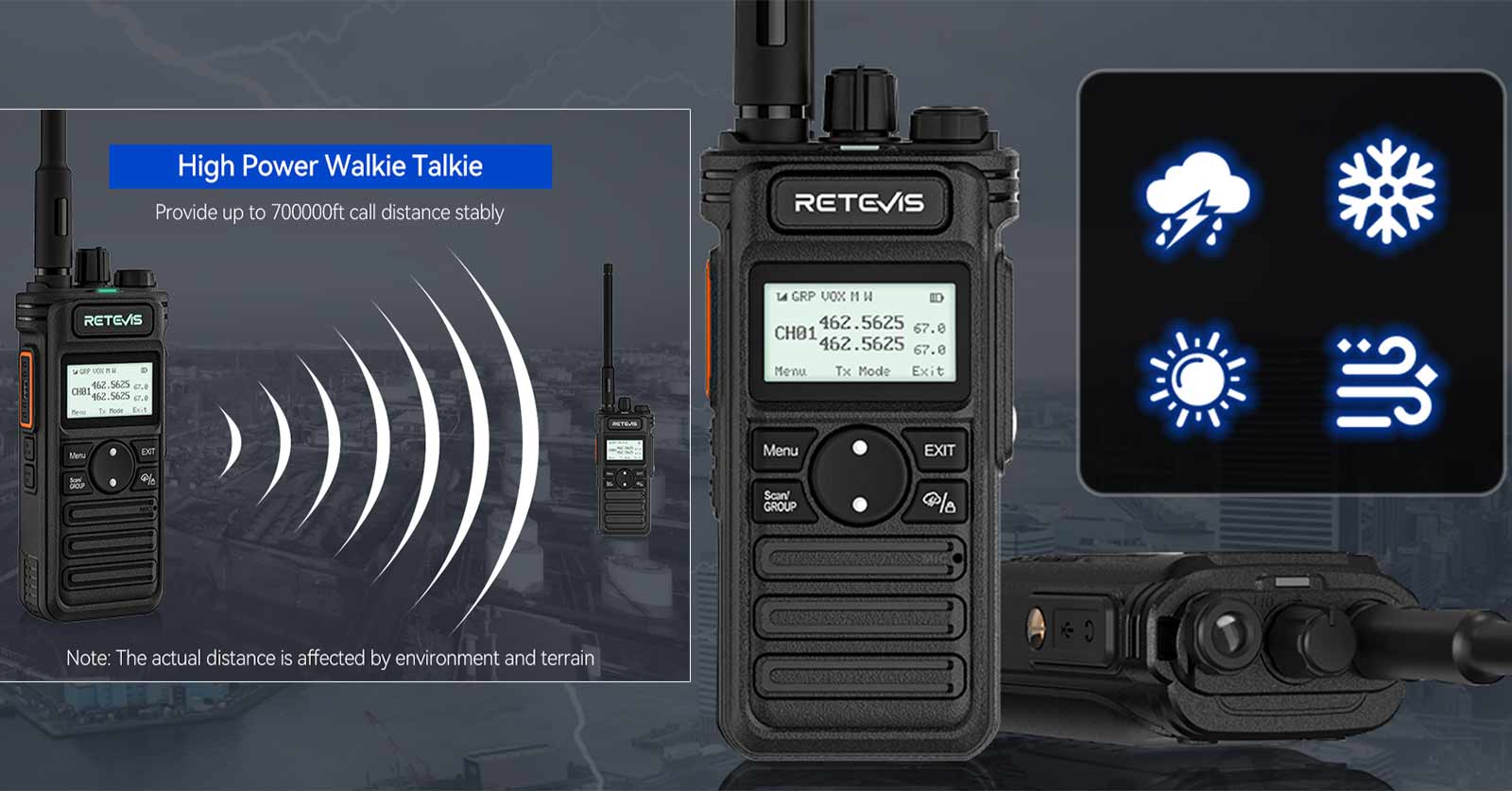

Long-distance communication
Walkie-talkies for adults generally with high-power and long antennas. Provide stronger signals and penetration, making the coverage wider. Achieve longer-distance communication while ensuring stable communication.

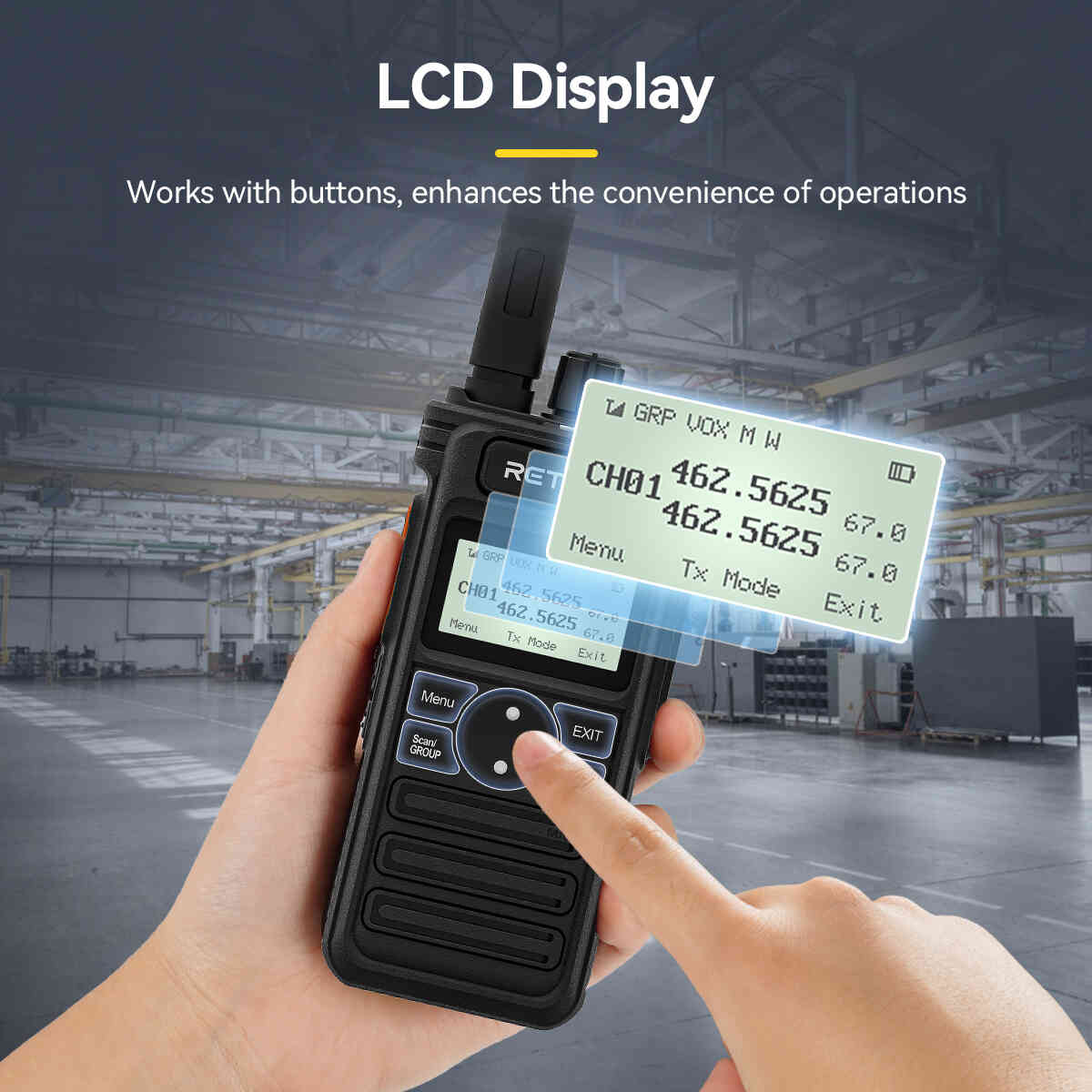

LCD display
1.46-inch LCD display for reading radio information. Simple to use with large buttons and keypad for better realization of important functions. Easily set the required information without using a computer.

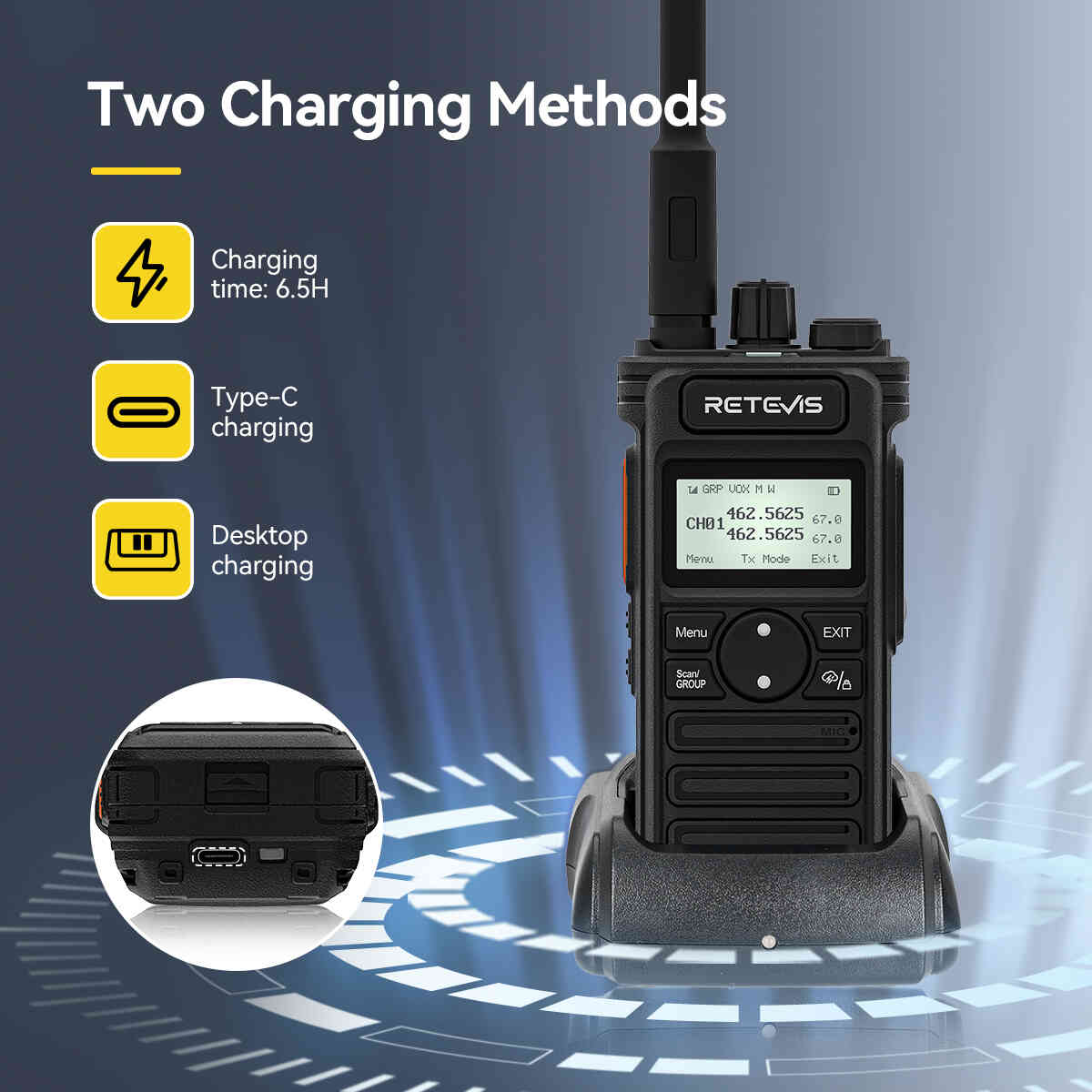

Large Battery Capacity
The walkie-talkie with Type-c charging is equipped with a 2600mAh lithium-ion battery. It provides up to 15 hours of use time and 117 hours of standby time. While meeting the needs of long-term work, it can achieve faster and simpler charging.
Convenient Communication
The RT86S GMRS handheld radio can switch to the RT86 frequency through PTT and side button 1, which is convenient for communication with the acquired RT86. If you have an RT86 intercom, you can update and upgrade it more quickly.

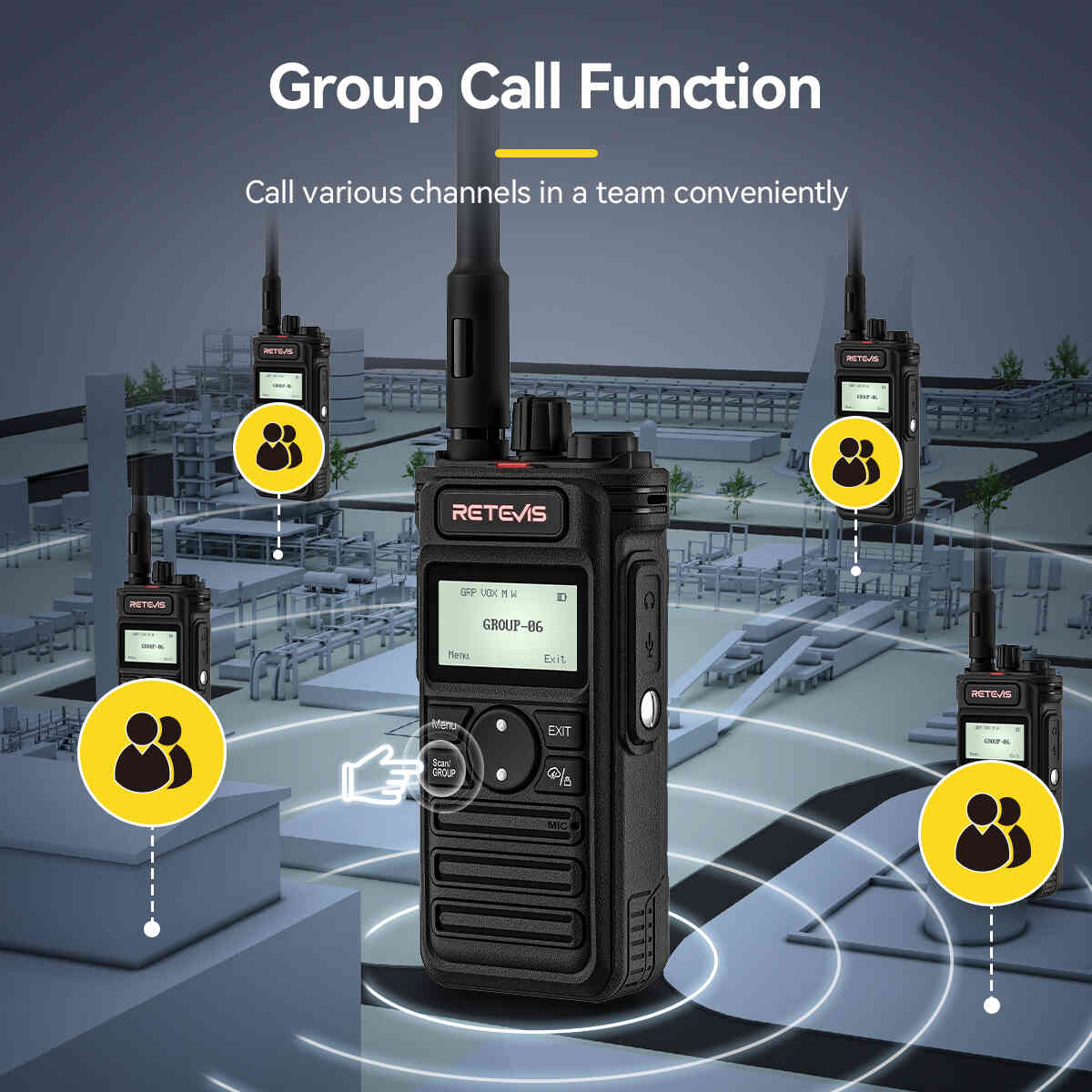

One-Key Group Call Function
When the user is working on channel 1/3/5 or other channels, long press the GRP key to quickly realize the group call on channel 6. Channel 6 is the default group call channel. Long press the GRP key, no matter which channel you are currently on, the walkie-talkies in the same team can quickly talk to each other, improving work efficiency.

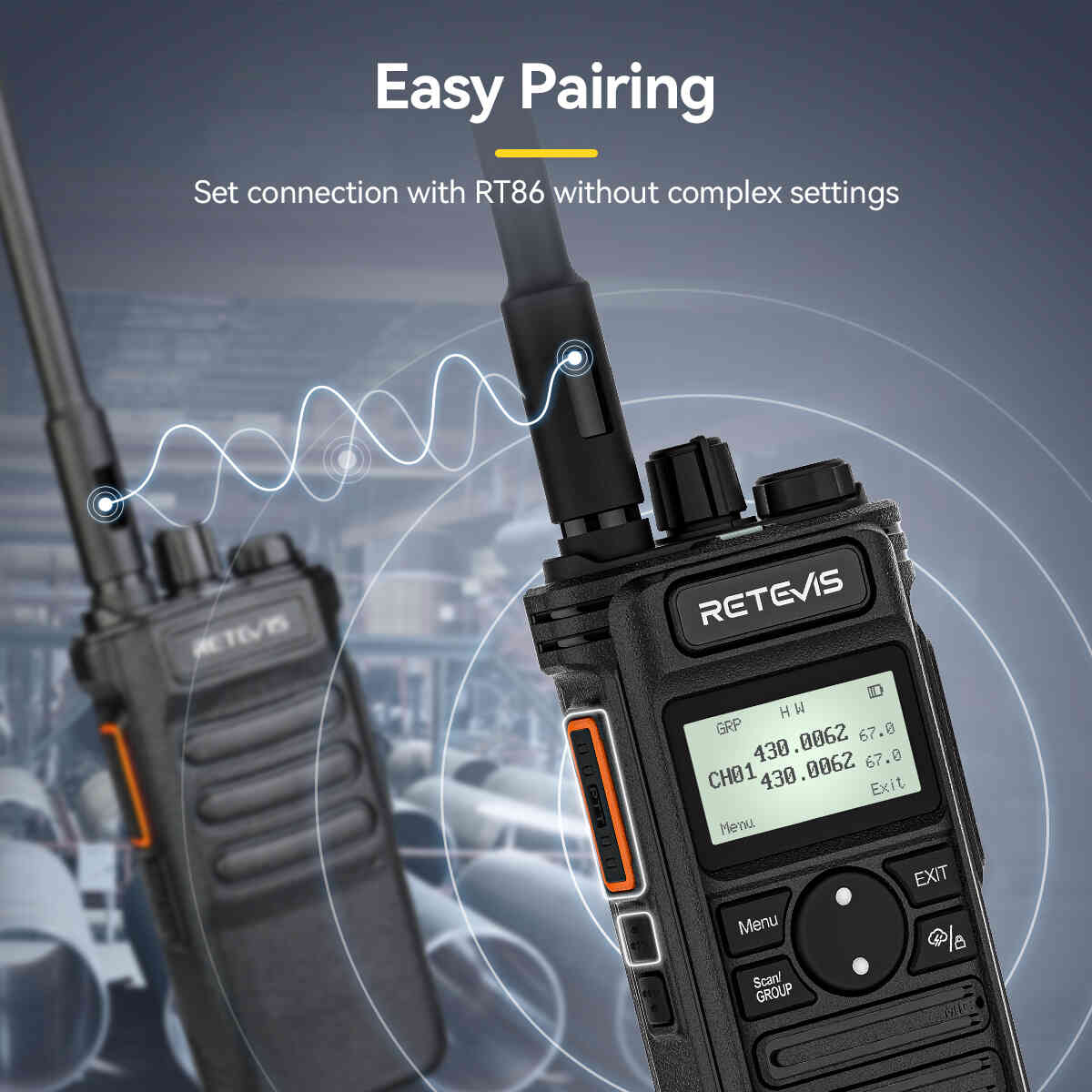

Easy Pairing
Pair one channel, RT86S long range two way radio is compatible with other (GMRS) walkie-talkies; it increases the flexibility and versatility of use on various occasions

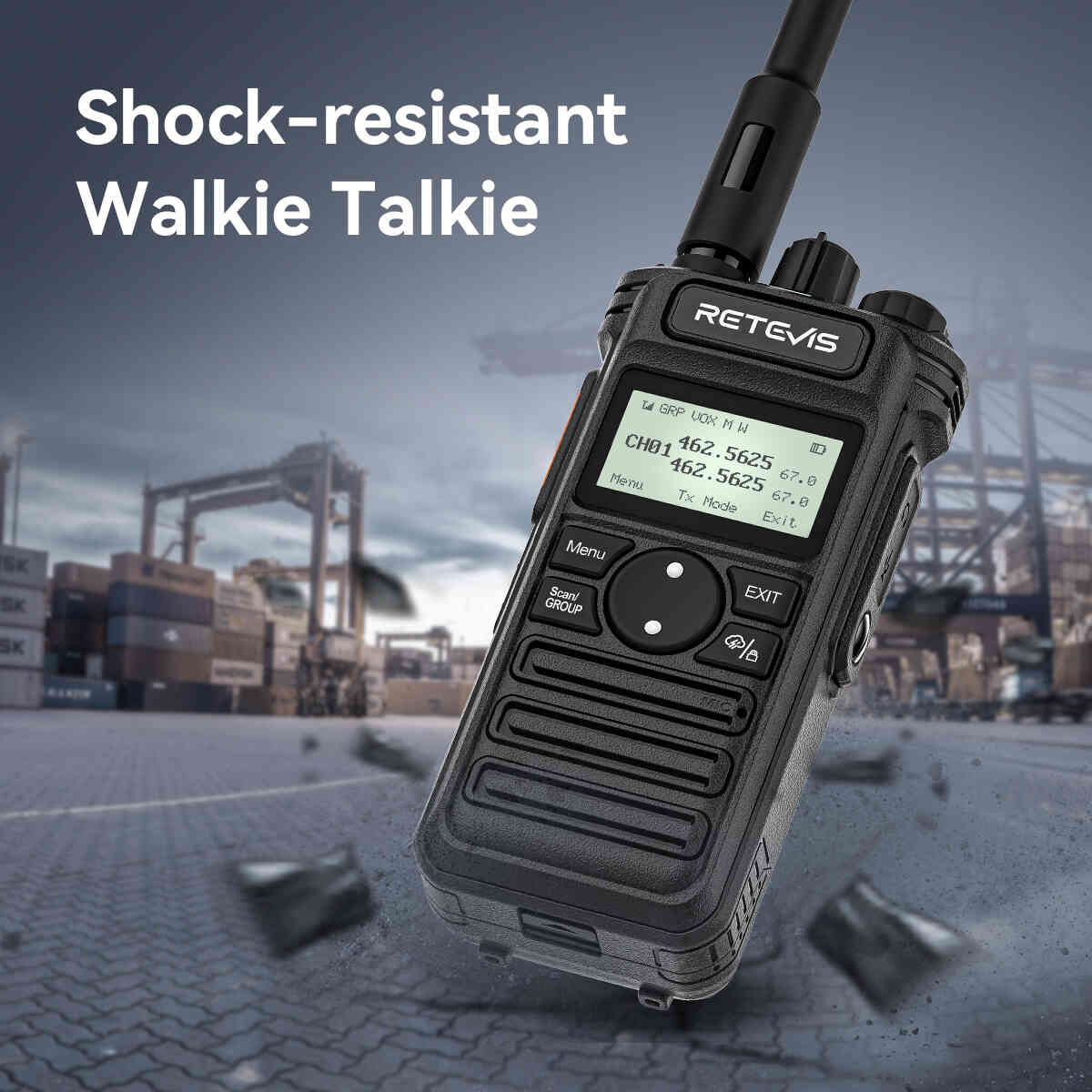

Sturdy and Durable Two Way Radio
ABS material is strong and impact-resistant; has better impact resistance and impact absorption. Suitable for users to operate the intercom for a long time in construction sites, warehouses, hotels, and other places. There is no need to worry about damage due to the impact
NOAA Function
11 NOAA channels help users get the latest weather information. RT86S GMRS walkie talkie with NOAA warnings alert users to severe weather such as typhoons and sandstorms by sounding sirens. Help users adjust their plans to improve the safety of their trip.
FAQS
Q1: How can Repeater Desk improve the communication efficiency of enterprise teams?
A1: Repeater can significantly extend the communication range of RT86S to cover an entire office area, warehouse or multiple buildings, ensuring that team members can maintain clear communication from any corner.
Q2: How much can the communication range of RT86S be increased when connected to a repeater?
A2: In a normal environment, the RT86S has a straight-through communication range of 3-5 kilometers, and when connected to a repeater, the communication range can be extended to 10-20 kilometers, depending on the location of the repeater and the height of the antenna.
Q3: What enterprise scenarios is the repeater function of RT86S suitable for?
A3:
Large office park: covering multiple buildings or underground parking lots.
Warehouse logistics: Seamless communication in large warehouses or distribution centers.
Manufacturing plants: Efficient collaboration across workshops or production lines.
Hotels or shopping malls: covering multi-story buildings for easy communication between security and logistics teams.
Q4: Does the relay function of RT86S support multi-team collaboration?
A4: Yes, RT86S supports multi-group calling function, which allows you to create different calling groups (e.g., security group, logistics group, management group) and realize cross-group communication through the repeater to meet the needs of multi-team collaboration in enterprises.
Q5：Does the trunking function of RT86S support cross-region communication?
A5: Yes, by connecting to a repeater, RT86S can realize cross-region communication, which is suitable for enterprise teams distributed in different cities or regions to keep in touch.
Q6: Is RT86S' trunking solution suitable for temporary events or project teams?
A6: Yes, RT86S's trunking function is flexible and easy to use, suitable for temporary events (e.g. exhibitions, annual meetings) or project teams (e.g. construction sites) to quickly set up a communication network, which can be easily dismantled after the event.
Q7: How much does it cost to install a GMRS repeater?
A7: The basic setup cost for installing a home GMRS repeater, such as the Retevis RT97S, is less than $400. This applies to farms, ranches or private estates. Higher-end systems can cost more, depending on the specifications.
The Retevis RT97S is a portable GMRS radio repeater for use as a repeater for extended GMRS handheld radios. It is a compact unit with an LED to alert you when the channel is busy. It has a built-in duplexer. This allows the unit to transmit and receive on the same antenna at the same time. Essentially, the duplexer contains circuitry that isolates the transmitter from the receiver. This way, the radio frequency of the transmitter will not damage the receiver.
Spec
Spedcifications
| Specifications | |
| Frequency Range | GMRS |
| Memory Channels | 30 |
| Channel Space | 12.5 kHz/20 kHz |
| Audio Distortion | ≤5% |
| Frequency Stabilty | ±2.5ppm |
| MaxFrequency Shift | ≤5KHz/≤2.5KHz |
| Modulation Method | FM |
| Receive Sensitivity | s0.25uV/s0.3uV |
| Squelch Sensitivity | ≤0.2uV/≤0.25uV |
| Adjacent Channel Selectivity | ≥65dB |
| Spurious Response Suppress | ≥55dB |
| Intermodulation | ≥60dB |
| Current | s2.5mA |
| Work Voltage | 7.4VDC |
Specification of RT97S GMRS Repeater:
| Specifications | |
| Frequency Range | 462.550-462.725 MHz (TX), 467.550-467.725 MHz (RX) |
| Channel Capacity | 8 GMRS Repeater Channels |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC:12V-24V |
| Operating Temperature | -22°F-140° F (-30° C-60° C) |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ω |
| Dimensions | 10.25"x8.3"x2.8" (260x210x70mm) |
| Weight | 3.7 lbs (1.66 kg) |
| Transmitter | |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB (Wide) / ≤ -40dB (Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
Features
RT86S Function:
- High / Middle/Low Power Adjustable
- VOX Hands-free
- Group Call
- Monitor
- Scan
- Roger

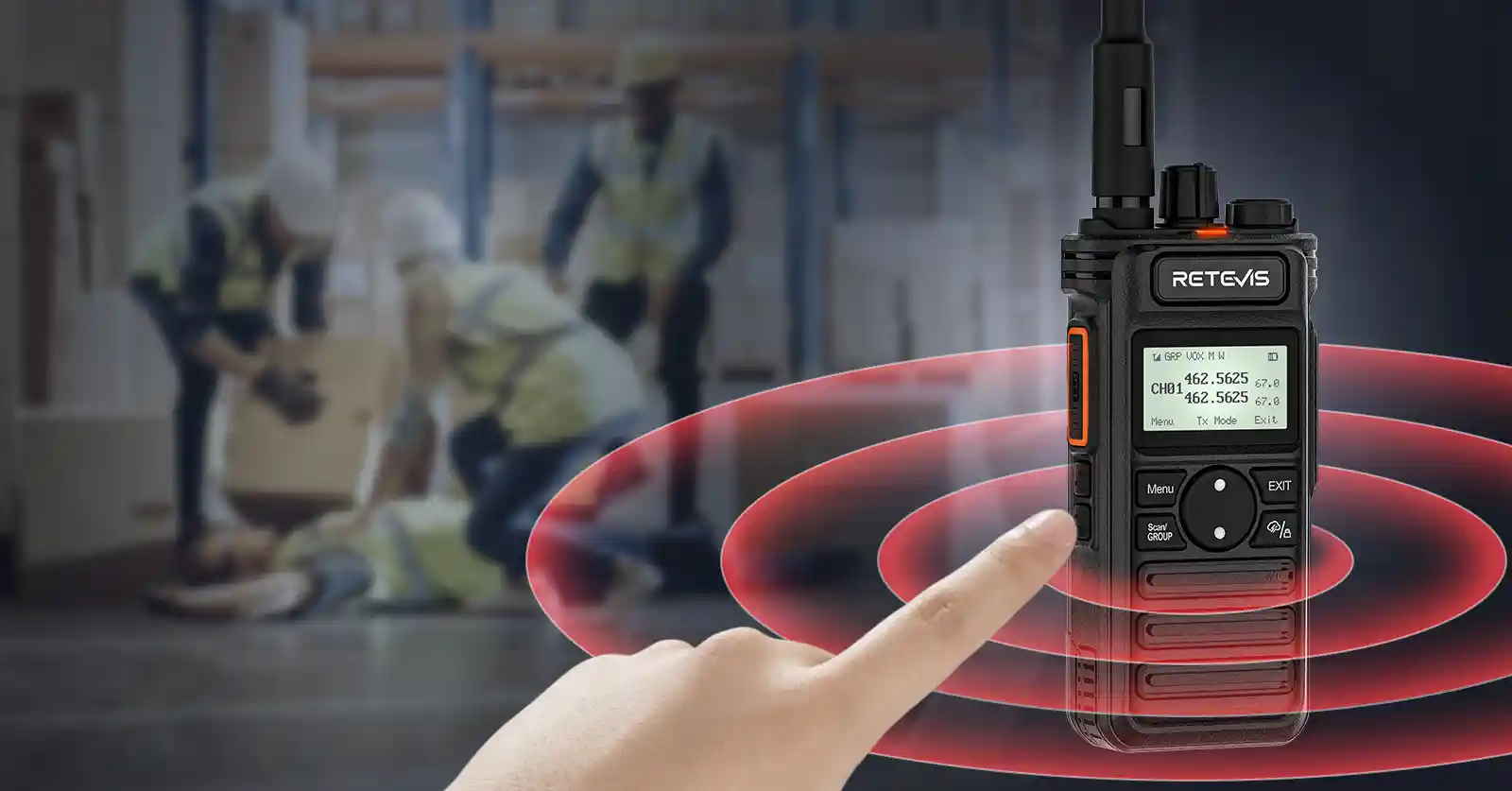

- Emergency Alarm
- Low Battery Alert
- 30 Channels (GMRS)
- Power Save
- Squelch
- Weather
- Weather warn
- TOT（Time Out Timer）
- Talk Around
