Dual Band UHF & VHF
- Talk Across Groups
- Mototrbo Compatibility
- 24hr Power + GPS Live Tracking
- 2 Time Slots & TDMA
Description

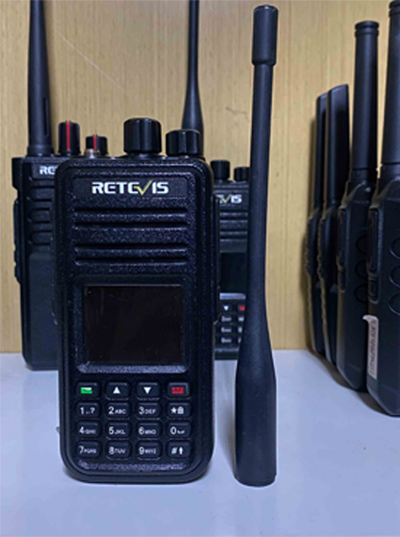

RT3S Dual Band DMR Radio complete package GPS Version
RT3S 5W DMR Walkie Talkie comes with a microphone, battery and long antenna. A complete set of long standby equipment. It is very suitable for outdoor camping, adventure or RV family travel, etc. No need to worry about buying accessories, you can open it and use it smoothly.
Main Feature:
Dual Band
This two way radio features UHF and VHF frequency; Basic coverage of the frequency range of the 2m and 7cm bands; You need not to buy and carry both two VHF or UHF radios when you are travel. And it also help you connect more repeater at the same time and monitor two channel at same time.
2 time slot
Use time-division to cut 1 channel to 2 Independent channel; You can get more channel and can have two calls in one channel
Promiscuous
Choose Private/Group call match, then you can talk directly with the people in another group without the group restrictions;
Record/DTMF keypad
Recording function support you to record enough important call content and listen to each call content repeatedly; DTMF keypad helps you quickly operate multiple repeaters and rely on this radio as your everyday carry.
Compatible with Mototrbo TierⅠ&Ⅱ
This ham radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series radios using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF frequencies for easy migration to digital technology.
Note:RT3S can switch to VFO mode by long pressing the back button in MR mode.

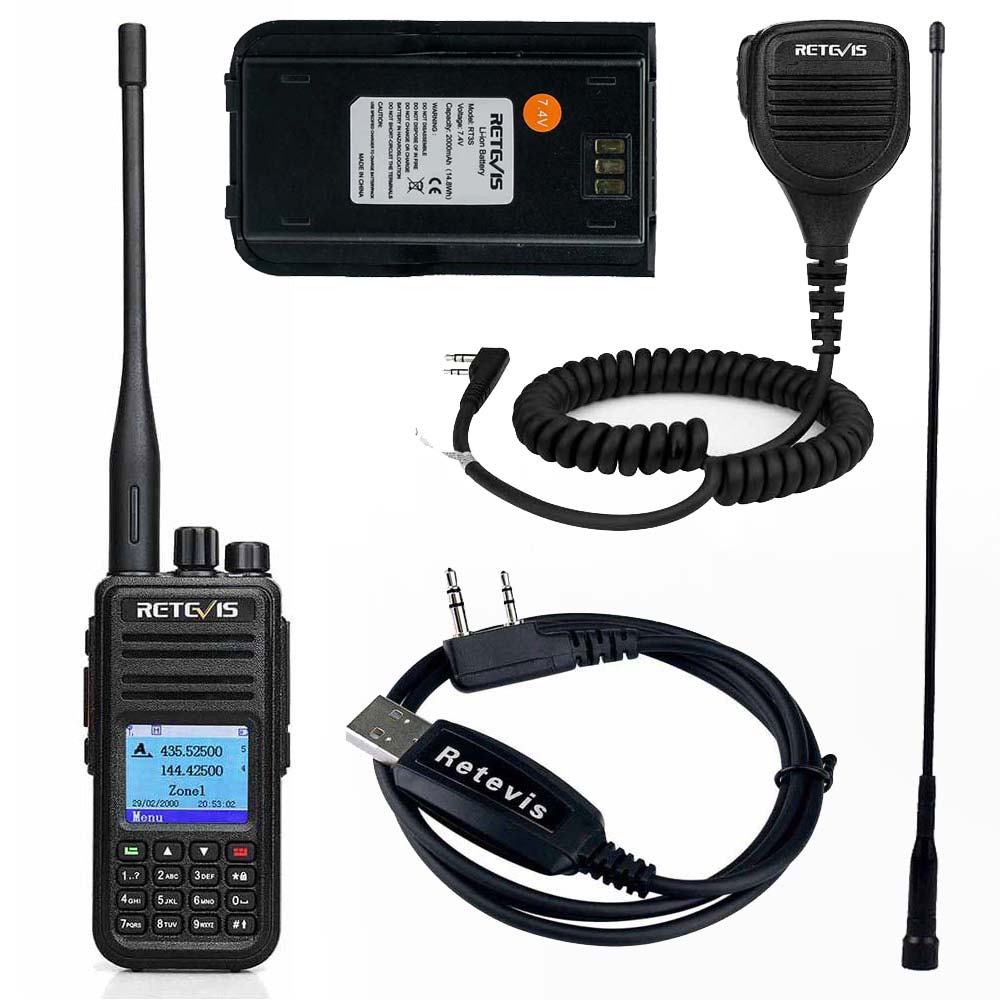

What’s in the Box:
- 1 x RT3S Radio
- 1 x USB Programming Cable
- 2 x Batteries
- 1 x Speaker Microphone
- 1 x Long Antenna
- 1 x Antenna
- 1 x Adapter
- 1 x Charger
- 1 x User Manual
- 1 x Belt Clip
- 1 x Lanyard
| General specifications | |
| Frequency | 136-174&400-470MHz |
| Channels | 3000 |
| Frequency Stability | ±1ppm |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |
| Dimension | 131 x 61 x 36mm |
| Weight | 258g (with battery) |
| Battery Type | Li-ion |
| Battery Capacity | 2000mAh |
| Antenna Impedance | 50Ω |
| Audio Impedance | 1W@16Ω |
| Channel Spacing | 12.5KHz |
| Vocoder | AMBE+2™ |
| Transmitter | |
| Power | High≤5W, Low≤1W |
| Frequency Stability | ±1.0ppm |
| Adjacent Channel Power | ≤-60dB |
| Free Time Slot Power | TDMA:≤57dBm |
| Hum and noise | -40dB@12.5KHz |
| Spurious radiation | Antenna:9KHz-1GHz ≤-36dBm 1GHz-12.75GHz ≤-30dBm |
| FM modulation mode | 11K0F3E@12.5KHz |
| 4FSK digital mode | 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW |
| Modulation maximum deviation | 2.5KHz@12.5KHz |
| Nonactive slot power | -57dBm |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Audio Response | +1~-3dB |
| Modulation BER(bit error rate) | ≤5% |
| Receiver | |
| Analog Sensibility | 0.2µV@12dB SINAD |
| Digital Sensibility | 0.25µV(BER:5%) |
| Adjacent Channel Selectivity | ≤-60dB@12.5KHz |
| Intermodulation | ≤60dB |
| Spurious Response | ≥70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ＜5% |
| Rated Audio Power | 1W |
| Modulation | ≥45dB@25KHz≥40dB@12.5KHz |
- GPS
- Use time-division multiple-Access
- (TDMA)digital function
- Dual time slot for repeater
- Dual time slot for point to point
- Firmware upgradeable
- Lone worker
- Encryption function
- Compatible with Mototrbo TierⅠ&Ⅱ
- Single call,group call and all call
- Analog and digital combiend
- Remote kill /stun and activate
- Up to 3000 channels
- Transmit interruption
- Group call match(promiscuous)
- Private call match(promiscuous)
- Record
- Emergency Alarm
- VOX
- TOT
Reviews
Customer Reviews
All Reviews
I really like this radio. I bought it to dip my toes into DMR, and for the price, it seems like it's very well made. It took a bit of research to figure out how to program it, but once I got that figured out, it was very easy to use. The closest dmr repeater to me is 25 miles away, and I have no problem at all reaching it from inside the house. If it had a louder speaker and could program repeaters and talkgroups from the front panel, I would have given it 5 stars.
I cannot say enough positive things about this radio. I absolutely love it! Big, bright display. Crisp, clear audio. Well built and tougher than any HT I've ever owned. Connected to the Brandmeister or DMR-MARC networks via local repeaters or my DVMega hotspot, I've been able to talk all over the world on this little 5 watt HT. Absolutely amazing.
I'm really enjoying this radio. It's a fantastic first DMR device.
After 2 years of heavy use, my RT3S still performs like new. Extremely durable radio.
The Retevis RT3S delivers crystal clear audio quality. I can hear every contact perfectly.
Impressive range. Connects reliably to repeaters over 20 miles away from inside my home.
Delivery was lightning-fast! Ordered in the morning, arrived the next day.
This is exactly what I needed. Fits my use case perfectly.
I love this thing so much! Already told my friends about it. Highly recommend!
A radio showing its age but if you update the GPS, speaker, and then flash in the OpenGD77 firmware, it becomes a really nice every day carry once again.
