- 25W Power for Long-Range Communication
- 2m & 70cm Dual Band for Versatile Use
- VOX Hands-Free Operation
- Supports CHIRP & Keypad Programming
- 6 Programmable Keys for Quick Operation
Description

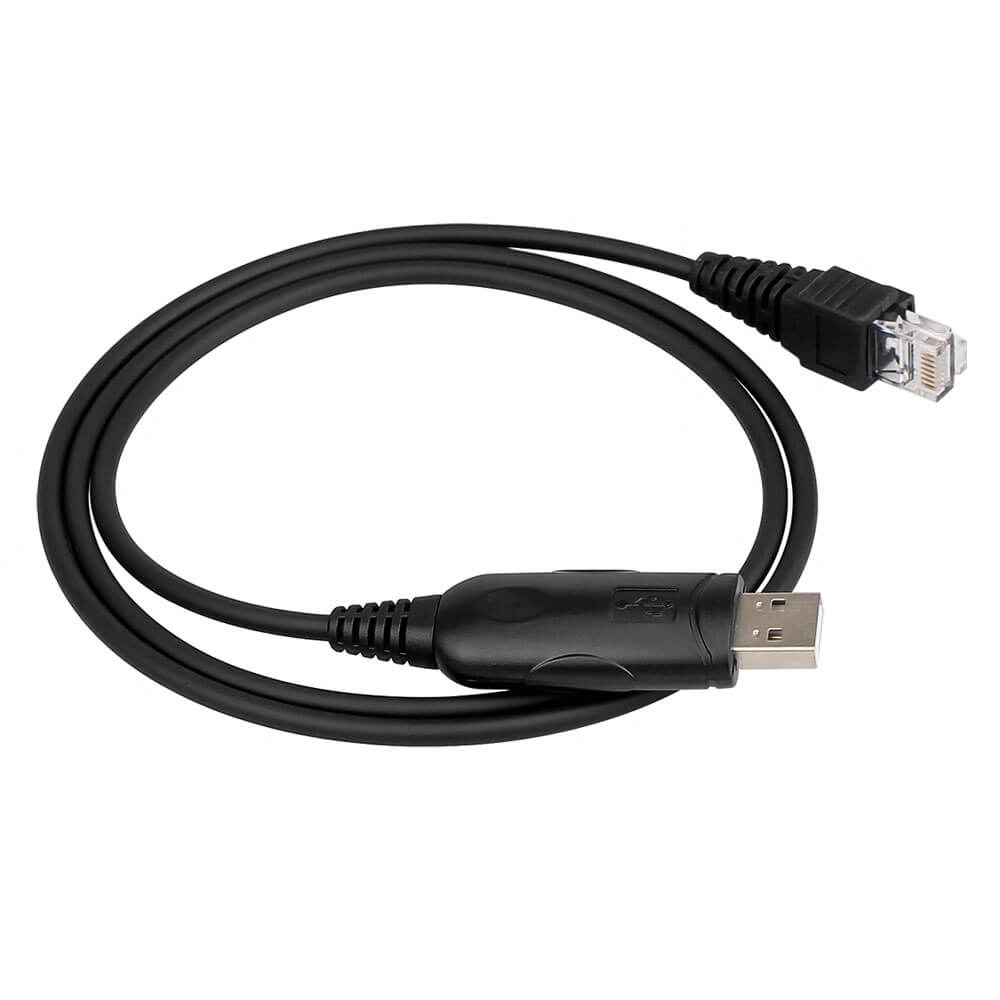

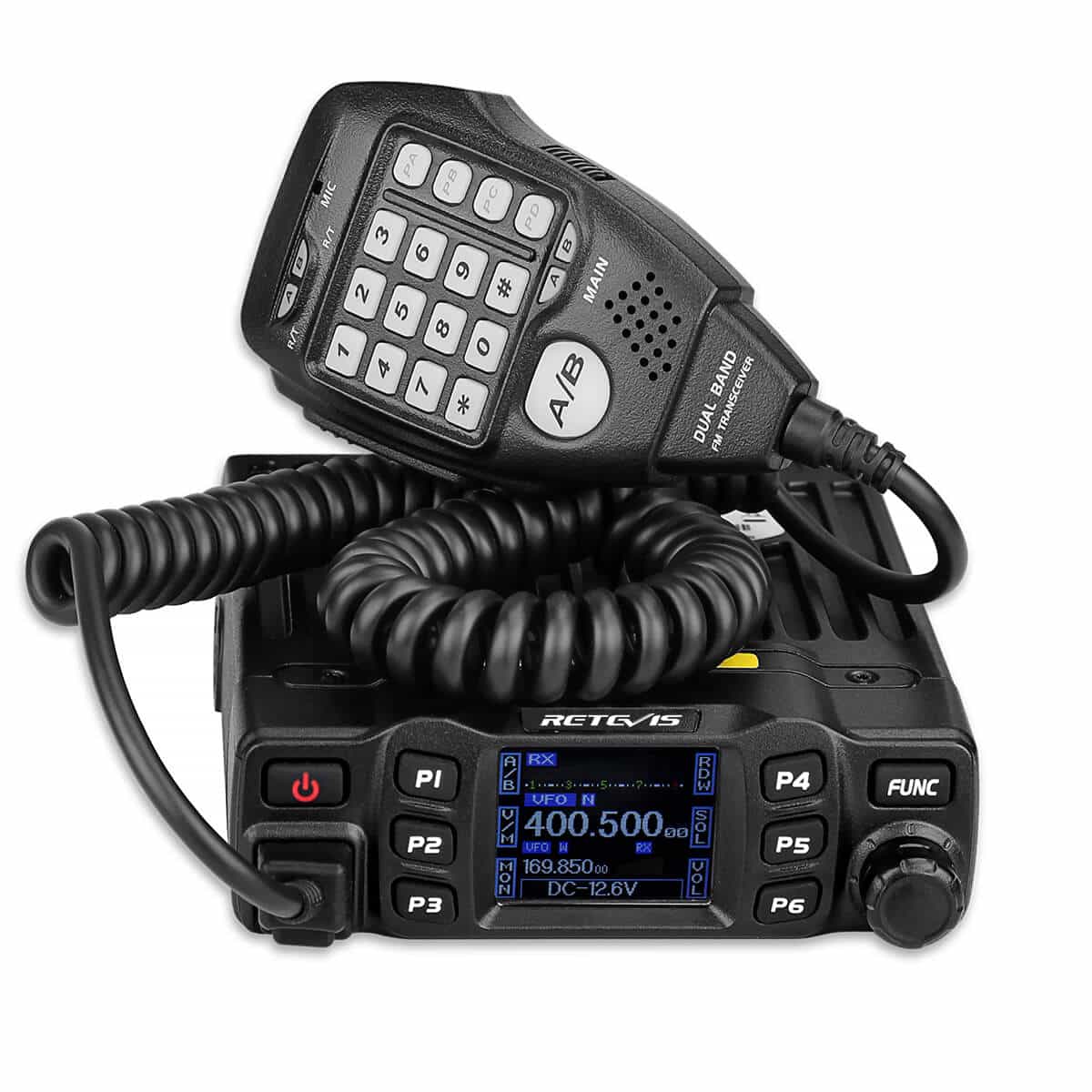

Retevis RT95 25W Dual Band HAM Mobile Radio With Program Cable

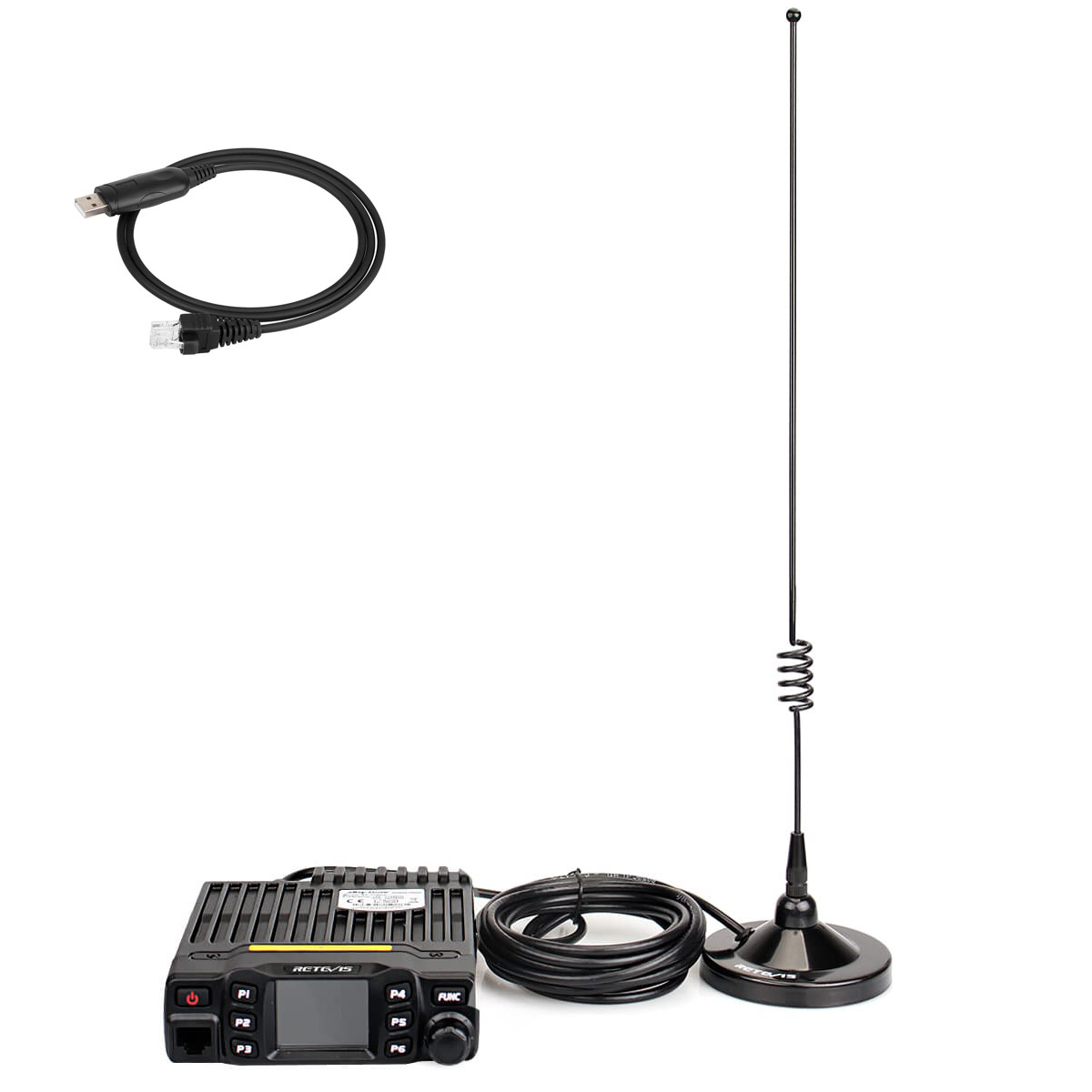

Retevis RT95 mobile radio has a beautiful casing, is sturdy and stable, has advanced and reliable functions, and offers great value for money. Combined with the MR100 3.5dBi antenna, it is easy to install and has high usability. RT95 mobile radio plus mr100 magnetic antenna + program cable is a complete set of equipment, suitable for various models, agricultural tractors, off-road vehicles, RVs, etc.
Dual Band Mobile 2m 70cm Radio
dual display dual standby, 2m and 70cm frequency bands to receive and transmit signals.
180 degree rotatable LCD display
the screen can be rotated and the radio can be installed upside down; more options for installation positions; large screen backlight with adjustable brightness for easy reading outdoors and indoors
25W High Power Mobile Radio
power of 25W, can achieve long distance signal range ;use the antenna with SL16/PL259 port on the installation vehicle to transmit long distance; suitable for long distance driving communication
VOX hands free
hands-free feature frees your hands; allowing you to complete calls while driving.When the VOX function is turned on, you do not need to press the PTT button, you can transmit the signal by speaking directly into the microphone. Users can focus on the traffic information and ensure driving safety.

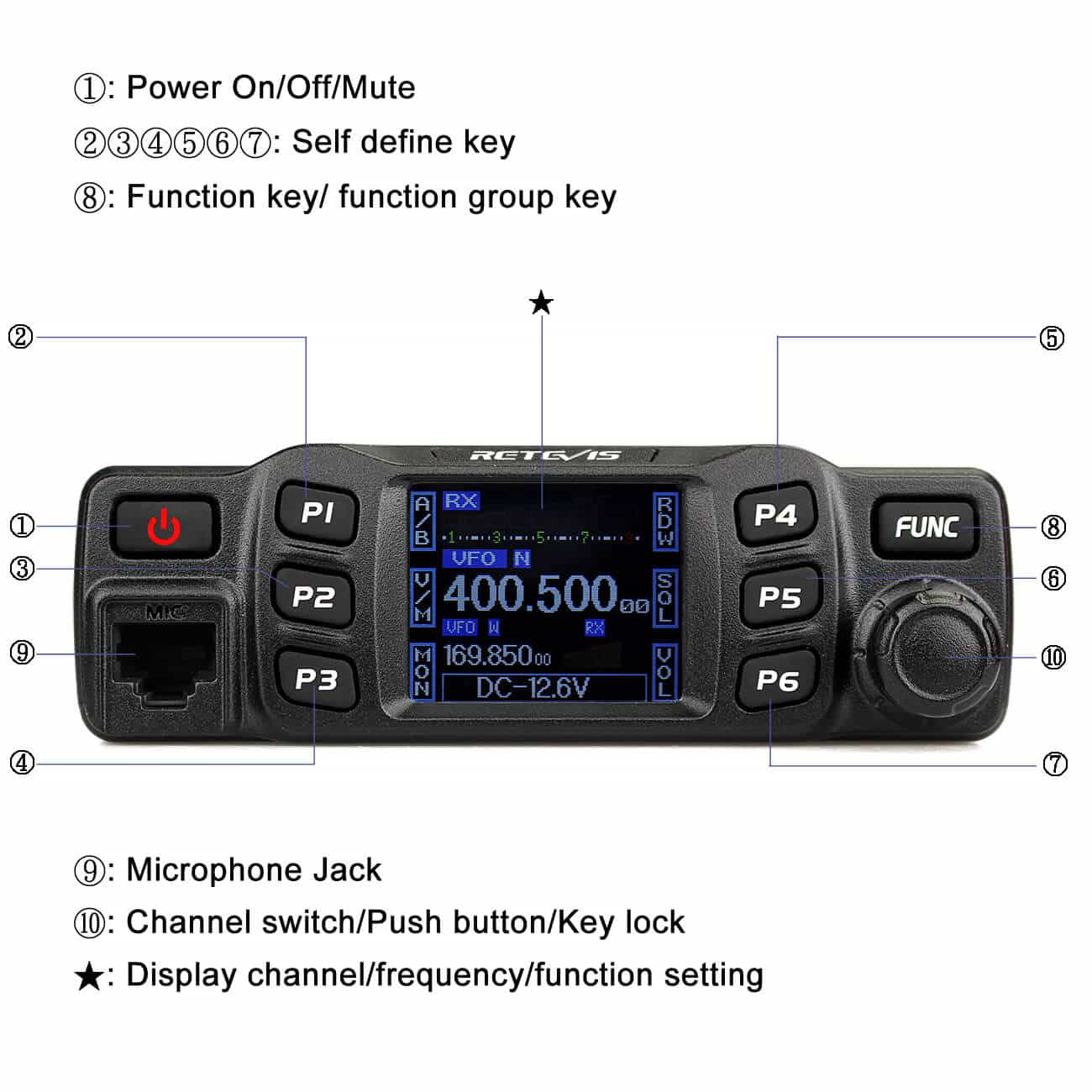

6 Customizable Keys
custom buttons on the radio and microphone; the quick operation method can be set by software according to your usage habits
Easy to operate
support CHIRP & keypad progamming；CHIRP compatible with Windows XP/7/8/10/11 system
VFO mode
RT95 dual band mobile radio support VFO editing, you can complete various function settings directly through the base and microphone buttons without connecting to a computer. Easy to operate even when traveling.
Suitable for Overlanding Jeep Truck
Product Details
Spec
| Frequency Range | VHF:144-148MHz UHF: 430~440MHz | ||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS | ||
| Frequency Stability | ±2.5 ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | ||
| Weight | about 0.64Kg | ||
| RECEIVER | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| AdjacentChannelSelectivity | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | >2W@8 | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | 25W / 15W / 5W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
- Model: Retevis MR100
- Frequency Range: 144/430MHz(136-174 MHz&400-470MHz)
- Impedance: 50Ω
- Maximum Power: 70 W
- Gain: 2.15/3.5dBi
- Connector Type: SL16/PL259
- Coaxial Cable Type: RG58 C/U
- Coaxial Cable Length: 3.9m/12.79ft
- Height (Magnet Mount & Antenna): 479mm/18.86in
- Diameter of Chassis: 90mm/3.54in
- Weight (Magnet Mount & Antenna): 550g/1.21lb
Features
- Adopt superior quality material, better technology and high-quality radiator to ensure the stable and durable operation
- Amateur mode and professional mode for different operation requirements
- Distribute buttons reasonably, convenient for operation
- Separate bandwidth setting for every single channel, Wide 25K, Middle band20K, Narrowband 12.5K
- Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel, rejecting extra calling from other radios
- Various scan functions including CTCSS/DCS scan function
- Smart menu control and PC programming control
- Voltage level protection
- LCD brightless control
- Automatic power on function
- Main unit and microphone key lock function
- 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
- DTMF-ANI or 5Tone-ANI for automatical calling recognition
- Password function
- Dual watch function
- Talk around function
- Frequency reverse function
- Offset function
