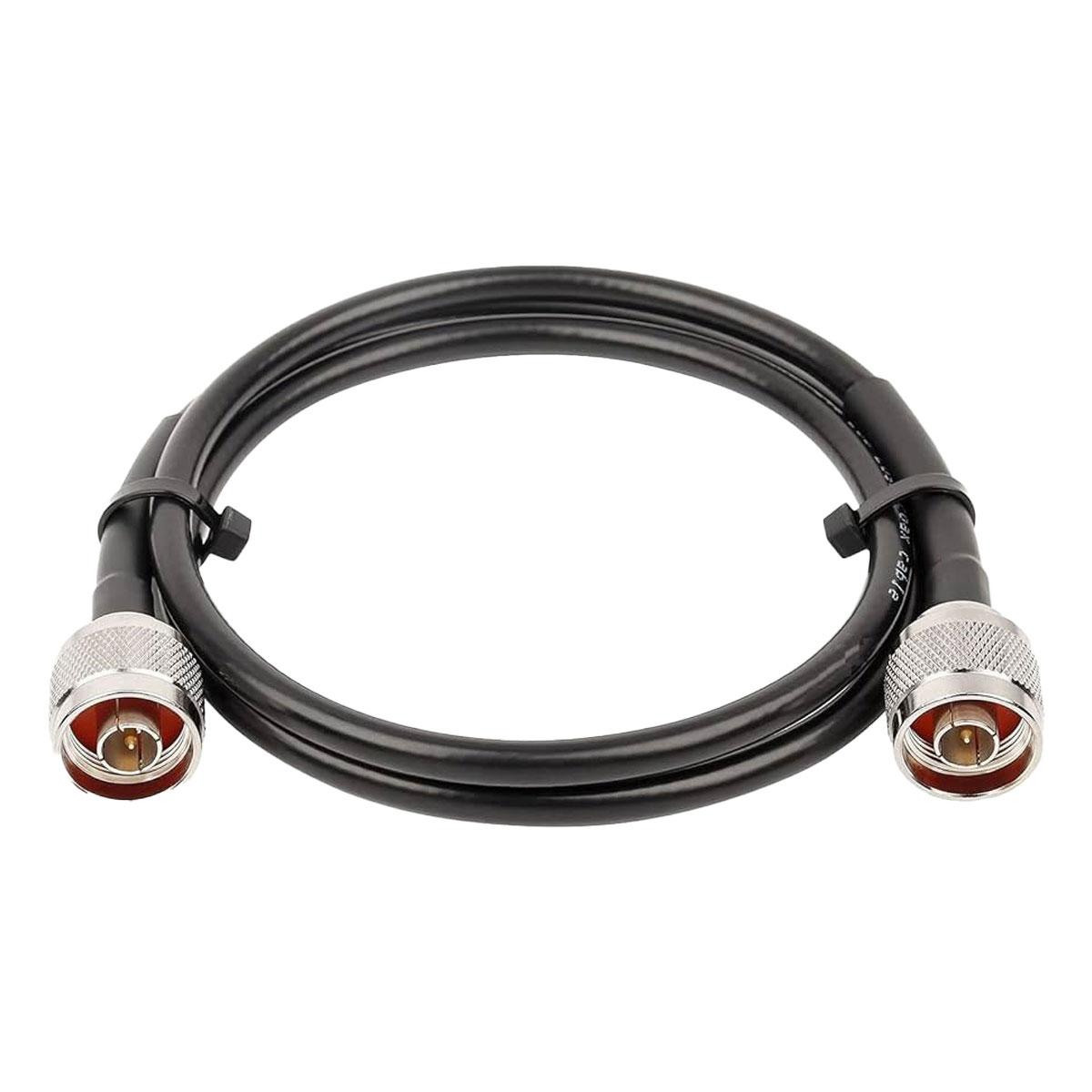

- 3M Coaxial Cable: Using a 3-meter coaxial cable, the repeater and antenna are installed in close proximity, minimizing feeder loss and maximizing transmission power.
- With the Speaker Mic direct call function, it can be used as a base station.
- Small in size and light in weight, it is very convenient to arrange and install.
- Comes with an upgraded feeder cable, which can reduce 1-2W power loss.
- Customizable Range: [UHF: 400-470MHz or VHF: 136-174MHz; Offset ≥5MHz and ≤12MHz]; Frequencies Should be Programmed within ±200 kHz
NOTE:
- Please note the customized information when placing an order.
- After confirming your custom frequency, it will take 4 weeks to customize.
- After customization, the frequency is fixed and cannot be returned.
- This product does not include a cable to connect to the Raspberry Pi.
Description
Retevis RT97S Customizable Frequency Portable Repeater with FRP Antenna Bundle

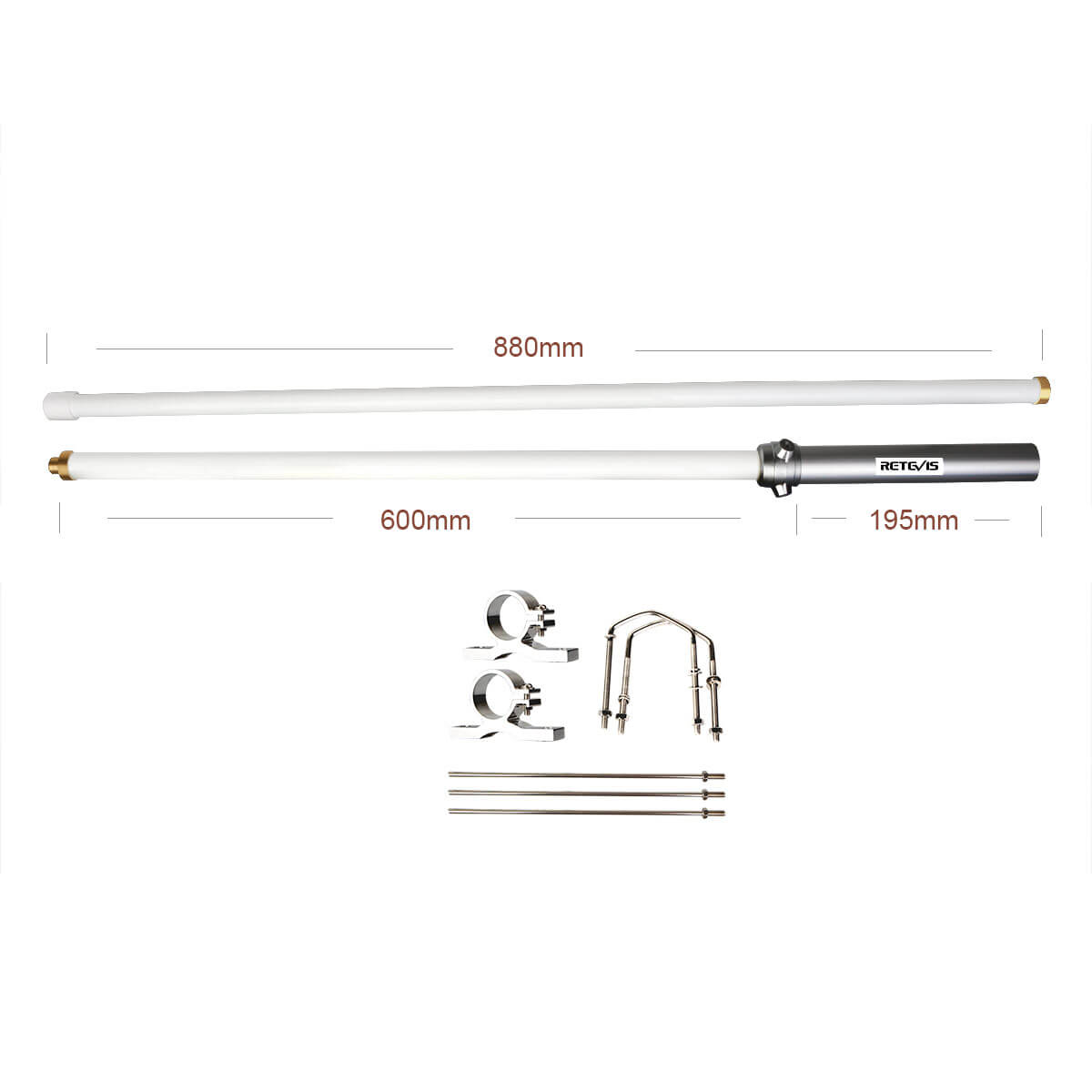

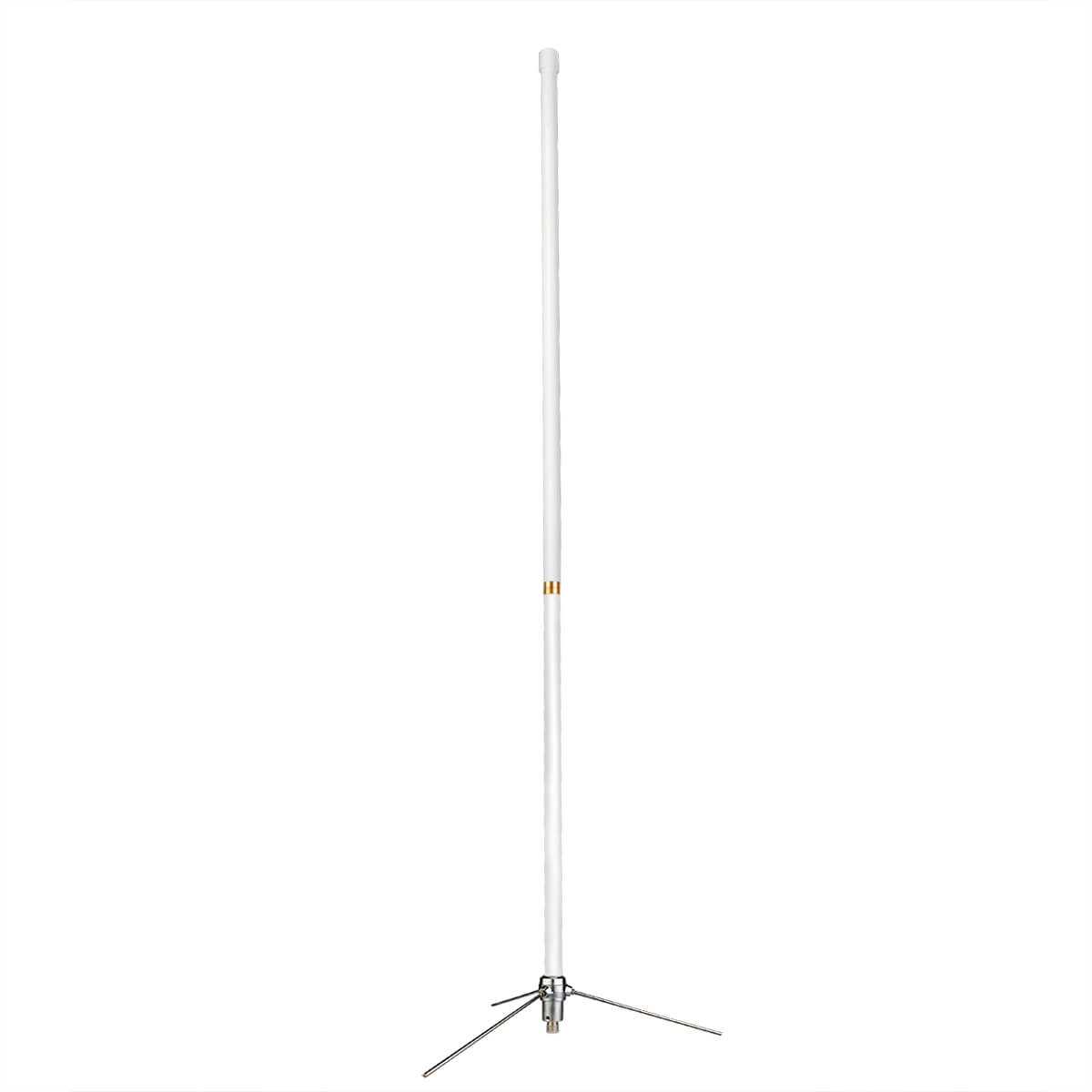

Expand your communication range and keep constant and instant communication with Retevis RT97S two way radio repeaters. The bundle also comprised a suite of essential accessories to ensure seamless communication. An Omni-Directional Antenna (144/430MHz) extended the signal range, while a 15-Meter Coaxial Extender Cable provided greater flexibility in antenna placement. A Magnet Mount Base Antenna allowed for quick and easy installation on vehicles, and dedicated Power Supply Cords and Programming Cables completed the setup.
Main Features of RT97S Portable Repeater:
1. Customizable Frequency Repeater
TX frequency and RX frequency can be customized between UHF (400-470MHZ) or VHF(136-174MHZ). If you need to customize the repeater, please note the following information when placing the order: RX frequency, TX frequency, Offset (Offset ≥5MHz and ≤12MHz) and Charger type. When programming, the TX and RX frequencies should be within ±200 kHz of the custom frequency point.
2. Extend The Distance
RT97S base station is specially designed for long communication range requirements. When the repeater is set up in the right location, the RT97S can help a handheld radio greatly extend its range by several miles. The distance is greatly affected by surrounding obstacles and antenna height. When in an open area and the antenna is set up high enough, the distance will be longer.

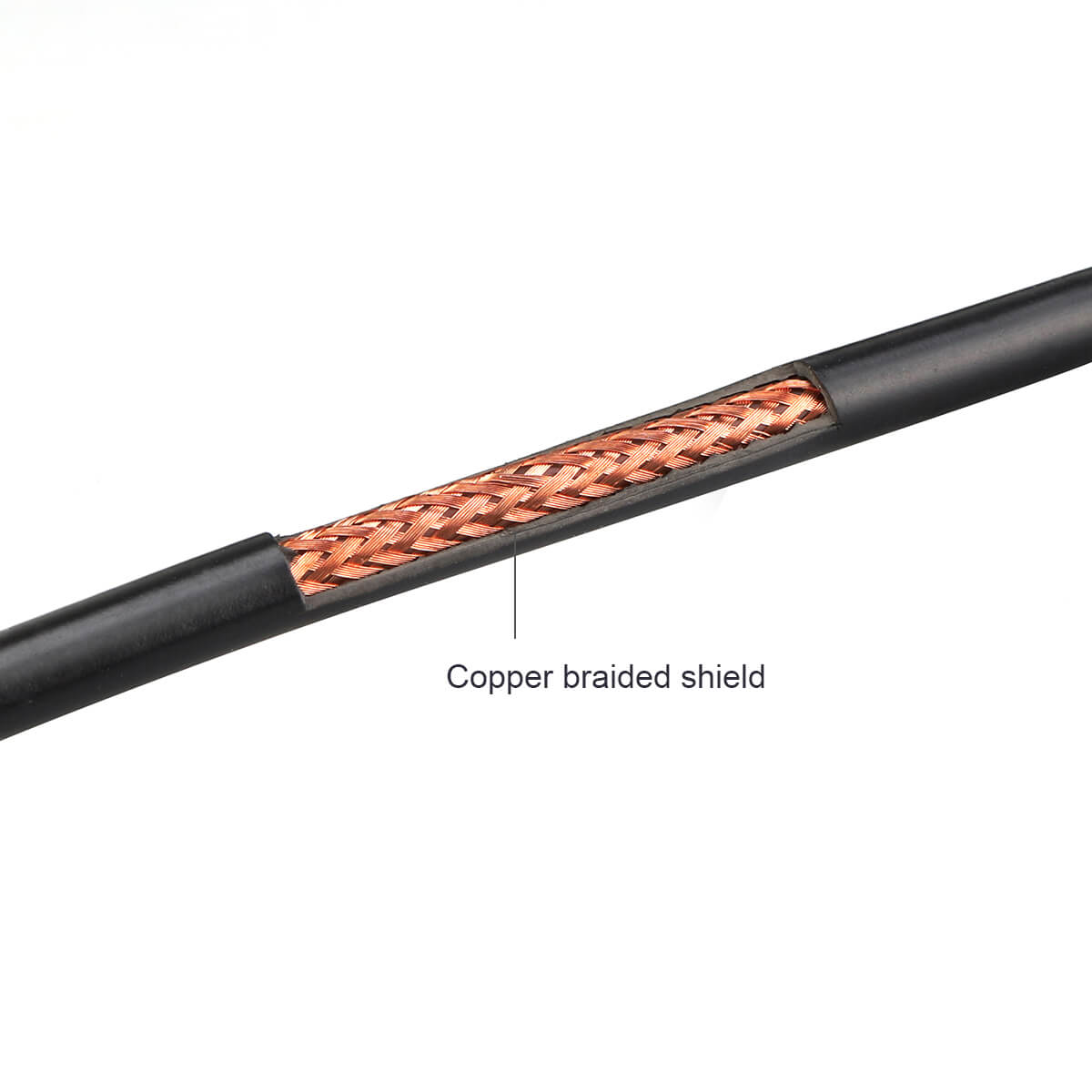

3. Upgraded 3M Feeder Cable, Less Power Loss
This set includes an upgraded 3M feeder cable. The repeater and antenna are installed in close proximity, minimizing feeder loss and maximizing transmission power.
4. Small and Portable Repeater
Retevis RT97S repeater size is only 260 x 210 x 70mm. It is very small and compact, convenient to carry, and very useful for outdoor use and for families, individuals, and groups. You can also install it on the top of the mountain to build your own base station.
5. Multiple Charging Options
RT97S can be powered by DC12V~24V power, car power, or a solar battery. The RT97S is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a portable size, this repeater is perfect for camping trips or emergency preparedness.
6. Easy-to-Read LCD Display
Retevis RT97S repeater comes with an LCD display. The display can help you easily understand the TX and RX frequencies, CTCSS/DCS code, and bandwidth settings. There are also up and down keys, which can help you change channels and CTCSS/DCS tones. You can also use the key to lock/unlock the keypad.
7. Sturdy and Durable
The shell is made of an all-aluminum alloy, which is resistant to falling and has a good heat dissipation effect. It has little loss in daily use and supports long-term use.
Spec
| Specifications | |
| Frequency Range | Customizable Range: [UHF: 400-470MHz or VHF: 136-174MHz] |
| Channel Capacity | 8 CH Repeater Channels |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V - 24V |
| Operating Temperature | -22° F - 140° F (-30° C - 60° C) |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ω |
| Dimensions | 10.25" x 8.3" x 2.8" (260 x 210 x 70mm) |
| Weight | 3.7 lbs (1.66 kg) |
| Transmitter | |
| Power Output | 5W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
Features
● LCD-Display, Built Into a Cable TV Amplifier Box
● Wide/Narrow Band Selection through PC Software
● 50 CTCSS and 210 DCS Privacy Codes
● Independent Receive and Transmit Privacy Tone Selection through PC Software
● Repeater Delay (Hang) Time Adjustment through PC Software
● Noise Squelch Level Adjustment through PC Software
● High/Low Transmit Power Selection through PC Software
● Include Antenna and Feeder Cable to Build Your GMRS Repeater System
● DB-9 Female Connector for Adding An External Controller for Linking Purposes
●GMRS License Required
