- 5W repeater+Two RA86 20W mobile radio
- Large farm communication equipment
- Suitable for communication in large farms, pastures, warehouses and other large venues.
Description
RT97S Portable Repeater and Two RA86 Mobile Radio Farm Bundle
The repeater is combined with two 20w medium and high power RA86 gmrs mobile radios to form a large gmrs communication solution. Can talk to other GMRS radios such as GMRS handheld walkie-talkies. Suitable for communication in large farms, pastures, warehouses and other large venues.
RA86 20W GMRS mobile radio feature：
- Full 20-Watt Micro Mobile GMRS Radio, with an external magnetic mount 2 dB gain antenna for extended range
- 30 factory set GMRS Channels（8 gmrs repeater channels）
- 10 NOAA channels: NOAA Weather Scan will automatically scan through 10 available weather (WX) band channels and locks onto the strongest weather channel to alert you of severe weather updates.
- NOAA Weather Alert will sound an alarm indicating that there is a risk of severe weather in your area.
- 260 CTCSS/DCS PRIVACY CODES: The privacy codes give you up to 5720 channel options to protect your conversations
- Fully Integrated Control Microphone and low profile hide away unit. Personalized backlight selection, clearer microphone for better call sound quality.
- Scan
- Monitor
- Squelch
- VOX
- Keypad lock
- Power Level Hi/Lo
- Bandwidth Settings
- TOT
- Call Alert Tone
- Repeater ON/OFF
- MIC Gain
Backlight Settings
LCD Brightness Settings
Sleep Time Settings
Extemal Speaker Jack
Automatic Power On Function
RT97S Repeater feature:
- 10 Watt GMRS Duplexer, 5W output power
16 Channel Capability
Wide/Narrow Band Selection through PC Software
Repeater Delay (Hang) Time Adjustment through PC Software
Noise Squelch Level Adjustment through PC Software
High/Low Transmit Power Selection through PC Software
UHF Female (SO-239) Antenna Connector
Two charge methods: 12V/24V DC Cigarette Lighter Plug(fit for solar-powered ) or 120V AC Adapter.
50 CTCSS and 210 DCS privacy codes, Independent Receive and Transmit Privacy Tone Selection through PC Software
Built into a cable TV amplifier box
LCD display
Need Antenna and feeder cable to build your GMRS base stations(can choose from this listing).
DB-9 Female connector for adding an external controller for linking purposes
GMRS License Required
Dimensions- 10.25 x 8.3 x 2.8 inches

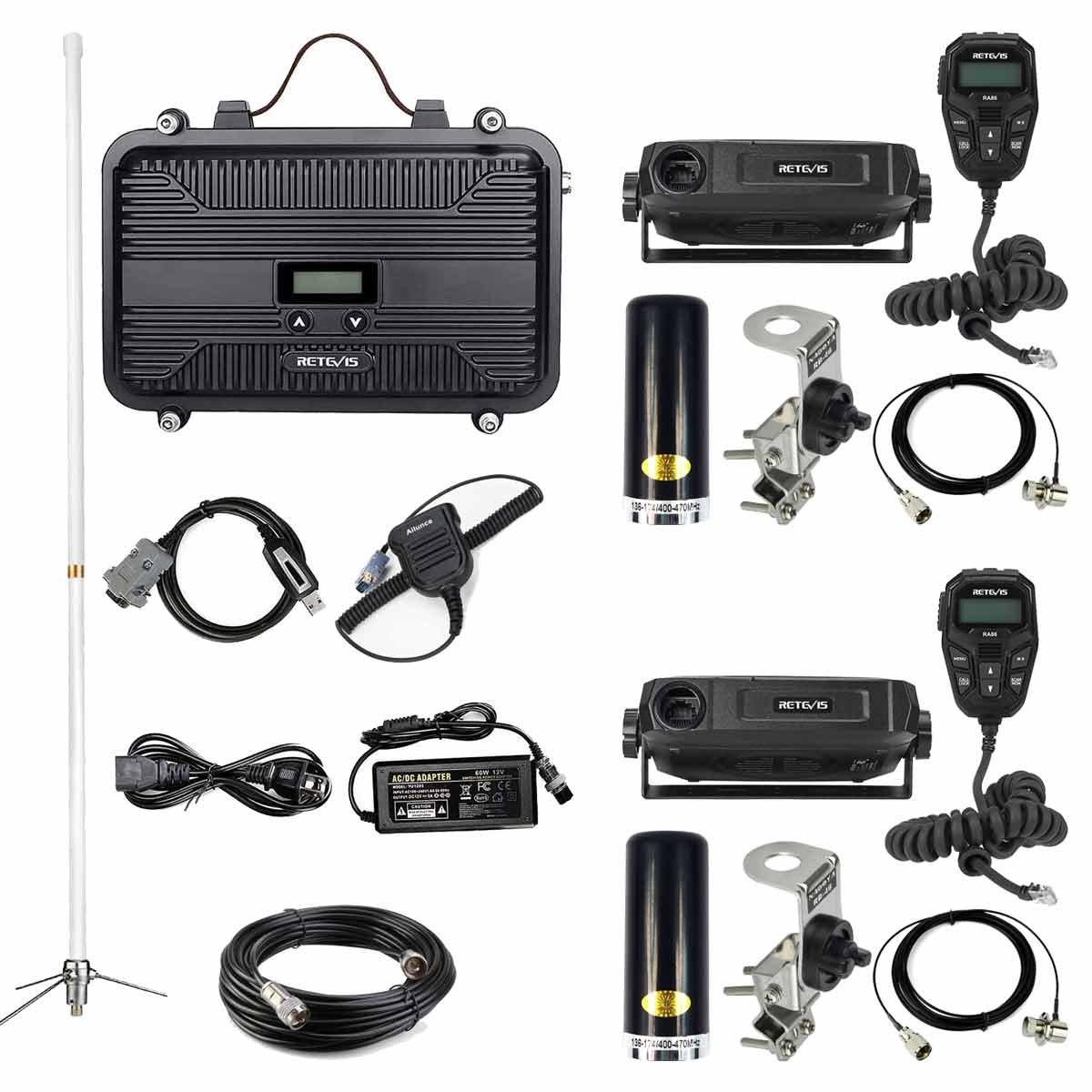

Package includes：
1 x RT97S 5W Portable Repeater
1 x RT97S speaker microphone
1 x MA09 7.2 dBi fiberglass antenna
1 x Repeater 15m feeder
1 x Repeater programming cable
2 x RA86 20W GMRS mobile radio
2 x Mobile radio short antenna
2 x Mobile radio feeder
2 x Antenna mounting bracket
1 x Screw pack
1 x RA86 program cable
1 x RT97S car charger cable
Spec
Retevis RT97S Portable GMRS repeater Specifications
| Frequency Range | 462.550 - 462.725 MHz (TX), |
| 467.550 - 467.725 MHz (RX) | |
| Channel Capacity | 8 GMRS Repeater Channels |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V - 24V |
| Operating Temperature | -22° F - 140° F (-30° C - 60° C) |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ω |
| Dimensions | 10.25" x 8.3" x 2.8" (260 x 210 x 70mm) |
| Weight | 3.7 lbs (1.66 kg) |
| Transmitter | |
| Power Output | 5W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
| overall parameters | ||
| Modulation | FM | |
| Frequency Range | GMRS（462.5625-467.725） | |
| frequency error | ±500Hz | |
| Operating Voltage | 12.6-14.4V | |
| Antenna Impedance | 50Ω | |
| bandwidth | 12.5kHz/20kHz | |
| Working current | ≤3.3A Hi power | |
| ≤1.8A Lo power | ||
| Operating temperature | -30℃-+55℃ | |
| TX parameters | ||
| transmit power | ≥18W Hi power 4.5-6W Lo power |
|
| Spurious RF components | ≤-60dBC | ≤-13dbm |
| Transmit SNR | ≥35 | |
| modulation limit | ≤2.5KHZ（N） | |
| ≤5KHZ（W）@Repeater Channel | ||
| Adjacent power | ≤-65dBc | ≤-60dBc |
| Modulation Sensitivity | 5-15mV | |
| audio pre-emphasis | -3~-7@AF=500Hz | -6±3@AF=500Hz |
| 3-7@AF=2KHz | 6±3@AF=2KHz | |
| RX parameters | ||
| Receiver sensitivity | ≤-122m@SINAD=12dB | |
| audio output | 3.2V-4.2V@8R SPK | 3.2v-4.2v@8R SPK @AF=1KHz.FM Devation=1.5KHZ |
| reception distortion | ≤5.0% | ≤8% |
| Receive SNR | ≥40 | ≥36 |
| receive blocking | ≥80 | ≥75 |
| co-channel rejection | ≤-12 | |
| lane selectivity | ≥70 | |
| audio de-emphasis | 2~6@AF=500Hz | 6±3@AF=500Hz |
| -8~-3@AF=2KHz |
-6±3@AF=2KH z |
|
