100W HF+UV All Mode DDC/DUC Transceiver Radio SDR Transceiver

Order Status: In Stock


Regular price

  • 100W HF+UV All Mode
  • DDC/DUC Transceive
  • SDR Transceiver
  • 7" Touch Screen


In Stock Pre-order Now Out of stock Order now, Only 10 left!
<<
Previous
Next >>

Description

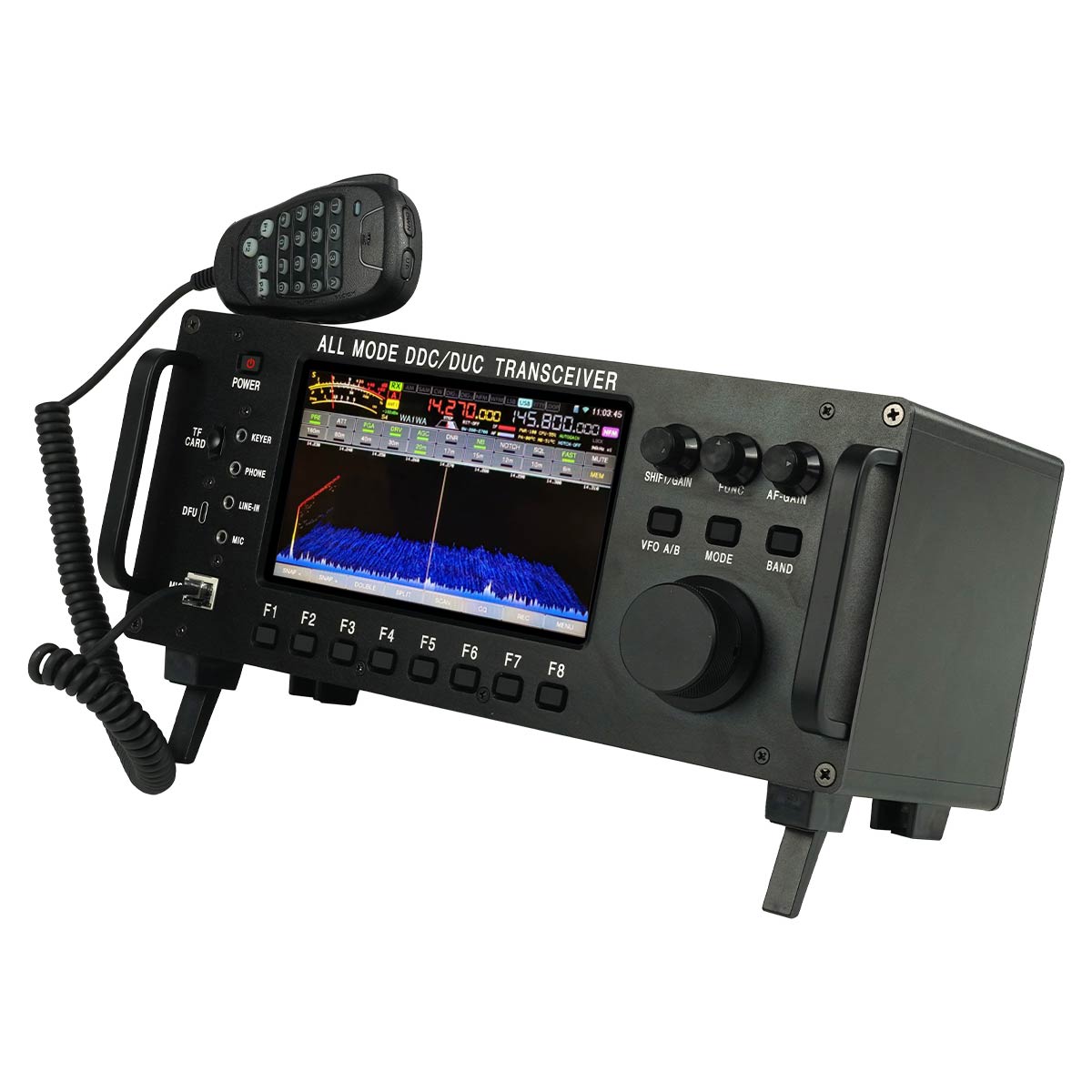

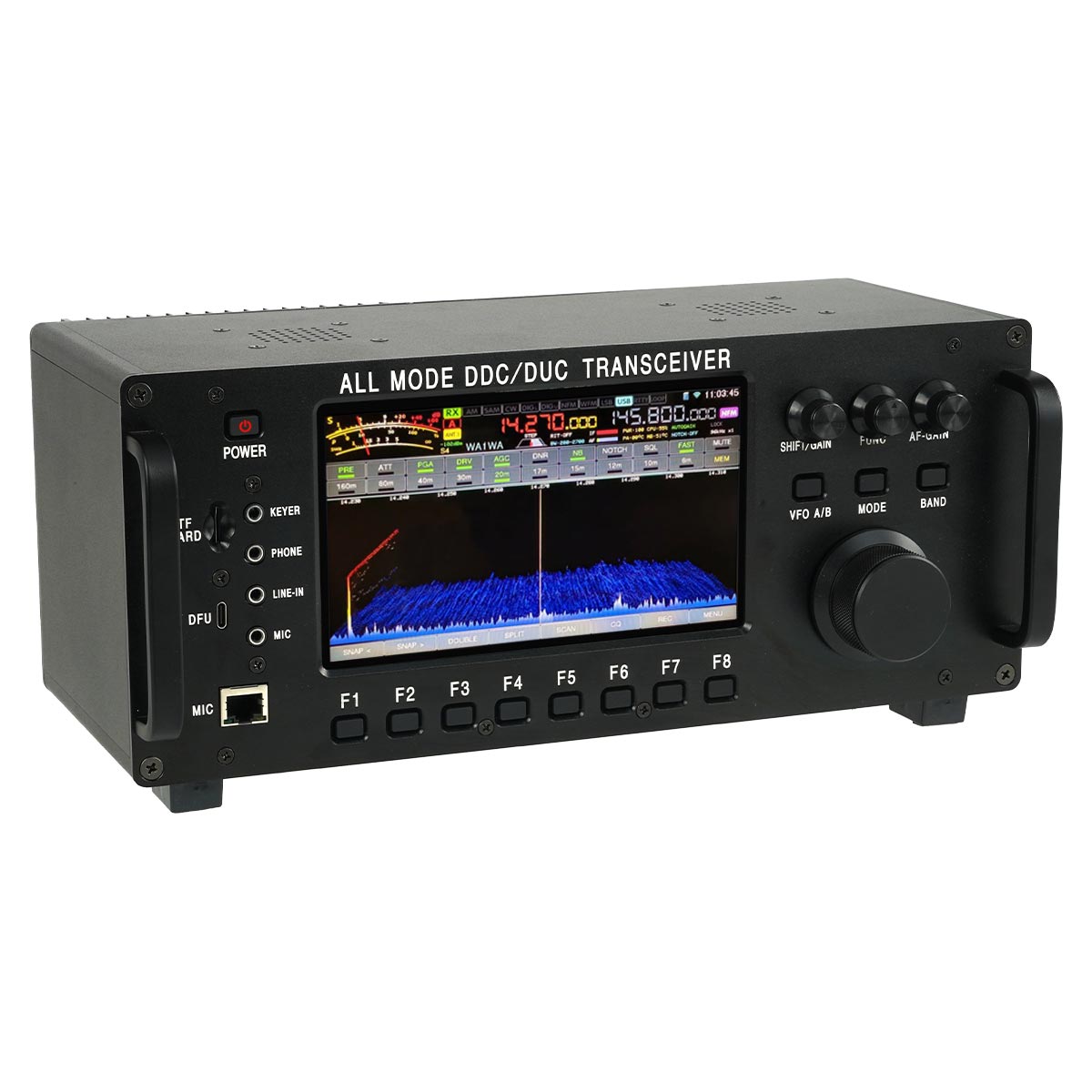

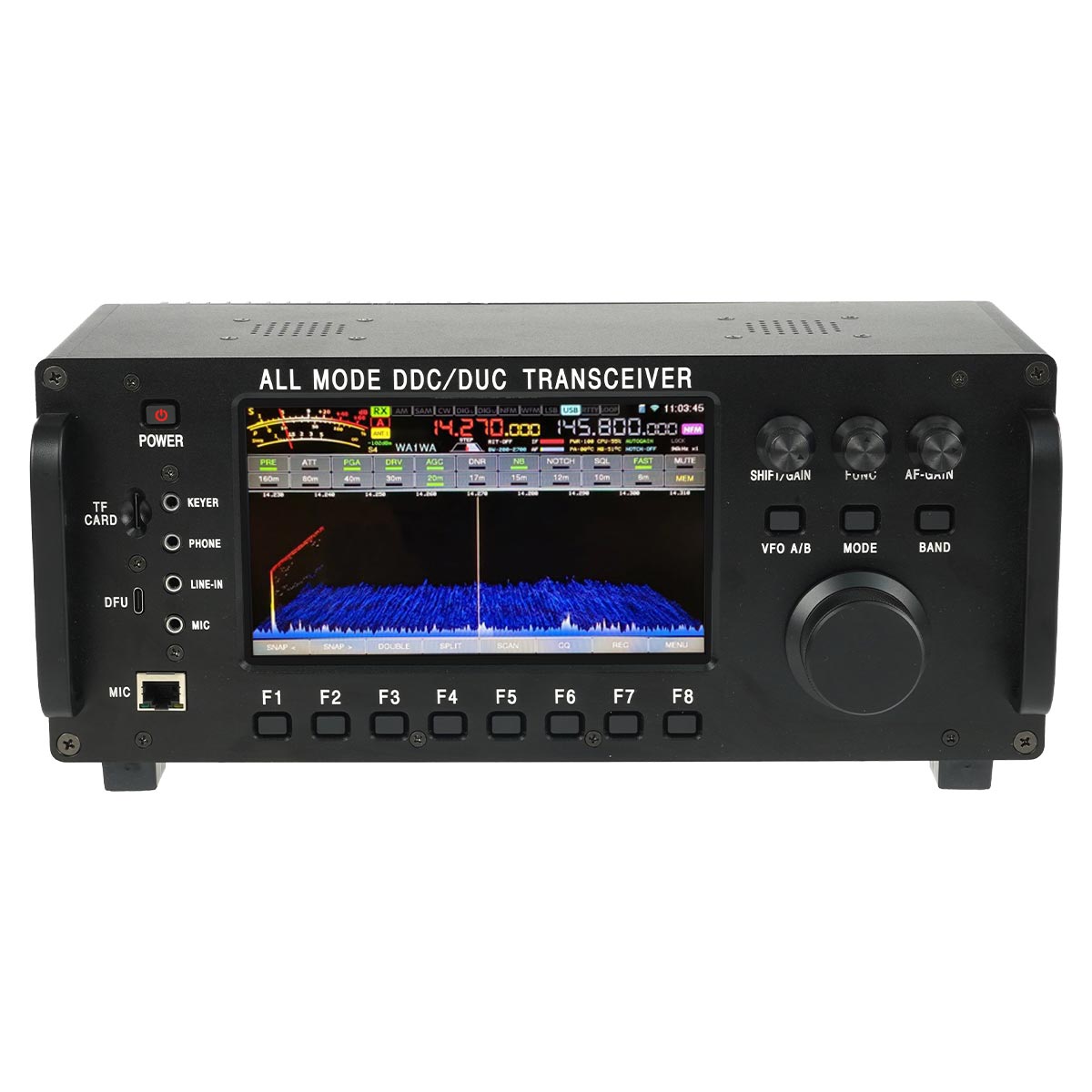

100W HF+UV All Mode DDC/DUC Transceiver Mobile Radio SDR Transceiver 7" Touch Screen

Features:

  • The most powerful enchantment! 3D waterfall spectrum diagram
  • 7" multi-point touch screen (capacitive screen) displays clearly under strong light
  • Built-in Wifi. Online radio is displayed after networking
  • Built-in CW decoding and FT8 encode and decode (no additional device required)
  • Built-in TF card! Multiple recordings and playback! Recording call, CW mode with 5 recordings
  • Support TF card to upgrade
  • Multi-scene mode selection! Fully open source software and hardware can be modified as needed
  • Built-in USB sound card for easy connection
  • All aluminum anodizing housing! Precision design and production
  • Built-in antenna tuner (Only for RS-998)
  • LNA: Low noise amplifier
  • With band-pass filter

Specifications:

  • RX Frequency: 0.5MHz-750MHz
  • TX Frequency: 0-30Mhz and 144-148Mhz,
  • Output Power (QRP++DB5AT Version): 20W (HF) and 7W (VHF) (RS-988)
  • Output Power (RU4PN/WF-100D Version): 100W (HF) and 50W+ (VHF) (RS-998)

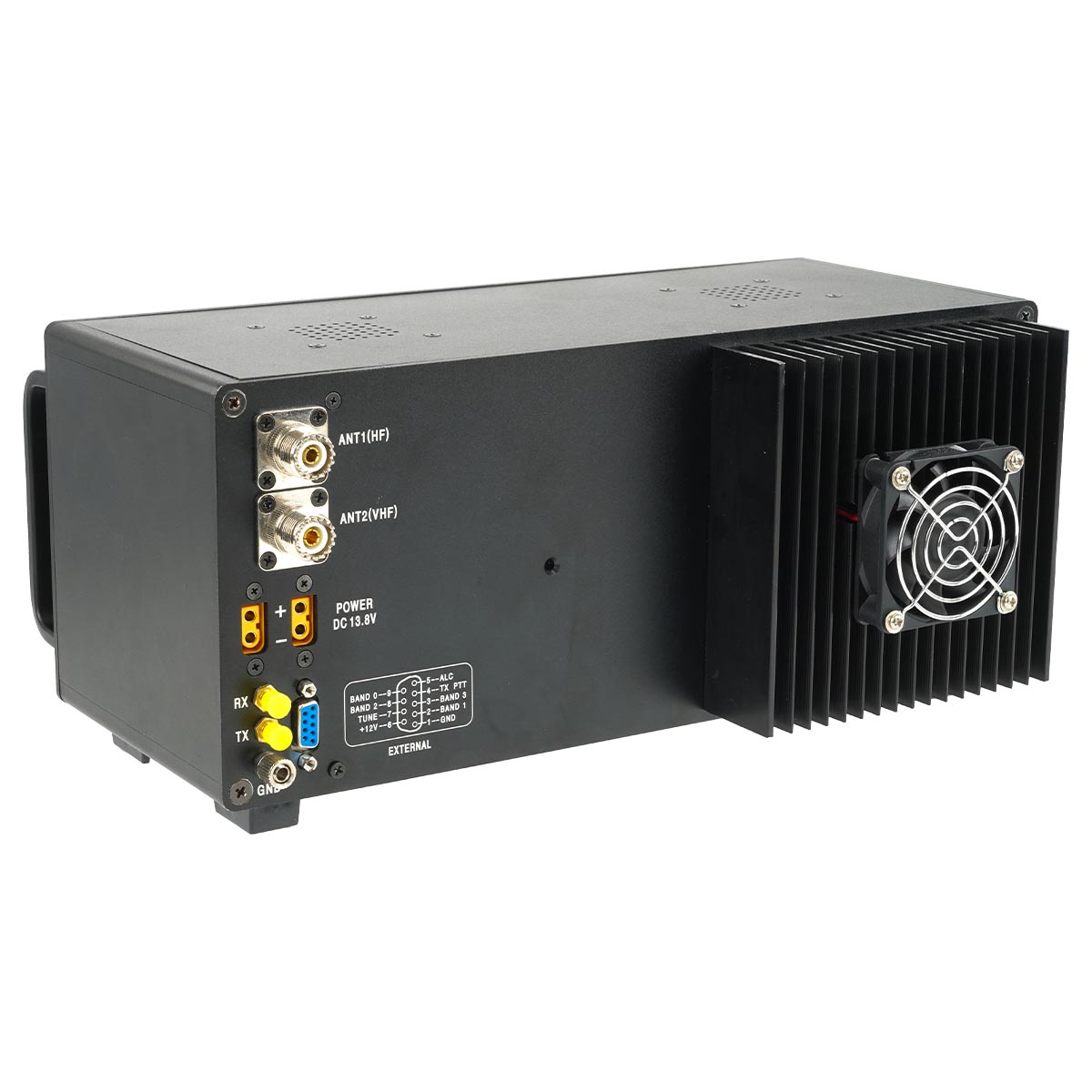

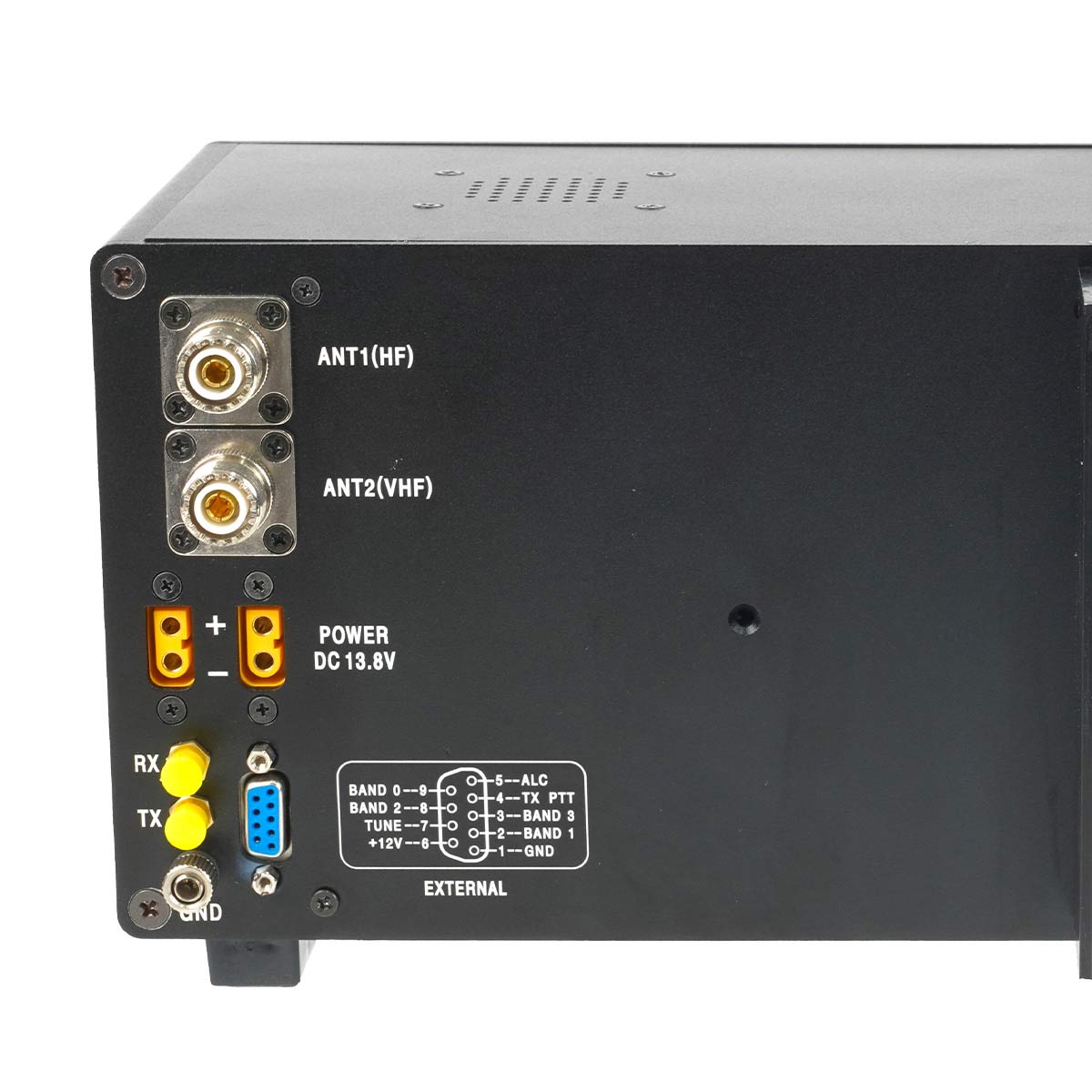

  • Antenna Type: Dual Antenna Input
  • Modulation Type (TX/RX): CW, LSB, USB, AM, FM, WFM and DIGI
  • Variable Attenuator: 0-31dB
  • ADC Dynamic Range: ~100dB
  • Supply Voltage: 13.8V (Over-voltage and Polarity Reverse Protection)
  • RX Current: ~0.7A (3'2QRP) and 0.9A (7'BIG)
  • TX Current: ~2.5A+ (QRP) and 15A+ (BIG)
  • Dimensions (WxHxD): 340 x 140 x 135mm/13.4 x 5.5 x 5.3"
  • Weight: 5550g

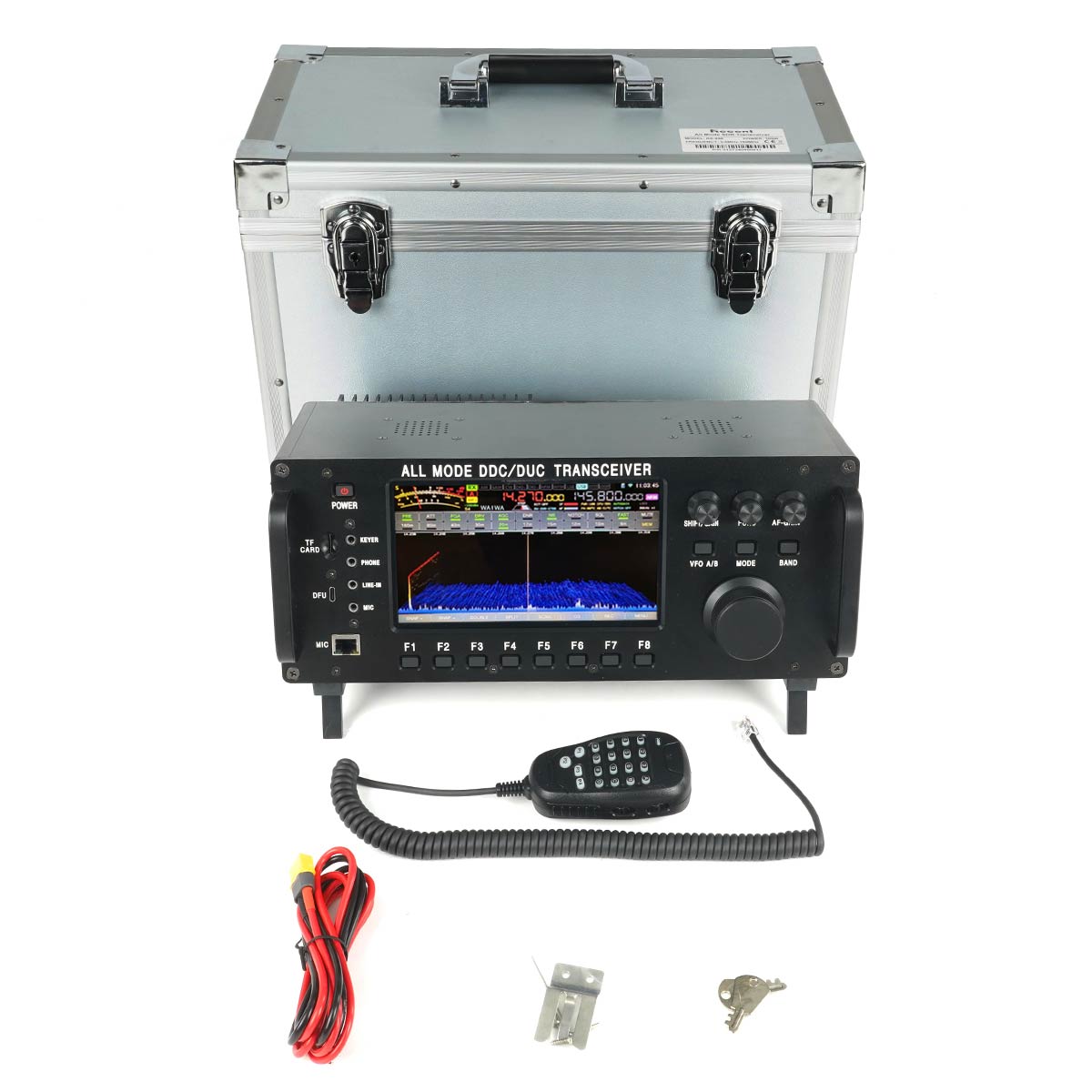

Package Included:

  • 1 x Transceiver

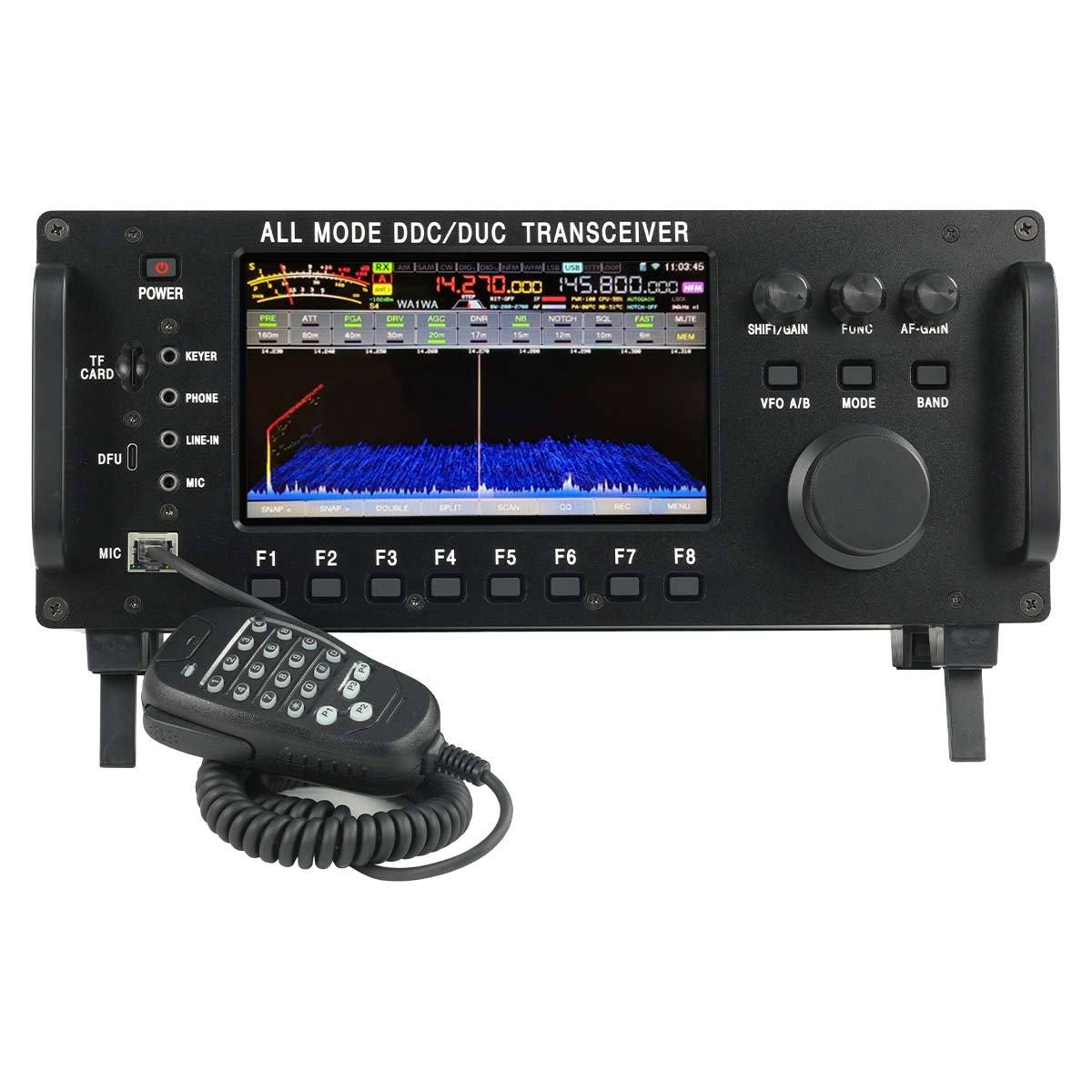

  • 1 x Handheld Microphone
  • 1 x DC Power Cable
