- VOX or PTT dual mode optional design
- VOX Coiled Top Cable Covert Acoustic Tube Earpiece, free your hands, more covert

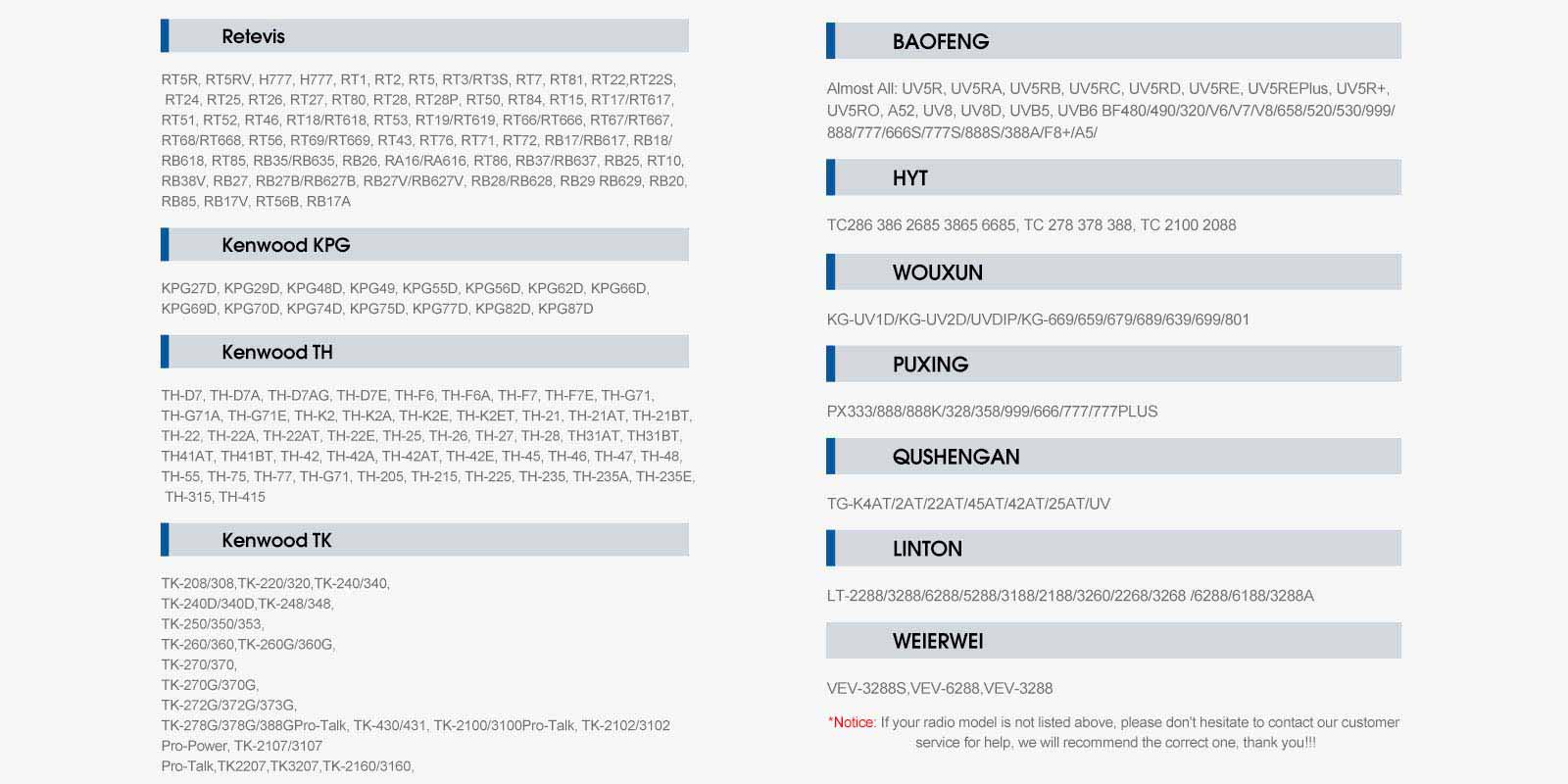

- Kenwood 2Pin earpiece for most two-way radios
Payment Methods
Delivery Method
Double-Certified for Global Reliability
Bulk order Inquiry
Personalize your device
OverView

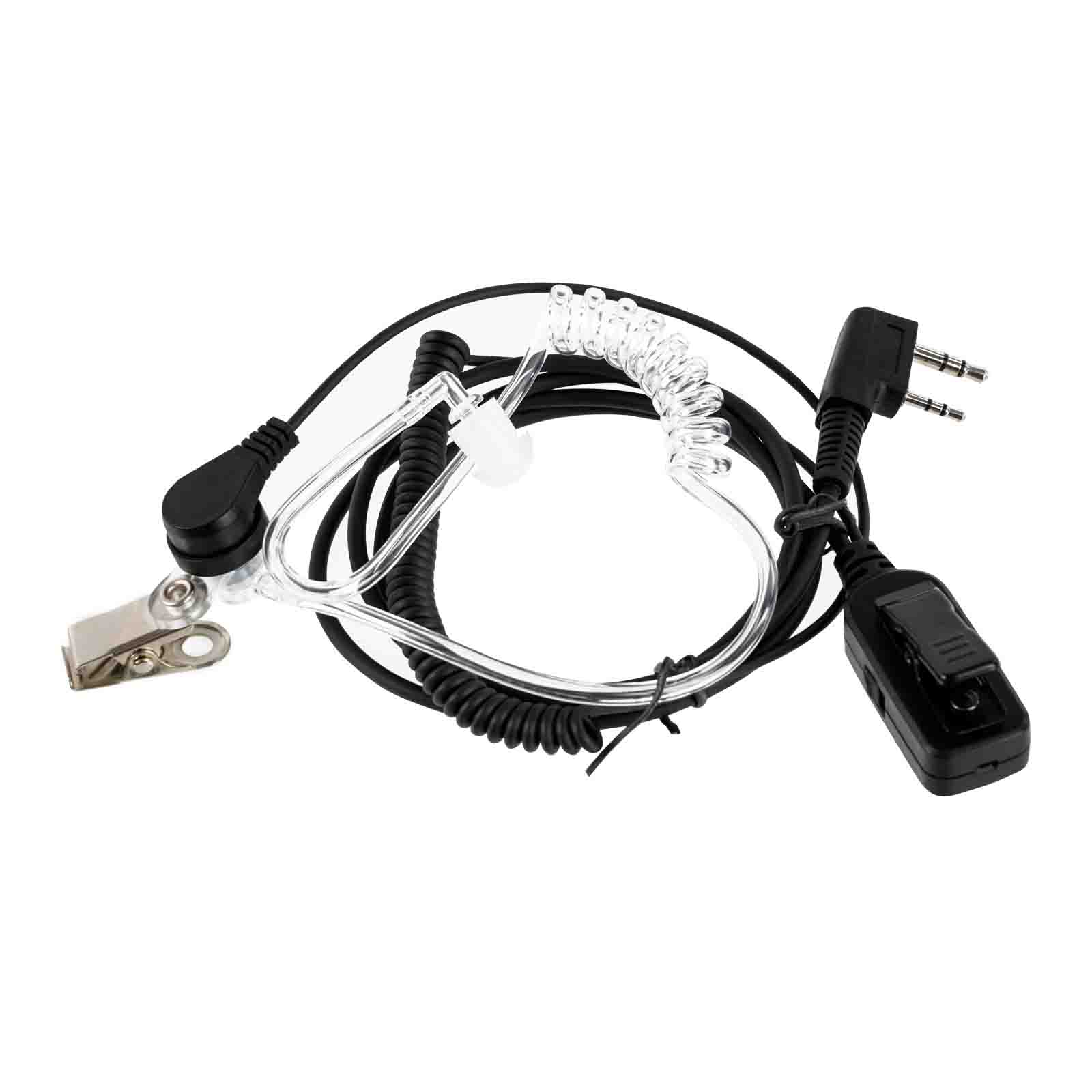

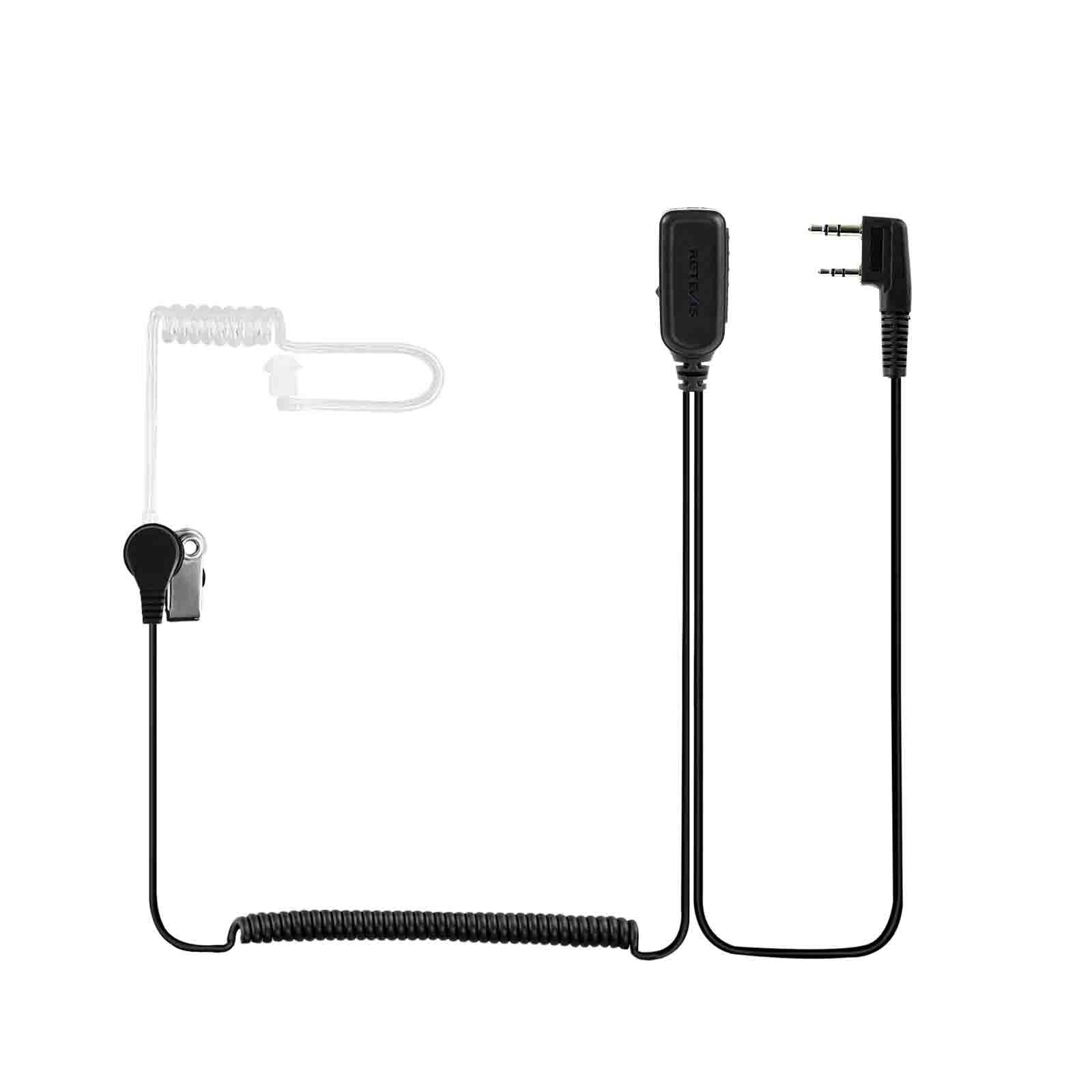

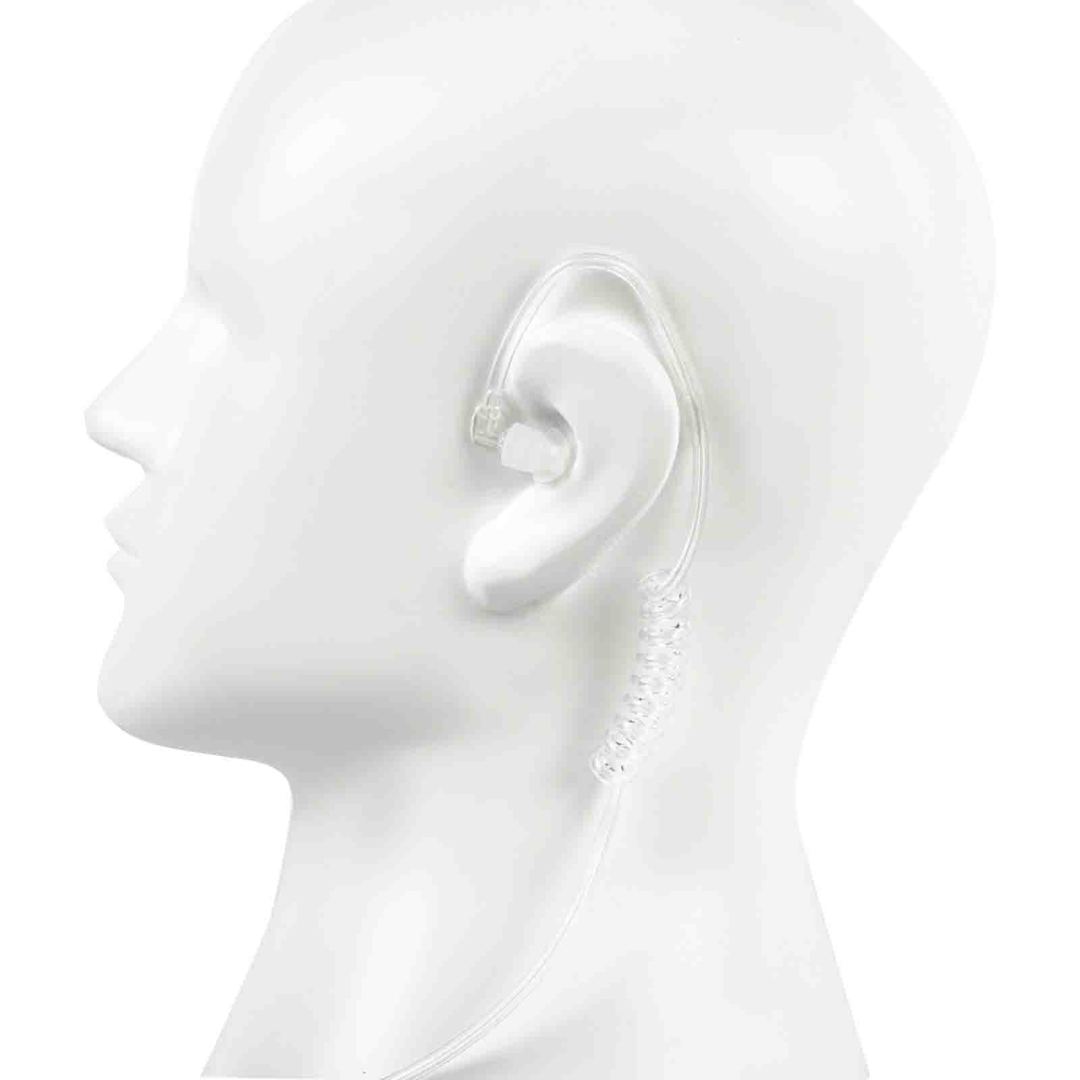

1. 2pin Covert Acoustic Tube Earpiece for Retevis H777 two way radio

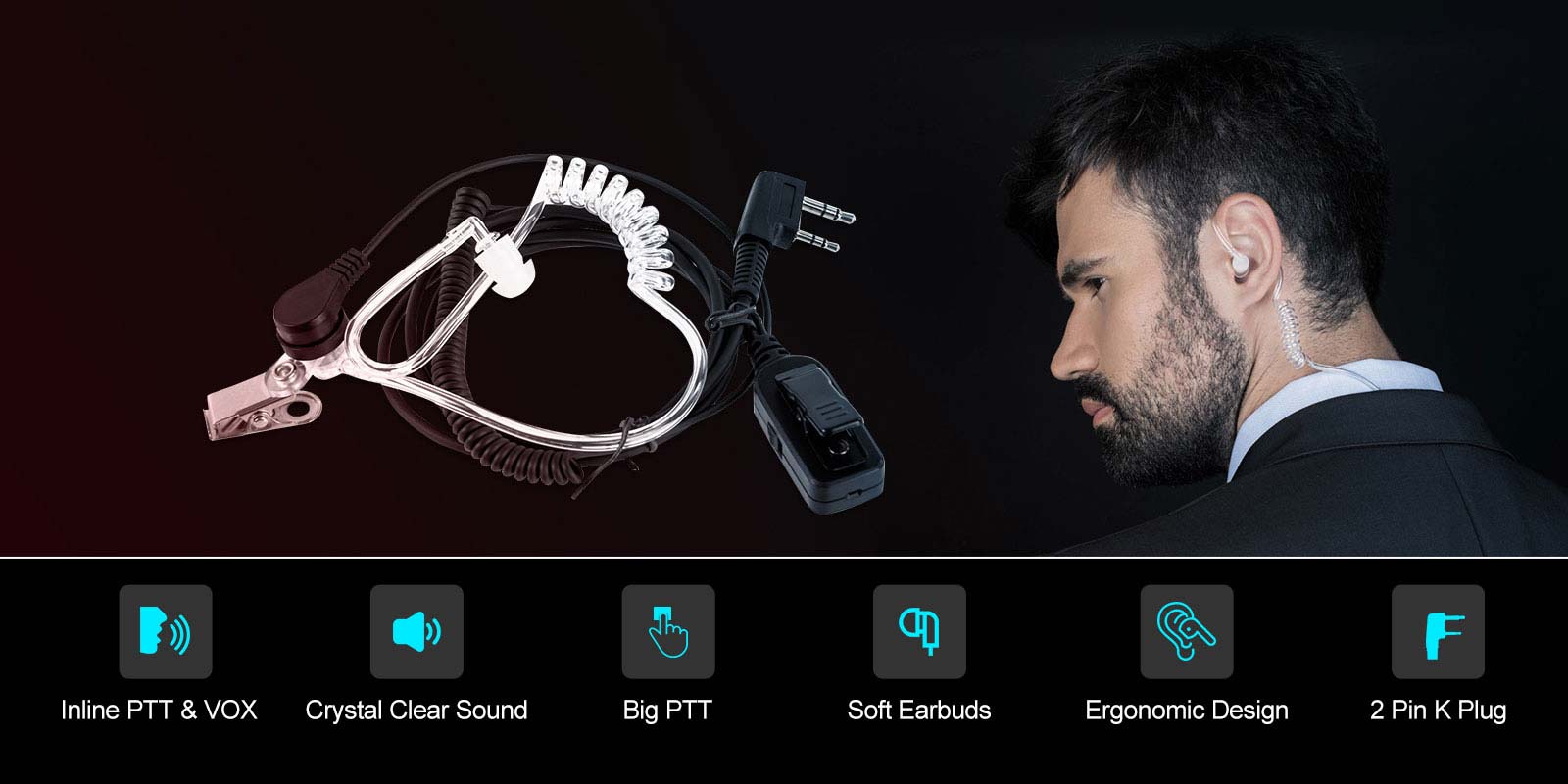

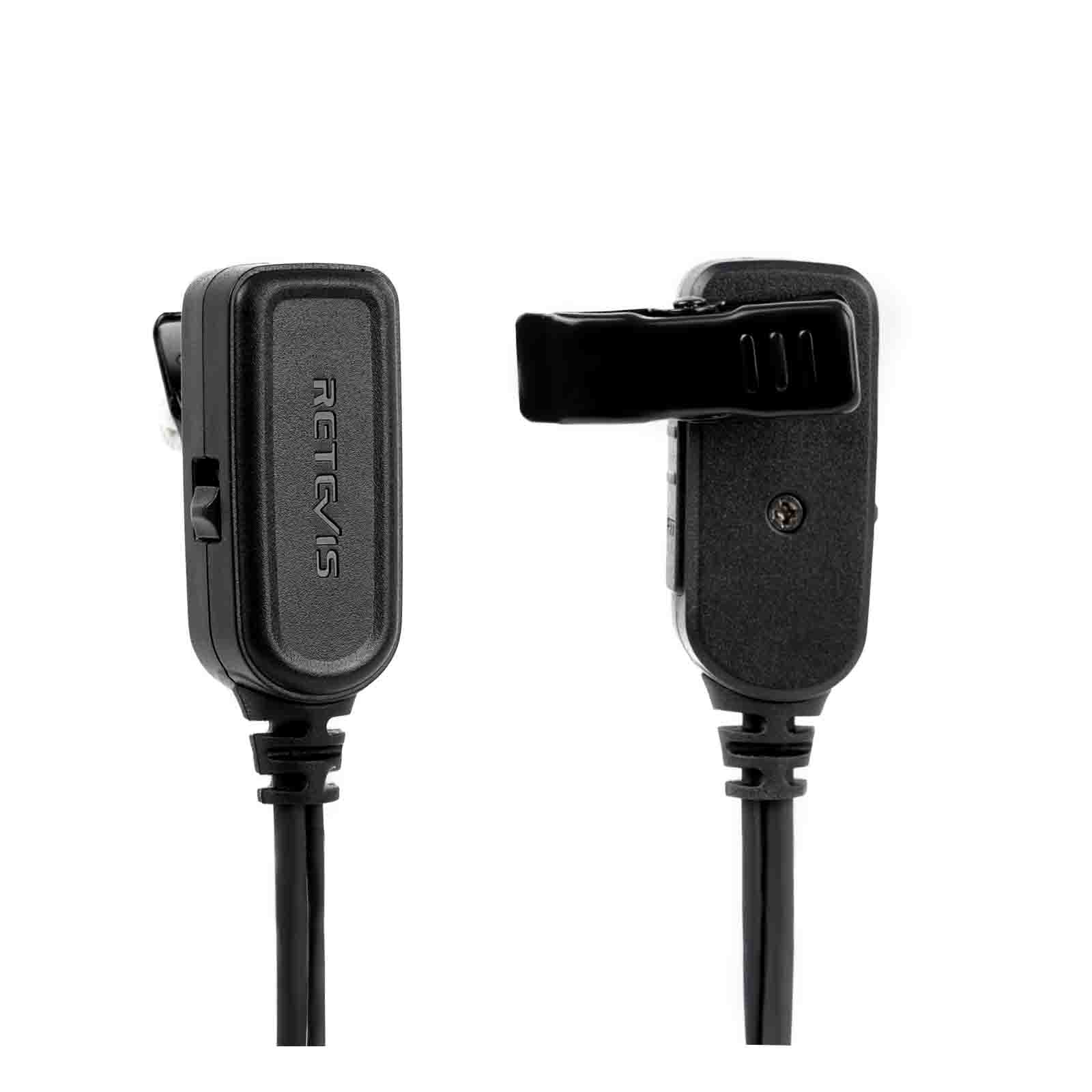

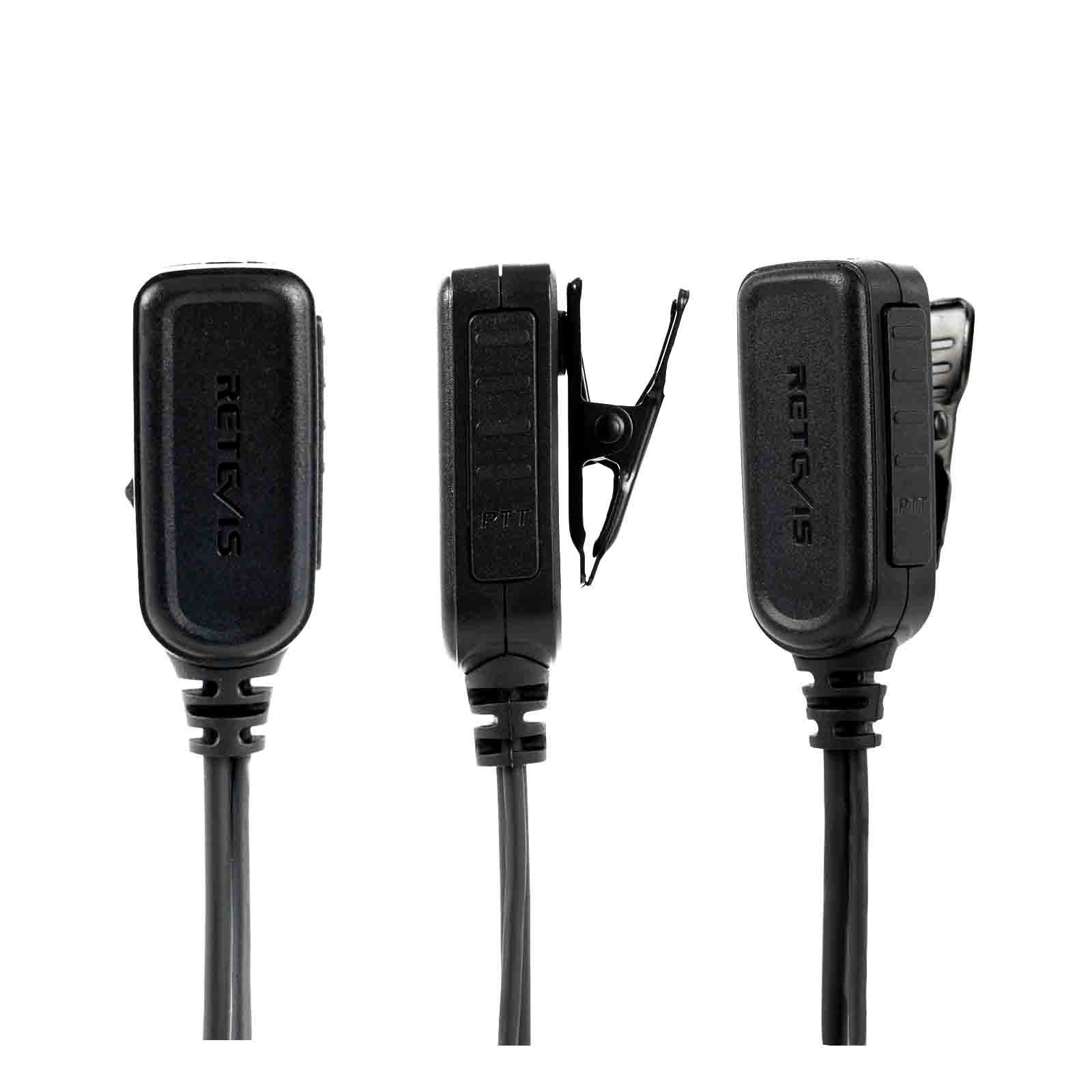

2. VOX or PTT mode optional design.It is convenient to push the PTT/VOX switch on earpiece for applications that you need to release your hands.

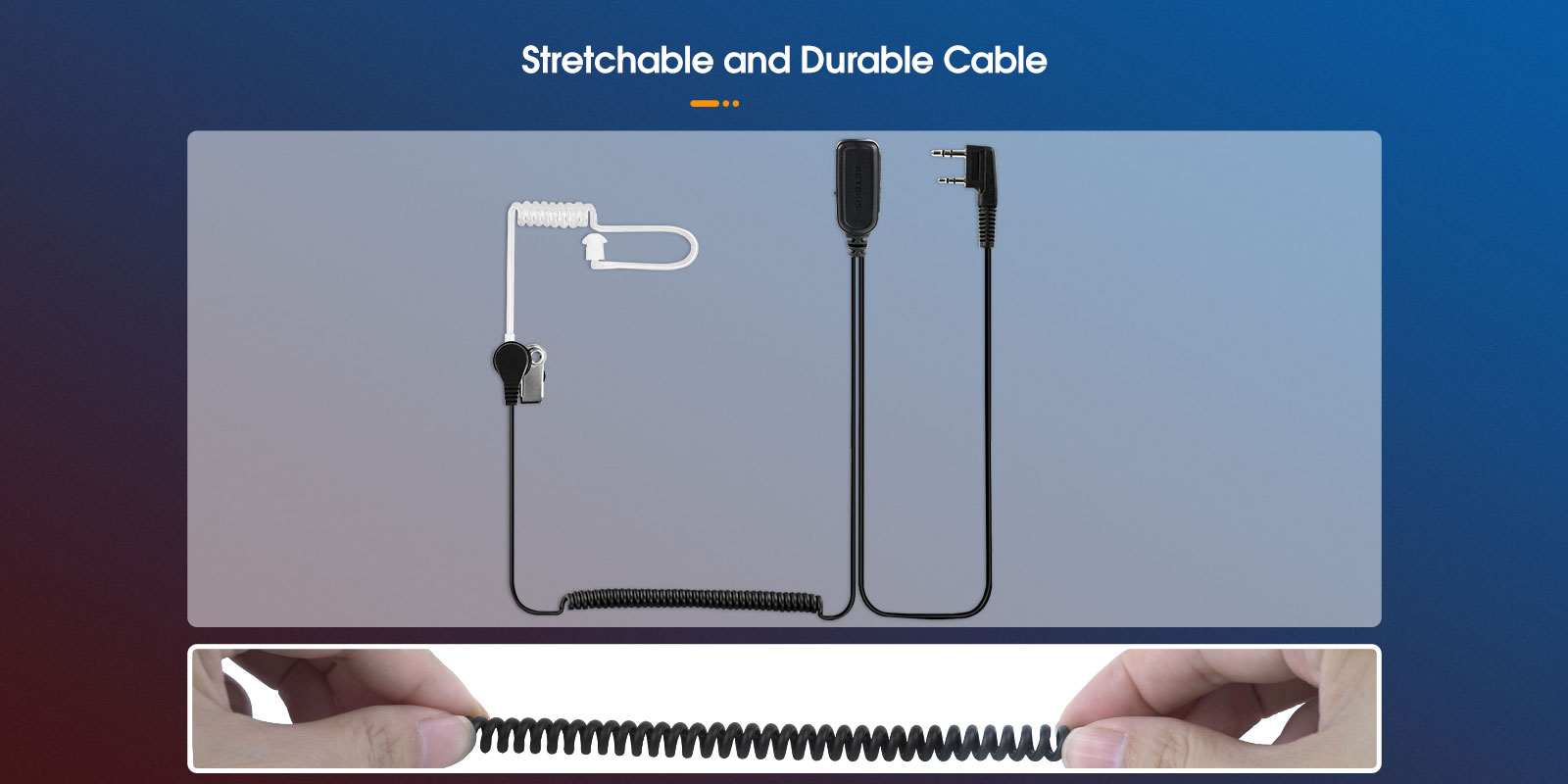

3.Stretchable coiled cable for added flexibility and extensibility. Reinforced cable for stronger toughness, which can withstand 6.8kg tension.

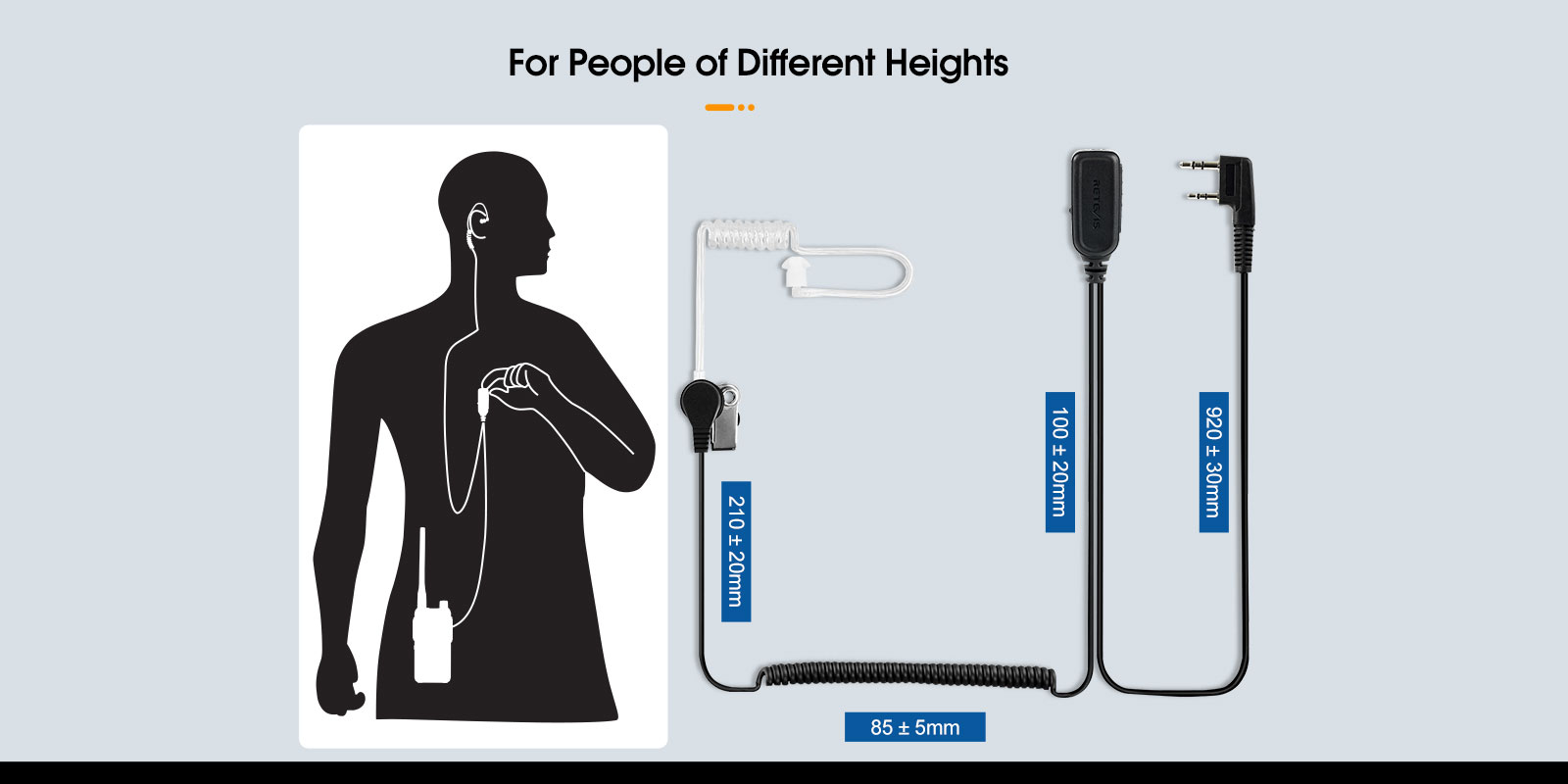

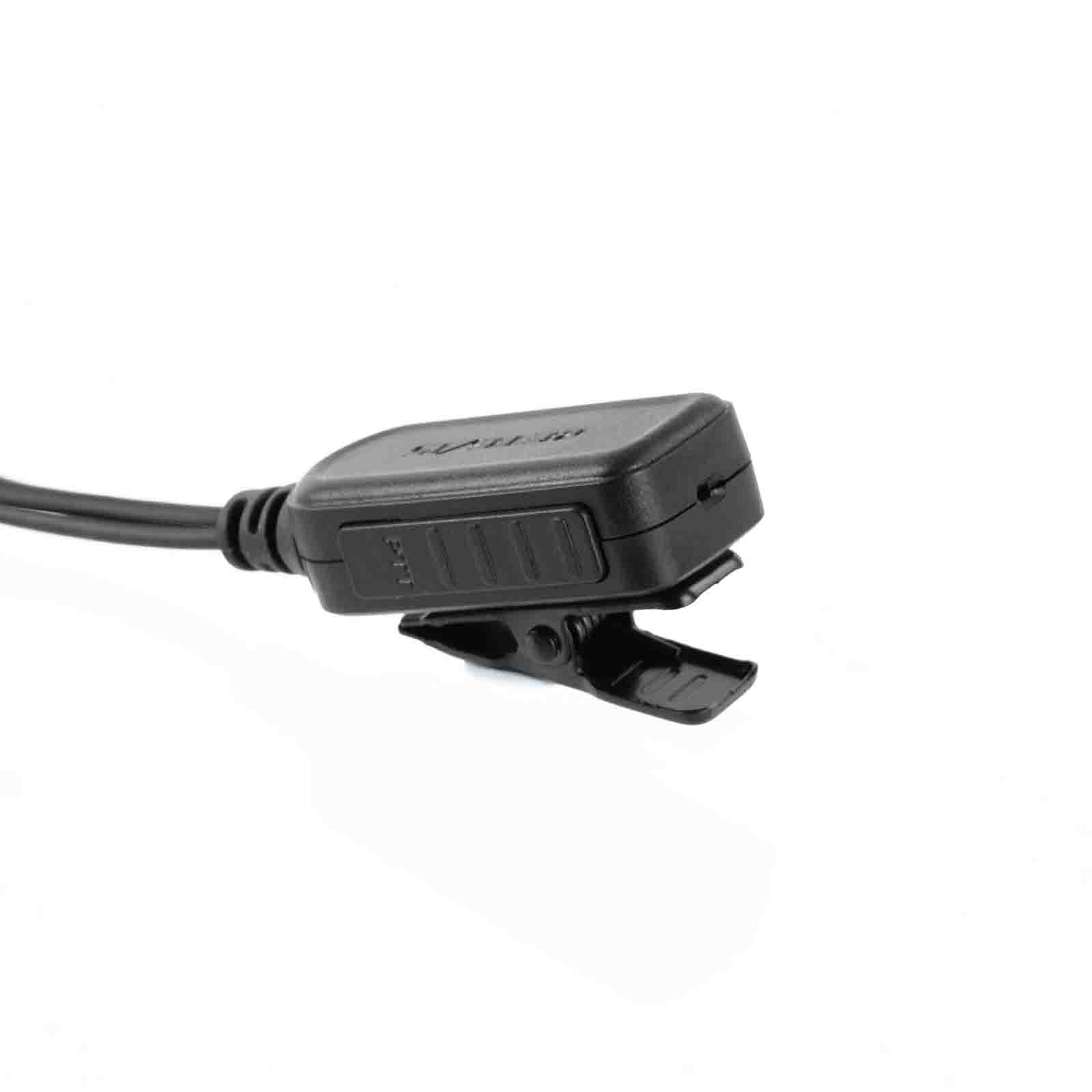

4.Signal wire design with inline PTT and microphone. Don’t worry about coil winding, easy to wear. The cable is long enough, suitable for people of different heights.

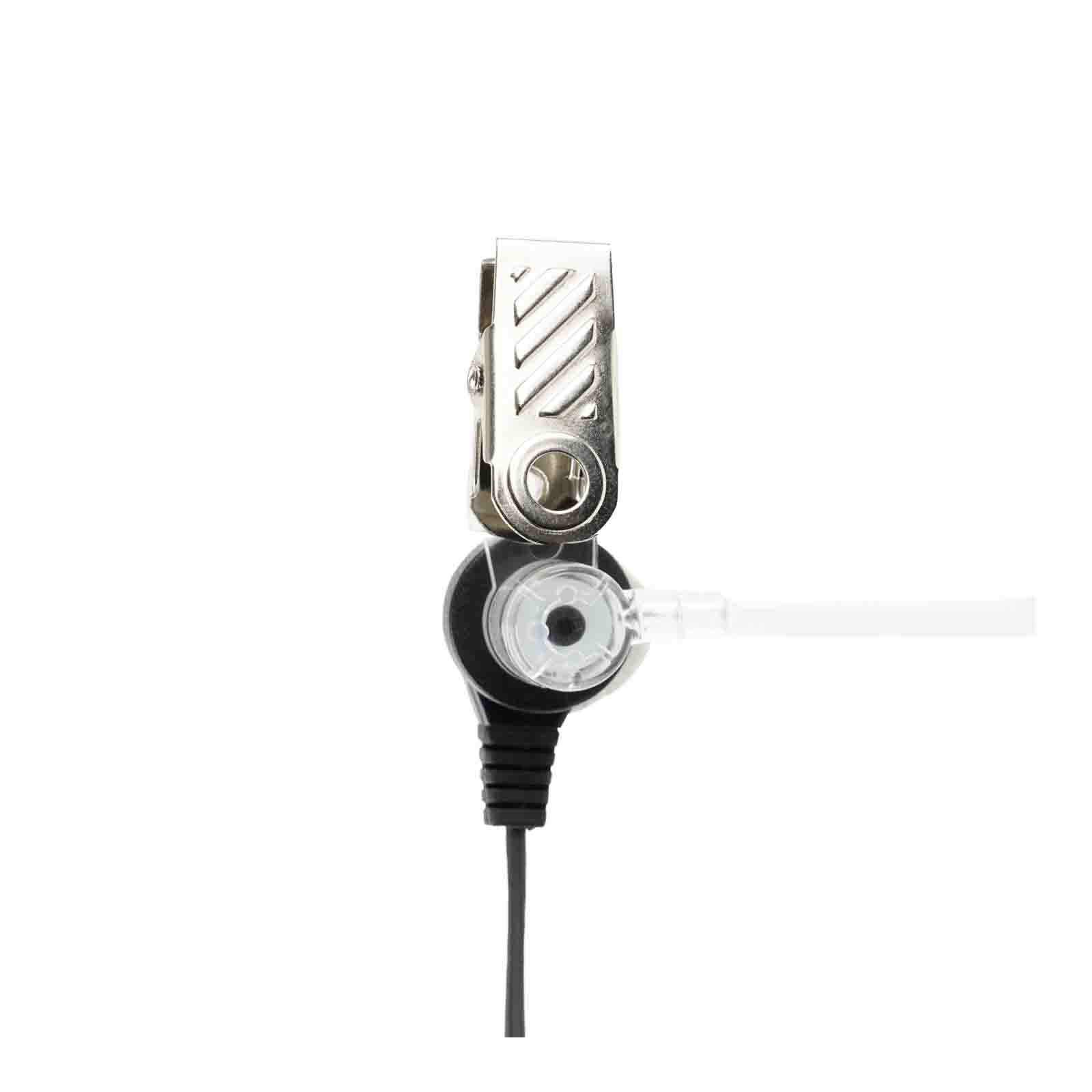

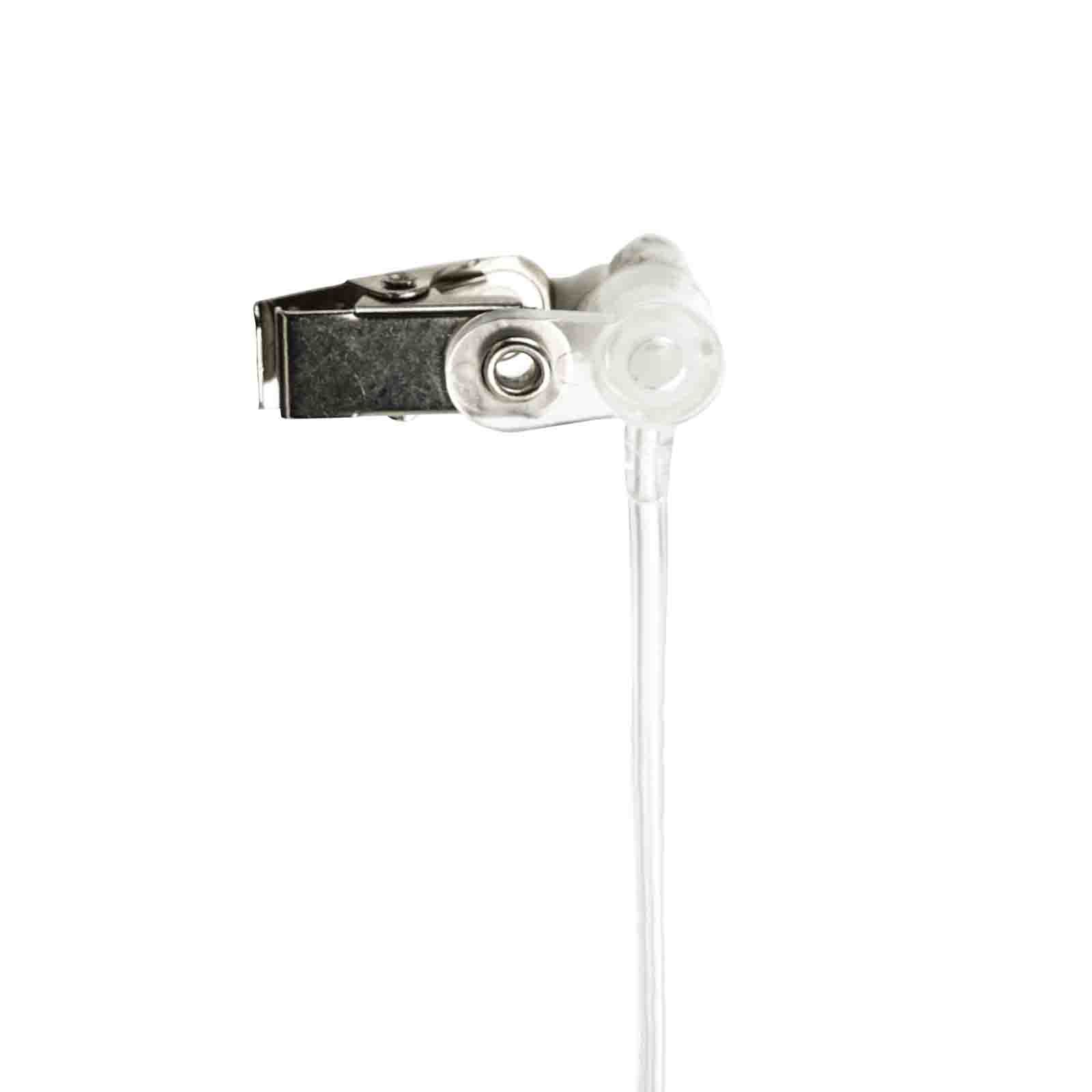

5.Sturdy metal clothing clip can be attached to the collar or lapel to fix coil. It is not easy to fall off when pulled during use, and it can easily cope with various use environments

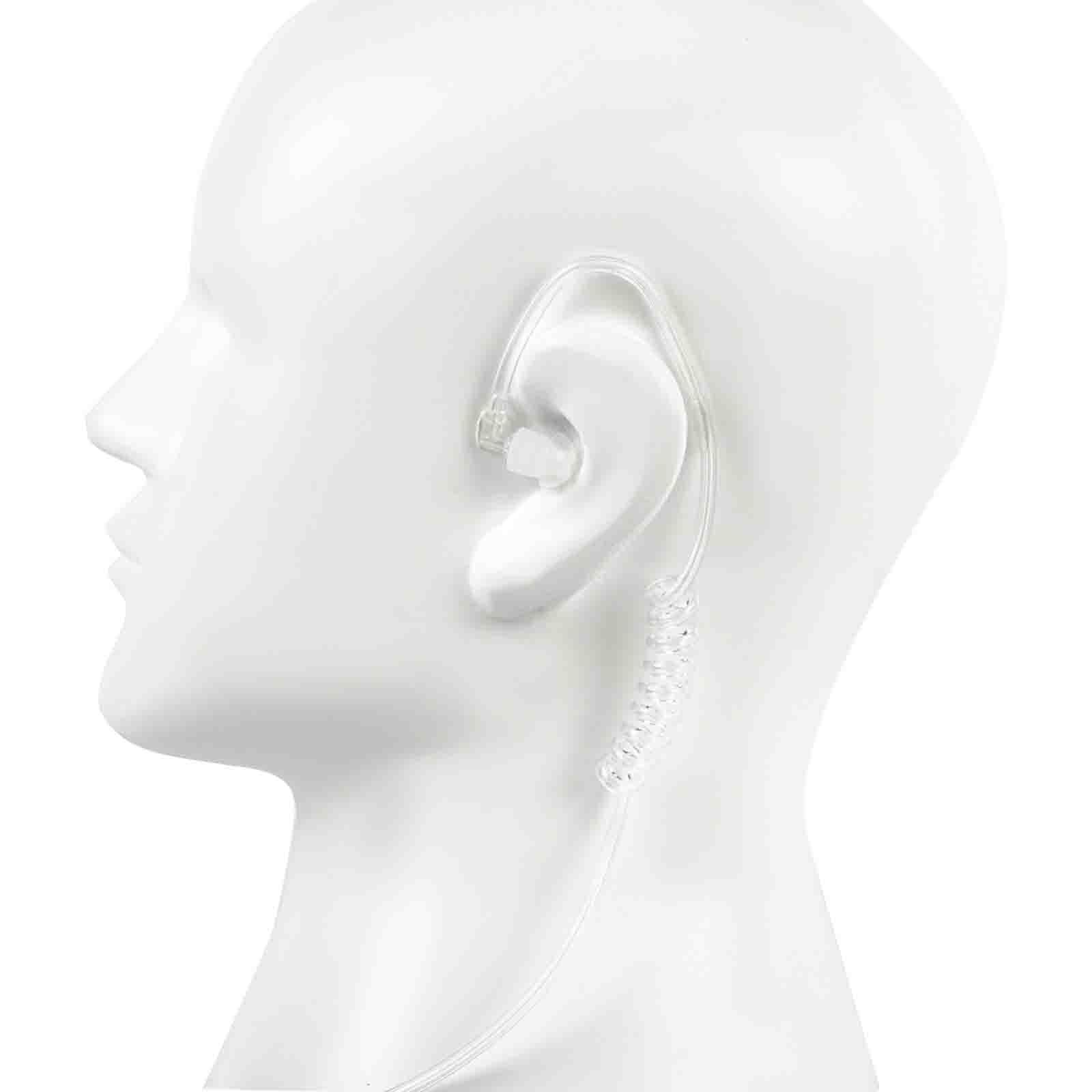

6.Ergonomic earbuds that fits snugly in your ear canal, allowing you to wear for a long time without discomfort.

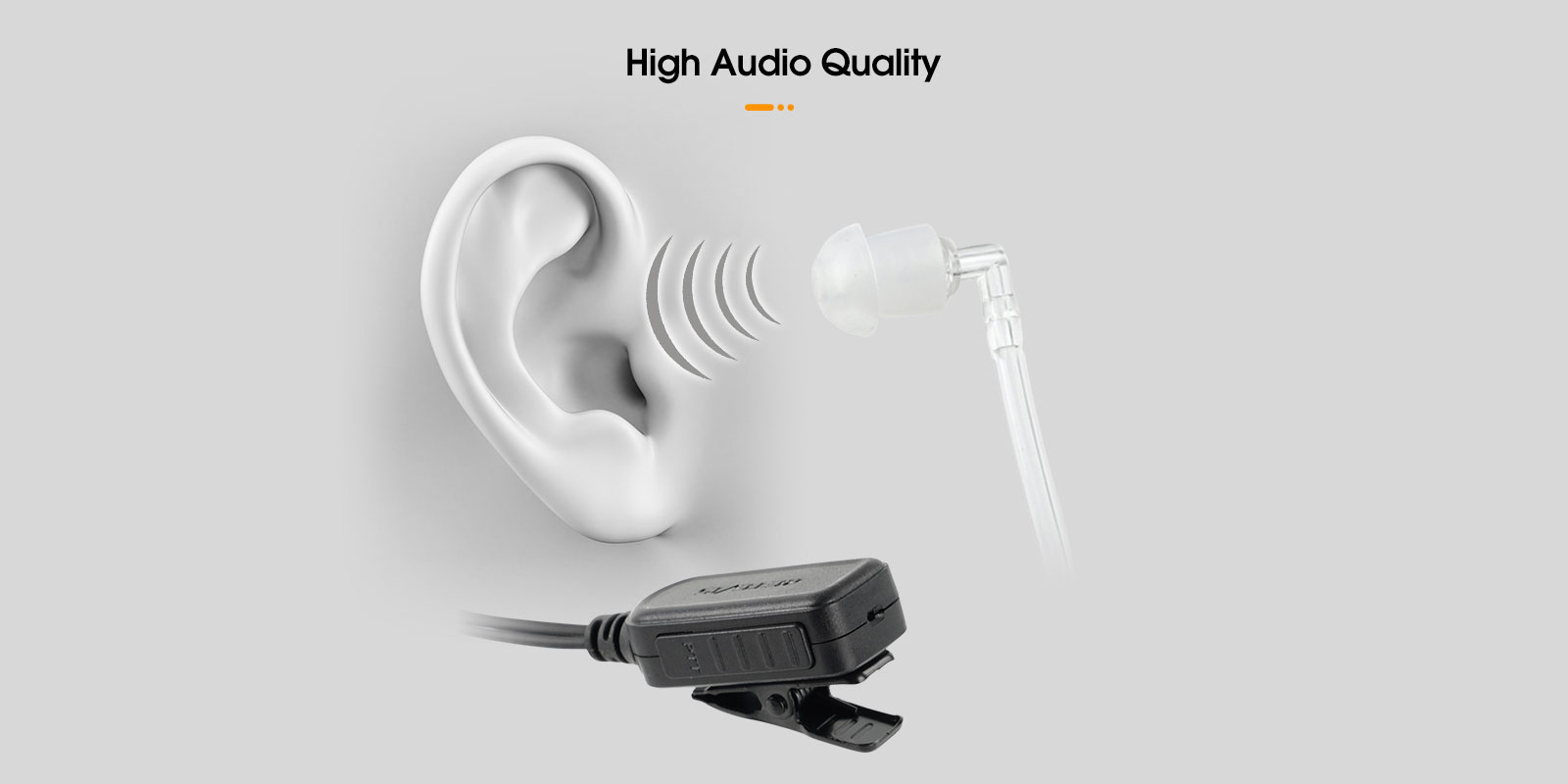

7. High quality microphone and speaker for crystal clear audio,ensuring efficient communication at work.

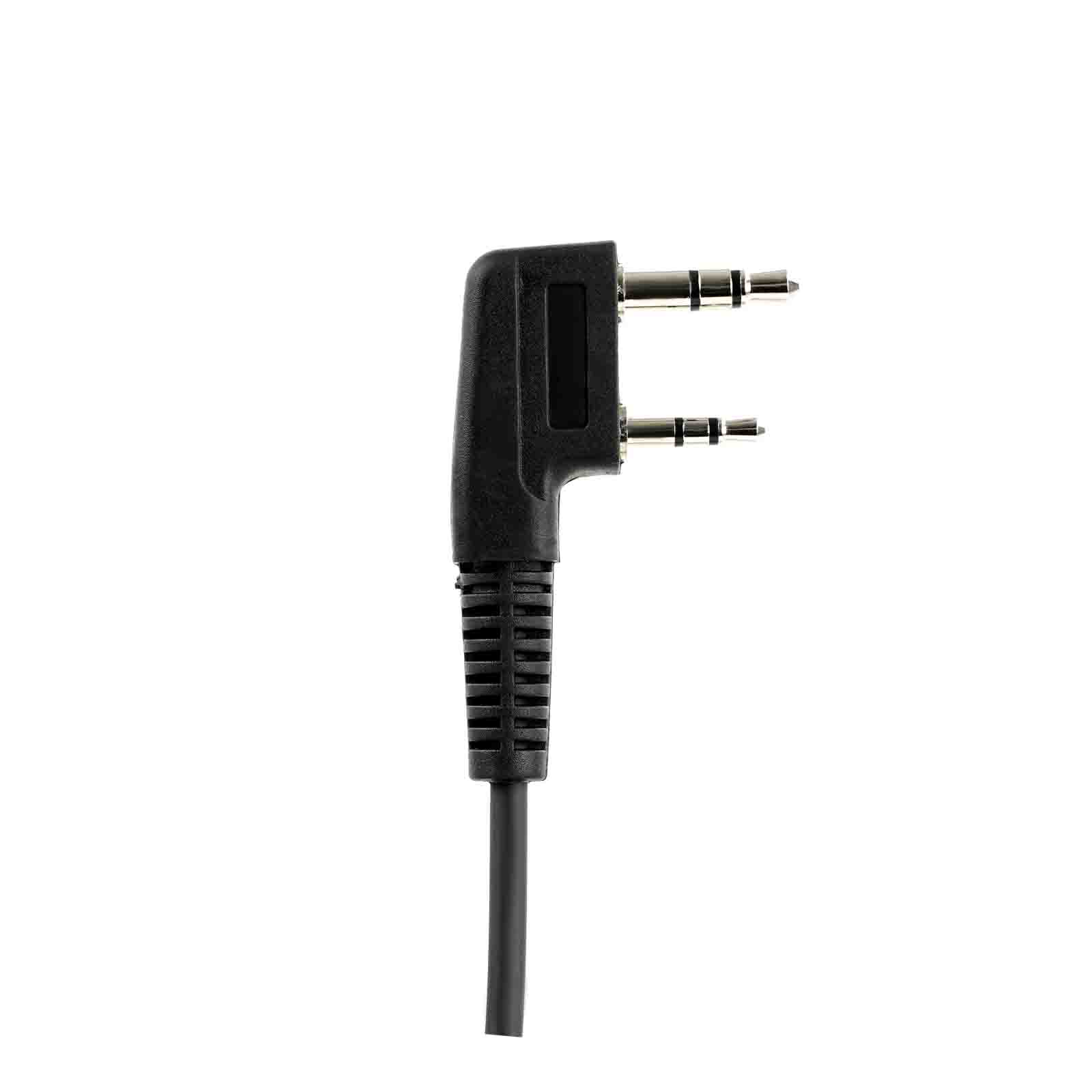

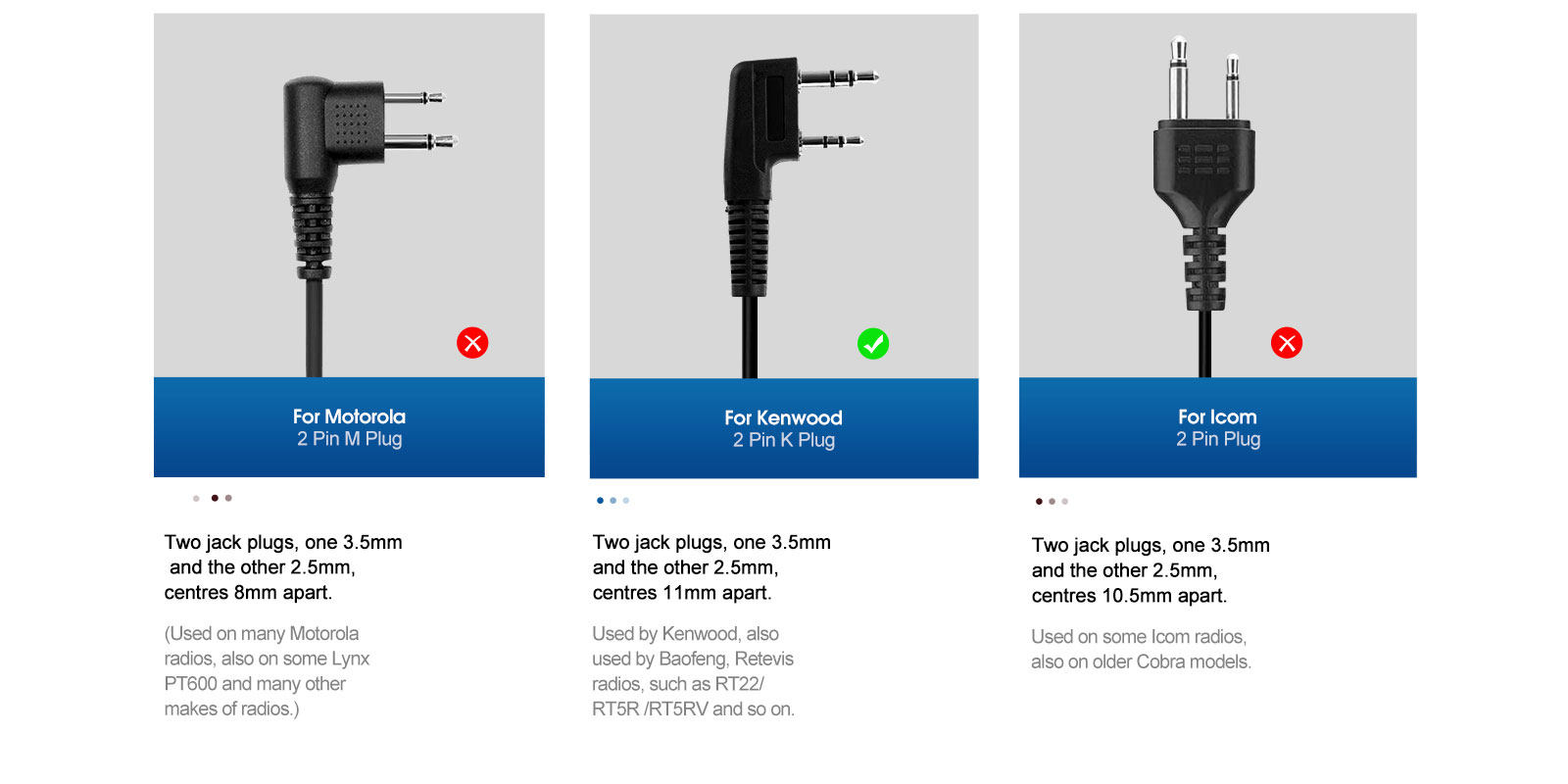

8.For Kenwood 2 Pin K Plug
9. 2pin Covert Acoustic Tube Earpiece for Retevis H777 two way radio suitable for Security officer; Police officer; Hotel; Bodyguard.
10. C9219D 2pin Covert Acoustic Tube Earpiece for Retevis H777 two way radio specification

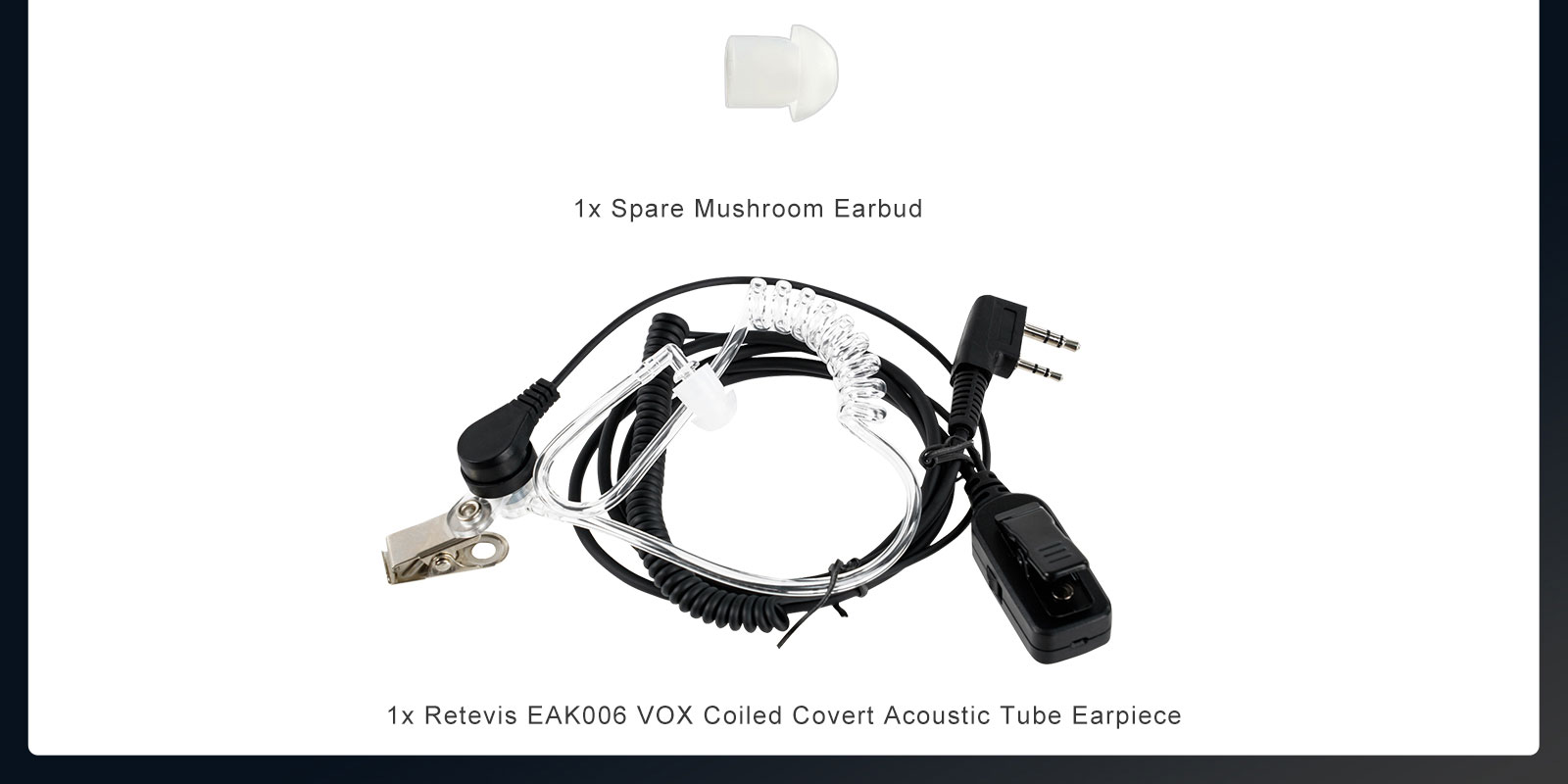

16. EAK006 Covert Acoustic Tube Earpiece package details
Spec
| Speaker | |
| Diameter | Ø15mm*5.5mm |
| Impedance | 32 Ohm±15% at 1kHz |
| Sound pressure level | 115±3 dB at 0.179V/0.1mW/1kHz |
| Rated power | 2mW |
| Maximum output power | 3mW |
| Microphone | |
| Types | Condenser electret microphone |
| Maximum impedance | 2.2k Ohm |
| Sensitivity | -40±3 dB at 1kHz（0Db=1V/Pa） |
| Operating Voltage | 1.5-10VDC |
| Plug wire | Φ3.0mm PU 4-core straight wire 1.0m |
| Ear hook | Φ1.95mm PU 2-core coiled wire |
Feature
- VOX or PTT mode optional design.It is convenient to push the PTT/VOX switch on earpiece for applications that you need to release your hands.
-
Stretchable coiled top cable for added flexibility and movement.
-

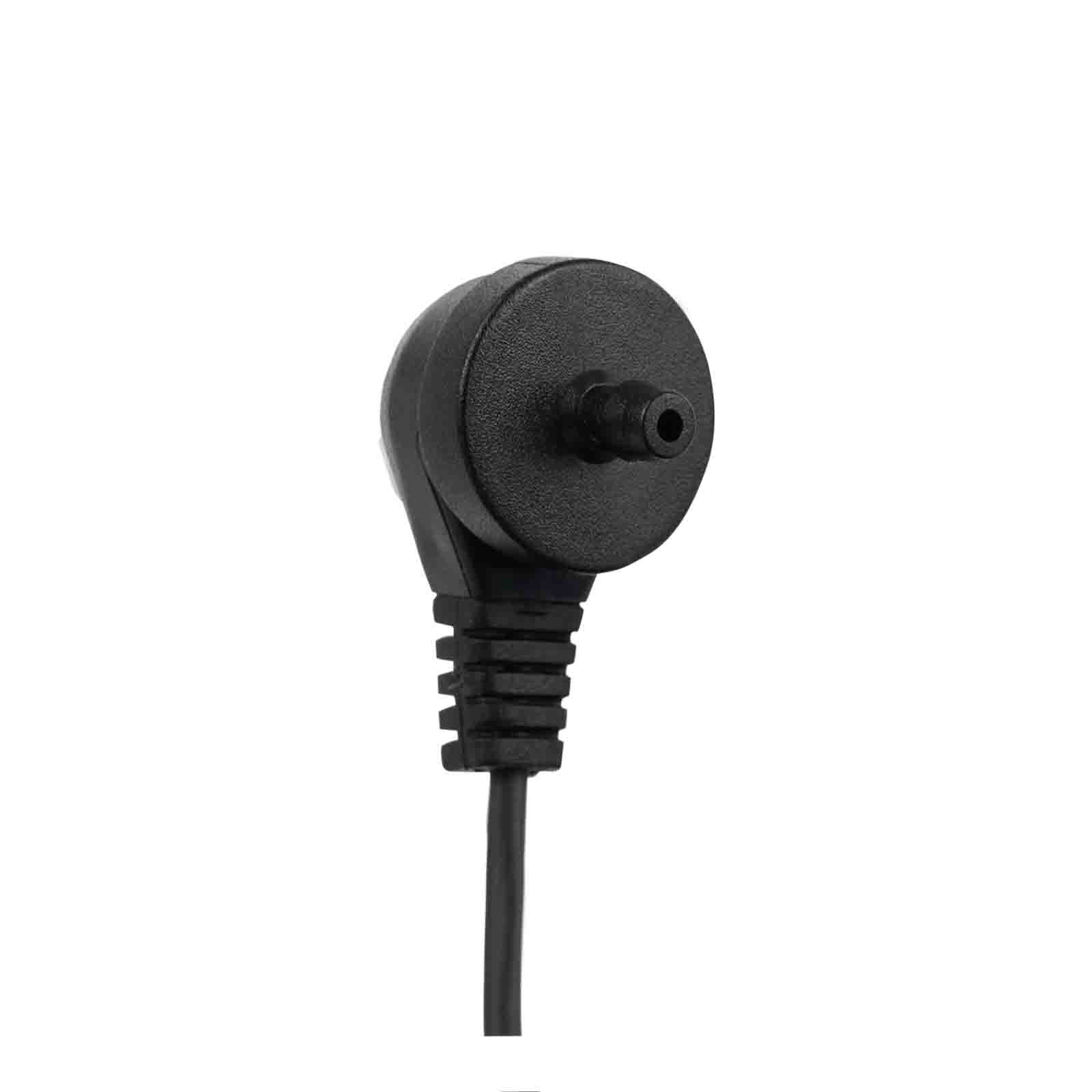

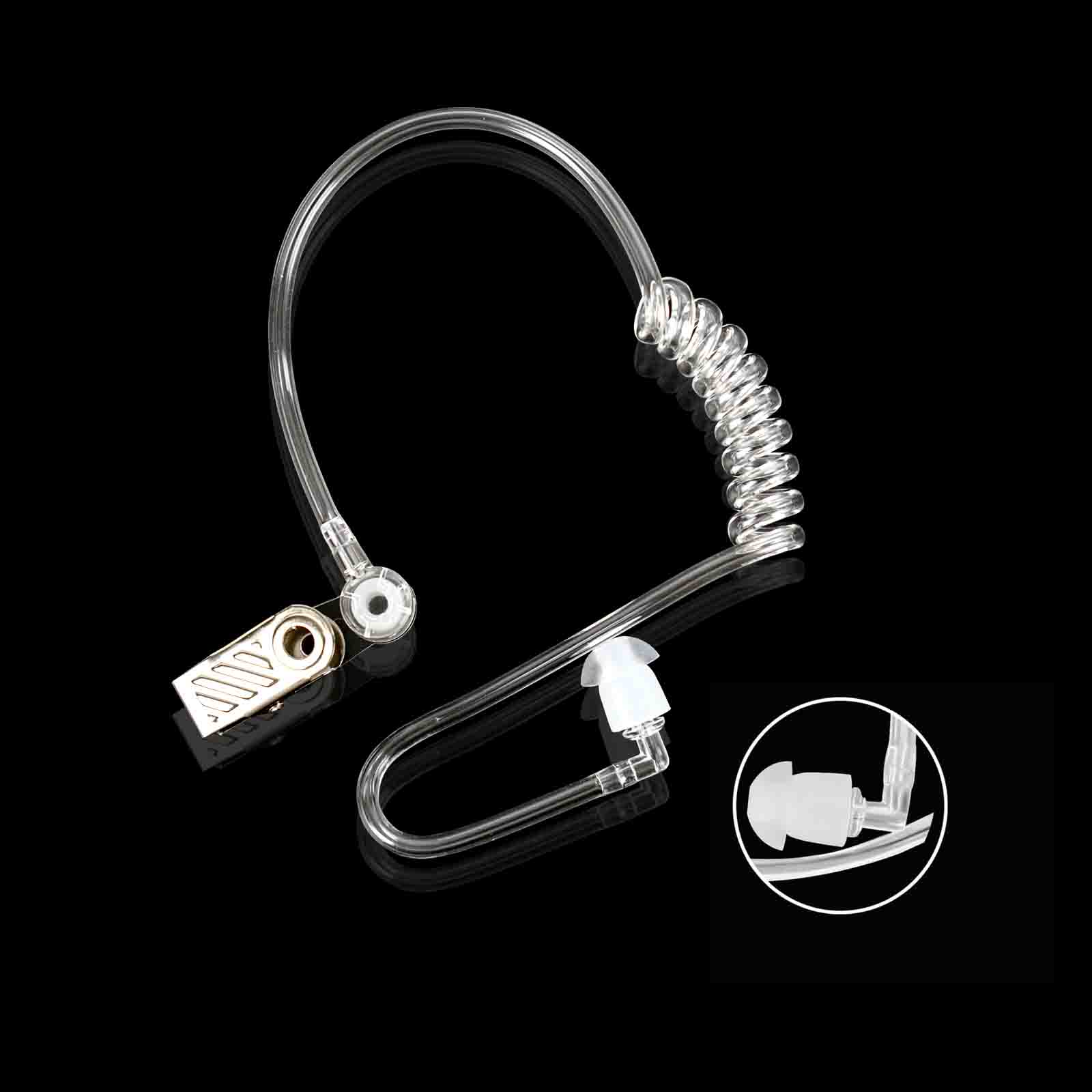

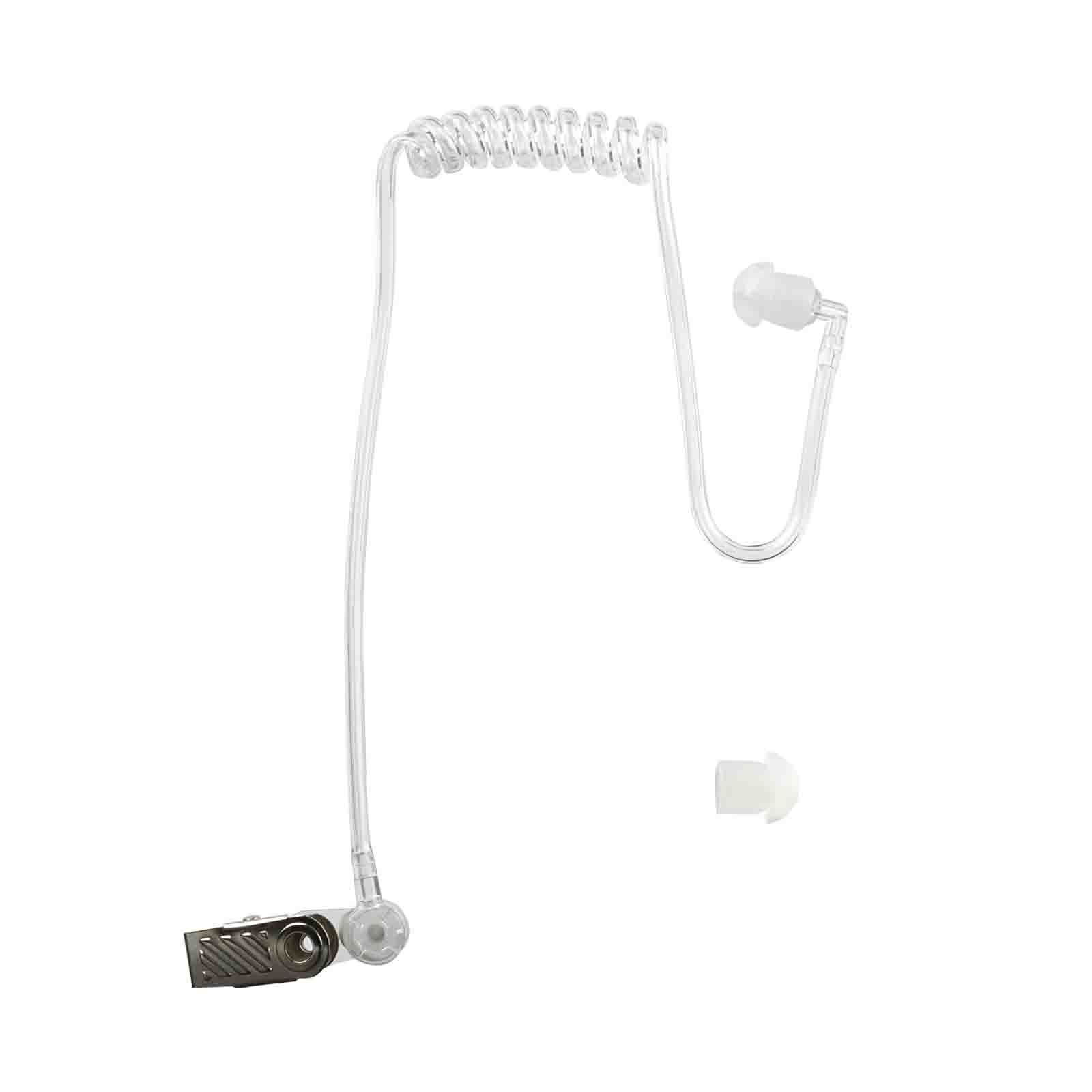

Quick disconnect acoustic tube earpiece.
- Field replaceable and comfortable mushroom earbud can be worn on either ear.
- PTT button, can be operated with gloves.
- Sturdy metal clothing clip attaches to collar or lapel.
- High quality microphone and speaker for crystal clear audio.
- Kenwood 2Pin earpiece for most two-way radios.
