EEK020 Adjustable Boom Mic D-Ring Earpiece Dual PTT 2Pin-K

Order Status: In Stock


Regular price

  1. D-ring earpiece with long boom microphone
  2. Dual PTT
  3. Kenwood 2 Pin connector plug for most of  two-way radios.


In Stock Pre-order Now Out of stock Order now, Only 10 left!
<<
Previous
Next >>

Description

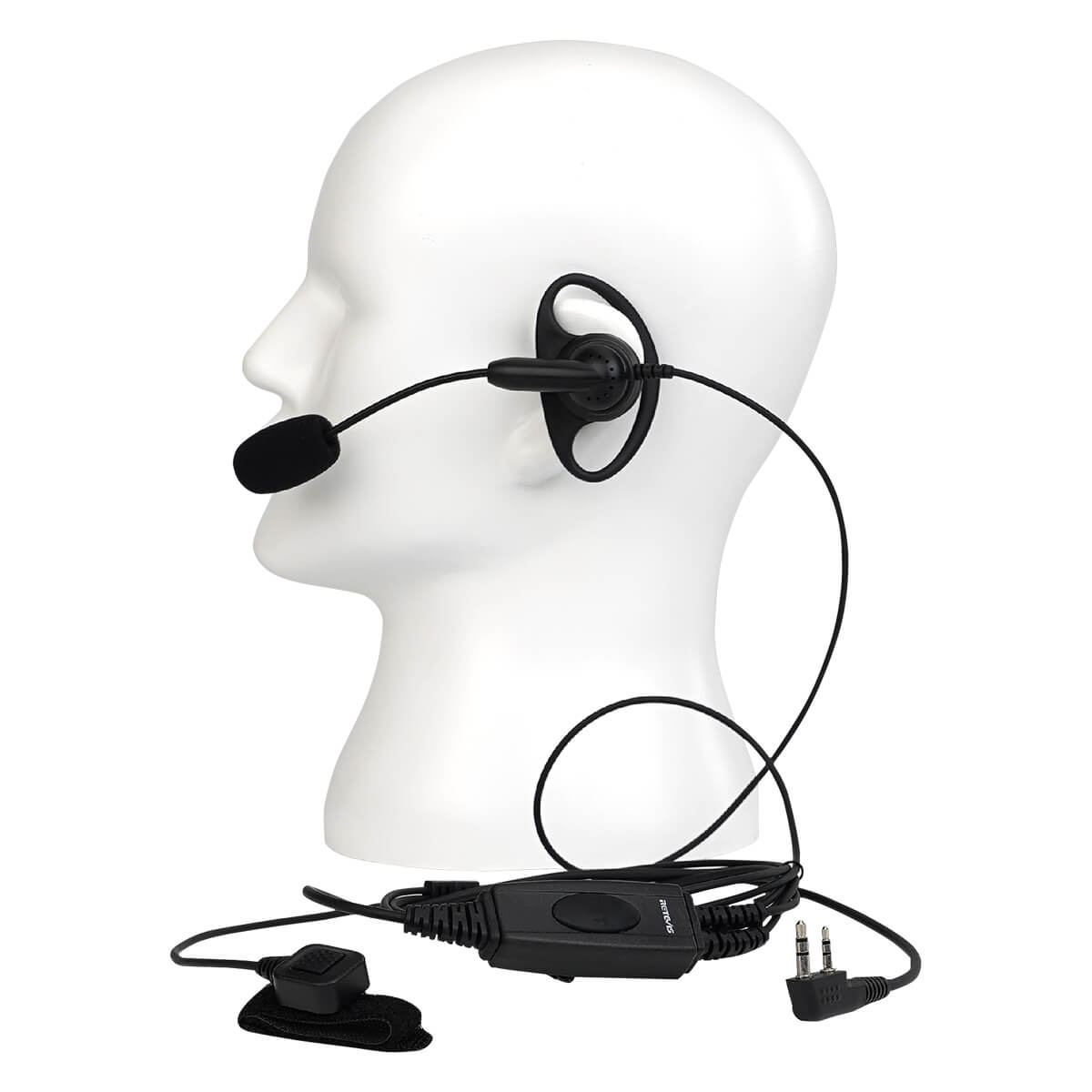

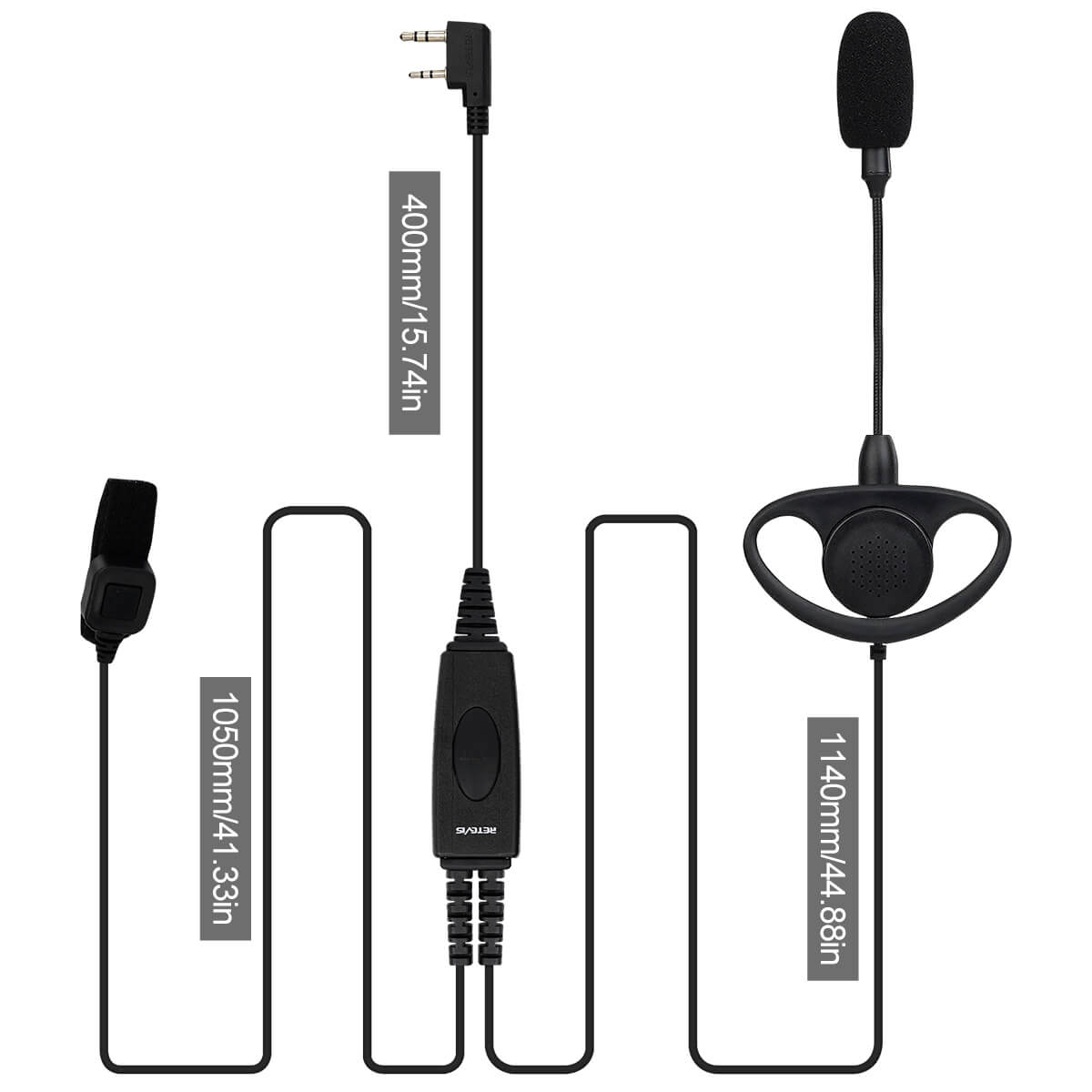

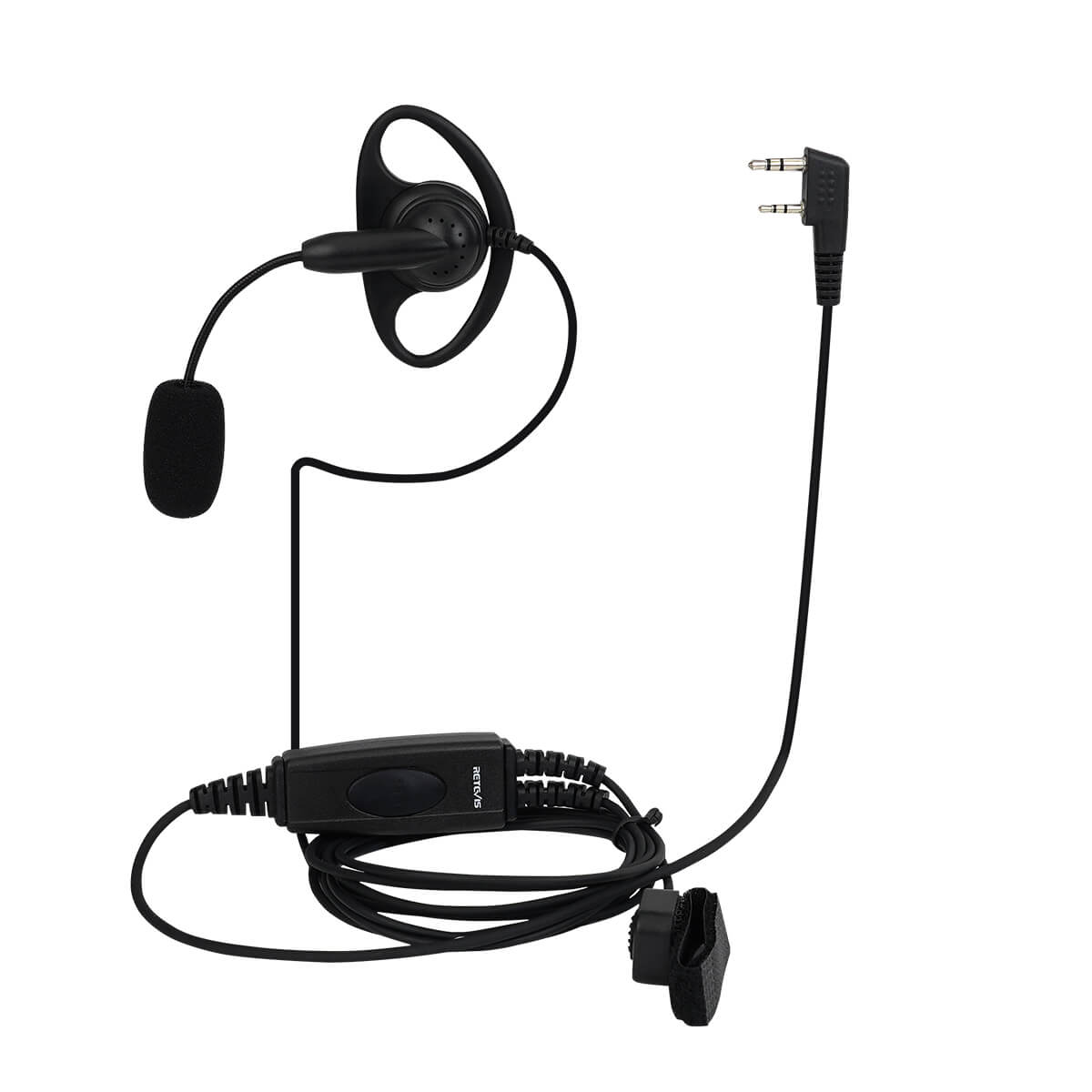

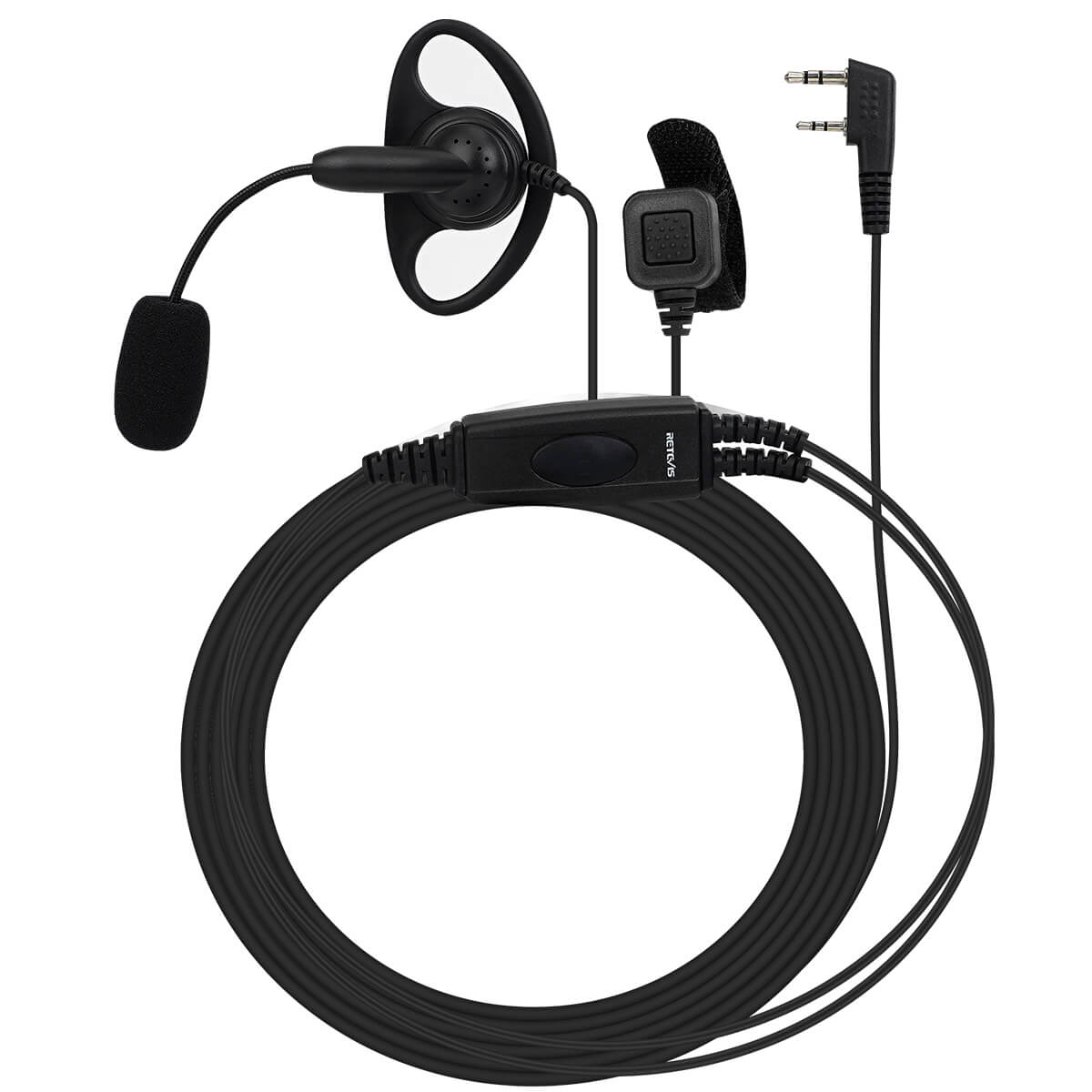

Retevis EEK020 Dual PTT Kenwood 2 Pin D-Ring Earpiece

Comfortable to Wear

D-ring style earpiece fits over your ear and sits securely in place. In the process of walking even running, it is not easy to fall and can efficiently ensure communication safety and timeliness.

Crystal Clear Sound

High-quality microphones and loudspeakers offer crystal-clear audio output and input. It can ensure you efficiently communicate with your colleagues in noisy environments.

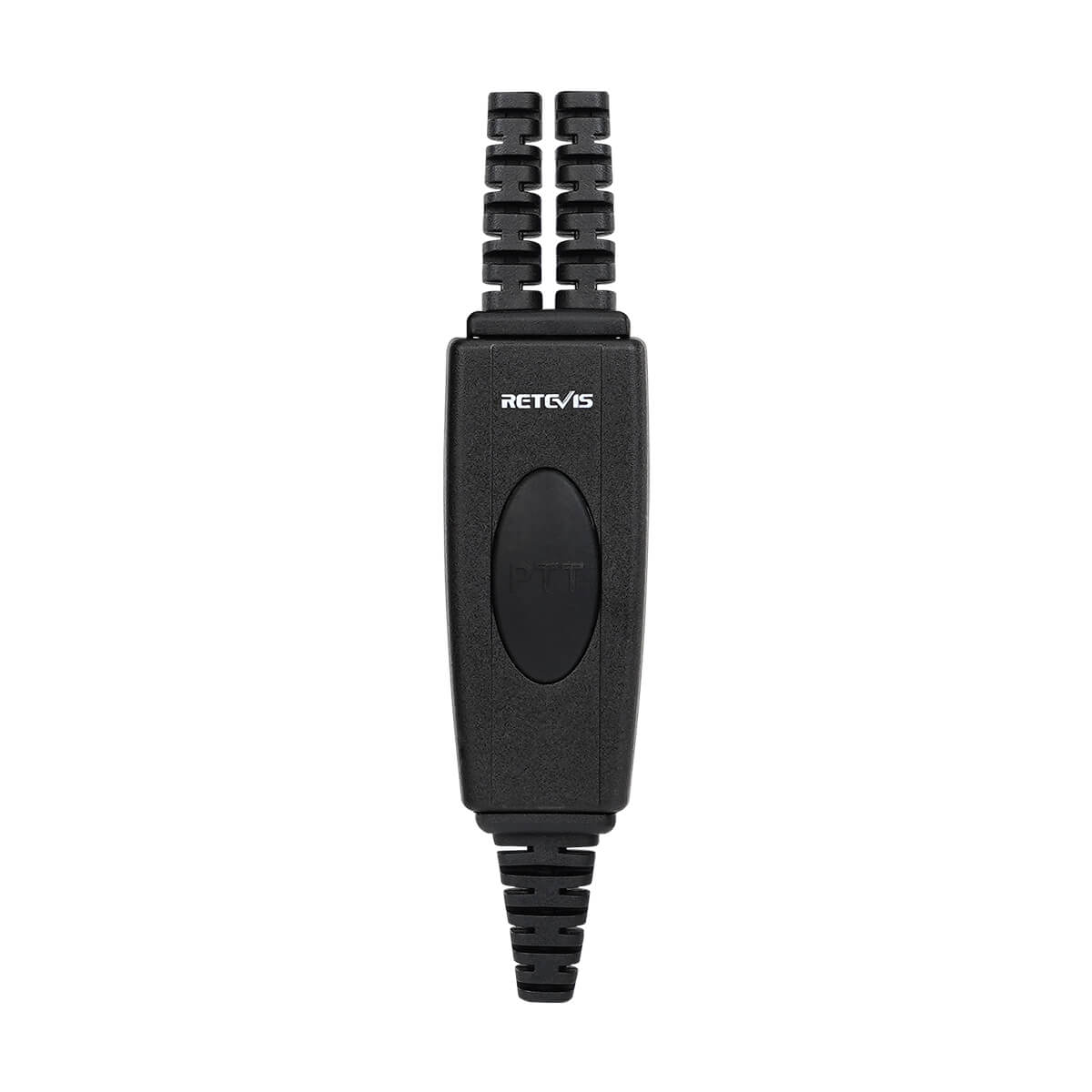

Dual PTT Button

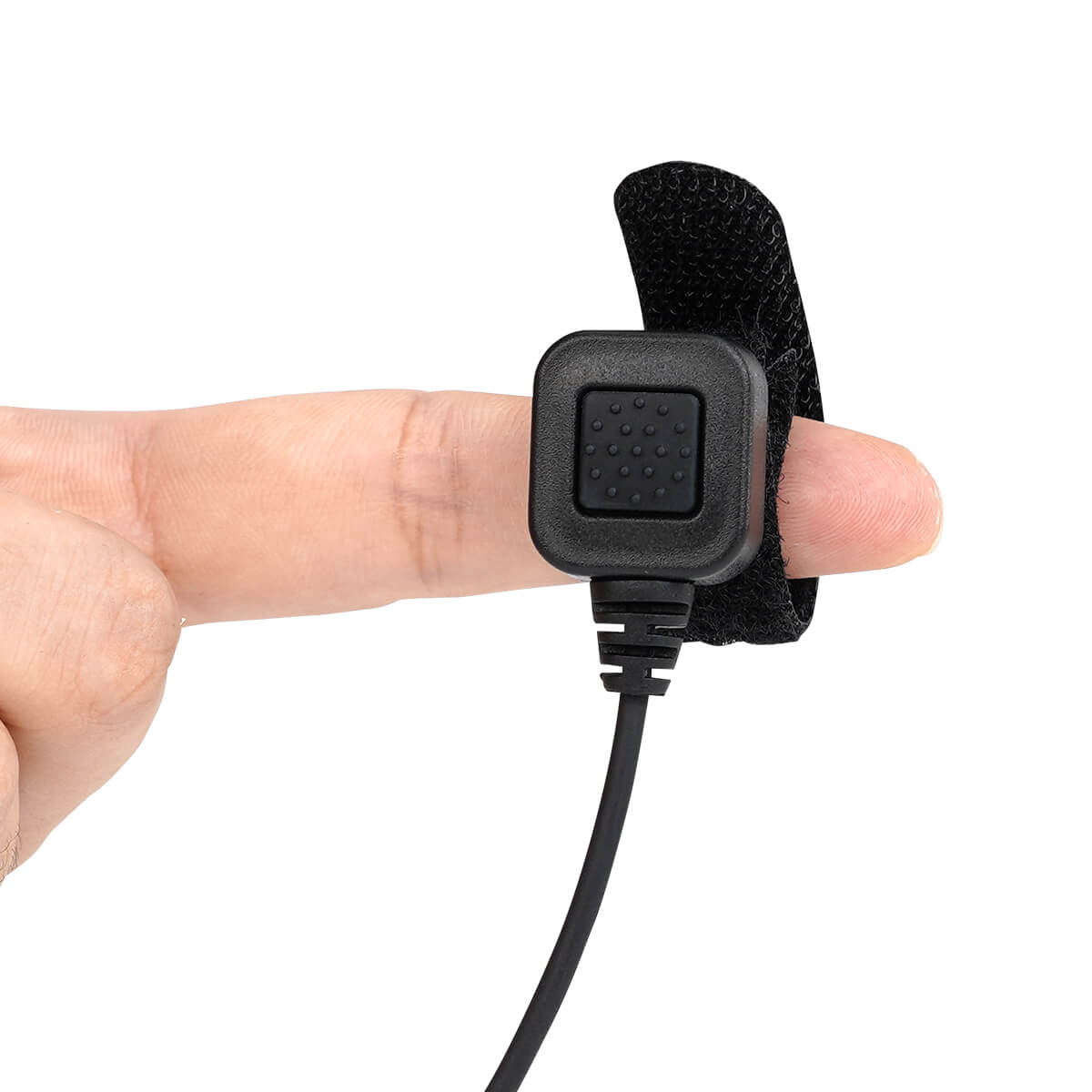

With Velcro, the finger PTT can be wrapped with the finger. Inline PTT can be clipped to the collar through the rotatable stainless clip. When communicating, you don’t need to take the walkie-talkie for hands-free operation.

Universal Compatibility

The EEK020 is KENWOOD 2-pin and the EEM004 is Motorola 2-pin. The earpiece has universal radio compatibility. For specific models, please refer to the chart below.

Note: When purchasing, refer to the right model. If not sure, please contact our customer service, and we will help you find the correct one.

Compatible with all two-way radios with the Kenwood 2-pin K1 type connector (some examples below)

Retevis: H-777, RT21, RT22, RT-5R, RT-5RV, H-777S, RT1, RT2, RT5, RT7, RT15, RT17, RT18, RT19, RT23, RT26, RT27, RT28, RT43, RT46, RT50, RT52, RT53  RT56  RT66 RT67, RT68, RT71  RT76, RT80, RT81, RT85, RT97, RT27V, RT47V, RB17, RB18, RB19

BTECH: DMR-6X2, UV-5X3, GMRS-V1, MURS-V1

BaoFeng: BF-F8HP, UV-5R Series, BF-888S, UV-3R+, UV-82C, UV-82HP, UV-82 Series

Kenwood KPG: KPG27D,KPG29D,KPG48D,KPG49,KPG55D,KPG56D,KPG62D,KPG66D,KPG69D,KPG70D,KPG74D,KPG75D,KPG77D,KPG82D

TH: TH-D7,TH-D7A,TH-D7AG,TH-D7E,TH-F6,TH-F6A,TH-F7,TH-F7E,TH-G71,TH-G71A,TH-G71E,TH-K2,TH-K2A,TH-K2E,TH-K2ET etc.

TK: TK-208/308,TK-220/320,TK-240/340,TK-240D/340D,TK-248/348,TK-250/350/353,TK-260/360,TK-260G/360G,TK-270/370 etc

AnyTone: AT-D868UV, AT-D878UV

TYT: MD-380, TYT MD-390

Arcshell: AR-5, AR-6

Radioddity: GD-77

Hytera Radio: TC-268, TC-268S, TC-270, TC-270S, TC-368, TC-368S, TC-370,TC-370S

PUXING Radio: PX-666,PX-777,PX-777 PLUS,PX-888,PX-999

WOUXUN Radio: KG-659, KG-669, KG-669 PLUS, KG-679, KG-679 Plus, KG-816, KG-819, KG-689, KG-689 Plus, KG-699, KG-UVD1P, KG-UV6D, UV-8D



Spec

Speaker

Dimensions

Φ22mm

Impedance

8Ohm±15%AT 1.0KHz

Sensitivity

126±3 dB/ 1KHz

Distortion

<5% Rated Input at 1KHz

Frequency Response

200HZ~ 20KHZ

Rated input power

10Mw

Maximum input power

15MwFor 1 Minute

Microphone

Types

Omnidirectional

Dimensions

Φ6.0x5.0mm

Sensitivity

-52±3dB/U=2V 1KHz

Product Reliability Assurance Test

Storage / Work Environment

-40~70; 24H

Drop

152.4cm; 10 times

Bending (Cable)

±90°; 30cycles/min; 200g load; 10000 cycles

Pulling (Cable)

Cable pulling force: 3Kgf;

Plug pulling force :2Kgf;

PTT Life

50000 cycles

Features

Features:

  • All of our items are brand new.
  • Secure D-ring style earpiece with flexible long boom microphone can be worn on either left or right ear for discreet communication.
  • High-quality microphone and large speaker deliver clear and crisp audio.
  • 2-wire design with remote Velcro finger push-to-talk button for more flexibility.
  • Clip-on unit includes inline push-to-talk button and stainless steel clip that rotates 360º for easy use.
  • High-grade strain reliefs help protect cables from excessive bending and pulling.
  • Kenwood 2Pin connector plug for most of popular two-way radios.



Applications:

This 2-wire coiled top cable in-ear bud earpiece for two-way radios is suitable for a wide range of commercial and outdoor applications, such as: cycling, motorcycling, football coaches, law enforcement agencies, retail stores, big box stores, restaurants, event coordinators, security companies, casinos, resorts, night clubs, hotel personnel/housekeeping, film crews, museum security, crowd control at conventions and concerts, and more for discrete communications.
