This antenna features a 2dBi with up to 20 Watts of power. It is 7.87in(20cm) in length and weighs 1.05oz(30g)
Add To Cart
Description

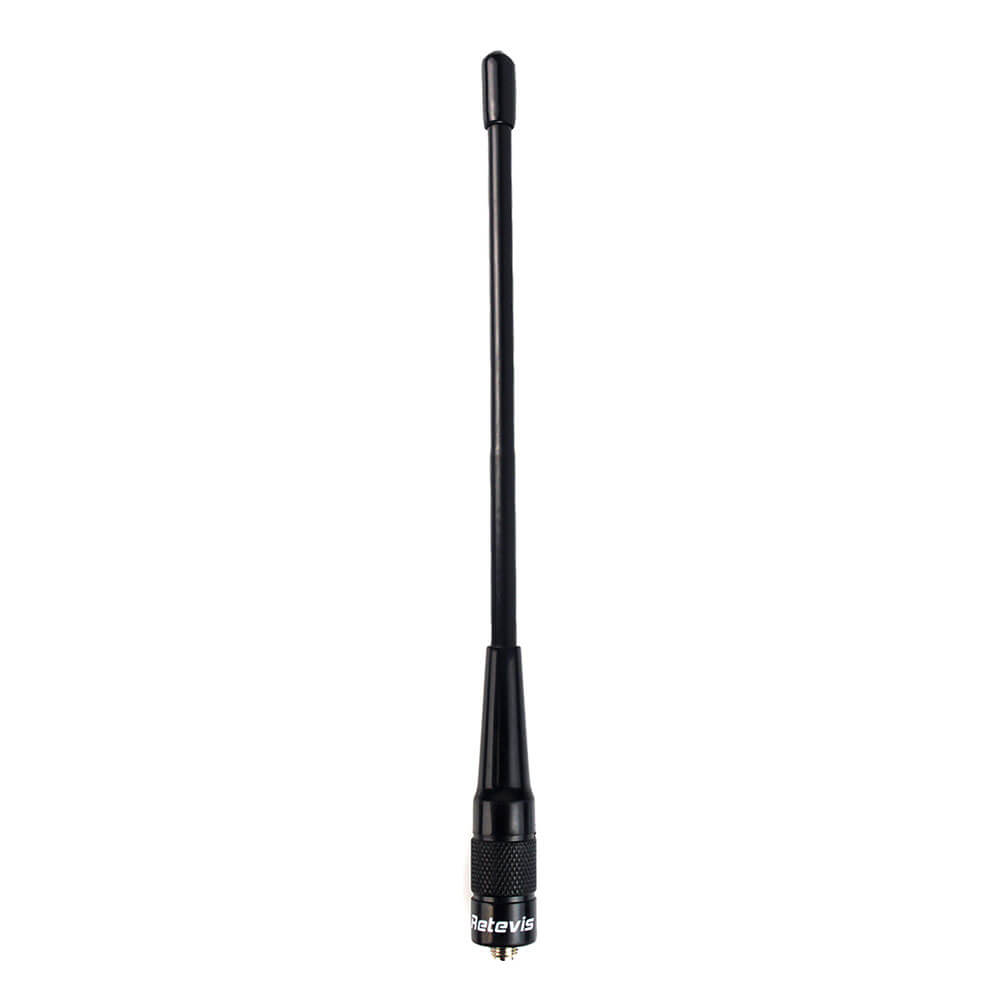

High Gain Antenna RHD-701 SMA-Female Dual Band VHF/UHF (144/430Mhz) 8.46in For RETEVIS H-777/RT5/RT6/RT7/RT23
Description:
The Original Retevis RHD-701 SMA-F high gain Antenna will allow you to get longer range on your handheld radio, like Retevis RT-5R, H-777, RT5R, BaoFeng 888s, and UV-5R radio. This antenna features a 2dBi with up to 20 Watts of power.
It is 8.46in(21.5cm) in length and weighs 1.05oz(30g)
Specification
Band: Dual band VHF/UHF

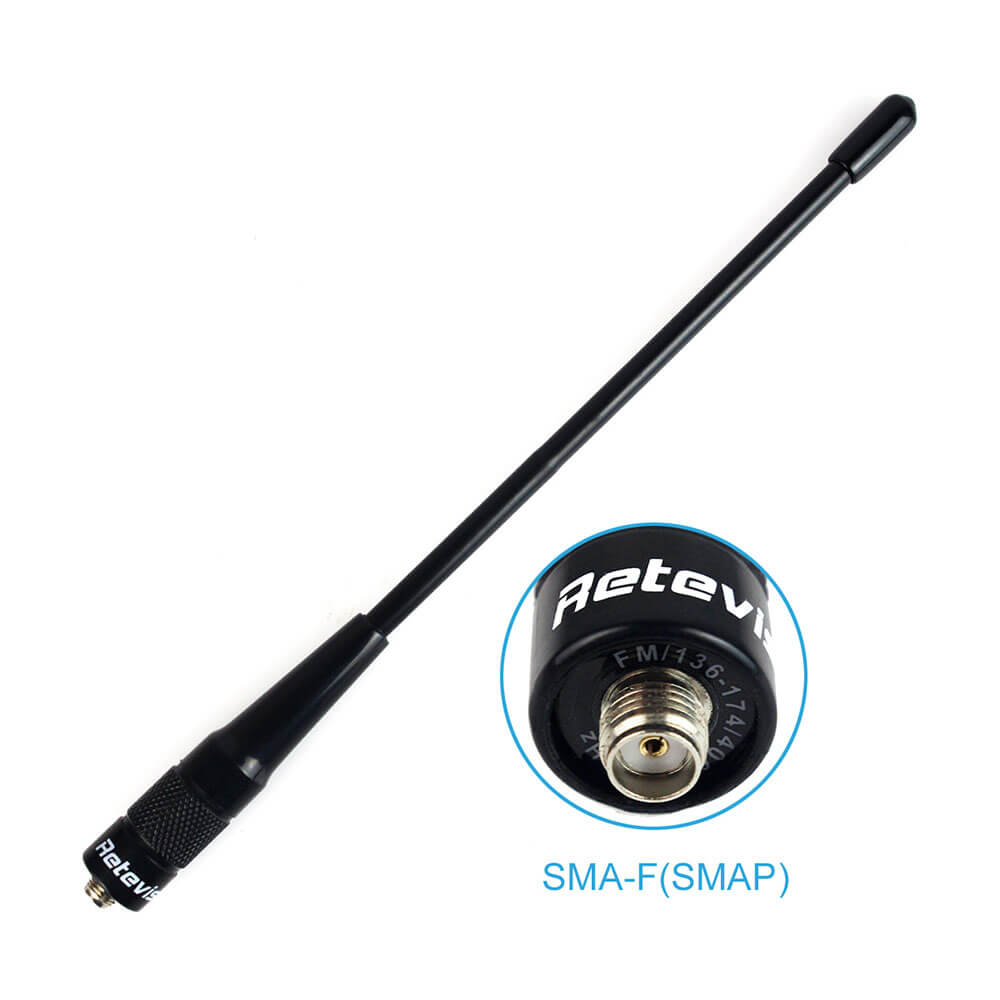

Antenna type: SMA-F Soft Antenna
Frequency: 144/430Mhz(136-174+400-470)MHz
Gain: 2dBi
Max power: 20 Watts
VSWR: ＜1.5

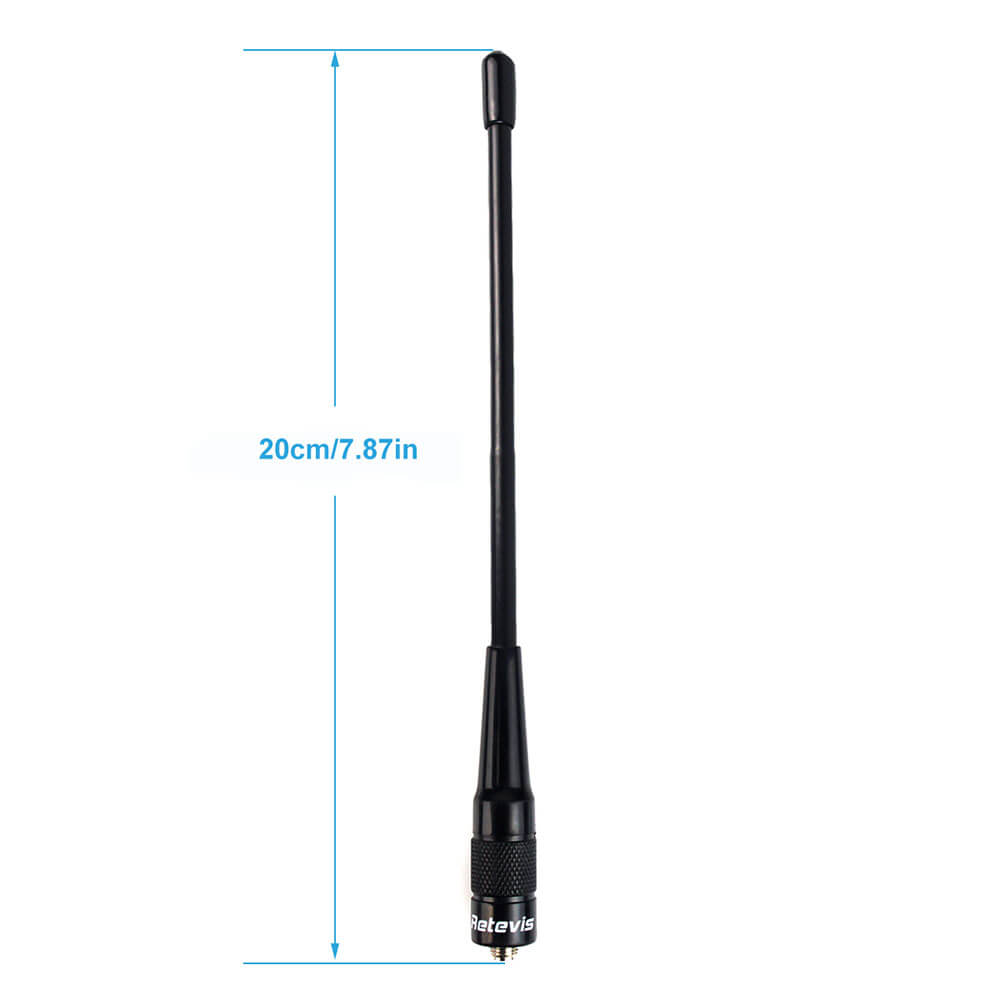

Length：21.5cm/8.46 In(approx)
Weight：34g/1.05oz

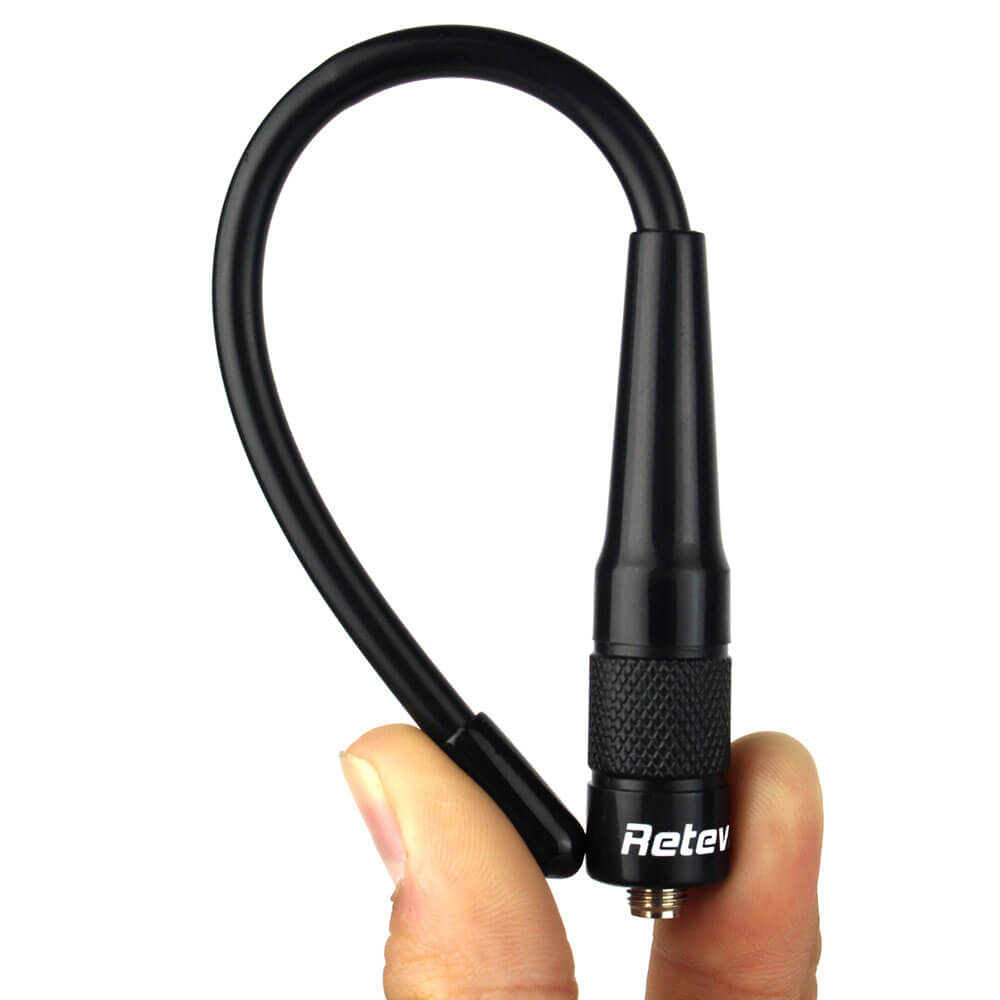

Fairly Flexible
Well made, lightweight, and sturdy; flexible enough to bend 180 degrees at a fairly sharp angle and still whip back. Allowing you to stock and carry easily.
Working as Expected
It could significantly increase the transmit range; the antenna fits snugly on the radio, with no trimming, and stays on tighter for long period of use.
Compatible with
Retevis: RT-5R/RT-5RV/RT5/RT21V/RT7/RT6/RT23/RT25/RT26/RT80/RT29/RT84/RT52/RT53/RT54/RT56/RT43
Ailunce HD1
Kenwood: TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G,TK-370,TK-370G,TK-372,TK-372G,TK-3100,TK-3140,TK-3160,TK-3170,TK-3180,TK-3200,TK-3202,TK-3207 and more
HYT: TC-268,TC-268S,TC-368,TC-368S,TC-370S,TC-500-TC-500S
LINTON: LT-3288,LT-6288,LT-3188,LT-2188,LT-3260,LT-3268,LT-6188
WOUXUN: KG-UVD1P,KG-UV6D,KG-689,KG-689Plus,KG-669,KG-669Plus,KG-659,KG-699E,KG-859,KG-879,KG-929
PUXING: PX-777,PX-777Plus,PX-666,PX-888,PX-888K
QUANSHENG: TG-K4AT,TG-K100,TG-K200,TG-K58Mini,TG-6A,TG-5A,TG-620,TG-5A Plus,TG-K4AT(UV),TG-360 and so on.
Specification
| 100% brand new and high quality | |
| Model | RHD-701 |
| Band | Dual-band VHF/UHF |
| Antenna type | SMA-F Soft Antenna |
| Frequency | 144/430Mhz(136-174+400-470)MHz |
| Gain | 2dBi |
| Max power | 20 Watts |
| VSWR | Less than 1.5 Downwards |
| Impedance | 50ohm |
| Connector Type | SMA-F(Female) |
| Omni Polarization | Vertical |
| Radiation | Omni |
| Material | ABS and Heat shrinkable sleeve |
| Length | 20cm/7.87in |
| Weight | 34g/1.05oz |
| Color | Black |
| Widely used on handheld Radios with an SMA female interface | |
| Applications model | |
| Kenwood | TK-360,TK-370,TK-370G,TK-372,TK-372G,TK-3100,TK-3140,TK-3160,TK-3170,TK-3180,TK-3200,TK-3202,TK-3207 |
| RETEVIS | H-777,RT-5R,RT-B6,RT-5RV,888s Plus,RT5,RT6,RT7 |
| BAOFENG/Pofung | BF-666s,BF-777s,BF-888s,UV5R,UV5RA,UV-5RB,5RC,5RD,UV-6,UV-8,5RE plus,BF-F8+,UV-B6,UV-B5,BF-K5,BF-A5,BF-A58,UV-A52,UV-82 |
| HYT | TC-268,TC-268S,TC-368,TC-368S,TC-370S,TC-500-TC-500S |
| LINTON | LT-3288,LT-6288,LT-3188,LT-2188,LT-3260,LT-3268,LT-6188 |
| WOUXUN | KG-UVD1P,KG-UV6D,KG-689,KG-689Plus,KG-669,KG-669Plus,KG-659,KG-699E,KG-859,KG-879,KG-929. |
| PUXING | PX-777,PX-777Plus,PX-666,PX-888,PX-888K |
| QUANSHENG | TG-K4AT,TG-K100,TG-K200,TG-K58Mini,TG-6A,TG-5A,TG-620,TG-5A Plus,TG-K4AT(UV),TG-360. |
| For most handheld radio. | |
Package Detail
-
1 x Retevis RHD-701 VHF/UHF SMA-F Antenna
