- 4.5/7.2 dBi High Gain Fiberglass Antenna
- UV Frequency Band 144/430MHz
- SL16 Connector, Compatible with Retevis RT97 Repeater
Payment Methods
Delivery Method

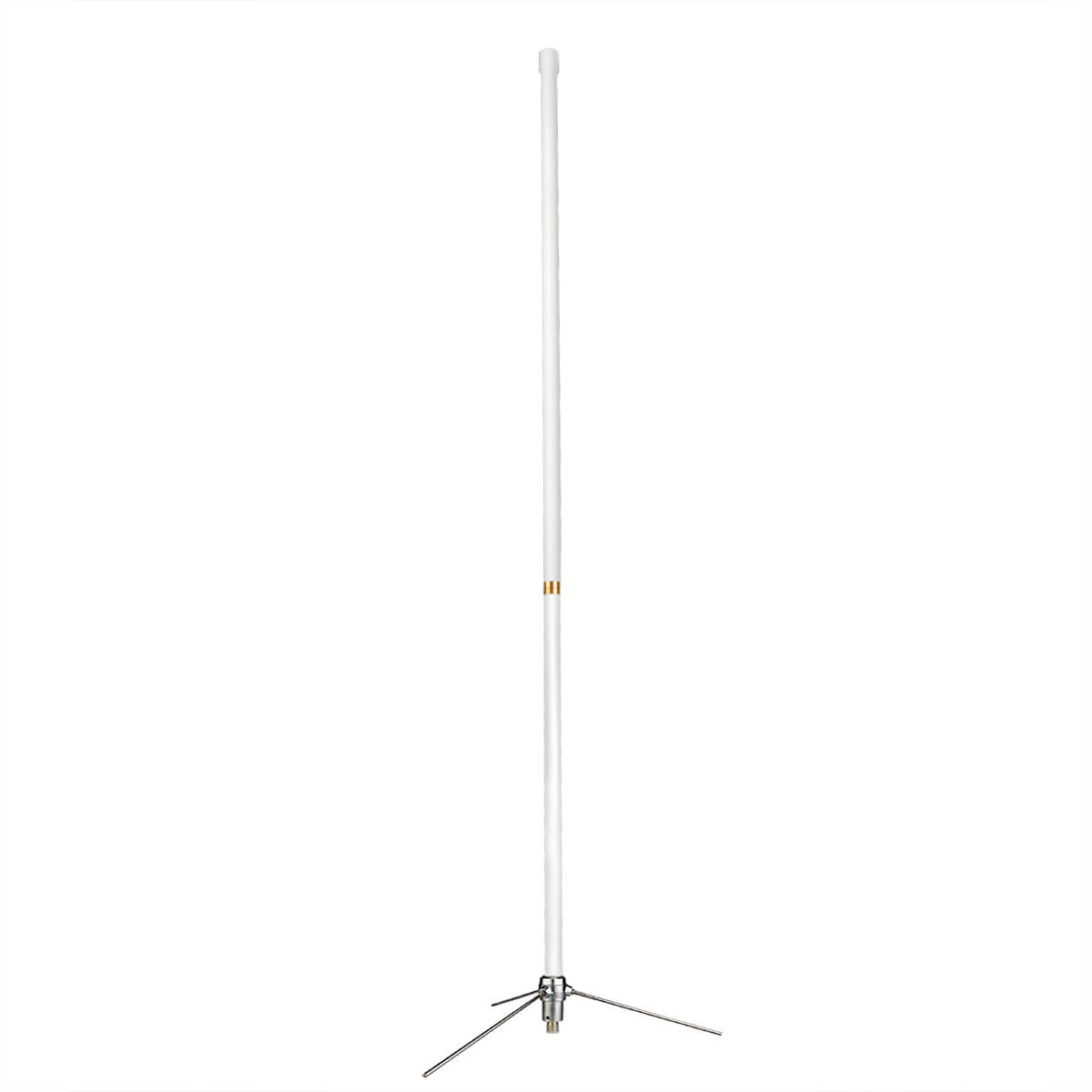

The antenna is Omnidirectional base station antenna, support UHF and VHF bands, with high gain, wide bandwidth, low standing wave ratio, waterproof, anti-corrosion with high strength and high-quality glass steel package, strong wind resistance characteristics, is a kind of ideal communication antenna, antenna design style, easy disassembly and assembly and convenient use.
MA02 antenna is SL16-K connector
Height: 1750mm
Wind rating: 50-60m/s
Specification:
| Frequency | 144/430MHz |
| VSWR | <1.5 |
| Impedance | 50Ω |
| Gain | 4.5/7.2Bi |
| Polarization | Vertical |
| Maximum power input | 200W |
| Horizontal beam width | 360° |
| Vertical beam width | 30° / 19° |
| Connector | SL16-K |
| Radome material | fiberglass |
| Material of hardware-supplied | aluminum alloy |
| Hold pole diameter | Ø30~Ø62 mm |
| Suitable for models | Retevis RT97/RT9550/RT92 |
| Weight | 1150g |
Package Includes:
1 x MA02 Antenna
2 x Fixing ring
2 x Fixing screw
