OverView

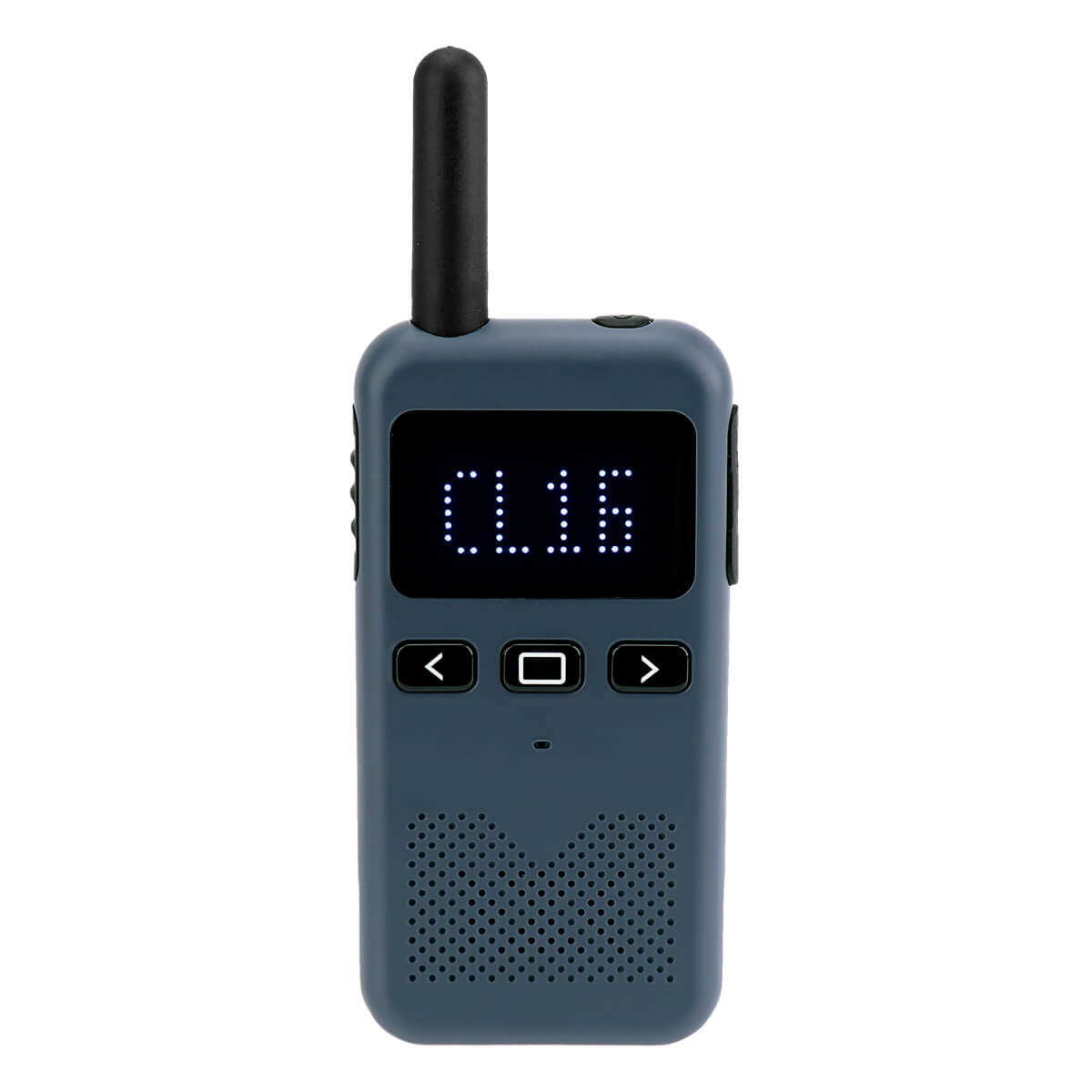

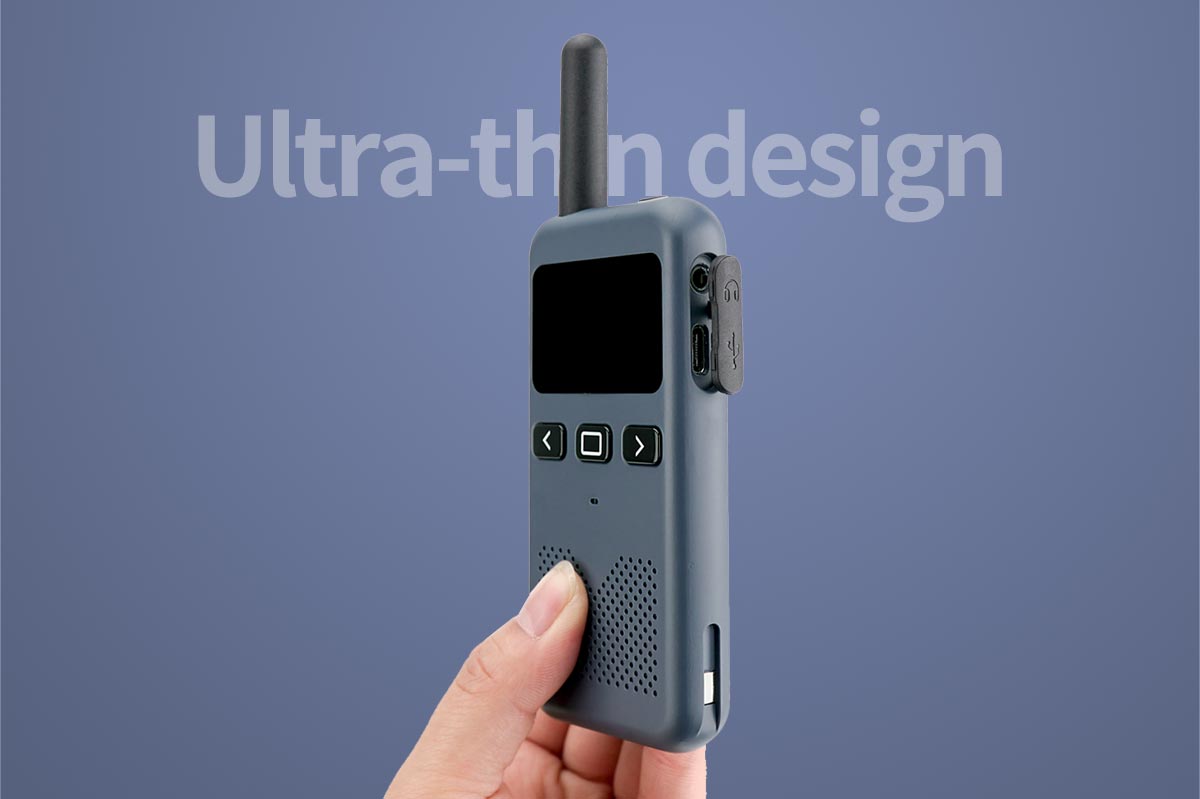

Portable and Compact
The thickness of RB19 FRS Radio is only 0.6 inches, and it weighs 0.22 pounds. You can easily put it in your pocket like a smartphone during indoor or outdoor activities.
Good Battery Life
Comes with the Built-in 1650 mAh lithium battery. Supports 10–12 hours of frequent use on a single charge. It also has power saving mode and low battery saving.

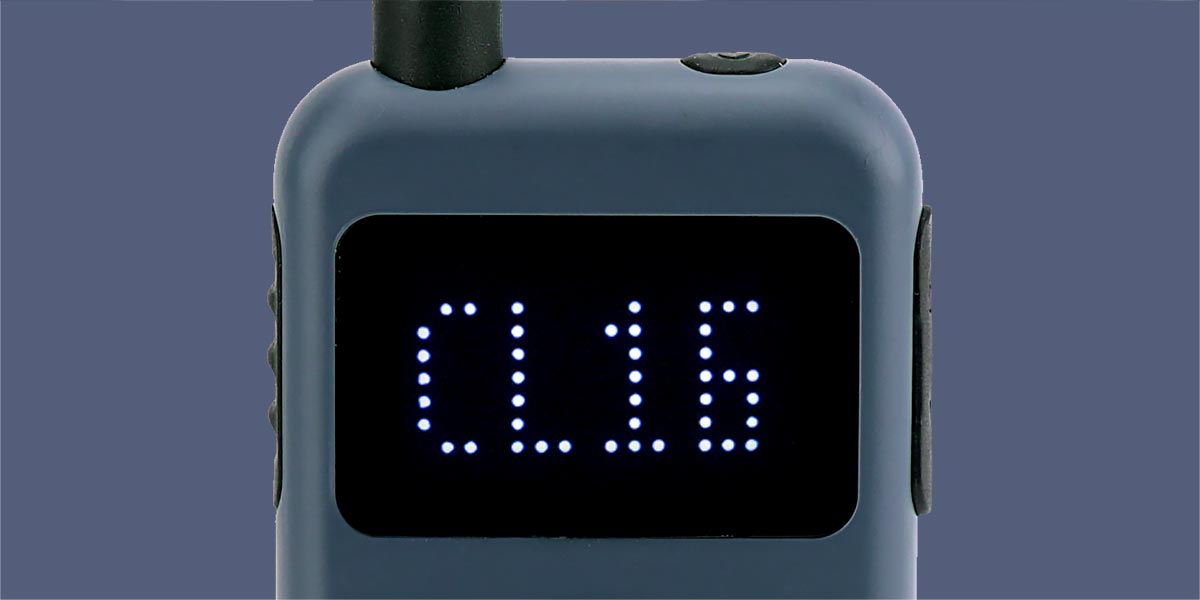

Clearer and Brighter Screen
RB19 FRS radios designed with 1.7 inches dot matrix screen, compared with other ordinary screen, it can provide you with a clearer and easier operation.

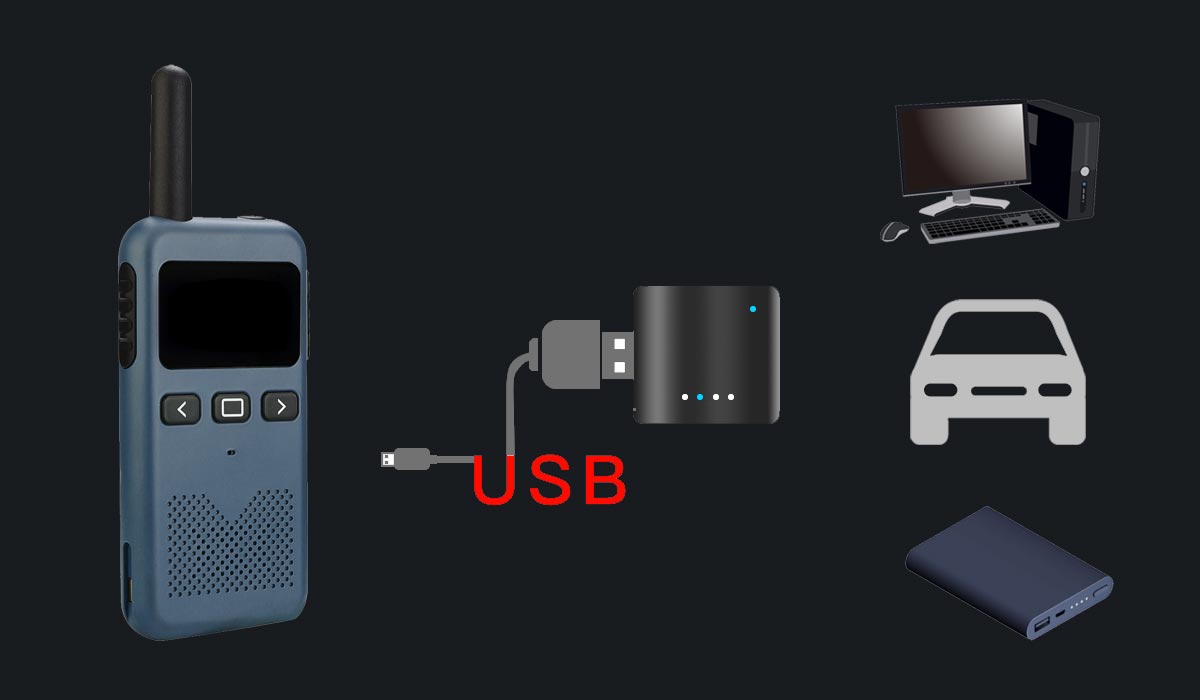

Support Type-C Charging
Come with Type-C Charging Cable and adapter. It is easy to find a way to recharge the radio.
Make Your Calls Private
RB19 has 50 CTCSS/208 DCS codes, so that you will not be disturbed by strange calls.
Spec
| Specification | |
| Frequency range | 462.5500-467.7125MHz |
| Supply Power | DC3.7V |
| Memory Channel | 22 |
| Antenna Configuration | Integrated antenna |
| Battery | Built-in 1650mAh lion battery |
| Work Mode | Co/Differ-frequency Simplex Communication |
| Ground Method | Cathode |
| Working temperature range | -30°~+60° |
| Transmitter | |
| Output Power | ≤2W |
| Modulation Mode | FM(F3E) |
| Max. Frequency Deviation | ≤5KHz |
| Spurious Radiation | ≤7.5μW |
| Preemphasis Character | Per Octave 6dB |
| Emission Current | ≤1000mA |
| Receiver | |
| Sensitivity | ＜0.16μV(12dB SINAD) |
| Audio power | ≥300mW |
| Audio Distortion | ＜5% |
| Itermodulation Interference Resistance | ≥60dB |
| Receiving Current | ≤300mA |
| Standby Current | ≤20mA |
Feature
Features:
Monitor Function
Scan Function
VOX Hands-Free
Time Out Timer
Keyboard Lockout
Power Display
Busy Channel Lock
Power Saving Mode
Low Battery Warning
Voice Companding
Special Signaling
50 CTCSS/208 DCS
Volume Memory Function: The default volume is lower than before. Turning on again is still the volume you set last time.
Product Reviews
Support
Firmware/Software
Firmware/Software
- RB19-US-FRS-V1.41
Unzip: Windows 64bits：https://www.7-zip.org/a/7z2201-x64.exe
- USB-universal-Driver
